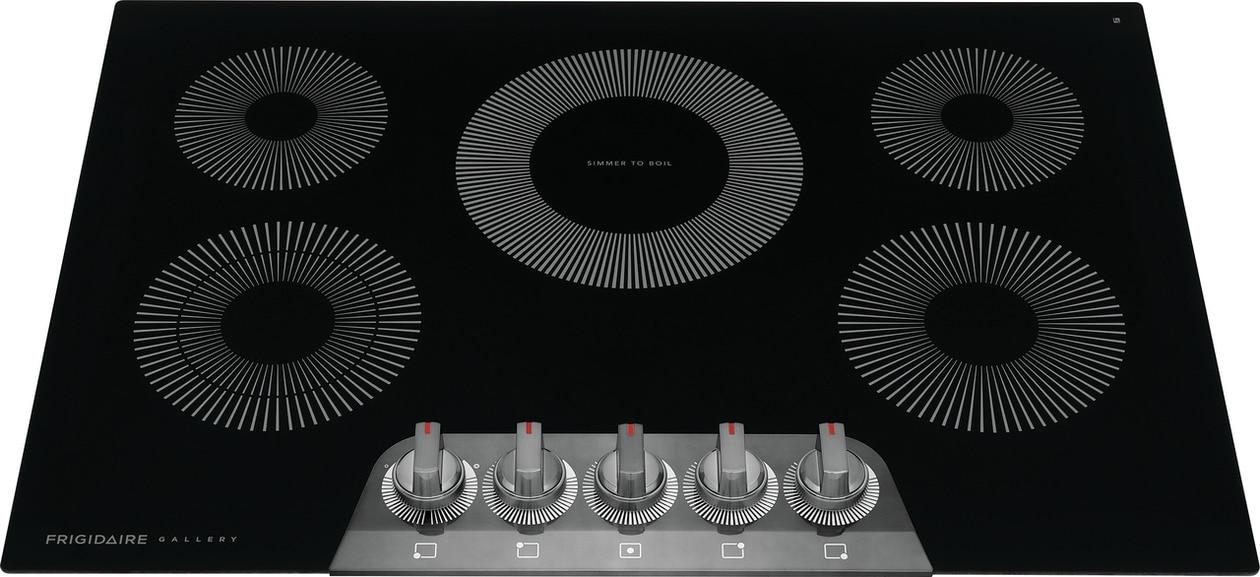

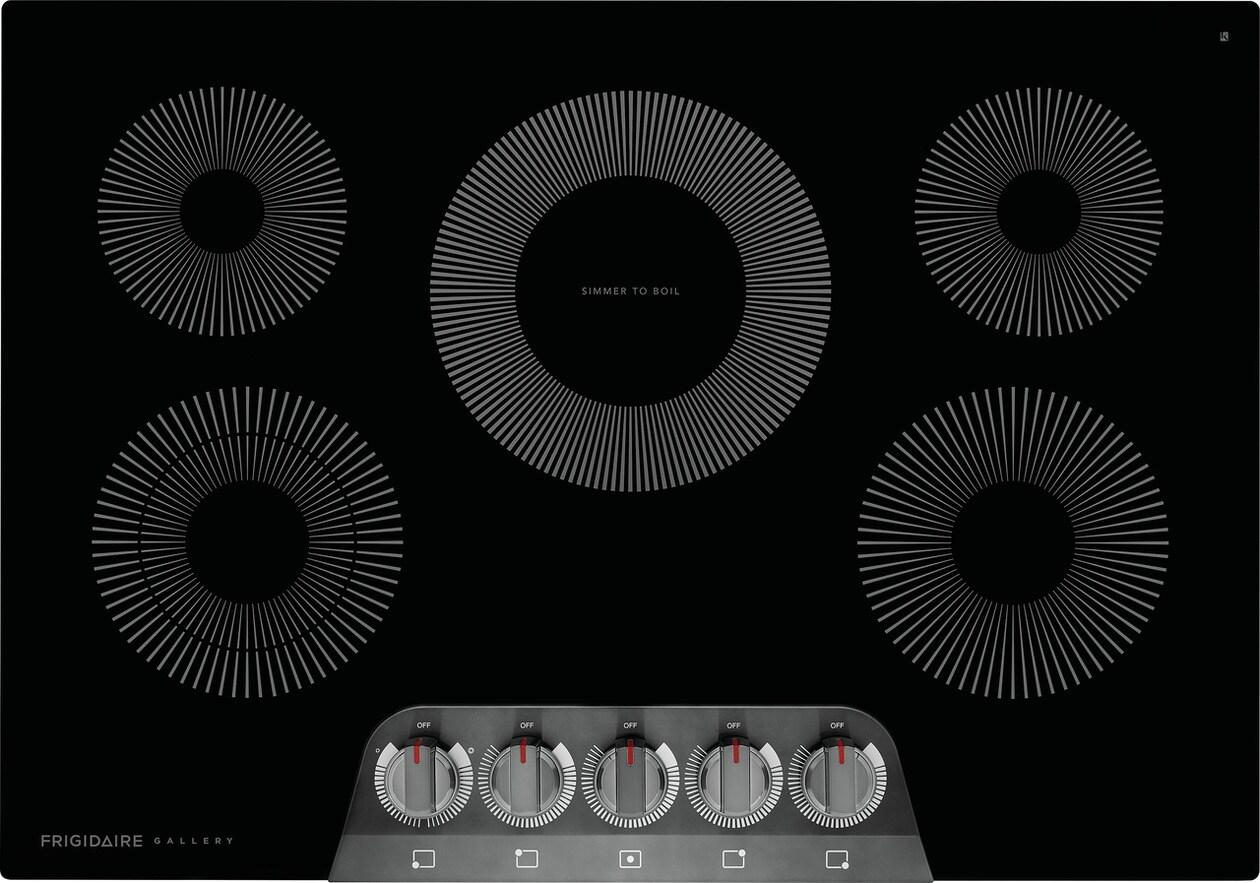

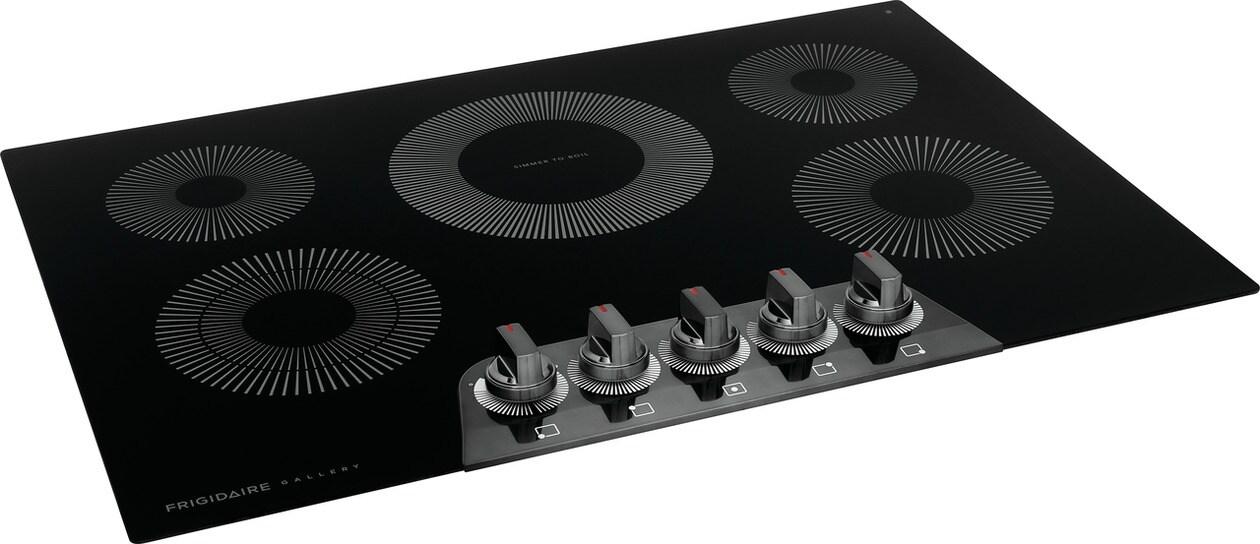

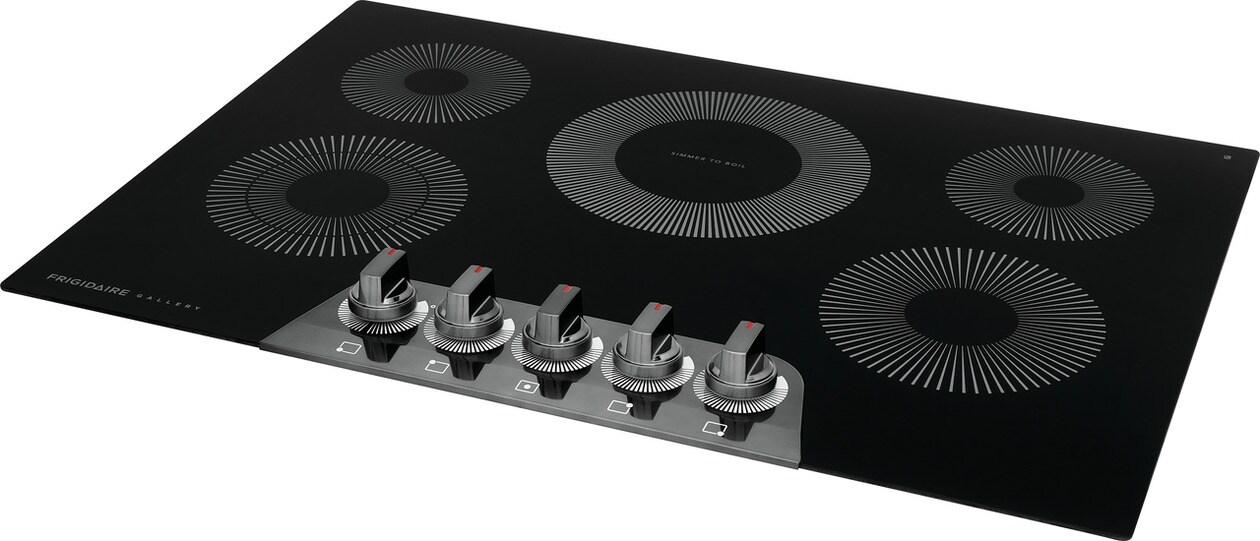

Frigidaire GCCE3070AD Frigidaire Gallery 30" Electric Cooktop
Rebates &
Promotions
Consistent Results with the Even Temp™ element
With our EvenTemp™ cooktop technology, heat is evenly distributed across the element's surface, which reduces hot spots and cold areas in your pan.
Flexible Five Element Cooktop
With five elements, this cooktop is designed to handle all of your cooking needs, including our powerful 3,200 Watt EvenTemp™ Element, a Dual Expandable Element, and convenient Keep Warm Zone.

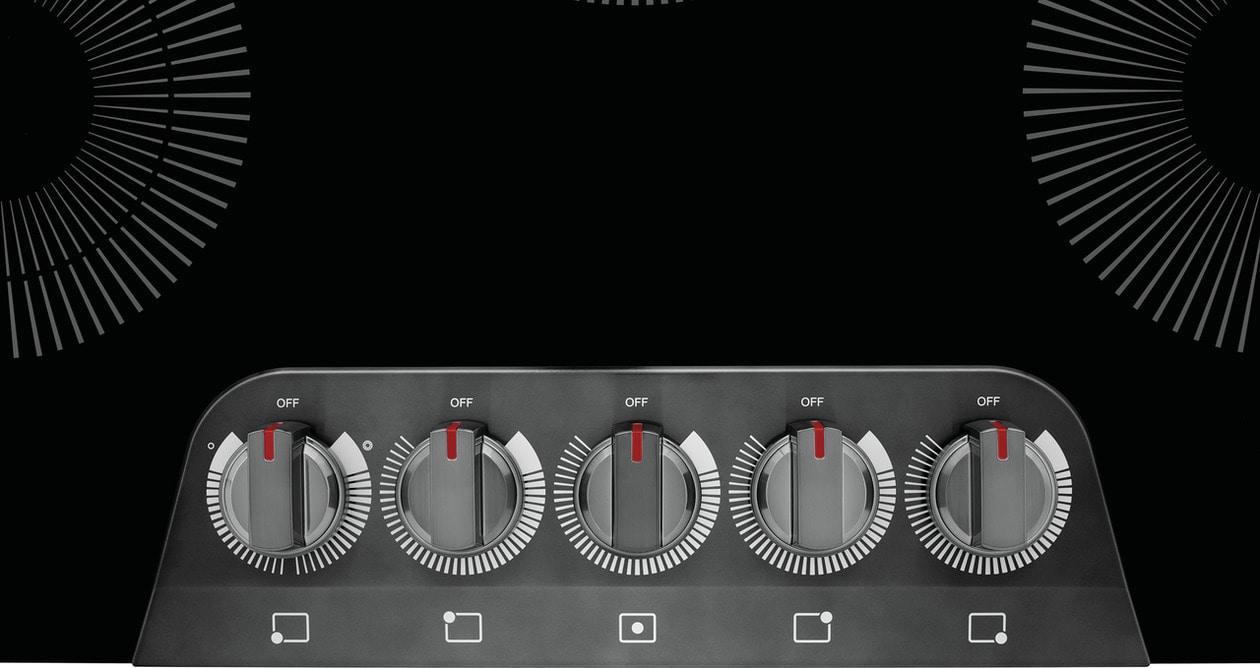

Backlit LED Knobs
Backlit LED knobs light up when your element is in use.
Peace of Mind with the Frigidaire® Fit Promise
We promise that your new 30" Frigidaire radiant cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100. * Via mail-in rebate. See https://www.Frigidaire.com/FitPromise for additional information.
SpaceWise® Dual Expandable Element
Our convenient 2-in-1 element expands from 5" for smaller pots to 7" for larger cookware, providing more cooktop flexibility.
Cooktop Keep Warm Zone
Keep food warm until everything - and everyone - is ready.
- Consistent Results with the Even Temp™ element
- Flexible Five Element Cooktop
- Backlit LED Knobs
- Peace of Mind with the Frigidaire® Fit Promise
- SpaceWise® Dual Expandable Element
- Cooktop Keep Warm Zone
- Easy to Use Front Controls
- Clean Up is Easier with the Ceramic Glass Cooktop
- Approved Over Frigidaire® Electric Wall Ovens
Product Line | Electric Cooktop |
Power Type | Electric 240v |
Size | 30' |
Installation Type | Built-In |
Factory | Rayong |
Color | Black Stainless Steel |
Cooktop | |
Cooking Surface Type | Smooth |
Hot-Surface Indicator Light | Yes |
Cooktop Performance | |
Right Front Element Burner Size | 7' |
Right Rear Element Burner Size | 6' |
Left Front Element Burner Size (Small) | 5' |
Left Front Element Burner Size (Large) | 7' |
Left Rear Element Burner Size | 6' |
Center Rear Element Burner Size | 9' |
Right Front Element Burner | 1800 Watts |
Right Rear Element Burner | 1200 Watts |
Left Front Element Burner (Small) | 750 Watts |
Left Front Element Burner (Large) | 1800 Watts |
Left Rear Element Burner | 1200 Watts |
Center Rear Element Burner | 3200 Watts |
Controls | |
Sabbath Mode | No |
Display | |
Control Location | Front |
Display Type | Mechanical |
Dimensions and Volume | |
Height | 2 5/8' |
Width | 30 5/8' |
Depth | 21 3/8' |
Cutout Height | 5' |
Minimum Cutout Width | 28 1/2' |
Minimum Cutout Depth | 19 5/8' |
Maximum Cutout Width | 29 7/8' |
Maximum Cutout Depth | 20 1/2' |
Electrical Specifications | |
Amps @ 240 Volts | 38.3 Amps |
Connected Load @ 240V | 9.2 kW |
Minimum Circuit Required | 40 Amps |
Voltage Rating | 240 V |
General Specifications | |
Frigidaire Fit Promise | Yes |
Product Weight | 31 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
Installation | |
Installed Over a Wall Oven | Yes |
Power Supply Connection Location | Right Center |
Certifications and Approvals | |
ADA Compliant | Yes |
CSA Listed | Yes |
UL Listed | Yes |
