Frigidaire GDPH4515AD Frigidaire Gallery 24" Built-In Dishwasher
Rebates &
Promotions
Skip Pre-rinsing with DishSense® Sensor Technology
Get better cleaning results with our sensor technology that adjusts cleaning performance based on the soil level of your dishes.
Complete clean from every angle with OrbitClean®
OrbitClean® wash system uses a rotating wash arm with multi-directional spray patterns to provide maximum coverage without using more water.
Forget the hand towel with MaxBoost™ Dry
MaxBoost™ Dry technology uses heating and a fan to push out moist air and pull in fresh, dry air so you don't have to hand dry.
Sanitize Option
Remove 99.9% of common household bacteria with NSF-Certified Sanitize Option.
Energy Star® certified
This ENERGY STAR® Certified dishwasher uses about 1/4 of the amount of water vs. washing dishes by hand and saves both energy and money.
Height: 33.50”
Depth: 25"
- 14 Place Settings
- Detergent Dispenser
- Hard Food Disposer or Filtration
- Rinse Aid Dispenser
- Smart Soil Sensor
- Status Indicator Floor Beam
- Tall Tub
- 5 Wash Levels
- 5 Cycles
- Air Dry
- Heated Dry
- Start/Cancel
Product Line | Dishwasher |
Power Type | Electric 120v |
Size | 24' |
Installation Type | Built-In |
Factory | Kinston |
Color | Black Stainless Steel |
Installation | |
Connection Location | Right Bottom |
Number of Leveling Legs | 4 |
Water Inlet Location | Left Bottom Front |
Dishwasher Options | |
Air Dry | Yes |
Drying System | MaxBoost |
Heated Dry | Yes |
High Temperature | Yes |
Start/Cancel | Yes |
Dishwasher | |
Detergent Dispenser | Yes |
Filter Material | Stainless Steel |
Filter Trap | Removable |
Filtered Water | 100 % |
Hard Food Disposer or Filtration | Yes |
Interior Light | No |
Motor Speeds | Single-Speed |
Place Setting Capacity | 14 |
Rinse Aid Dispenser | Yes |
Smart Soil Sensor | Yes |
Spray Arm | Orbit |
Status Indicator Floor Beam | Yes |
Tub Color | Midnight Ink |
Tub Design | Tall Tub |
Tub Material | Plastic |
Wash Levels | 5 |
Wash System | Direct Feed |
Water Pressure | 120 psi |
Dishwasher Cycles | |
Energy Saver | Yes |
Heavy | Yes |
Normal | Yes |
Number of Cycles | 5 |
Quick | Yes |
Rinse Only | Yes |
General Specifications | |
Sound Level | 52 dBA |
Annual Energy | 268 kWh |
Product Weight | 56 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
Upper Rack | |
Cup Shelf | No |
Fold-Down | No |
Minimum Height Clearance | 8' |
Rack Coating | Nylon |
Rack Handles | No |
Rack Spacer | Yes |
Rack Type | Adjustable |
Stemware Holder | No |
Exterior | |
Door and Handle Design | Handle |
Door Latch | Pull |
Door Type | StayPut |
Exterior Finish | Smudge-Proof® Black Stainless Steel |
Electrical Specifications | |
Amps @ 120 Volts | 10 Amps |
Connected Load @ 120V | 1.2 kW |
Voltage Rating | 120 V |
Dimensions and Volume | |
Minimum Height | 33 1/2' |
Maximum Height | 35' |
Width | 24' |
Depth | 25' |
Depth With Door Open | 49 1/4' |
Safety Certifications and Approvals | |
UL Listed | Yes |
cUL Listed | Yes |
Meets ASSE 1006 Requirements | Yes |
NSF Certified | Yes |
Performance Certifications and Approvals | |
CEE Tier | Tier 1 |
ENERGY STAR Certified | Yes |

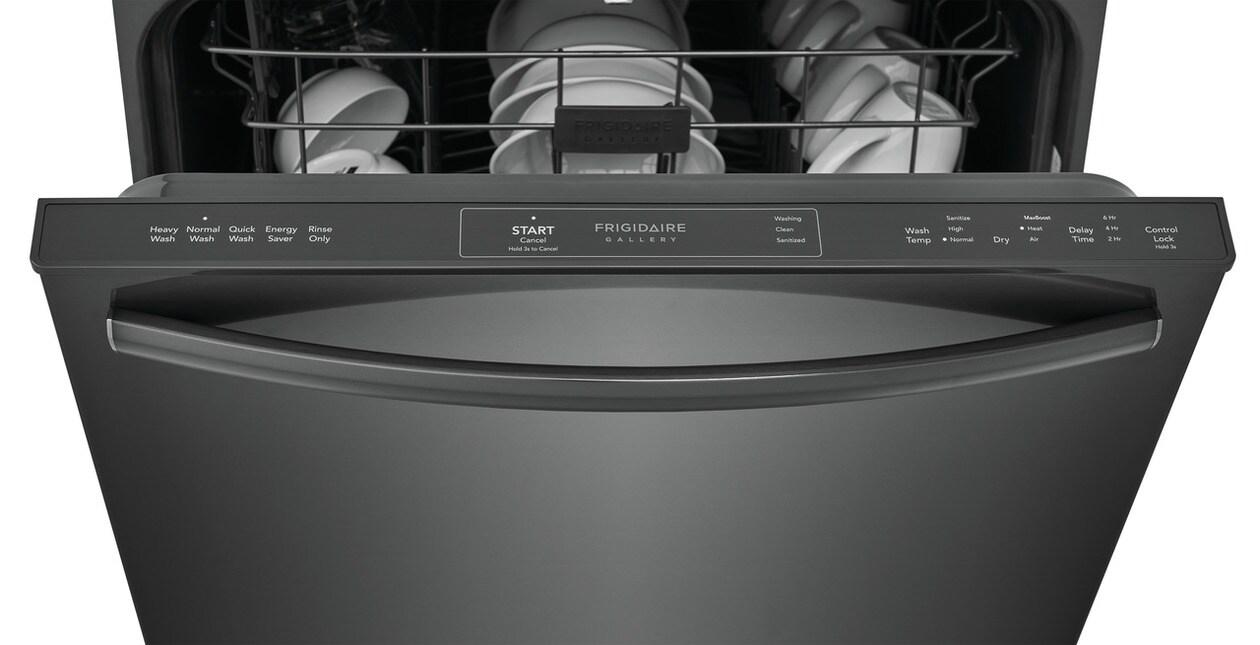

Controls | |
Control Color | Stainless Steel |
Control Location | Top |
Delay Start Hours | 2-6 Hours |
Digital Display | No |
Control Lock | Yes |
Rinse Aid Indicator | Yes |
Lower Rack | |
Fold-Down | No |
Maximum Height Clearance | 13' |
Minimum Height Clearance | 11' |
Number of Silverware Basket | 1 |
Number of Silverware Basket Lids | 3 |
Rack Coating | Nylon |
Rack Type | Standard |
