Frigidaire GDSP4715AF Frigidaire Gallery 24" Stainless Steel Tub Built-In Dishwasher With Cleanboost™
Get better cleaning results with CleanBoost™ technology
Our patented CleanBoost™ Technology premixes water and detergent, dissolving detergent 6x faster helping to remove hard-to-clean and baked-on foods. * As compared to Frigidaire model FGIP2479SF
Sanitize Option
Remove 99.9% of common household bacteria with NSF-Certified Sanitize Option. * Our products meet the NSF® testing standards.
Enhanced drying results with MaxBoost Dry™
MaxBoost Dry™ technology uses heat and a fan to direct moisture out and pull in fresh air that dries your dishes.
Saves over 4000 gallons of water every year
By avoiding hand washing and putting your dishes straight in the dishwasher, not only will you get great cleaning results, you can save over 4000 gallons of water per year. * vs. washing dishes at a running sink for 10 minutes per day
DishSense® Sensor Technology
Skip pre-rinsing with our DishSense® sensor technology that adjusts cleaning performance based on the soil level of your dishes.
Cleans Hard-to-Reach Spots
Clean hard-to-reach spots with our Target Spray Zones that target tough spots for the ultimate clean.
- Get better cleaning results with CleanBoost™ technology
- Sanitize Option
- Enhanced drying results with MaxBoost Dry™
- Saves over 4000 gallons of water every year
- DishSense® Sensor Technology
- Cleans Hard-to-Reach Spots
- Complete clean from every angle with OrbitClean®
- Powerful clean in 30 minutes
- ENERGY STAR® Certified
- Keep your kitchen quiet with 47 dBA
- Premium Capacitive Touch User Interface

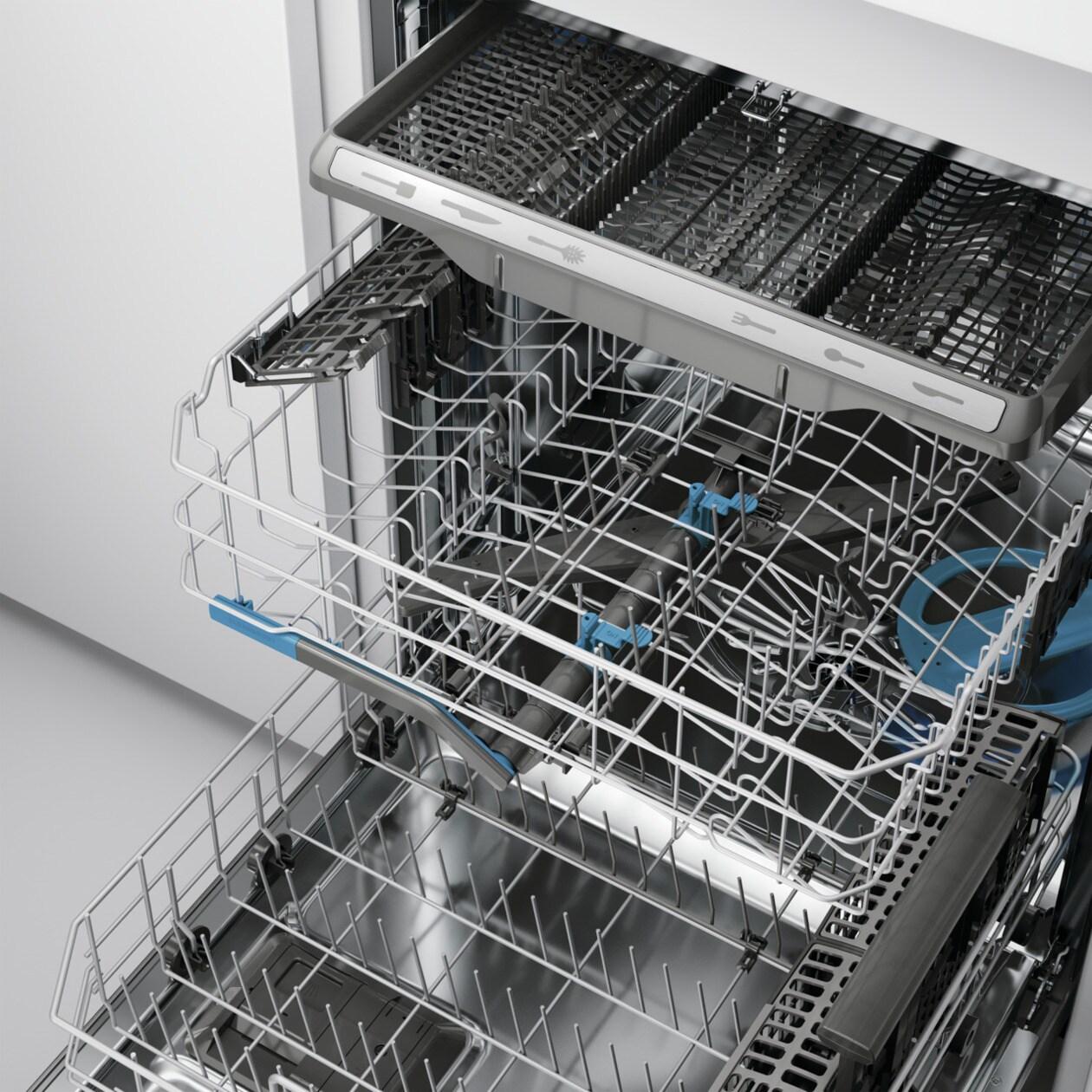

- Third Level Rack
- Easily fits dishes of all sizes with adjustable racks
- Convenient status indicator floor light
- Smudge-Proof™ Stainless Steel
- Protecting your floors against water leaks
Product Line | Dishwasher |
Power Type | Electric 120v |
Size | 24' |
Installation Type | Built-In |
Factory | Solaro |
Color | Stainless Steel |
Dishwasher | |
Automatic Temperature Control | No |
Detergent Dispenser | Yes |
Filter Material | Stainless Steel |
Filter Trap | Removable |
Filtered Water | 100 % |
Hard Food Disposer or Filtration | Yes |
Interior Light | No |
Leak Detection System | Yes |
Motor Speeds | Multi-Speed |
Place Setting Capacity | 14 |
Rinse Aid Dispenser | Yes |
Smart Soil Sensor | Yes |
Lower Spray Arm | Orbit |
Middle Spray Arm | Bi-Beam |
Upper Spray Arm | Spray Arm |
Status Indicator Floor Beam | Yes |
Tub Color | Stainless Steel |
Tub Design | Tall Tub |
Tub Material | Stainless Steel |
Wash Levels | 5 |
Wash System | Direct Feed |
Dishwasher Cycles | |
China Crystal | Yes |
Energy Saver | Yes |
Favorite | Yes |
Heavy | Yes |
Normal | Yes |
Number of Cycles | 7 |
Quick | Yes |
Rinse Only | No |
Sanitize | Yes |
Dishwasher Options | |
Air Dry | Yes |
Dry - Air | Yes |
Dry - Heat | Yes |
Dry - Max | Yes |
Drying System | Even Dry |
Heated Dry | Yes |
High Temperature | No |
Start/Cancel | Yes |
Lower Rack | |
Fold-Down | Yes |
Maximum Height Clearance | 13 1/4' |
Minimum Height Clearance | 11 1/4' |
Number of Silverware Basket | 1 |
Number of Silverware Basket Lids | 2 |
Rack Coating | Nylon |
Rack Type | Adjustable |
Upper Rack | |
Cup Shelf | Yes |
Fold-Down | Yes |
Maximum Height Clearance | 10 3/8' |
Minimum Height Clearance | 8 1/2' |
Rack Coating | Nylon |
Rack Handles | No |
Rack Type | Adjustable |
Stemware Holder | Yes |
Targeted Wash Zone | Yes |
Third Level Rack | |
Third Level Rack | Yes |
Rack Coating | Nylon |
Rack Handles | No |
General Specifications | |
Sound Level | 47 dBA |
Annual Energy | 240 kWh |
Product Weight | 85 lbs |
Prop 65 Label | No |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
Controls | |
Control Color | Black |
Control Location | Top |
Delay Start Hours | 1-12 Hours |
Digital Display | Yes |
Control Lock | Yes |
Rinse Aid Indicator | Yes |
Exterior | |
Door and Handle Design | Wide Pocket |
Door Latch | Pull |
Door Type | StayPut |
Exterior Finish | Smudge-Proof® Stainless Steel |
Dimensions and Volume | |
Minimum Height | 33 3/4' |
Maximum Height | 35 3/4' |
Width | 24' |
Depth | 24 1/4' |
Depth With Door Open | 50 1/4' |
Electrical Specifications | |
Amps @ 120 Volts | 15 Amps |
Voltage Rating | 120 V |
Installation | |
Connection Location | Right Bottom |
Number of Leveling Legs | 3 |
Water Inlet Location | Left Bottom Front |
Certifications and Approvals | |
ADA Compliant | No |
CEE Tier | Tier 1 |
ENERGY STAR Certified | Yes |
UL Listed | Yes |
cUL Listed | Yes |
ETL Listed | Yes |
Meets ASSE 1006 Requirements | Yes |
NSF Certified | Yes |
