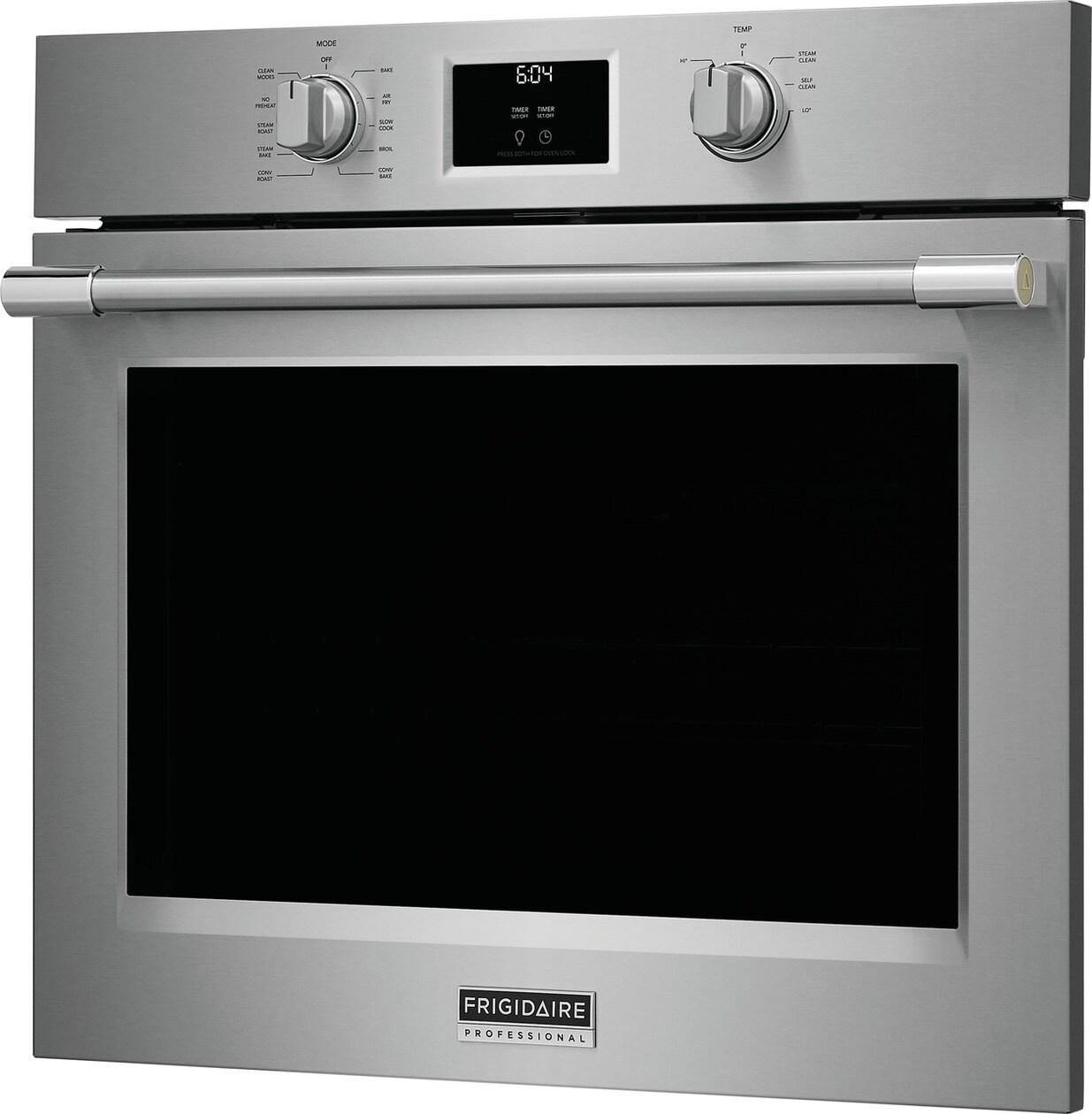

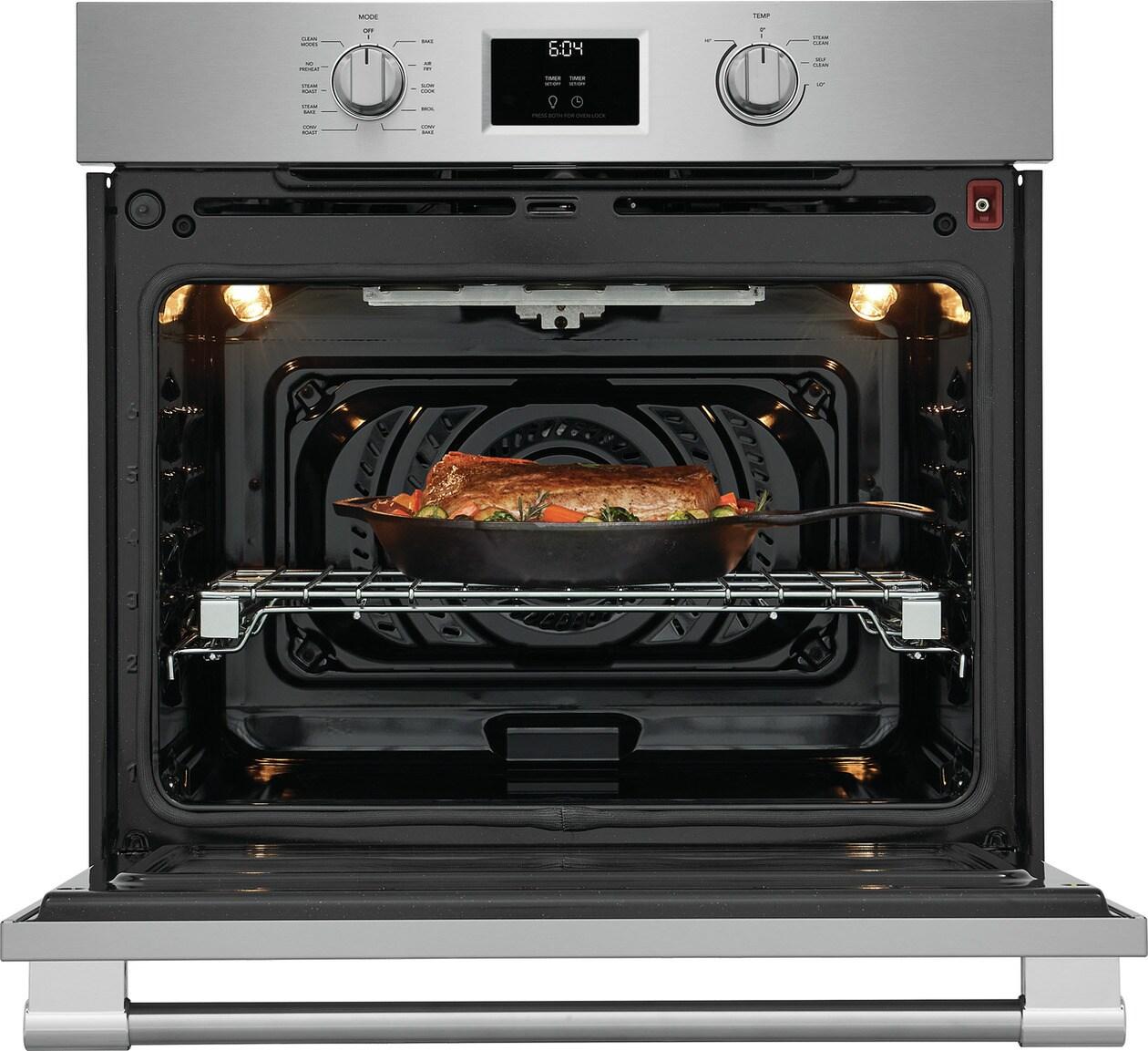

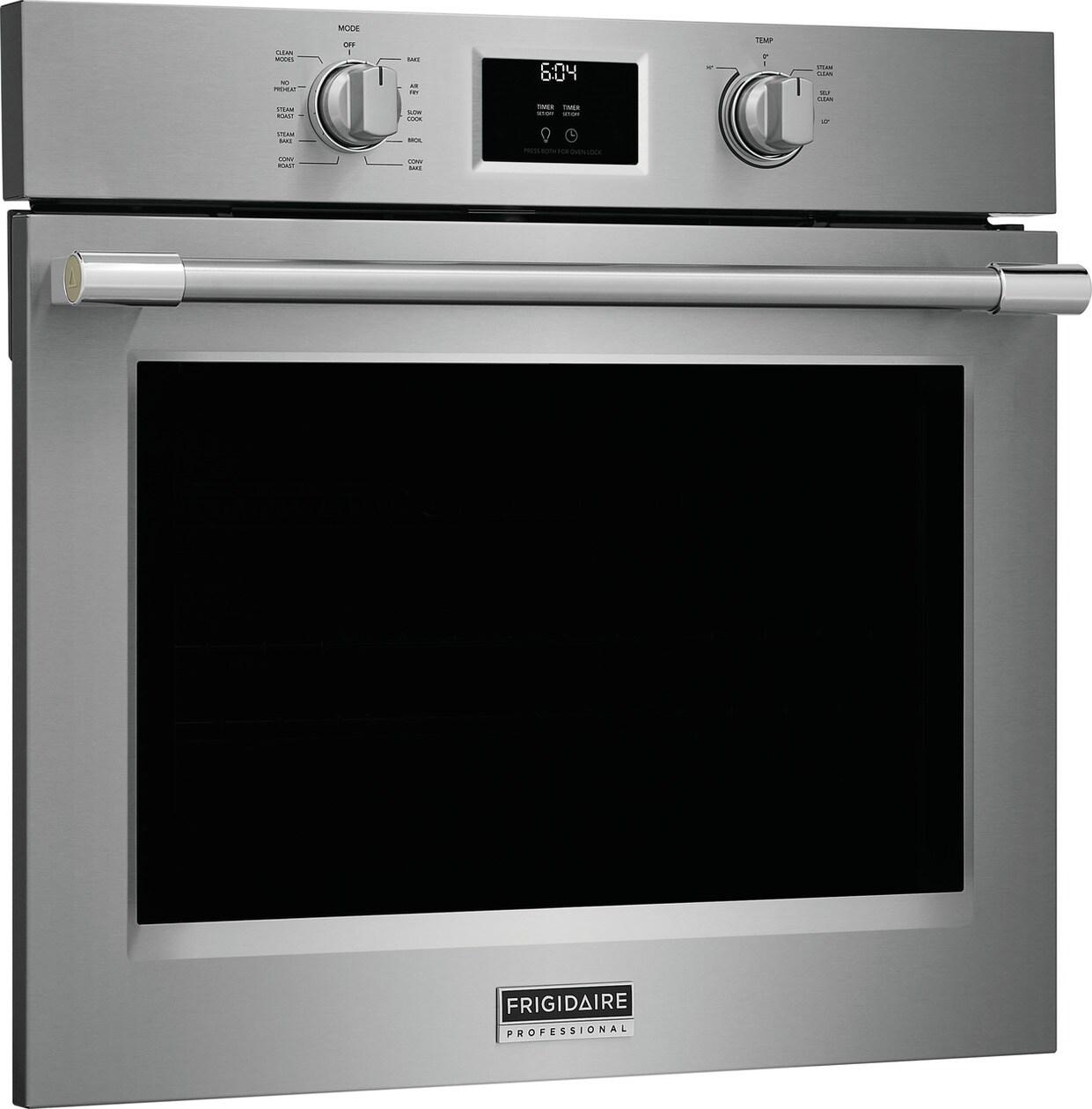

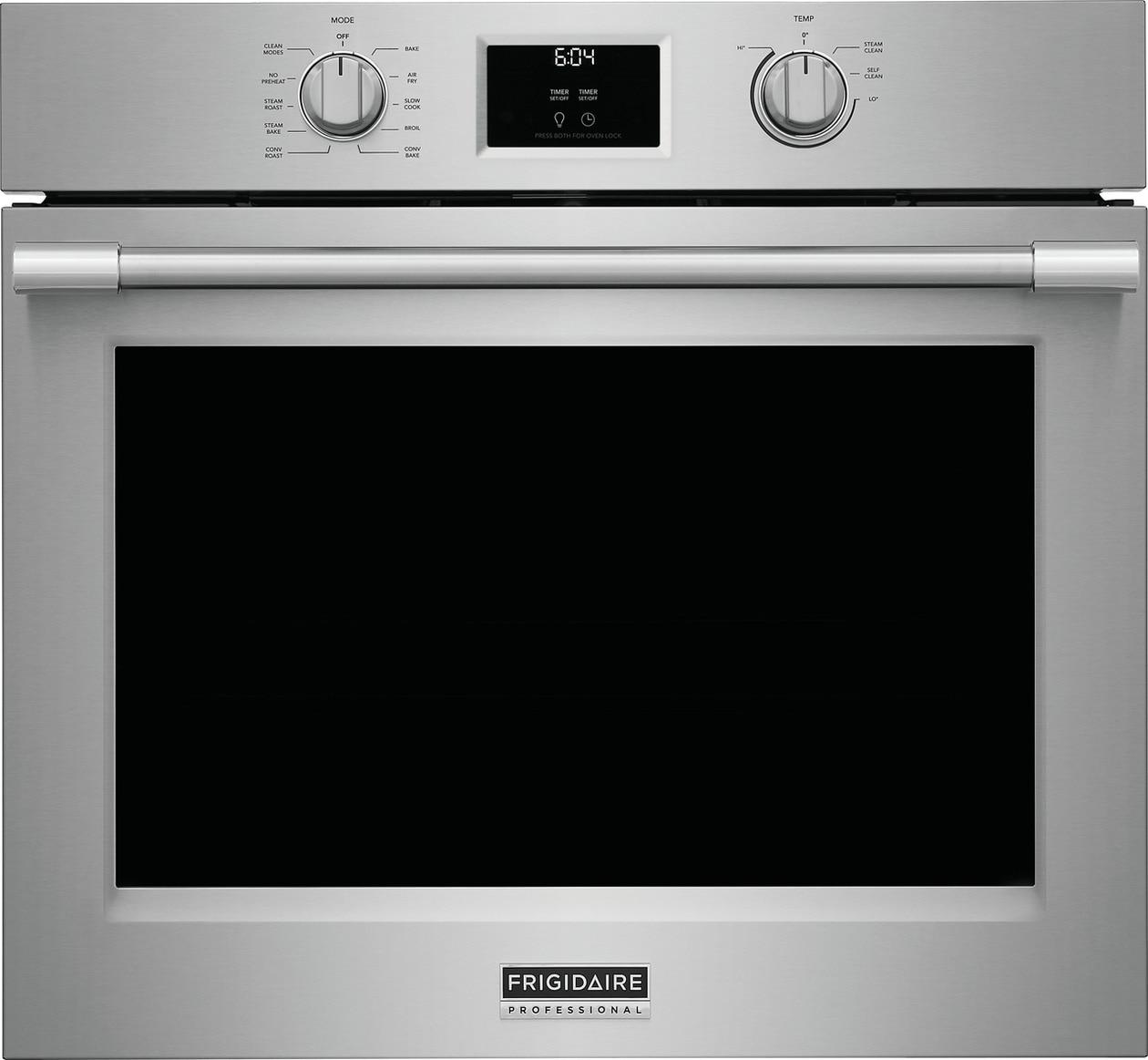

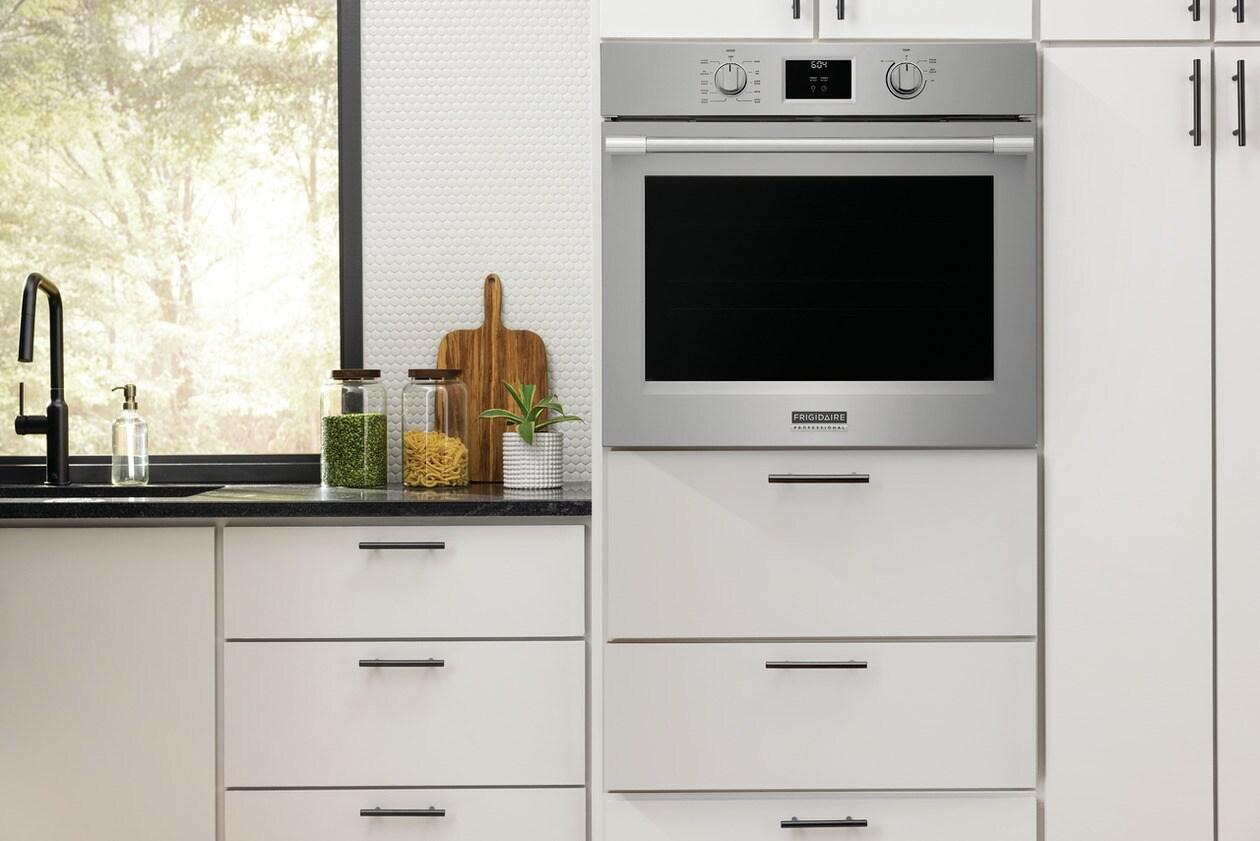

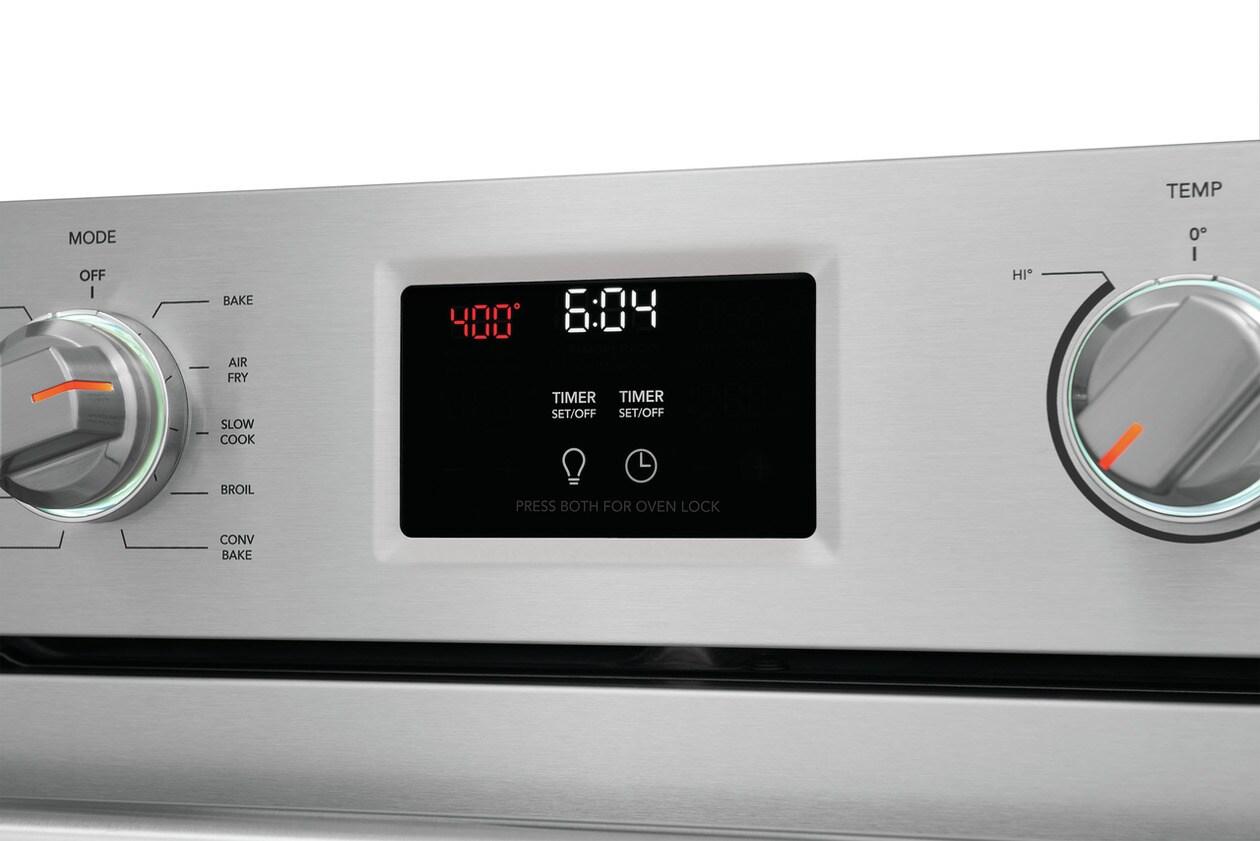

Frigidaire PCWS3080AF Frigidaire Professional 30" Single Wall Oven With Total Convection
Rebates &
Promotions
Frigidaire And Electrolux Buy More Save More Delivery and Installation Allowance - Enjoy exclusive rebate savings with purchase of qualifying Frigidaire And Electrolux appliances. Download Valid: 10/28/2024-12/09/2024
Frigidaire Buy More Save More Rebate - Receive up to a $1000 rebate with purchase of 2 or more qualifying Frigidaire Appliances. Download Valid: 10/17/2024-01/01/2025
Our most advanced and powerful convection system, Total Convection
Total Convection gives you maximum versatility in the kitchen, powering cooking modes like Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Convection Roast, Steam Roast and and more!
Experience a hassle-free way to cook with Slow Cook
With Slow Cook, your food cooks slowly and at a lower temperature (as low as 100°F), allowing you to lock in moisture and flavor without over or undercooking your food.
ReadyCook™ Air Fry Tray is included
For perfectly crispy and delicious Air Fry results. * ReadyCook™ Air Fry Tray is not required to use Air Fry.
Start baking immediately with No Preheat
Eliminates time wasted waiting on your oven to heat up - simply place your food in the cold oven and get to meal time, in no time. * No Preheat is best used for single-rack baking of frozen or pre-made items and food that needs to cook for longer than 10 minutes.
Deliver all of the flavor and none of the guilt with Air Fry
Air Fry allows you to make healthier and delicious meals for the entire family, right in your oven.
Achieve bakery results at home with Steam Bake
With Steam Bake, steam evenly circulates throughout the oven cavity, resulting in breads and muffins that rise higher and are light and fluffy.
Height: 28"
Depth: 27.6"
First Oven Size: 5.3 cu. ft.
- User Preferences
- Air Fry
- Sabbath Mode
- Control Lock
- Child Lock
- Delay Start
- Convection Roast
- Kitchen Timer
Product Line | Single Wall Oven |
Power Type | Electric 240v |
Size | 30' |
Installation Type | Built-In |
Factory | Springfield |
Color | Stainless Steel |
Installation | |
Power Supply Connection Location | Top Left |
Electrical Specifications | |
Amps @ 240 Volts | 20 Amps |
Connected Load @ 240V | 4.5 kW |
Minimum Circuit Required | 20 Amps |
Voltage Rating | 240 V |
Certifications and Approvals | |
ADA Compliant | Yes |
Star-K Certification | Yes |
Cooking Controls | |
Air Fry | Yes |
Bake | Yes |
Broil | Yes |
Cancel | Yes |
Child Lock | Yes |
Clear Off | Yes |
Clock | Yes |
Convection Bake | Yes |
Convection Roast | Yes |
Delay Clean | Yes |
Delay Start | Yes |
Fast Preheat | Yes |
Kitchen Timer | Yes |
Light | Yes |
Off | Yes |
Oven Light | Yes |
Probe | Yes |
Self Clean | Yes |
Set Clock | Yes |
Slow Cook | Yes |
Start | Yes |
Steam Bake | Yes |
Steam Clean | Yes |
Steam Roast | Yes |
Stop | Yes |
Temperature Display | Yes |
Timer On / Off | Yes |
User Preferences | Yes |
Oven | |
Bake Element | 2,500 Watts |
Bake Element Pass | 8 |
Bake Element Type | Hidden |
Broil Element | 4,000 Watts |
Broil Element Pass | 6 |
Broil System | Yes |
Cleaning System | Yes |
Convection | Yes |
Convection Element | 3,800 Watts |
Convection Type | Total |
Number of Convection Fans | 1 |

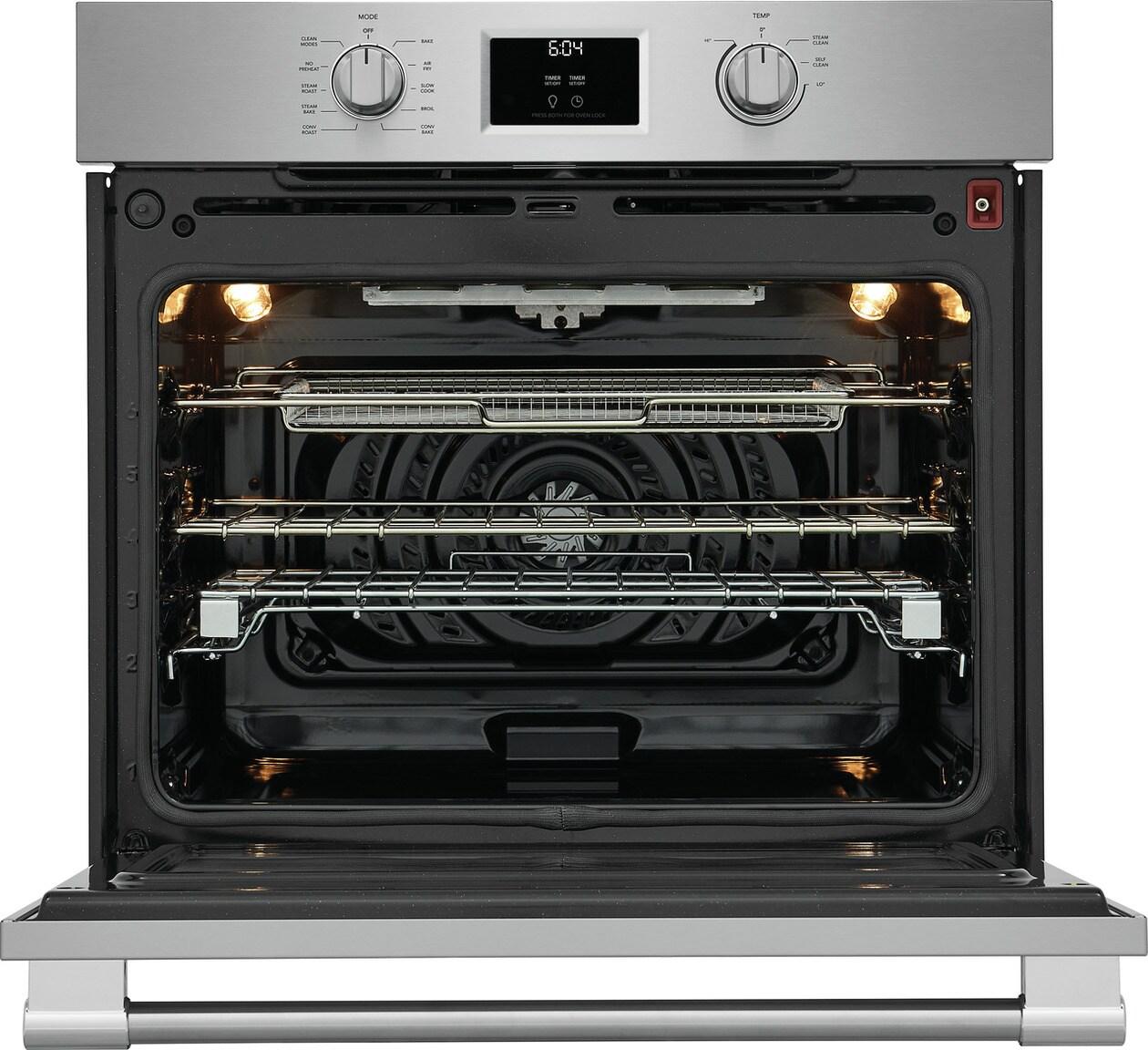

Number of Rack Positions | 6 |
Oven Interior Color | Midnight Black |
Oven Light Quantity | 2 |
Oven Light Type | Halogen |
Oven Light Watts | 40 Watts |
Rack Position Type | Embossed |
Rack Type 1 | Handle |
Rack Type 1 Quantity | 1 |
Rack Type 2 | Glide |
Rack Type 2 Quantity | 1 |
Rack Type 3 | Air Fry Tray |
Rack Type 3 Quantity | 1 |
Dimensions and Volume | |
Height | 28' |
Width | 29 7/8' |
Depth | 25 3/16' |
Depth With Door 90° Open | 48 3/16' |
Depth With Handle | 27 3/5' |
Oven Interior Height | 18 1/8' |
Oven Interior Width | 25 1/5' |
Oven Interior Depth | 19 7/8' |
Minimum Cutout Height | 26 3/4' |
Minimum Cutout Width | 28 1/2' |
Maximum Cutout Height | 28' |
Maximum Cutout Width | 29' |
Oven Capacity | 5.3 Cu. Ft. |
Safety Certifications and Approvals | |
CSA Listed | Yes |
UL Listed | Yes |
RoHS | Yes |
Controls | |
Control Lock | Yes |
Sabbath Mode | Yes |
General Specifications | |
Frigidaire Fit Promise | Yes |
Product Weight | 163 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
Exterior | |
Exterior Finish | Smudge-Proof® Stainless Steel |
Cooking Controls Function | |
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
Delayed Bake | Yes |
Program Fahrenheit or Celsius | Yes |
Silent Control Panel | Yes |
Display | |
Control Location | Top |
Display Interface Color | White |
Display Light Color | White |
Display Type | Capacitive Touch |
