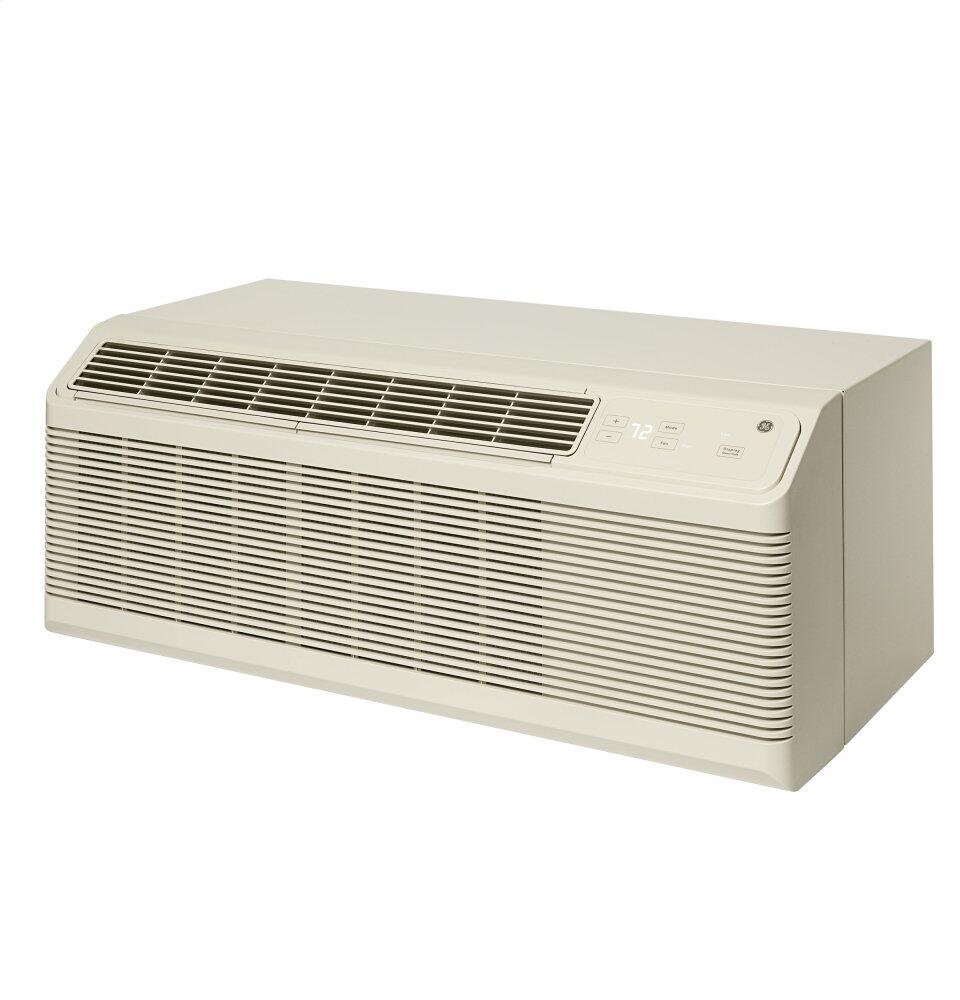

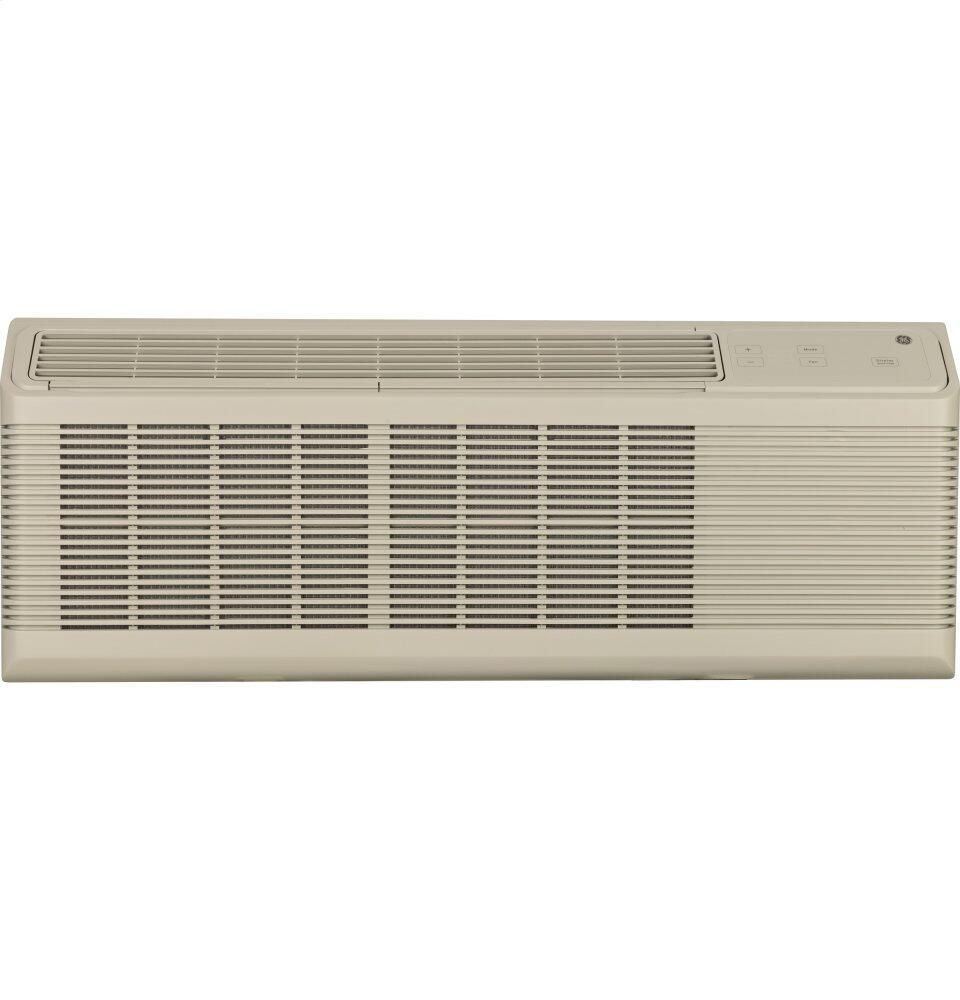

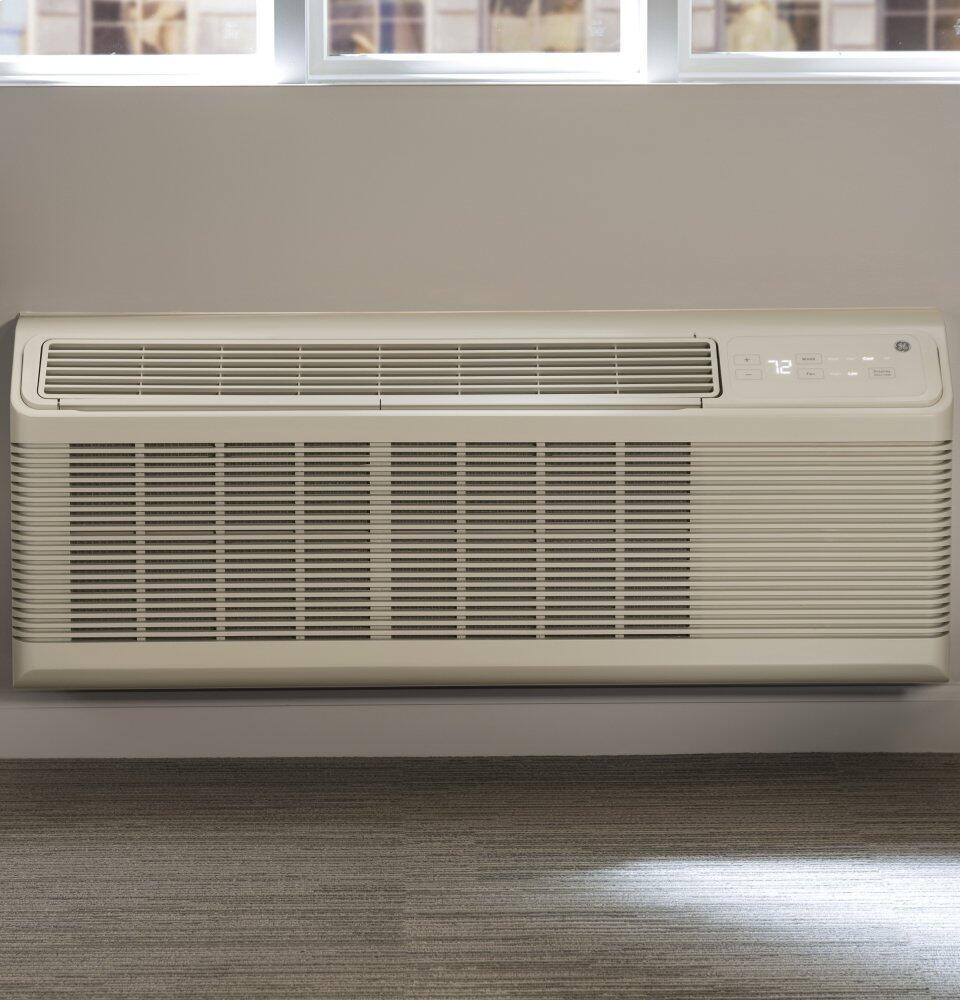

Ge Appliances AZ65H15EAD Ge Zoneline® Heat Pump Unit With Icr, 265 Volt
Ge Appliances AZ65H15EAD Ge Zoneline® Heat Pump Unit With Icr, 265 Volt
SKU: AZ65H15EAD
UPC: 084691815655
When Will I Get My Order?
x
THIS ITEM QUALIFIES FOR FREE DELIVERY!
EXTENDED PROTECTION
3 year plan
$120.995 year plan
$228.99Couldn't load pickup availability
When Will I Get My Order?
x
Ge Appliances AZ65H15EAD Ge Zoneline® Heat Pump Unit With Icr, 265 Volt

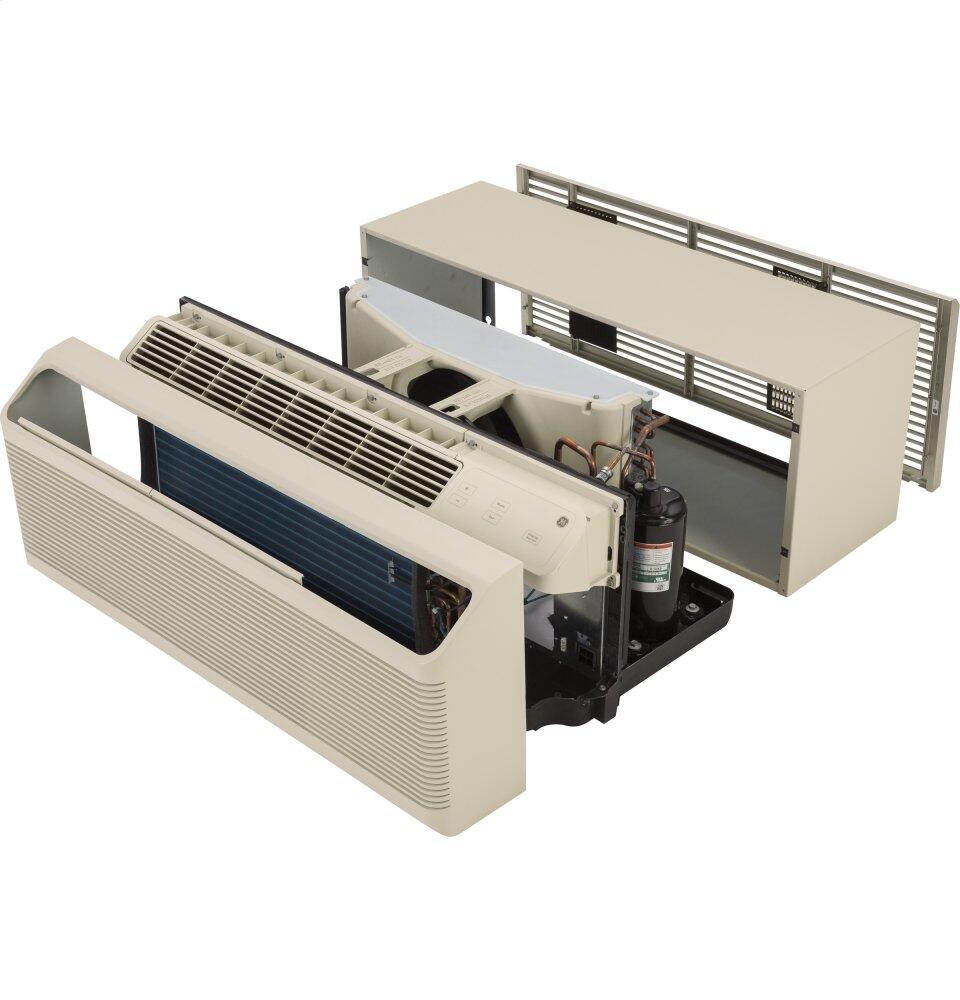

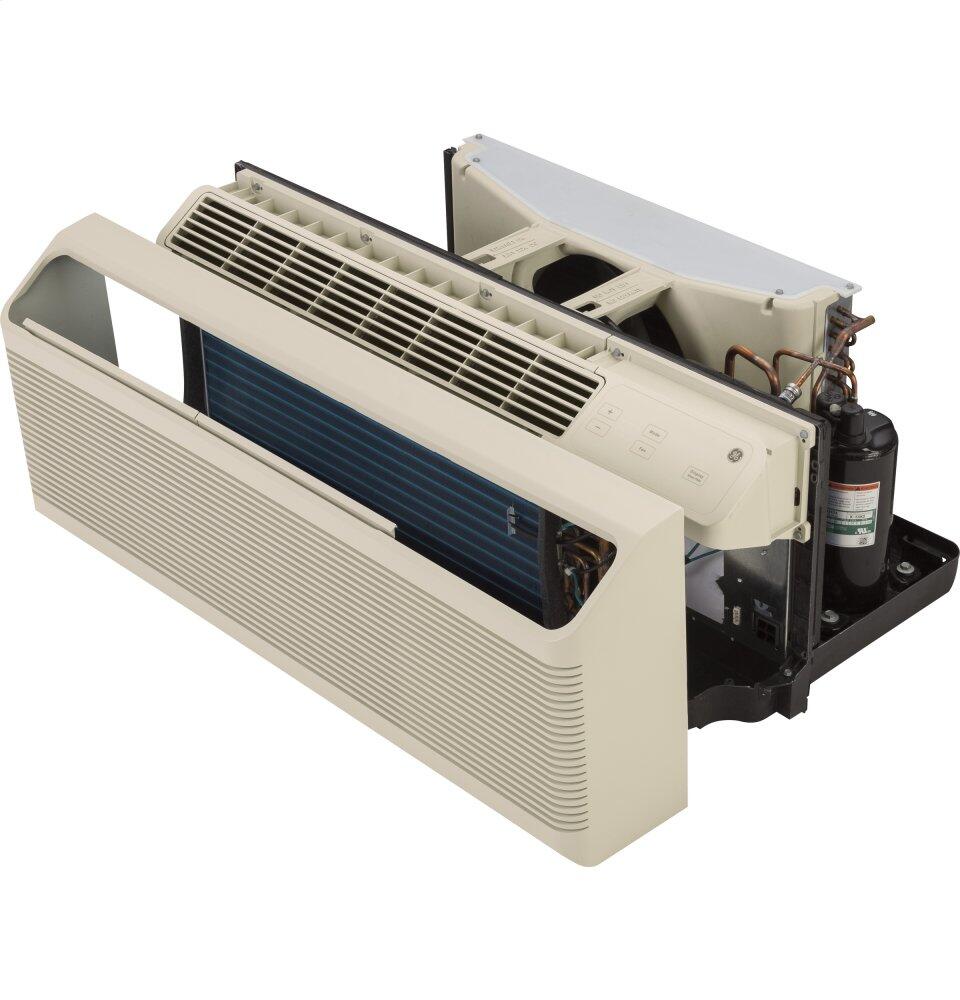

Simplified structure

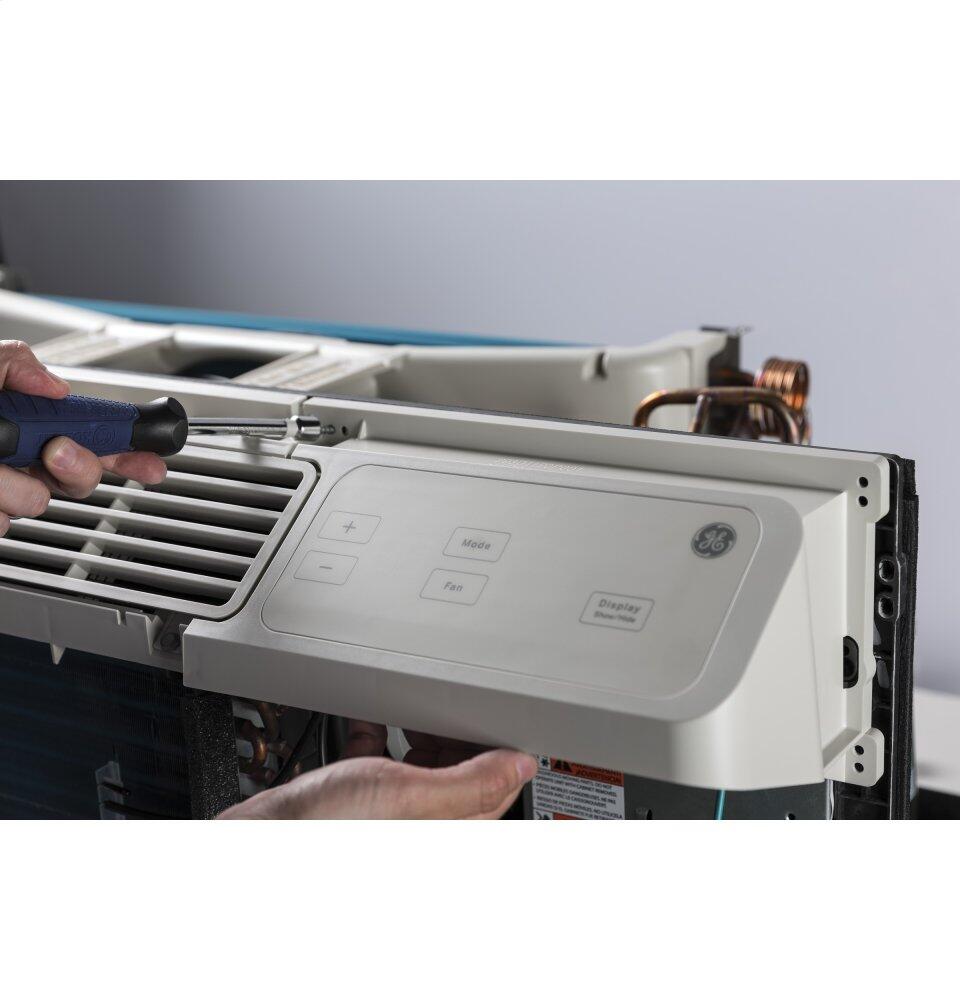

Easy to maintain and service
Energy efficiency
10.4 EER
Quiet operation

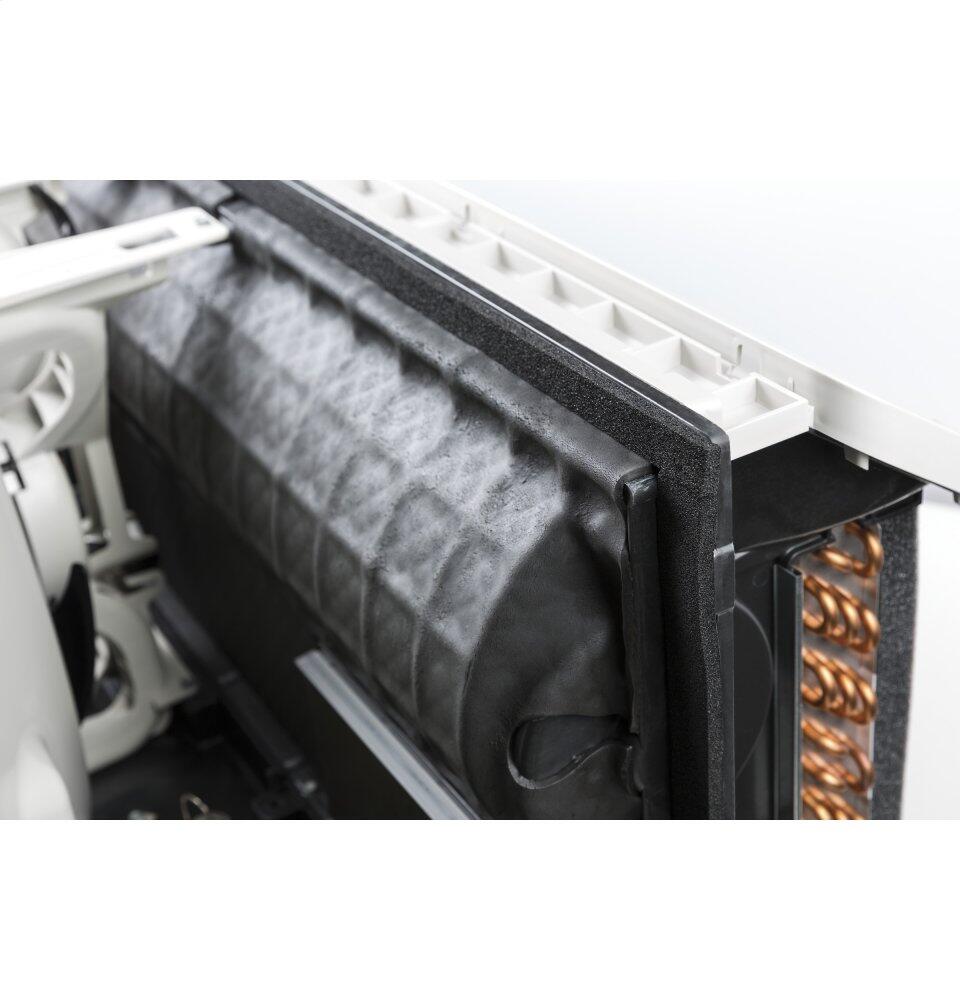

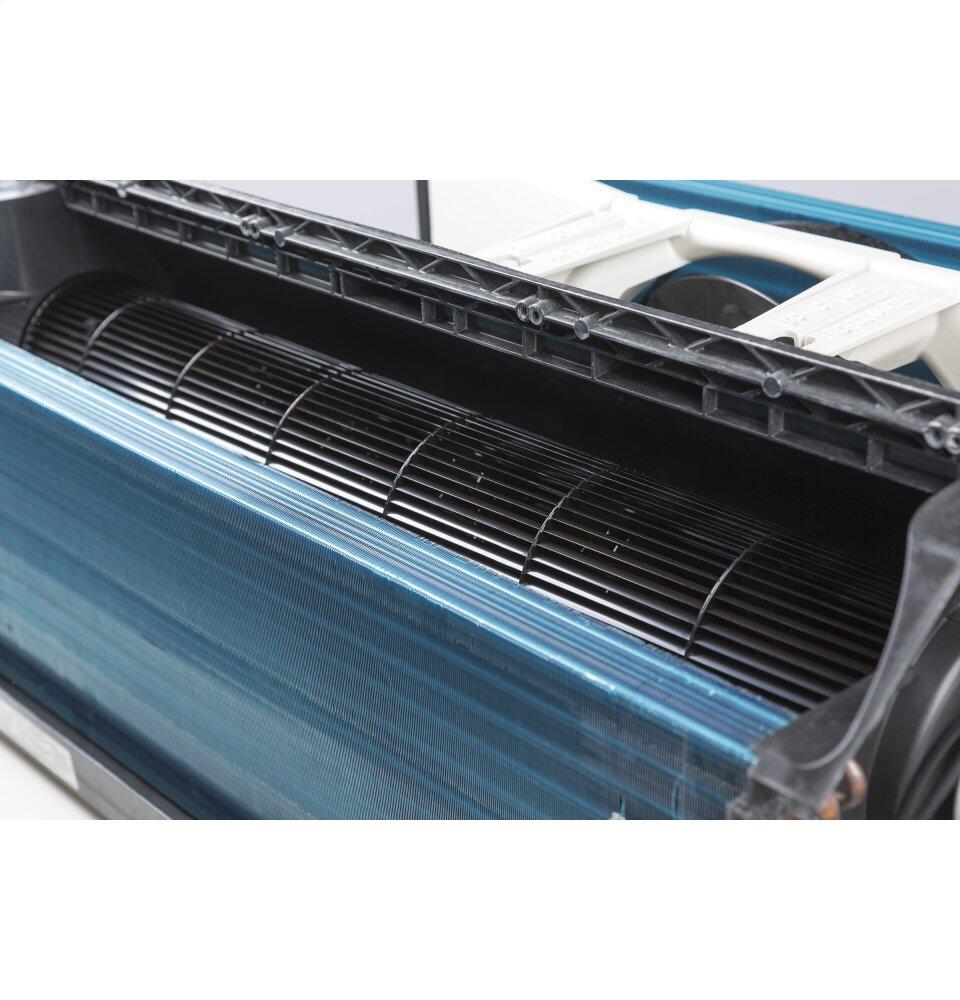

Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort
Electronic Temperature LimitingPrevents Expensive Over-Cooling Or Over-Heating Of The Room Electronic Touch Controls With Led Display R-410A Refrigerant Smc Base Pan Simplified StructureEasy To Maintain And Service Cooling Capacity14,300 Btu Energy Efficiency10.4 Eer Dehumidification4.8 Pints/Hour Reverse Heat Cycle13,500 Btu Heat Pump Efficiency3.2 Cop Indoor Fan Cfm (High/Low)449/290 Fresh Air Vent Cfm (Fully Open High Fan)44 Quiet OperationBaked-On Mastic Sound Barrier, Cross Flow Blower And Two Dc Fan Motors Create Less Noise To Ensure Comfort Internal Condensate RemovalMinimizes Condensate Draining From The Unit During Heat Pump Operation Heat & Freeze SentinelsKeeps The Room From Overheating Or Freezing Boost Heat OptionProvides Supplemental Resistance Heat In Heat Pump Mode
- Electronic temperature limiting

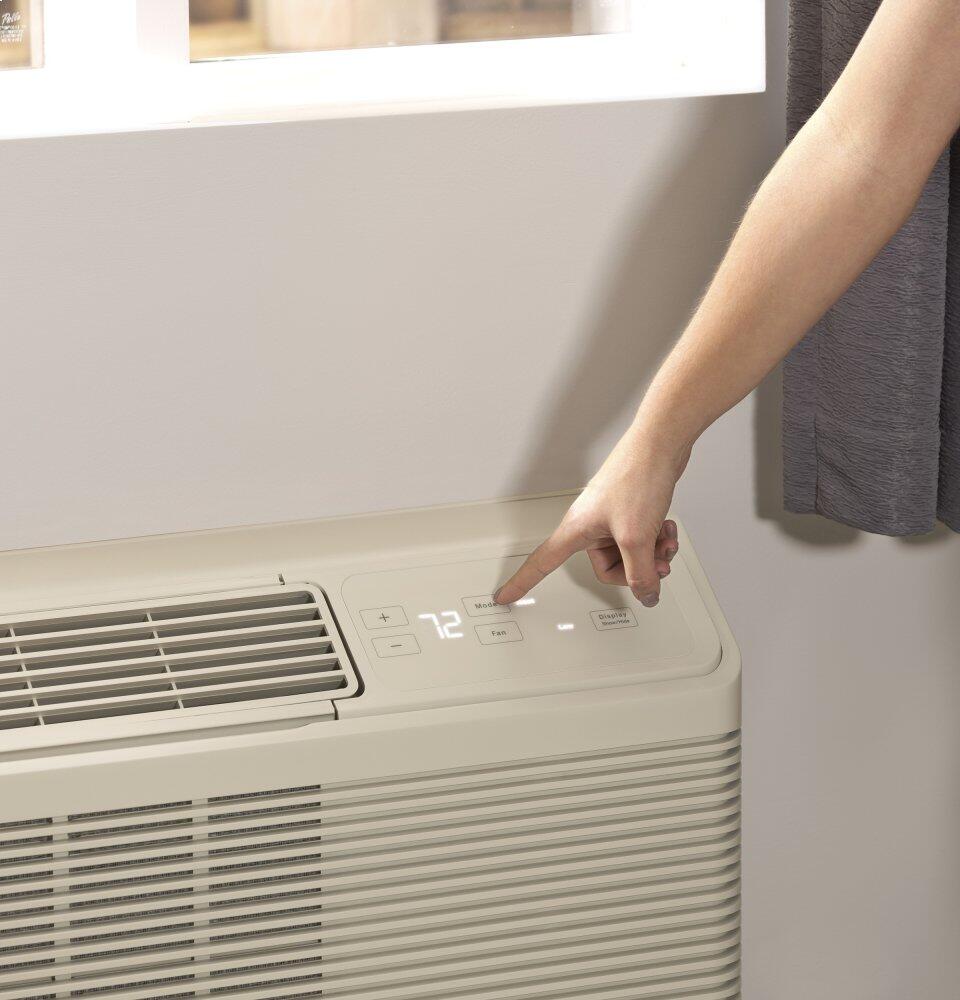

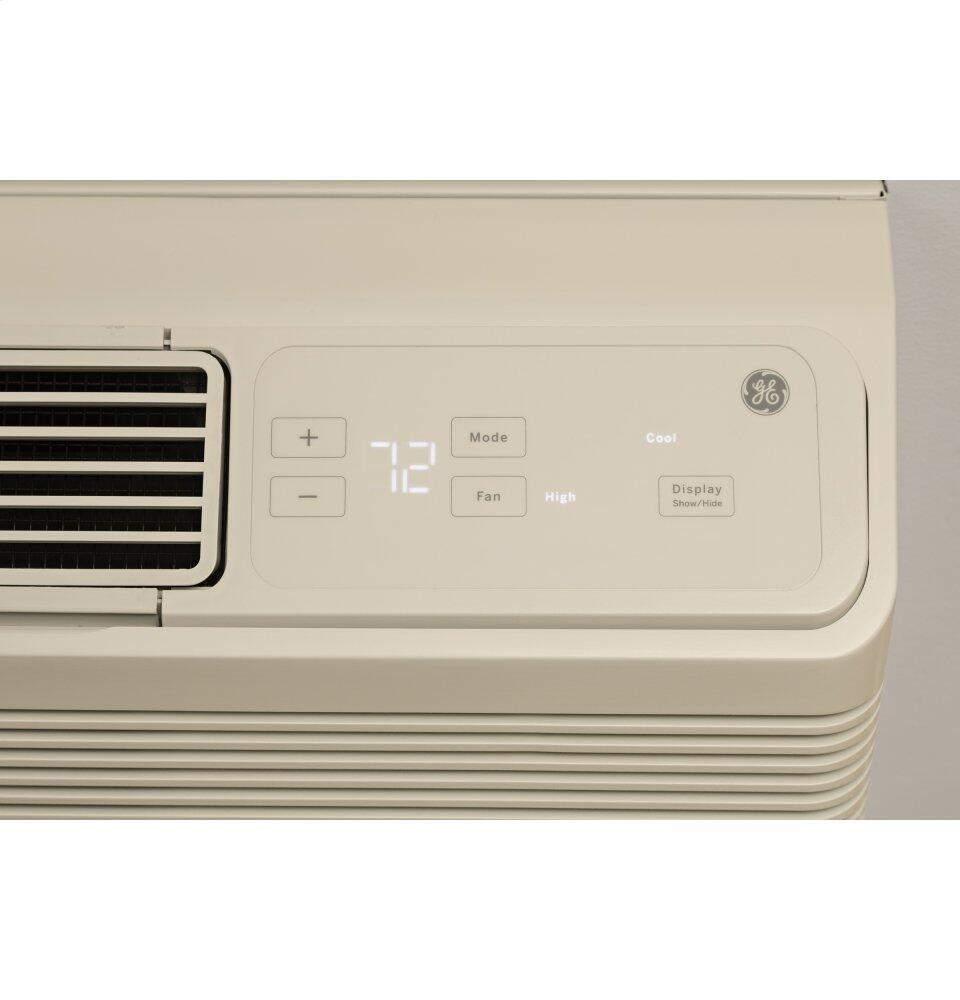

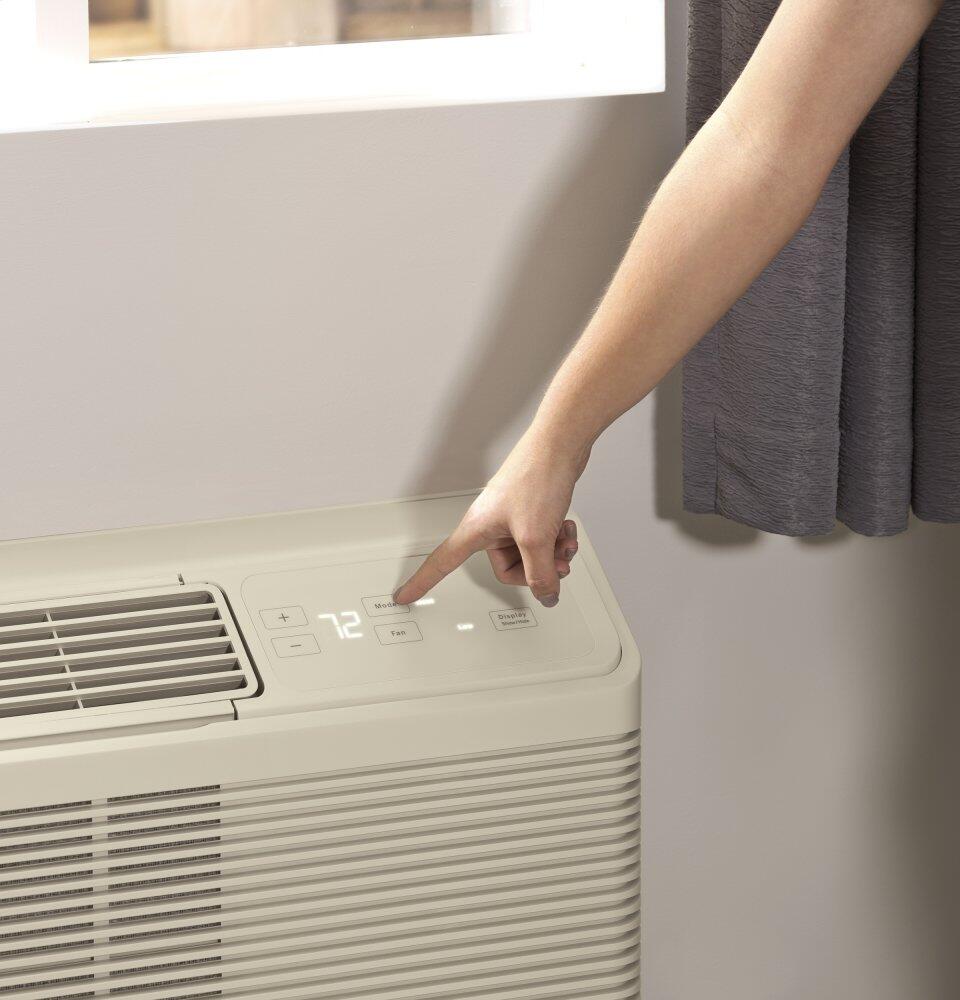

- Electronic touch controls with LED display
- R-410A refrigerant
- SMC base pan
- Simplified structure
- Cooling capacity
- Energy efficiency
- Dehumidification
- Reverse heat cycle
- Heat pump efficiency
- Indoor fan CFM (high/low)
- Fresh air vent CFM (fully open high fan)
- Quiet operation

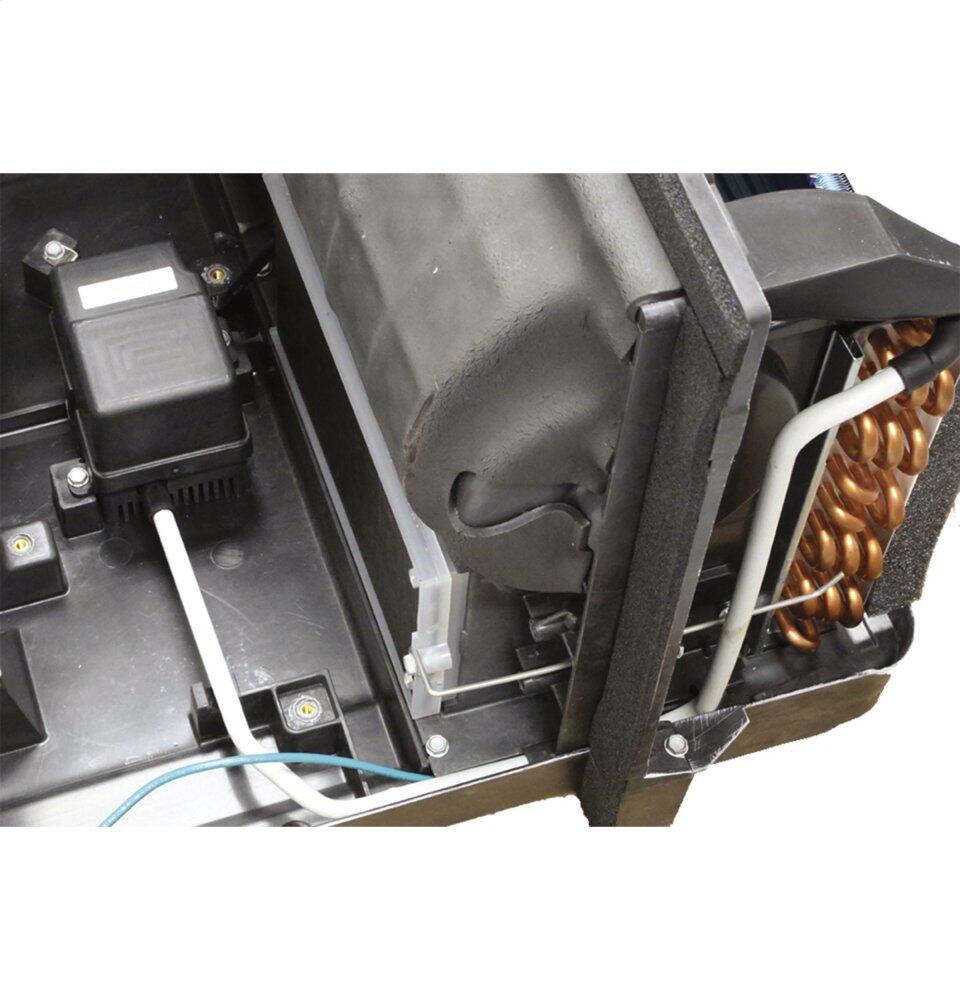

- Internal condensate removal
- Heat & Freeze Sentinels
- Boost heat option
| CAPACITY | |
| Cooling BTUH (MIN) | 14500.0 Btu |
| Cooling EER (BTUH / Watt) | 10.3 |
| CFM Indoor Fan High | 400 |
| CFM Indoor Fan Low | 290 |
| Dehumidification (pts./hr.) | 4.8 |
| Heating - Reverse Cycle - BTUH | 13500 |
| Vent CFM (high fan at zero ESP) | 44 |
| FEATURES | |
| Control Type | Standard Microcomputer Tactile touch pad with LED Display |
| Discharge Grille | 2-position |
| Electronic Micro Computer Control | Yes |
| Fan Cycle Switch | Yes |
| Fan Motor | 2 |
| Fan Speed Control | Yes |
| Fan Speed Selections | Hi/Low Cooling Hi/Low Fan Only Hi/Low Heating |

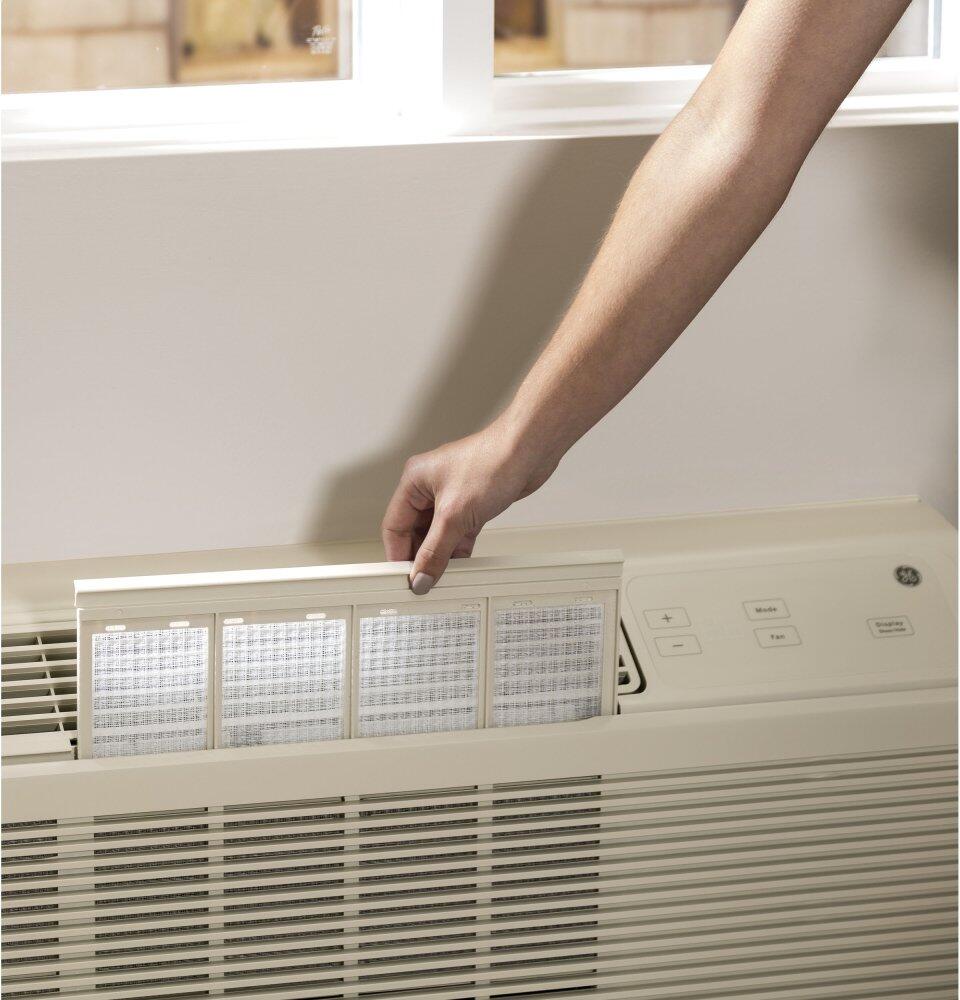

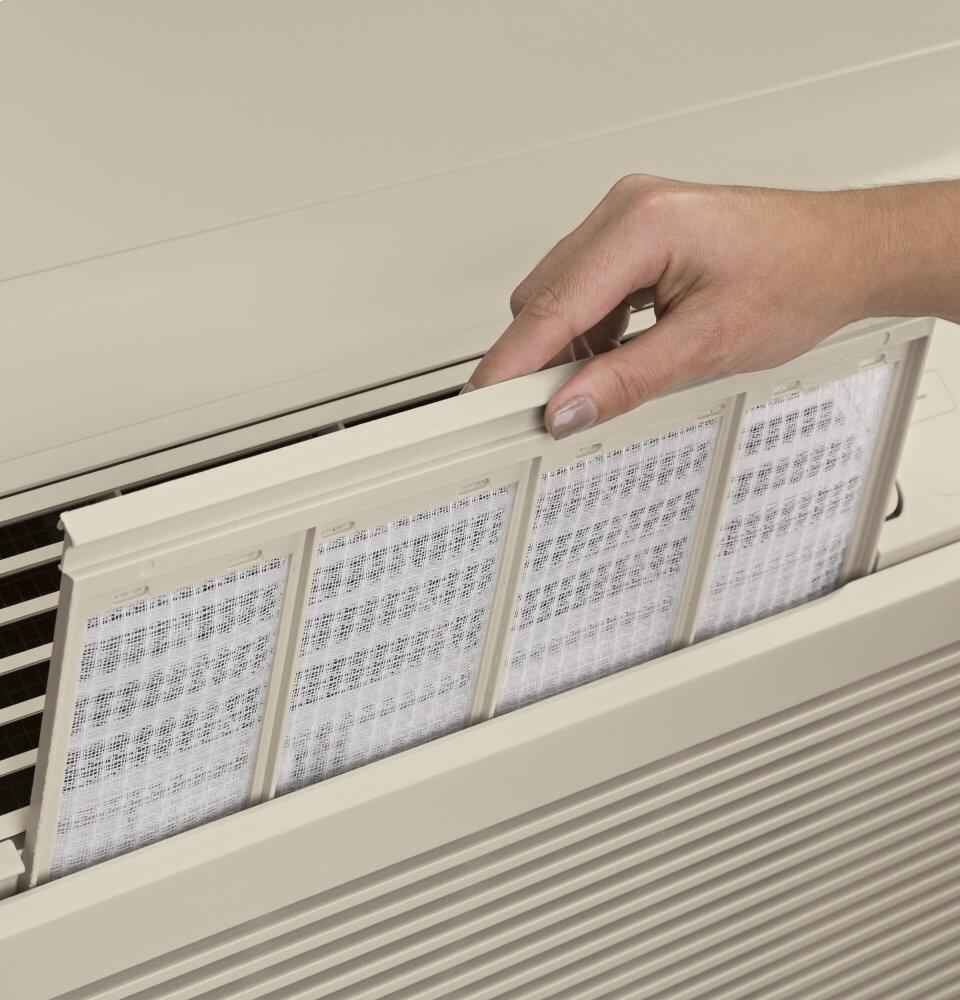

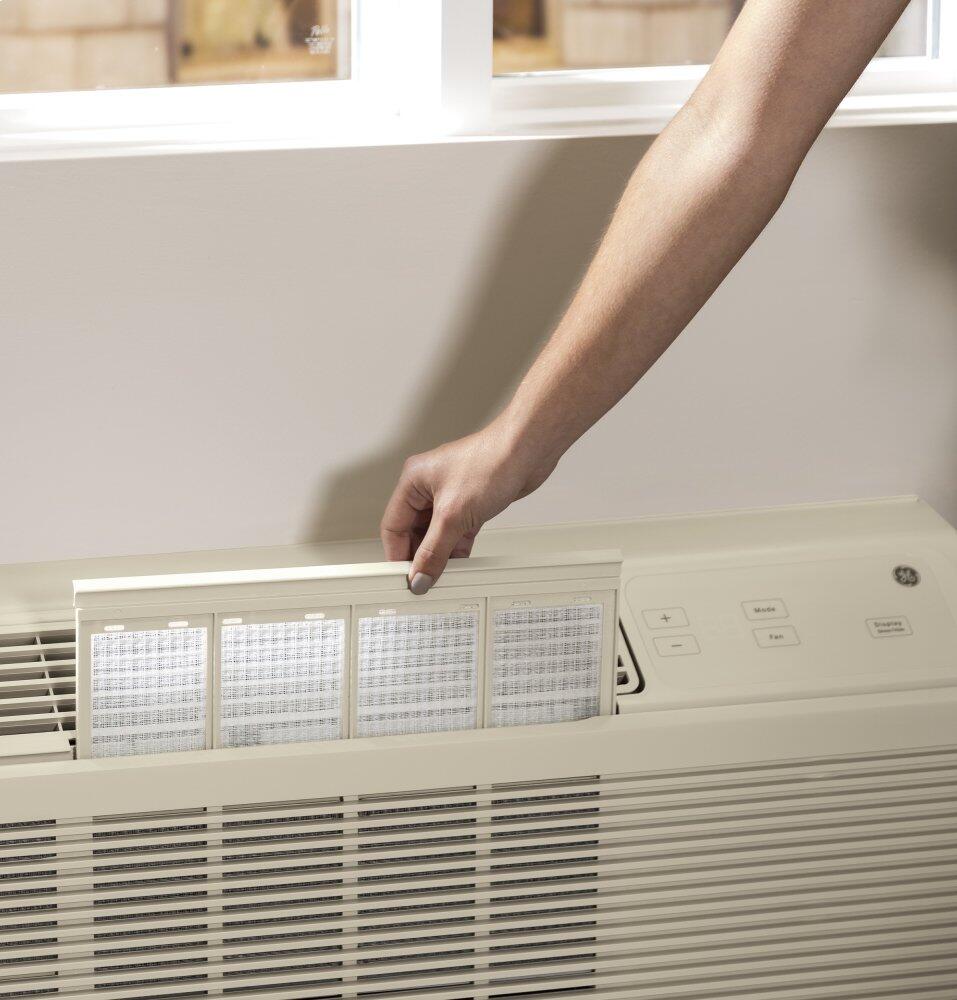

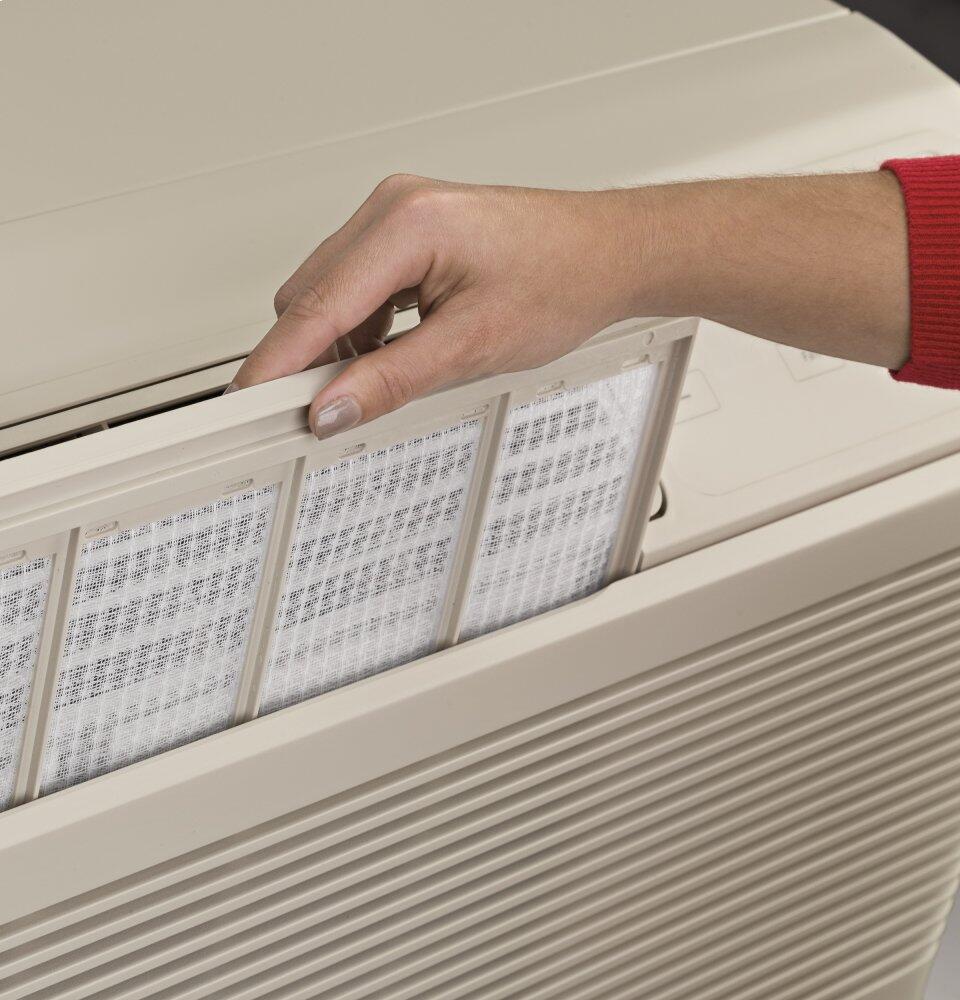

| Filter Type | Rigid Frame Slide-Out |
| Heat - Cool | Yes |
| Internal Condensate Removal (ICR) | Yes |
| Louver Style | Reversible |
| Manual Vent Control | Hidden |
| Rotary Compressor | Yes |
| Temperature Limiting | Electronic 7-Step |
| Vent Control | 3-position |
| Venting Features | Concealed Manual Vent Control Outdoor Vent Control - 3 Positions Vent Air Filter |
| Zoneline Features | Heat Sentinel Power Cord (LDCI) included Proportional - Integral ID Airflow Quick Heat Recovery Random Twist/Length Segment Tangential Blower Remote Thermostat Compatibility Reverse Cycle Defrost Universal Heaters Weather Protected Electrical Components 3-Stage Heating Design Auto Power Recovery Automatic Emergency Heat Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Heat Pump with Resistance Heat Backup Heat Pump with Supplemental Resistance Heat |
| Heating System | Heat Pump |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Temperature Range | 60 - 85 F |
| Sensible Heat Ratio | 60% |

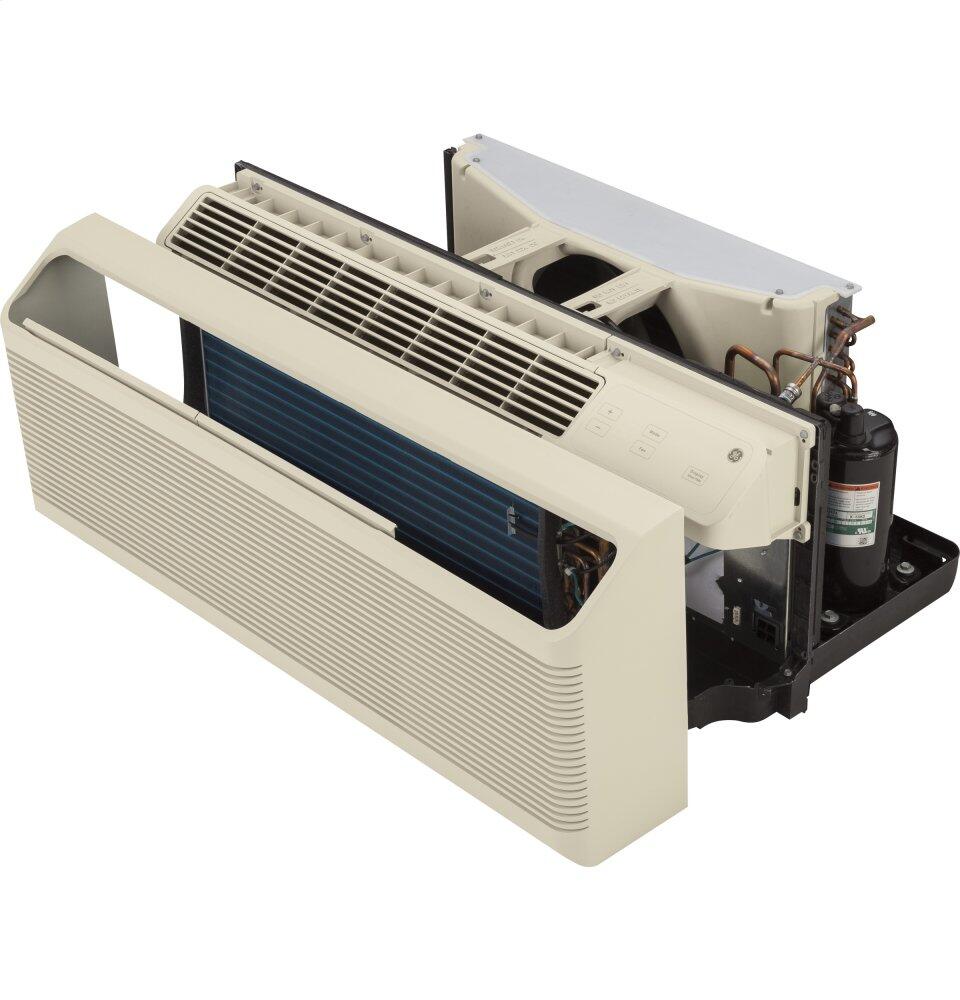

| Chassis Type | Slide-In |
| POWER / RATINGS | |
| Cooling - Amperes; F.L. - Cooling | 5.5 |
| Cooling - Amperes; L.R. | 29.0 |
| Cooling - Watts | 1400 |
| Heating - Reverse Cycle - Amps | 4.9 |
| Heating - Reverse Cycle - COP | 3.2 |
| Heating - Reverse Cycle - Watts | 1235 |
| Power Factor | 97 |
| Voltage (MAX) | 265.0 V |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Warranty Notes | See written warranty for full details |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 110.0 lb |
| Overall Depth | 20.8125 in |
| Overall Height | 16.0 in |
| Overall Width | 42.0 in |
