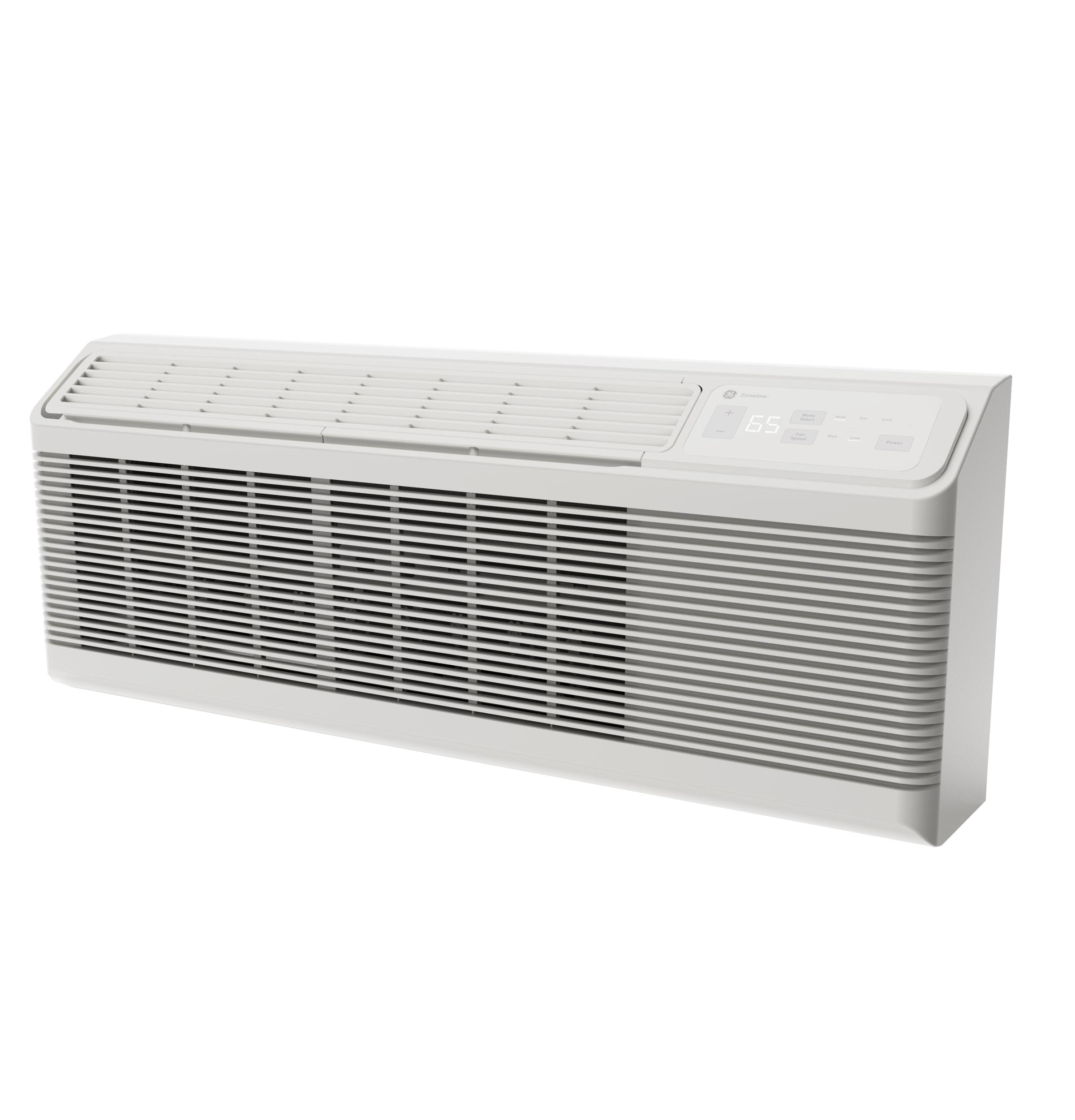

Ge Appliances AZES09DCXXA Ge Zoneline® Cooling And Electric Heat Fixed Speed Unit With Corrosion Protection 9,000 Btu, 230/208 Volt
Ge Appliances AZES09DCXXA Ge Zoneline® Cooling And Electric Heat Fixed Speed Unit With Corrosion Protection 9,000 Btu, 230/208 Volt
SKU: AZES09DCXXA
UPC: 084691942603
Colors:
Not Applicablex
Installation and Removal
x
THIS ITEM QUALIFIES FOR FREE DELIVERY!
List Price: $1,233.00
Our Price: $1,103.70
You save:
$129.30 (10%)
EXTENDED PROTECTION
3 year plan
$120.995 year plan
$239.005 year plan
$299.00Only 2 Left
Couldn't load pickup availability
x
Installation and Removal
x
When Will I Get My Order?
x
Ge Appliances AZES09DCXXA Ge Zoneline® Cooling And Electric Heat Fixed Speed Unit With Corrosion Protection 9,000 Btu, 230/208 Volt
Designed & Assembled in America
Date of Manufacture - 2025 or later
R454B - Most Environmentally Friendly Refrigerant On The Market Heat Pump Down To 25(Degree)F Electronic Touch Controls With Led Display Quiet Operation - Baked On Mastic Sound Barrier Corrosion Protection Package Smc Basepan And Bulkhead Electronic Temperature Limiting Fresh Air Vent Designed & Assembled In America Date Of Manufacture - 2025 Or Later
- R454B - Most environmentally friendly refrigerant on the market
- Heat pump down to 25(degree)F
- Electronic touch controls with LED display
- Quiet Operation - baked on mastic sound barrier
- Corrosion protection package
- SMC basepan and bulkhead
- Electronic temperature limiting
- Fresh air vent
- Designed & Assembled in America
| CAPACITY | |
| Cooling BTUH (MAX) | 9500 Btu |
| CFM Indoor Fan Low | 265 |
| CFM Indoor Fan High | 375 |
| Cooling EER (BTUH / Watt) | 12.3 / 12.5 |
| Dehumidification (pts./hr.) | 2.2 (High Speed) |
| Vent CFM (high fan at zero ESP) | 38.5 |
| Cooling BTUH (MIN) | 9500 Btu |
| APPEARANCE | |
| Color Appearance | Grey White |
| POWER / RATINGS | |
| Cooling - Amperes; L.R. | 21.0 |
| Cooling - Amperes; F.L. - Cooling | 3.5/3.9 |
| Cooling - Amperes | 3.6/3.9 |
| Cooling - Watts | 770/755 |
| Voltage (MIN) | 208 V |
| Voltage (MAX) | 230 V |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| ACCESSORIES | |
| Accessories Required for Installation | Outdoor Grille RAB42 - Wall Case |
| WEIGHTS & DIMENSIONS | |
| Overall Width | 42 in |
| Approximate Shipping Weight | 113 lb |
| Overall Height | 16 in |
| Overall Depth | 20.8125 in |
| Net Weight | 103 lb |
| FEATURES | |
| Zoneline Features | 'Smart Fan' Fan Cycle Control Auto Power Recovery Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Heat Sentinel Random Twist/Length Segment Tangential Blower Remote Thermostat Compatibility Universal Heaters |
| Louver Style | Reversible |
| Control Type | Standard Microcomputer Tactile touch pad with LED Display |
| Refrigerant Charge (oz.) | 27 |
| Discharge Grille | 2-position |
| Fan Speed Selections | Hi/Low Cooling Hi/Low Fan Only Hi/Low Heating |
| Sensible Heat Ratio | 0.75 |
| Power Factor | 95 |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R454B |
| Filter Type | Rigid Frame Slide-Out |
| Manual Vent Control | Hidden |
| Chassis Type | Slide-In |
| Fan Motor | 2 |
| Temperature Limiting | Electronic 24-Step |
| Heat Sentinel | Yes |
| Fan Speed Control | Yes |
| Freeze Sentinel | Yes |
| Temperature Range | 60 - 85 F |
| Corrosion Treated | Yes |
| Heat - Cool | Yes |
| Electronic Micro Computer Control | Yes |
| Fan Cycle Switch | Yes |
| Central Desk Control Compatibility | Yes |
| Rotary Compressor | Yes |
| Vent Control | 3-position |
| Venting Features | Concealed Manual Vent Control Outdoor Vent Control - 3 Positions Vent Air Filter |
| Heating System | Resistance only |
