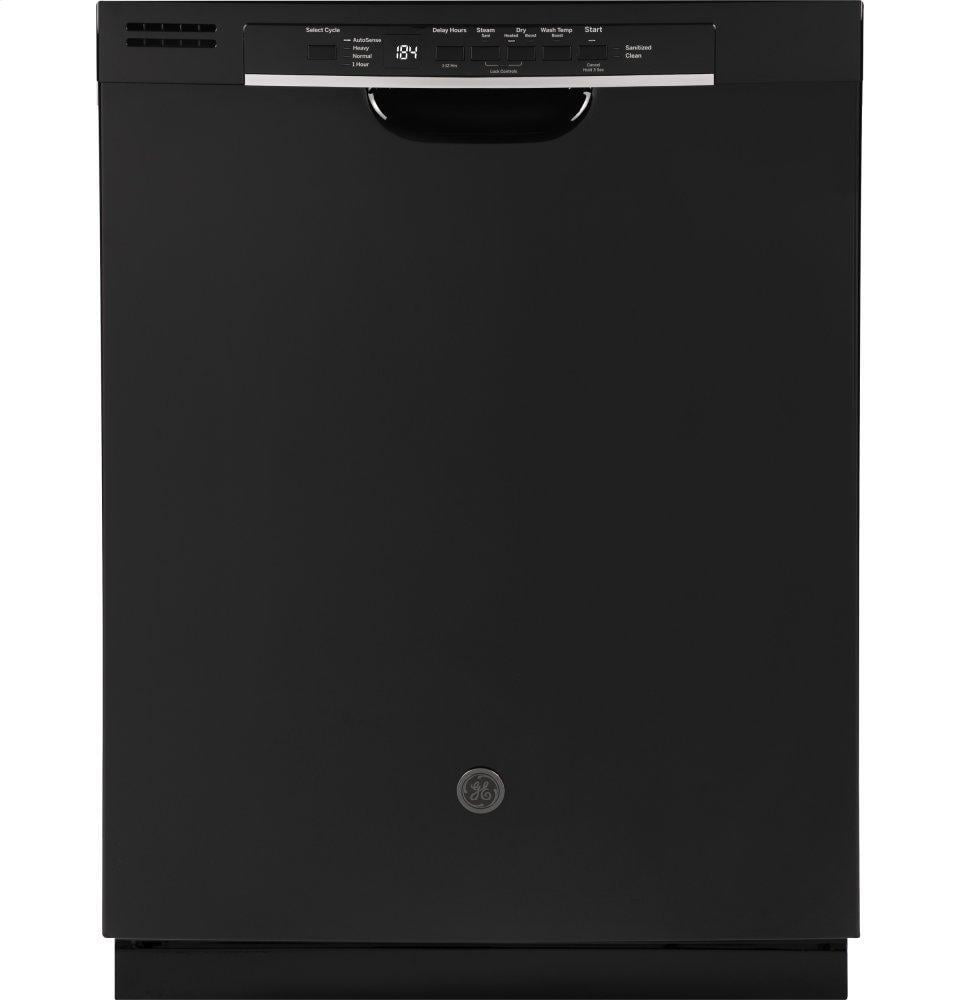

Ge Appliances GDF530PGMBB Ge® Front Control With Plastic Interior Dishwasher With Sanitize Cycle & Dry Boost

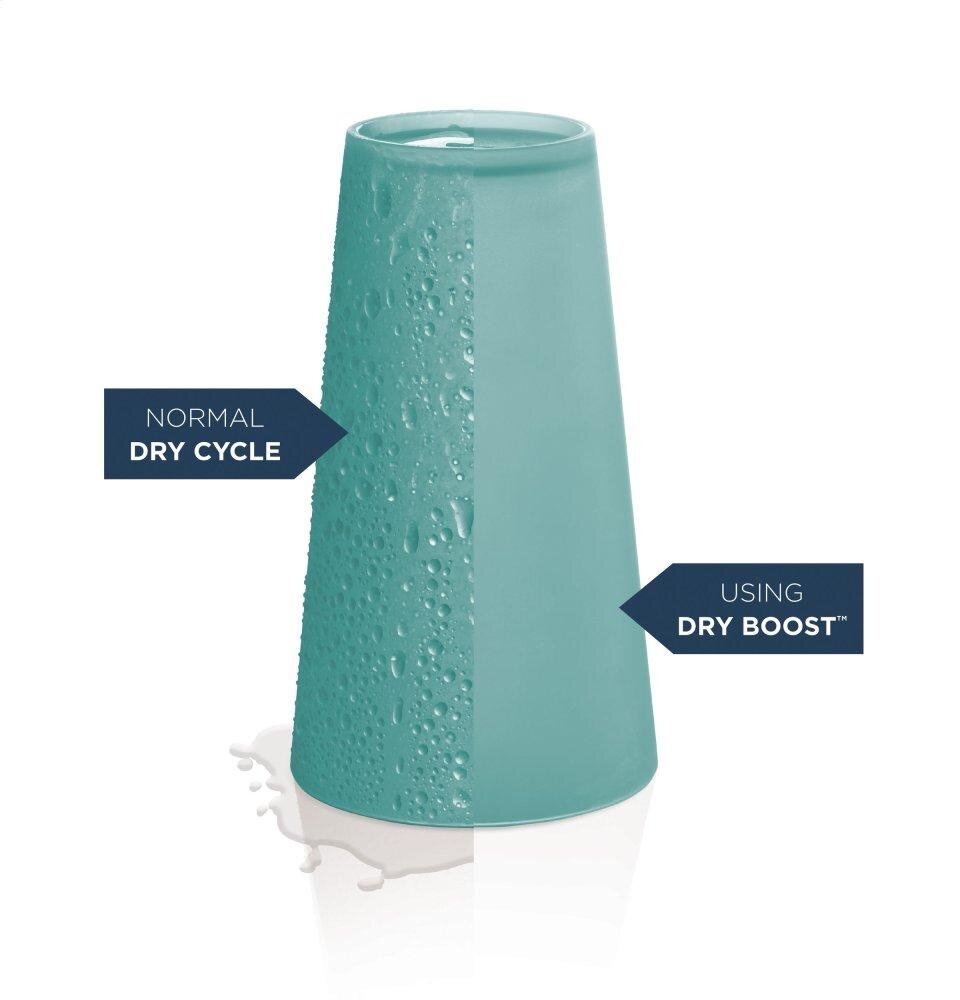

Dry Boost(TM)
Gets hard-to-dry items up to 3 times drier than heated dry cycles *Compared to heated dry option

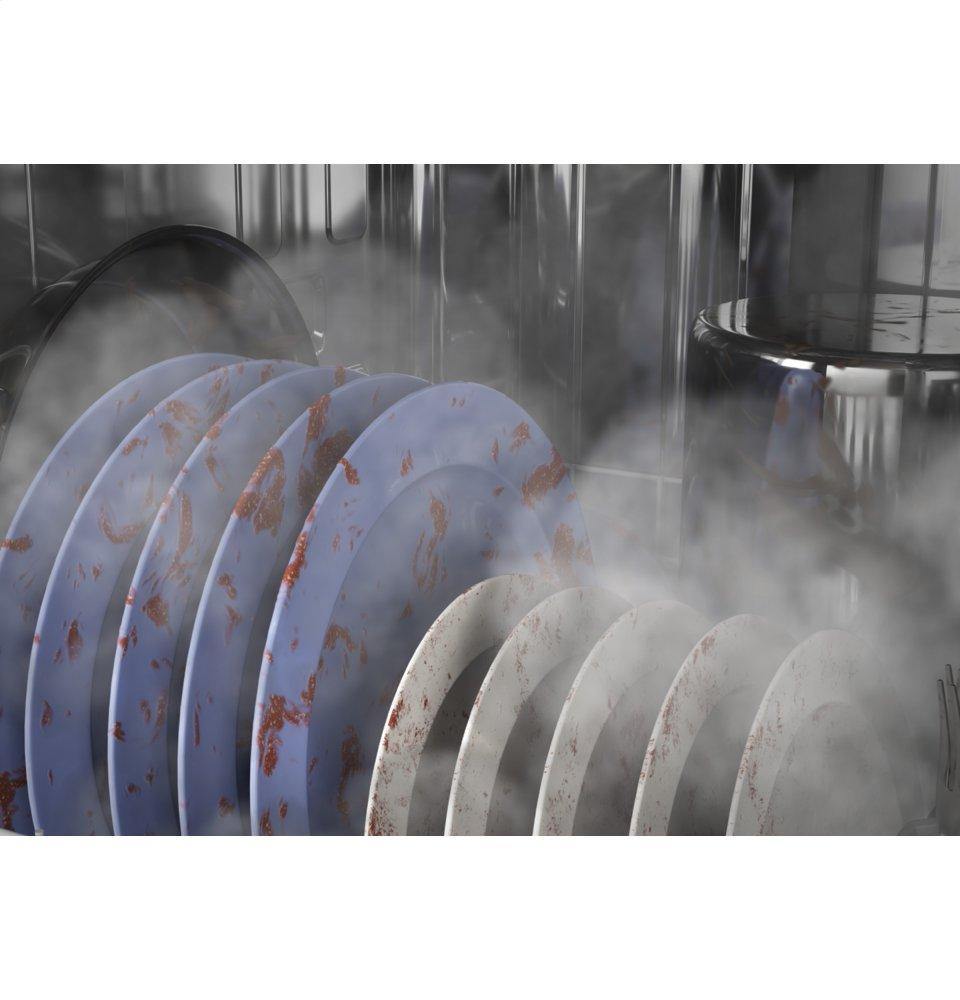

Steam + Sani
Loosens tough soils before any cycle virtually eliminating the need for soaking or pre-rinsing dishes. Plus a High-temperature rinse sanitizes and reduces 99.999% of bacteria found on dishes

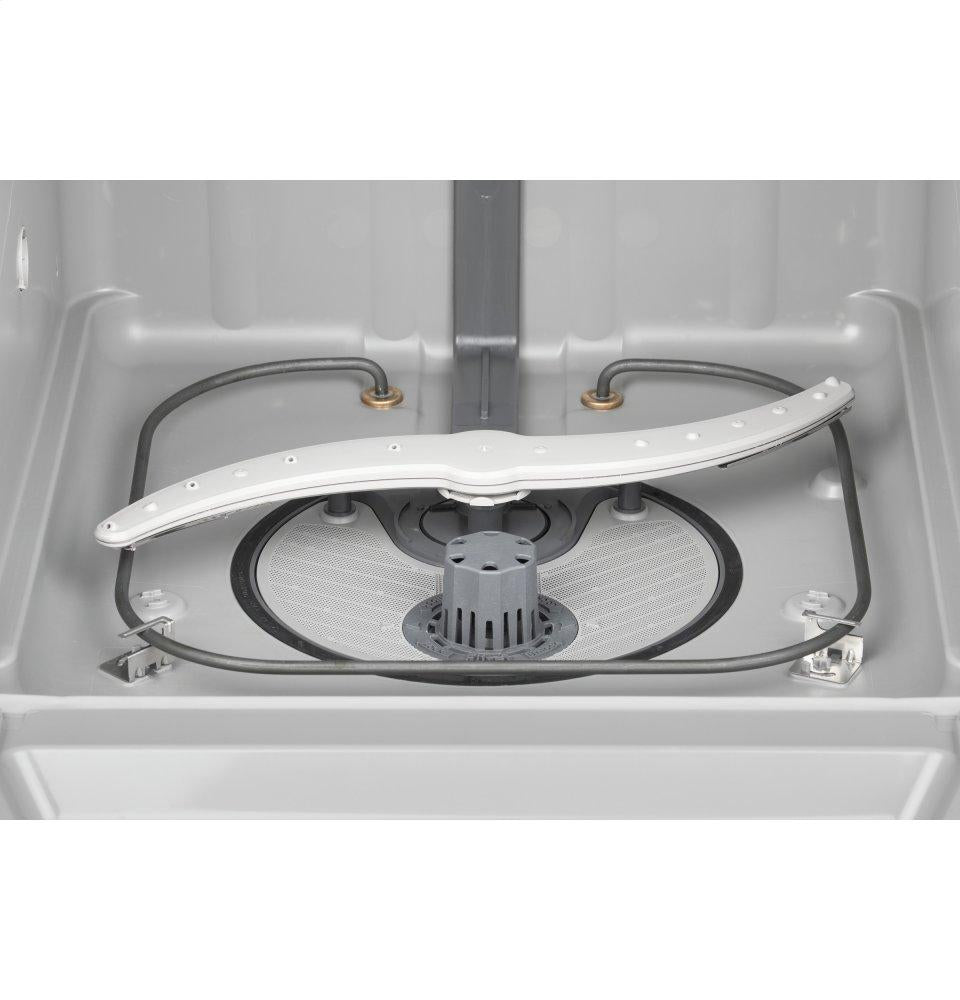

Piranha Hard Food Disposer
To ensure consistently clean items, this stainless steel blade rotates at 3,600 RPM to pulverize food particles and helps to prevent large particles from clogging the wash arms
1 Hr Wash
Enjoy a quality clean when you're short on time
AutoSense cycle
Automatically adjusts to soil level to maximize energy savings and ensure clean dishes

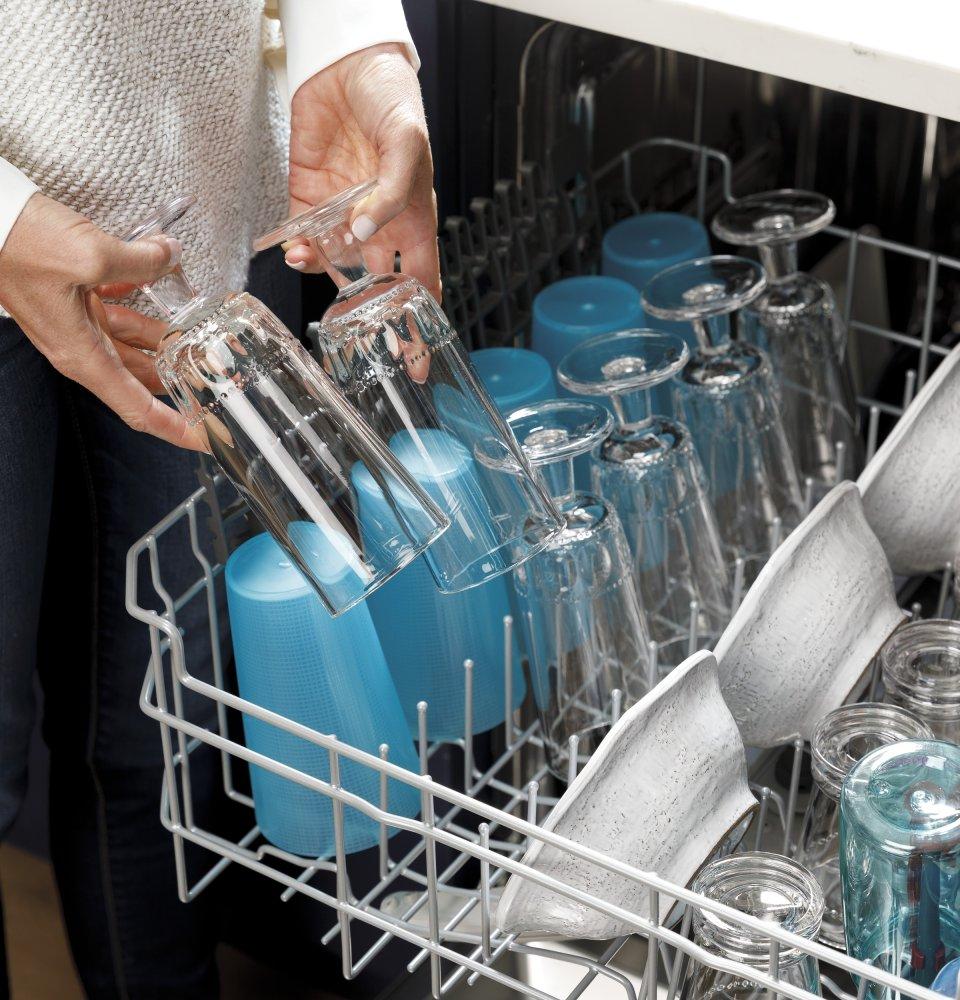

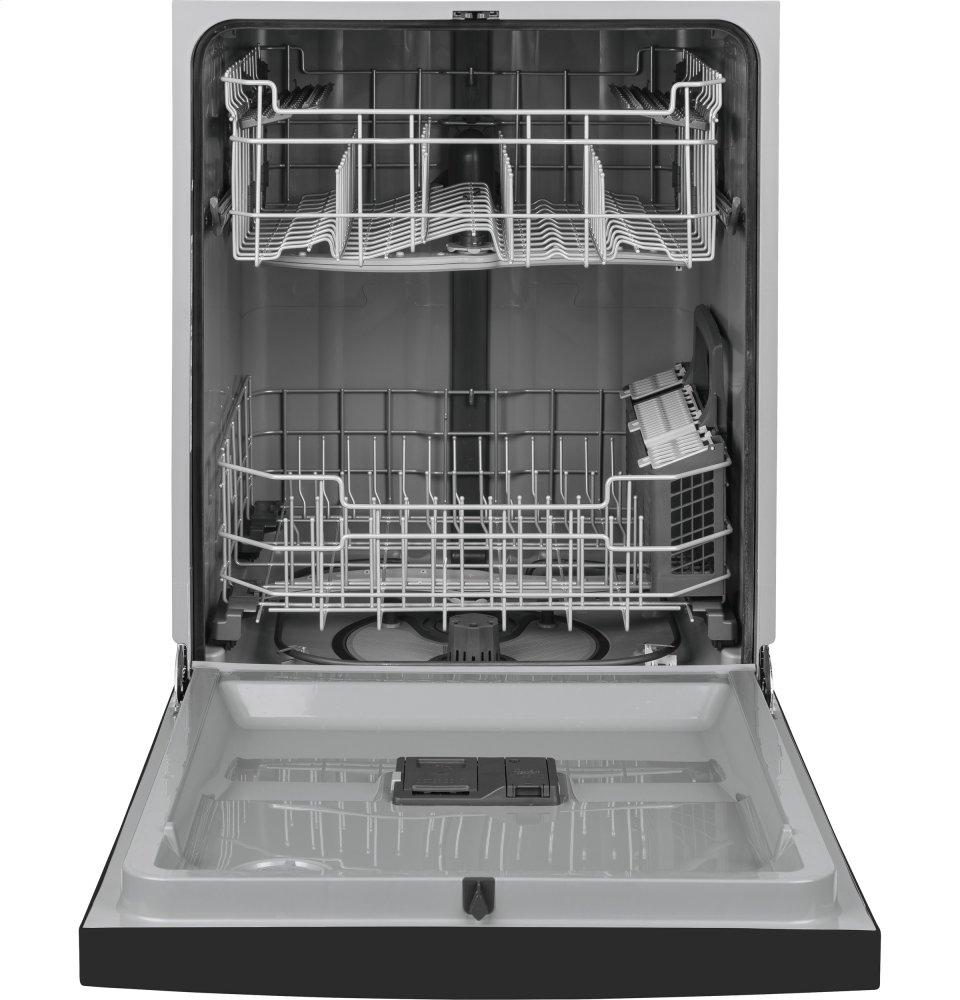

Adjustable Upper Rack
Fitting plates up to 10 1/2" and other tall items in the upper rack is possible with an adjustment
- Dry Boost(TM)
- Dedicated Silverware Jets
- Steam + Sani
- Piranha Hard Food Disposer
- Nylon Racks
- 1 Hr Wash
- AutoSense cycle
- Sanitize Cycle
- Adjustable Upper Rack
- Quiet Package
FILTER | |
App Filter - Bottle Wash | No |
App Filter - Food Disposer | Yes |
App Filter - Stainless Steel Interior | No |
App Filter - Cabinet Width | Dish Traditional 24 in. |
App Filter - Product Type | Dish Built-In Front Control |
App Filter - WiFi Connect | Optional |
APPEARANCE | |
Installation | Built-Up Floor Capable Flush Cabinet Installation Side or Top Mount Install Brackets Included |
Handle Color | Color-Matched |
Handle Design | Recessed |
Control Panel Color | Black |
Door Appearance | Contour door |
Door Style | Long Door |
Color Appearance | Black |
WARRANTY | |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
POWER / RATINGS | |
Calrod Heater Watts | 800/500 |
Power Connection | Optional cord kit (GPFCORD - WX09X70910, WX09X70911) |
Volts/Hertz/Amps | 120v; 60Hz; 7.1A |
ECONOMICAL / QUIET | |
Quiet Features | Quiet Water Valve Sealed Toe Kick |
Quiet Package | 54 dBA |
Outer Wrap | Insulation Blanket |
Motor Type | Single Speed |
Door Insulation | Insulation Mastic |
WEIGHTS & DIMENSIONS | |
Net Weight | 62.0 |
Overall Depth | 24.0 |
Height w/Legs Extended - Maximum Height | 34.625 |
Overall Width | 23.75 |
Overall Height | 34.0 |
Approximate Shipping Weight | 77.0 |
Cabinet Width | 24.0 |
Height w/ Legs Retracted - Minimum Height | 33.375 |
FEATURES | |
Wash System Features | Automatic HotStart Automatic Temperature Control Dedicated Silverware Jets Drain Pump Dual Pumps and Motors Piranha™ Hard Food Disposer with removable filter |
Style | Built-In Front Control |
Upper Rack | 2 Stem Safe Shelves Ball-Tip Tines Height Adjustable Removable |
Door Liner | Clean Design with Plastic |

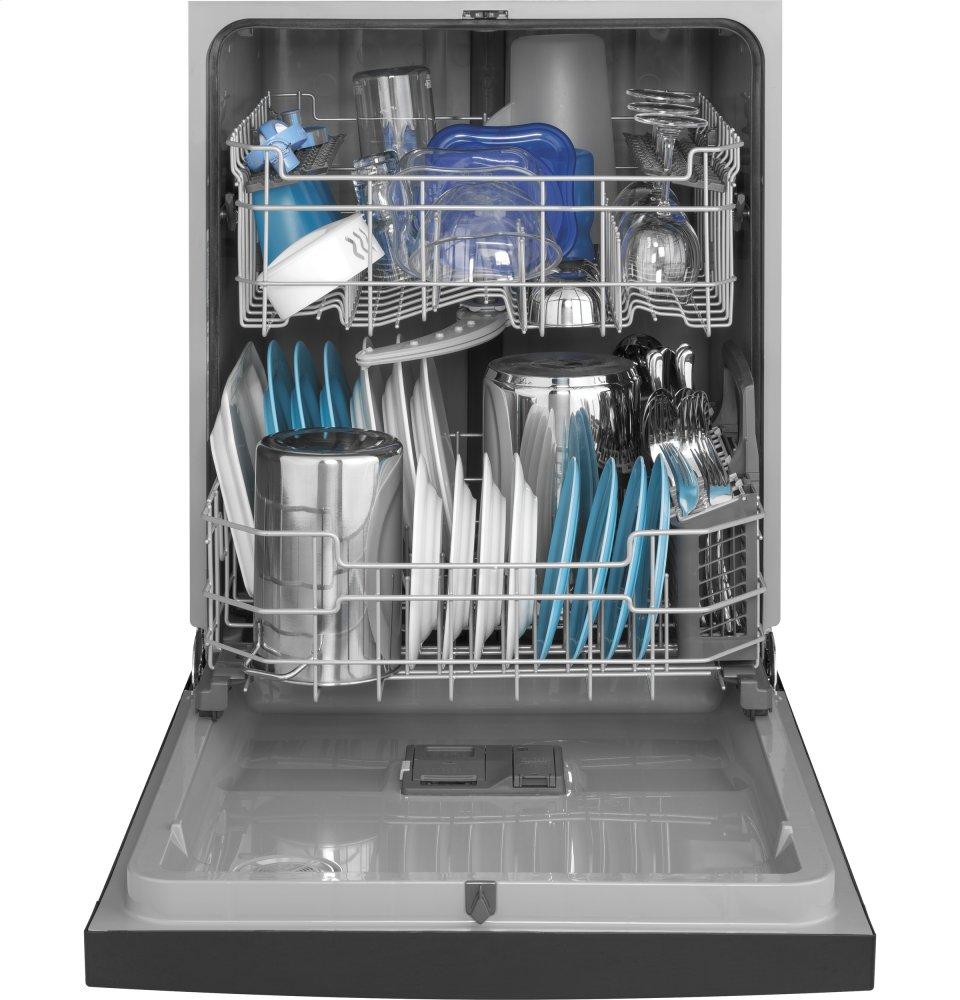

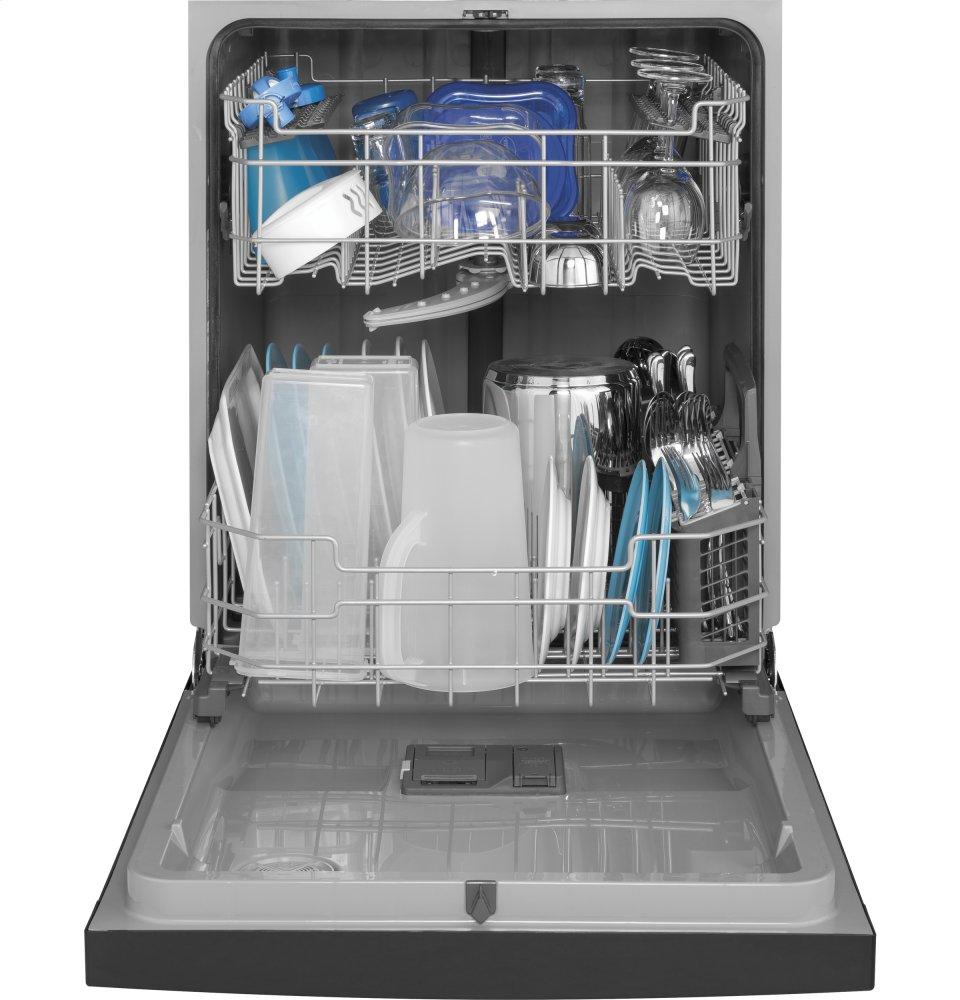

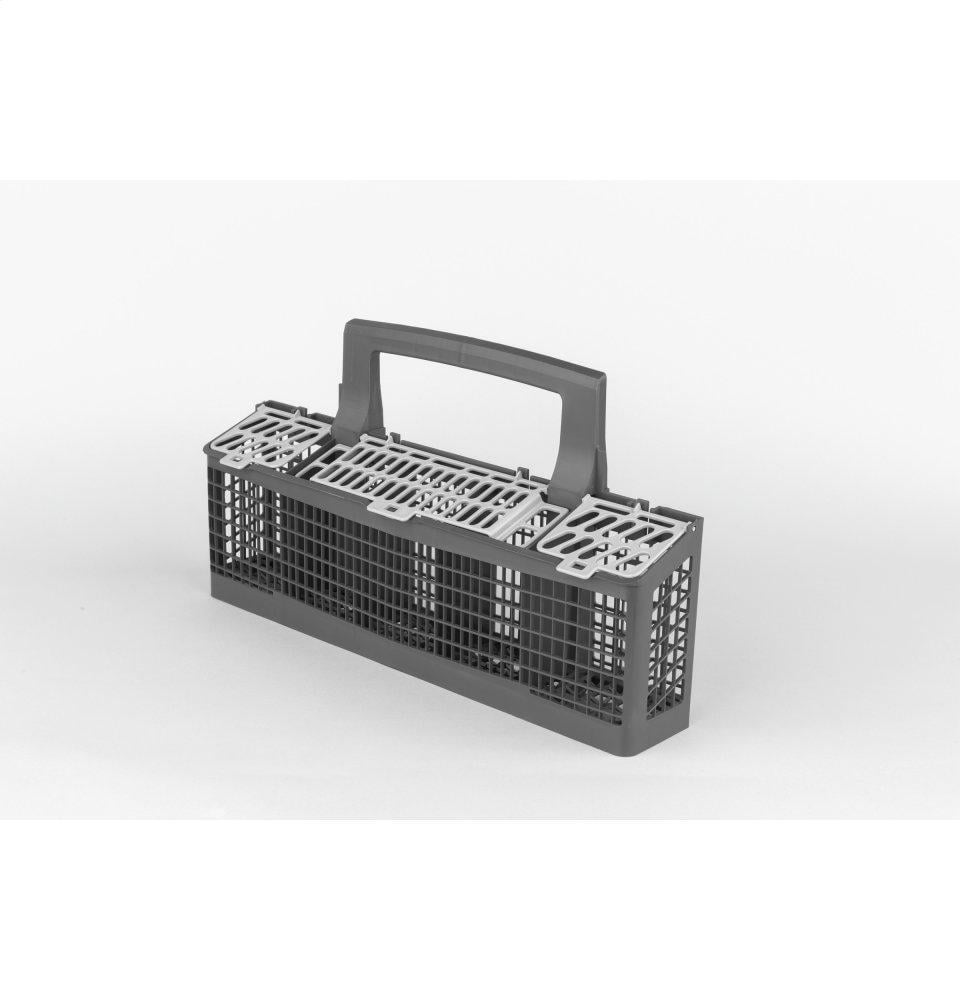

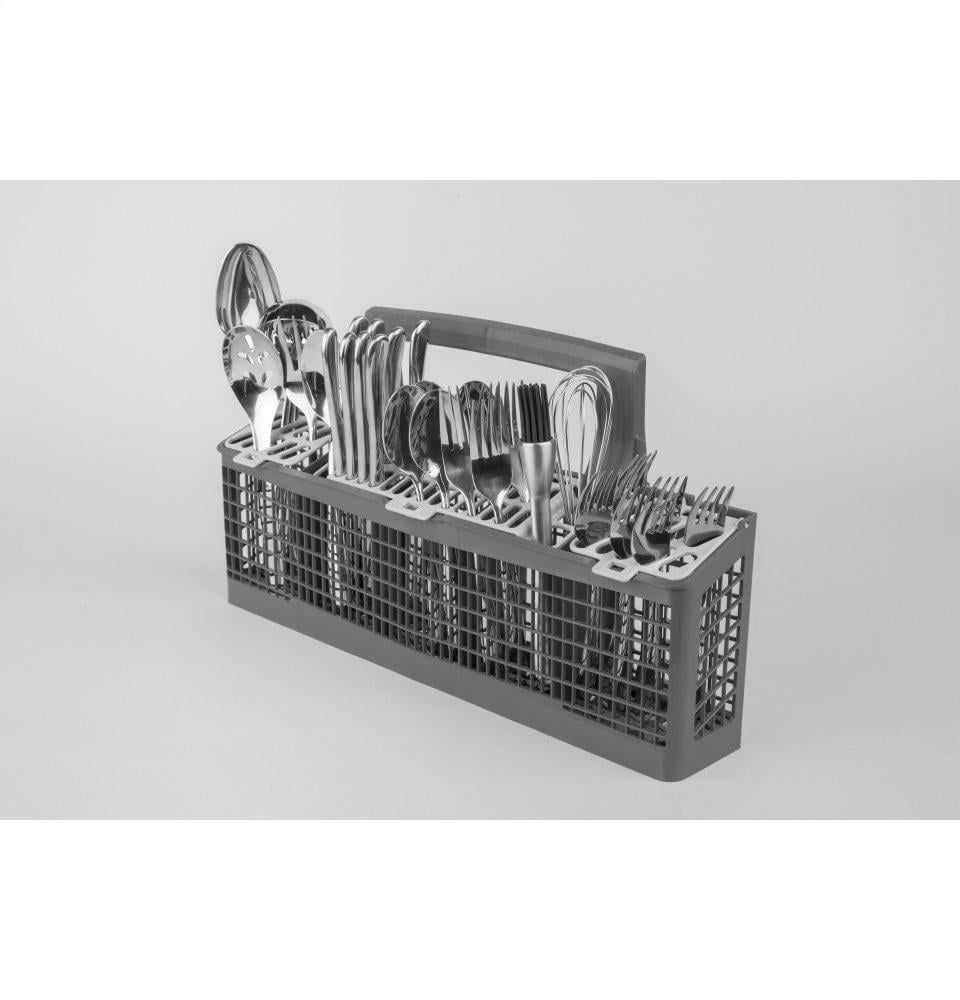

Rack Features | 1 Piece Silverware Basket with Cell Covers 2 Utility Shelves with Stem Safe - Upper Ball-Tipped Tines Manual Adjustable Upper Rack |
Dishwasher Control Features | 3 Digit Countdown Display with 1 'Clean' light / 1 'Sanitized' light Audible End-of-Cycle Signal Last Cycle Memory |
WiFi Connect | Optional (Requires part no. PBX23W00Y0) |
Showroom Power Mode | Yes |
Cutlery Tray | Optional 3rd rack (GPF3RACK) |
Connected Capabilities | Amazon Alexa Amazon Dash Replenishment IFTTT Sonos The Google Assistant |
Dishwasher Drying Features | Dry Boost™ Heated Dry - On/Off |
Leveling System | 4 Leveling Legs |
Tub Liner | Plastic |

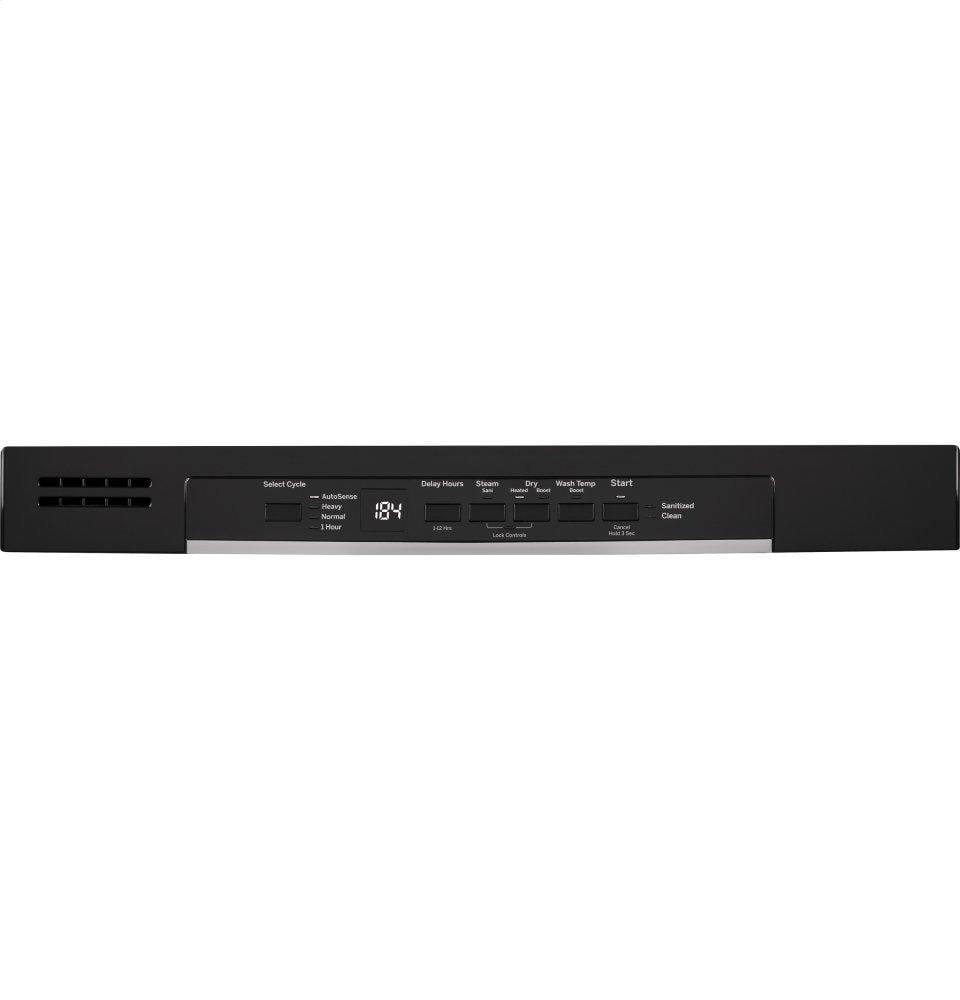

Control Type | 6 Touchpads Electronic Tactile Buttons Front Controls |
Number of Place Settings | Up to 16 |
Tub Type | Tall Tub |
Rack Color | Silver |
Exterior Style | Traditional |
Number of Cycles | 4 |
Wash System | 500 Series |
Racking System | Nylon Towerless |
Dishwasher Cycles | 1 Hour Wash Auto Sense Heavy Wash Normal Wash |
Number of Options | 8 |
Dishwasher Options | Child Lock Delay Start 1-12 Hr. Dry Boost™ Heated Dry Sani (Certified to NSF Standard 184) Start/Reset Steam PreWash Wash TempBoost |
Tub and Door Liner | Gray Plastic |
Latch | Center Pull |
Wash Arms | 3 Wash Levels Lower Middle Upper |
Lower Rack | Ball-Tip Tines |
Water Filtration System | 100% Filtration with Piranha Hard Food Disposer and Removable Filter |
Sensor | Clean Sensor |
Dispenser | Rinse Aid with Indicator and Adjustment |
