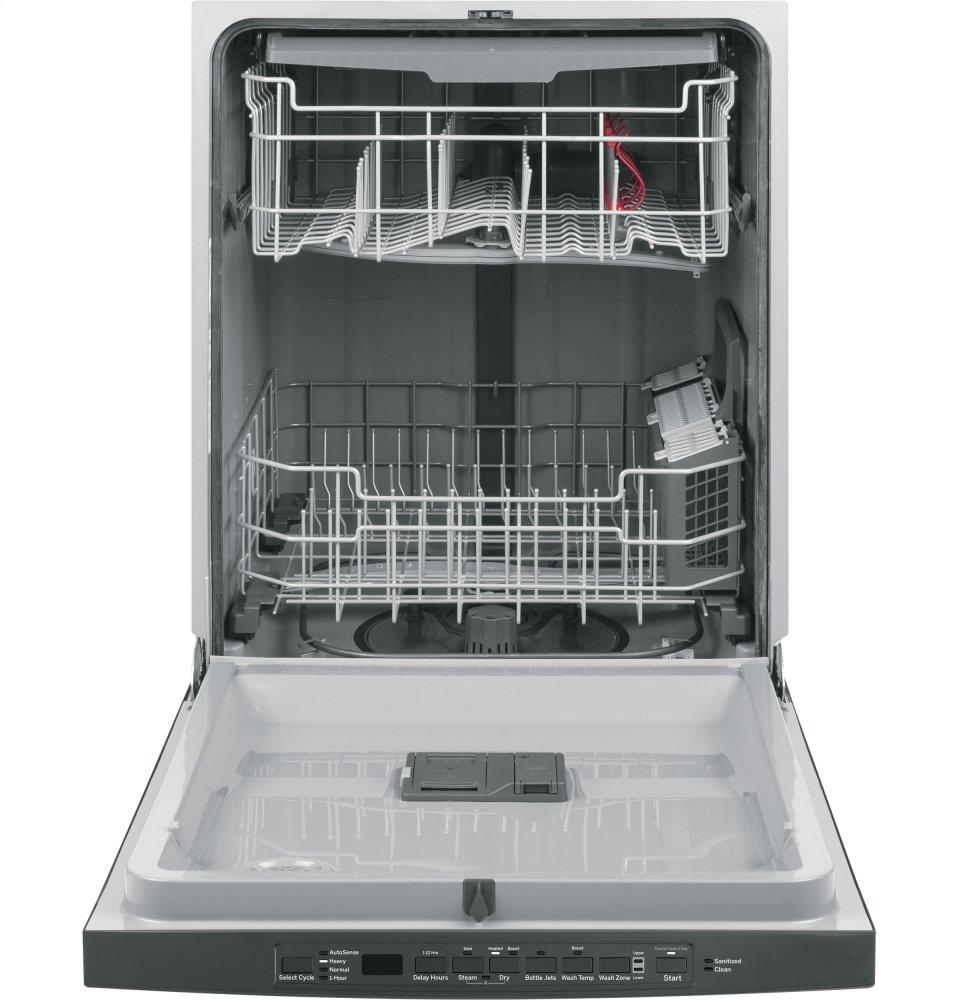

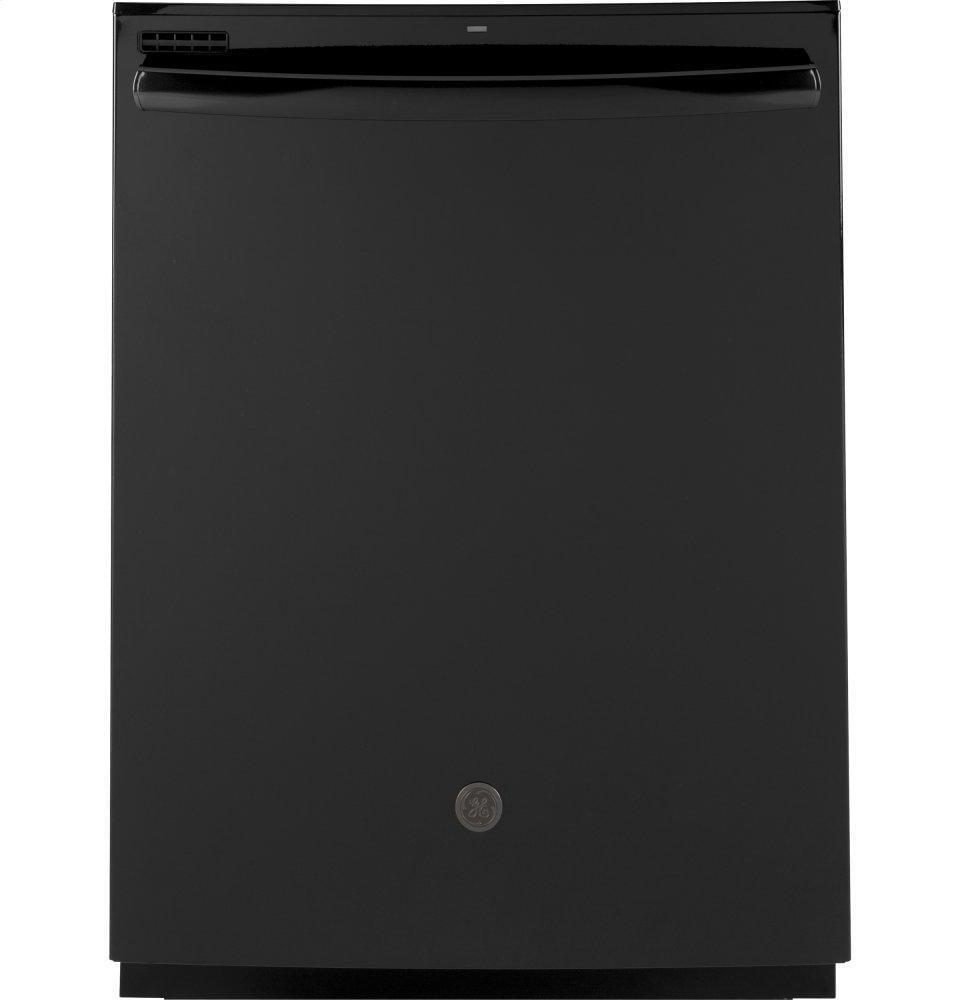

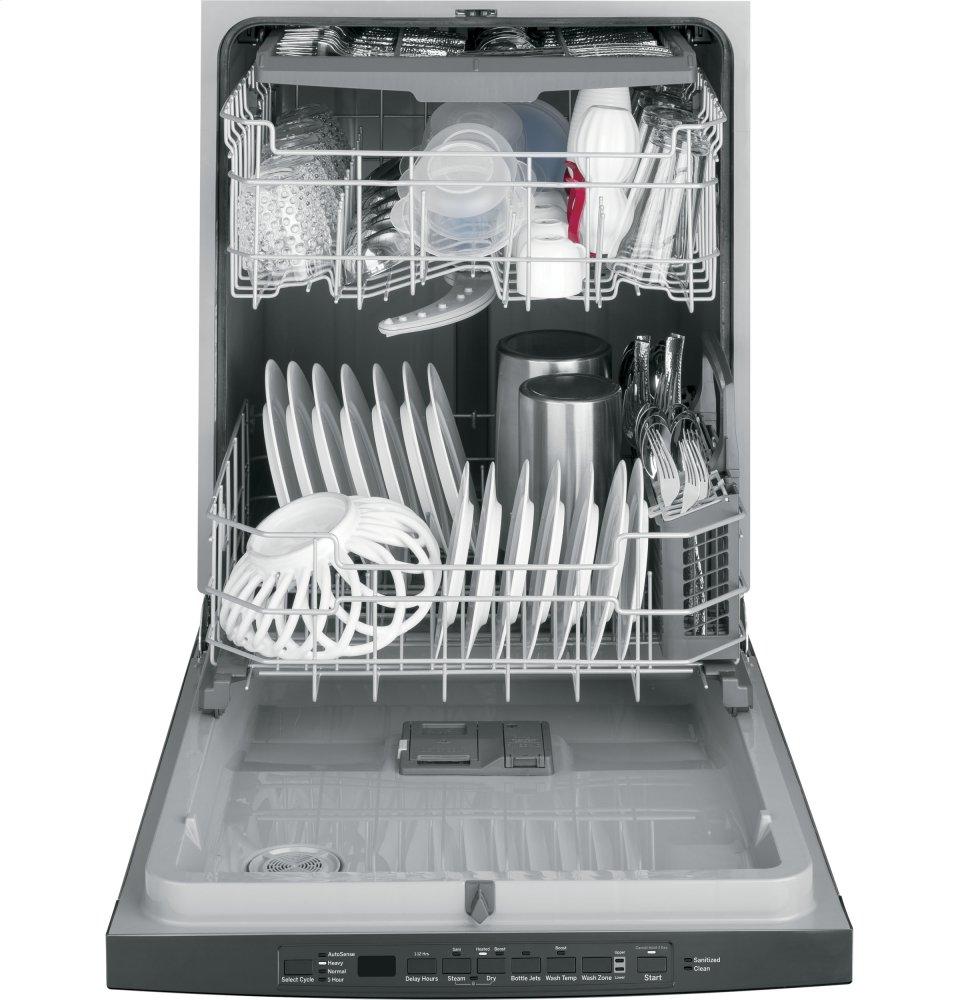

Ge Appliances GDT630PGMBB Ge® Top Control With Plastic Interior Dishwasher With Sanitize Cycle & Dry Boost

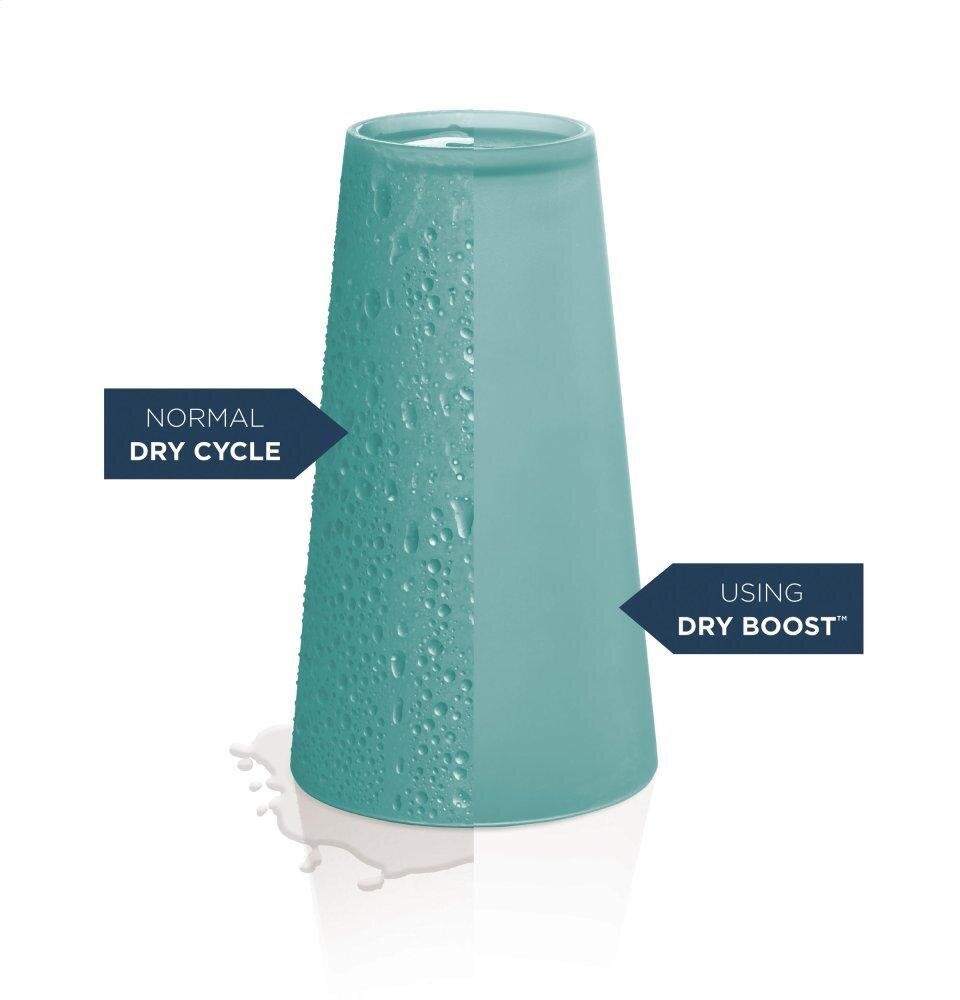

Dry Boost(TM)
Dry Boost outperforms standard heated dry dishwashers by getting hard-to-dry items like plastics up to 3 times drier when compared to heated dry

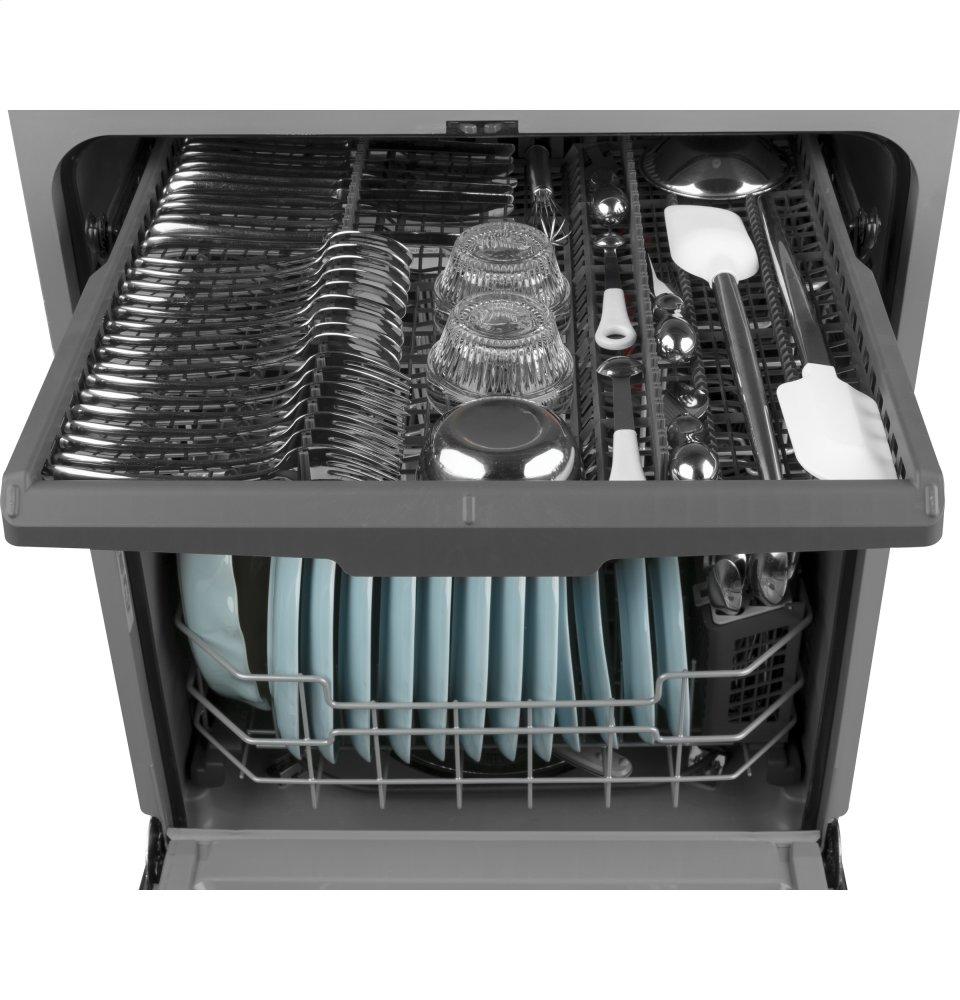

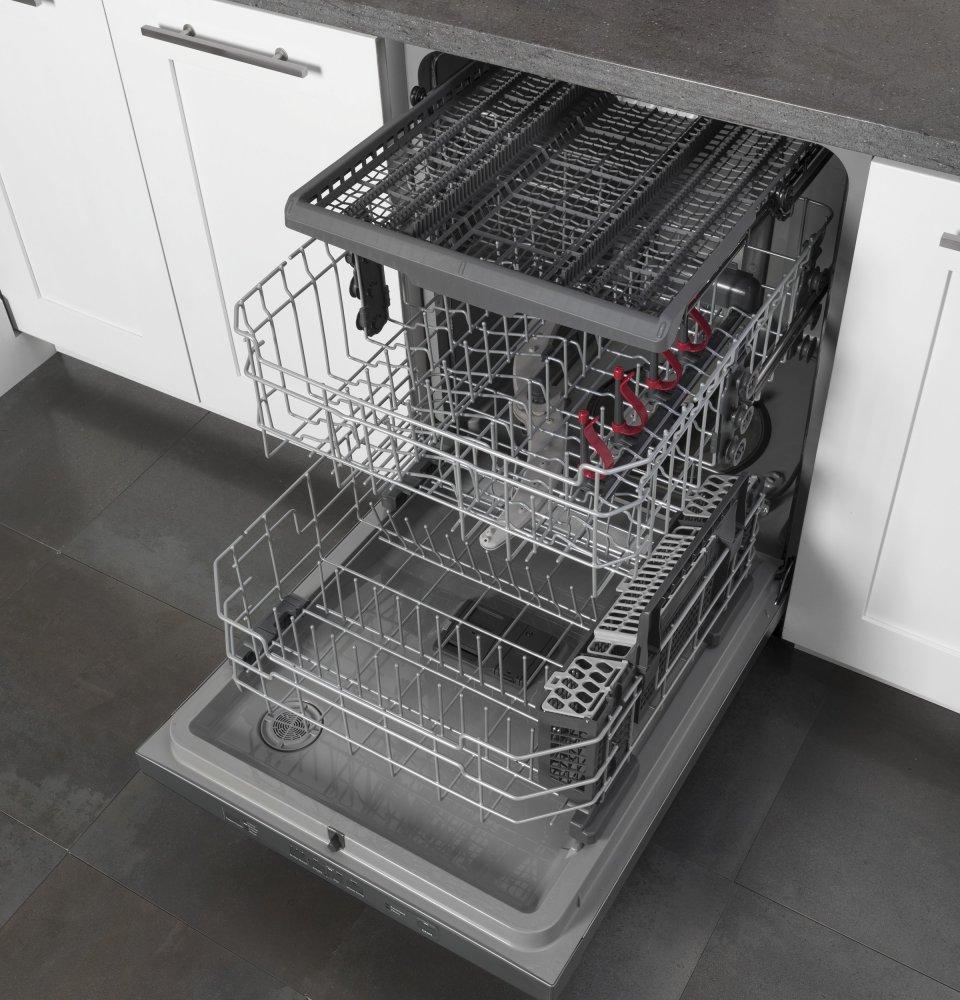

Built-In Third Rack
This dishwasher with third rack storage lets you easily clean more items in fewer loads. It gives you extra loading flexibility with a place to store sliverware, spatulas, lids and more

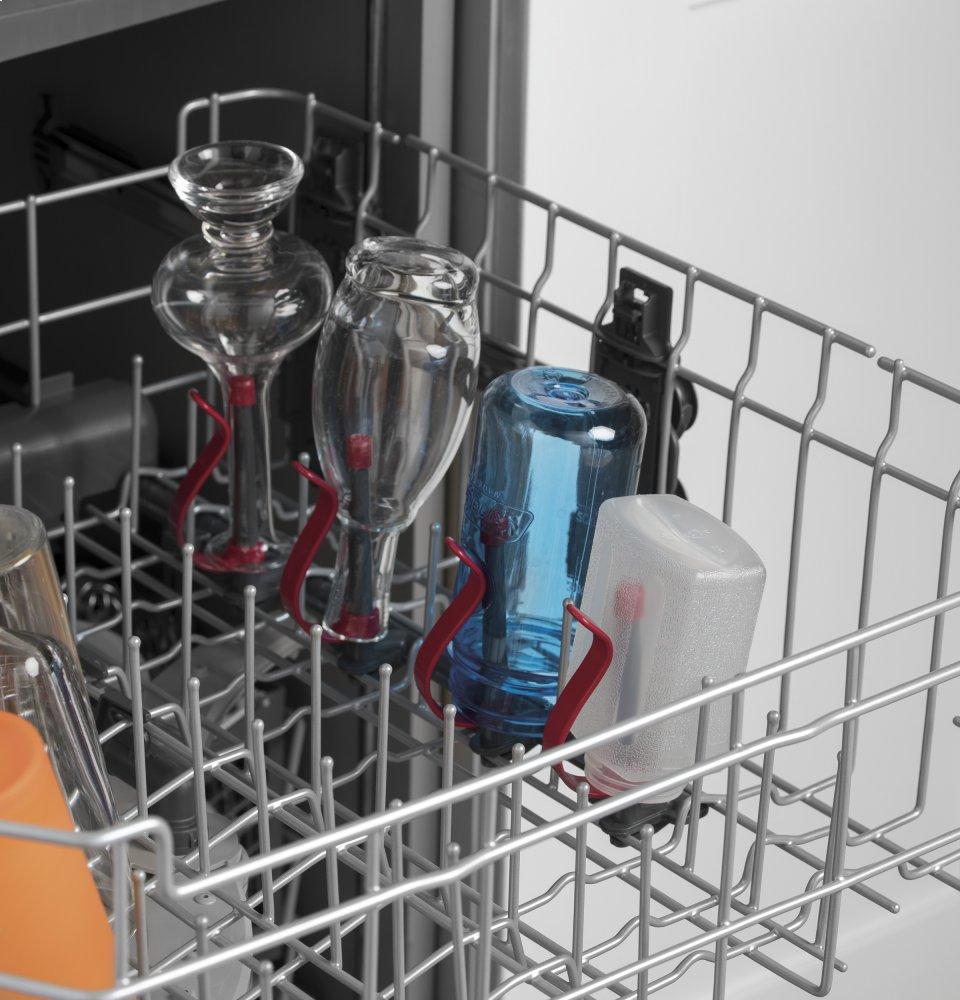

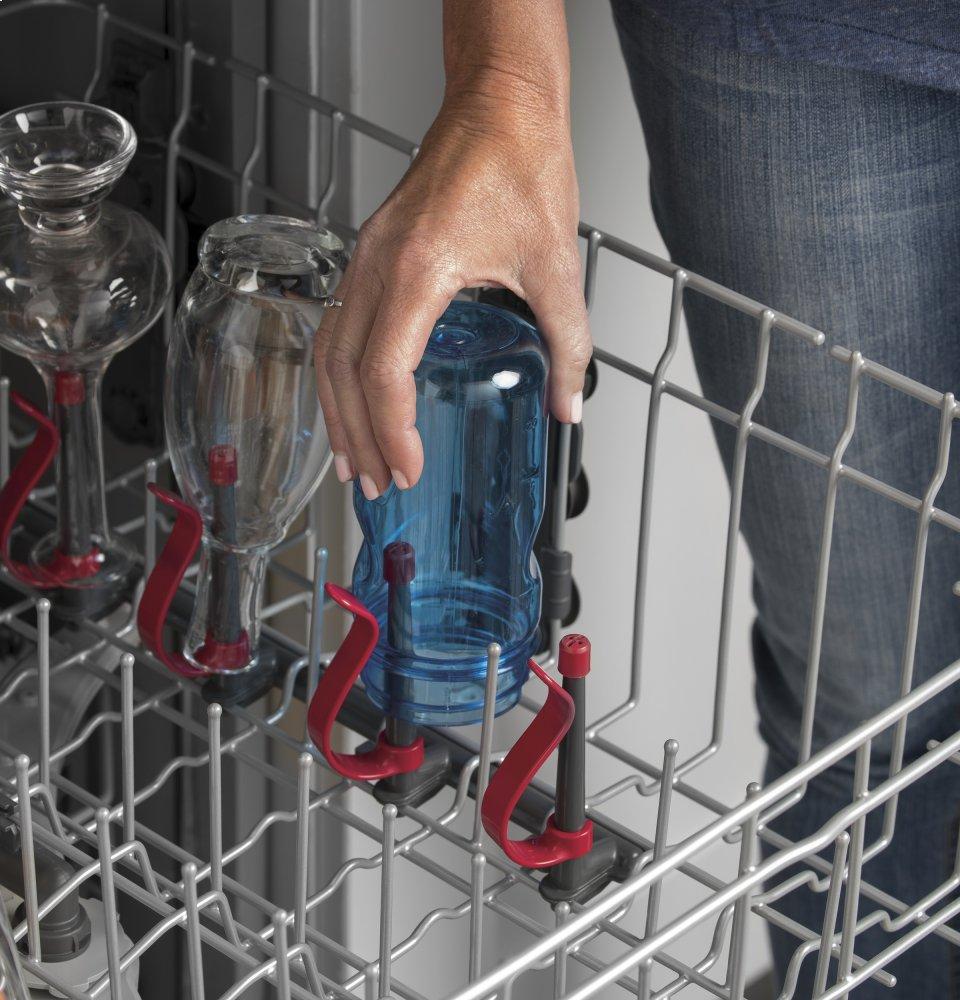

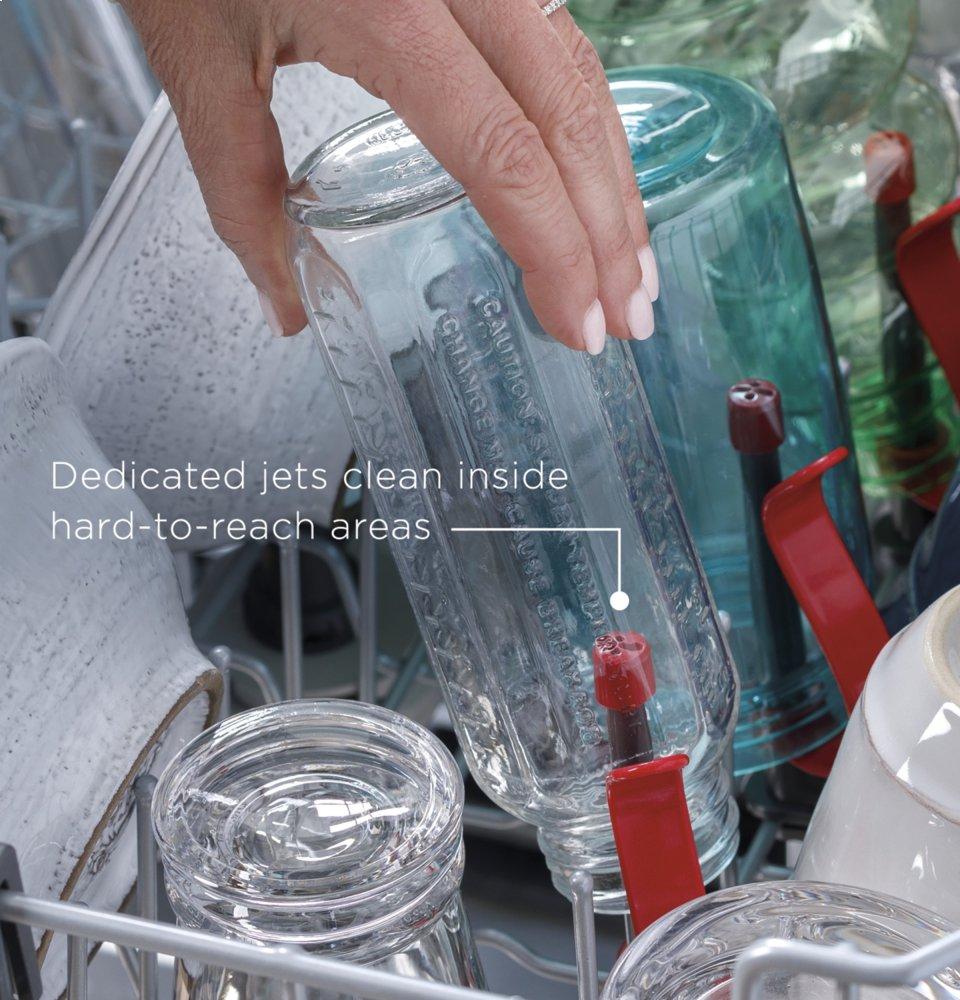

4 Bottle Wash Jets
This dishwasher with bottle jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the four bottle wash jets direct water and detergent inside to effectively wash hard-to-reach areas

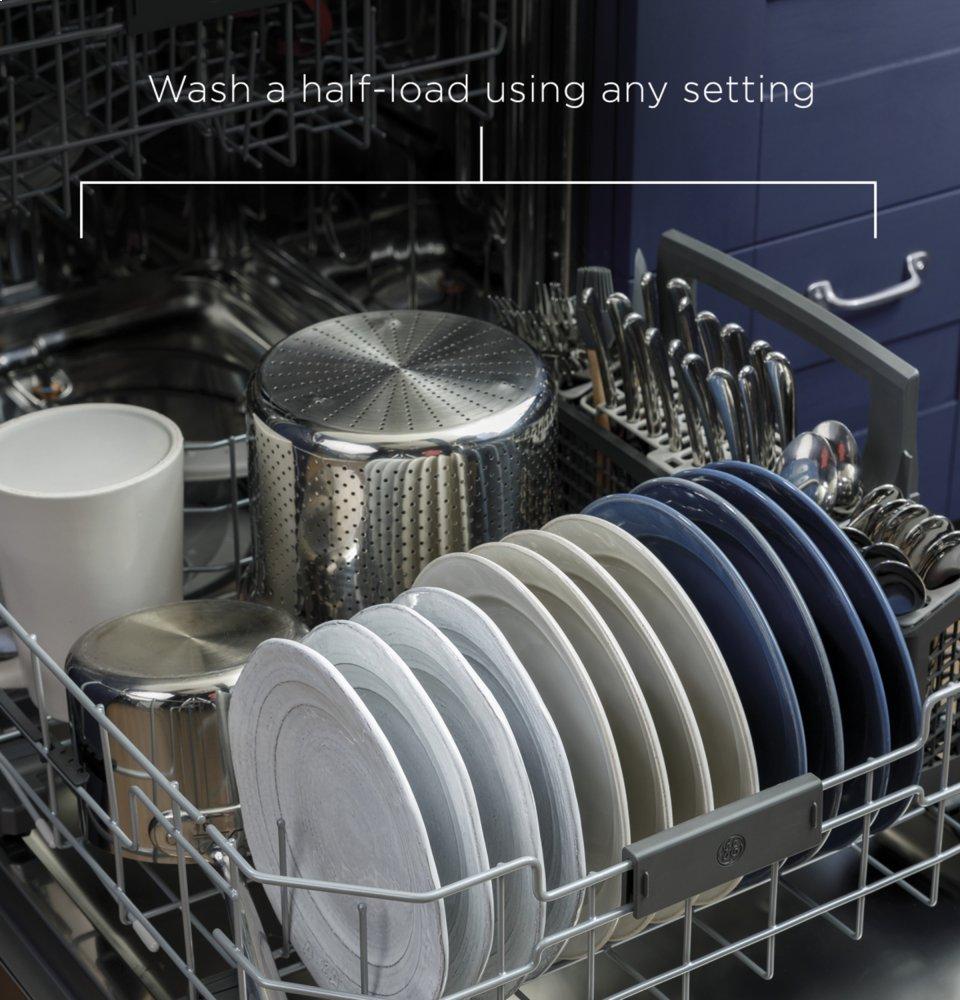

Wash Zones
Wash a true half load in the upper or lower rack whenever you need to, instead of waiting on a full load. Just choose your wash zone: upper or lower. The feature works in combination with most cycles, saving you time and conserving energy
Steam + Sani
Save time with a steam and sanitize option that loosens tough soils before the wash cycle begins, so you get a complete wash with no pre-rinsing or soaking necessary. Plus, a sanitization cycle reduces 99.999% of bacteria on dishes.
1-Hour Wash Cycle
This one-hour wash cycle provides a quick, quality clean. Unload spotless plates, glasses, pots and pans without waiting hours for the dishwasher to finish

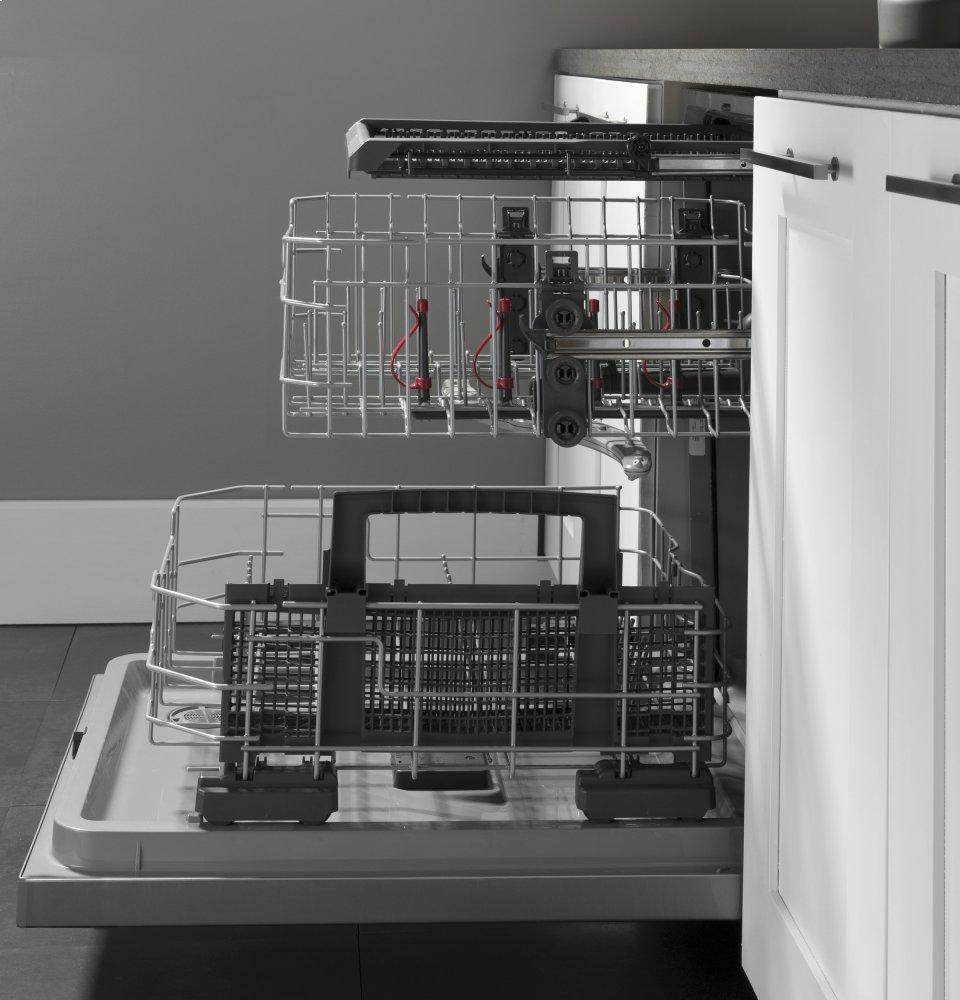

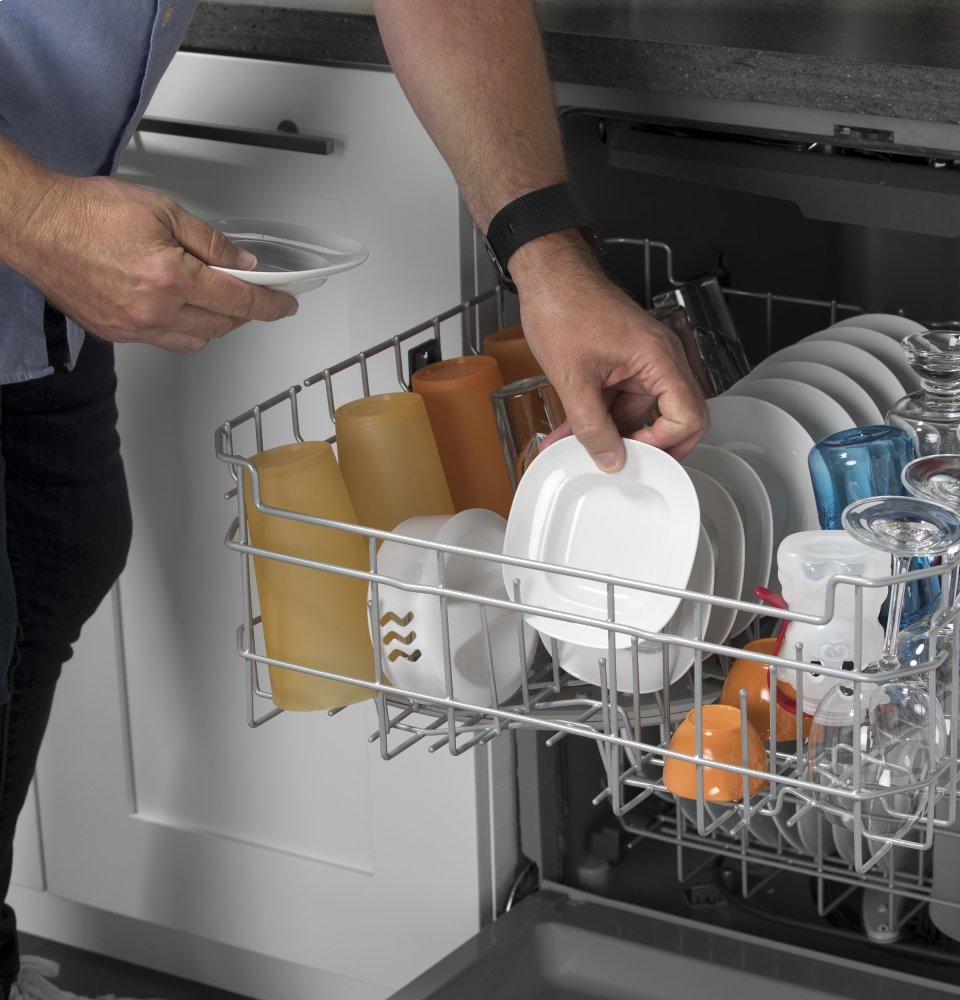

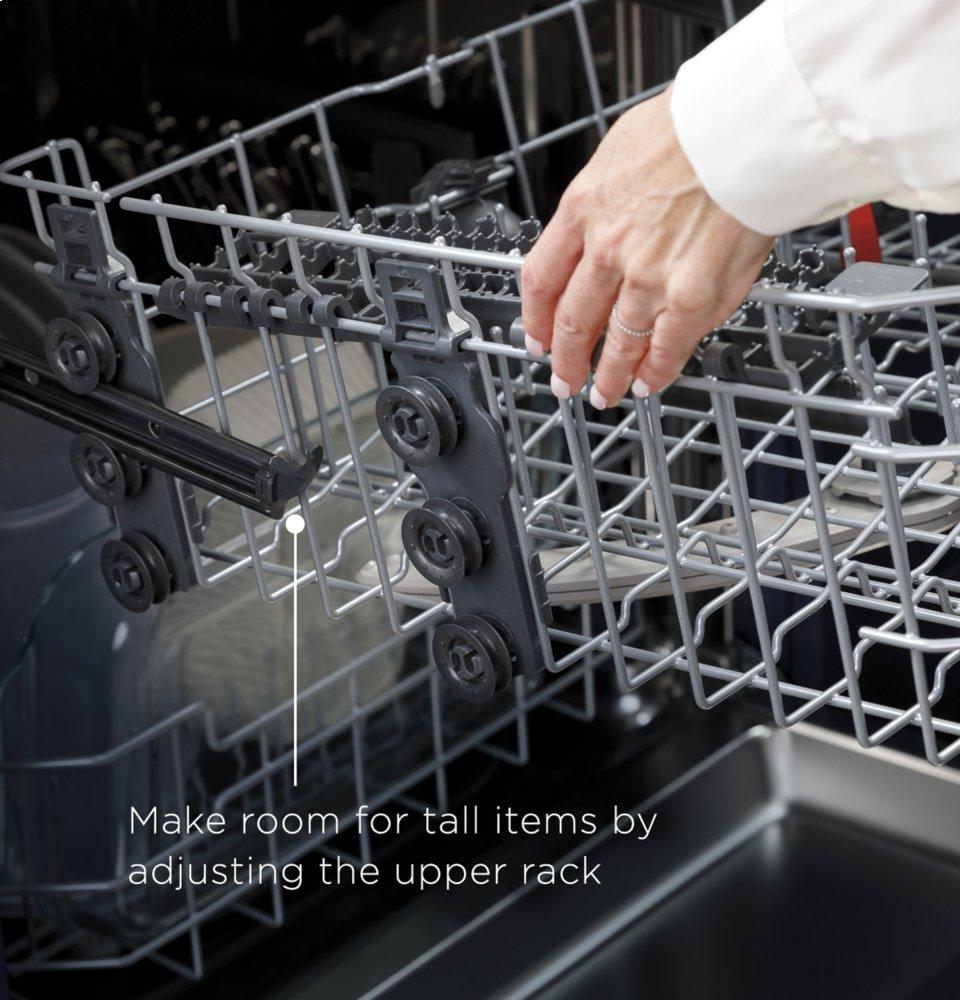

Adjustable Upper Rack
Enjoy a dishwasher with flexible loading with an adjustable upper rack. Easily move it up or down to fit bottles, large platters and other items as tall as 10.5"

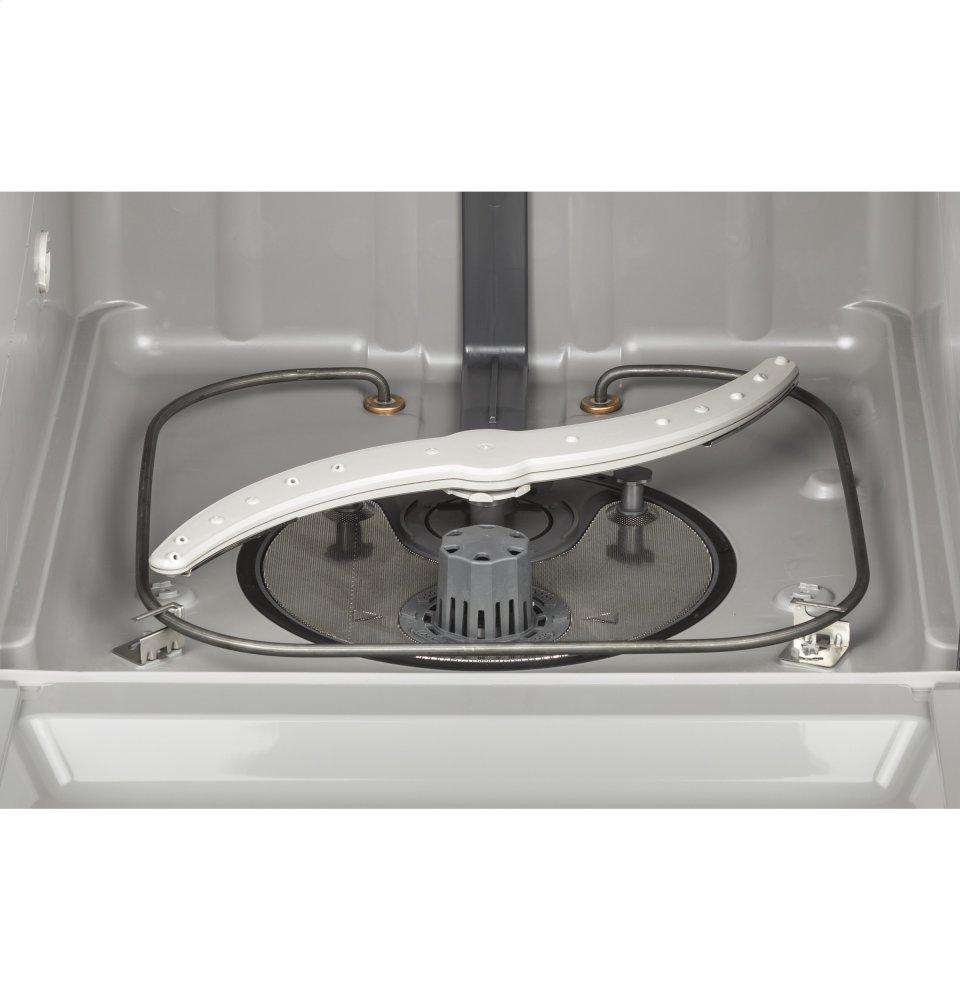

Hard Food Disposer
The Piranha Hard Food Disposer lets you use your dishwasher without pre-rinsing. Its stainless steel impellers rotate at 3,600 RPM to pulverize food particles and an anti-jamming design make sure wash arms stay unclogged
- Dry Boost(TM)
- Built-In Third Rack
- 4 Bottle Wash Jets
- Water Leak Sensor
- Reliable Performance
- Wash Zones
- High Wash Performance
- Steam + Sani
- 1-Hour Wash Cycle
- AutoSense Cycle
- Adjustable Upper Rack
- Hard Food Disposer
- Extra Large Capacity
- Optional WiFi
FILTER | |
App Filter - Bottle Wash | Yes |
App Filter - Food Disposer | Yes |
App Filter - Stainless Steel Interior | No |
App Filter - Cabinet Width | Dish Traditional 24 in. |
App Filter - Product Type | Dish Built-In Top Control |
App Filter - WiFi Connect | Optional |
APPEARANCE | |
Installation | Built-Up Floor Capable Flush Cabinet Installation Side or Top Mount Install Brackets Included |
Handle Color | Color-Matched |
Control Panel Color | Color Matched |
Door Appearance | Contour door |
Door Style | Long Door |
Color Appearance | Black |
WARRANTY | |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
POWER / RATINGS | |
Calrod Heater Watts | 800/500 |
Power Connection | Optional cord kit (GPFCORD - WX09X70910, WX09X70911) |
Volts/Hertz/Amps | 120v; 60Hz; 7.1A |
ECONOMICAL / QUIET | |
Quiet Features | Quiet Water Valve Sealed Toe Kick Tub Collar Trim |
Quiet Package | 50 dBA |
Outer Wrap | Insulation Blanket |
Motor Type | Single Speed |
Door Insulation | Insulation Mastic |
WEIGHTS & DIMENSIONS | |
Net Weight | 64.0 |
Overall Depth | 24.0 |
Overall Depth with Handle | 25.6 |
Height w/Legs Extended - Maximum Height | 34.625 |
Overall Width | 23.75 |
Overall Height | 34.0 |
Approximate Shipping Weight | 80.0 |
Cabinet Width | 24.0 |
Height w/ Legs Retracted - Minimum Height | 33.375 |
FEATURES | |
Wash System Features | Automatic HotStart Automatic Temperature Control Bottle Jets (4) Dedicated Silverware Jets Drain Pump Dual Pumps and Motors Piranha™ Hard Food Disposer with removable filter |
Style | Built-In Top Control |
Upper Rack | Ball-Tip Tines Height Adjustable Removable |
Door Liner | Clean Design with Plastic |

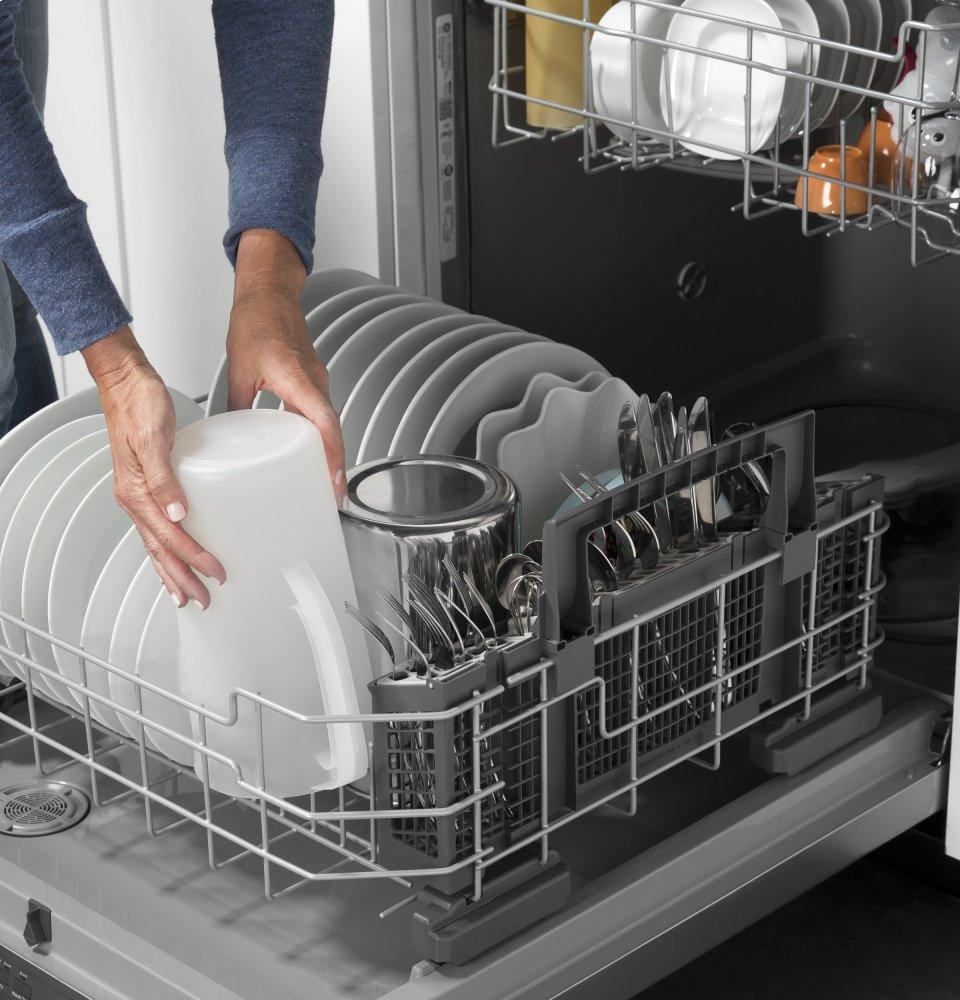

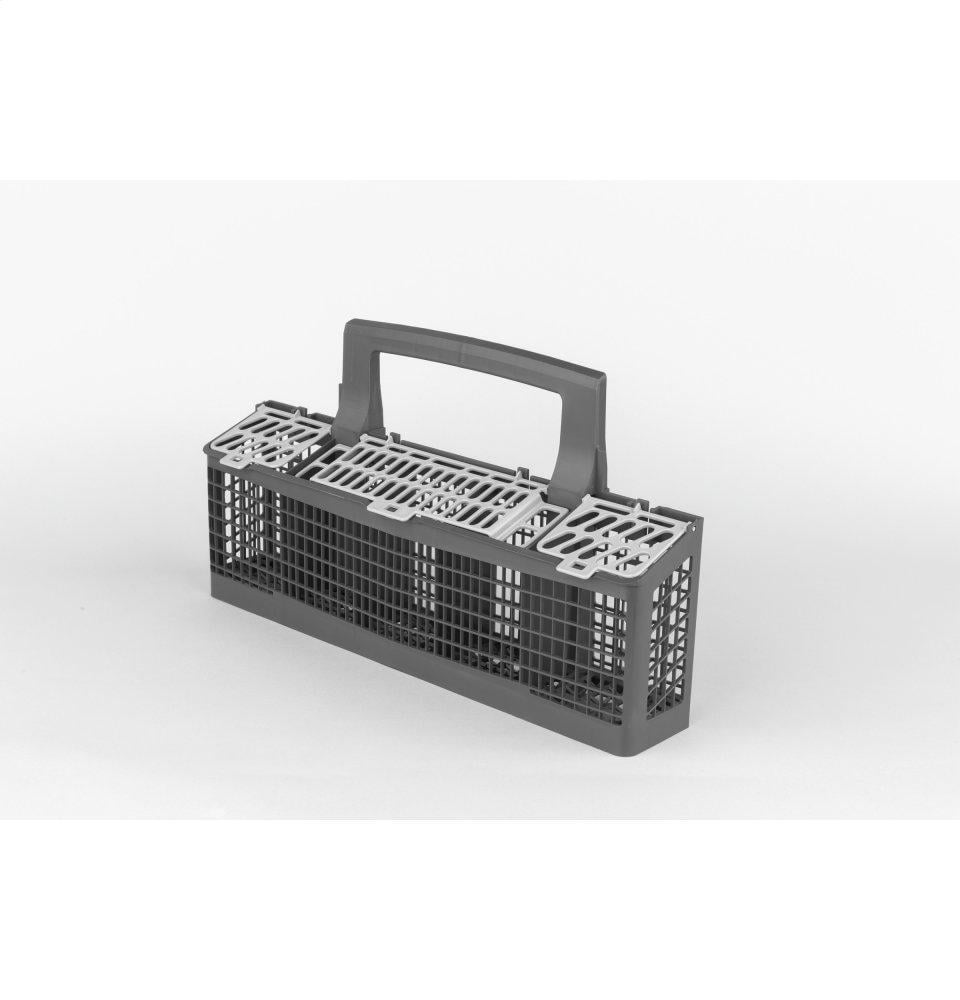

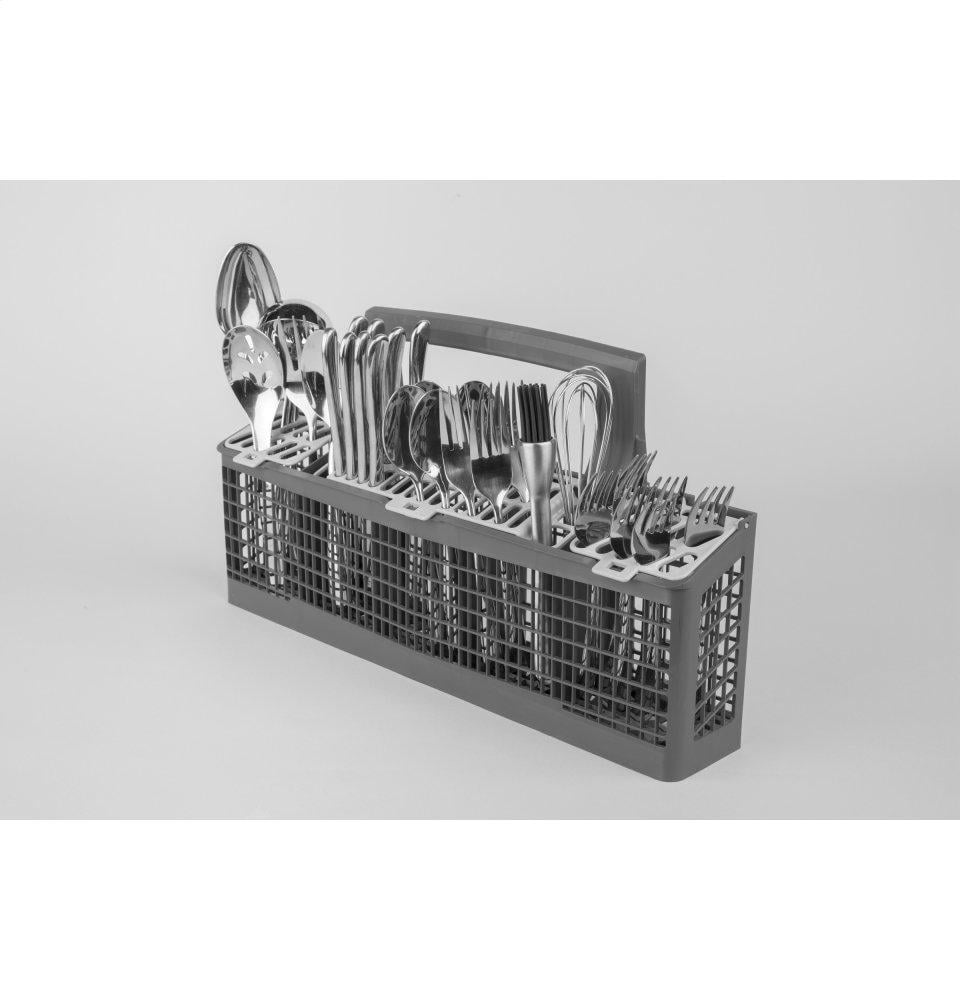

Rack Features | 1 Piece Silverware Basket with Cell Covers Ball-Tipped Tines Manual Adjustable Upper Rack |

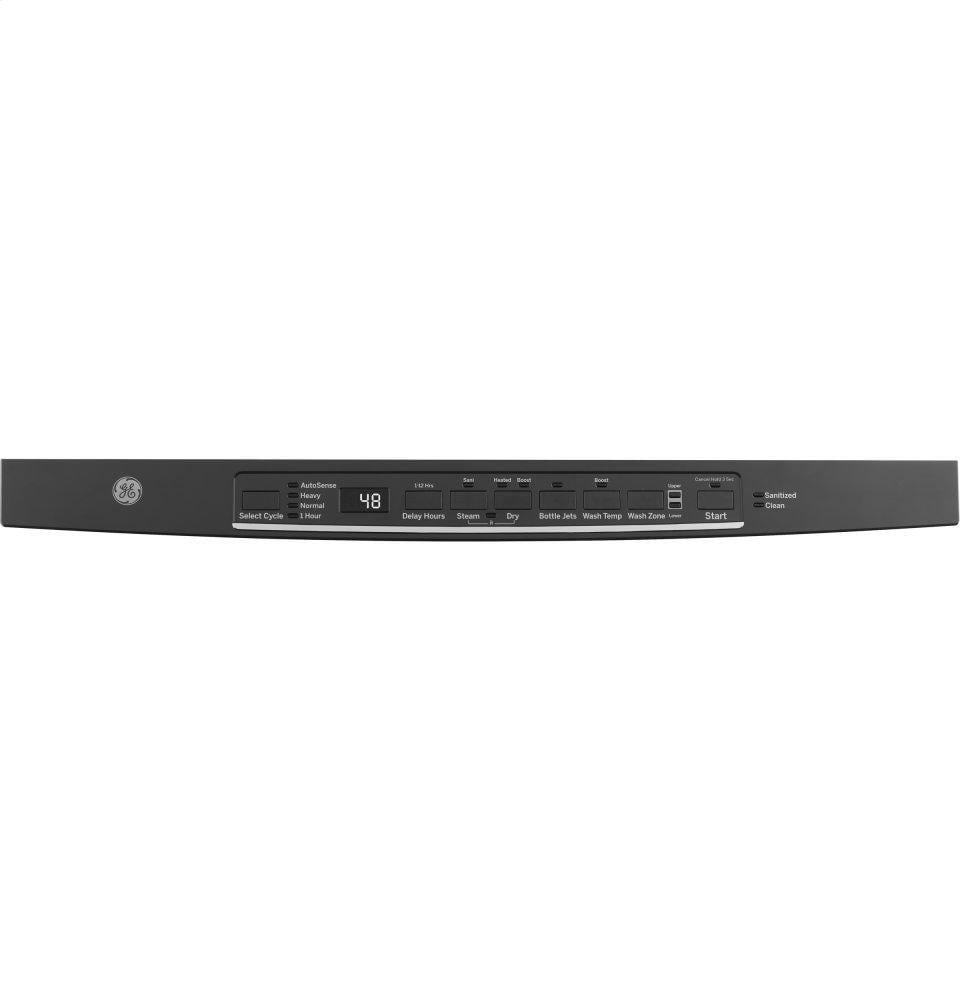

Dishwasher Control Features | 3 Digit Countdown Display with 1 'Clean' light / 1 'Sanitized' light Cycle Progress Indicators Audible End-of-Cycle Signal Control Lock Last Cycle Memory Start/Reset Pad |
WiFi Connect | Optional (Requires part no. PBX23W00Y0) |
Showroom Power Mode | Yes |
Cutlery Tray | One piece removable 3rd rack |
Connected Capabilities | Amazon Alexa Amazon Dash Replenishment IFTTT Sonos The Google Assistant |
Dishwasher Drying Features | Dry Boost™ Heated Dry - On/Off |
Leveling System | 4 Leveling Legs |
Tub Liner | Plastic |
Control Type | 8 Touchpads Electronic Tactile Buttons Top Controls |
Number of Place Settings | Up to 16 |
Tub Type | Tall Tub |
Rack Color | Silver |
Exterior Style | Traditional |
Number of Cycles | 4 |
Wash System | 600 Series |
Racking System | Nylon Towerless |
Dishwasher Cycles | 1 Hour Wash Auto Sense Heavy Wash Normal Wash |
Number of Options | 11 |
Dishwasher Options | Bottle Wash Child Lock Delay Start 1-12 Hr. Dry Boost™ Heated Dry Sani (Certified to NSF Standard 184) Start/Reset Steam PreWash Wash TempBoost Wash Zone Lower Only Wash Zone Upper Only |
Tub and Door Liner | Gray Plastic |
Latch | Center Pull |
Wash Arms | 3 Wash Levels Lower Middle Upper |
Lower Rack | Ball-Tip Tines |
Water Filtration System | 100% Filtration with Piranha Hard Food Disposer and Removable Filter |
Sensor | Clean Sensor |
Dispenser | Rinse Aid with Indicator and Adjustment |
Active Flood Protection | Active Flood Protect |
