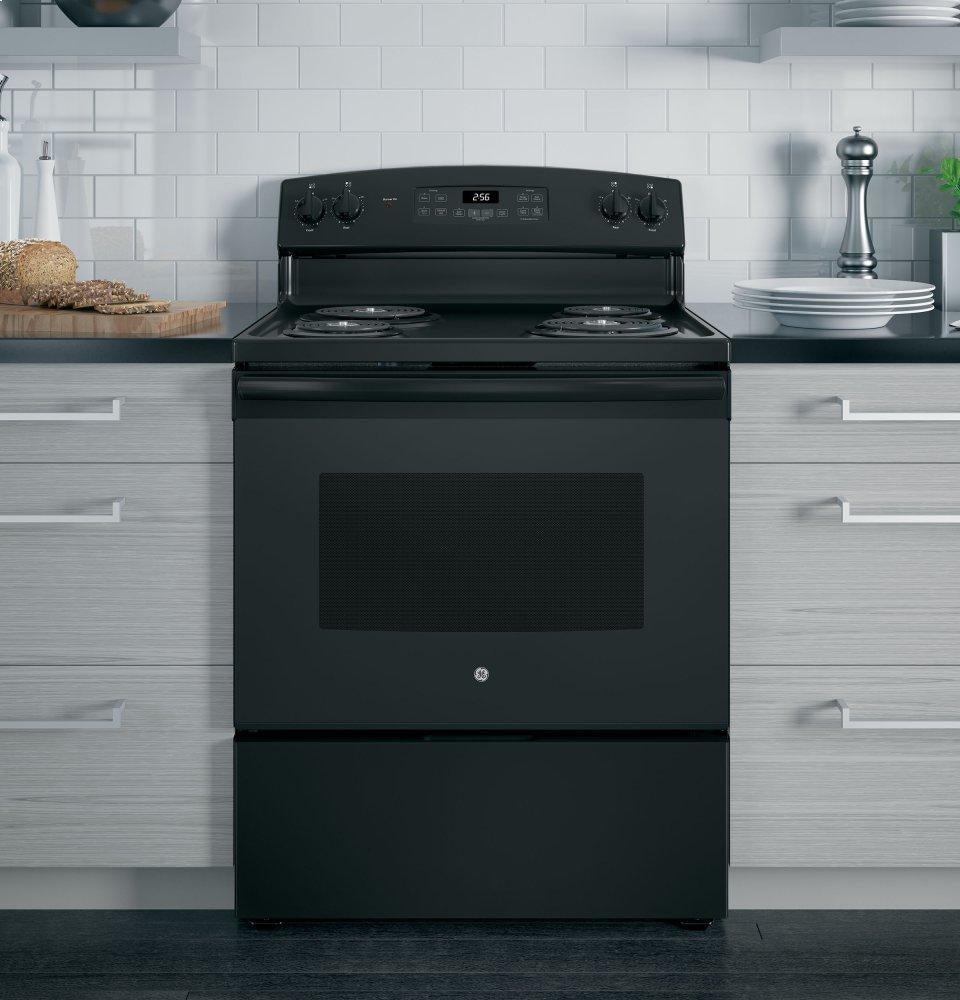

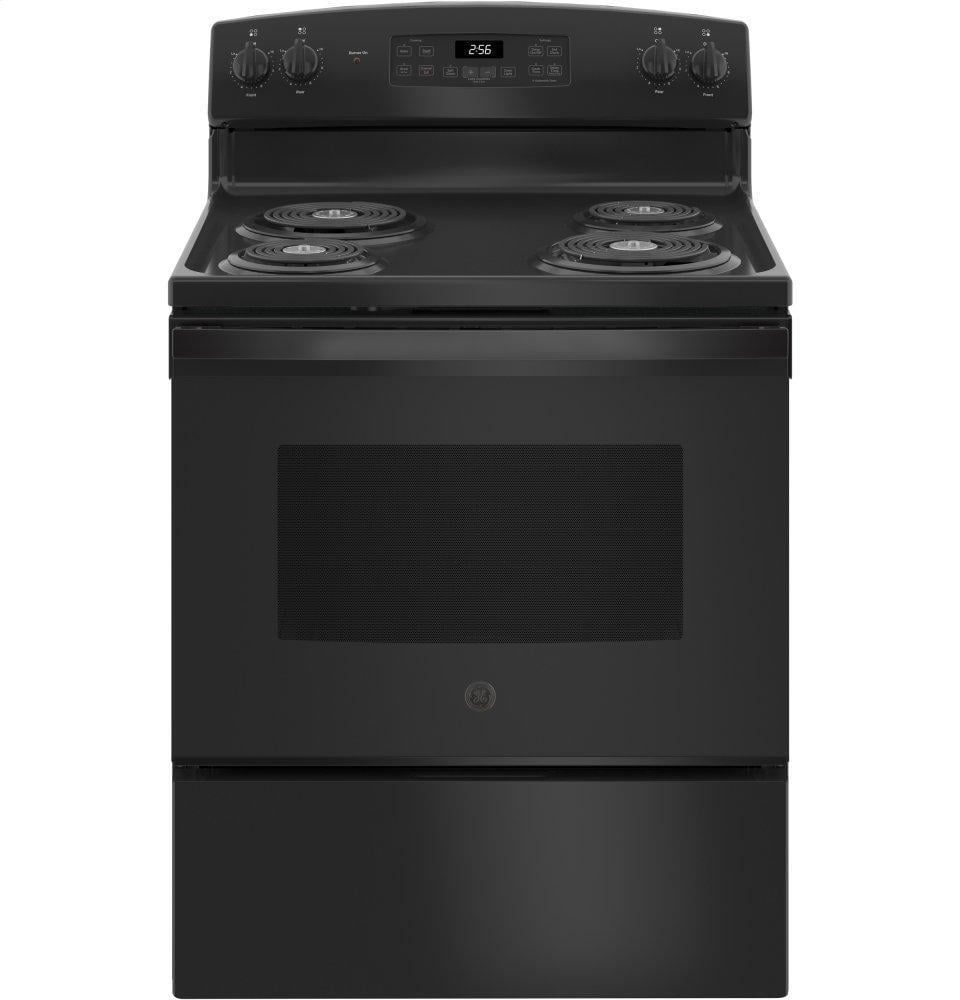

Ge Appliances JB256DMBB Ge® 30" Free-Standing Electric Range
Rebates &
Promotions
General Electric Bodewell Delivery and Installation Allowance - Enjoy exclusive rebate savings with purchase of qualifying GE Appliances family of brands. Download Valid: 09/01/2024-12/31/2024
Self-clean oven
Cleans the oven cavity without the need for scrubbing
Sensi-temp technology
Enjoy the same cooking power as a traditional coil with an added safety feature that meets the new UL858 Household Electric Ranges Standard for Safety
Dual-element Bake
Upper and lower elements produce even heat and great results
Removable full-width storage drawer
Large trays and other cookware can be conveniently stored for quick access
5.0 Cu. Ft. Oven CapacityEnough Room To Cook An Entire Meal At Once Self-Clean OvenCleans The Oven Cavity Without The Need For Scrubbing Sensi-Temp TechnologyEnjoy The Same Cooking Power As A Traditional Coil With An Added Safety Feature That Meets The New Ul858 Household Electric Ranges Standard For Safety Dual-Element BakeUpper And Lower Elements Produce Even Heat And Great Results Removable Full-Width Storage DrawerLarge Trays And Other Cookware Can Be Conveniently Stored For Quick Access
- 5.0 cu. ft. oven capacity
- Self-clean oven
- Sensi-temp technology
- Dual-element Bake
- Removable full-width storage drawer
CAPACITY | |
Total Capacity (cubic feet) | 5.0 |
FILTER | |
App Filter - Cleaning Type | Self-Clean |
App Filter - Control Type | Electronic touchpad |
App Filter - Drawer Type | Storage |
App Filter - Cooktop Type | Coil |
App Filter - Voltage | 240V |
App Filter - Cooking Technology | Traditional |
App Filter - Cabinet Width | Cooking 30 in. (Standard) |
App Filter - Product Type | Ranges Free-Standing Single Oven |
App Filter - Convection | No |
App Filter - Fuel Type | Electric |
APPEARANCE | |
Control Knobs | Color-Matched |
Handle | Color-Matched Designer Style |
Textured Steel Side Panels | Yes |
Oven Door Features | Big View Oven Window Glass Door |
Color Appearance | Black |
POWER / RATINGS | |
KW Rating at 208V | 8.8 |
Bake Wattage | 2585W |
KW Rating at 240V | 11.7 |
Broiler Wattage | 3410W |
Amp Rating at 208V | 40 |
Amp Rating at 240V | 40 |
WARRANTY | |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
WEIGHTS & DIMENSIONS | |
Net Weight | 150.0 |
Height to Cooking Surface (in.) | 36 - 36 1/2 |
Depth Without Handle | 26.25 |
Overall Depth | 28.75 |
Depth with Door Open | 46.25 |
Oven Interior Dimensions (W x H x D) (in.) | 23-3/4 x 19 x 18-1/2 |
Overall Width | 30.0 |
Overall Height | 47.0 |
Approximate Shipping Weight | 170.0 |
Cabinet Width | 30.0 |
FEATURES | |
Oven Cleaning Type | Self-Clean |

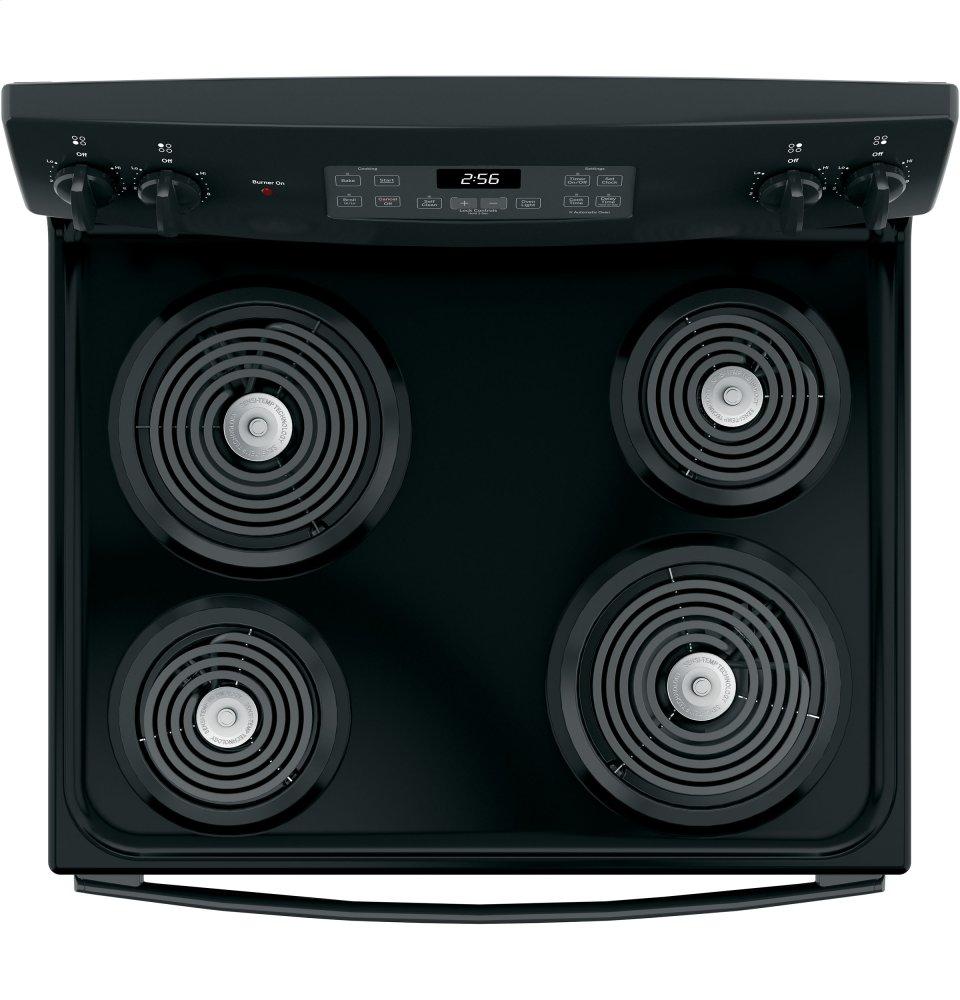

Cooktop Burner Type | Coil |
Oven Interior | 1 Incandescent Light |
Element - Left Front | 6' 1250W Temp Limiting Coil |

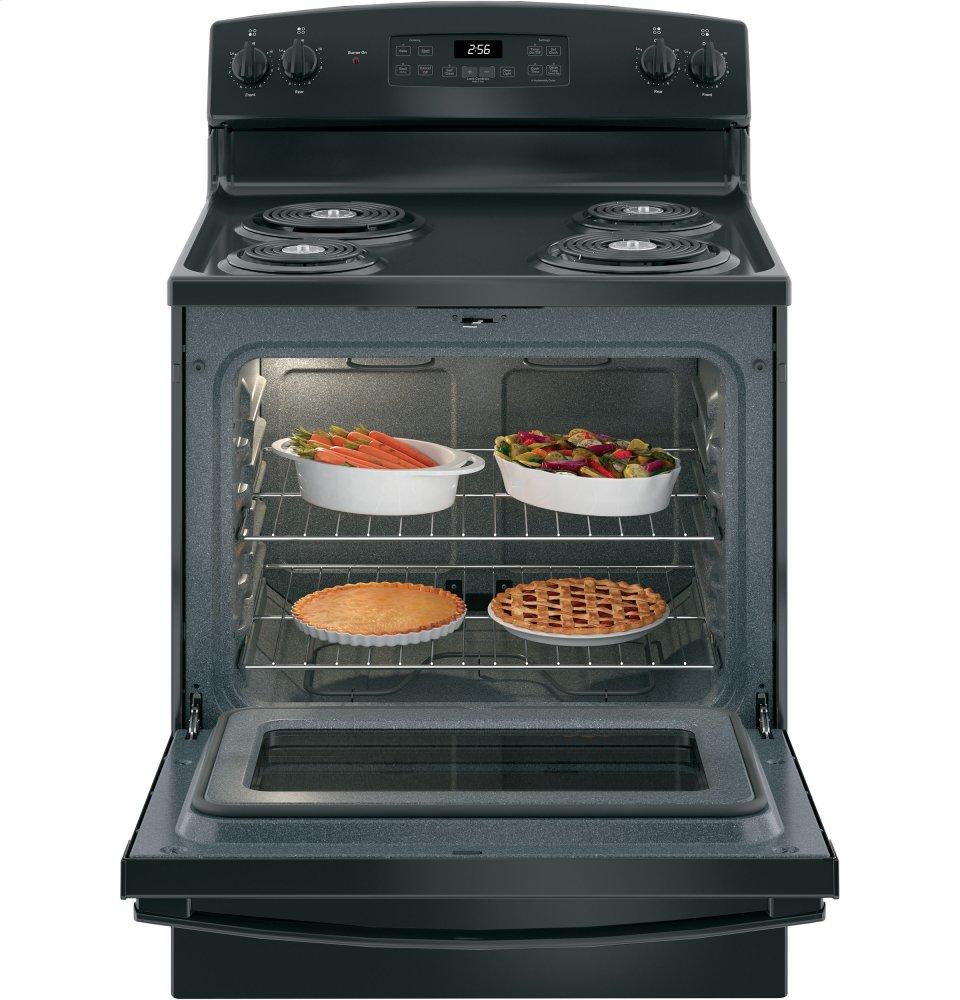

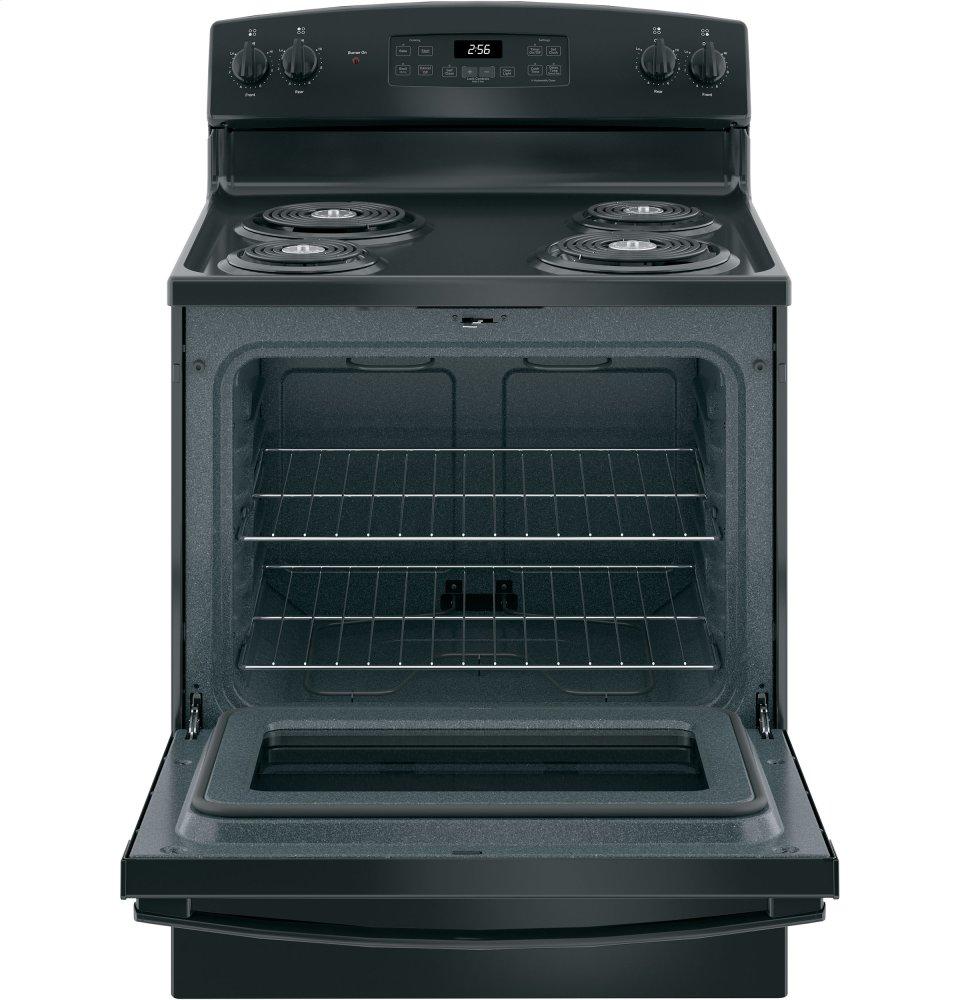

Oven Rack Features | 2 Oven Racks 6 Rack Positions |
Removable One-Piece Drip Bowls | Black Porcelain Enameled |
Oven Features | 4-Pass Bake Element 4-Pass Broil Element |
Fuel Type | Electric |
Cooking Technology | Traditional |
Cooktop Surface | One-Piece Upswept Porcelain-Enamel |
Configuration | Range with Storage Drawer |

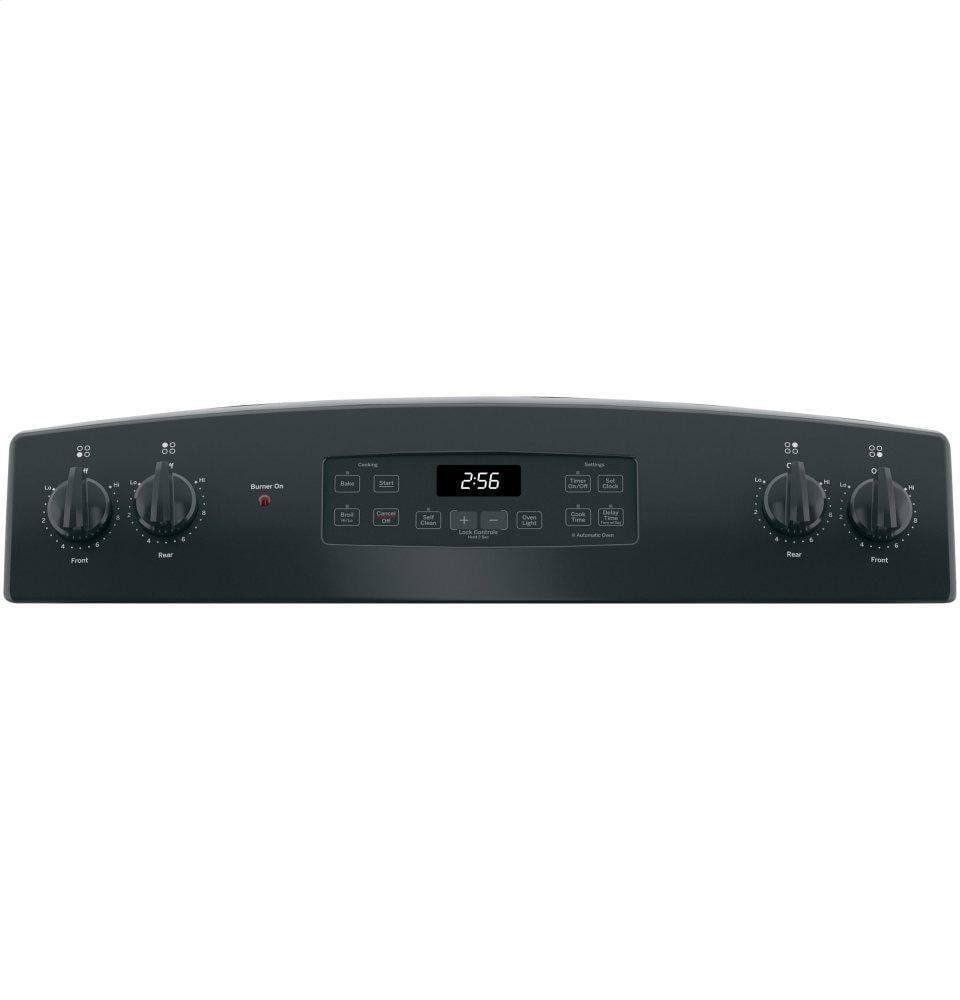

Control Type | Digital Temperature Display Electronic Touchpads |
Lift-Up Cooktop With Support Rods | Yes |
Element - Right Front | 8' 2400W Temp Limiting Coil |
Oven Control Features | Audible Preheat Signal Auto Oven Shut-Off with Override Auto Self Clean Control Lock Capability Delay Bake Option (Time Bake) Delay Clean Option Electronic Clock & Kitchen Timer Hi / Low Broil Oven 'ON' Light Self-Clean Cool Down Time Display Self-Cleaning Cycling Light |
Product Type | Free-Standing Single Oven |
Drawer Type | Storage |
Cooktop Type | Coil |
Control Location | Backsplash |
Element - Right Rear | 6' 1250W Temp Limiting Coil |
Storage Drawer Features | Removable Full-Width |
Heating Element 'ON' Indicator Light | Yes |
Element - Left Rear | 8' 2400W Temp Limiting Coil |
