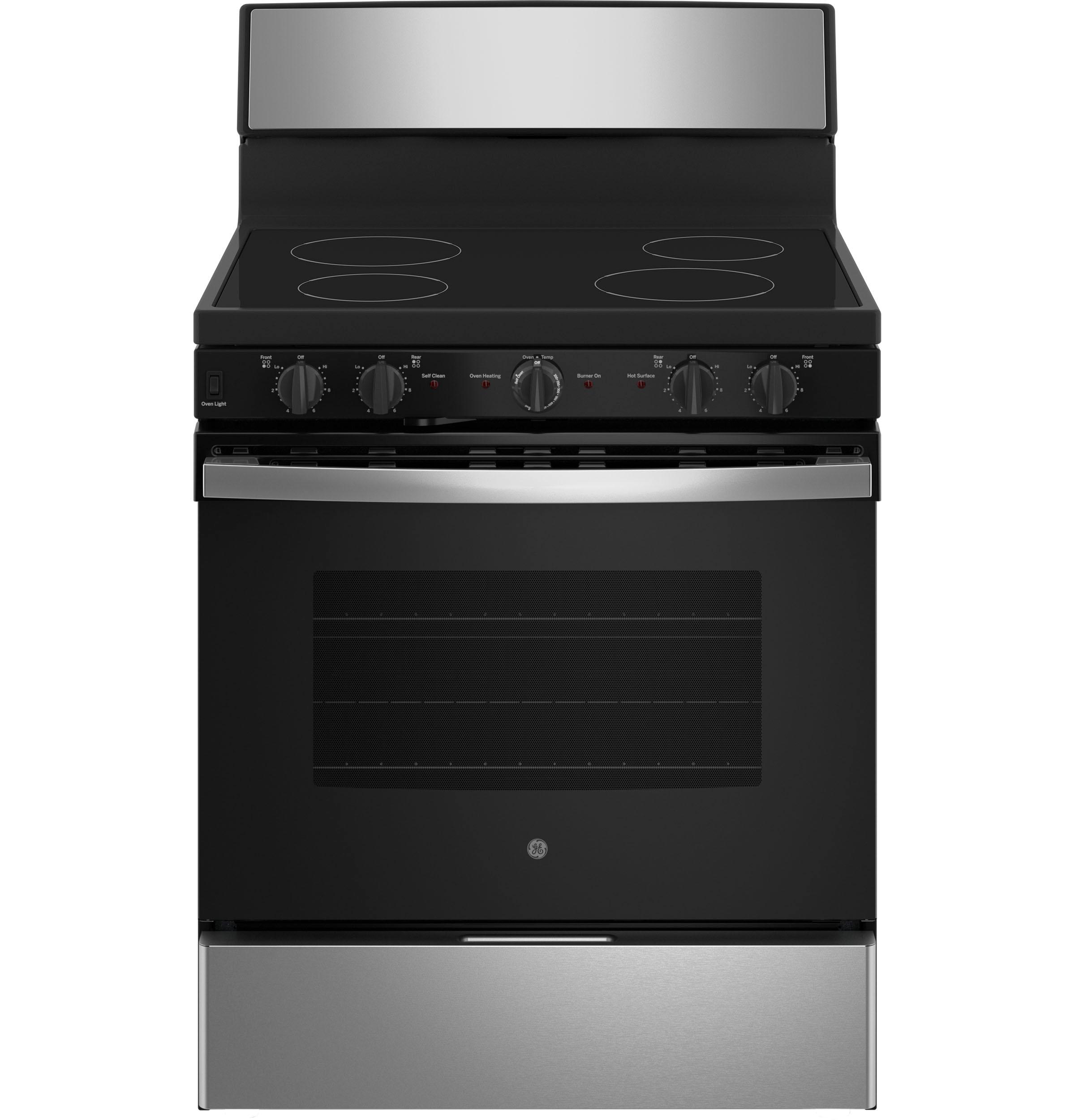

Ge Appliances JB480STSS Ge 30" Free-Standing Electric Radiant Smooth Cooktop Range
Rebates &
Promotions
General Electric Bodewell Delivery and Installation Allowance - Enjoy exclusive rebate savings with purchase of qualifying GE Appliances family of brands. Download Valid: 09/01/2024-12/31/2024
Self-clean oven
Cleans the oven cavity without the need for scrubbing.
Removable full-width storage drawer
Large trays and other cookware can be conveniently stored for quick access.
Dual-element Bake
Upper and lower elements produce even heat and great results.

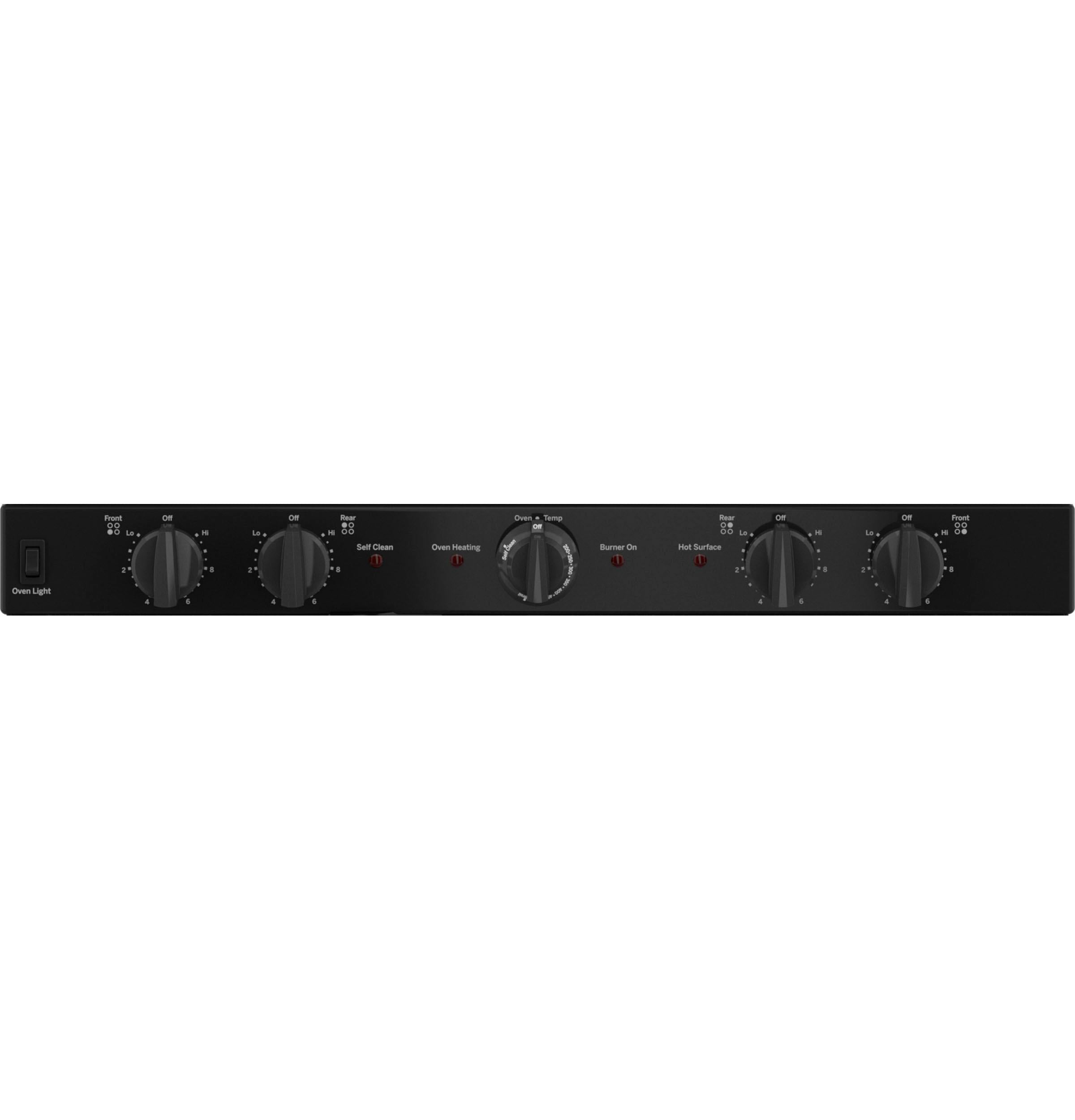

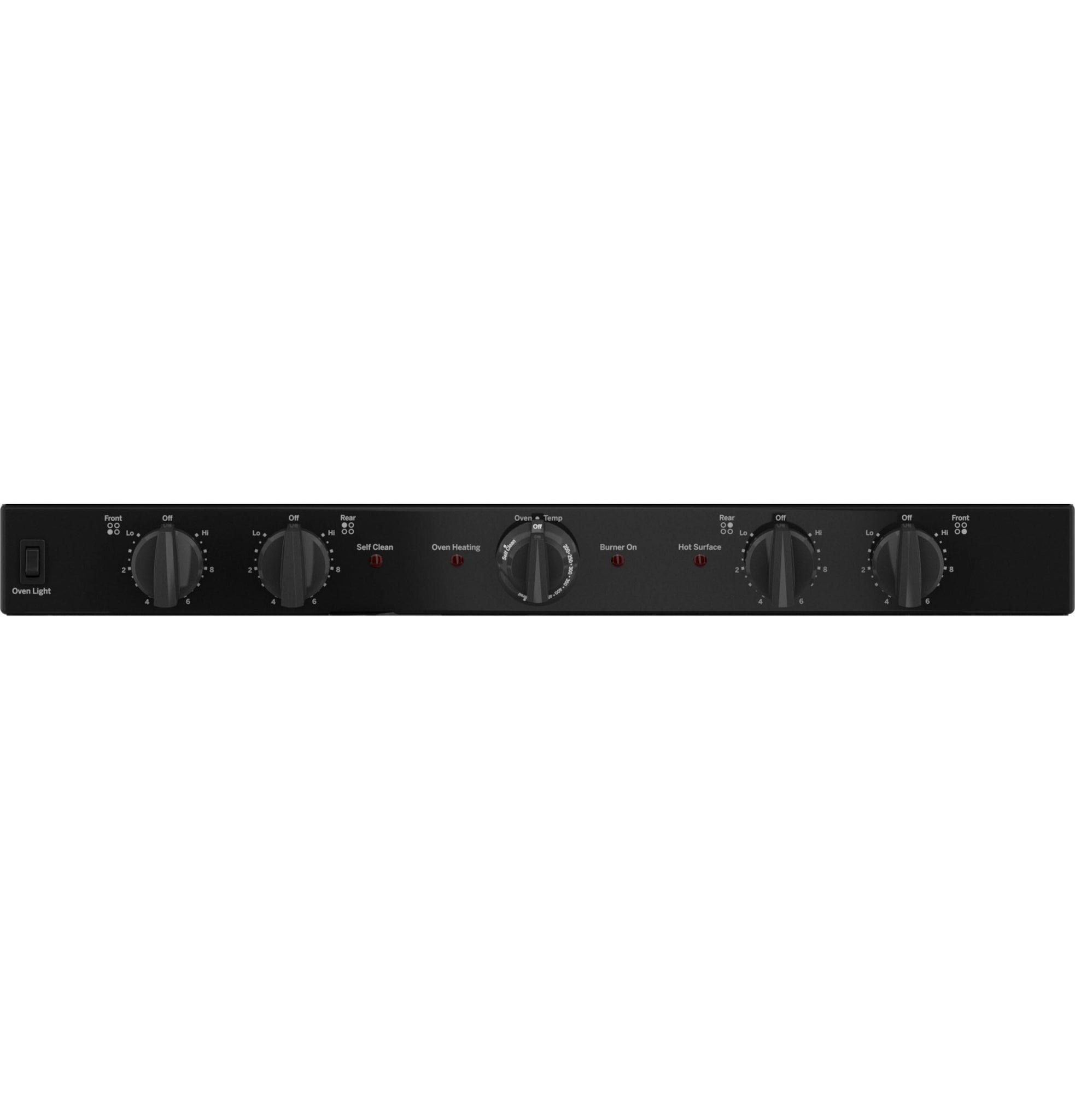

Front controls
Easily-accessible controls make it simple to control the stovetop and oven
5.0 cu. ft. oven capacity
Cook more dishes at once
Dimensions & Capacity
Width: 30"
Height: 47"
Depth: 29"
First Oven Size: 5 cu. ft.
Height: 47"
Depth: 29"
First Oven Size: 5 cu. ft.
- Front controls
- 5.0 cu. ft. oven capacity
- Self-clean oven
- Dual-element Bake
- Removable full-width storage drawer
CAPACITY | |
Total Capacity (cubic feet) | 5.0 |
APPEARANCE | |
Control Knobs | Gray |
Handle | Designer Style Stainless Steel |
Textured Steel Side Panels | Yes |
Oven Door Features | Big View Oven Window Glass Door Stainless Overlay |
Color Appearance | Stainless Steel/Gray |
POWER / RATINGS | |
KW Rating at 208V | 7.9 |
Bake Wattage | 2585W |
KW Rating at 240V | 10.5 |
Broiler Wattage | 3410W |
Amp Rating at 208V | 40 |
Amp Rating at 240V | 40 |
WARRANTY | |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
WEIGHTS & DIMENSIONS | |
Net Weight | 141.0 |
Height to Cooking Surface (in.) | 36 - 36 1/2 |
Depth Without Handle | 26.25 |
Overall Depth | 29.0 |
Depth with Door Open | 46.75 |
Oven Interior Dimensions (W x H x D) (in.) | 23-3/4 x 19 x 18-1/2 |
Overall Width | 30.0 |
Overall Height | 47.0 |
Cabinet Width | 30.0 |
FEATURES | |
Hot Surface Indicator Lights | Yes |
Oven Cleaning Type | Self-Clean |

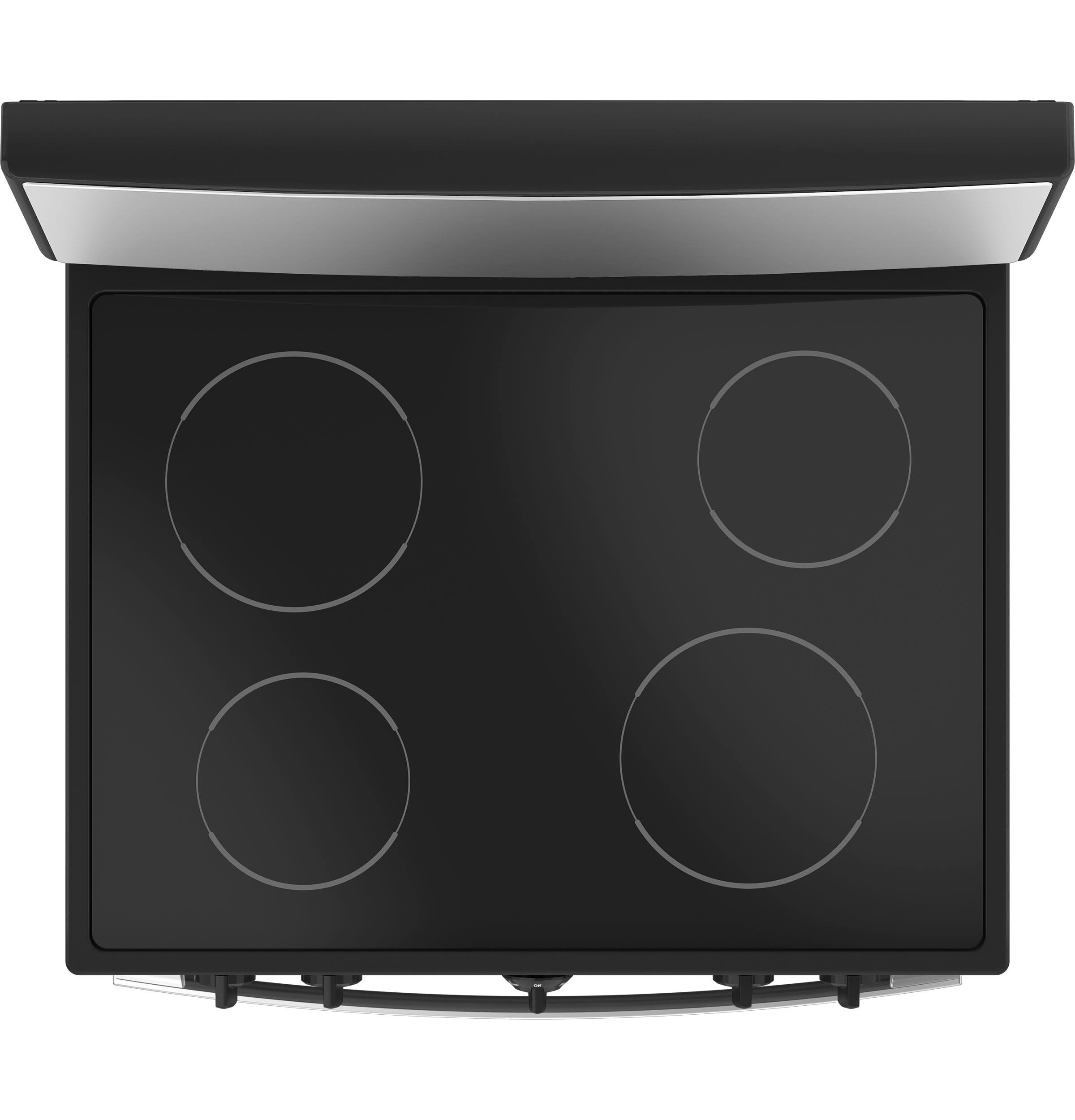

Cooktop Burner Type | Radiant Smoothtop |
Oven Interior | 1 Incandescent Light |
Element - Left Front | 6' 1500W |
Oven Rack Features | 2 Oven Racks 6 Rack Positions |
Oven Features | 4-Pass Bake Element 6-Pass Broil Element |
Fuel Type | Electric |
Cooking Technology | Traditional |
Cooktop Surface | Black Ceramic Glass |
Configuration | Range with Storage Drawer |
Element - Right Front | 8' 2000W |
Oven Control Features | Oven 'ON' Light Self-Cleaning Cycling Light |
Product Type | Free-Standing Single Oven |
Drawer Type | Storage |
Cooktop Type | Radiant Smoothtop |
Control Location | Front |
Element - Right Rear | 6' 1500W |
Storage Drawer Features | Removable Full-Width |
Heating Element 'ON' Indicator Light | Yes |
Element - Left Rear | 8' 2000W |
Dual Element Bake
Quick Specs
JB480
JBS10, JBS30, JBS45, RB525, RB526, RBS160, RBS330, RBS360, JBS160, JBS360, JBS460, JB255, JB256, JB450, JB480, VBS160, and XBS360
JB480
JBS10, JBS30, JBS45, RB525, RB526, RBS160, RBS330, RBS360, JBS160, JBS360, JBS460, JB255, JB256, JB450, JB480, VBS160, and XBS360
