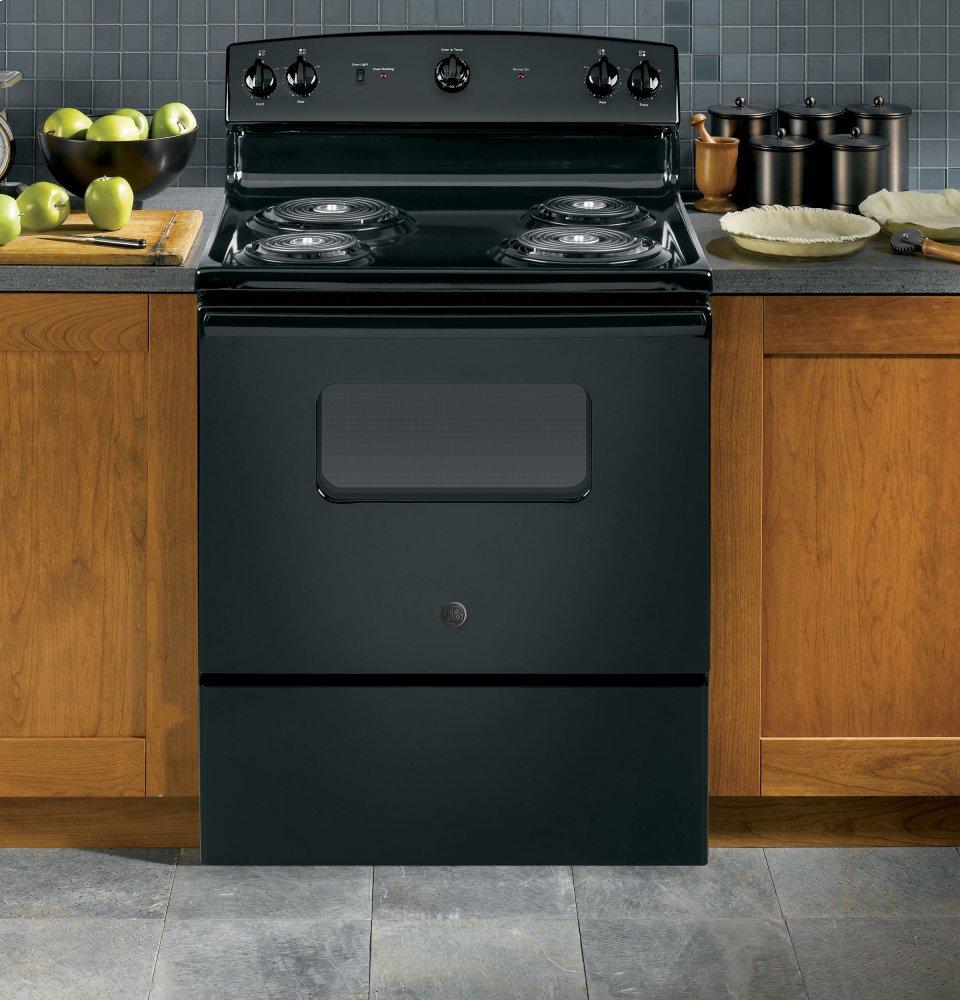

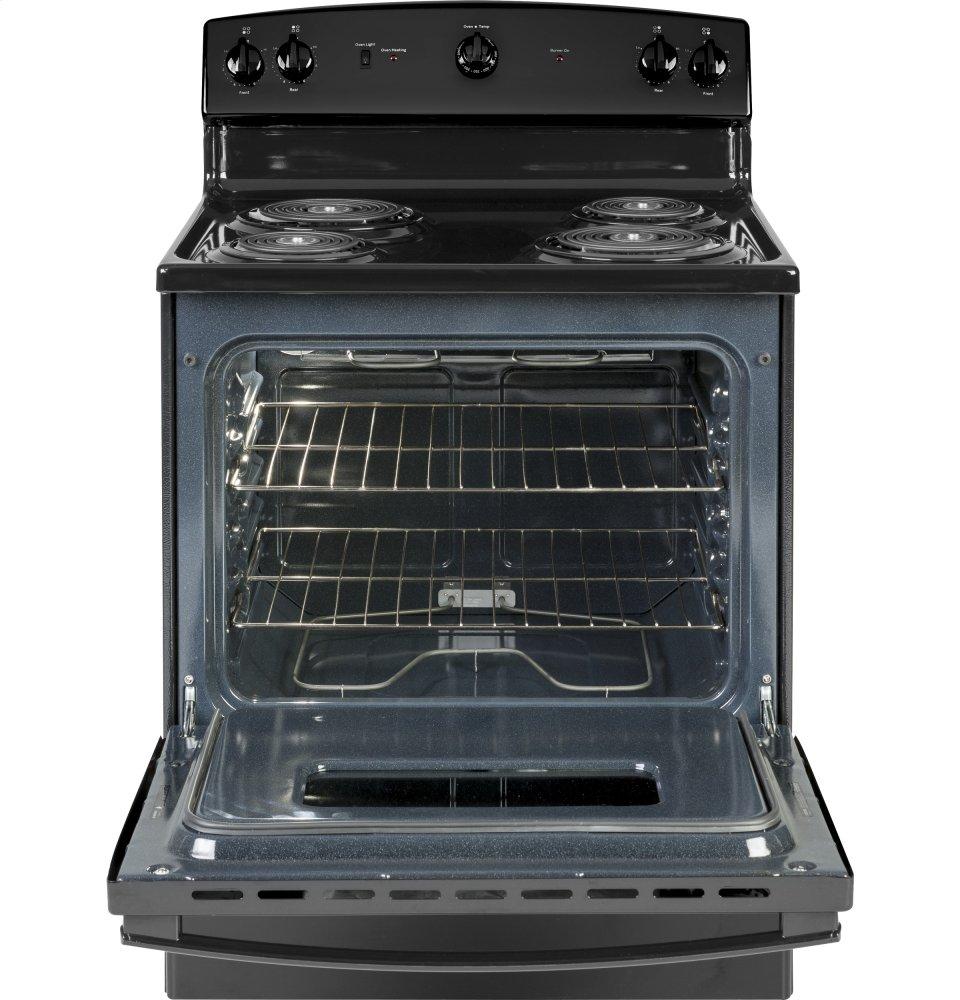

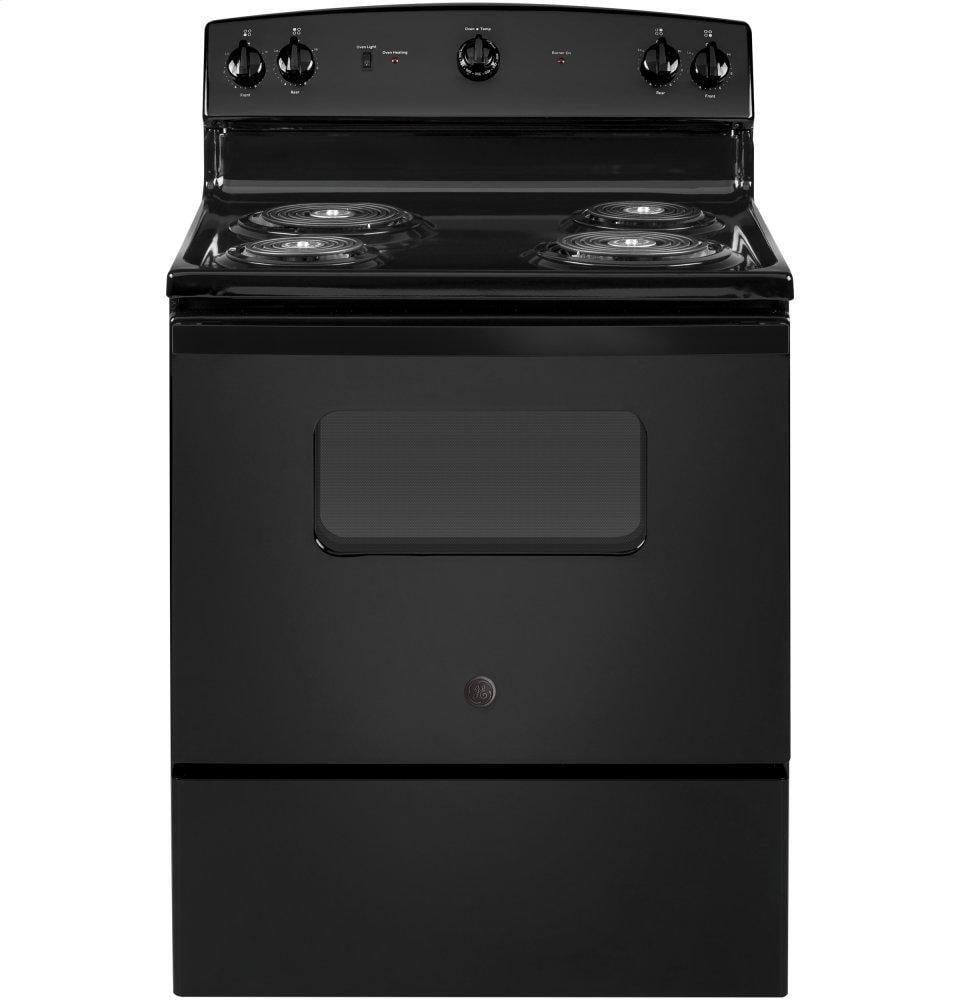

Ge Appliances JBS160DMBB Ge® 30" Free-Standing Electric Range
Rebates &
Promotions
General Electric Bodewell Delivery and Installation Allowance - Enjoy exclusive rebate savings with purchase of qualifying GE Appliances family of brands. Download Valid: 09/01/2024-12/31/2024
Sensi-temp technology
Enjoy the same cooking power as a traditional coil with an added safety feature that meets the new UL858 Household Electric Ranges Standard for Safety
Dual-element Bake
Upper and lower elements produce even heat and great results
Removable full-width storage drawer
Large trays and other cookware can be conveniently stored for quick access
5.0 Cu. Ft. Oven CapacityCook More Dishes At Once Standard Clean OvenSmooth Surface And Rounded Corners Make Clean-Up Quick And Easy Sensi-Temp TechnologyEnjoy The Same Cooking Power As A Traditional Coil With An Added Safety Feature That Meets The New Ul858 Household Electric Ranges Standard For Safety Dual-Element BakeUpper And Lower Elements Produce Even Heat And Great Results Removable Full-Width Storage DrawerLarge Trays And Other Cookware Can Be Conveniently Stored For Quick Access
- 5.0 cu. ft. oven capacity
- Standard clean oven
- Sensi-temp technology
- Dual-element Bake
- Removable full-width storage drawer
CAPACITY | |
Total Capacity (cubic feet) | 5.0 |
FILTER | |
App Filter - Cleaning Type | Manual |

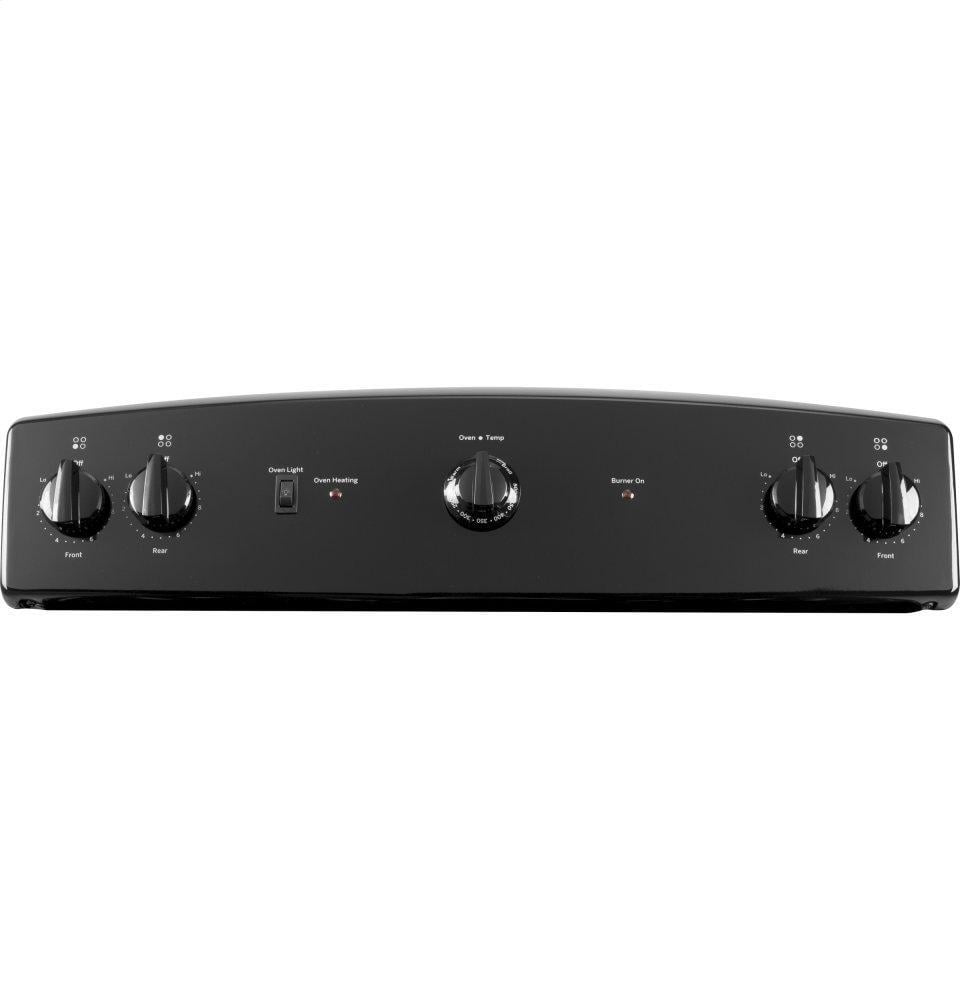

App Filter - Control Type | Rotary knobs |
App Filter - Drawer Type | Storage |
App Filter - Cooktop Type | Coil |
App Filter - Cooking Technology | Traditional |
App Filter - Cabinet Width | Cooking 30 in. (Standard) |
App Filter - Product Type | Ranges Free-Standing Single Oven |
App Filter - Convection | No |
App Filter - Fuel Type | Electric |
APPEARANCE | |
Control Knobs | Color-Matched |
Handle | Color-Matched Designer Style |
Textured Steel Side Panels | Yes |
Oven Door Features | Metal Door Small Window |
Color Appearance | Black |
POWER / RATINGS | |
KW Rating at 208V | 9.9 |
Bake Wattage | 2585W |
KW Rating at 240V | 12.6 |
Broiler Wattage | 3410W |
Amp Rating at 208V | 40 |
Amp Rating at 240V | 40 |
WARRANTY | |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
WEIGHTS & DIMENSIONS | |
Net Weight | 130.0 |
Height to Cooking Surface (in.) | 36 - 36 1/2 |
Depth Without Handle | 26.25 |
Overall Depth | 29.0 |
Depth with Door Open | 46.25 |
Oven Interior Dimensions (W x H x D) (in.) | 23-3/4 x 19 x 18-1/2 |
Overall Width | 30.0 |
Overall Height | 47.0 |
Approximate Shipping Weight | 150.0 |
Cabinet Width | 30.0 |
FEATURES | |
Oven Cleaning Type | Standard Clean |

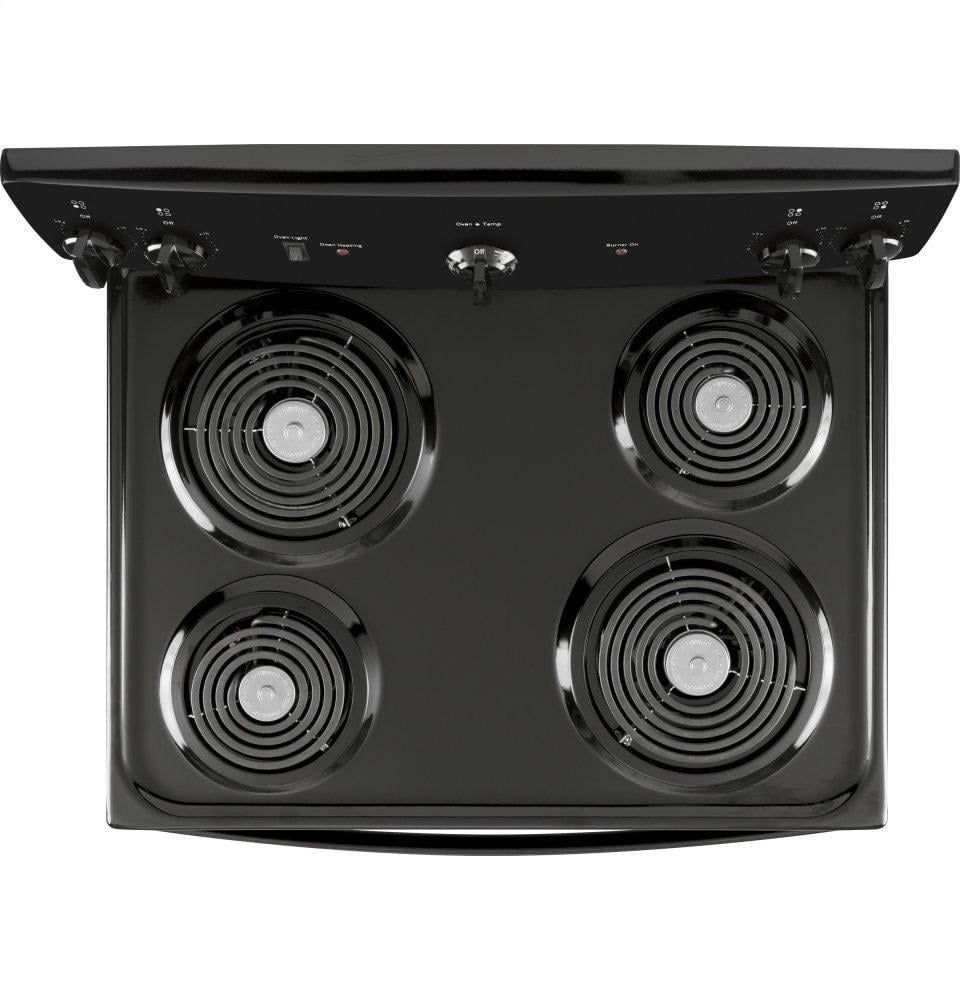

Cooktop Burner Type | Coil |
Cooking System | Traditional |
Oven Interior | 1 Incandescent Light |
Element - Left Front | 6' 1250W Temp Limiting Coil |

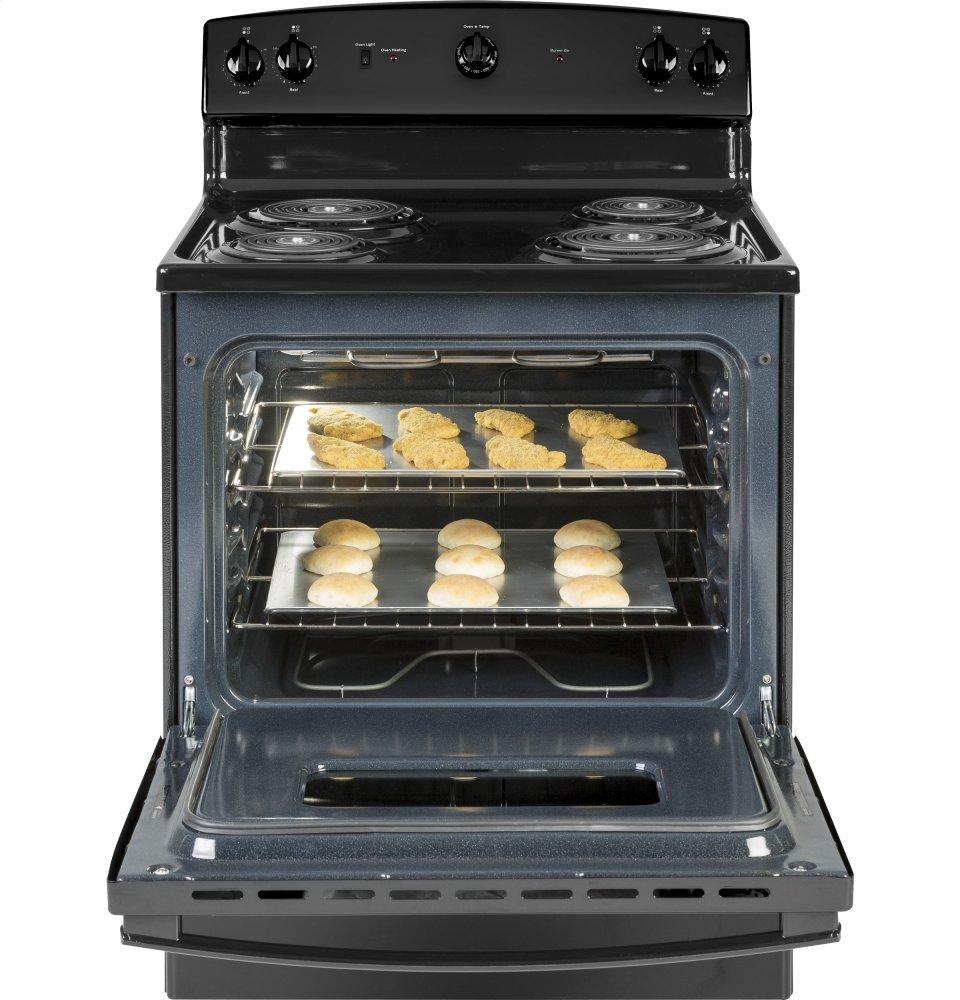

Oven Rack Features | 2 Oven Racks 6 Rack Positions |
Removable One-Piece Drip Bowls | Black Porcelain Enameled |
Oven Features | 4-Pass Bake Element 4-Pass Broil Element |
Fuel Type | Electric |
Cooking Technology | Traditional |
Cooktop Surface | One-Piece Upswept Porcelain-Enamel |
Configuration | Range with Storage Drawer |
Lift-Up Cooktop With Support Rods | Yes |
Element - Right Front | 8' 2400W Temp Limiting Coil |
Oven Control Features | Oven 'ON' Light |
Product Type | Free-Standing Single Oven |
Drawer Type | Storage |
Cooktop Type | Coil |
Control Location | Backsplash |
Element - Right Rear | 6' 1250W Temp Limiting Coil |
Storage Drawer Features | Removable Full-Width |
Heating Element 'ON' Indicator Light | Yes |
Element - Left Rear | 8' 2400W Temp Limiting Coil |
