Ge Appliances JEP5036DTBB Ge® 36" Built-In Knob Control Electric Cooktop
Rebates &
Promotions
GE and GE Profile Fit Guarantee - Replace your Cooktop or Wall Oven with a qualifying GE Cooktop, Wall Oven, Advantium Oven, or Slide In Range and receive up to a $300 installation rebate. Download Valid: 07/01/2024-12/31/2024

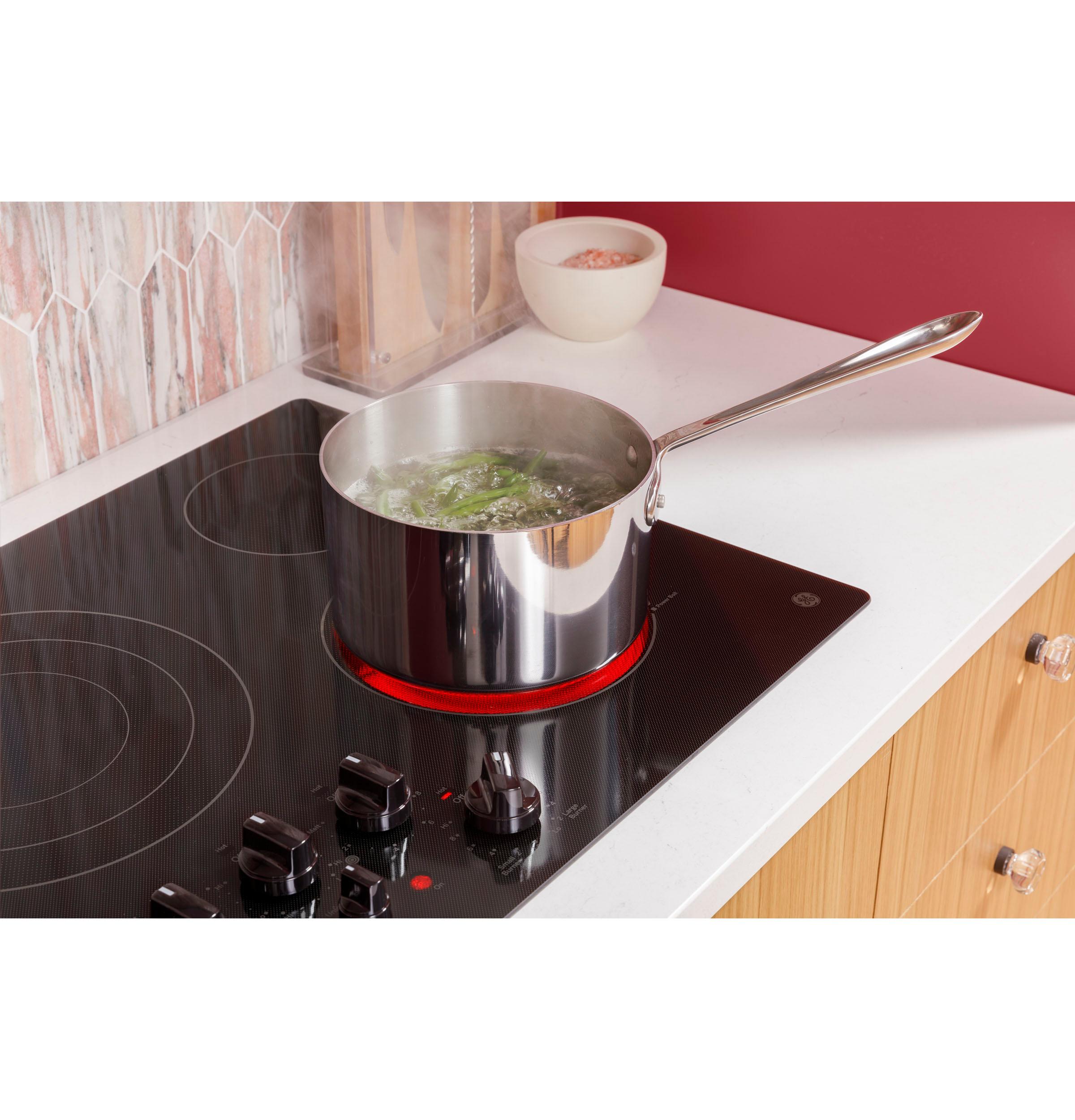

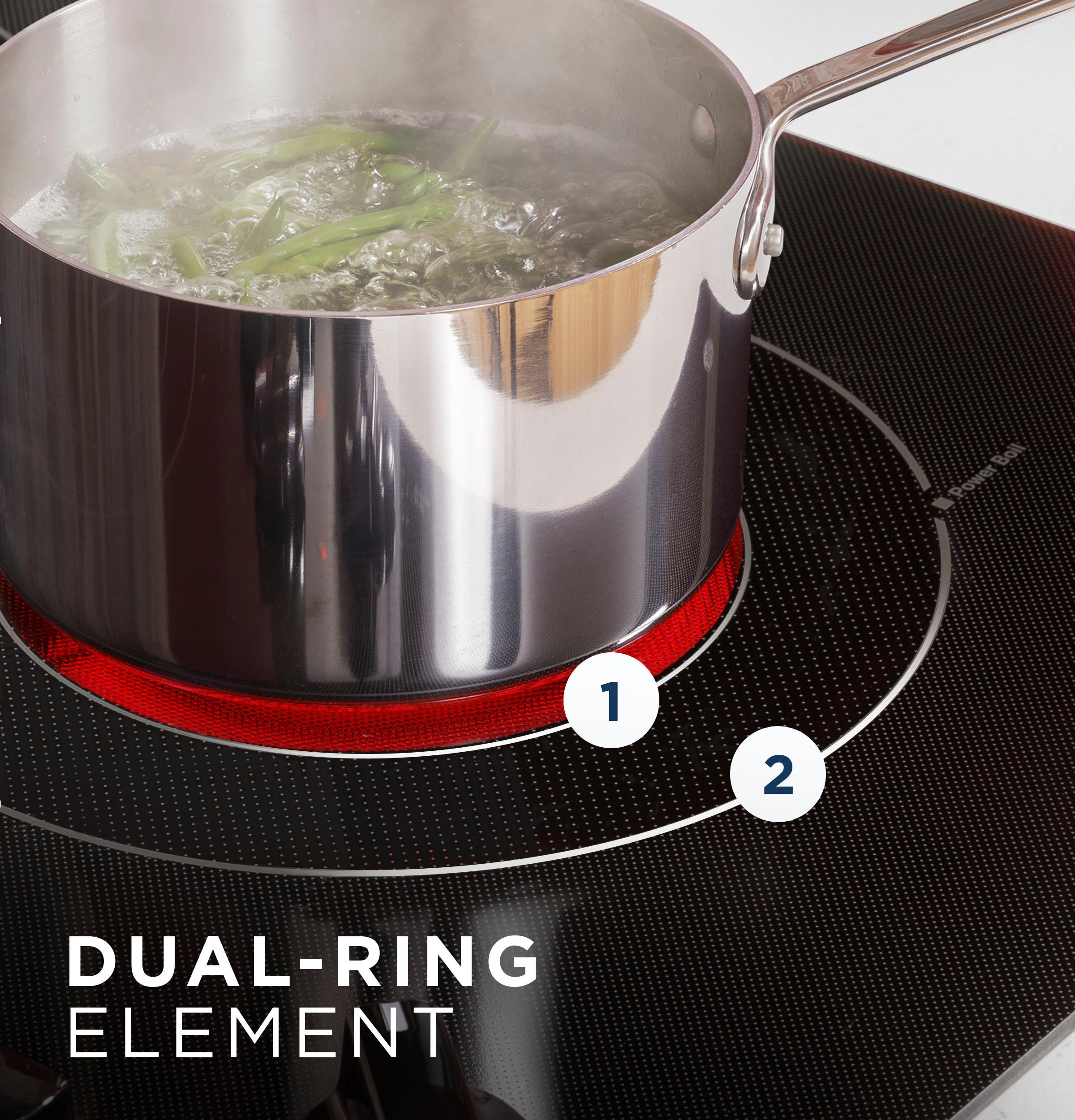

Additional Power Boil Dual-Ring Element (2,200W)
Cook more dishes quickly with an additional 2,200-watt flexible cooking element that rapidly boils water in different pan sizes

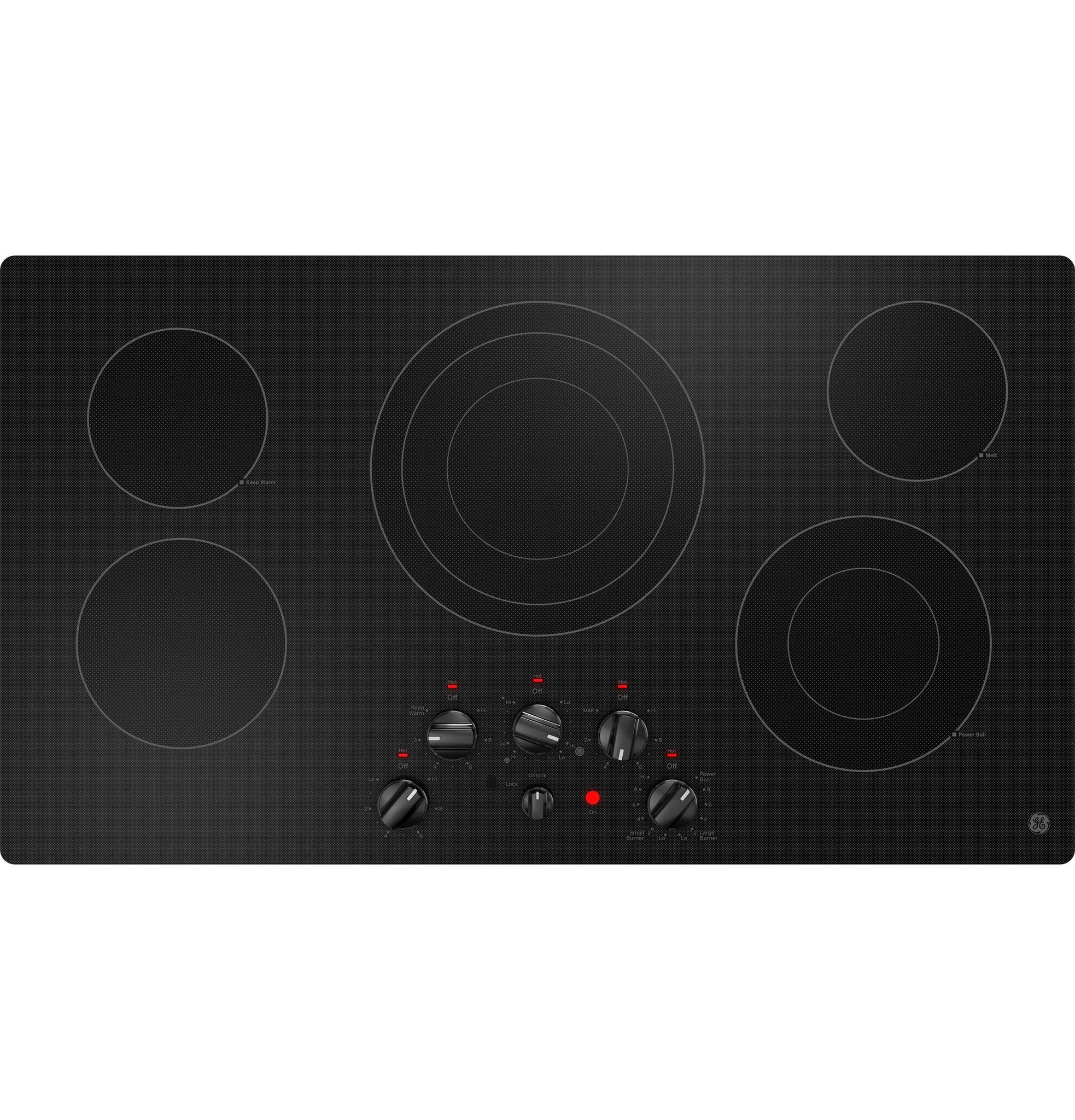

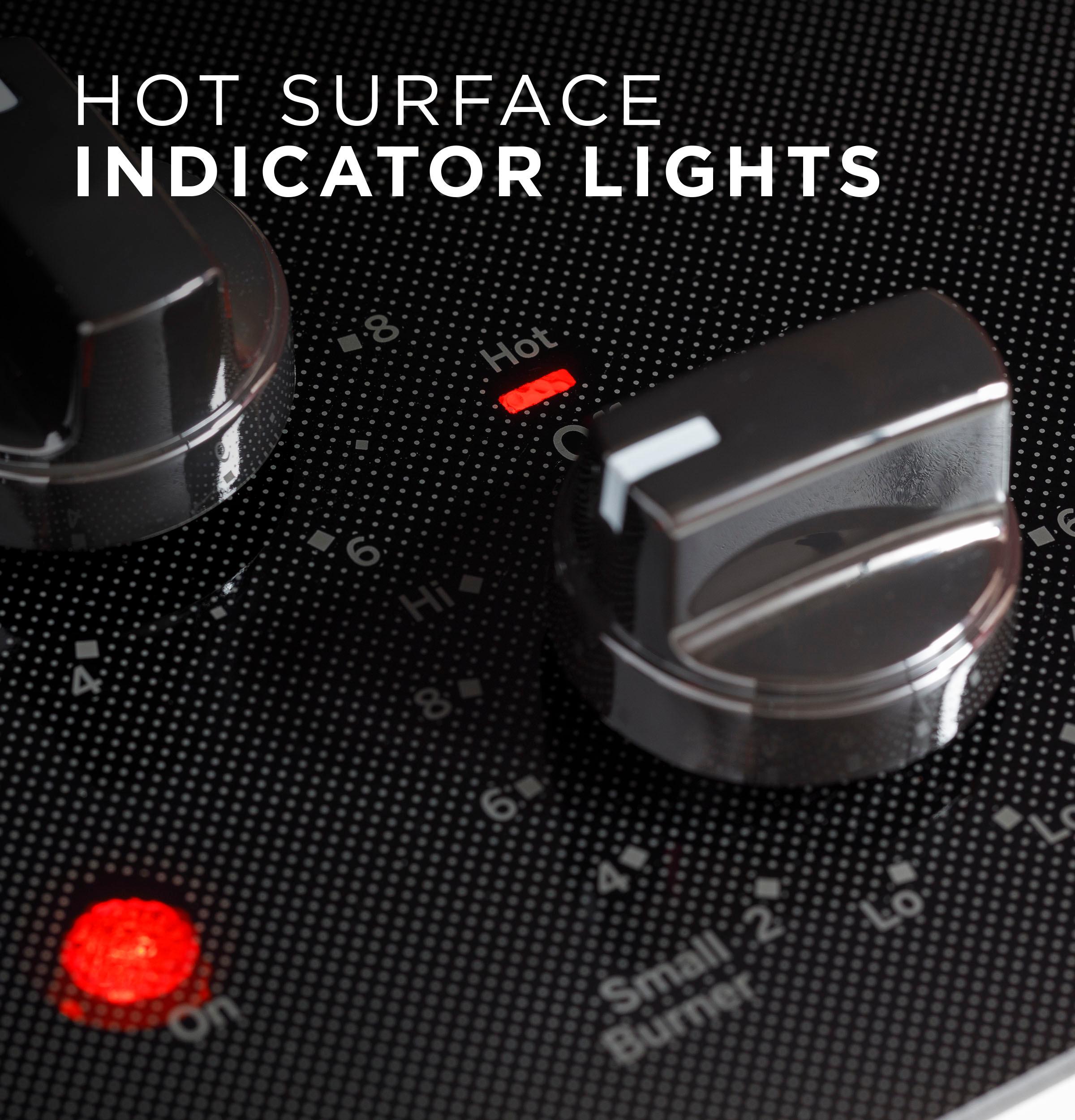

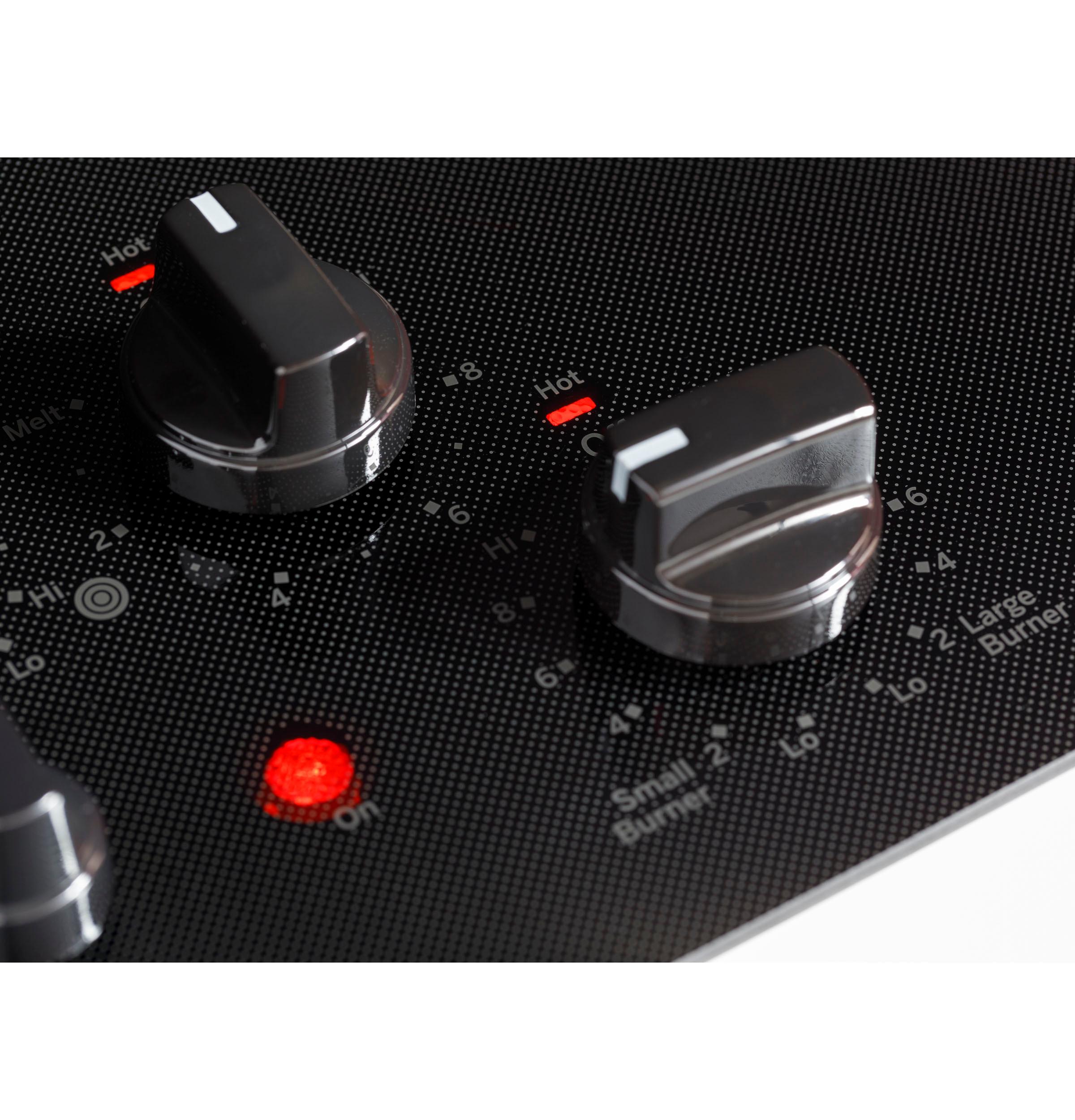

Hot Surface Indicator Lights
A quick glance is all it takes to know when elements are warm on this electric cooktop with hot surface indicator lights

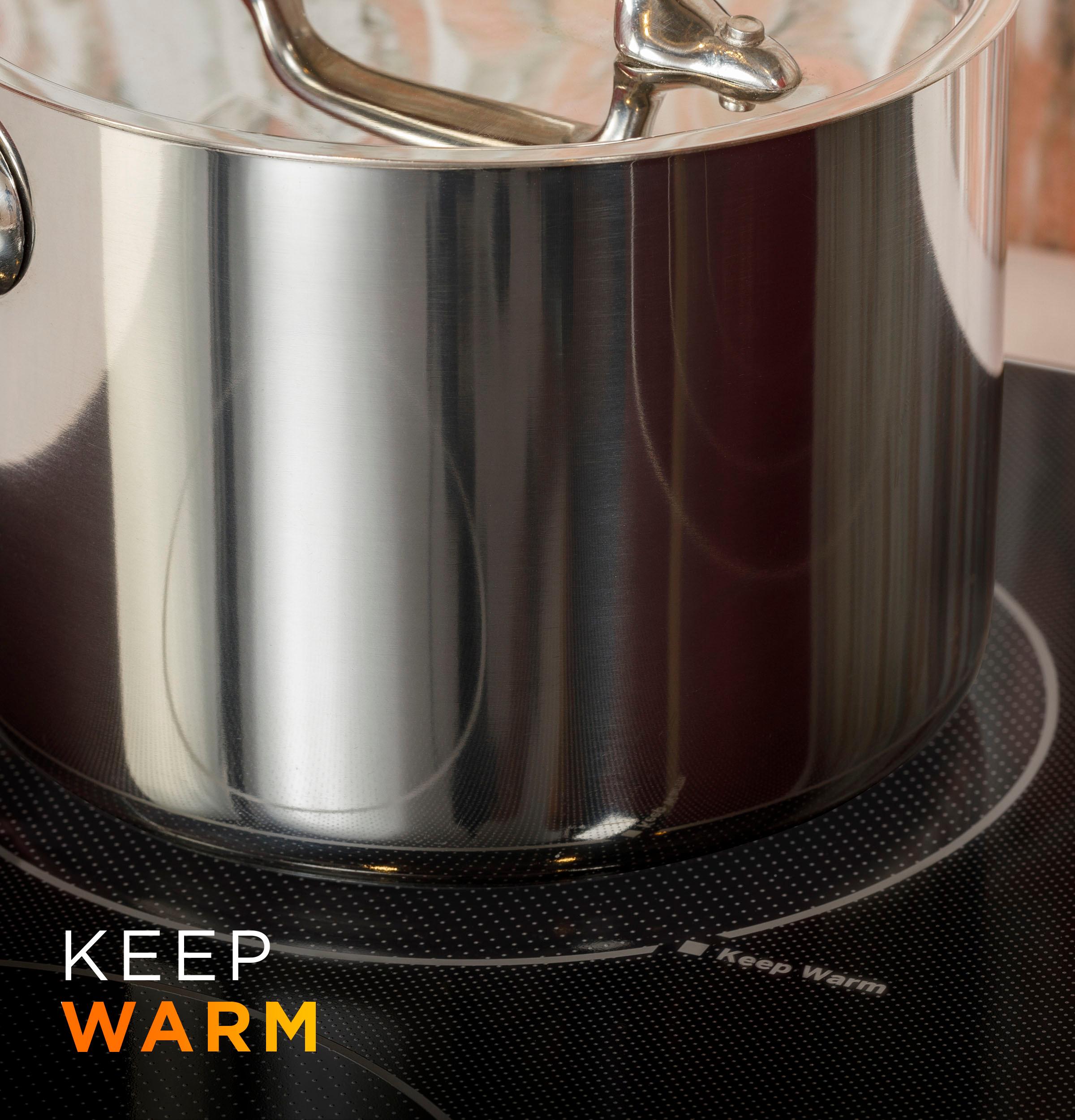

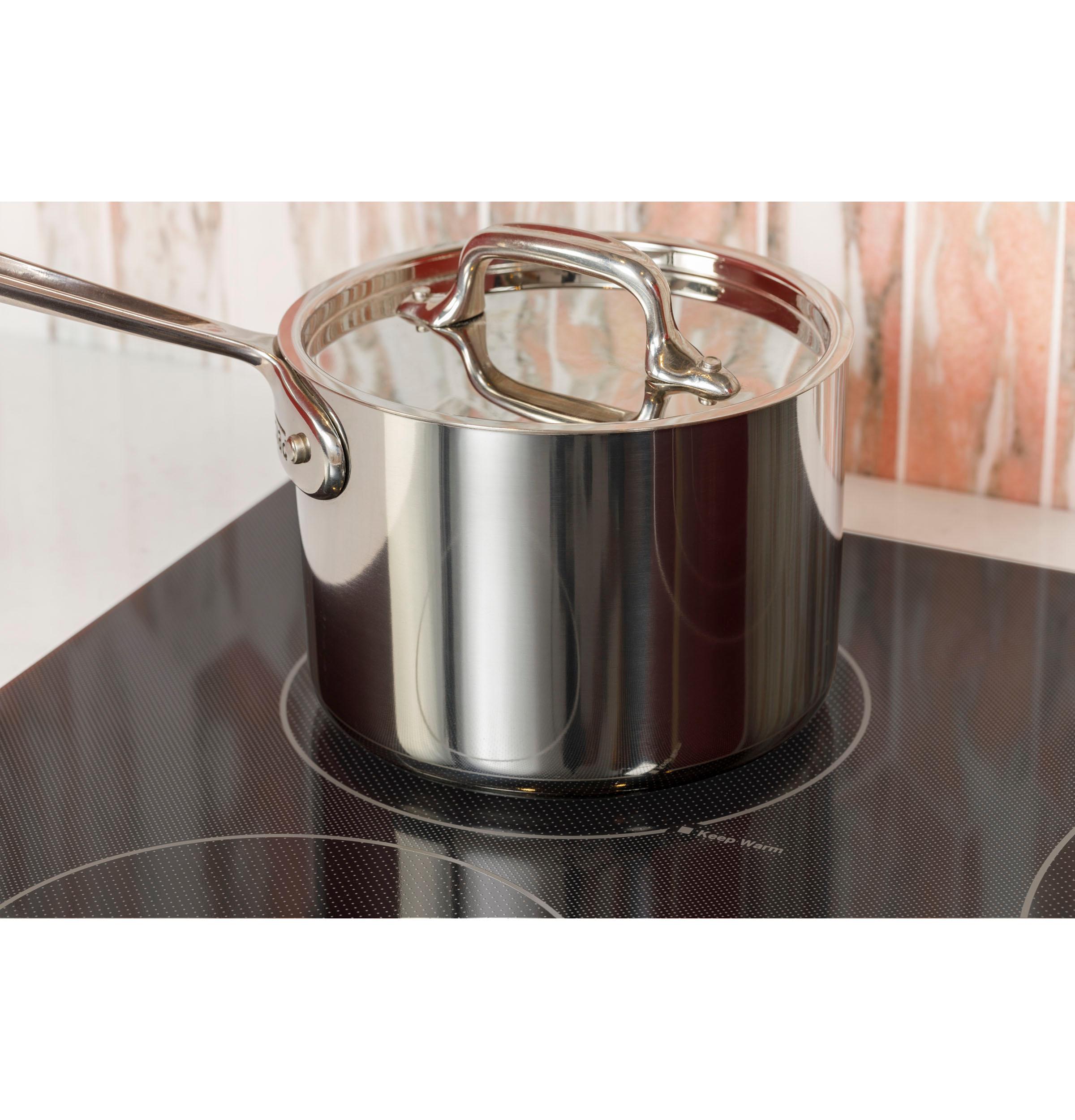

Keep Warm Setting
This electric cooktop's 7" element features a range of heat - from a dedicated "Keep Warm" setting to the power to boil water

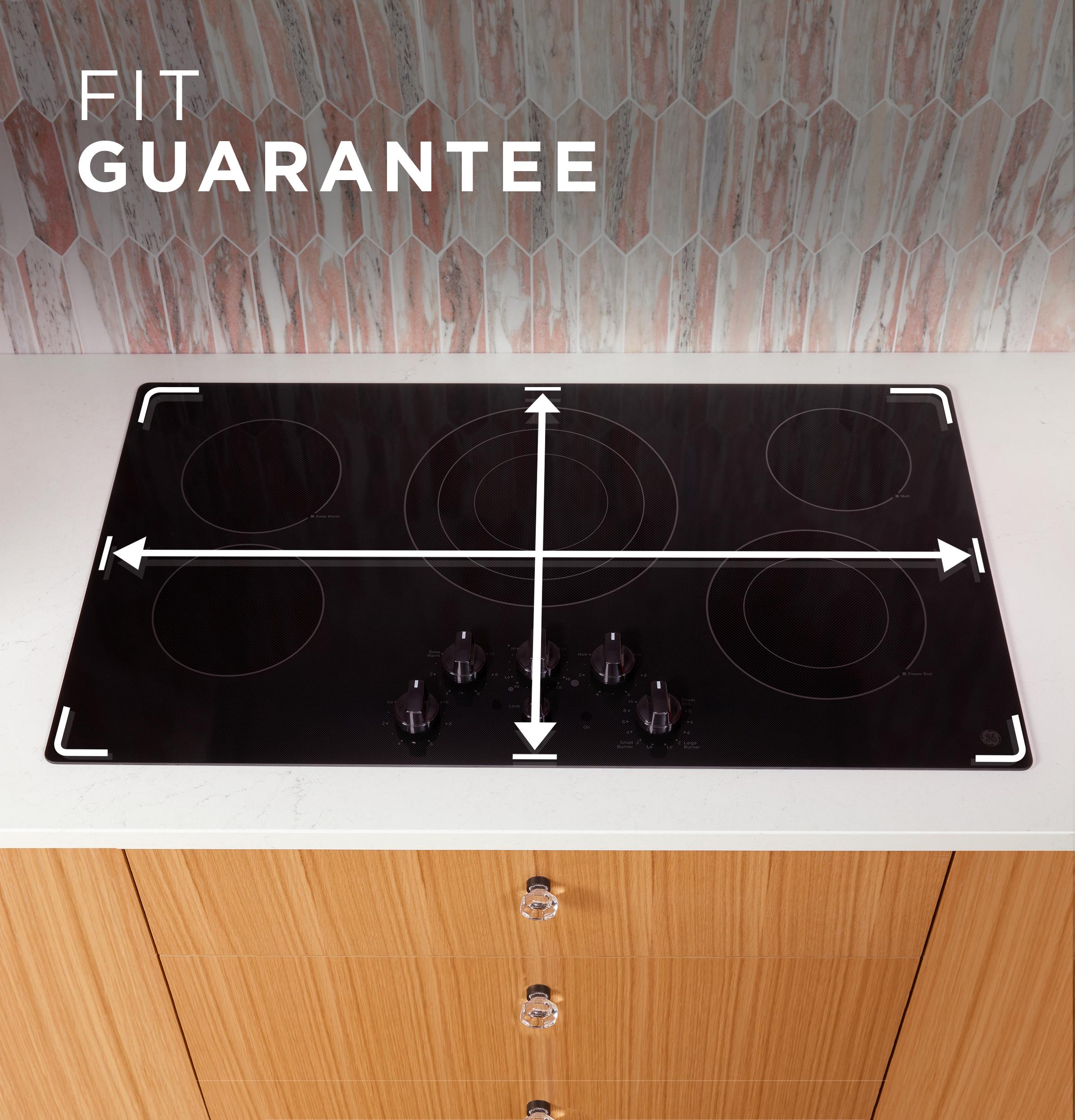

Fit Guarantee
This cooktop will fit your existing 30" cut-out or GE Appliances will help pay for modifications up to $100

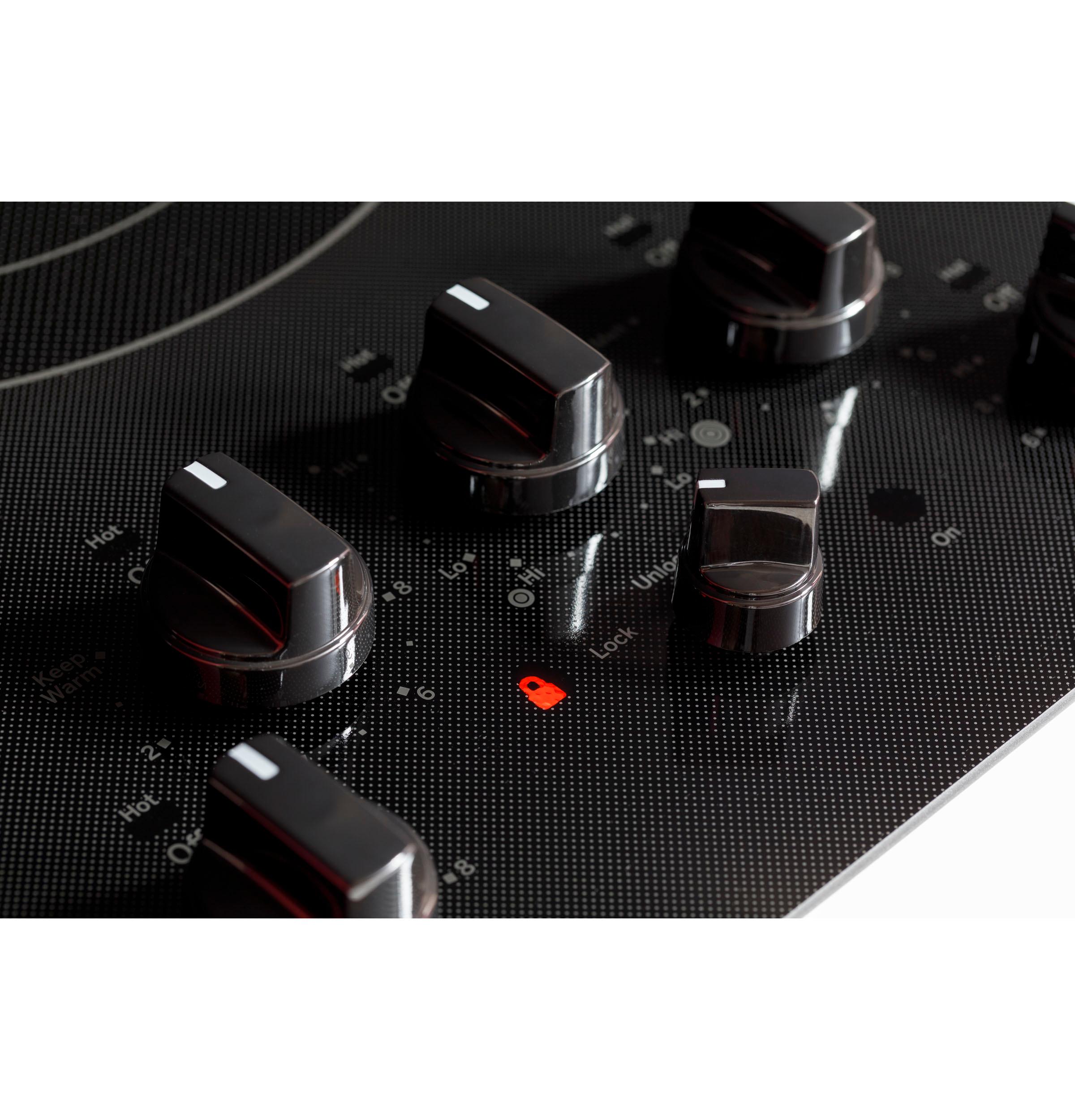

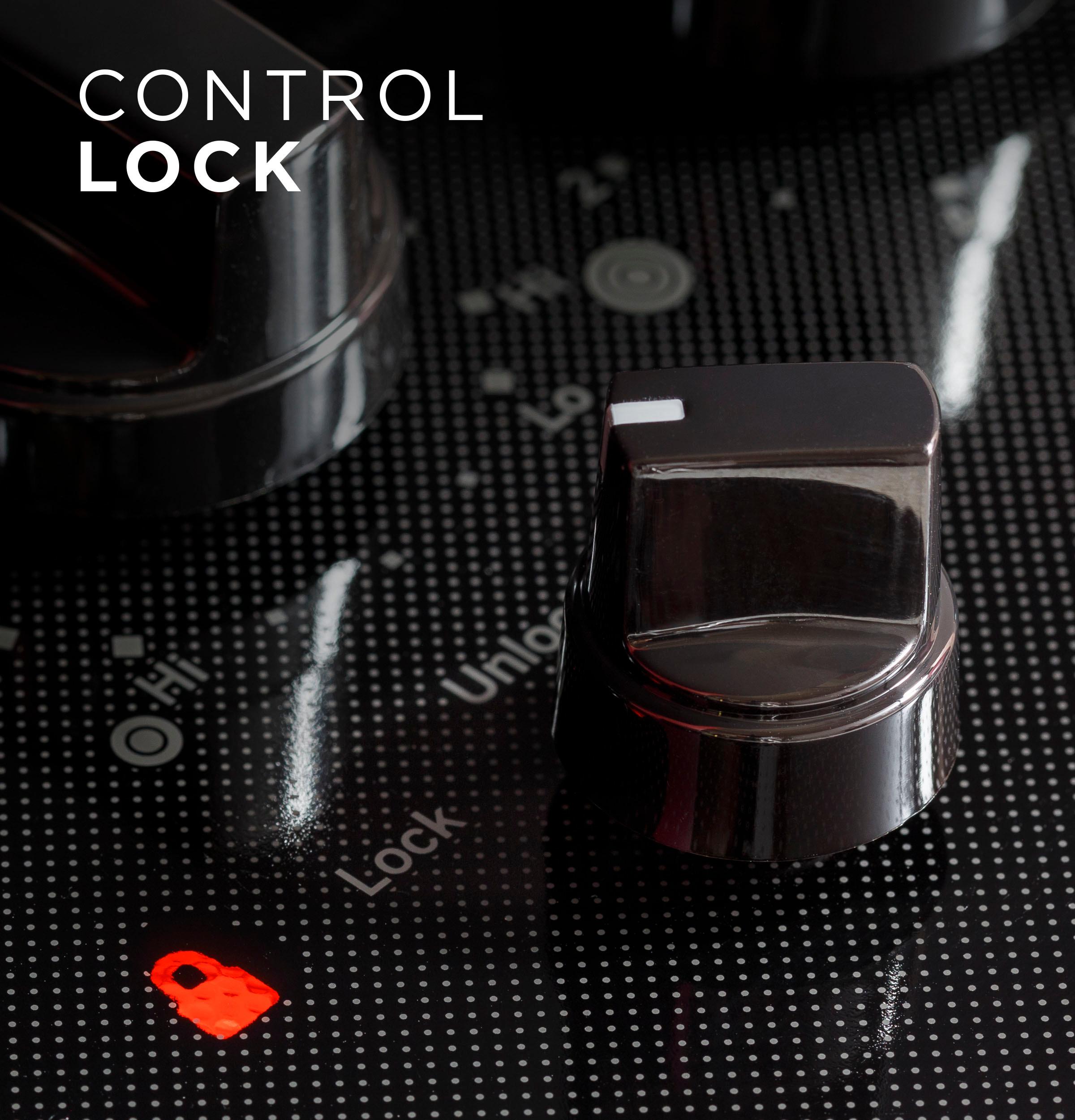

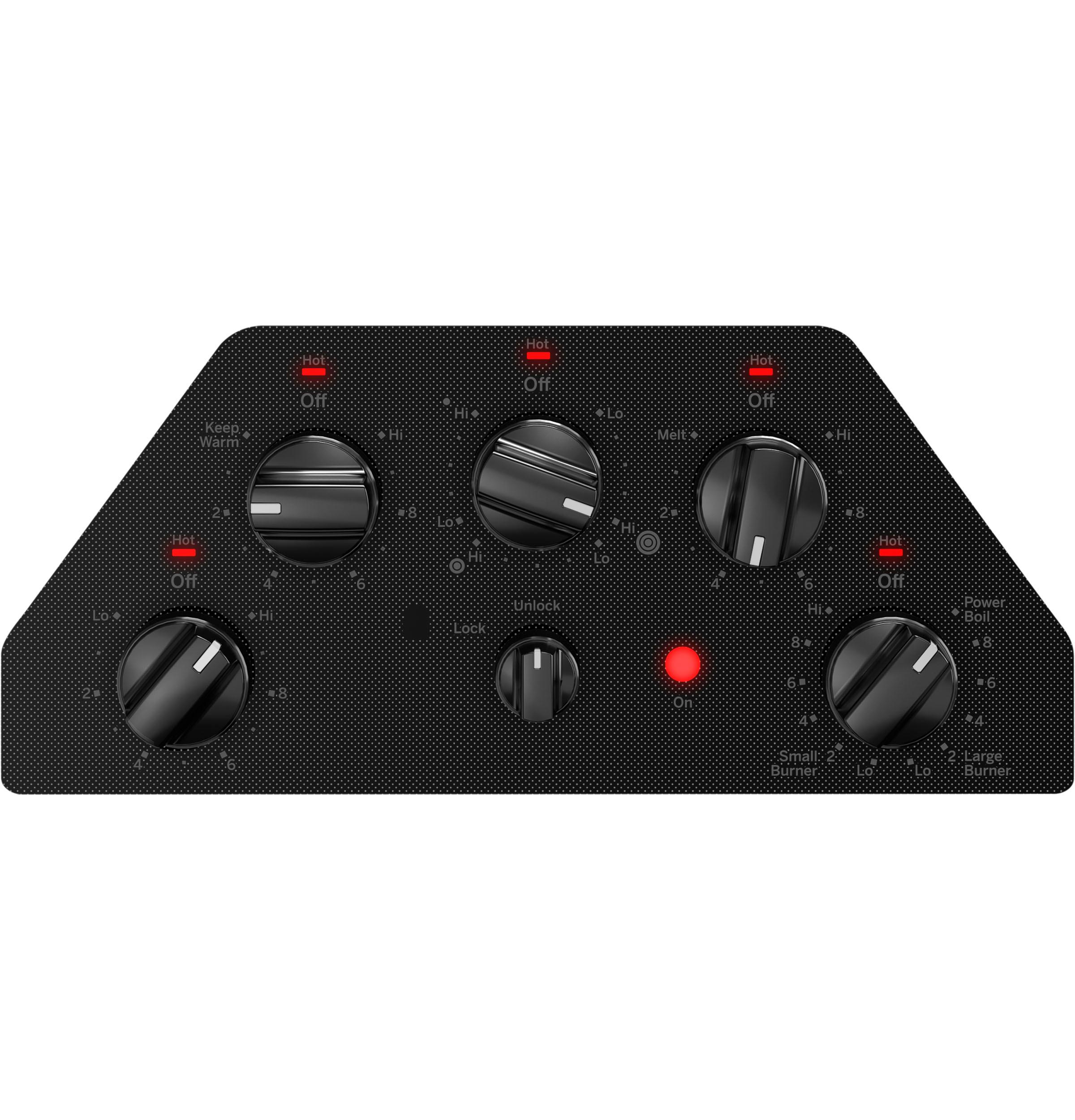

Control Lock
Protect against unintentionally turning your cooktop on with a safety control lock setting

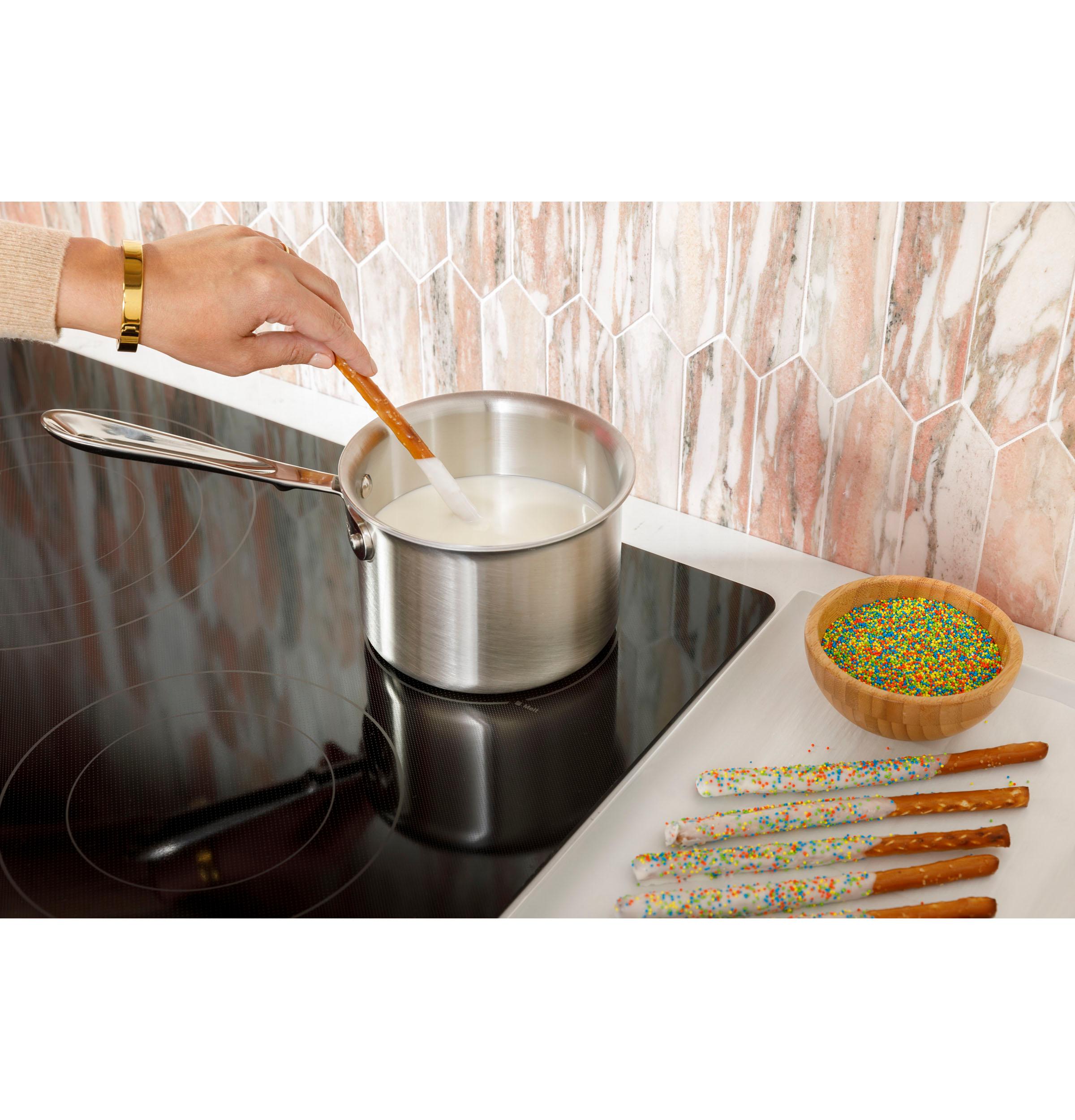

Melt Setting
Gently melt delicate foods without scorching thanks to this optimal melt option cooktop

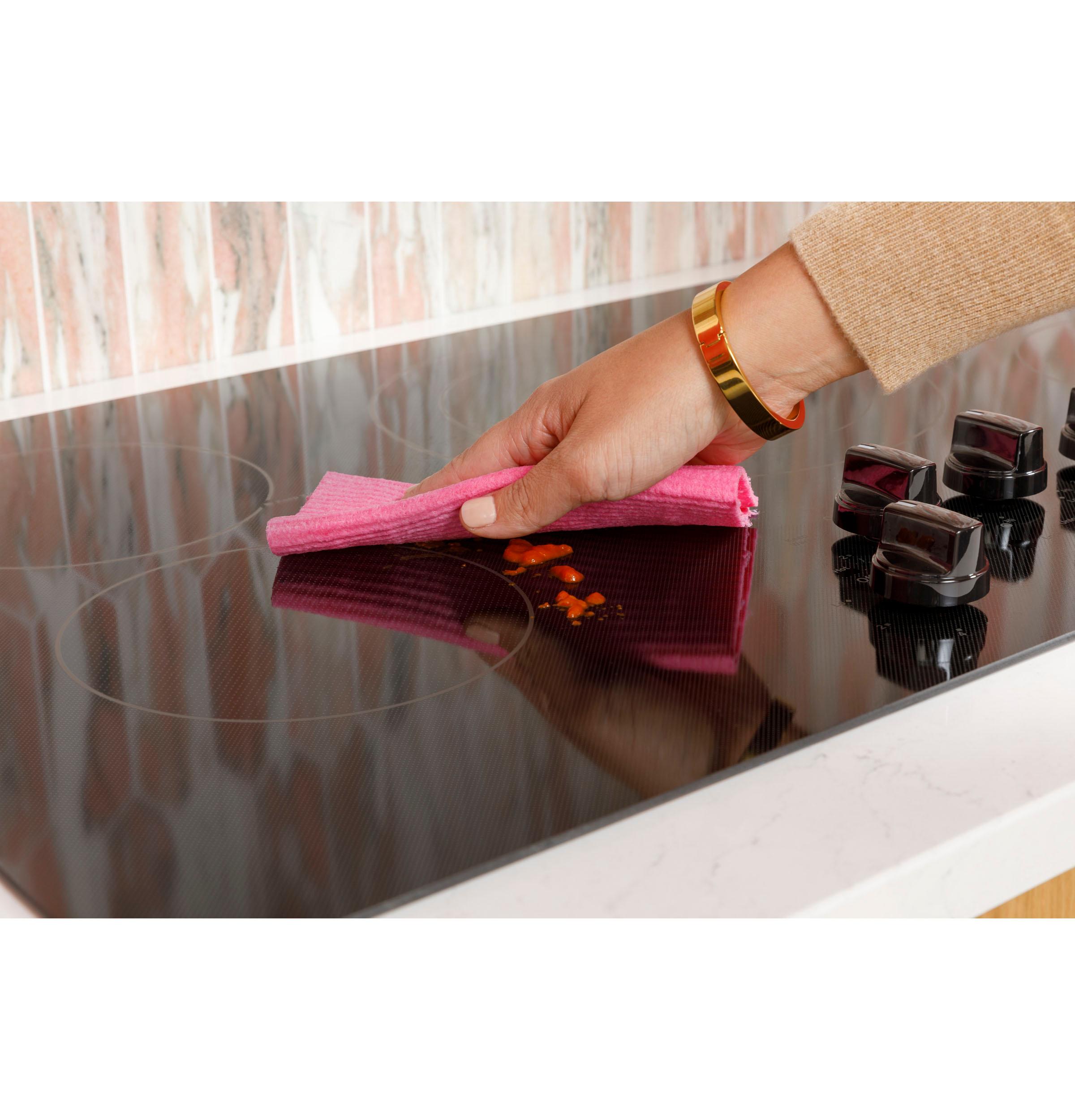

A smooth glass surface makes cleaning up messes simpler than ever on this easy clean electric cooktop

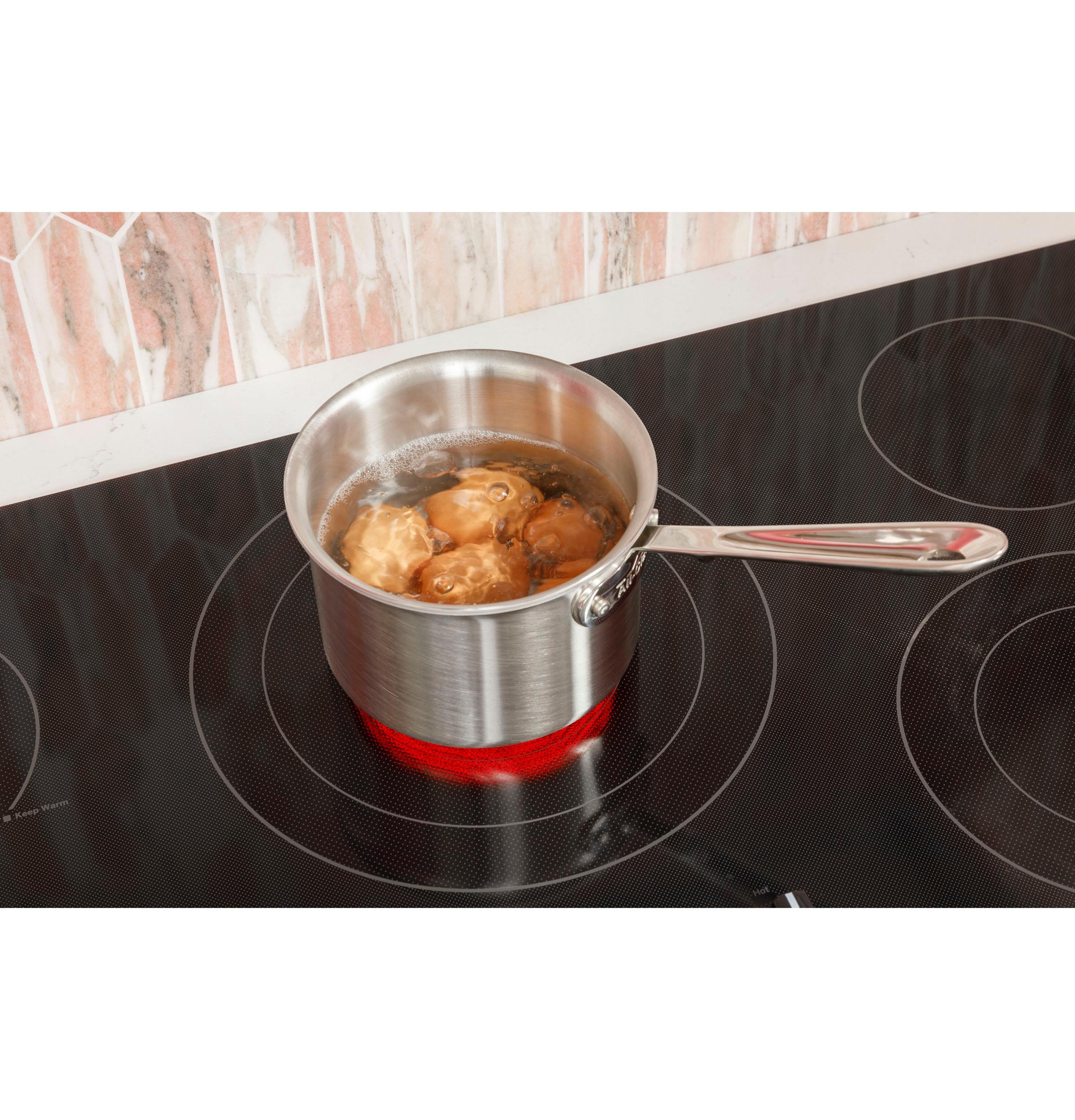

Cook faster with a variety of different pan sizes on this powerful rapid boil electric cooktop with a 3,100-watt flexible element

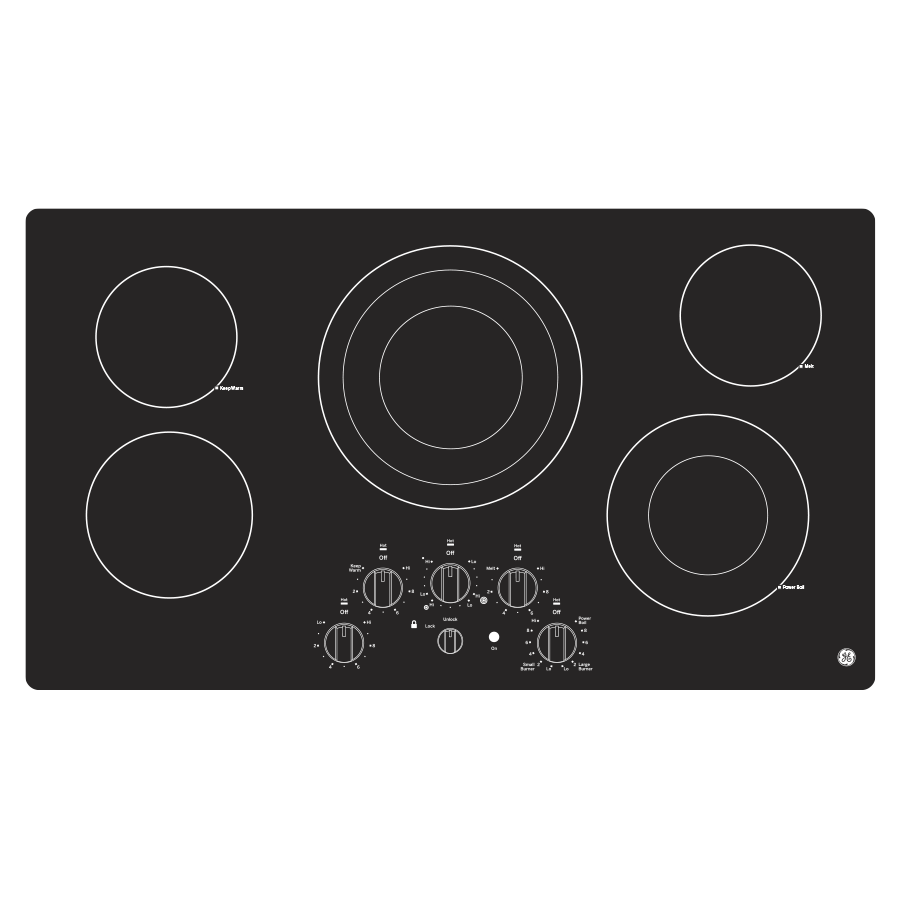

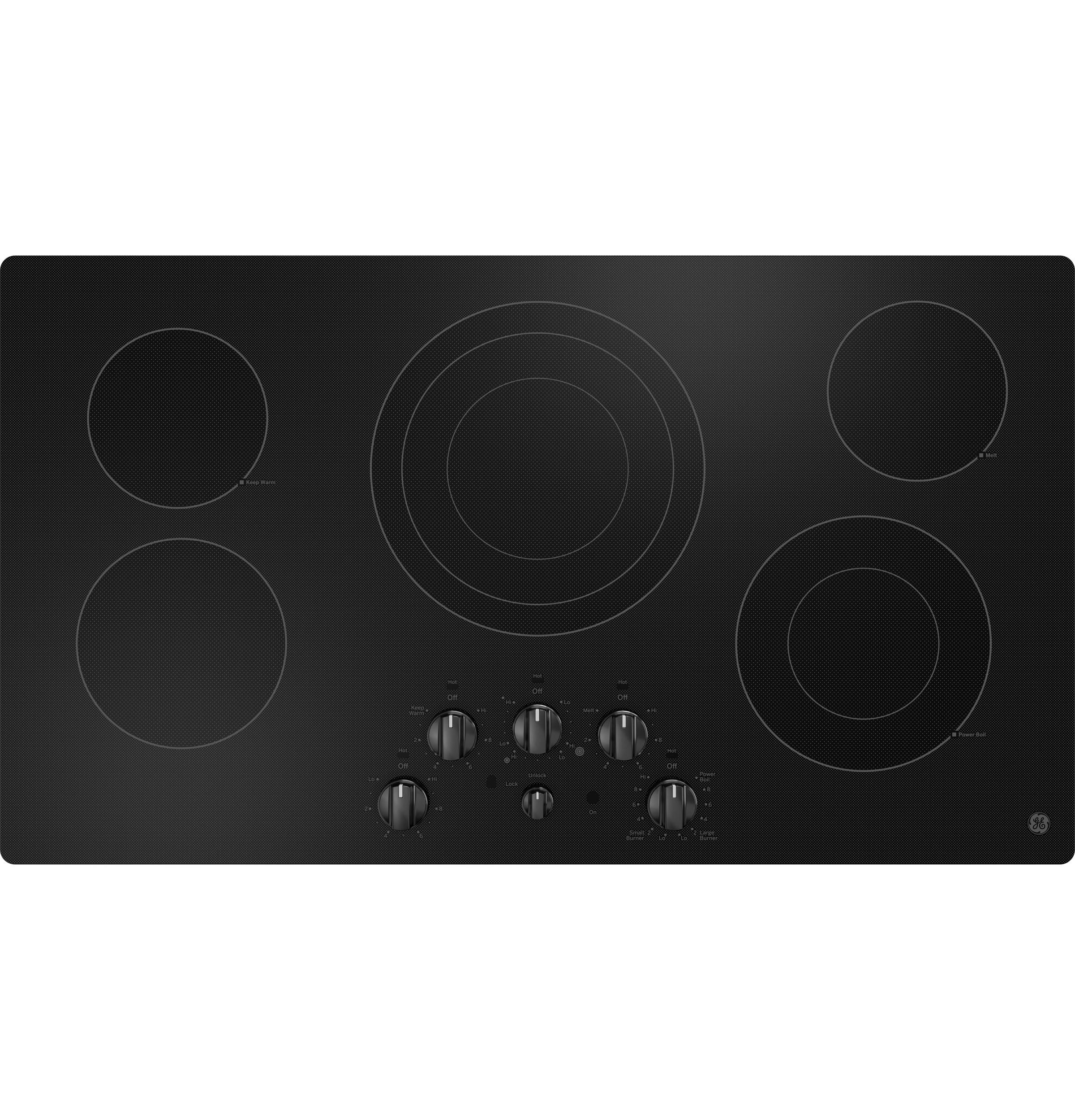

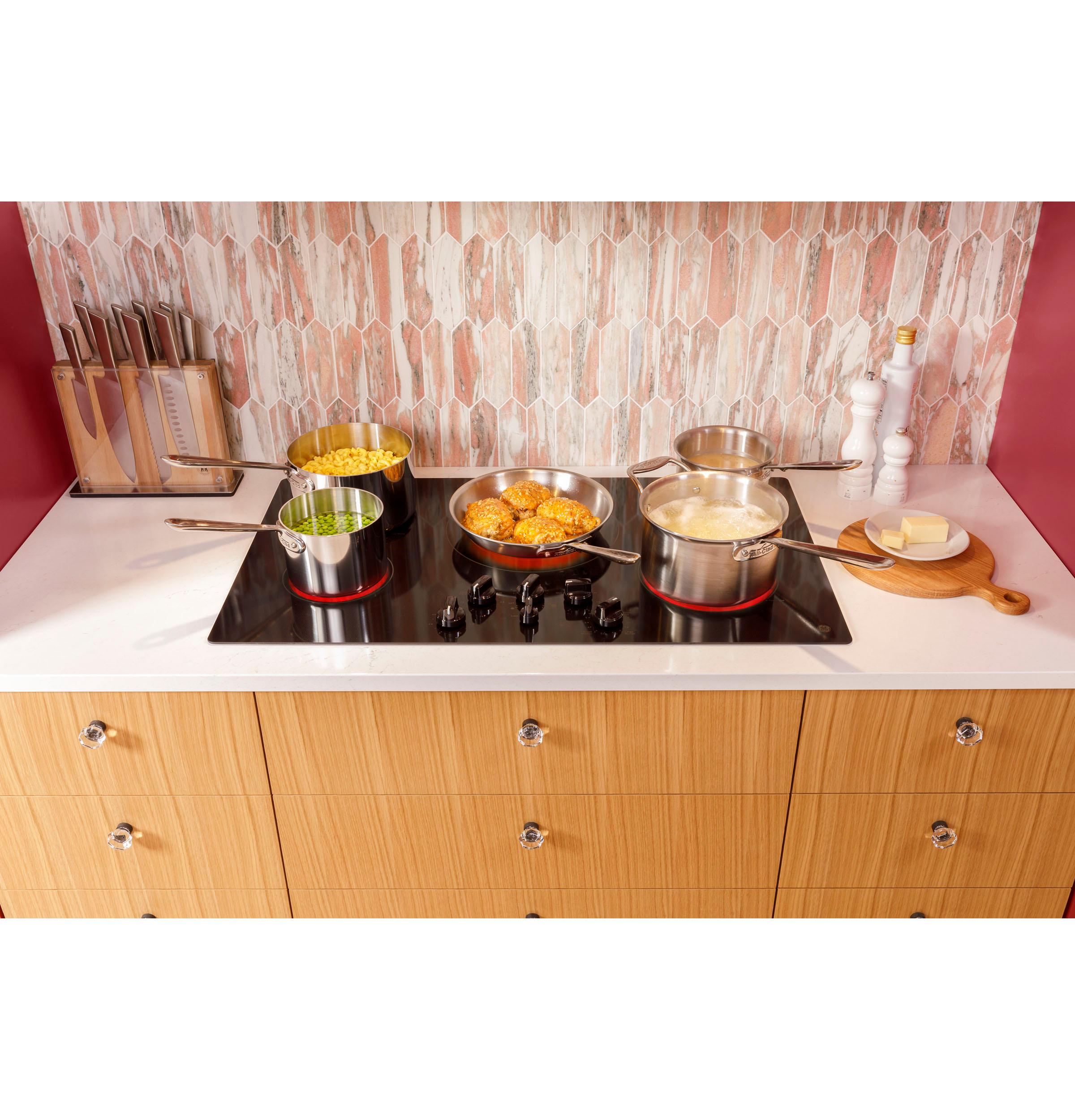

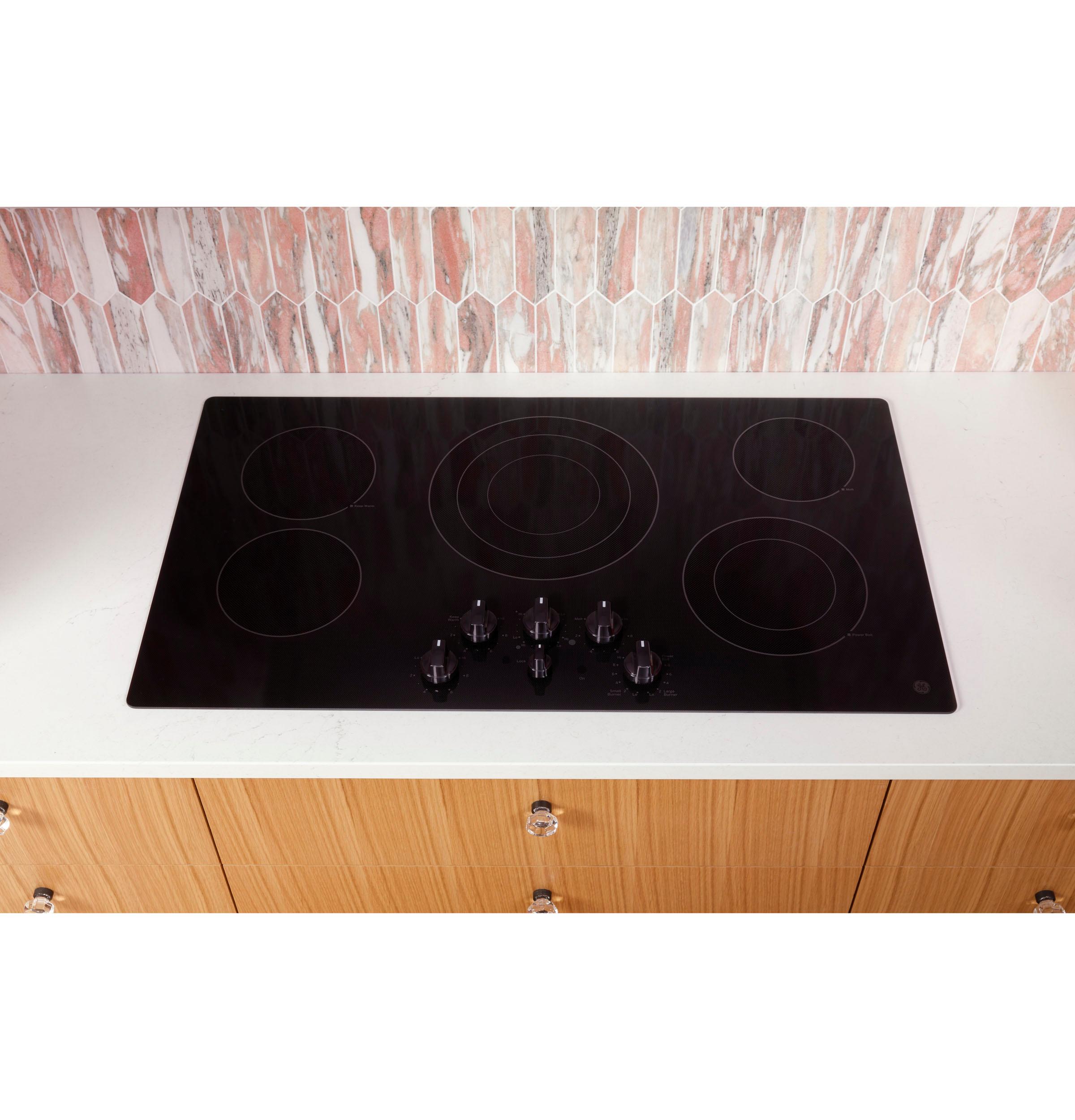

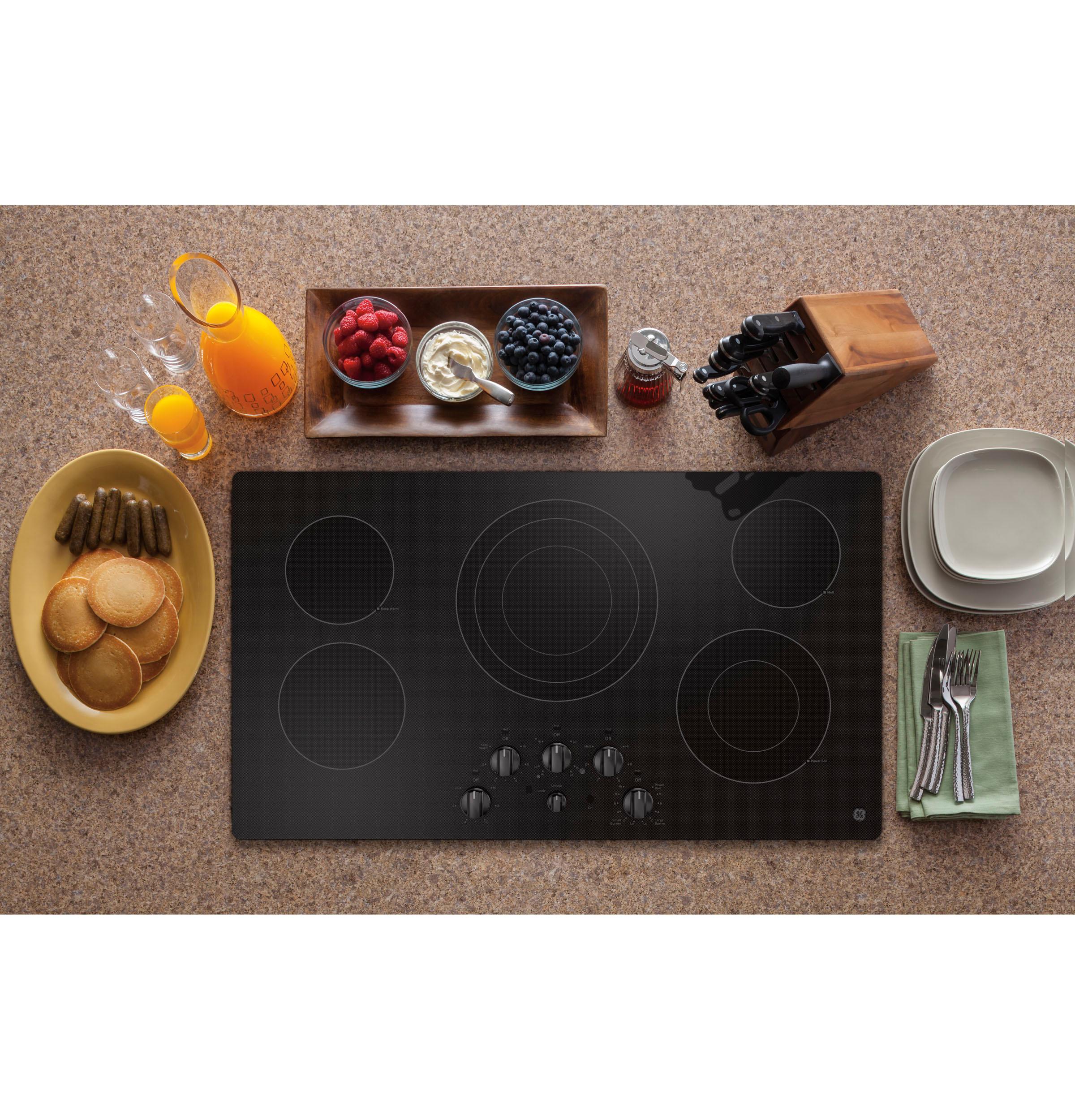

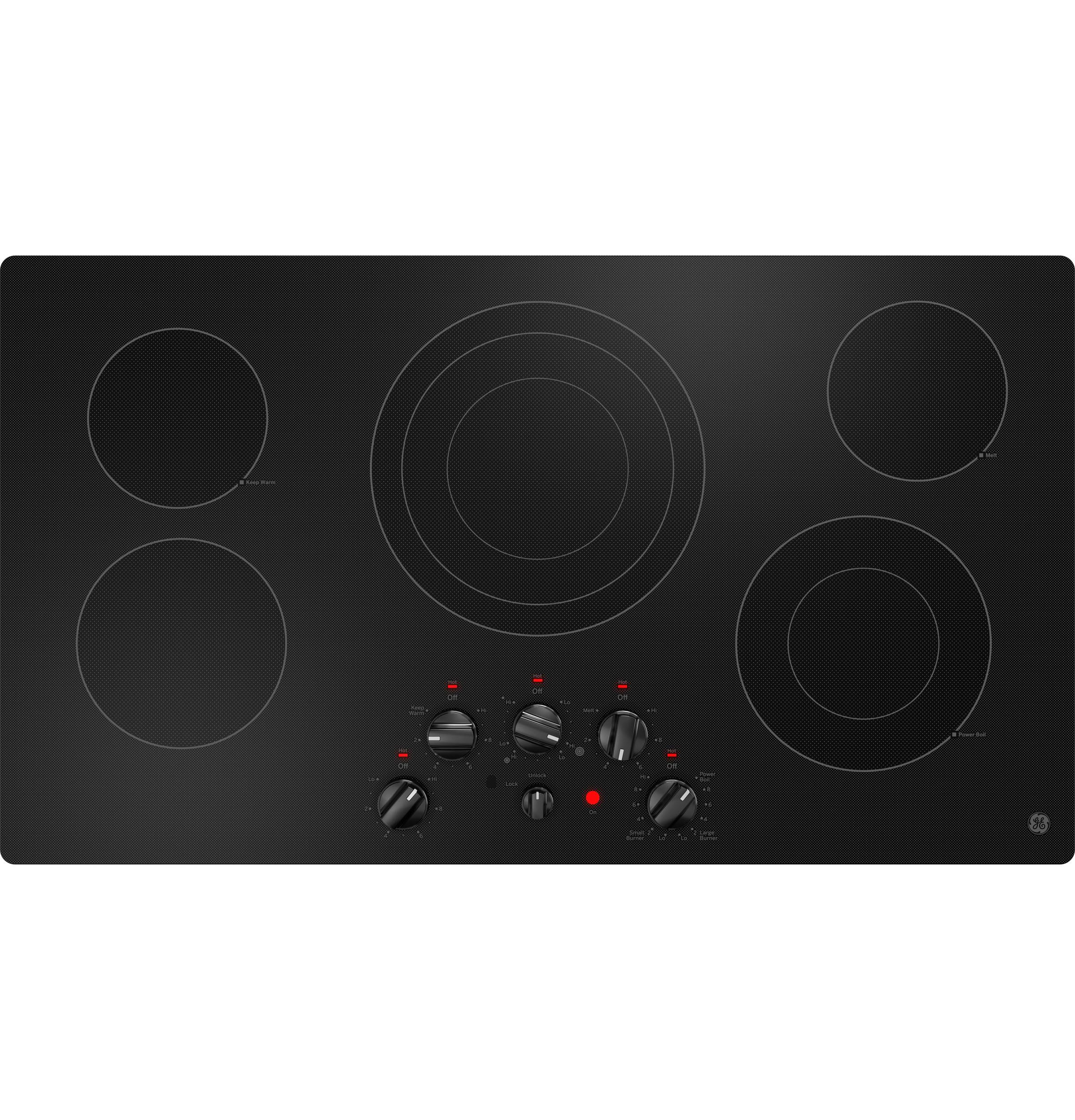

5 variously sized cooking burners on this flexible electric cooktop let you find the perfect fit for your pans and pots
Dimensions & Capacity Width: 36 1/4"
Height: 3 3/8"
Depth: 21 1/8"
- Melt Setting
- Keep Warm Setting
- Power Boil
- Hot Surface Indicator Light
- Simmer Burner
- Power Burner
| FILTER | |
| App Filter - Cabinet Width | Cooking 36 in. |
| App Filter - Cooktop Type | Radiant Smoothtop |
| App Filter - Fuel Type | Electric |
| App Filter - Control Type | Digital touch |
| APPEARANCE | |
| Color Appearance | Black |
| Frameless | Yes |
| Control Knobs | Gloss Black |
| POWER / RATINGS | |
| Recommended Circuit Breaker (Amps) at 240V | 40 |
| Max. Connected Load (kW) at 240V | 9.4 |
| Max. Current Draw (Amps) at 240V | 39.2 |
| Max. Connected Load (kW) at 208V | 7.1 |
| Recommended Circuit Breaker (Amps) at 208V | 40 |
| Max. Current Draw (Amps) at 208V | 34.1 |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| WEIGHTS & DIMENSIONS | |
| Cooktop Size | 36 |
| Overall Height | 3.375 |
| Cabinet Width | 36 |
| Approximate Shipping Weight | 49 |
| Cutout Dimensions (Width x Depth) (In.) | 33-7/8 x 19-1/8 |
| Overall Width | 36.125 |
| Net Weight | 43.4 |
| Overall Depth | 21 |
| FEATURES | |
| Filler trim kit | JXTR32B (not included) |
| Cooktop Burner Type | 5 Ribbon Smoothtop |
| Melt Setting | Yes |
| Fuel Type | Electric |
| Element - Left Front | 7' 1500W (Keep Warm) |
| Indicator Lights | 5 Hot Surface Red Surface Element 'ON' |
| Element - Right Front | 8'/5' 2400W Power Boil |
| Control Location | Front Center |
| Cooktop Type | Radiant Smoothtop |
| Cooktop Surface | Black Ceramic Glass |
| Cooktop Control Features | Keep-Warm Setting Melt Setting |
| Timer | Yes |
| Element - Left Rear | 6' 1200W |

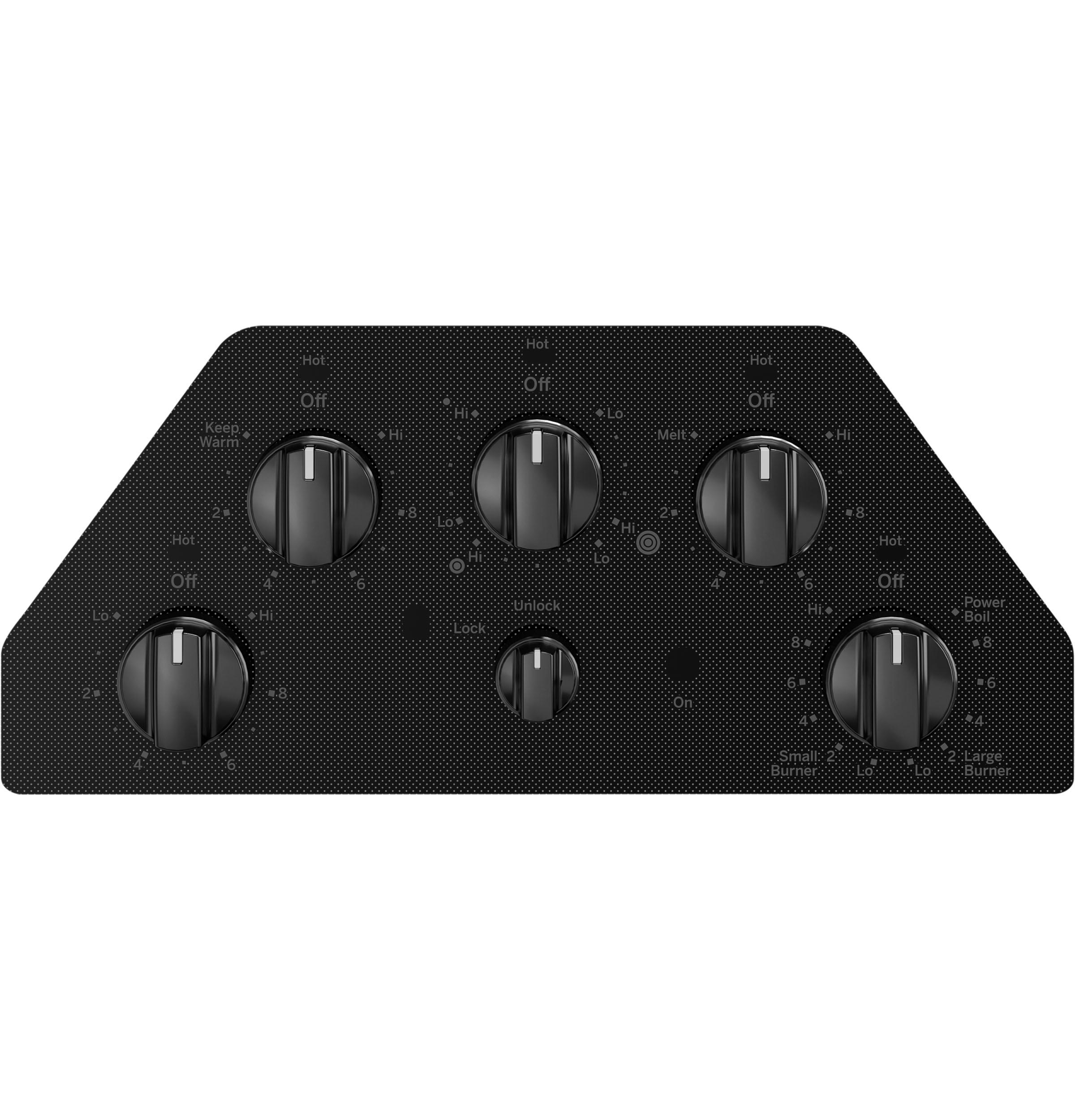

| Control Type | Knob (Infinite switch) |

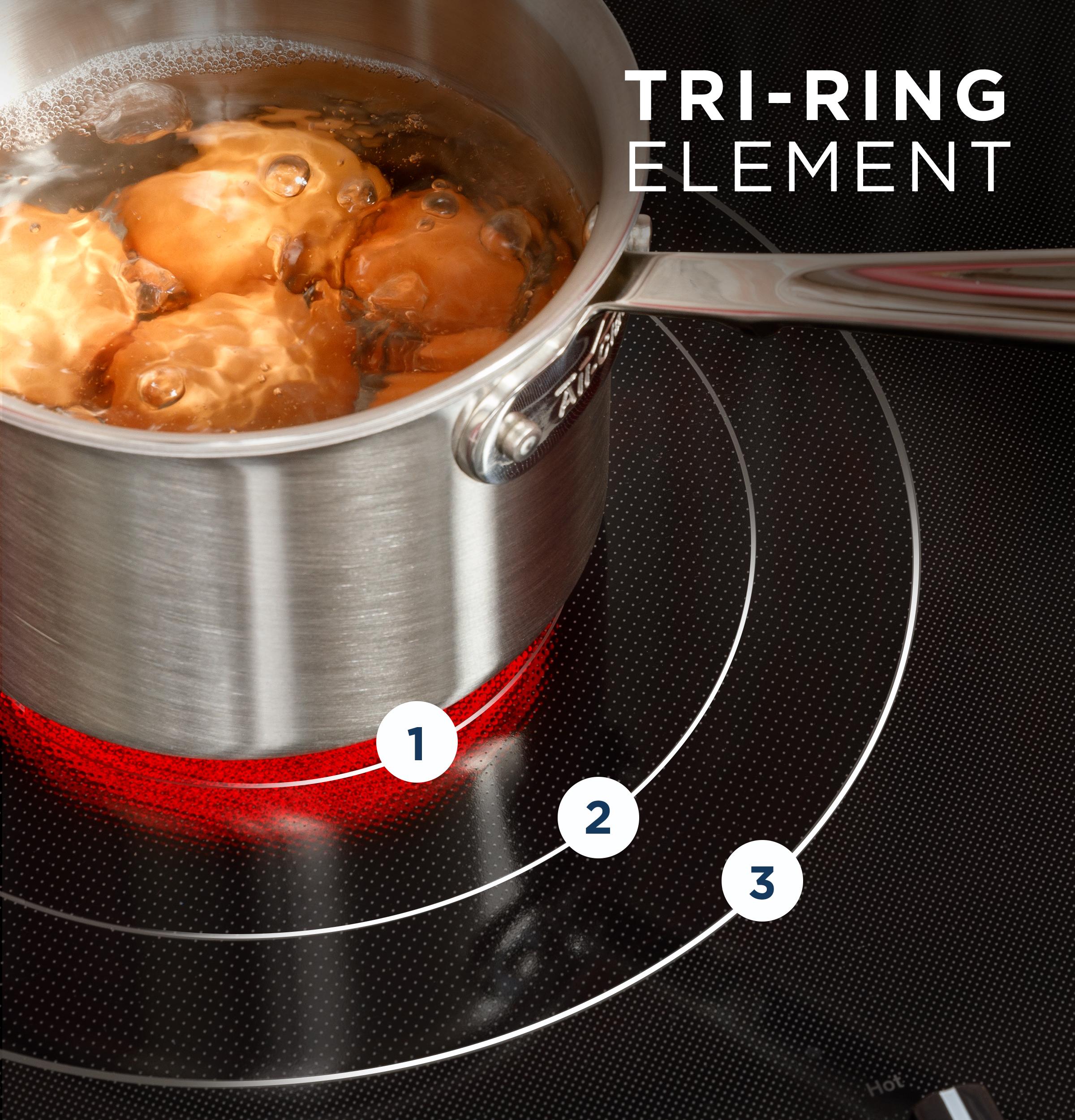

| Element - Center | 12'/9'/6' 3000W Tri-ring Power Boil |
| Element - Right Rear | 6' 1200W (Melt) |
| Product Type | Cooktop |
