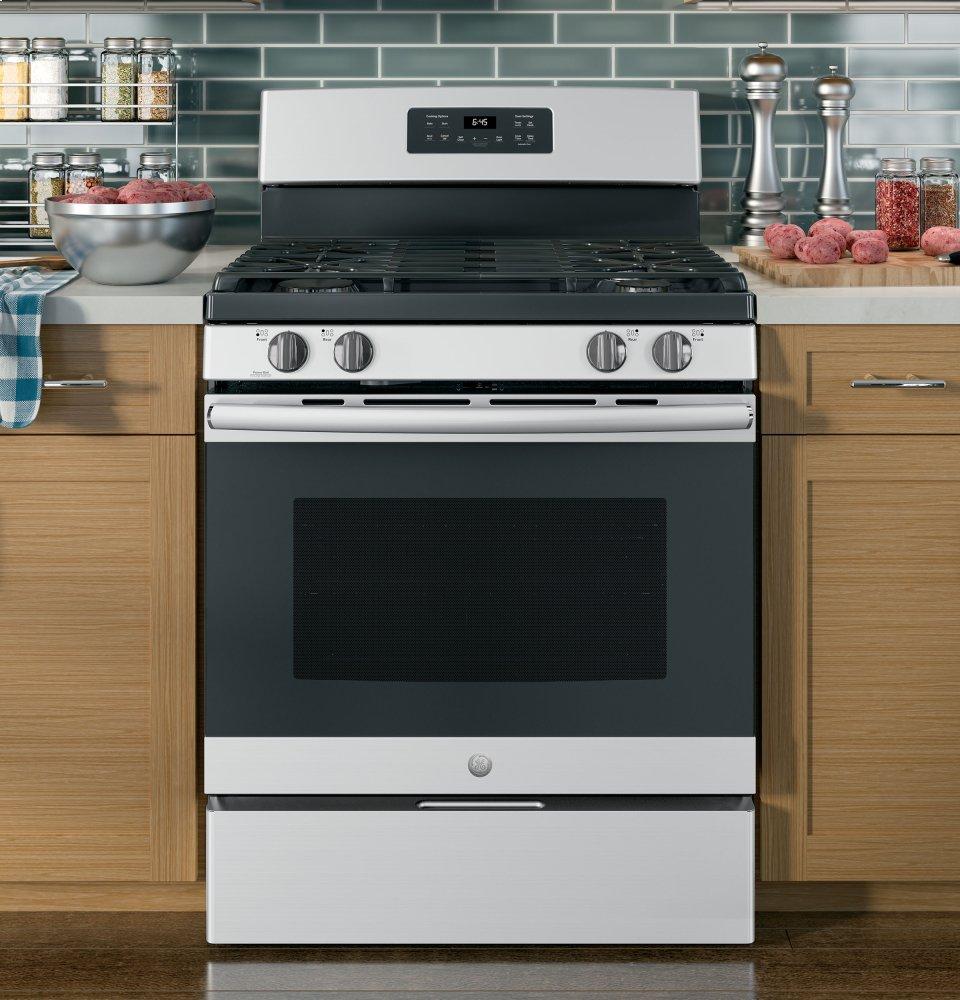

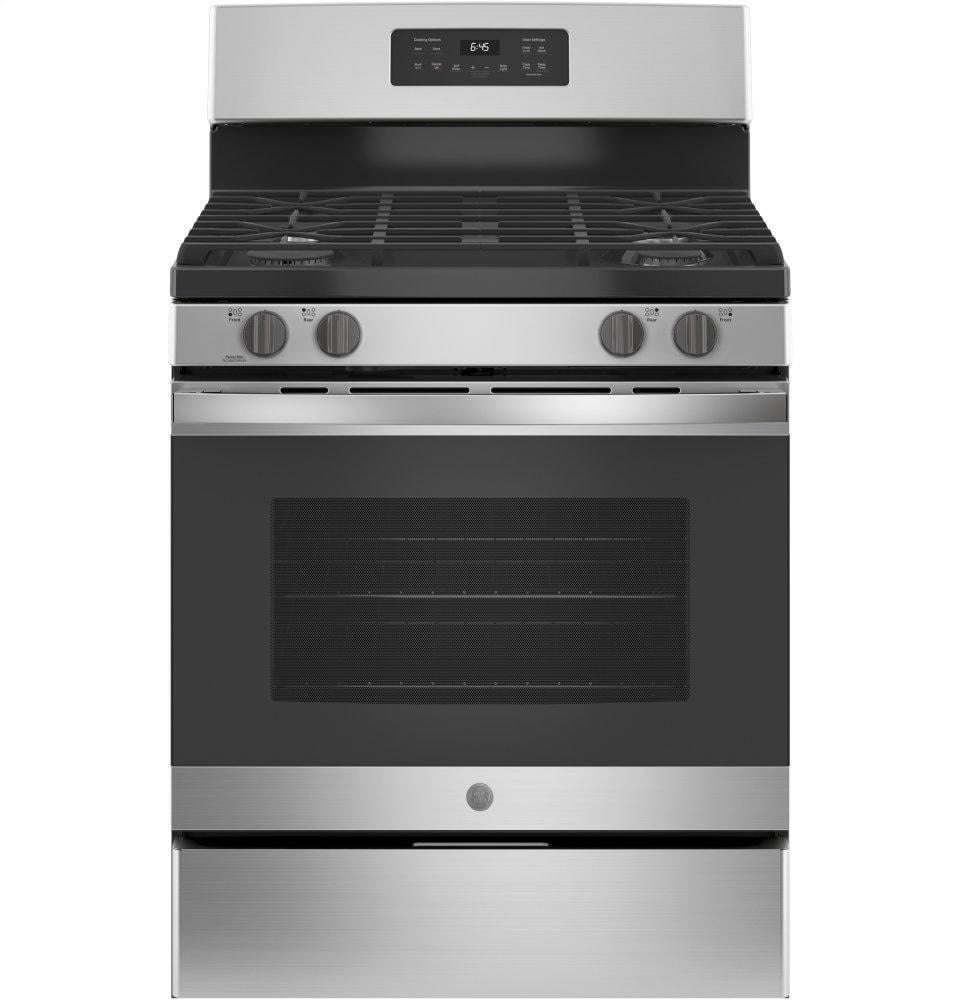

Ge Appliances JGB645SEKSS Ge® 30" Free-Standing Gas Range
Rebates &
Promotions
General Electric Bodewell Delivery and Installation Allowance - Enjoy exclusive rebate savings with purchase of qualifying GE Appliances family of brands. Download Valid: 09/01/2024-12/31/2024

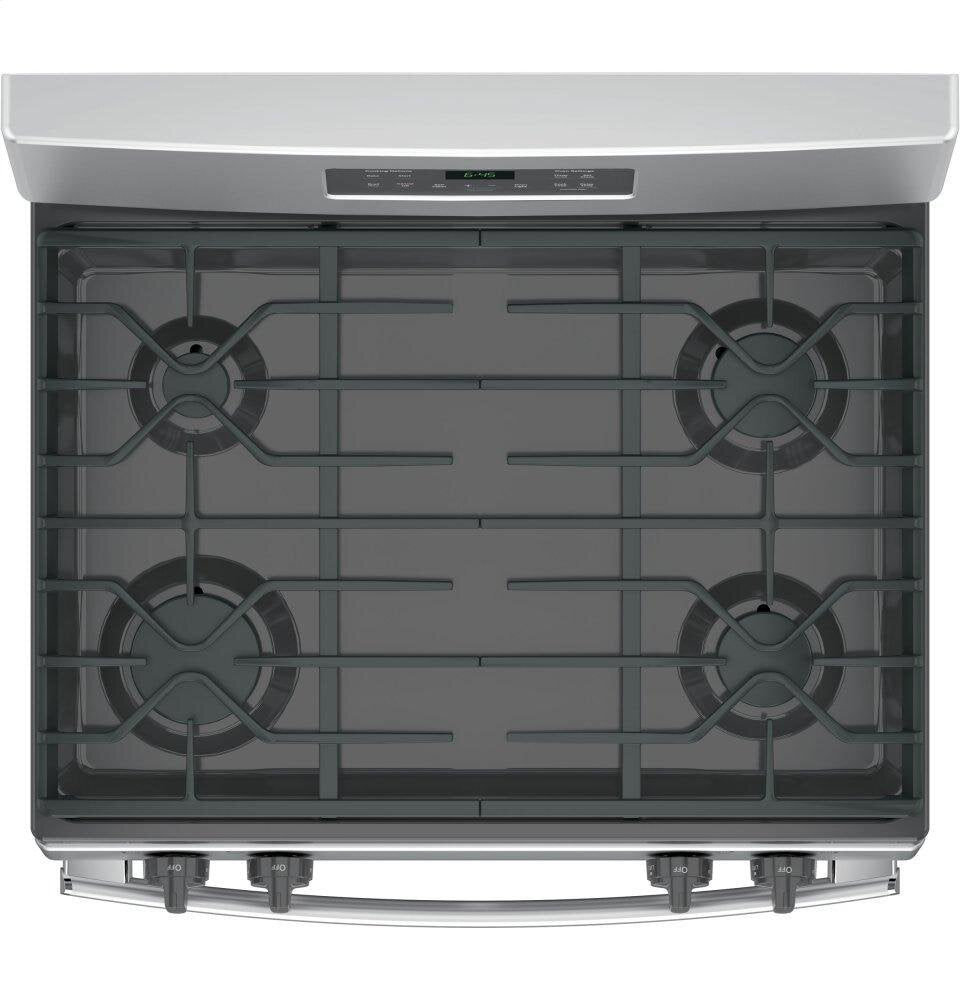

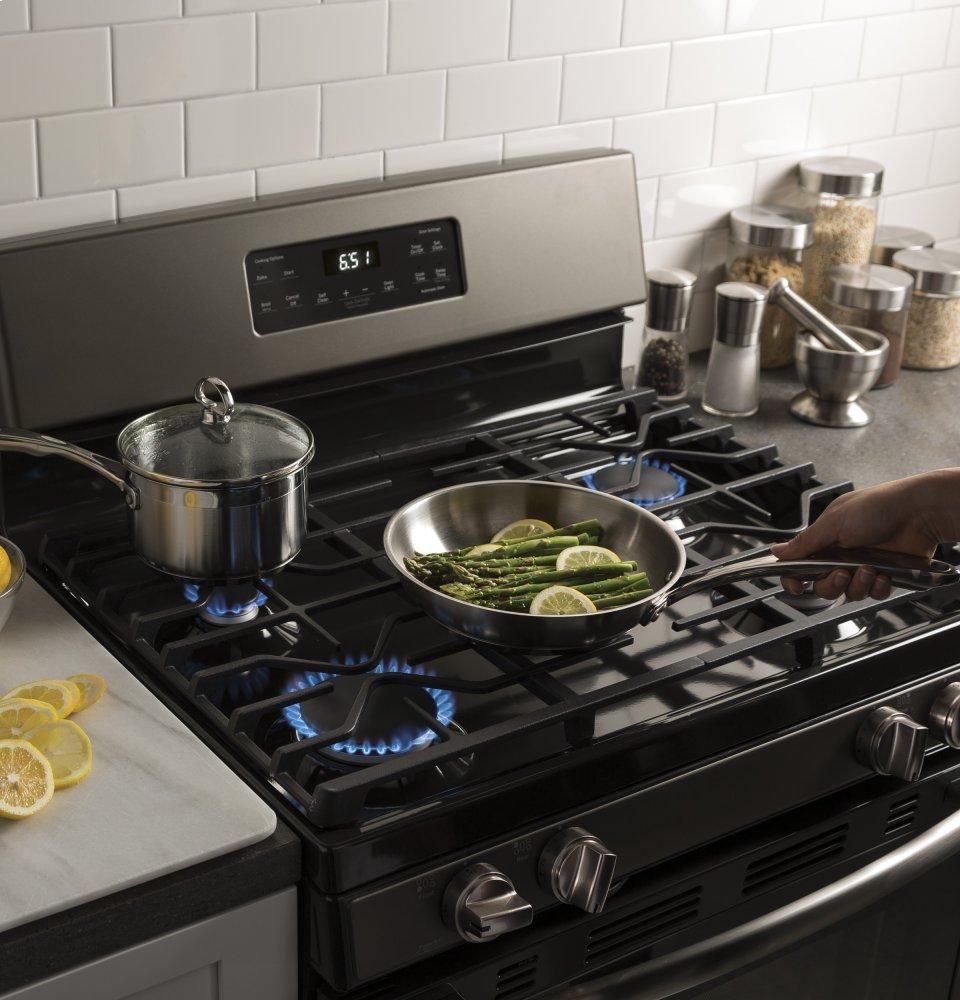

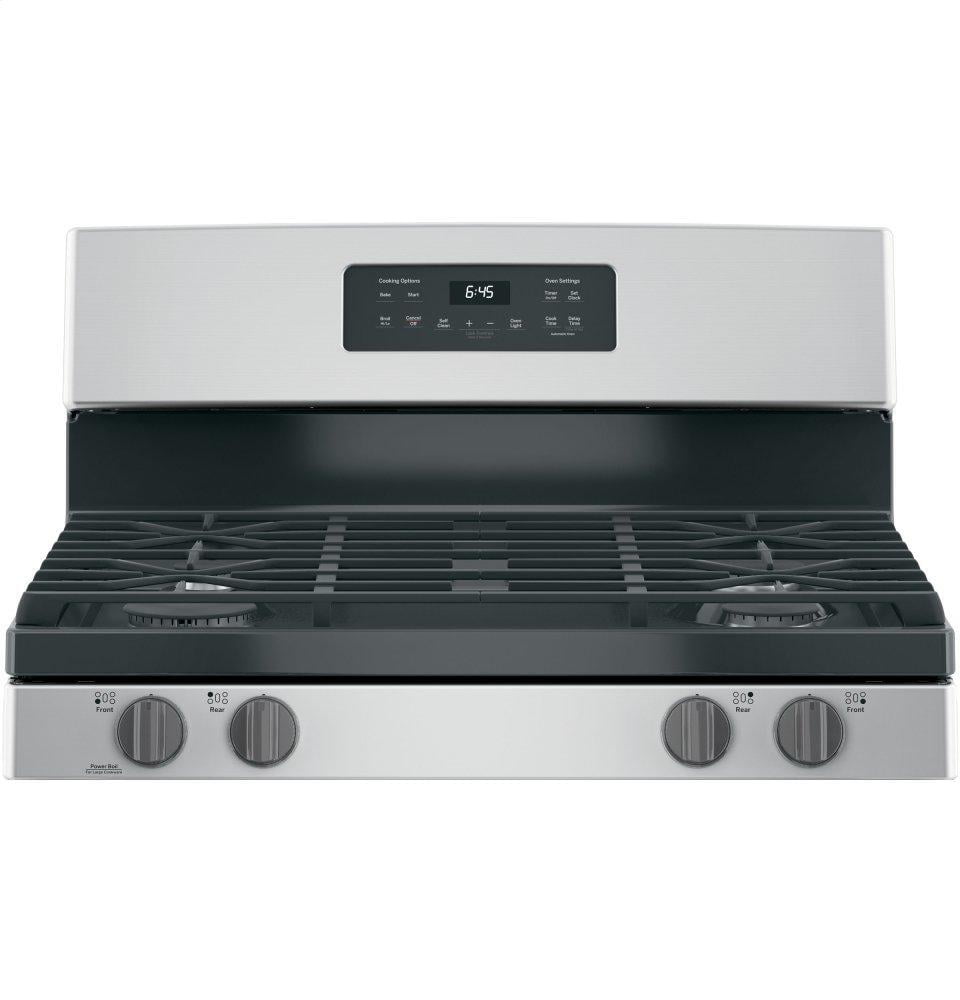

Two-piece continuous edge-to-edge cooktop
A large, continuous cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner

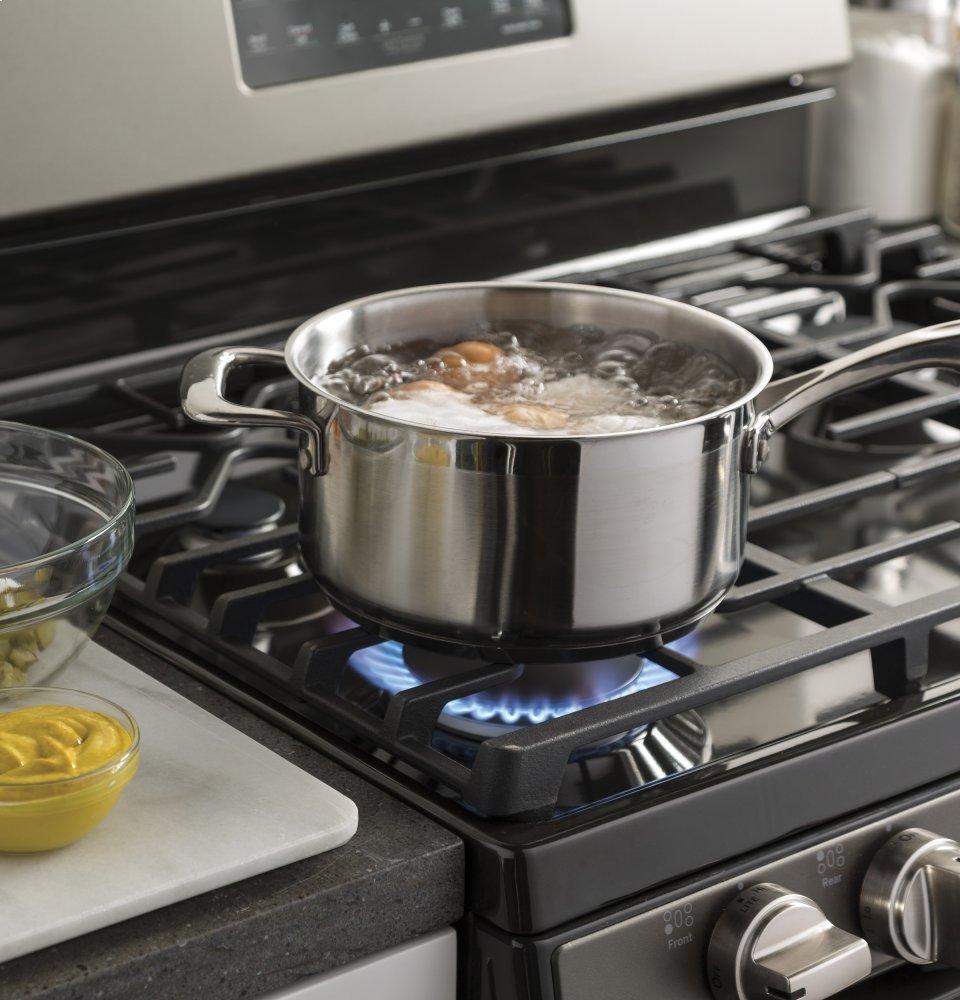

15,000 BTU Power Boil Burner
Delivers high heat for fast boiling

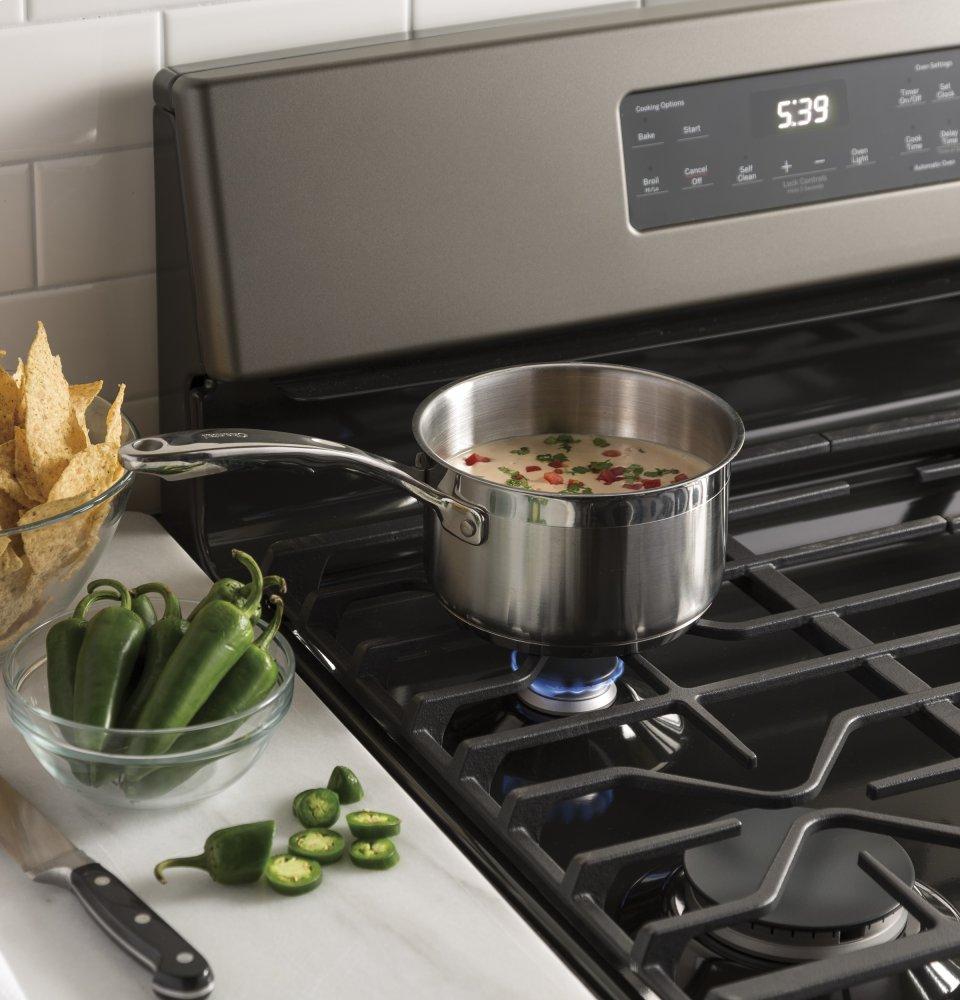

Precise Simmer burner
Delicate foods don't burn with low, even heat

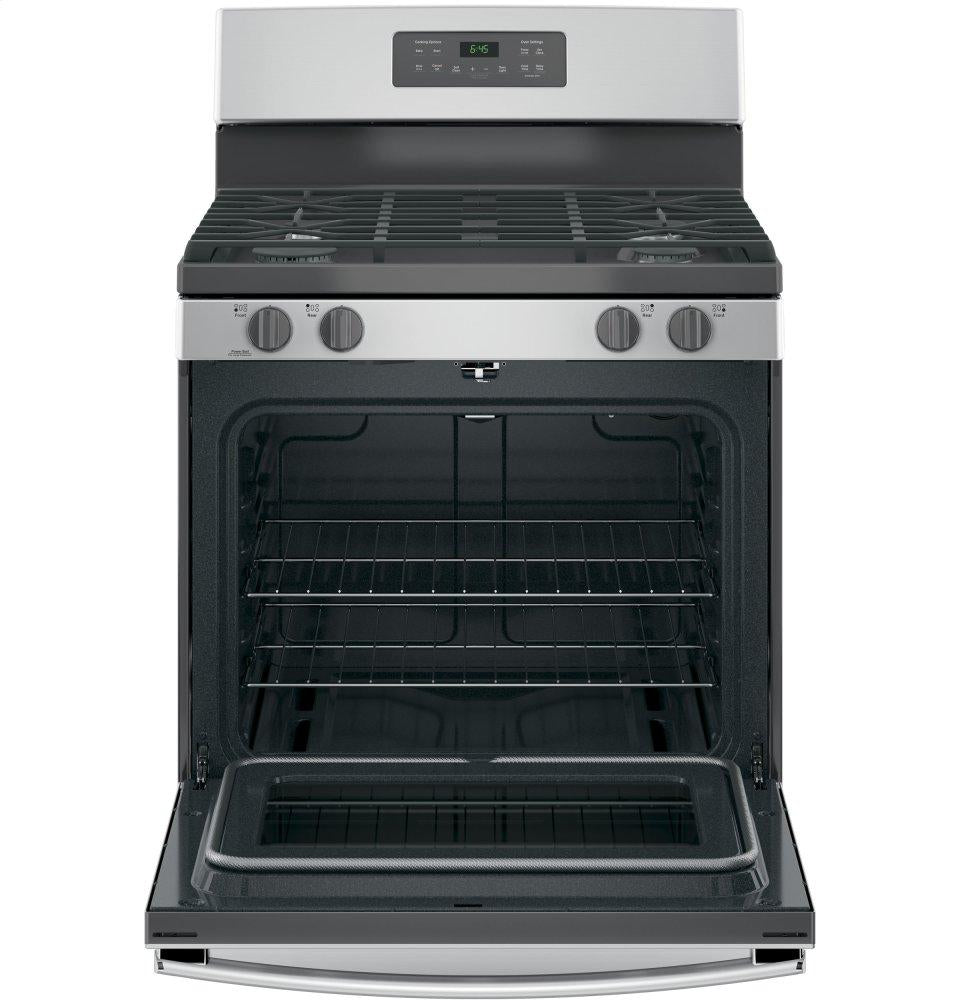

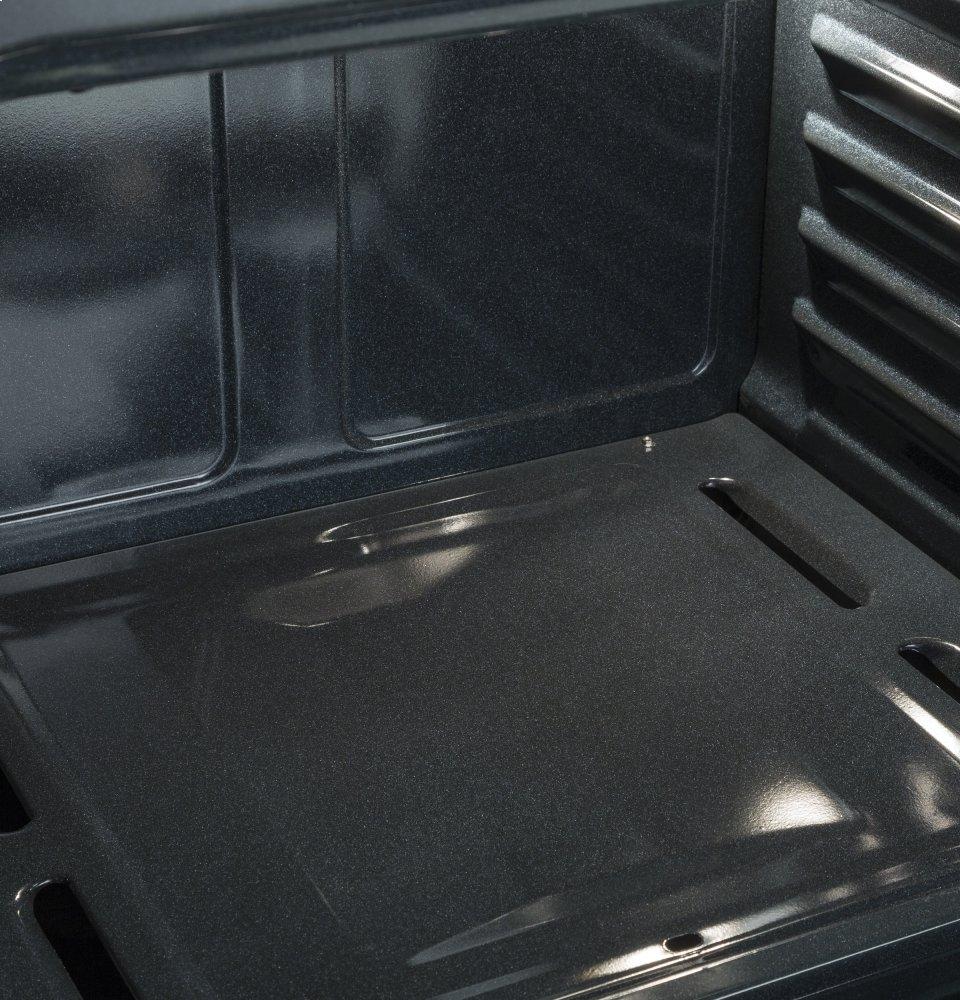

Self-clean oven
Cleans the oven cavity without the need for scrubbing

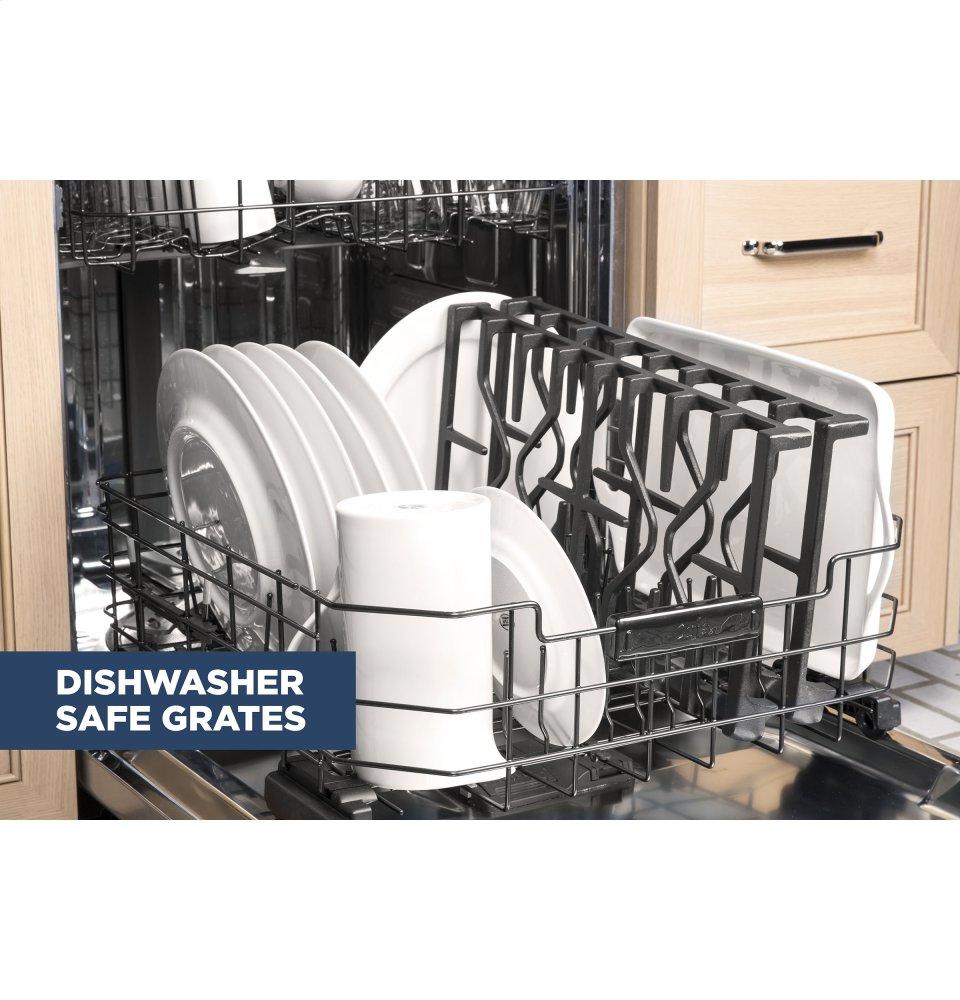

Heavy duty, dishwasher-safe grates
Easily and safely clean grates in the dishwasher
Sealed cooktop burners
Contains spills and make cleaning quick and easy
Spend Less Time Cleaning Up
Sealed cooktop burners contain spills and make cleaning quick and easy
Two-Piece Continuous Edge-To-Edge CooktopA Large, Continuous Cooking Surface Gives You Extra Room For Pots And Pans Of All Sizes And Lets Cookware Move Easily From Burner To Burner 15,000 Btu Power Boil BurnerDelivers High Heat For Fast Boiling Precise Simmer BurnerDelicate Foods Don'T Burn With Low, Even Heat Self-Clean OvenCleans The Oven Cavity Without The Need For Scrubbing Heavy Duty, Dishwasher-Safe GratesEasily And Safely Clean Grates In The Dishwasher 5.0 Cu. Ft. Oven CapacityCook More Dishes At Once Sealed Cooktop BurnersContains Spills And Make Cleaning Quick And Easy Deep-Recessed CooktopContains Spills For Quick And Easy Cleaning Sealed Cooktop BurnersContains Spills And Make Cleaning Quick And Easy Spend Less Time Cleaning UpSealed Cooktop Burners Contain Spills And Make Cleaning Quick And Easy
- Two-piece continuous edge-to-edge cooktop
- 15,000 BTU Power Boil Burner
- Precise Simmer burner
- Self-clean oven
- Heavy duty, dishwasher-safe grates

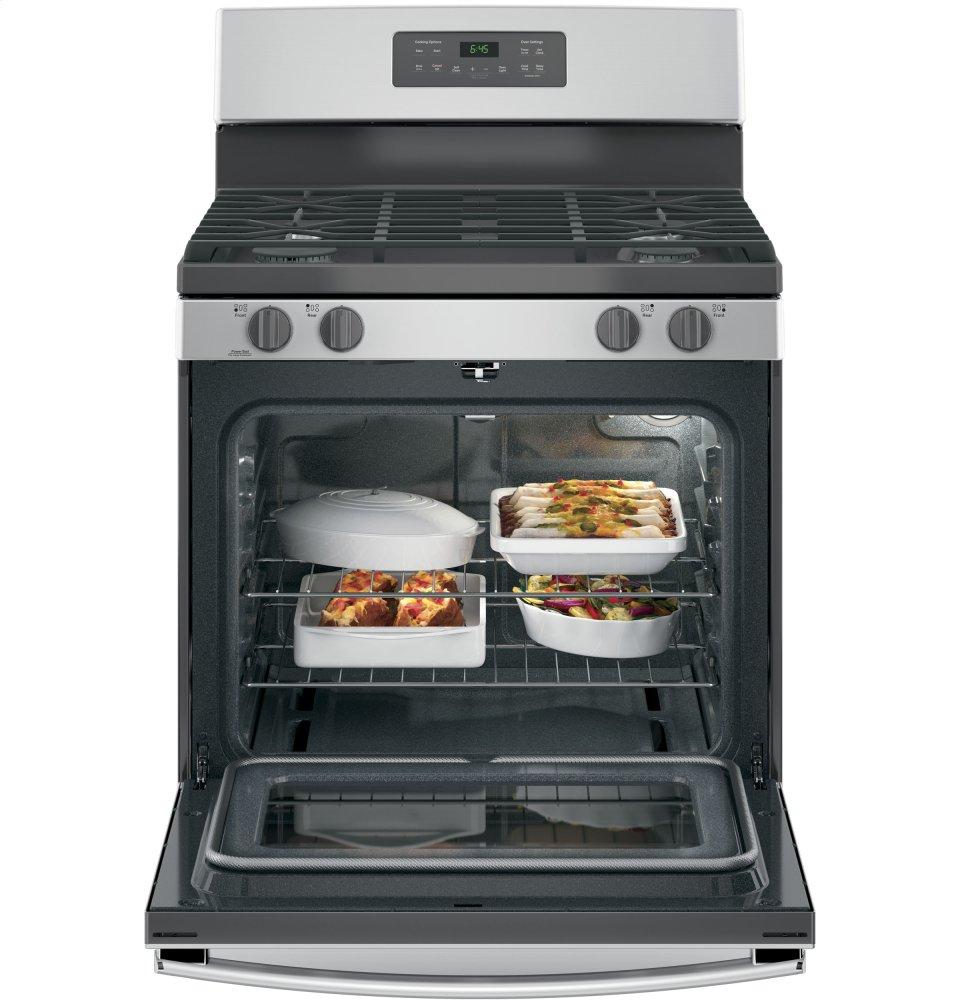

- 5.0 cu. ft. oven capacity
- Sealed cooktop burners
- Deep-recessed cooktop
- Spend Less Time Cleaning Up
CAPACITY | |
Total Capacity (cubic feet) | 5.0 |
FILTER | |
App Filter - Cleaning Type | Self-Clean |
App Filter - Control Type | Electronic touchpad |
App Filter - Drawer Type | Storage |
App Filter - Cooktop Type | Continuous Grates |
App Filter - Voltage | 120V |
App Filter - Cooking Technology | Traditional |
App Filter - Cabinet Width | Cooking 30 in. (Standard) |
App Filter - Product Type | Ranges Free-Standing Single Oven |
App Filter - Convection | No |
App Filter - Fuel Type | Gas |
App Filter - Edge-to-Edge Cooktop | Yes |
APPEARANCE | |
Control Knobs | Dark Gray |
Handle | Designer Style |
Cooktop Burner Grate Color | Matte Black |
Oven Door Features | Big View Oven Window |
Color Appearance | Stainless Steel/Gray |
POWER / RATINGS | |
Top Burner BTU Rating - LP (000's BTU's) | (1) 12.0; (1) 9.5; (1) 15.0; (1) 5.0 |
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0 |
Volts/Hertz/Amps | 120v; 60Hz; 15A |
Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
WARRANTY | |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
ACCESSORIES | |
Optional Accessories | WB48X21543 Roller Rack |
LP Conversion Kit | Included |
WEIGHTS & DIMENSIONS | |
Net Weight | 190.0 |
Height to Cooking Surface (in.) | 36 - 36 1/2 |
Depth Without Handle | 26.25 |
Overall Depth | 28.75 |
Depth with Door Open | 46.25 |
Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
Overall Width | 30.0 |
Overall Height | 47.25 |
Approximate Shipping Weight | 210.0 |
Cabinet Width | 30.0 |
FEATURES | |
Burner - Right Front | 9,500 BTU |
Burner - Left Rear | 5,000 BTU Precise Simmer |
Oven Cleaning Type | Self-Clean |
Cooktop Burner Type | Sealed |
Burner - Right Rear | 12,000 BTU |
Cooktop Burner Grate Features | Continuous Grates |
Oven Rack Features | 2 Flat Nickel Racks 6 Rack Positions |
Fuel Type | Natural Gas (factory set) |
Cooking Technology | Traditional |
Cooktop Surface | Edge-to-Edge Gray One-Piece Upswept Porcelain-Enamel |
Configuration | Range with Storage Drawer |
Burner - Left Front | 15,000 BTU |
Cooktop Burner Grate Material | Heavy Cast Iron |
Control Type | Electronic Touch |
Ignition System | Electronic |
Oven Control Features | Audible Preheat Signal Auto Self Clean Control Lock Capability Delay Bake Option |
Product Type | Free-Standing Single Oven |
Drawer Type | Storage |
Interior Oven Light | 1 Incandescent |
Cooktop Type | Continuous Grates |
Control Location | Front |
