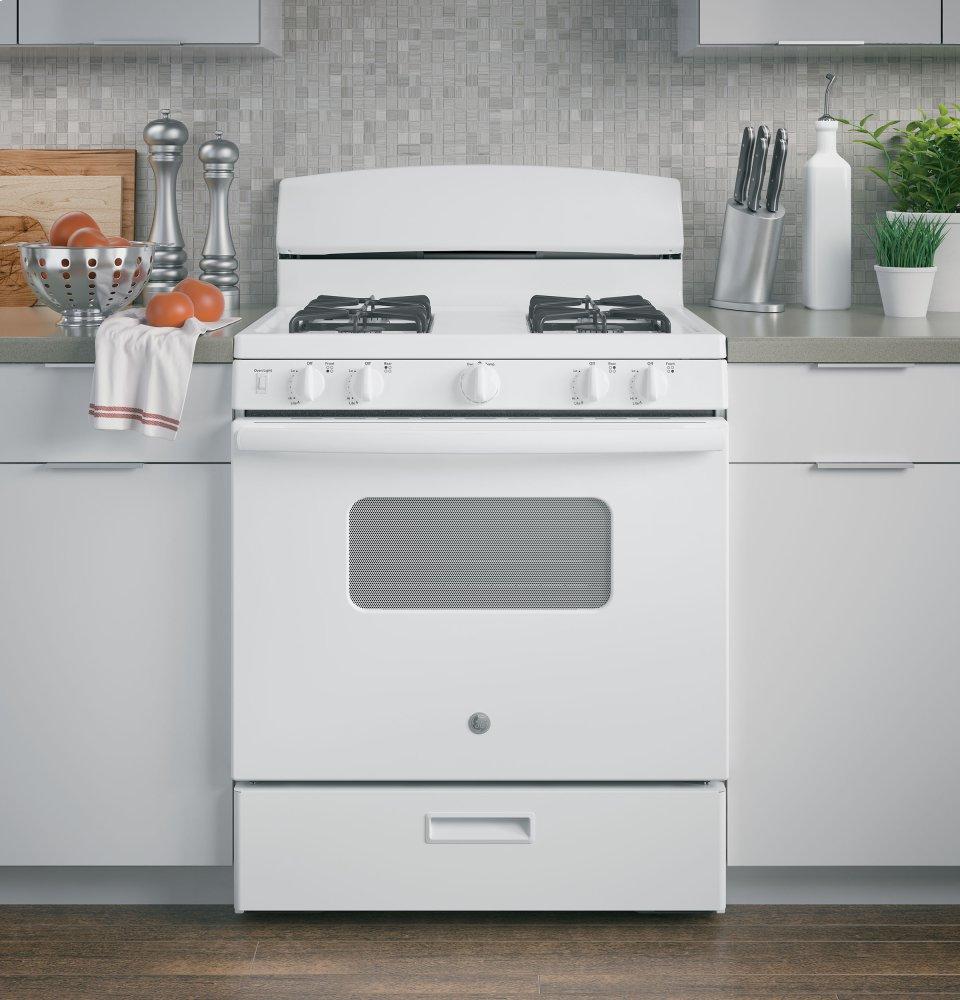

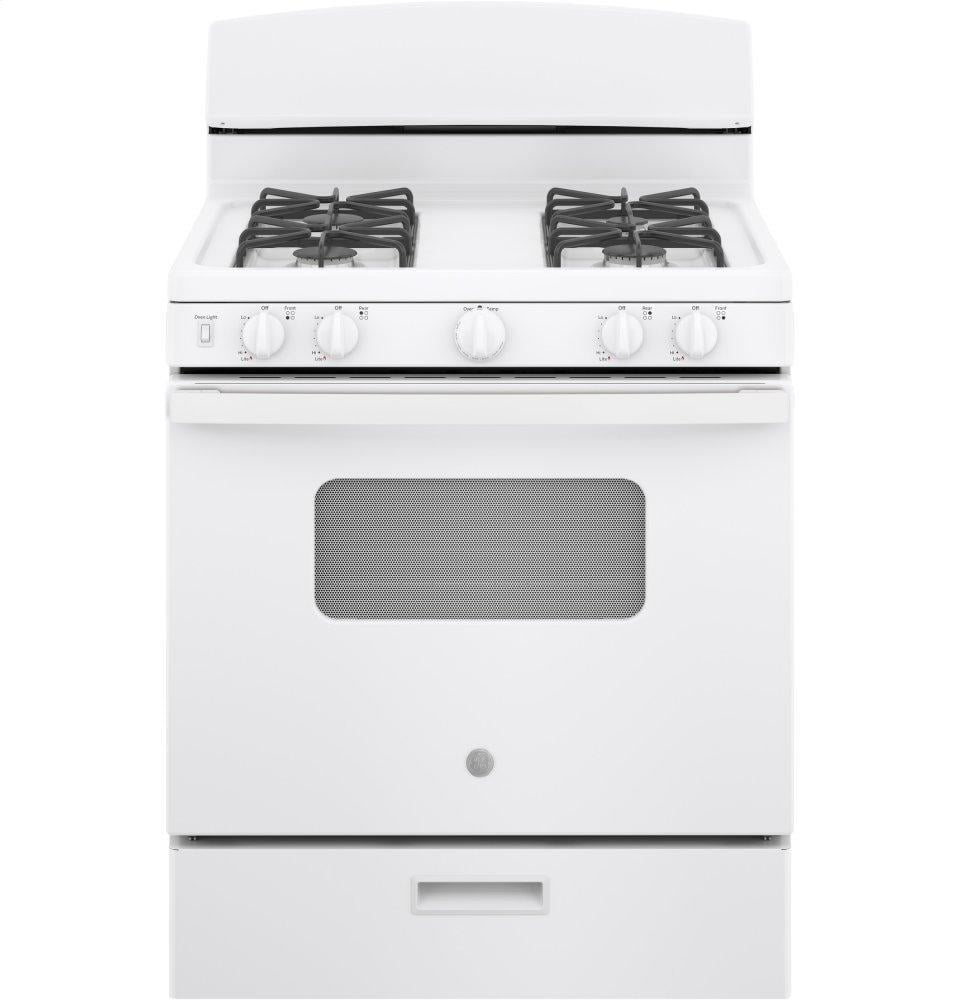

Ge Appliances JGBS10DEMWW Ge® 30" Free-Standing Front Control Gas Range
Rebates &
Promotions
General Electric Bodewell Delivery and Installation Allowance - Enjoy exclusive rebate savings with purchase of qualifying GE Appliances family of brands. Download Valid: 09/01/2024-12/31/2024

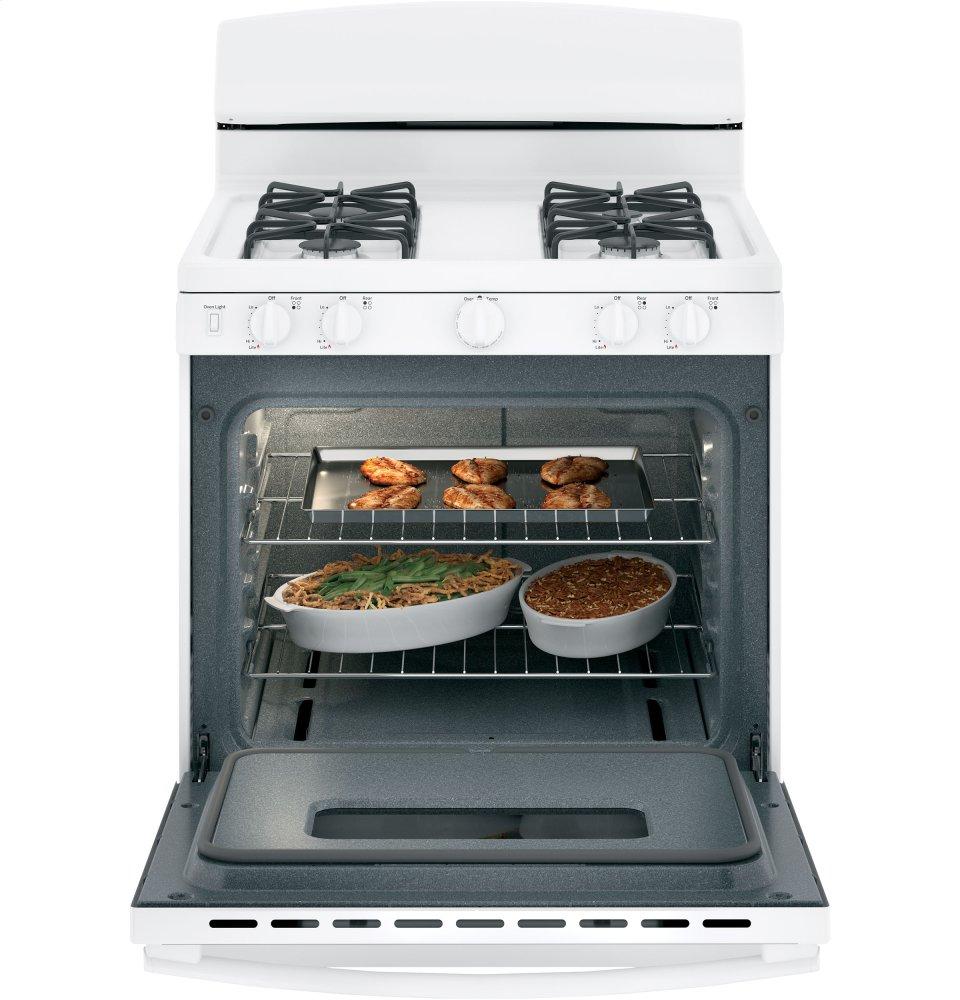

4.8 cu. ft. oven capacity
Enough room to cook an entire meal at once

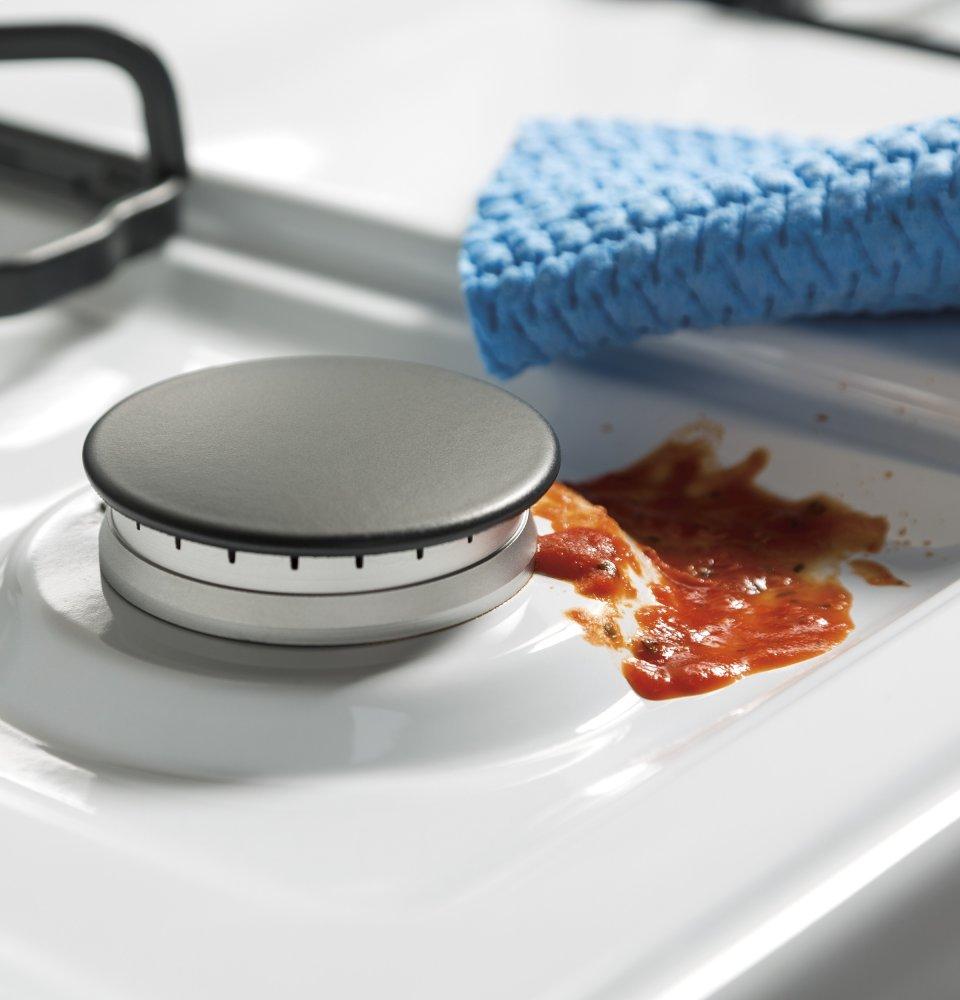

Sealed cooktop burners
Contains spills and make cleaning quick and easy

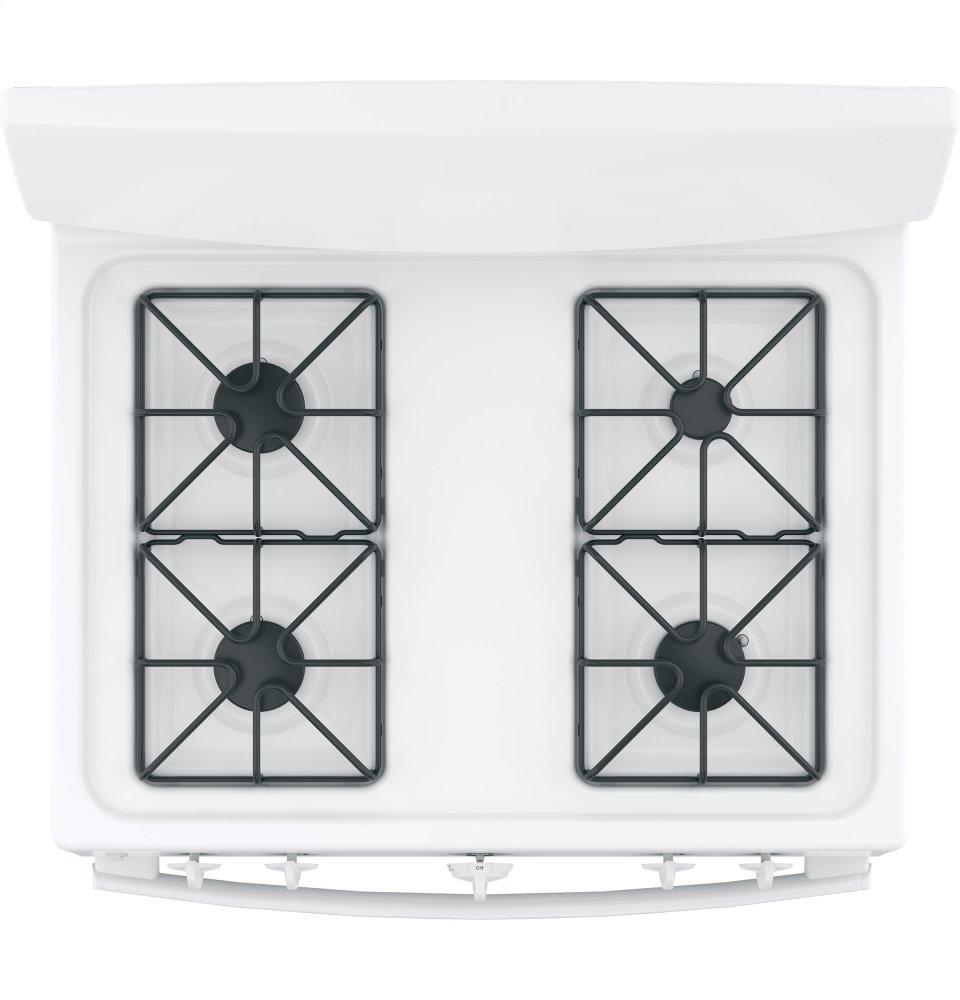

Heavy-duty grates
Durable grates are easy to clean and can hold a wide variety of cookware on the stove
Broil option
A versatile heating element allows for more cooking options in the oven
Standard clean oven
Smooth surface makes cleaning by hand easier
Front ControlsEasily-Assessable Controls Make It Simple To Control The Stovetop And Oven 4.8 Cu. Ft. Oven CapacityEnough Room To Cook An Entire Meal At Once Sealed Cooktop BurnersContains Spills And Make Cleaning Quick And Easy Heavy-Duty GratesDurable Grates Are Easy To Clean And Can Hold A Wide Variety Of Cookware On The Stove Broil OptionA Versatile Heating Element Allows For More Cooking Options In The Oven Standard Clean OvenSmooth Surface Makes Cleaning By Hand Easier

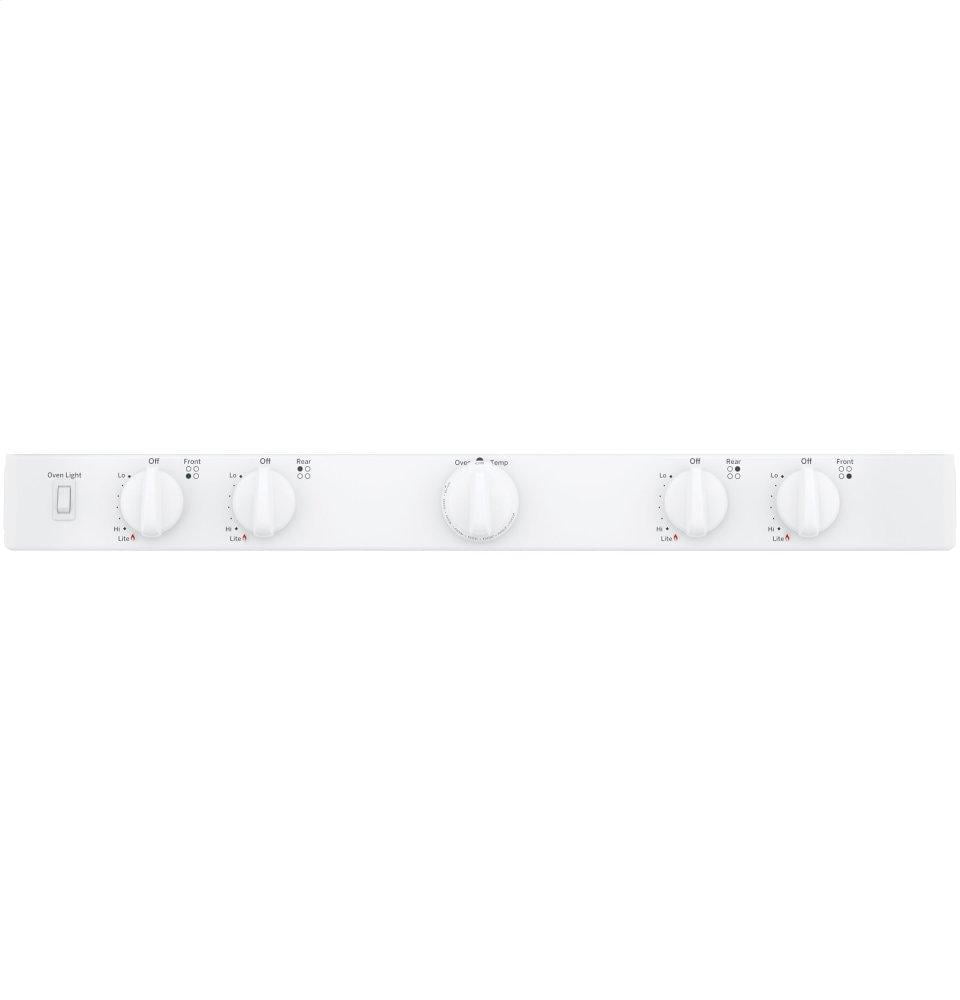

- Front controls
- 4.8 cu. ft. oven capacity
- Sealed cooktop burners
- Heavy-duty grates
- Broil option
- Standard clean oven
CAPACITY | |
Total Capacity (cubic feet) | 4.8 |
FILTER | |
App Filter - Cleaning Type | Manual |
App Filter - Control Type | Rotary knobs |
App Filter - Drawer Type | Broiler |
App Filter - Cooktop Type | Standard Grates |
App Filter - Voltage | 120V |
App Filter - Cooking Technology | Traditional |
App Filter - Cabinet Width | Cooking 30 in. (Standard) |
App Filter - Product Type | Ranges Free-Standing Single Oven |
App Filter - Convection | No |
App Filter - Fuel Type | Gas |
APPEARANCE | |
Control Knobs | Gloss White |
Handle | Designer Style |
Cooktop Burner Grate Color | Black Gloss |
Oven Door Features | Oven Window |
Color Appearance | White |
POWER / RATINGS | |
Top Burner BTU Rating - LP (000's BTU's) | (2) 9.5; (1) 12.0; (1) 5.0 |
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 Bake / 18.0 Broiler |
Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 12.5; (2) 9.5, (1) 5.0 |
Volts/Hertz/Amps | 120v; 60Hz; 15A |
Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 16.0 Broiler |
WARRANTY | |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
ACCESSORIES | |
LP Conversion Kit | Included |
WEIGHTS & DIMENSIONS | |
Net Weight | 145.0 |
Height to Cooking Surface (in.) | 36 - 36 1/2 |
Depth Without Handle | 26.25 |
Overall Depth | 28.75 |
Depth with Door Open | 46.25 |
Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
Overall Width | 30.0 |
Overall Height | 46.25 |
Approximate Shipping Weight | 165.0 |
Cabinet Width | 30.0 |
FEATURES | |
Burner - Right Front | 13,000 BTU |
Burner - Left Rear | 9,500 BTU |
Oven Cleaning Type | Standard Clean |
Cooktop Burner Type | Sealed |
Slide - Out Broiler Drawer | Drop Down Door |
Burner - Right Rear | 5,000 BTU Precise Simmer |
Valves (Degree of Turn) | 140 |
Oven Interior | 1 Incandescent Light |
Oven Rack Features | 2 Flat Nickel Racks 6 Rack Positions |
Fuel Type | Natural Gas (factory set) |
Cooking Technology | Traditional |
Cooktop Surface | Lift-Up Porcelain-Enamel |
Configuration | Range with Broiler Drawer |
One-Piece Drip Pans | Optional Accessory |
Burner - Left Front | 9,500 BTU |
Cooktop Burner Grate Material | Heavy Steel |
Ignition System | Electronic |
Product Type | Free-Standing Single Oven |
Drawer Type | Broiler |
Cooktop Type | Standard Grates |
Control Location | Front |
