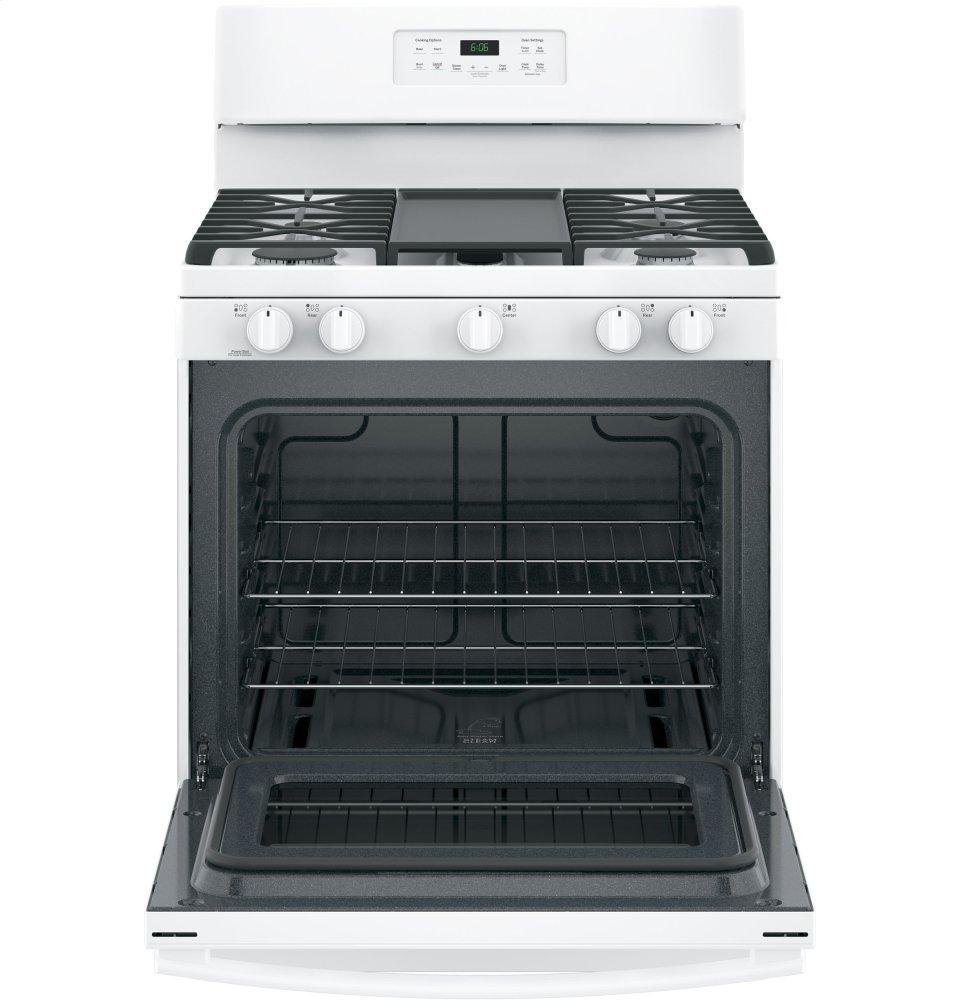

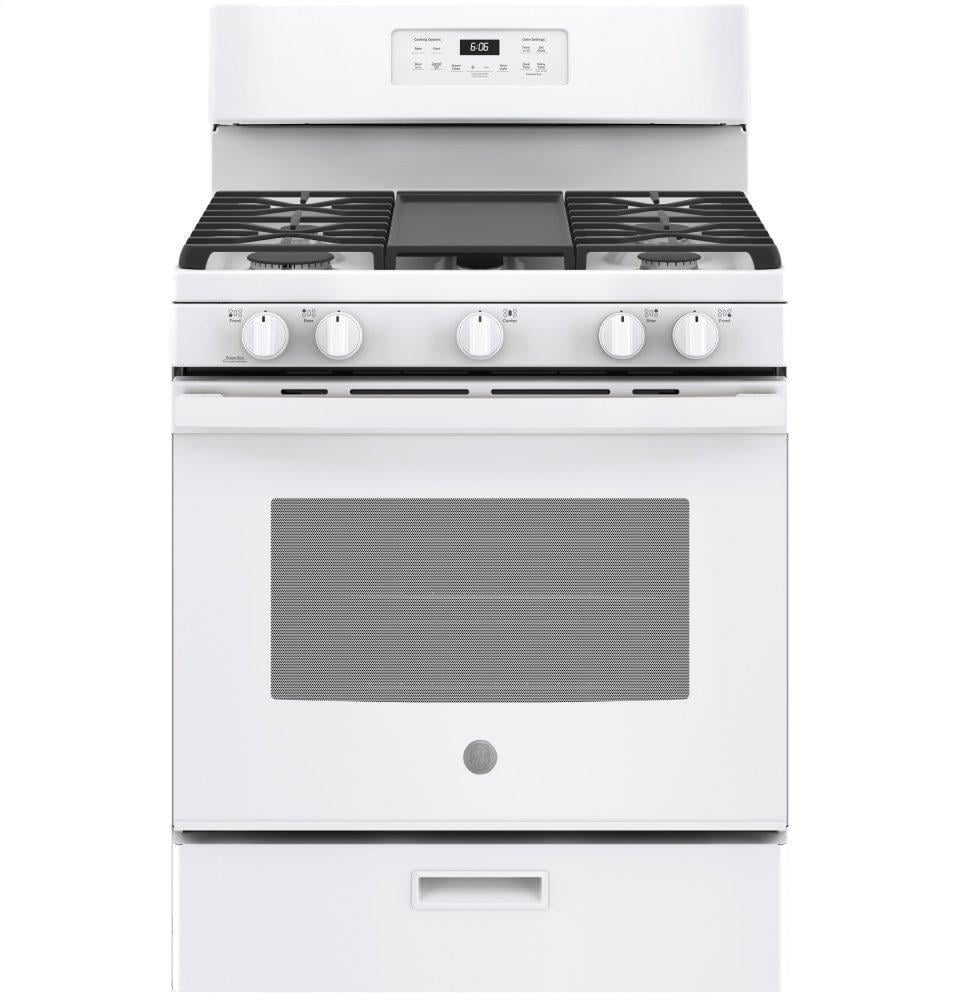

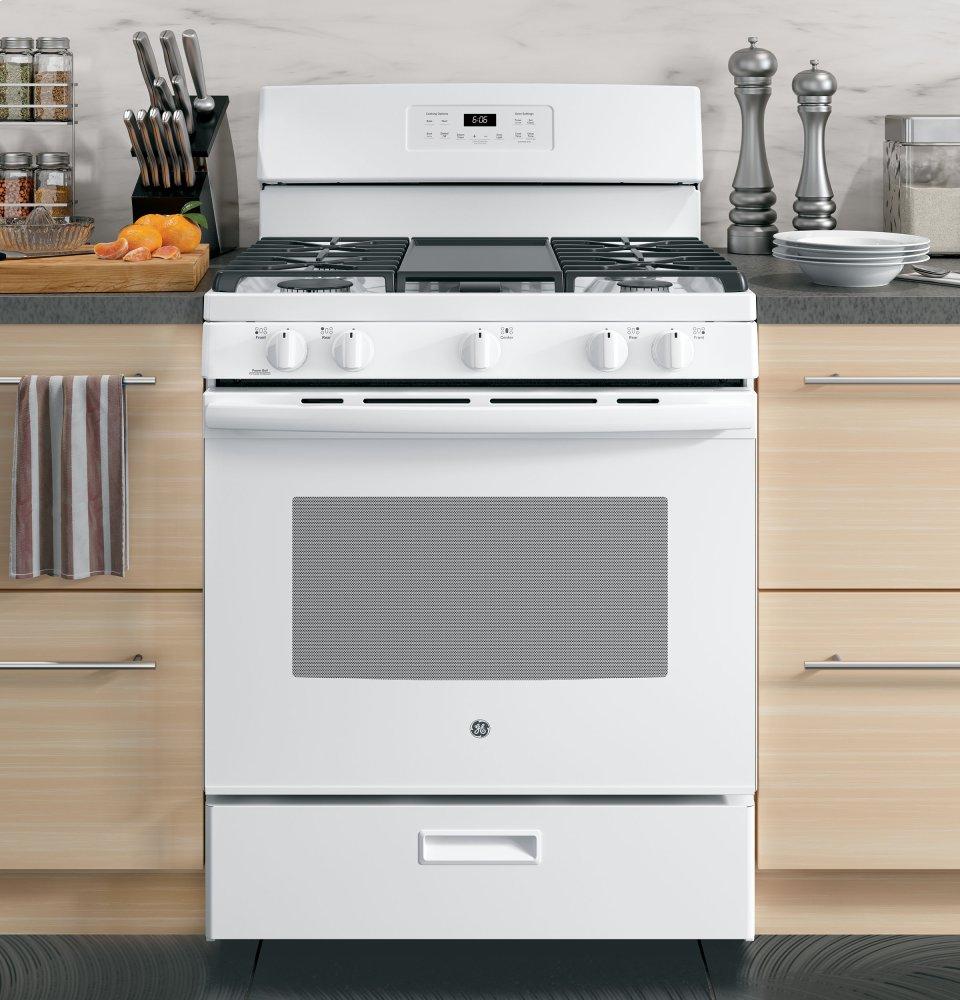

Ge Appliances JGBS66DEKWW Ge® 30" Free-Standing Gas Range
Rebates &
Promotions

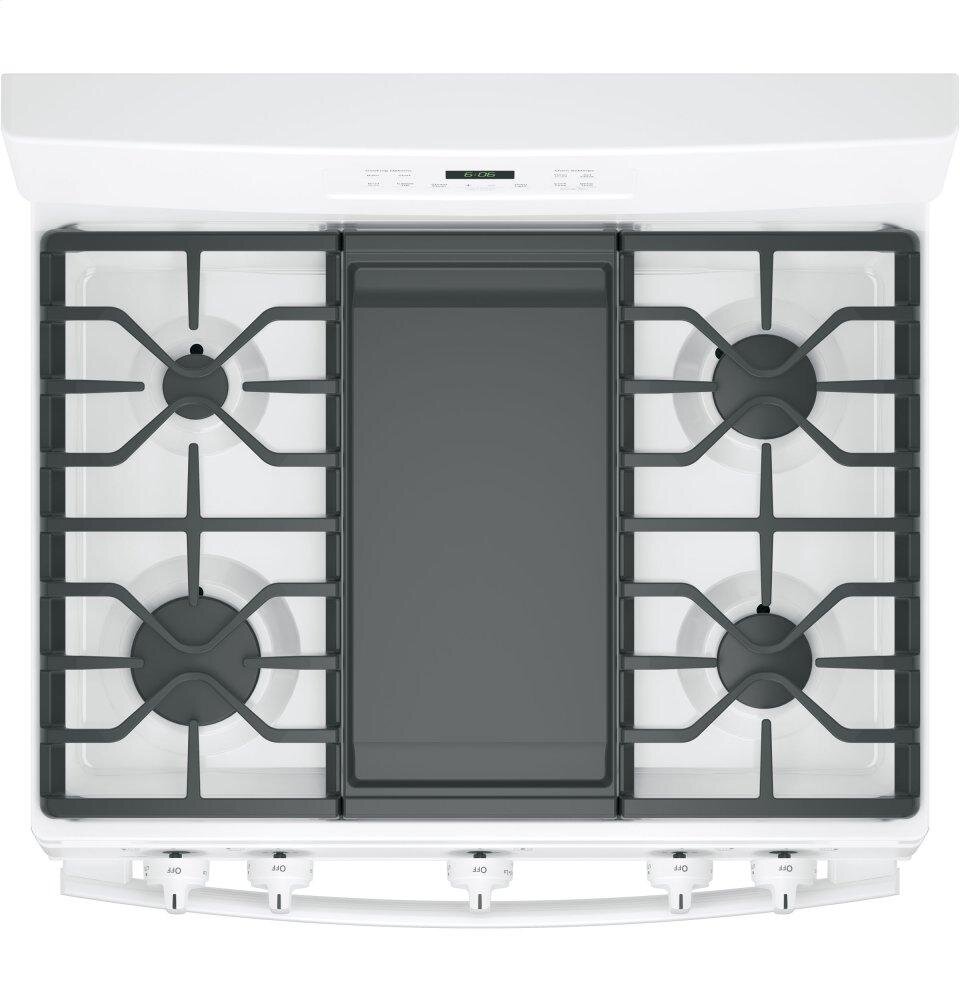

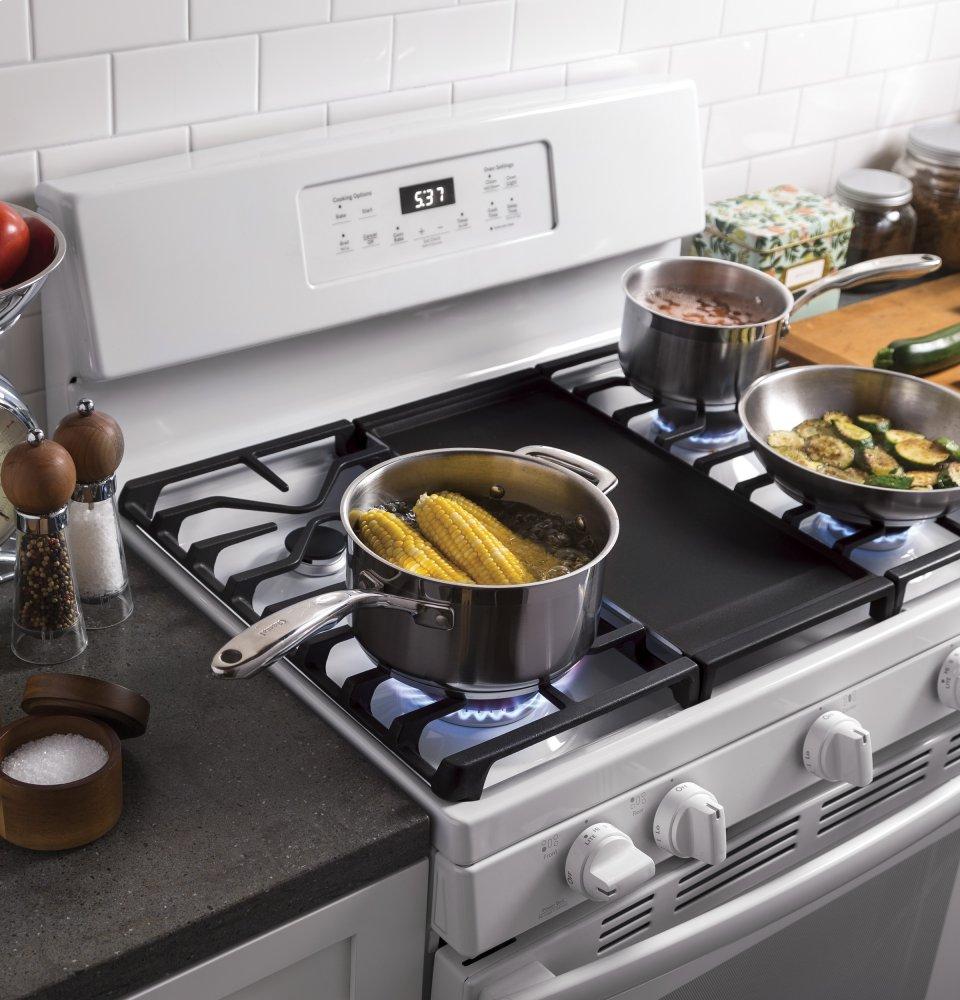

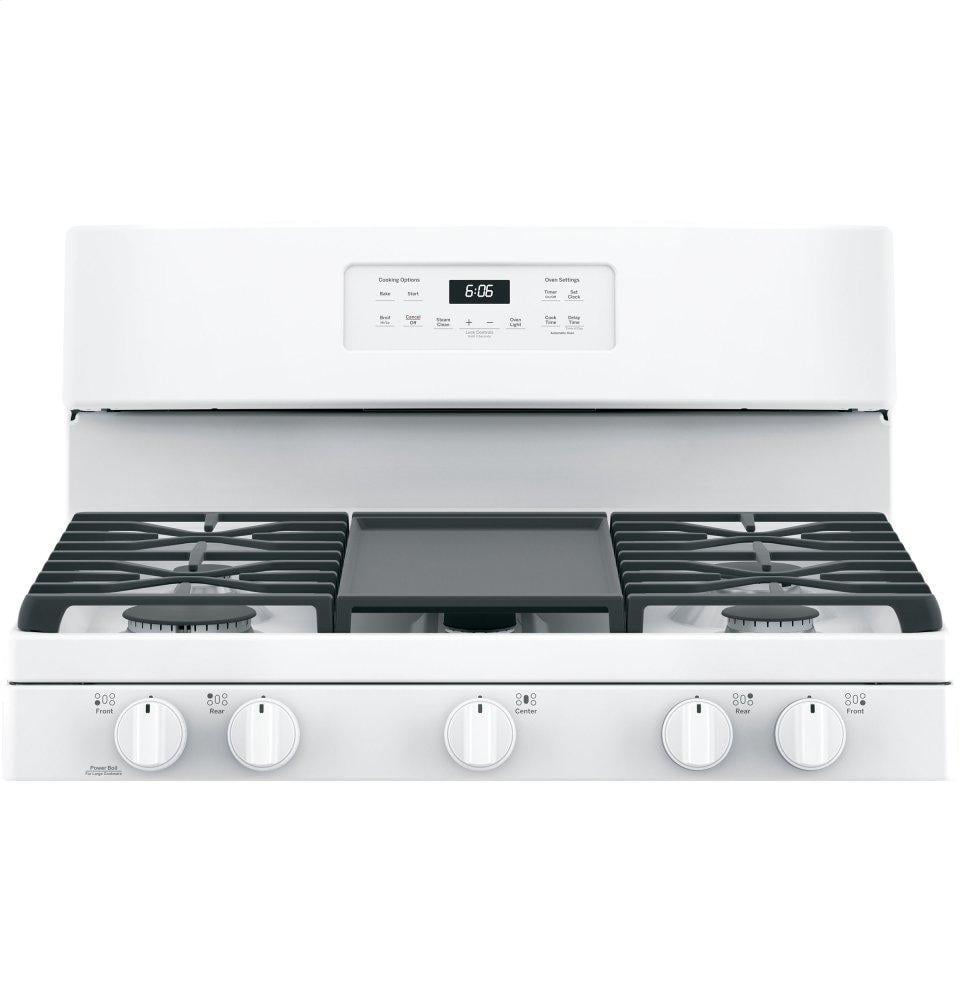

Edge-to-edge cooktop
A large cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner

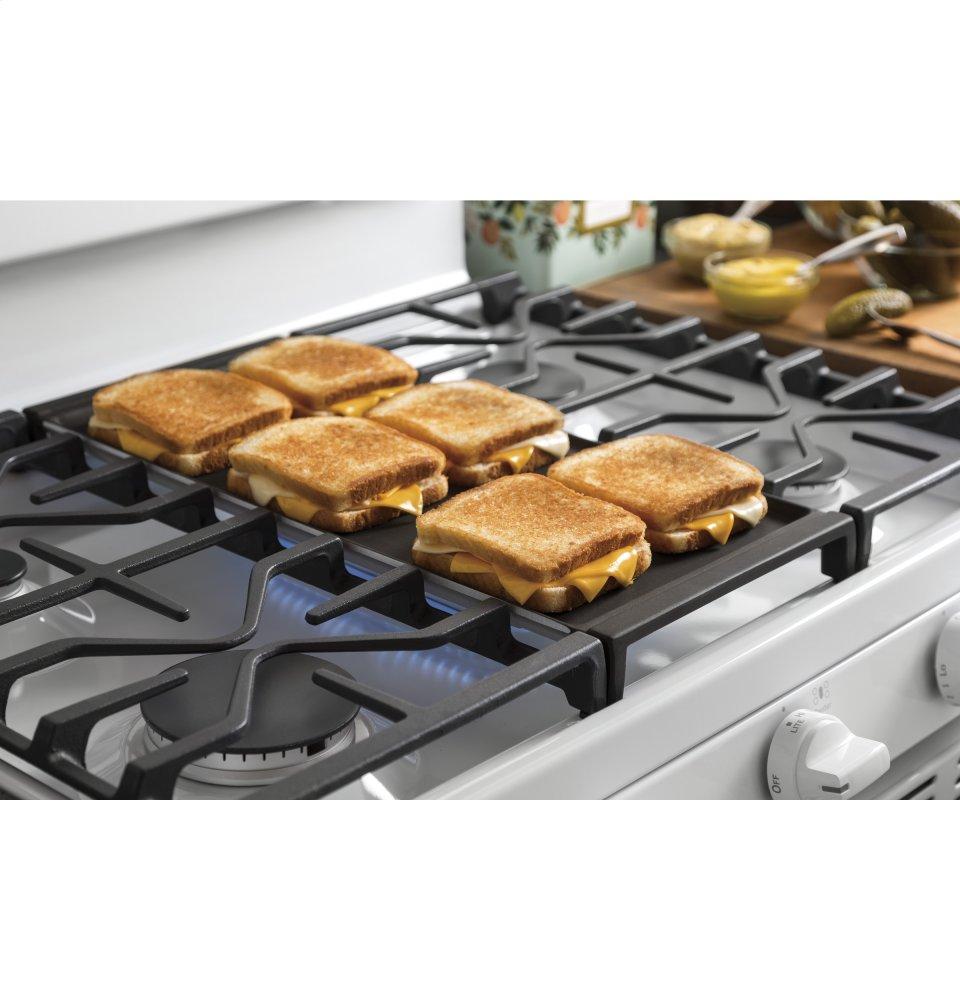

Extra-large integrated non-stick griddle

Cook up to six grilled cheeses at once on the industry's largest integrated griddle

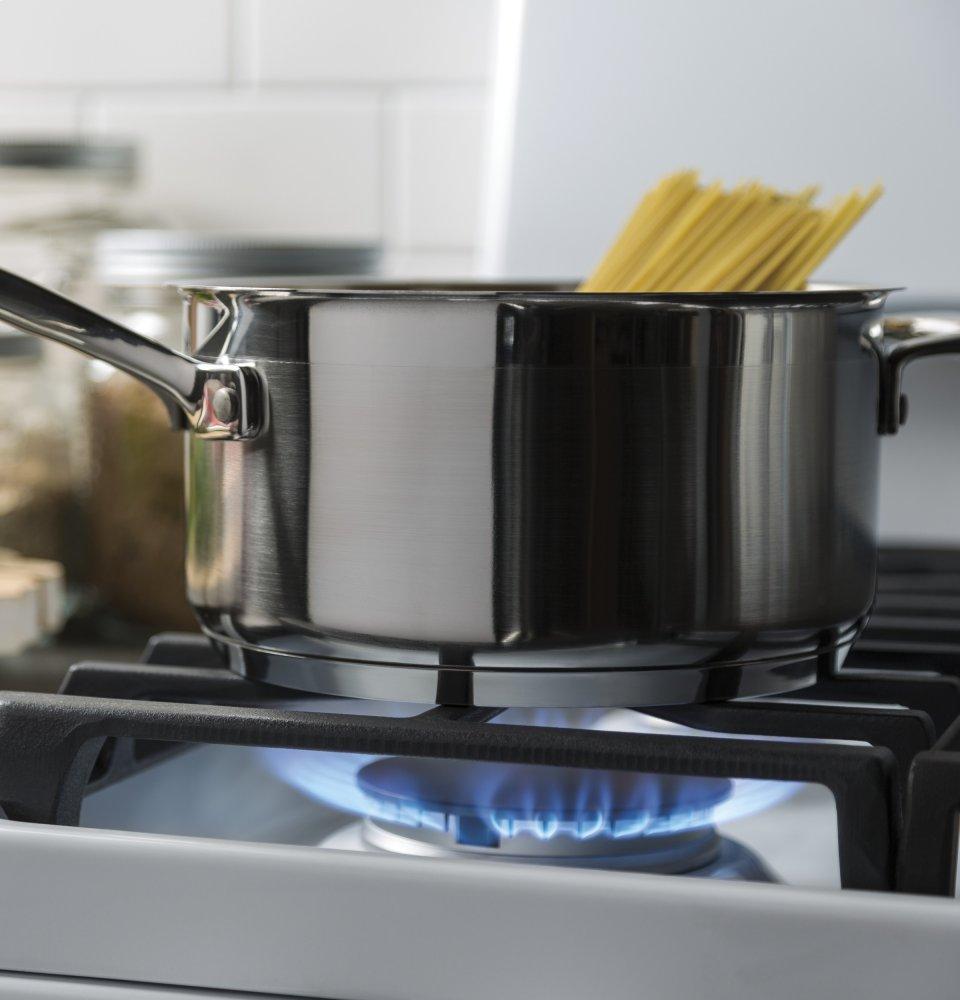

15,000 BTU Power Boil Burner

Delivers high heat for fast boiling

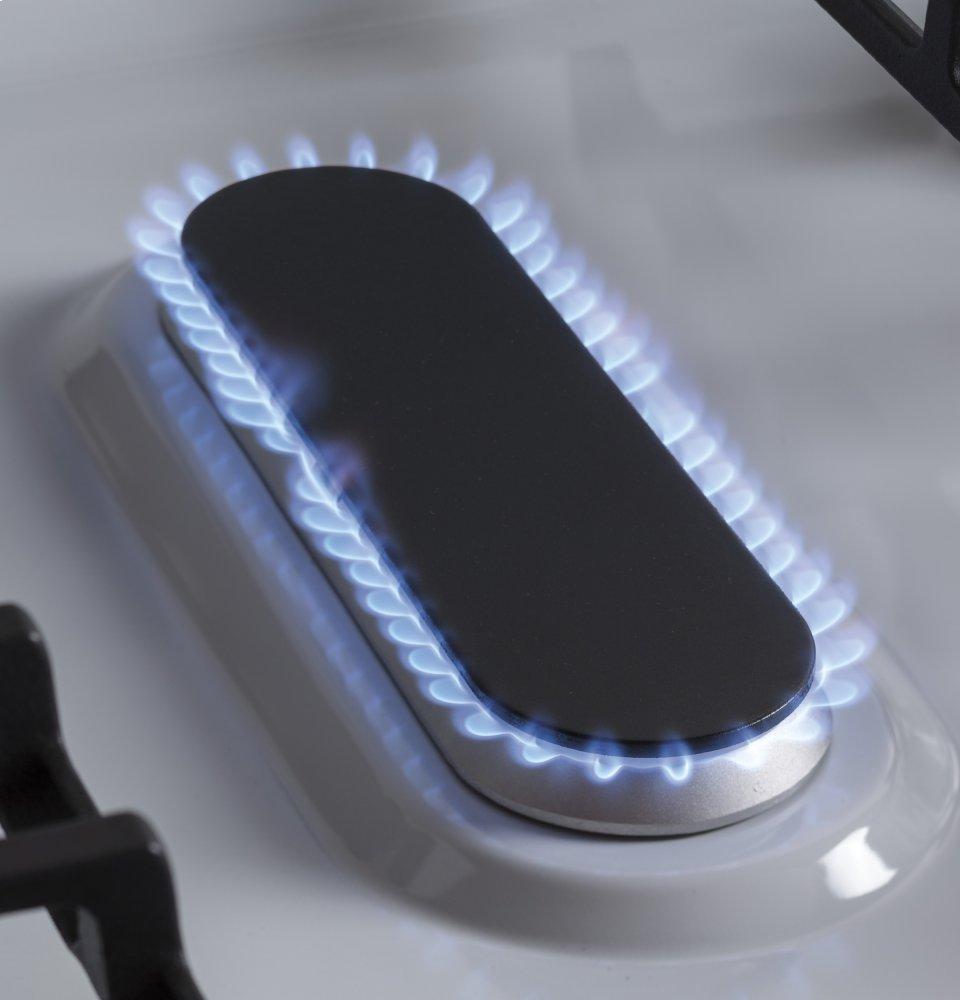

Center oval burner
Large oval fifth burner is ideal for griddle cooking

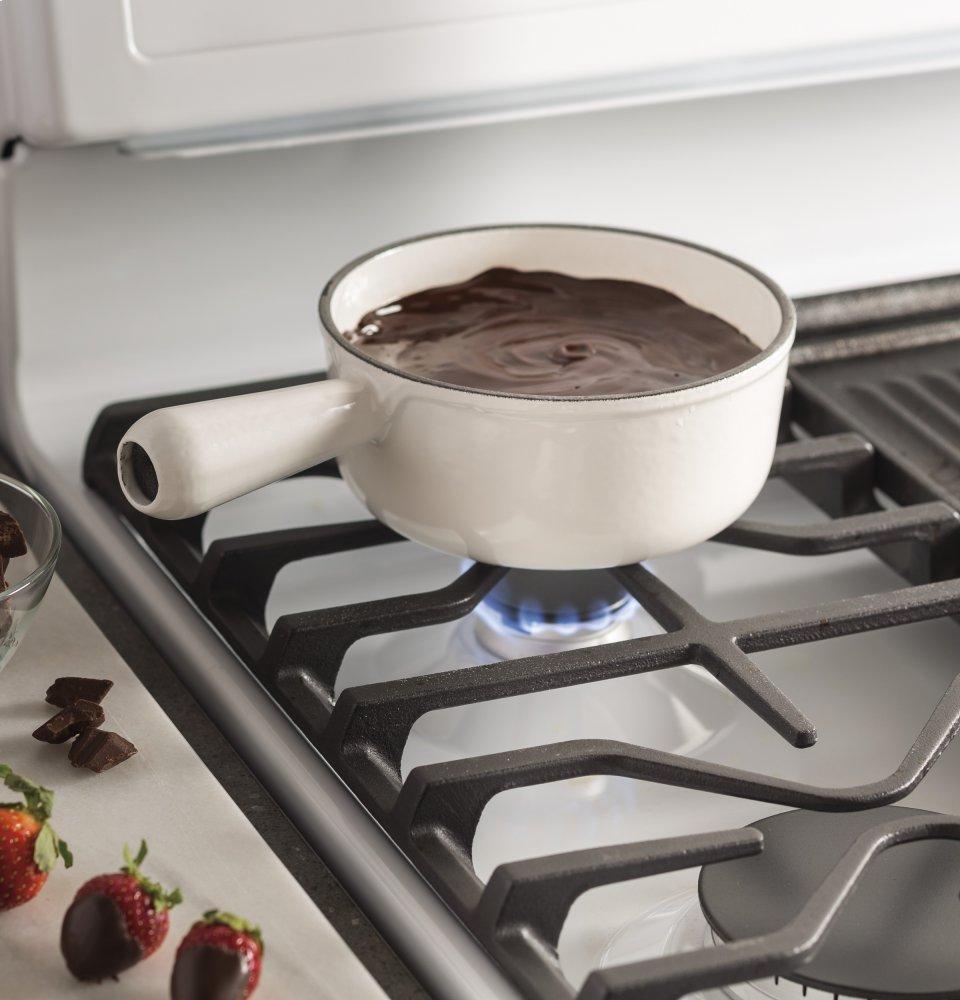

Precise Simmer burner
Delicate foods don't burn with low, even heat

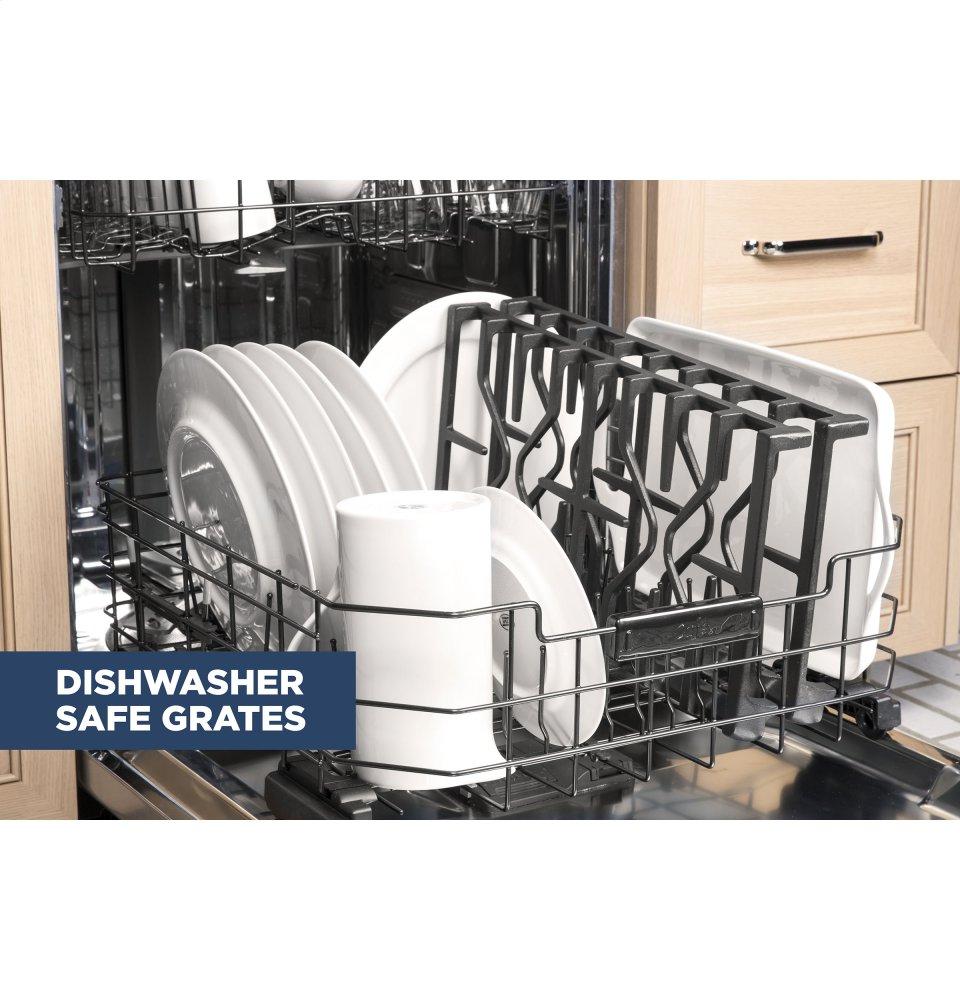

Heavy duty, dishwasher-safe grates
Easily and safely clean grates in the dishwasher

- Edge-to-edge cooktop
- Extra-large integrated non-stick griddle
- 15,000 BTU Power Boil Burner
- Center oval burner

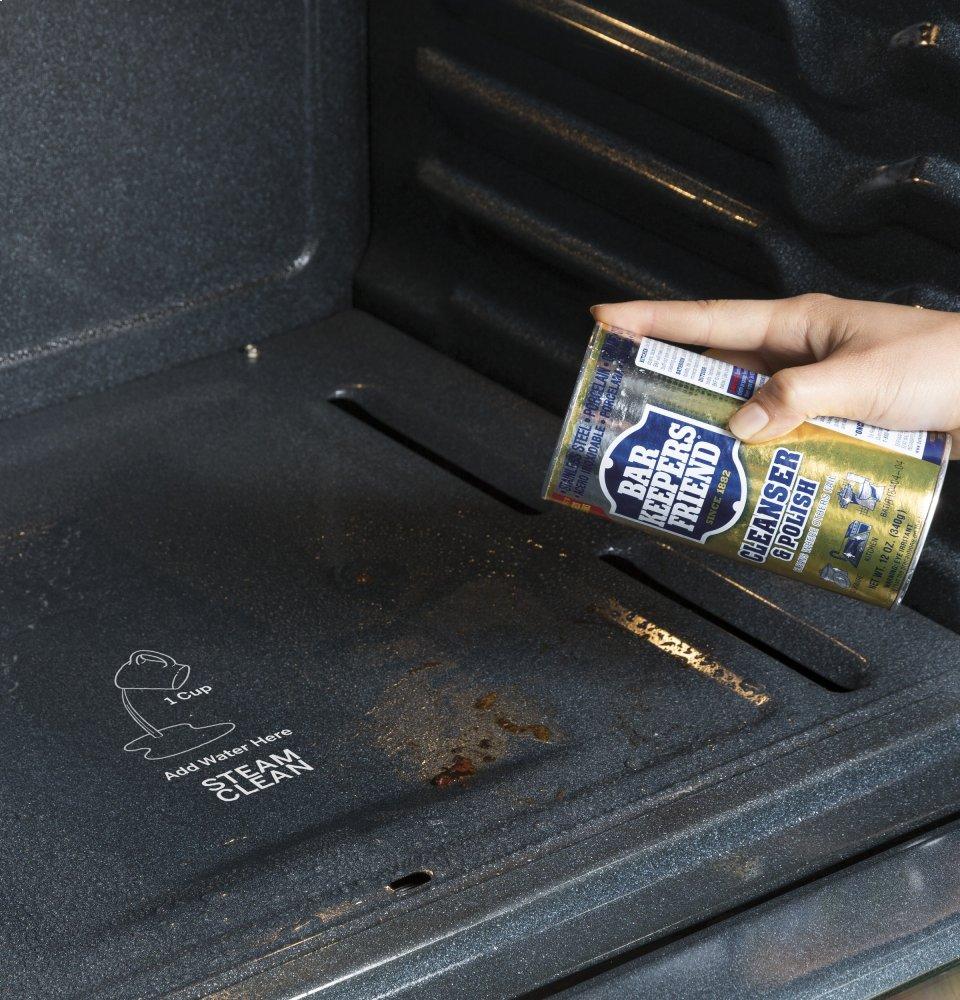

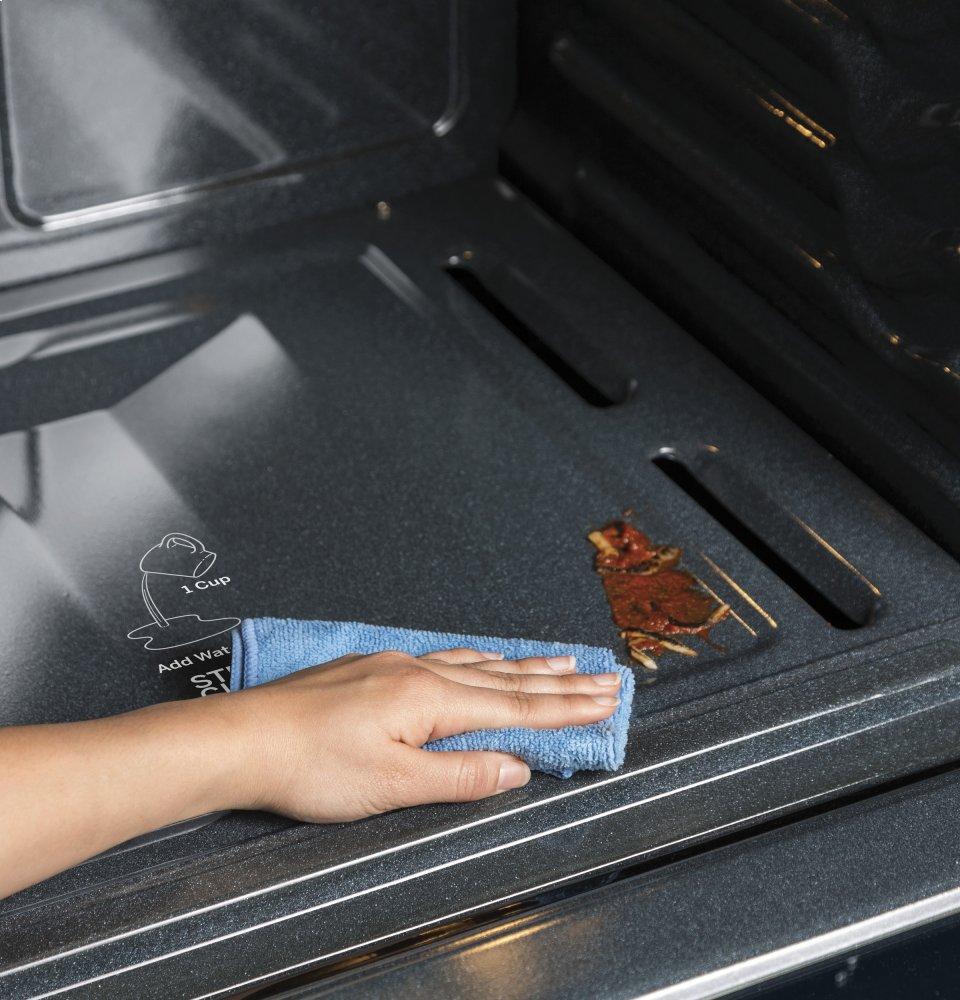

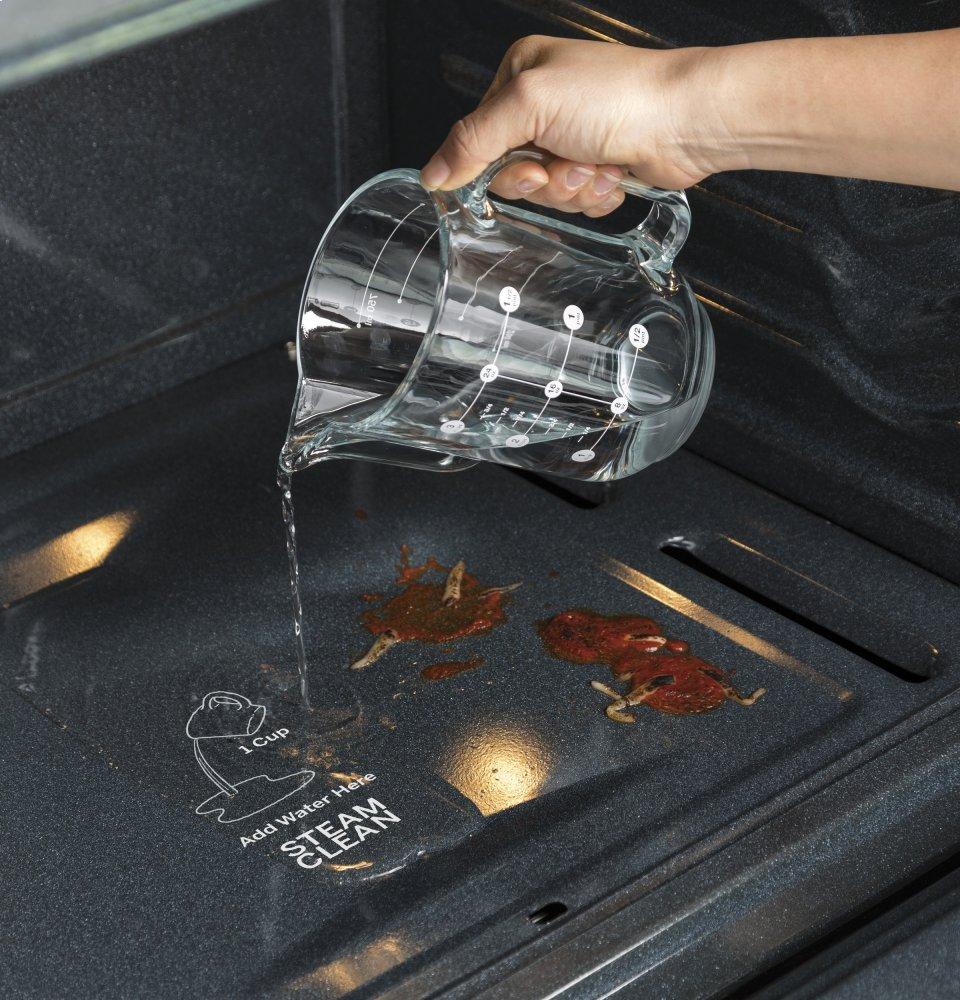

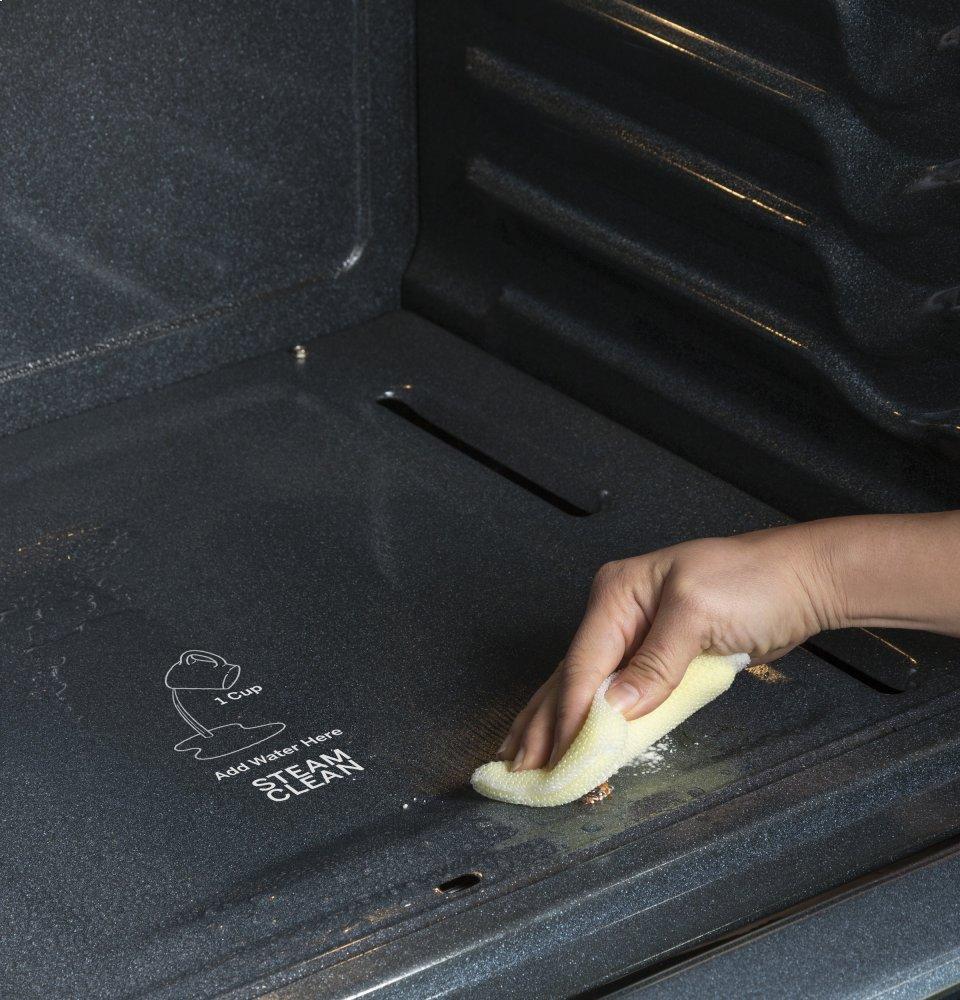

- Steam clean
- Precise Simmer burner
- Heavy duty, dishwasher-safe grates

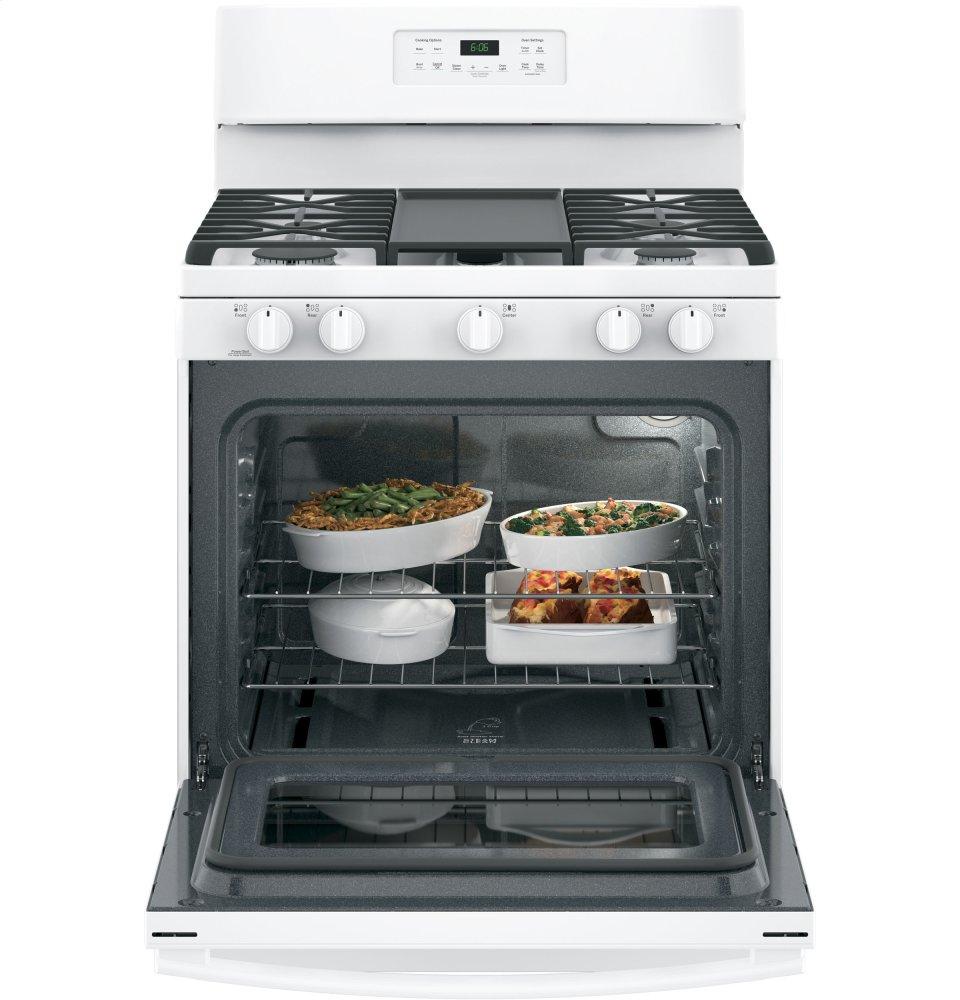

- 5.0 cu. ft. oven capacity
- Sealed cooktop burners
- Deep-recessed cooktop
- Flexible broiling
- Electronic clock and timer
CAPACITY | |
Total Capacity (cubic feet) | 5.0 |
FILTER | |
App Filter - Cleaning Type | Steam and Manual |
App Filter - Control Type | Electronic touchpad |
App Filter - Drawer Type | Broiler |
App Filter - Cooktop Type | Continuous Grates with Griddle |
App Filter - Voltage | 120V |
App Filter - Cooking Technology | Traditional |
App Filter - Cabinet Width | Cooking 30 in. (Standard) |
App Filter - Product Type | Ranges Free-Standing Single Oven |
App Filter - Convection | No |
App Filter - Fuel Type | Gas |
App Filter - Edge-to-Edge Cooktop | Yes |
APPEARANCE | |
Control Knobs | Gloss White |
Handle | Designer Style |
Cooktop Burner Grate Color | Matte Black |
Oven Door Features | Big View Oven Window |
Color Appearance | White |
POWER / RATINGS | |
Top Burner BTU Rating - LP (000's BTU's) | (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 8.0 |
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 Bake / 18.0 Broiler |
Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 10.0 |
Volts/Hertz/Amps | 120v; 60Hz; 15A |
Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 16.0 Broiler |
WARRANTY | |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
ACCESSORIES | |
LP Conversion Kit | Included |
Center Grate | Optional - JXGRATE1 |
WEIGHTS & DIMENSIONS | |
Net Weight | 150.0 |
Height to Cooking Surface (in.) | 36 - 36 1/2 |
Depth Without Handle | 26.25 |
Overall Depth | 28.75 |
Depth with Door Open | 46.25 |
Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
Overall Width | 30.0 |
Overall Height | 47.25 |
Approximate Shipping Weight | 172.0 |
Cabinet Width | 30.0 |
FEATURES | |
Burner - Right Front | 9,500 BTU |
Burner - Left Rear | 5,000 BTU Precise Simmer |
Oven Cleaning Type | Steam Clean |
Cooktop Burner Type | Sealed |
Burner - Right Rear | 12,000 BTU |
Cooktop Burner Grate Features | Continuous Grates |
Oven Rack Features | 2 Flat Nickel Racks 6 Rack Positions |
Fuel Type | Natural Gas (factory set) |
Burner - Center | 10,000 BTU Oval |
Cooking Technology | Traditional |
Cooktop Surface | Edge-to-Edge One-Piece Upswept Porcelain-Enamel White |
Configuration | Range with Broiler Drawer |
Burner - Left Front | 15,000 BTU |
Cooktop Burner Grate Material | Heavy Cast Iron |

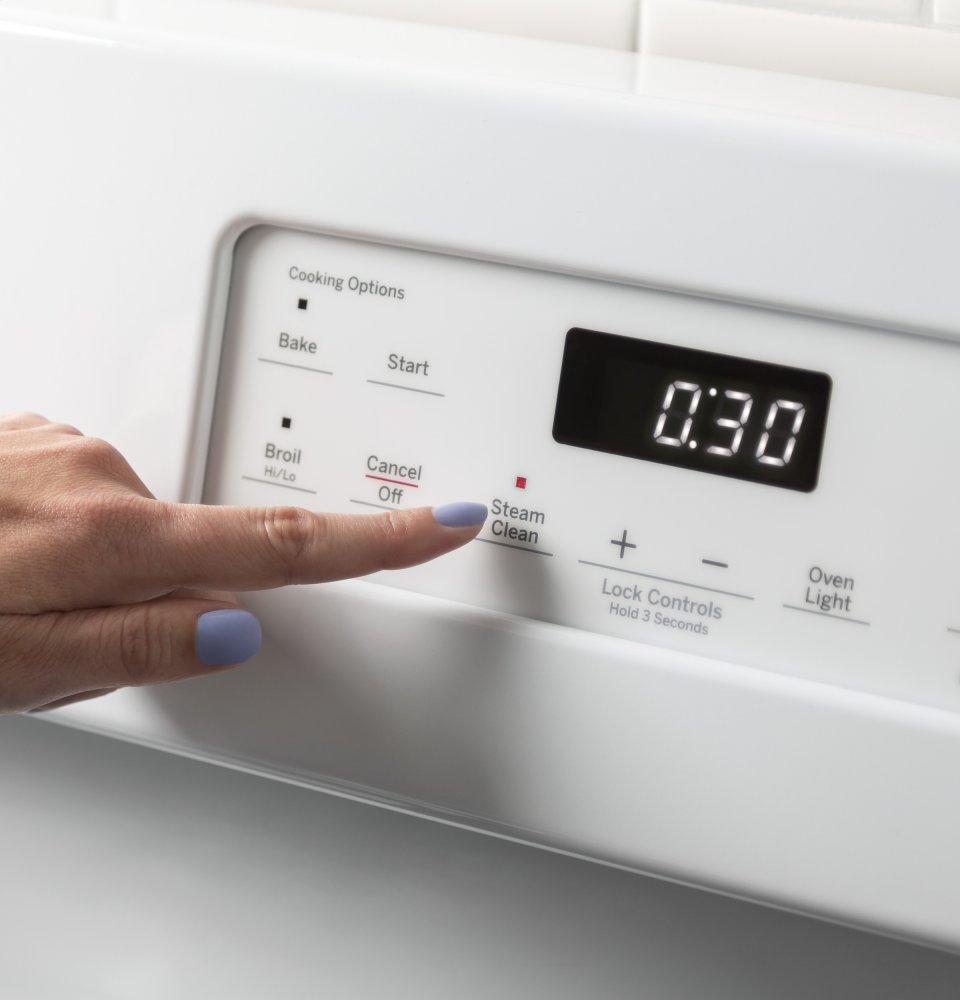

Control Type | Electronic Touch |
Ignition System | Electronic |
Griddle | Integrated Non-Stick |
Oven Control Features | Audible Preheat Signal Auto Oven Shut-Off Delay Bake Option Electronic Clock and Timer Hi / Low Broil Oven Control Lock Capability |
Product Type | Free-Standing Single Oven |
Drawer Type | Broiler |
Interior Oven Light | 1 Incandescent |
Cooktop Type | Continuous Grates with Griddle |
Control Location | Front |
