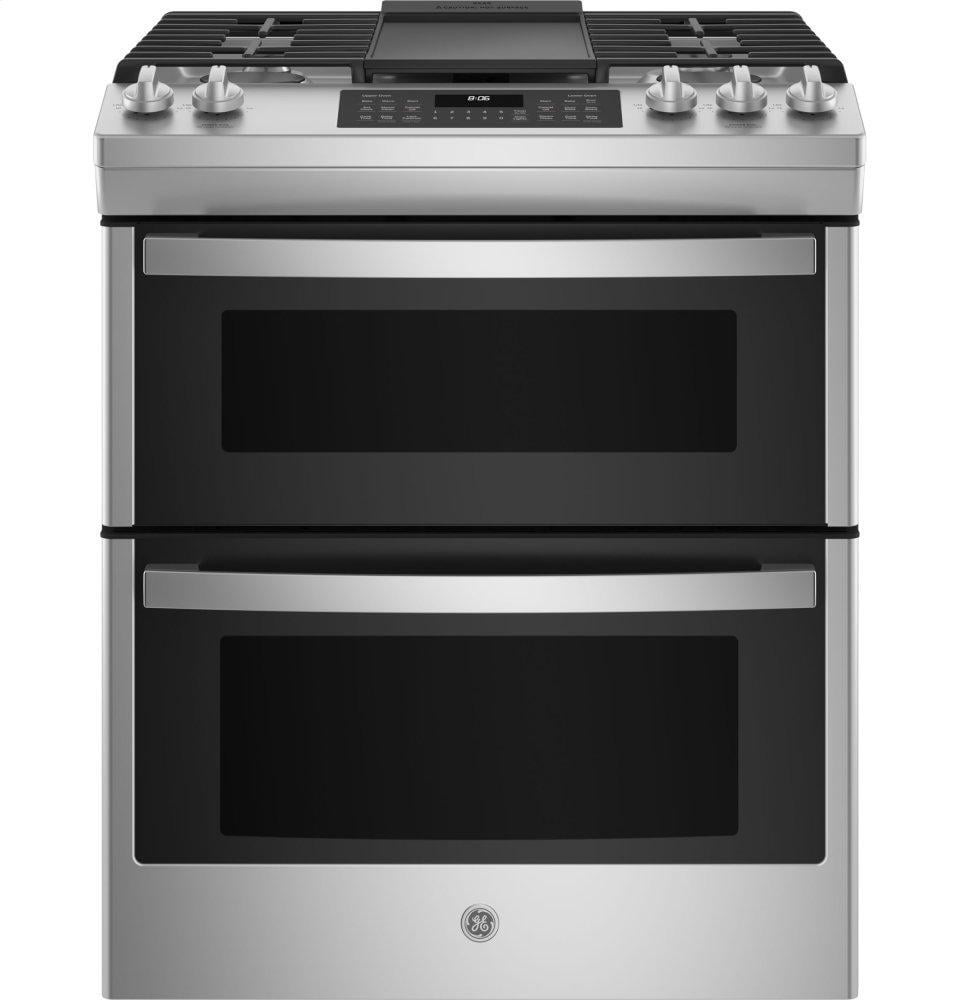

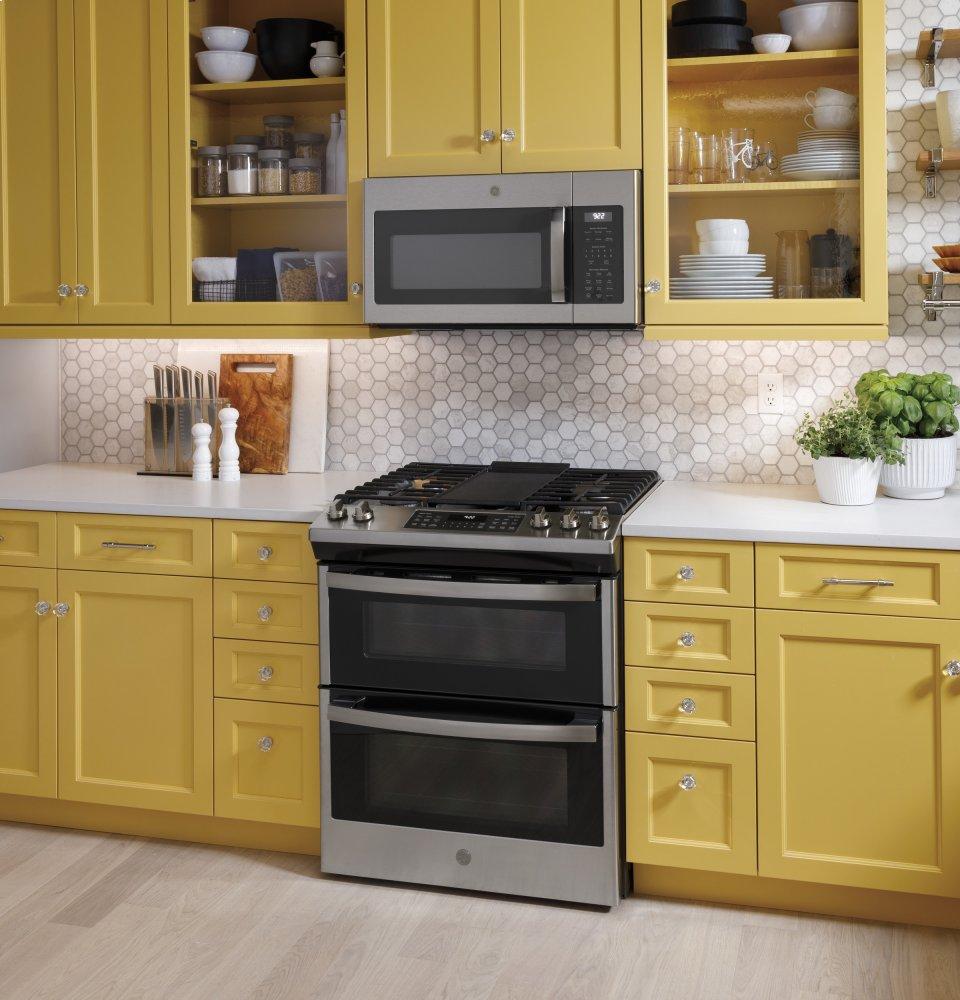

Ge Appliances JGSS86SPSS Ge® 30" Slide-In Front Control Gas Double Oven Range
Rebates &
Promotions
GE and GE Profile Fit Guarantee - Replace your Cooktop or Wall Oven with a qualifying GE Cooktop, Wall Oven, Advantium Oven, or Slide In Range and receive up to a $300 installation rebate. Download Valid: 07/01/2024-12/31/2024
Fit Guarantee
This gas range will fit your existing 30" cut-out, or GE Appliances will help pay for modifications up to $300

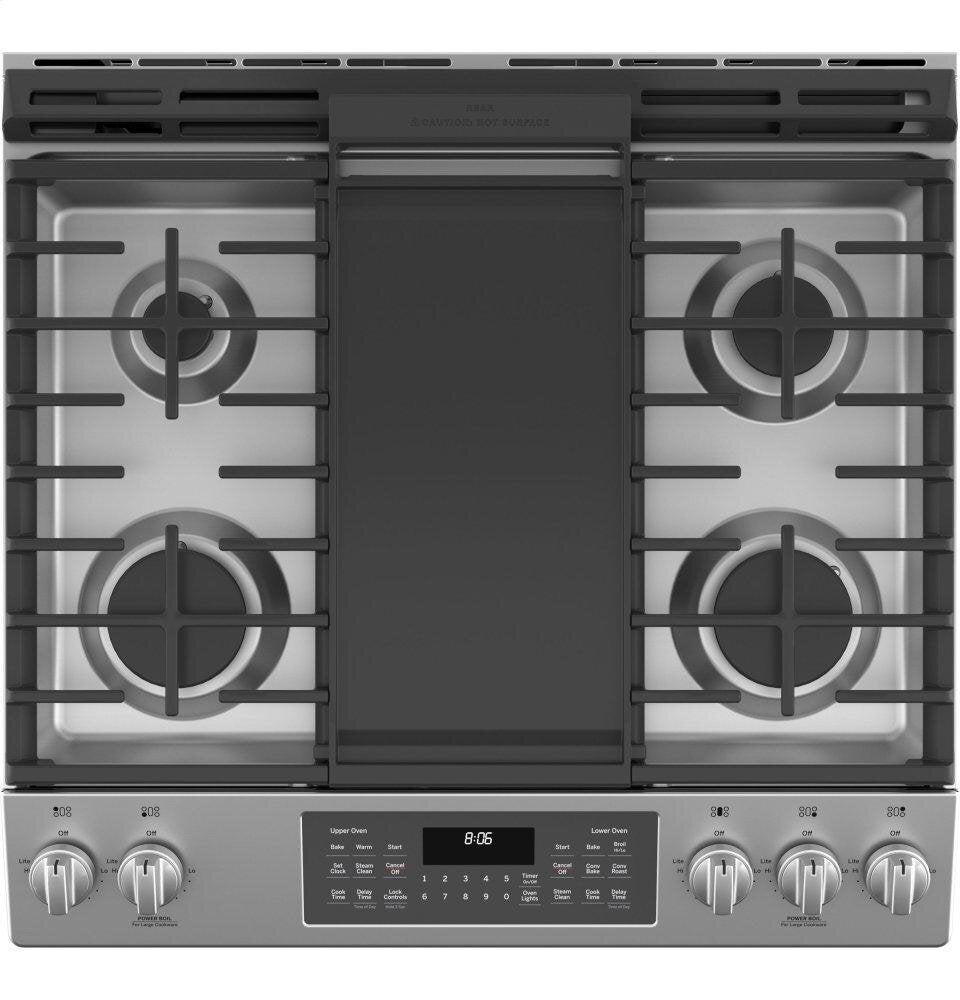

Edge-to-edge cooktop
Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware
Powerful burner options
Cook meals of all sizes thanks to one 18,000-BTU burner for larger cookware and one 15,000-BTU burner for medium-sized pots and pans

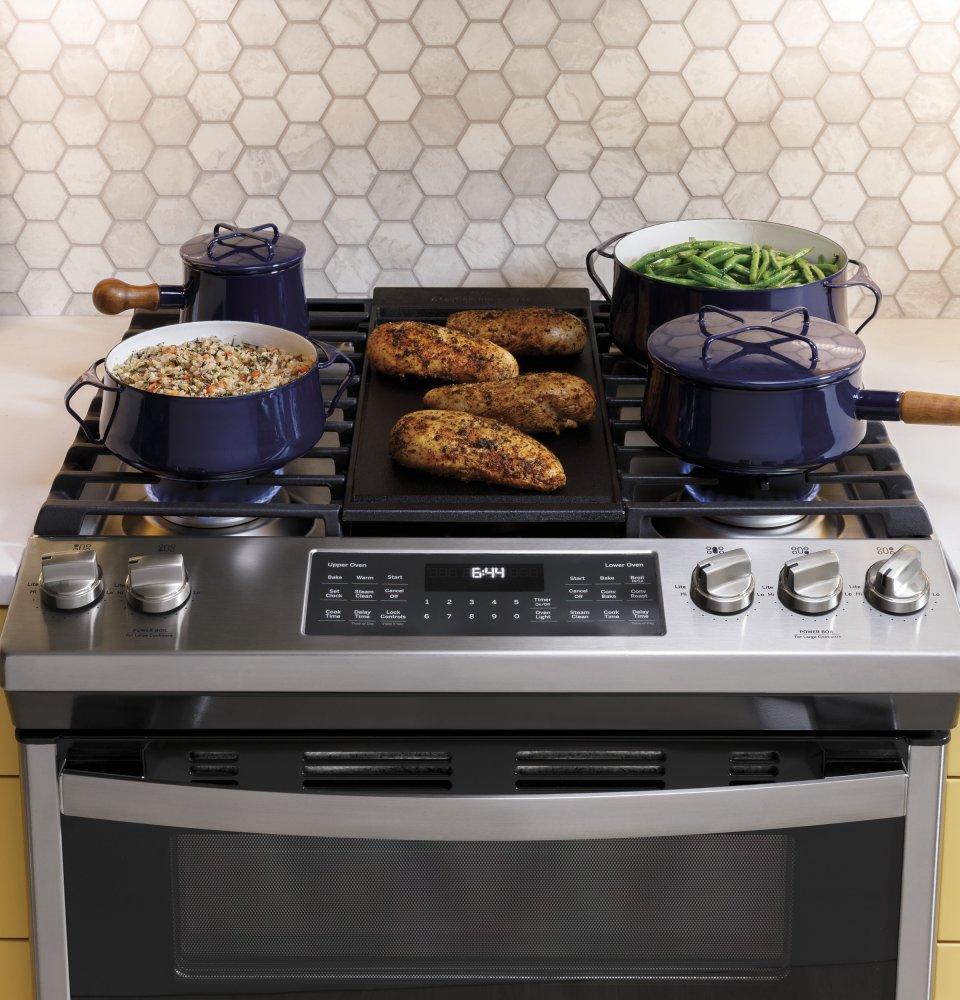

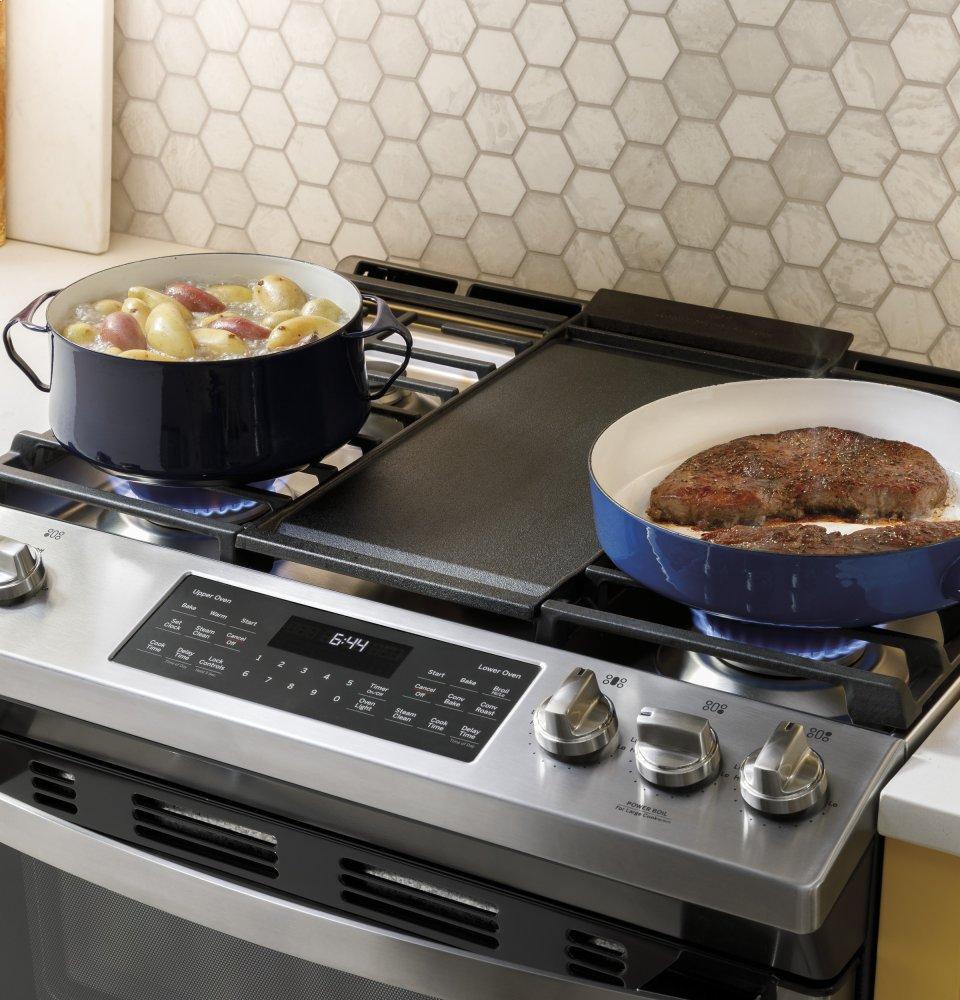

Integrated griddle
This integrated non-stick griddle leads the industry in size and quality, so you can cook a lot of food at once
Center oval burner
This center oval burner gives you a fifth burner and the perfect place to use griddles or odd-size cookware
Steam clean
A steam cleaning option cleans the oven cavity in a 30-minute cycle with less odor and heat
- Fit Guarantee
- Edge-to-edge cooktop
- Powerful burner options
- Integrated griddle
- Center oval burner
- Steam clean
- In-oven broil

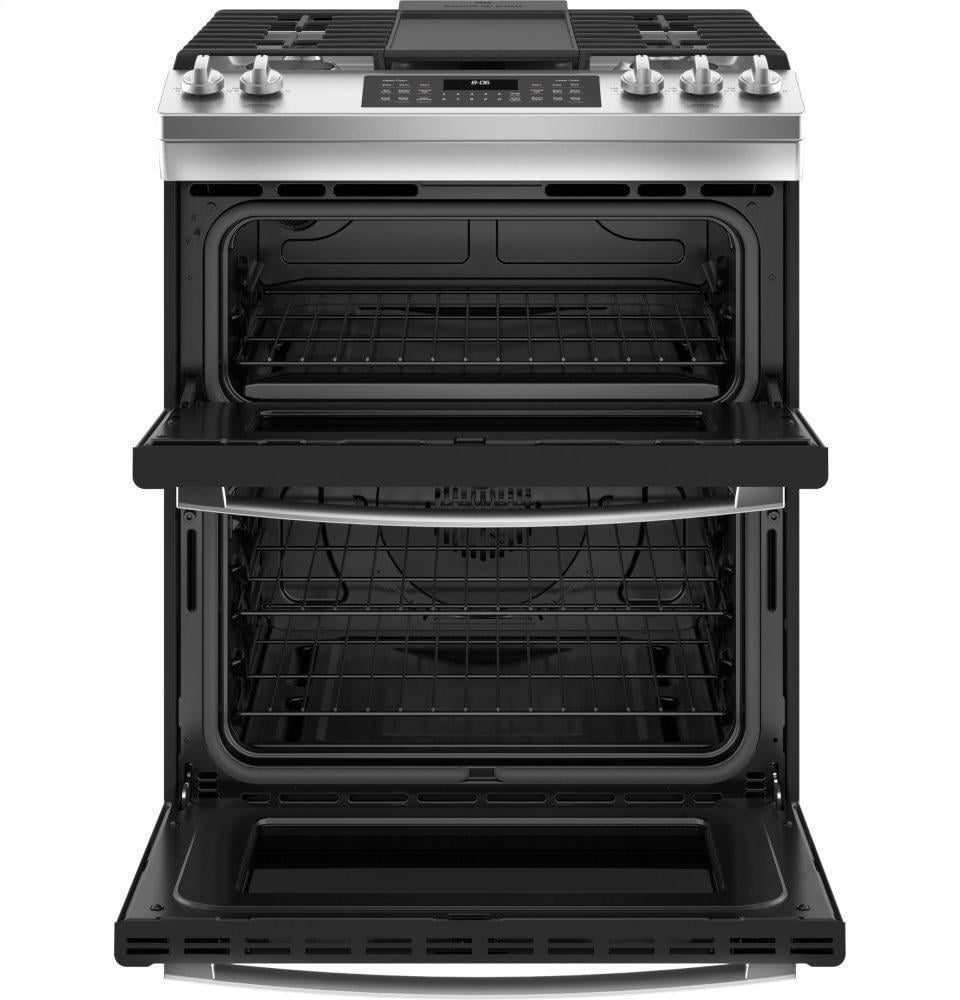

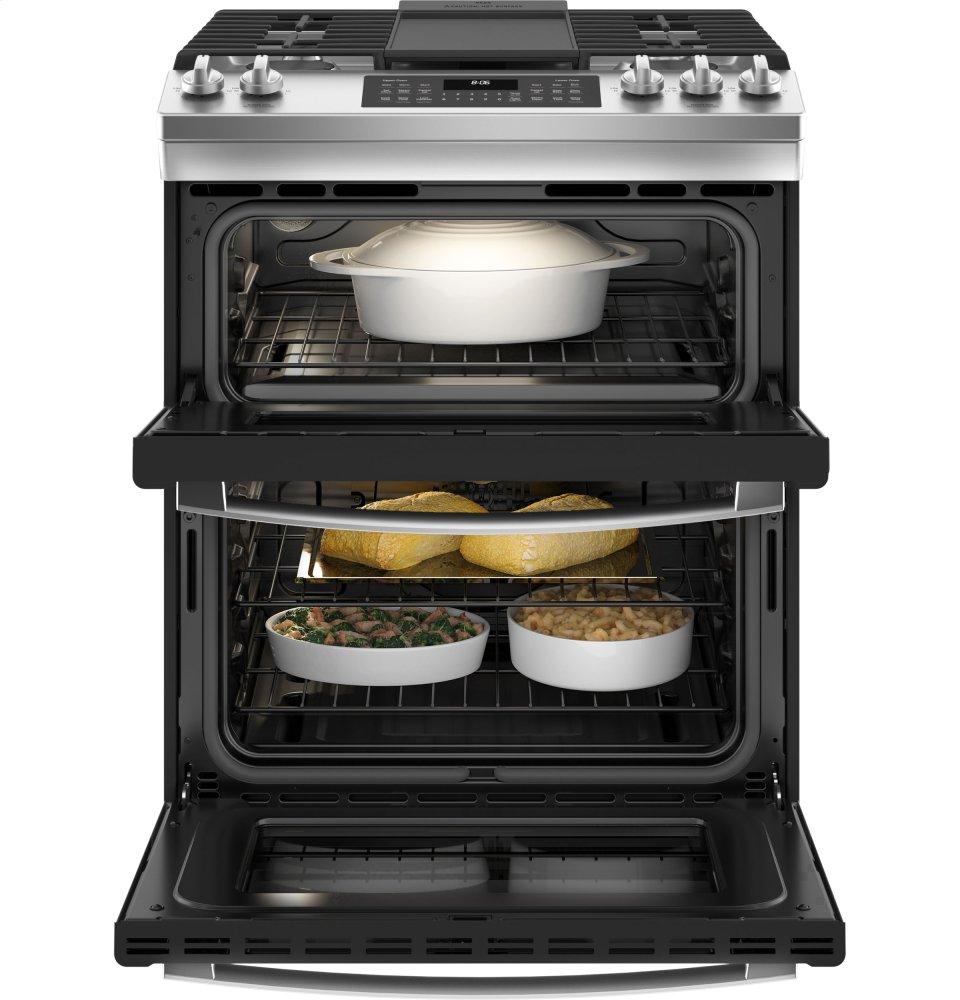

- Large capacity double oven
- True Convection
CAPACITY | |
Total Capacity (cubic feet) | 6.7 |
Capacity (Cu. Ft.) | 2.4 Upper / 4.3 Lower |
FILTER | |
App Filter - Cleaning Type | Steam and Manual |
App Filter - Control Type | Electronic touchpad |
App Filter - Cooktop Type | Continuous Grates |
App Filter - Voltage | 120V |
App Filter - Cooking Technology | Traditional |
App Filter - Cabinet Width | Cooking 30 in. (Standard) |
App Filter - Product Type | Ranges Slide-In Double Oven |
App Filter - Convection | No |
App Filter - Fuel Type | Gas |
App Filter - Edge-to-Edge Cooktop | Yes |
APPEARANCE | |
Control Knobs | Stainless Steel |
Handle | Designer Style Stainless Steel |
Installation | Flush Appearance Free-standing cut-out |
Cooktop Burner Grate Color | Matte Black |
Oven Door Features | Big View Oven Window |
Color Appearance | Stainless Steel |
POWER / RATINGS | |
Top Burner BTU Rating - LP (000's BTU's) | (1) 18.0; (1) 15.0; (1) 8.0; (1) 9.5; (1) 5.0 |
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 7.0 / 120V Bake Assist Element (Upper); 16.5 / 14.0 (Lower) |
Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 18.0; (1) 15.0; (1) 9.5; (1) 5.0; (1) 10.0 |
Volts/Hertz/Amps | 120v; 60Hz; 15A |
Bake/Broiler BTU Rating - LP (000's BTU's) | 7.0 / 120V Bake Assist Element (Upper); 13.5 / 13.5 (Lower) |
WARRANTY | |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
ACCESSORIES | |
Trim Kit | JXFILLR1DD Optional |
Optional Accessories | WB48X21543 Roller Rack |
Griddle Accessory | WB31X28254 (Included) |
LP Conversion Kit | Included |
Center Grate | Optional - JXGRATE1 |
WEIGHTS & DIMENSIONS | |
Net Weight | 271.0 |
Height to Cooking Surface (in.) | 36 1/4 +/- 1/4 |
Depth Without Handle | 26.75 |
Overall Depth | 29.25 |
Depth with Door Open | 47.0 |
Oven Interior Dimensions (W x H x D) (in.) | 24 x 9-1/2 x 19-1/8 - Upper; 24 x 15 x 20-5/8 - Lower |
Overall Width | 30.0 |
Overall Height | 36.25 |
Approximate Shipping Weight | 291.0 |
Cabinet Width | 30.0 |
Height to Top of Rear Vent Trim | 37.375 |
FEATURES | |
Burner - Right Front | 15,000 BTU |
Burner - Left Rear | 5,000 BTU Precise Simmer |
Oven Cleaning Type | Steam Clean |
Cooktop Burner Type | Sealed |
Burner - Right Rear | 9,500 BTU |
Cooktop Burner Grate Features | Continuous Grates Dishwasher Safe |
Oven Interior | 1 Auto Incandescent Light Gray |
Oven Rack Features | 2 Oven Racks |
Fuel Type | Natural Gas (factory set) |
Burner - Center | 10,000 BTU Oval |
Cooking Technology | Traditional Upper; Convection Lower |
Cooktop Surface | Deep Recessed Edge-to-Edge Stainless Steel |
Configuration | Double Oven Range |
Burner - Left Front | 18,000 BTU Power Boil |
Cooktop Burner Grate Material | Heavy Cast Iron |

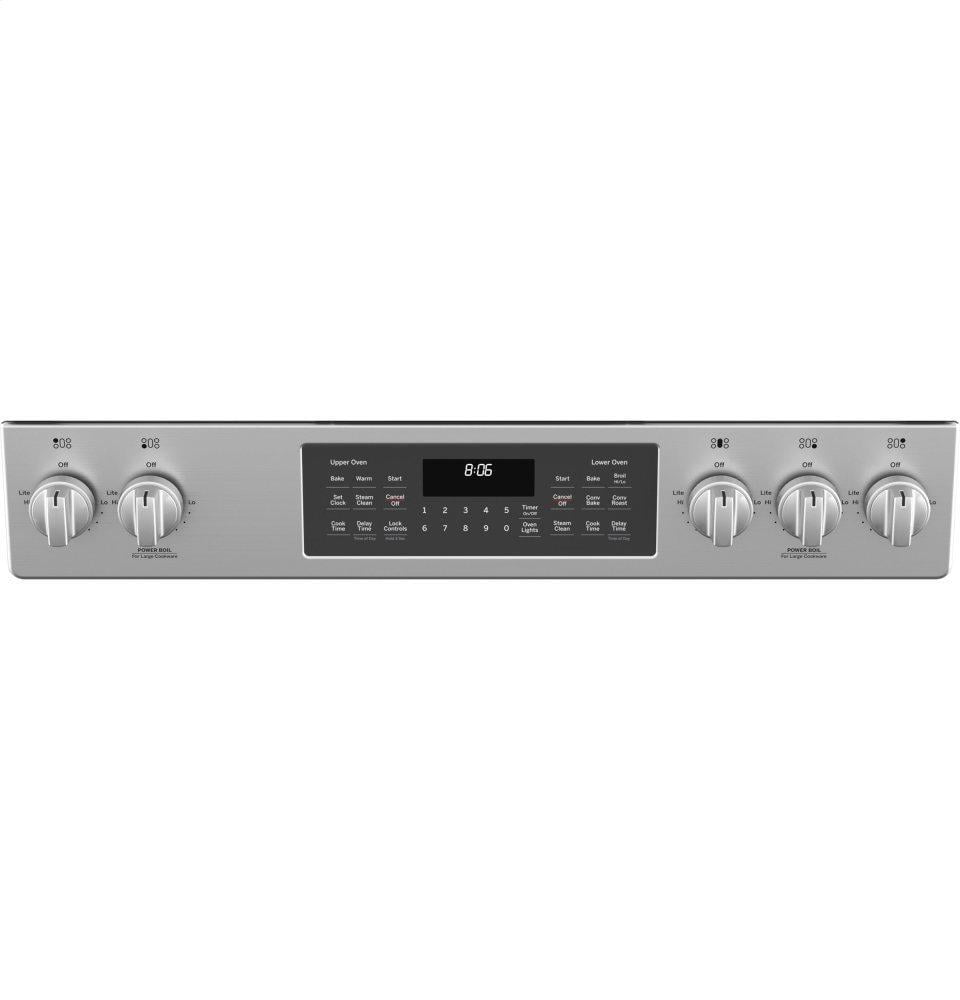

Control Type | Electronic Touch |
Ignition System | Electronic |
Oven Control Features | Audible Preheat Signal Certified Sabbath Mode Control Lock Capability Electronic Clock & Kitchen Timer Steam Clean |
Product Type | Slide-In Double Oven |
Cooktop Type | Continuous Grates |
Control Location | Front |
Grill | JXCGRILL1 Optional |
