Ge Appliances JP3030SWSS Ge® 30" Built-In Knob Control Electric Cooktop
Four radiant cooking elements

Cook foods quickly and evenly on this sleek, glass surface
Power Boil Elements
Get rapid heat from these 2 powerful 8" 2,500-watt elements

Keep Warm Setting
A fully functional 6" element has the power to boil water and can keep food warm thanks to GE's lowest heat setting

Melt Setting

Gently melt delicate foods without scorching thanks to a convenient melt setting
Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details

Four Radiant Cooking Elements Cook Foods Quickly And Evenly On This Sleek, Glass Surface Power Boil Elements Get Rapid Heat From These 2 Powerful 8" 2,500-Watt Elements Keep Warm Setting A Fully Functional 6" Element Has The Power To Boil Water And Can Keep Food Warm Thanks To Ge'S Lowest Heat Setting Melt Setting Gently Melt Delicate Foods Without Scorching Thanks To A Convenient Melt Setting Hot Surface Indicator Lights Know When Elements Are Too Hot To Touch With A Quick Glance Cooktop "On" Indicator Light A Light Lets You Know When An Element Is Active Stainless Steel Trim Complement Other Stainless Steel Appliances In The Kitchen With This Touch Of Elegance Fit Guarantee Replacing A Similar Cooktop From Ge Appliances Or Another Brand? Ge Cooktops Are Guaranteed For An Exact Fit Or Ge Appliances Will Pay Up To $100 Toward Modifications. See Offer Criteria And Details
- Four radiant cooking elements
- Power Boil Elements
- Keep Warm Setting
- Melt Setting
- Hot surface indicator lights
- Cooktop "On" indicator light
- Stainless steel trim
- Fit Guarantee
| APPEARANCE | |
| Frame Color / Material | Stainless Steel |
| Color Appearance | Stainless Steel on Black |
| Control Knobs | Stainless Steel Appearance |
| POWER / RATINGS | |
| Recommended Circuit Breaker (Amps) at 240V | 40 |
| Max. Connected Load (kW) at 240V | 7.4 |
| Max. Current Draw (Amps) at 240V | 30.8 |
| Max. Connected Load (kW) at 208V | 5.6 |
| Recommended Circuit Breaker (Amps) at 208V | 30 |
| Max. Current Draw (Amps) at 208V | 26.7 |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |

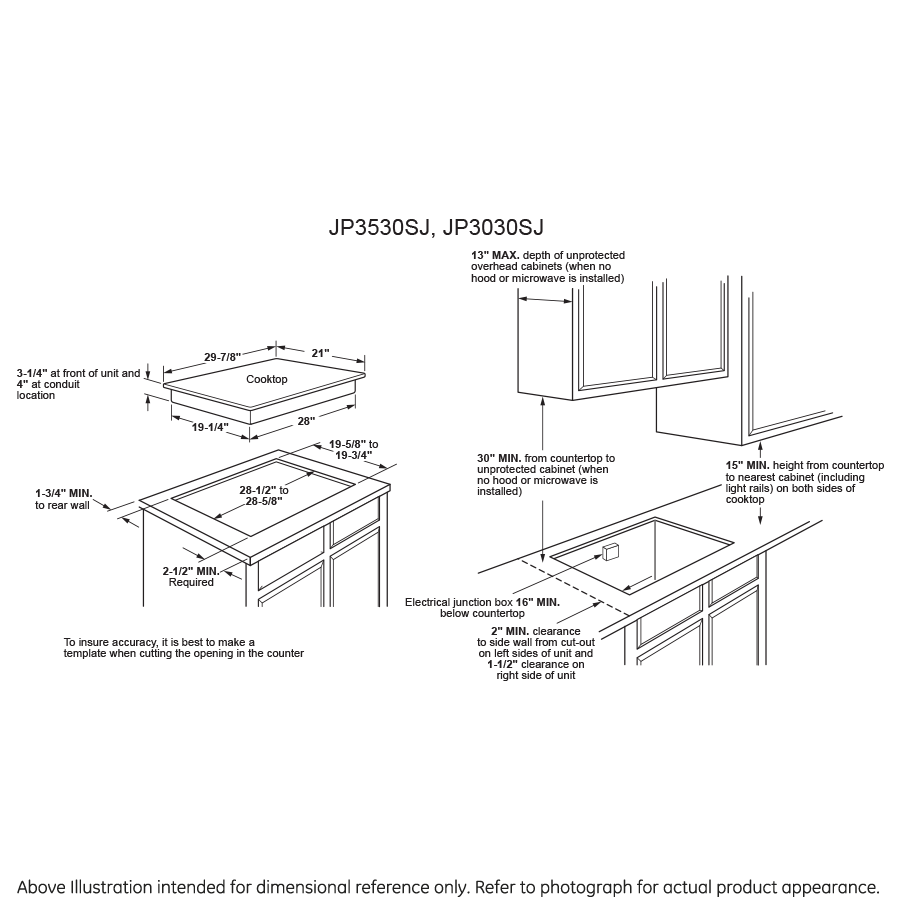

| WEIGHTS & DIMENSIONS | |
| Cooktop Size | 30 in |
| Overall Height | 4 in |
| Cutout Depth (in) | 19-5/8 |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 43 lb |
| Overall Width | 29.875 in |
| Net Weight | 37 lb |
| Cutout Width (in) | 28-1/2 |
| Overall Depth | 21 in |
| FEATURES | |
| Dishwasher Safe Knobs | Yes |
| Filler trim kit | JXTR32B |
| Cooktop Burner Type | 4 Ribbon Smoothtop |
| Melt Setting | Yes |
| Fuel Type | Electric |
| Element - Left Front | 6' 1200W |
| Indicator Lights | 4 Hot Surface Red Surface Element 'ON' |
| Element - Right Front | 8' 2500W Power Boil |
| Control Location | Right Side |
| Cooktop Type | Radiant Smoothtop |
| Cooktop Surface | Black Ceramic Glass with Stainless Steel Trim |
| Cooktop Control Features | Keep-Warm Setting Melt Setting |
| Element - Left Rear | 8' 2500W Power Boil |
| Control Type | Knob (Infinite switch) |
| Element - Right Rear | 6' 1200W |
