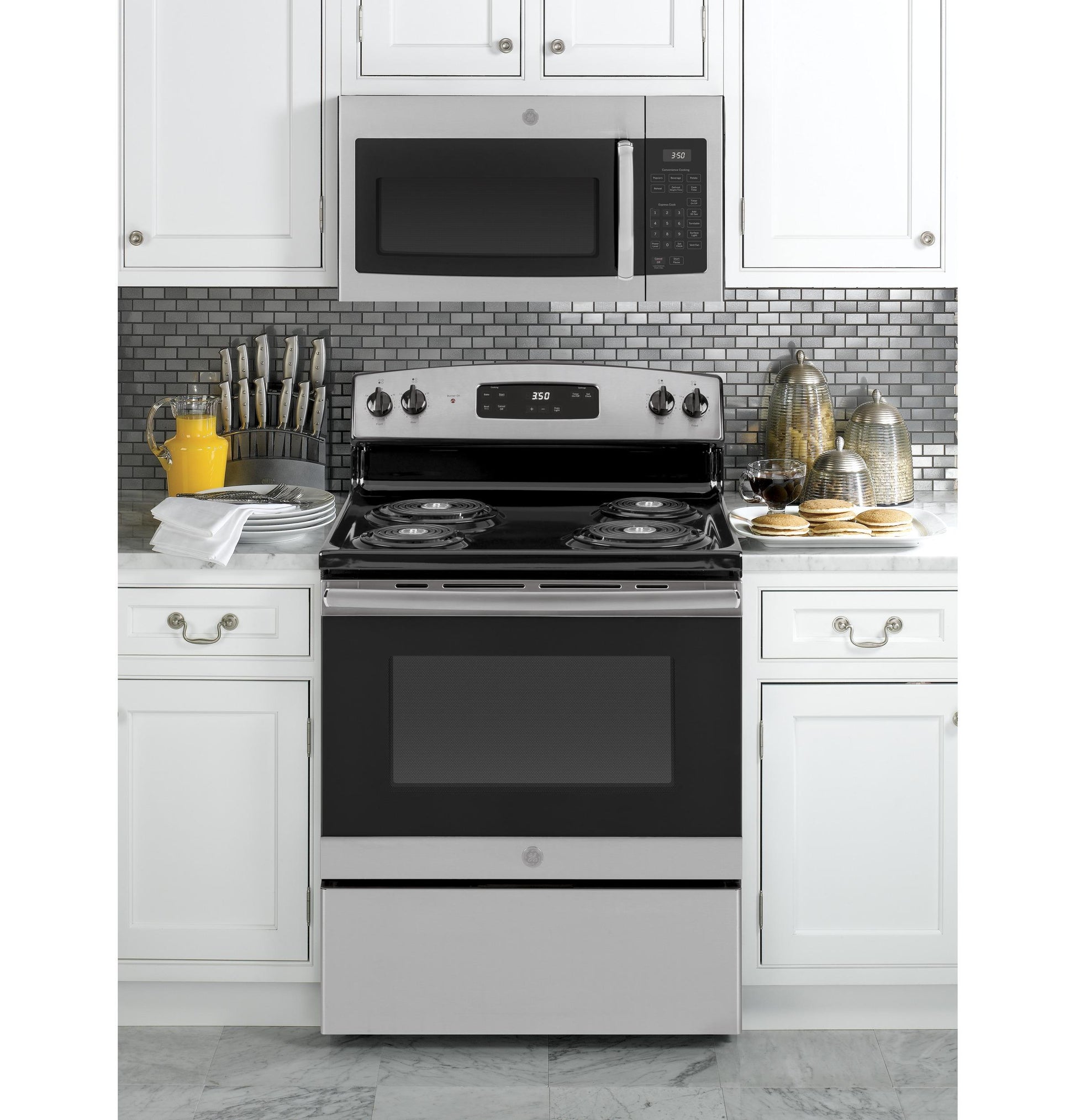

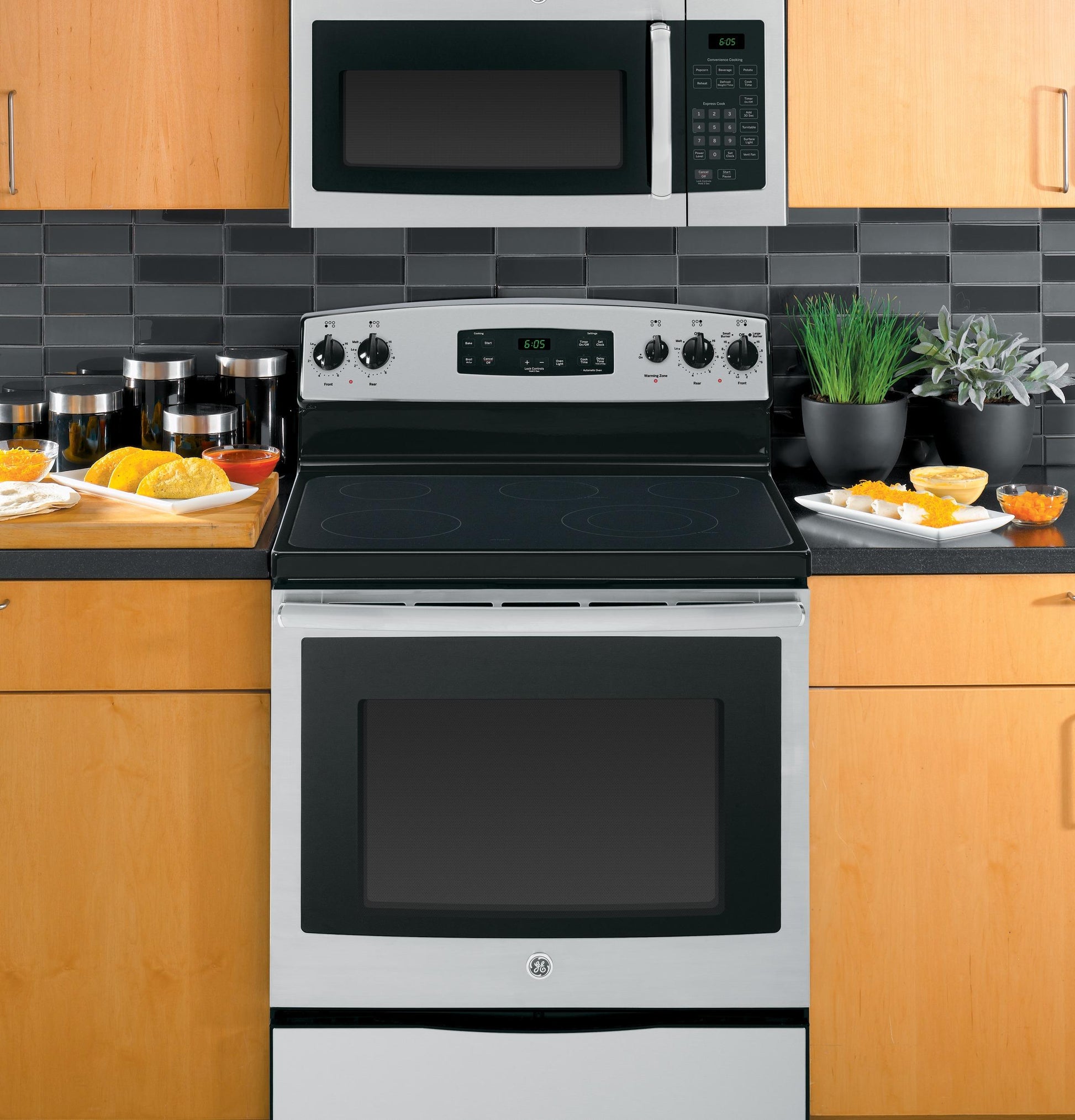

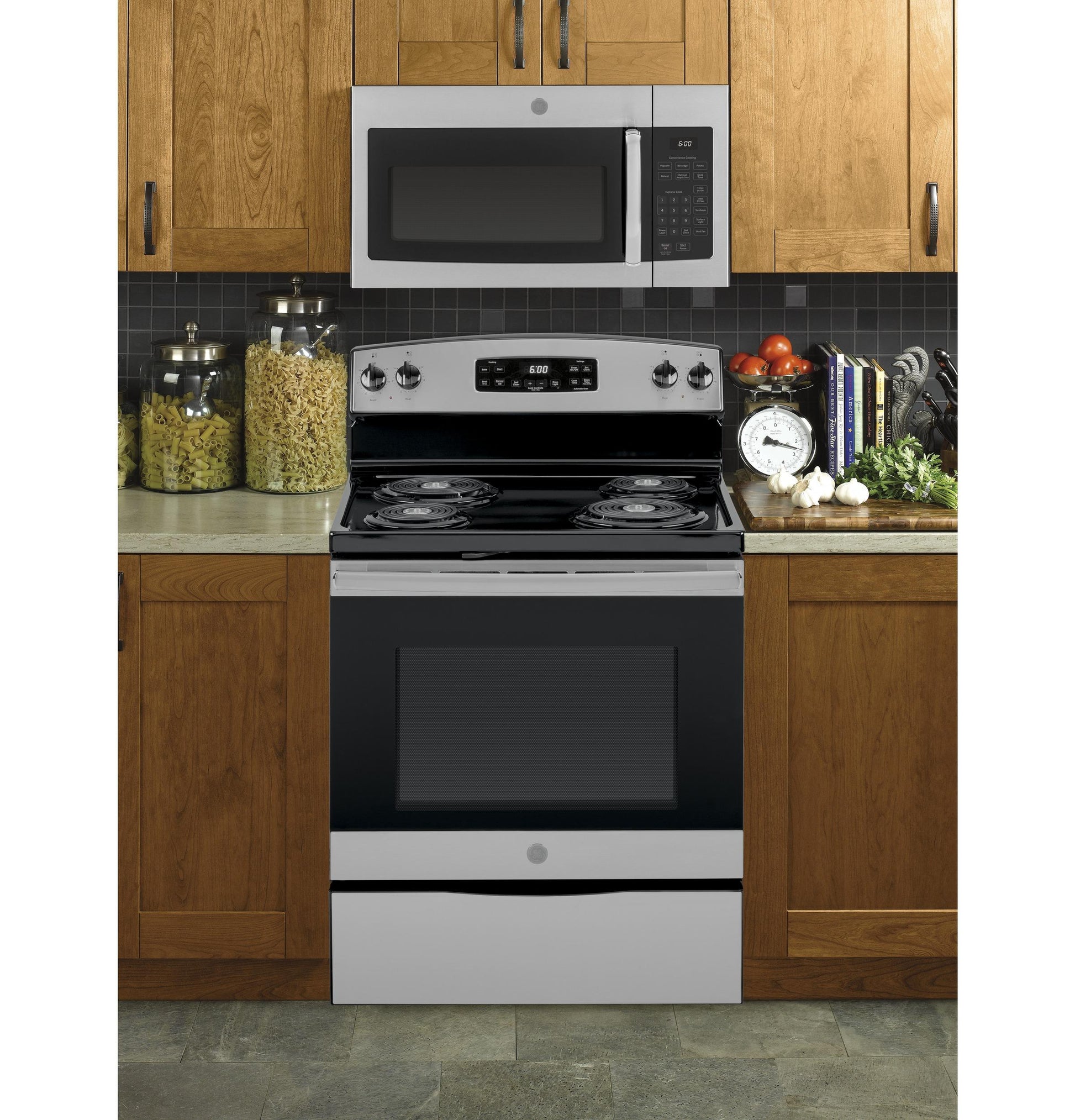

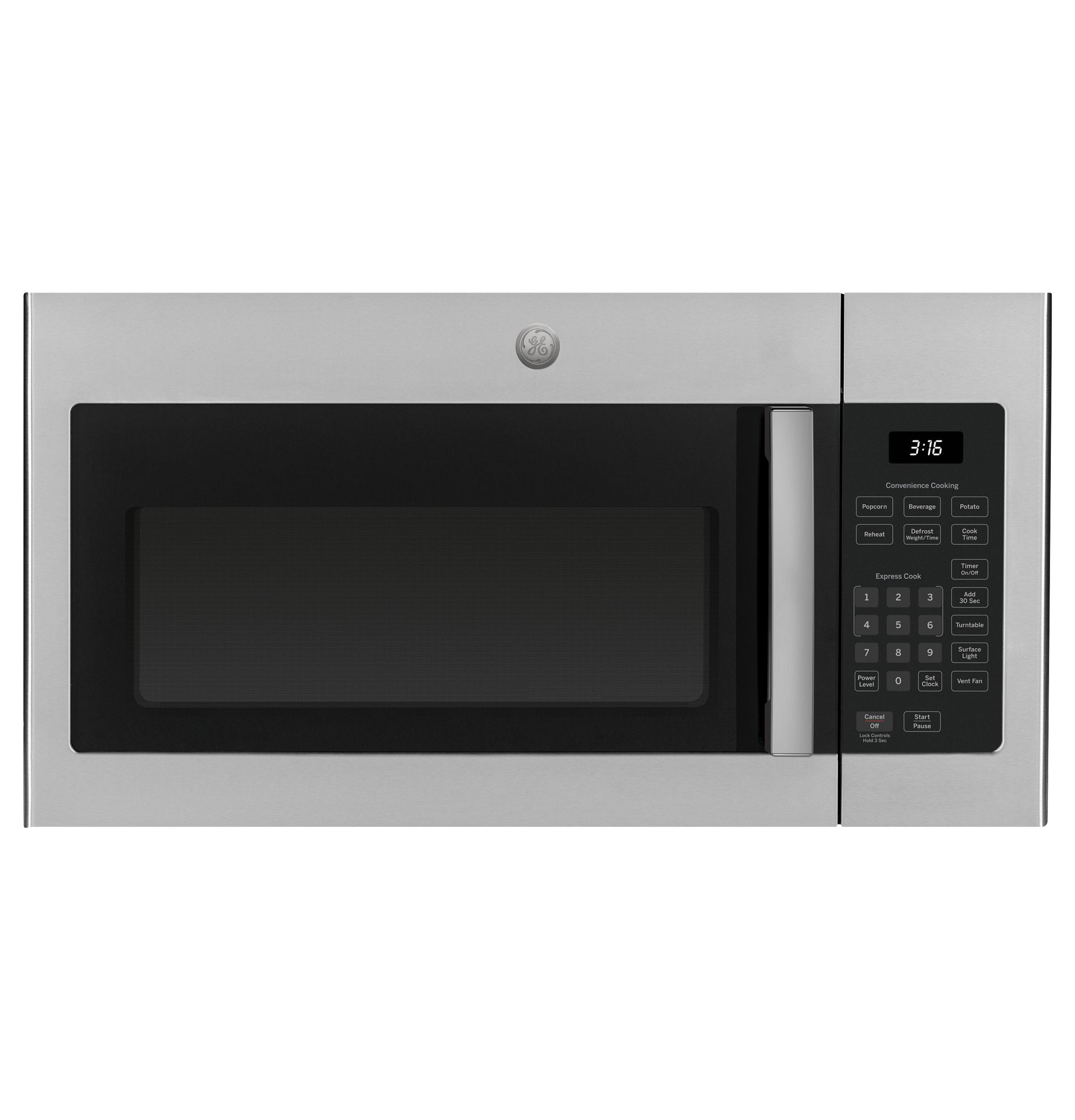

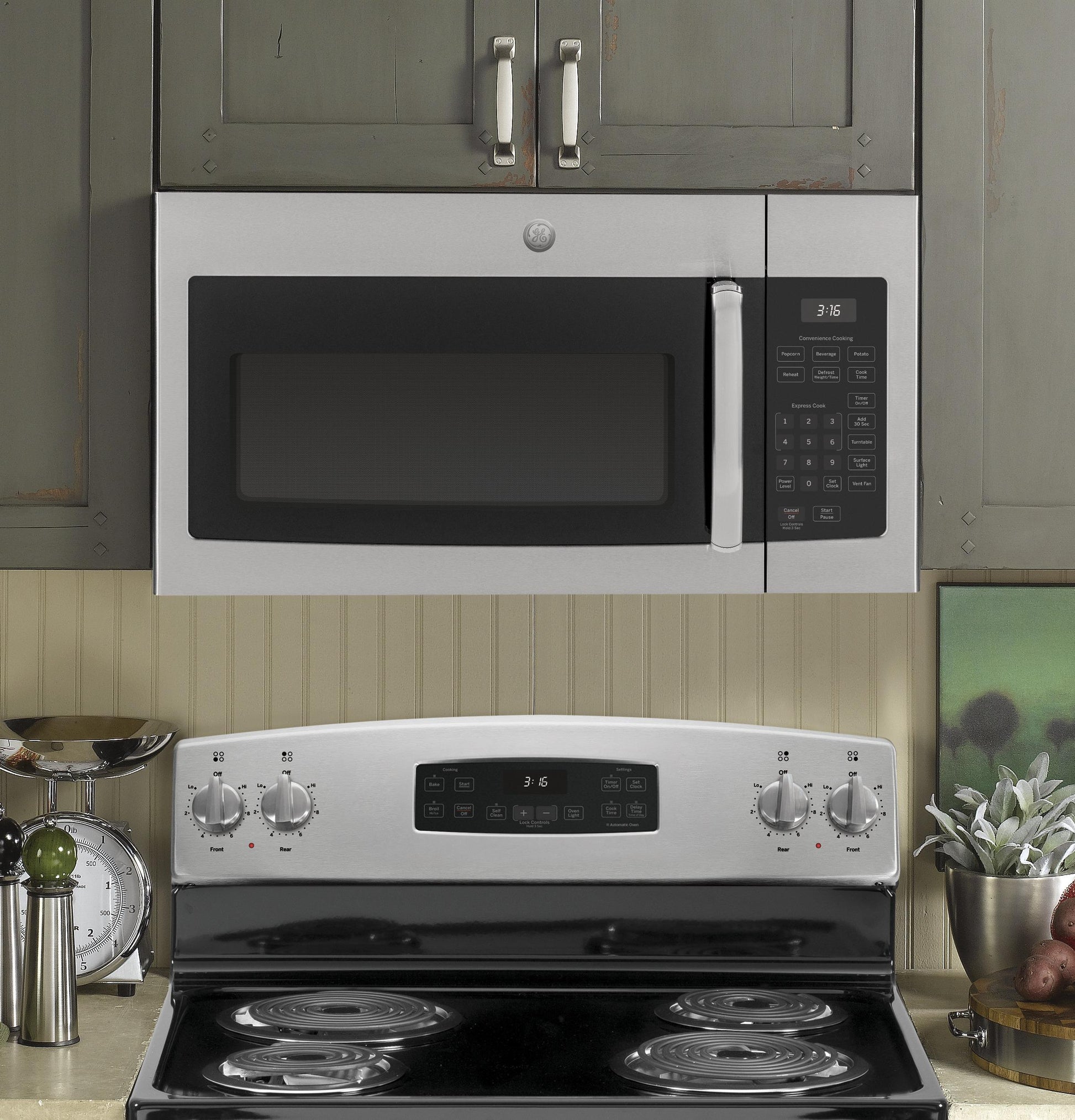

Ge Appliances JVM3160RTSS Ge® 1.6 Cu. Ft. Over-The-Range Microwave Oven
Charcoal filter replacement for microwaves with behind the door grille
Easily install your new charcoal odor filter

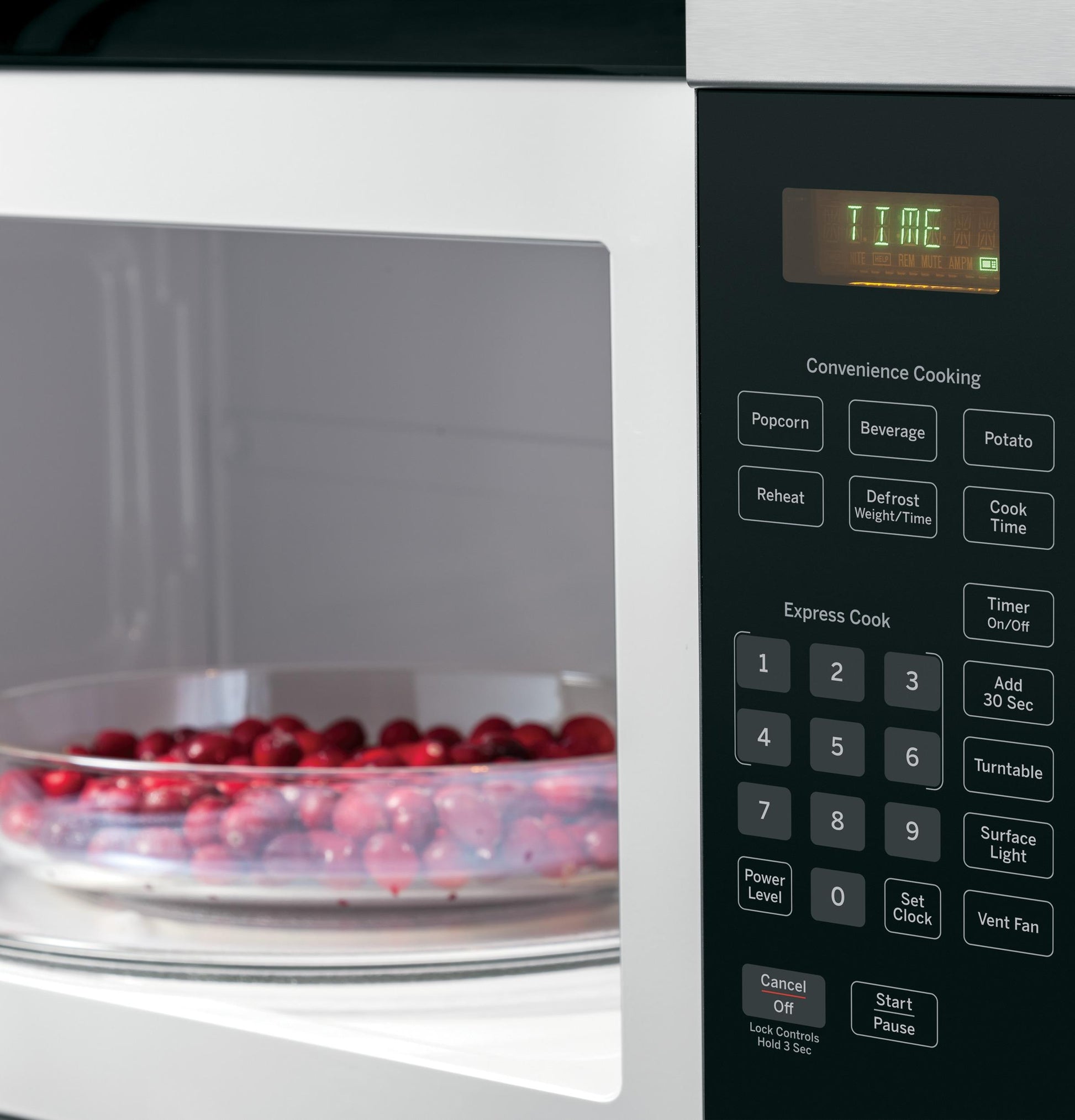

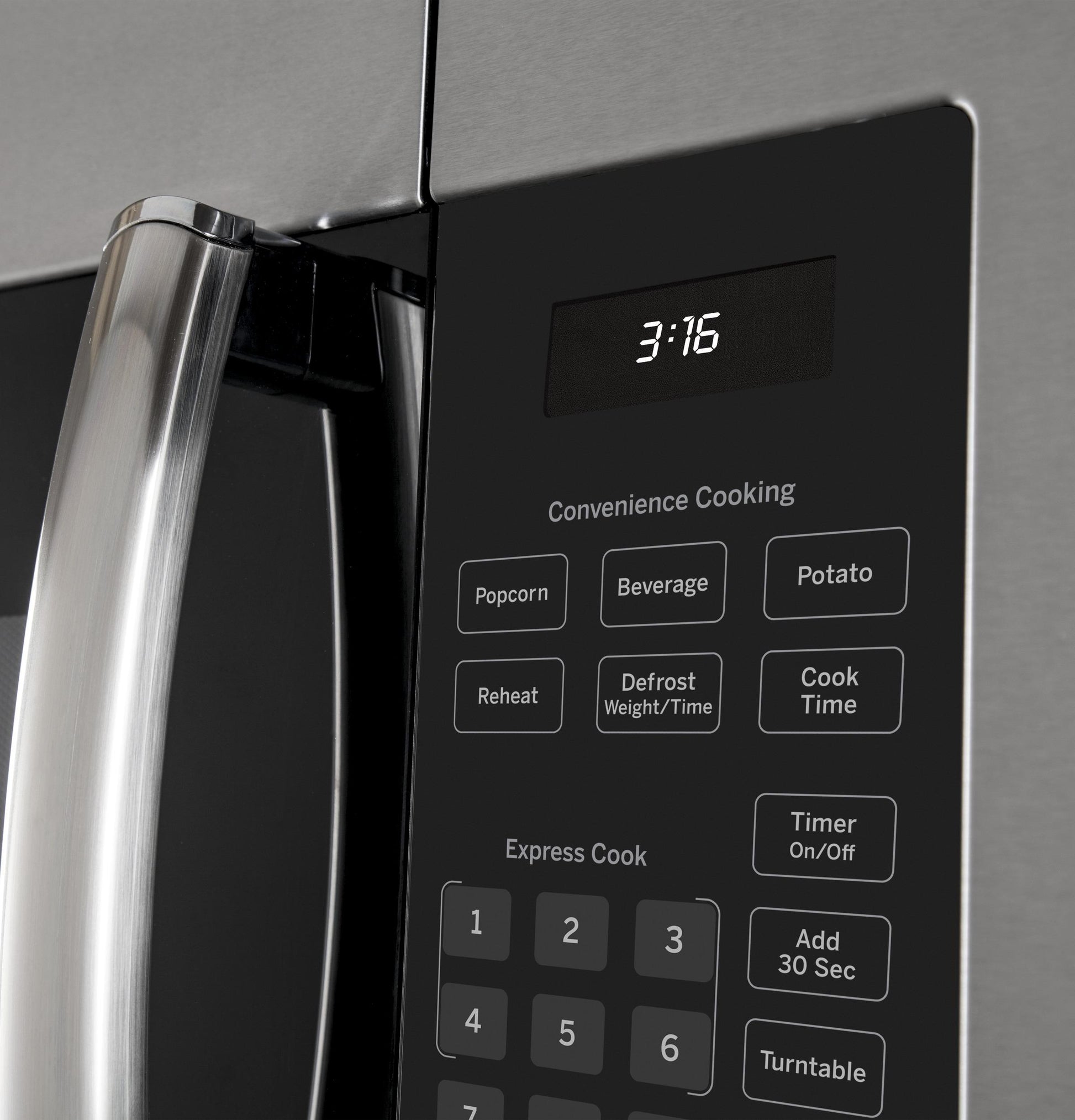

Convenience cooking controls
Operating made quick and easy

Auto and time defrost

Defrosting times and power levels are programmed automatically or manually for optimal results

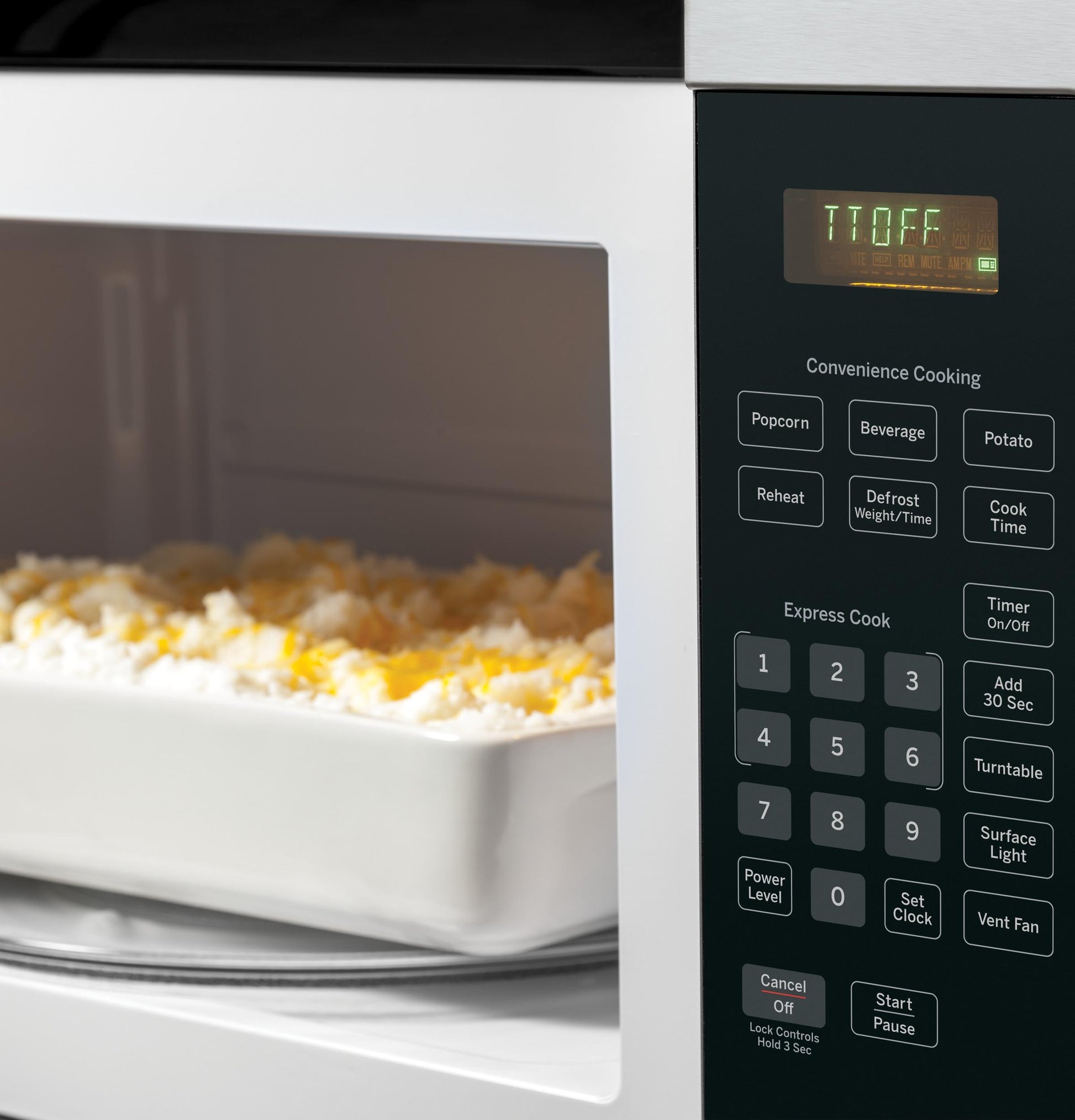

Turntable On/Off

Controls turntable operation
Charcoal Filter Replacement For Microwaves With Behind The Door Grille Easily Install Your New Charcoal Odor Filter 1.6 Cu. Ft. Capacity 1000 Watts (Iec-705 Test Procedure) Convenience Cooking Controls Operating Made Quick And Easy Auto And Time Defrost Defrosting Times And Power Levels Are Programmed Automatically Or Manually For Optimal Results Turntable On/Off Controls Turntable Operation Two-Speed, 300-Cfm Venting System Removes Smoke, Steam And Odors
- Charcoal filter replacement for microwaves with behind the door grille
- 1.6 cu. ft. capacity
- Convenience cooking controls
- Auto and time defrost
- Turntable On/Off
- Two-speed, 300-CFM venting system
CAPACITY | |
Vent CFM | 300 |
Total Capacity (cubic feet) | 1.6 cu ft |
APPEARANCE | |
Case Color | Black |
Handle | Stainless Steel Appearance |
Oven Door Features | Oven Window |
Installation | Easy Mount |
Door Color | Stainless Steel |
Color Appearance | Stainless Steel/Black |
POWER / RATINGS | |
Input Volts/Hertz | 120/60 |
Electrical Input - 120V Amperage | 15 |
Electrical Input - 120V Watts | 1580 |
WARRANTY | |
Labor Warranty | Limited 1-year entire appliance |
Parts Warranty | Limited 1-year entire appliance |
Warranty Notes | See written warranty for full details |
ECONOMICAL / QUIET | |
Non-Vented | Optional |
Venting Type | Externally Vented |
ACCESSORIES | |
Recirculating Charcoal Filter Kit | WB02X35687 (Included) |
Optional Kits | 15' Bump Out Kit - JXBUMPBB |

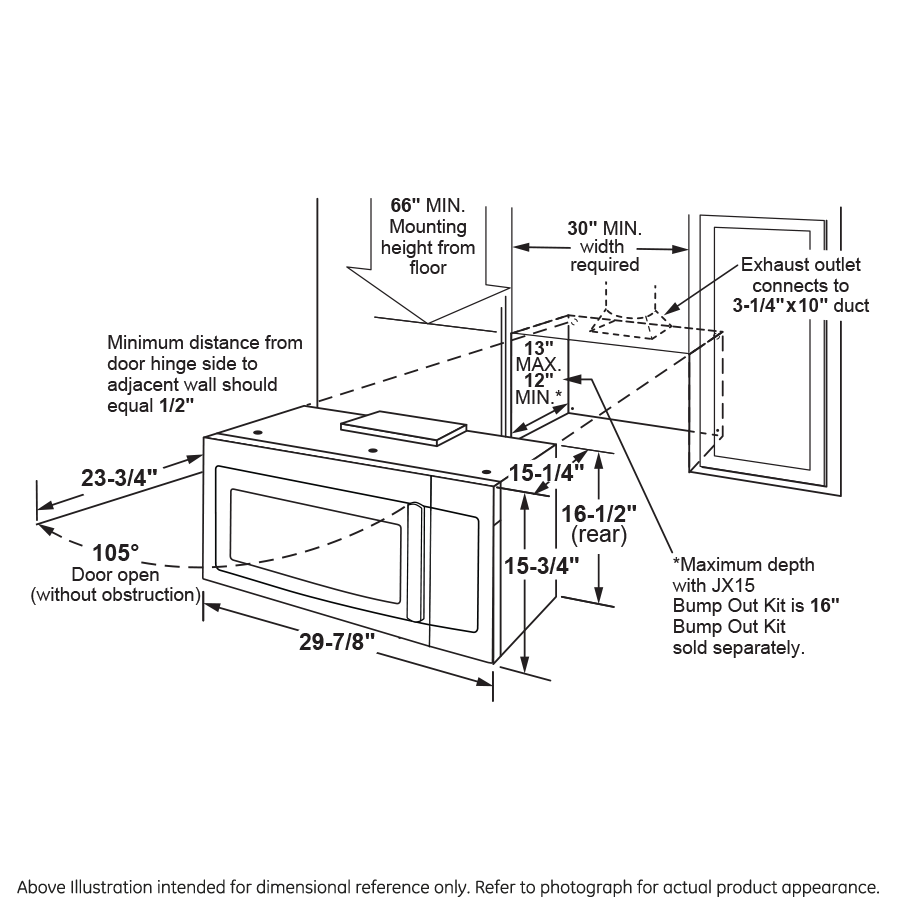

WEIGHTS & DIMENSIONS | |
Approximate Shipping Weight | 63 lb |
Cabinet Width | 30 in |
Net Weight | 63 lb |
Cavity (W x H x D) | 18-13/16 x 9-1/4 x 14-13/32 |
Overall Width | 29.875 in |
Overall Depth | 15.5625 in |
Overall Height | 16.125 in |
FEATURES | |
Cooking Modes | Microwave |
Electronic Digital Display with Clock | Yes |

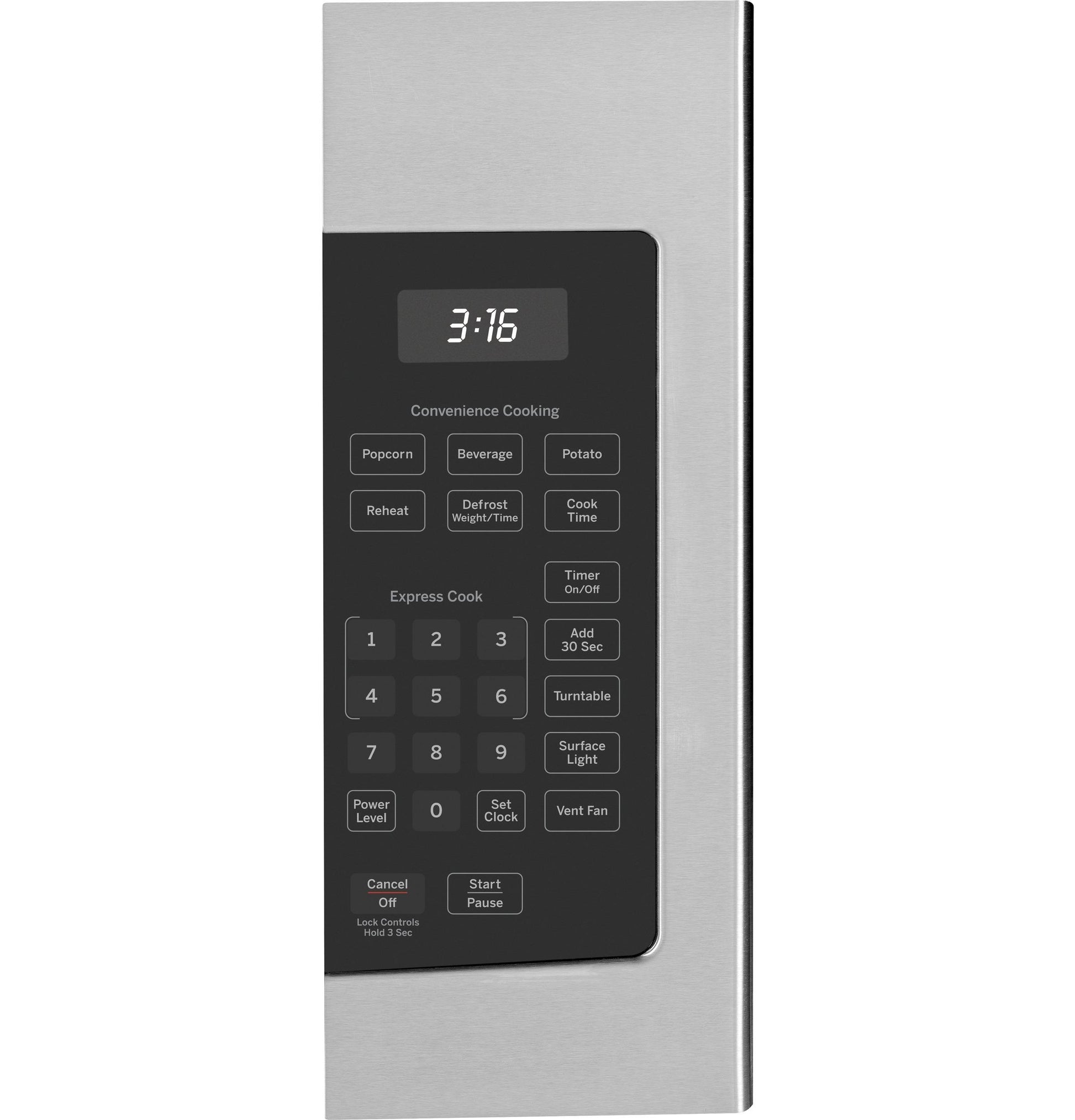

Control Features | Add 30 Seconds Cancel/Off Lock Controls Power Level Set Clock Start/Pause Surface Light Timer On/Off Turntable On/Off Vent Fan |
Product Type | Over-the-range Microwave |
Express Cook | 1-6 Minutes |
Style | Over-The-Range |
Microwave Watts (IEC-705) | 1000 W |
Turntable On / Off | Yes |
Power Levels | 10 |
Control Type | Electronic Touch |
Cooktop Lighting | Bright/Night/Off |
Exhaust Fan | 2-Speed 300-CFM |

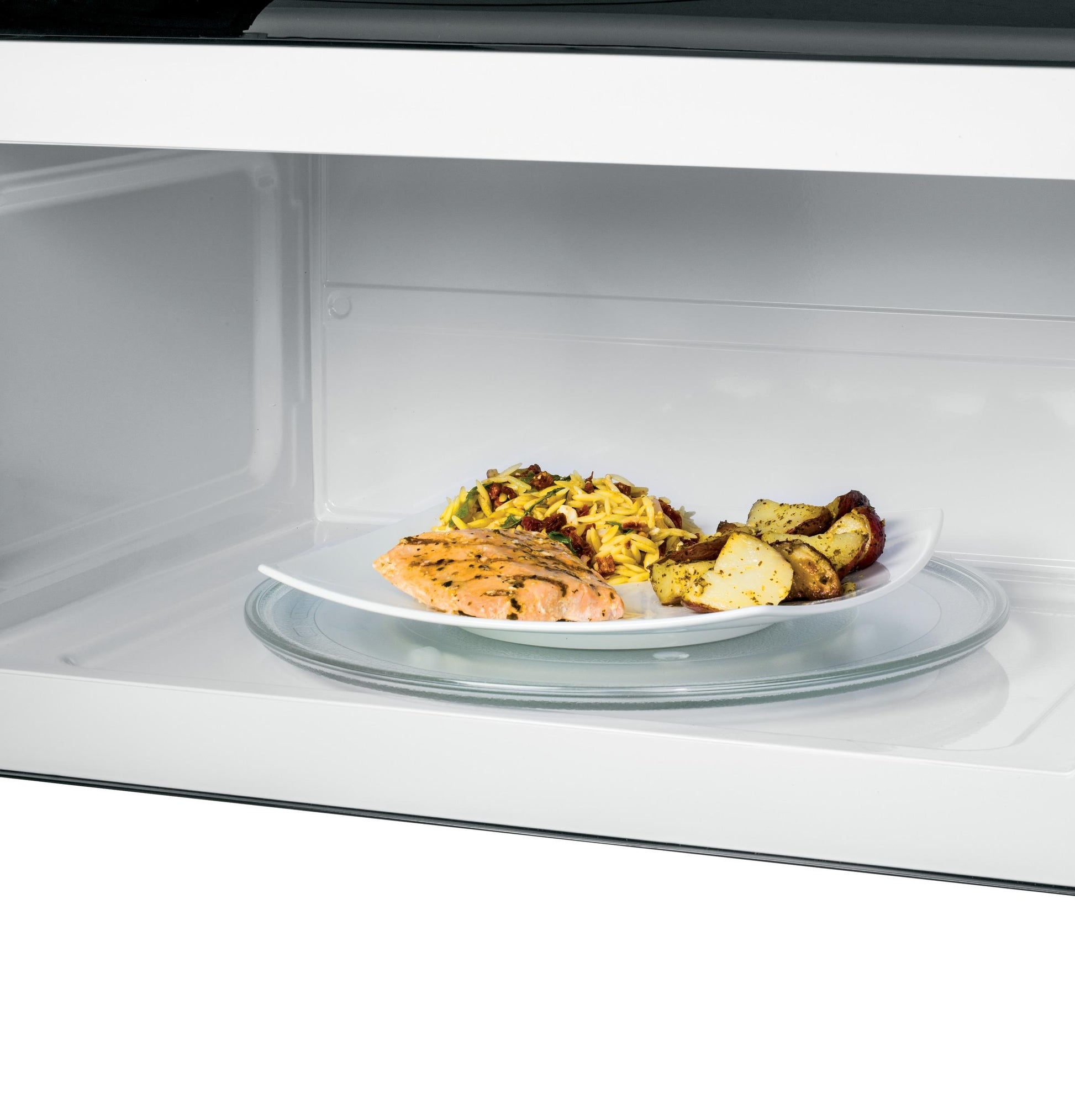

Turntable | Glass |
Microwave Convenience Cooking Controls | Beverage Cook Time Defrost: Weight/Time Popcorn Potato Reheat |
Cooking Technology | Microwave |
Turntable Size | 13.5 in |
Interior Oven Light | Incandescent |
