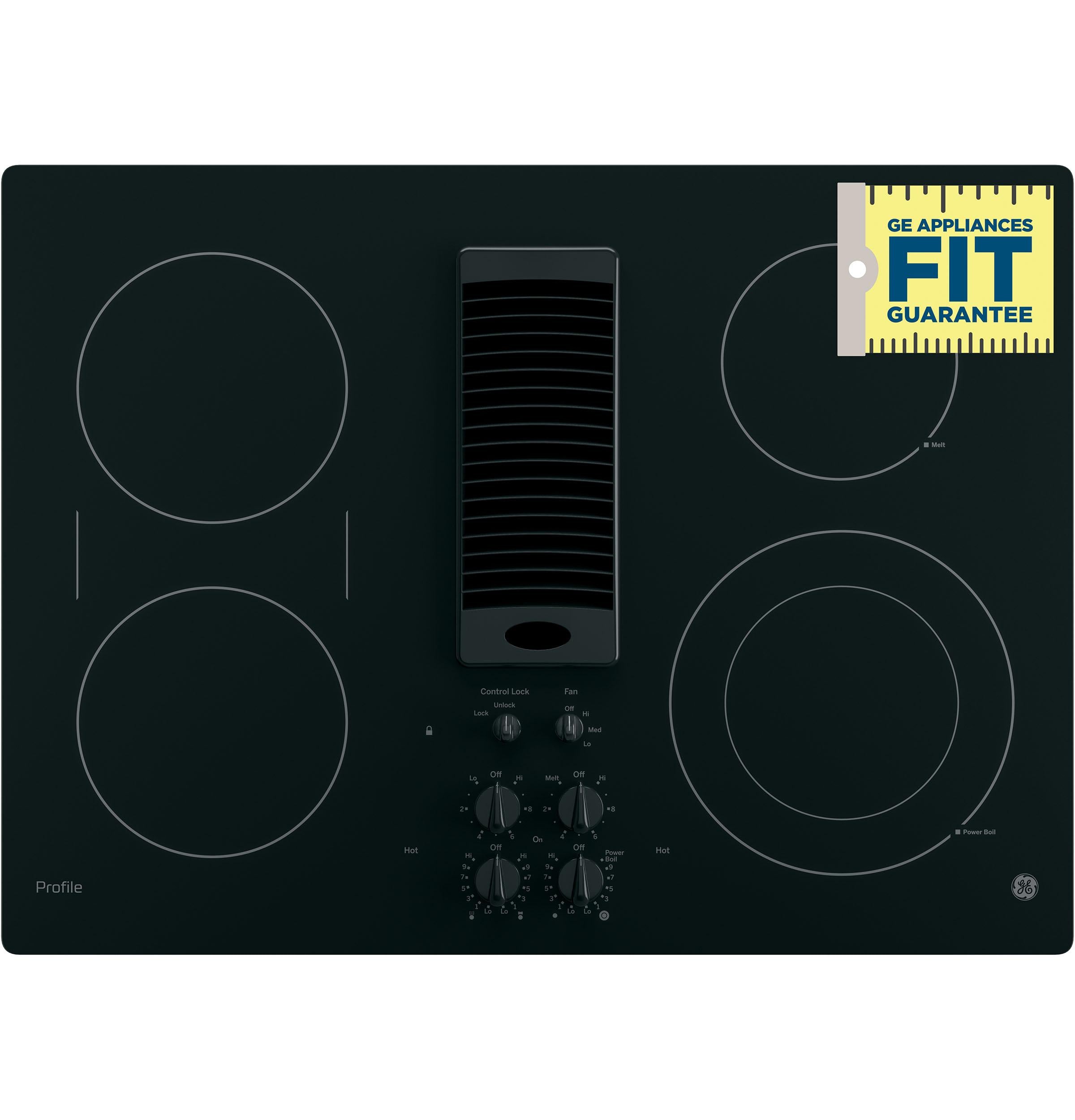

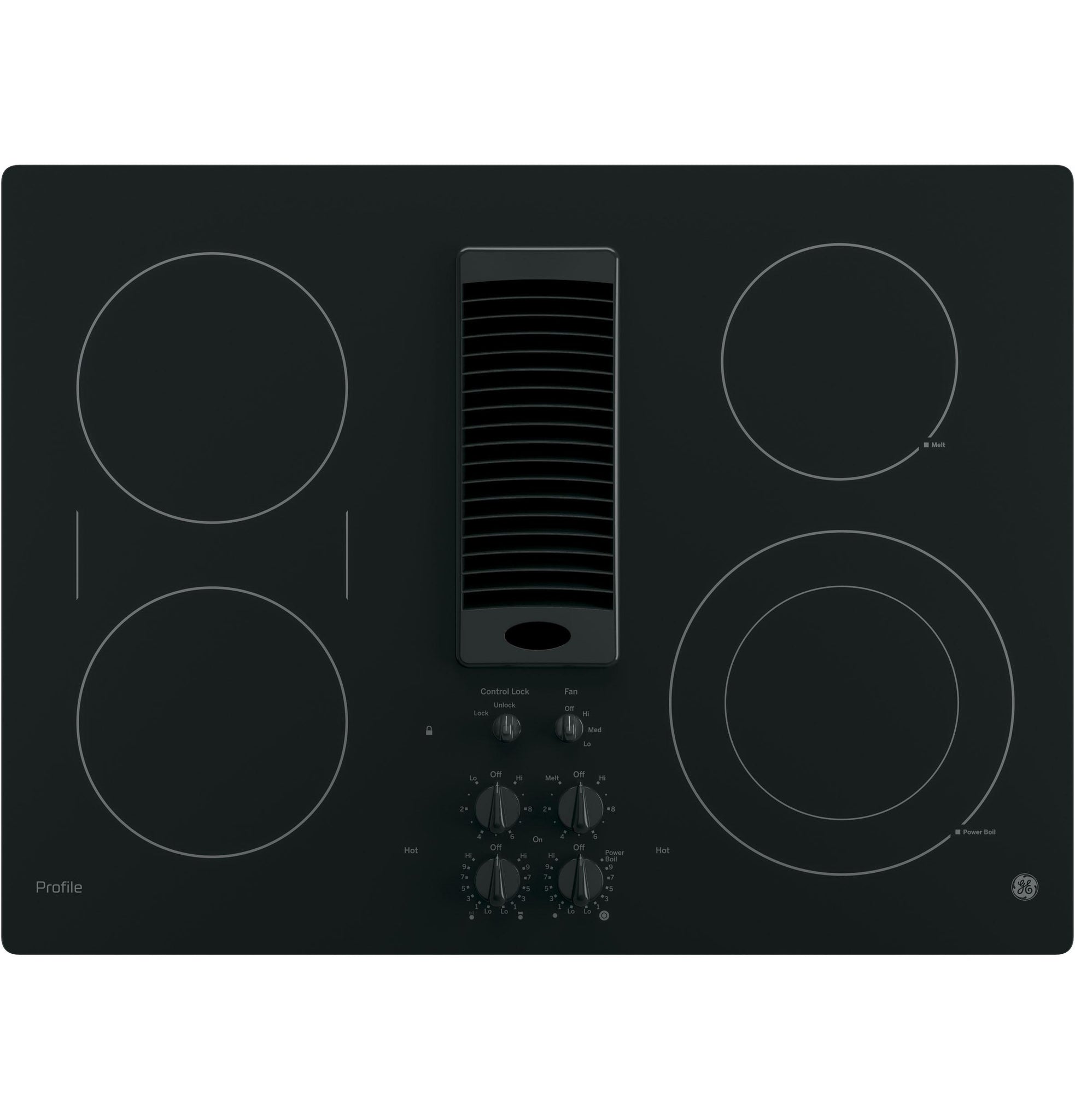

Ge Appliances PP9830DRBB Ge Profileā¢ 30" Downdraft Electric Cooktop
Rebates &
Promotions
GE Profile The Innovation Rebate - Receive up to a $2000 rebate with purchase of qualifying GE Profile Smarter Innovation Appliance Package. Download Valid: 01/01/2025-06/30/2025
GE Buy More Save More Delivery and Installation Allowance - Enjoy exclusive rebate savings with purchase of qualifying GE appliances. Download Valid: 03/01/2025-04/30/2025

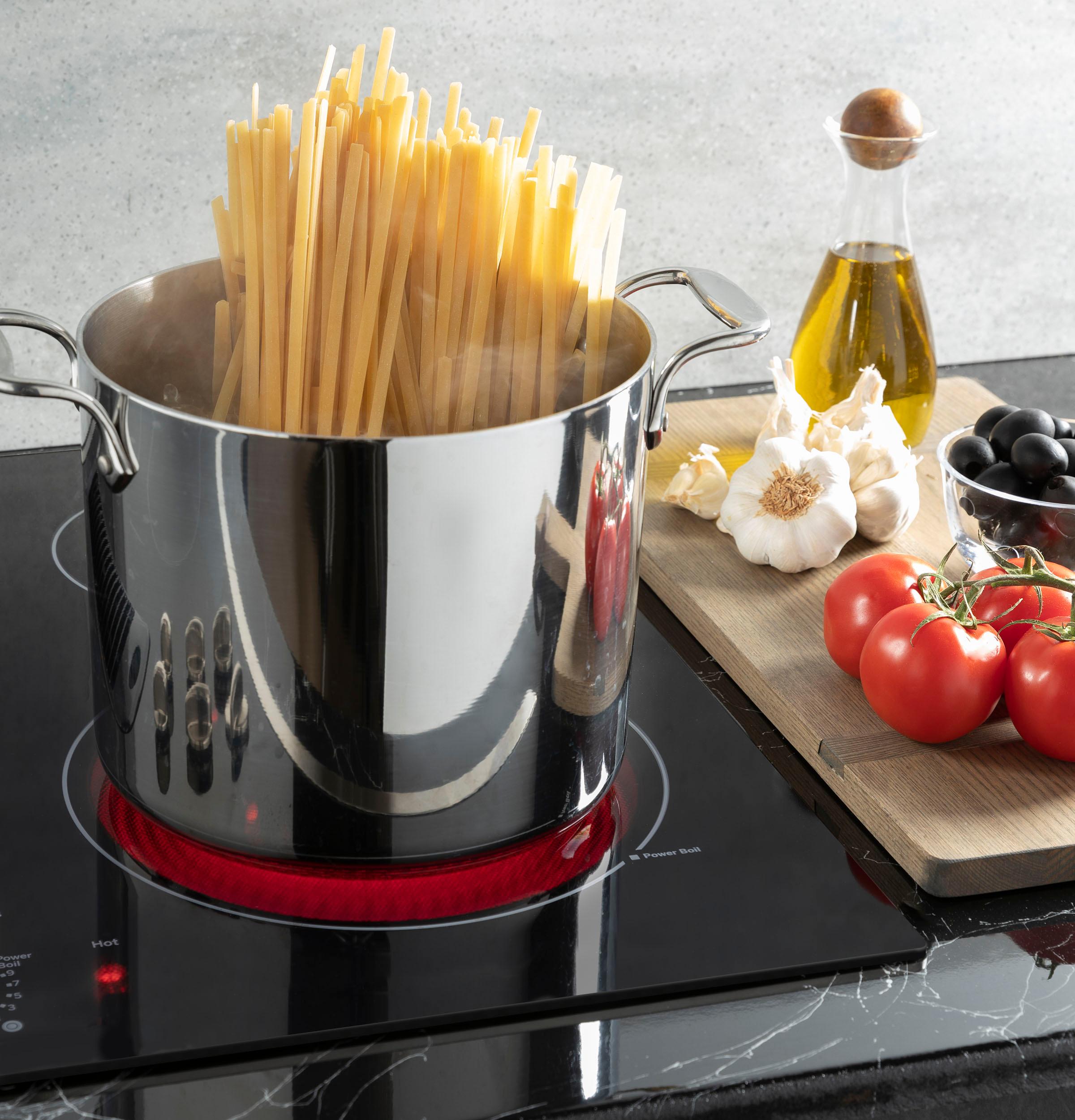

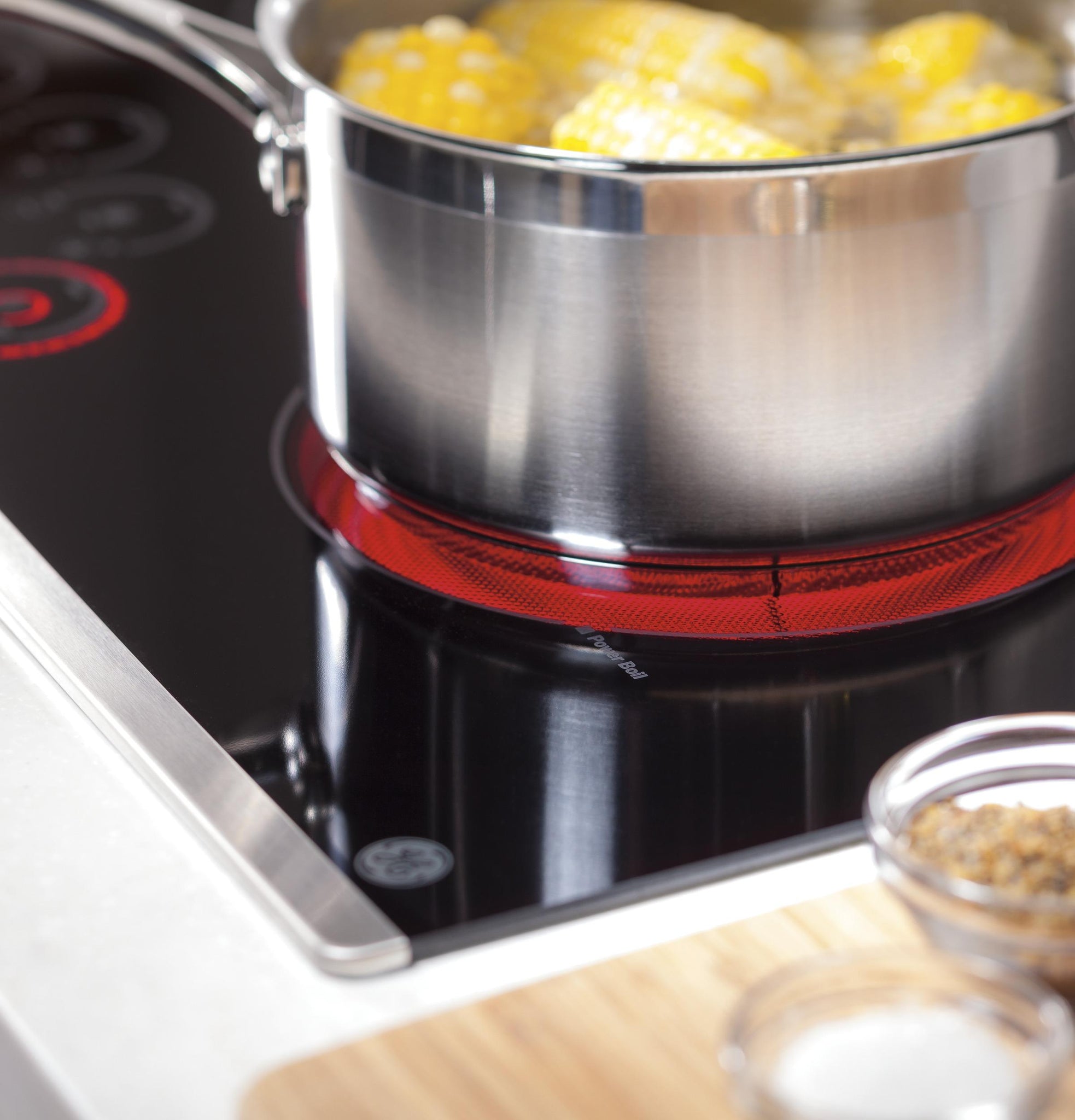

9"/6" Power Boil element
Use different pan sizes on this single, 3,000-watt flexible element that produces rapid powerful heat

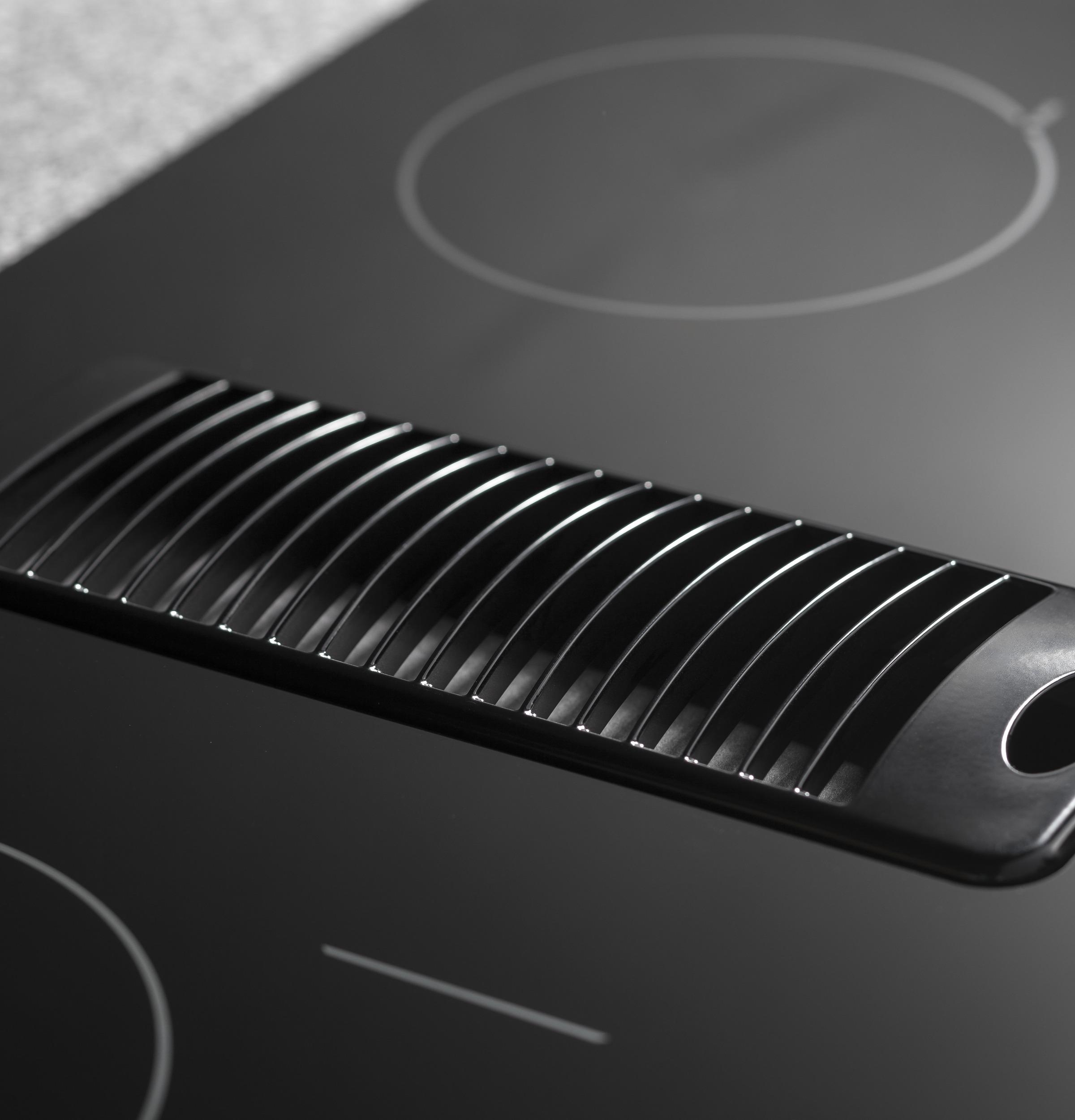

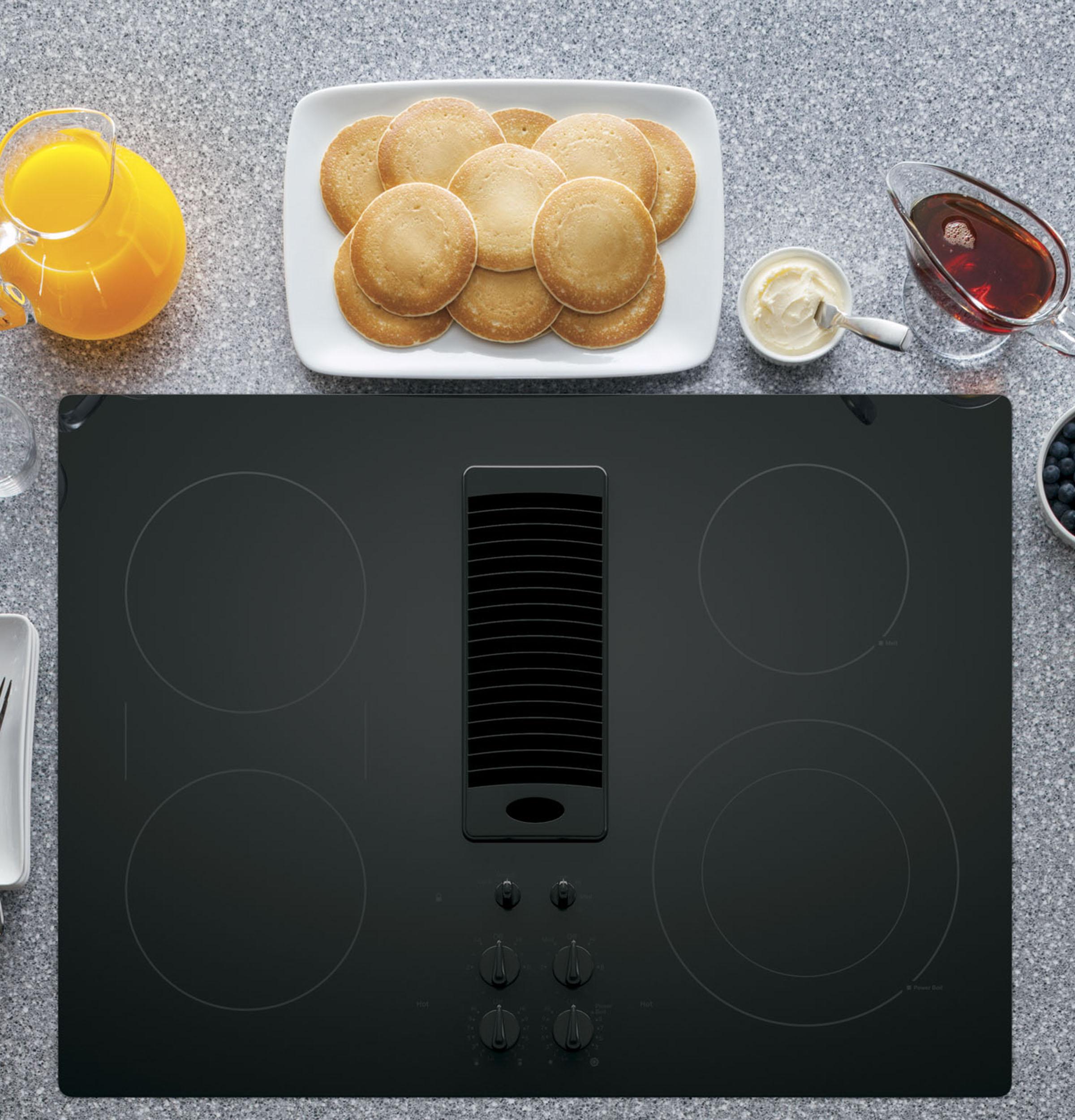

Downdraft exhaust
Powerful exhaust system effectively pulls smoke and steam out of the kitchen

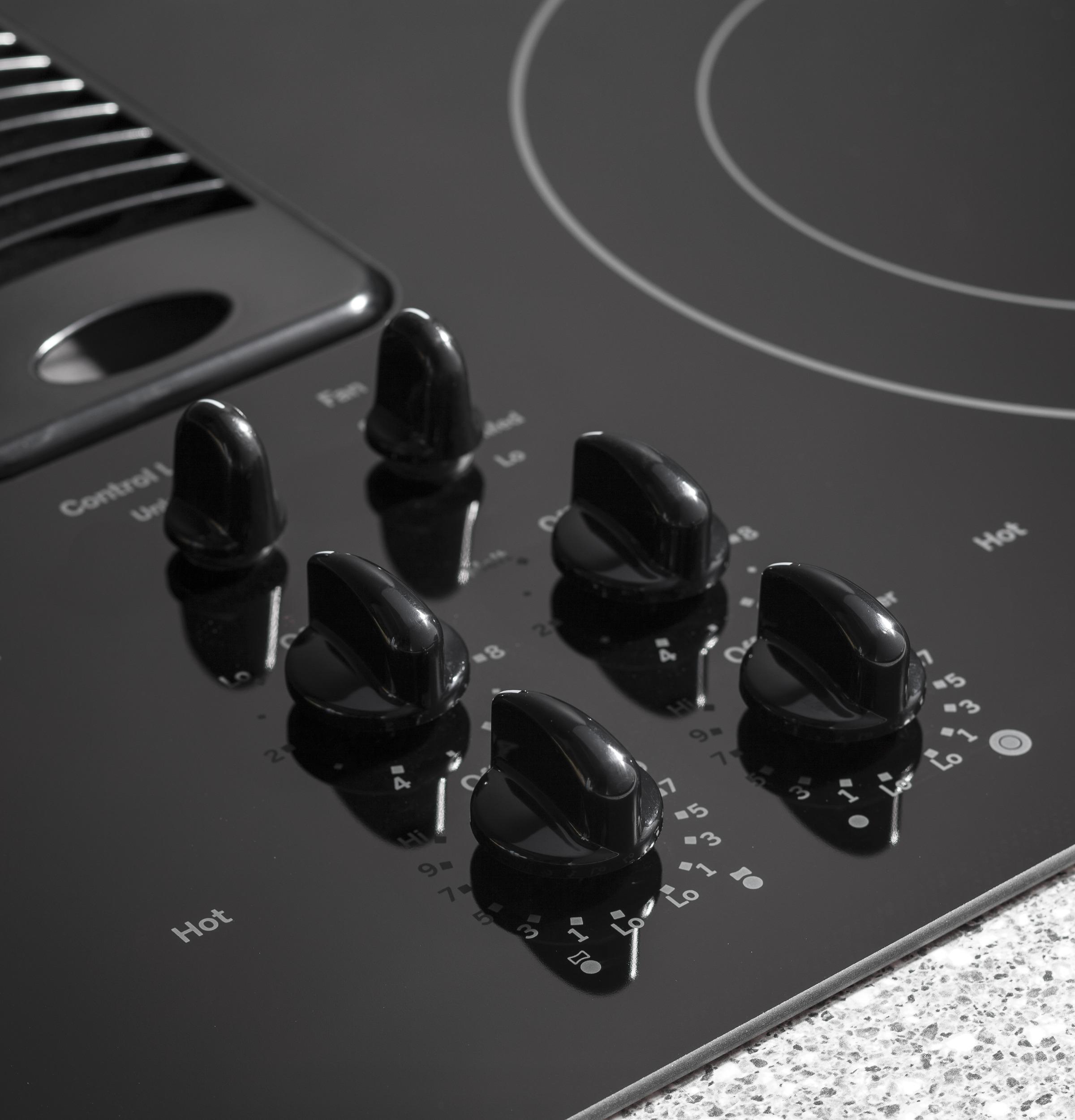

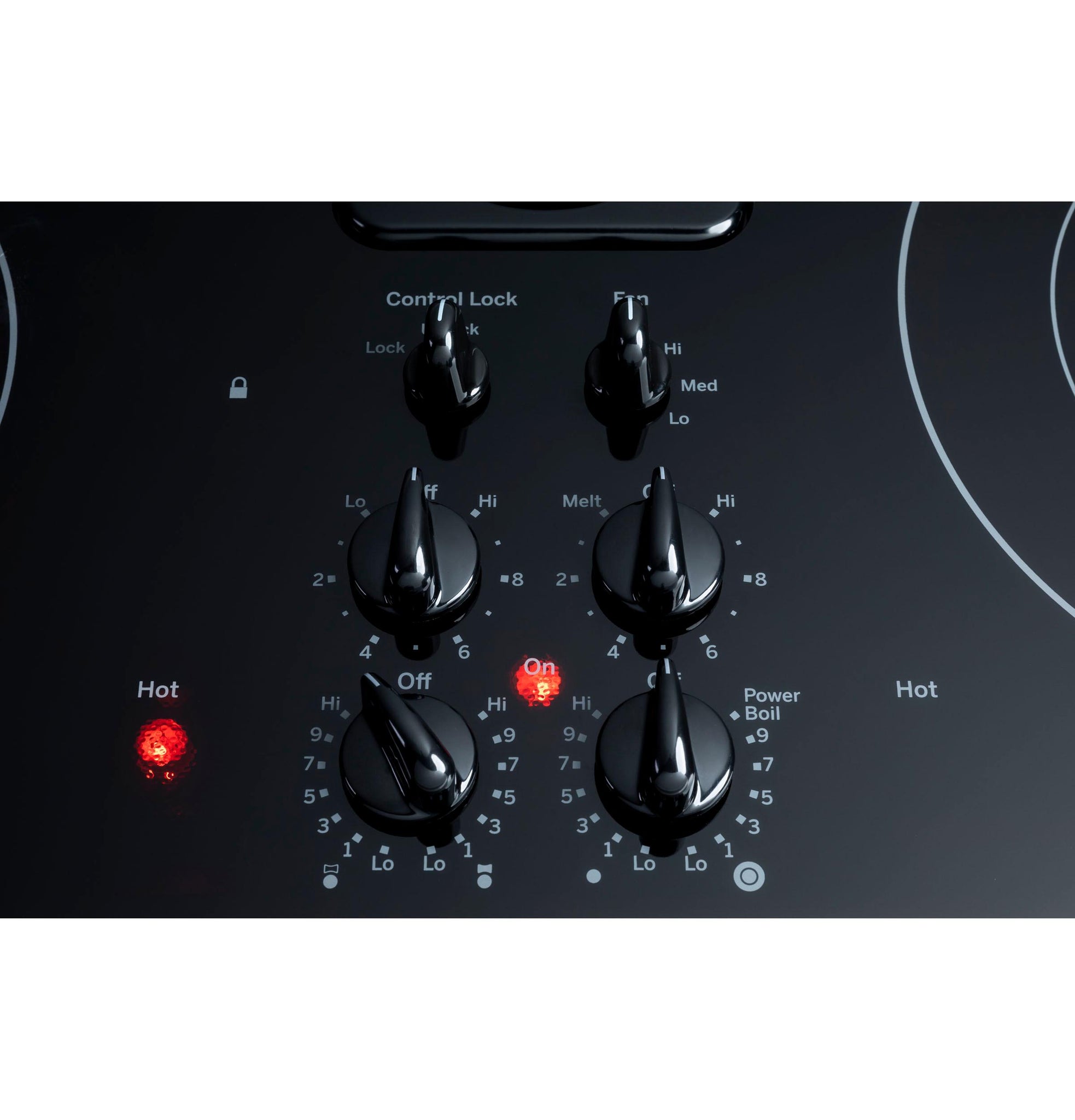

Knob controls with black glass surface
Achieve a modern look with the convenience of knob controls

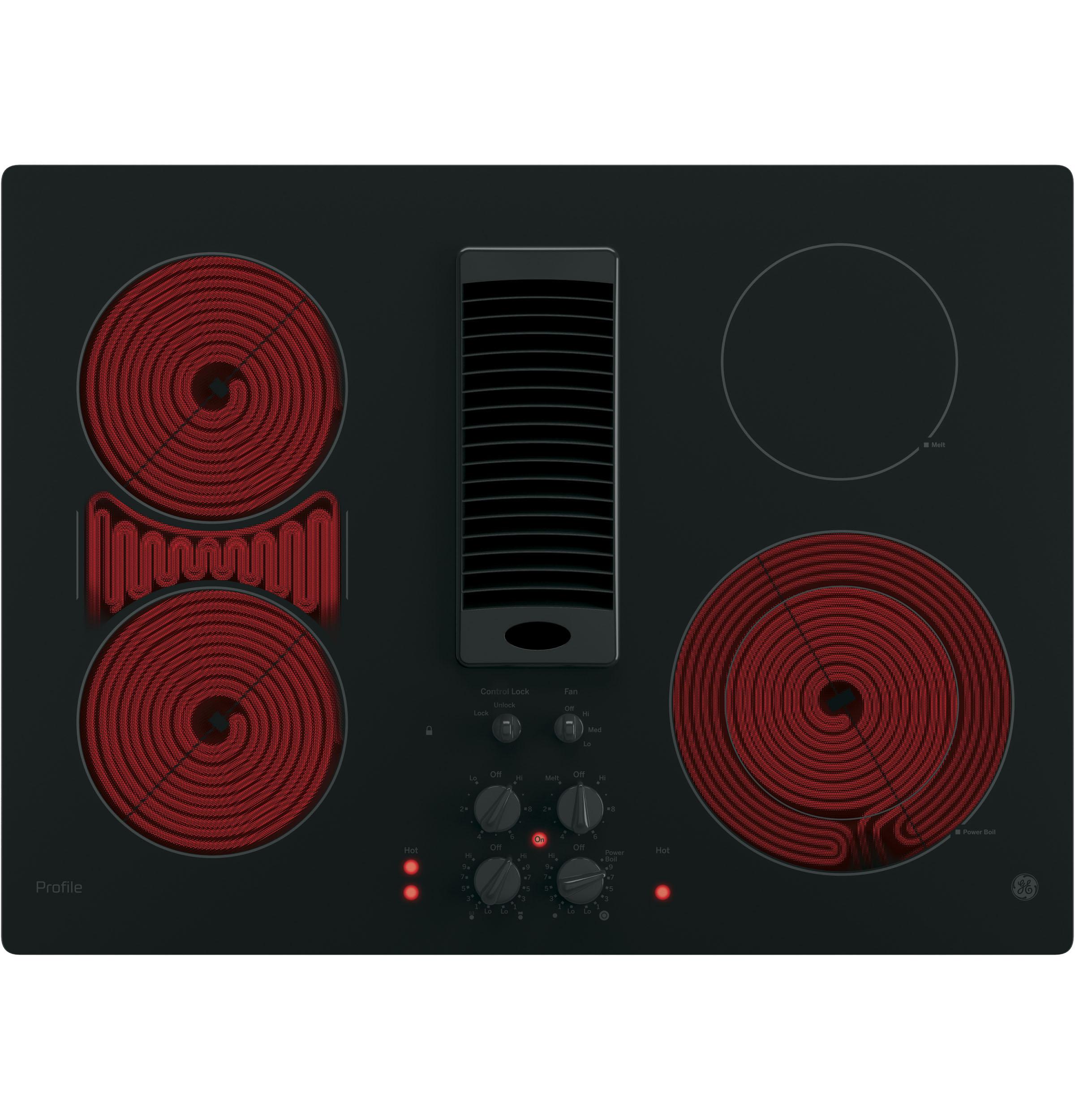

Four radiant cooking elements
Cook foods quickly and evenly on this sleek, glass surface

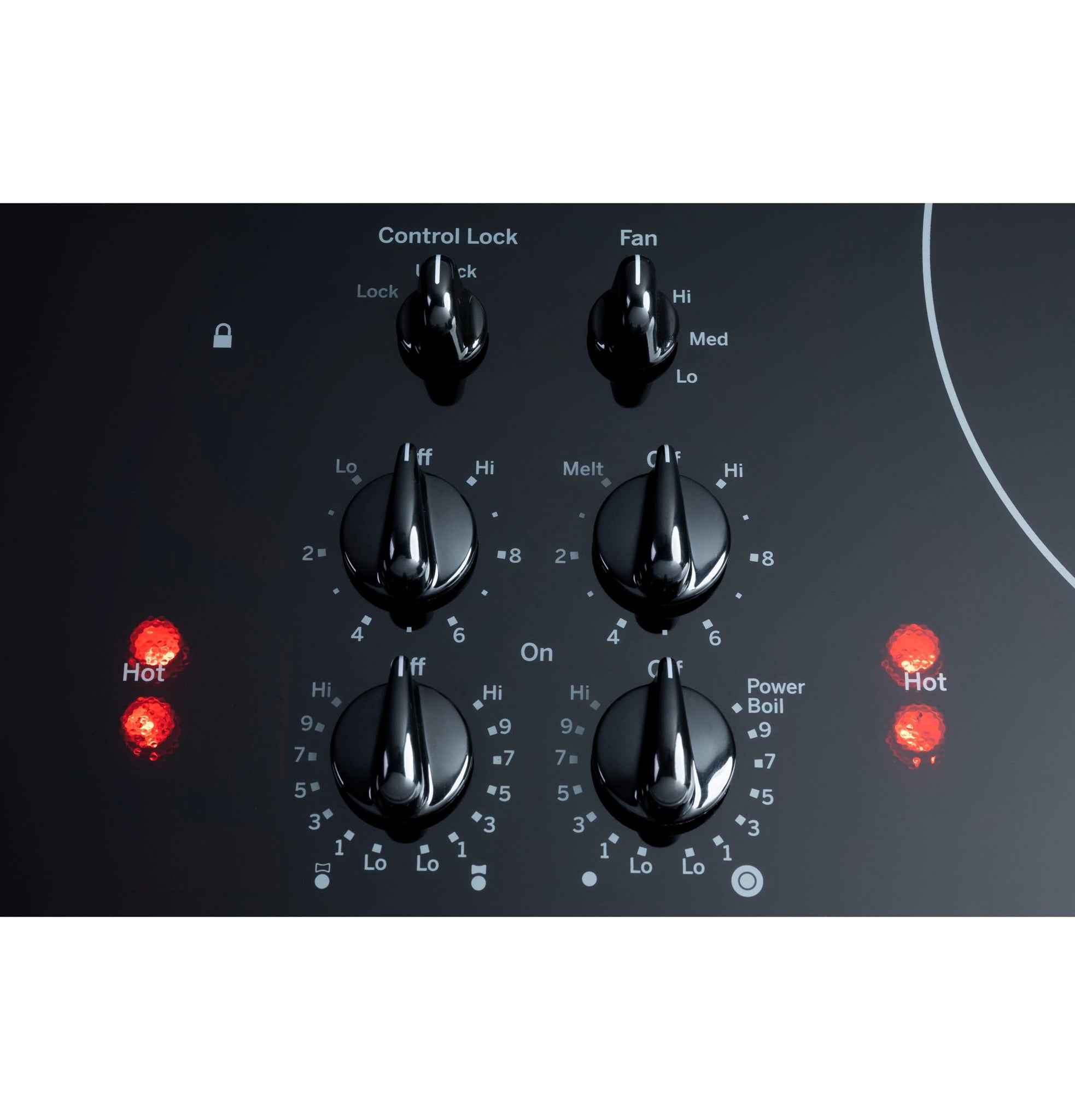

Hot surface indicator lights
Know when elements are too hot to touch with a quick glance

Cooktop "On" indicator light
A light lets you know when an element is active

Bridge Element
Combines cooking elements into one cooking area

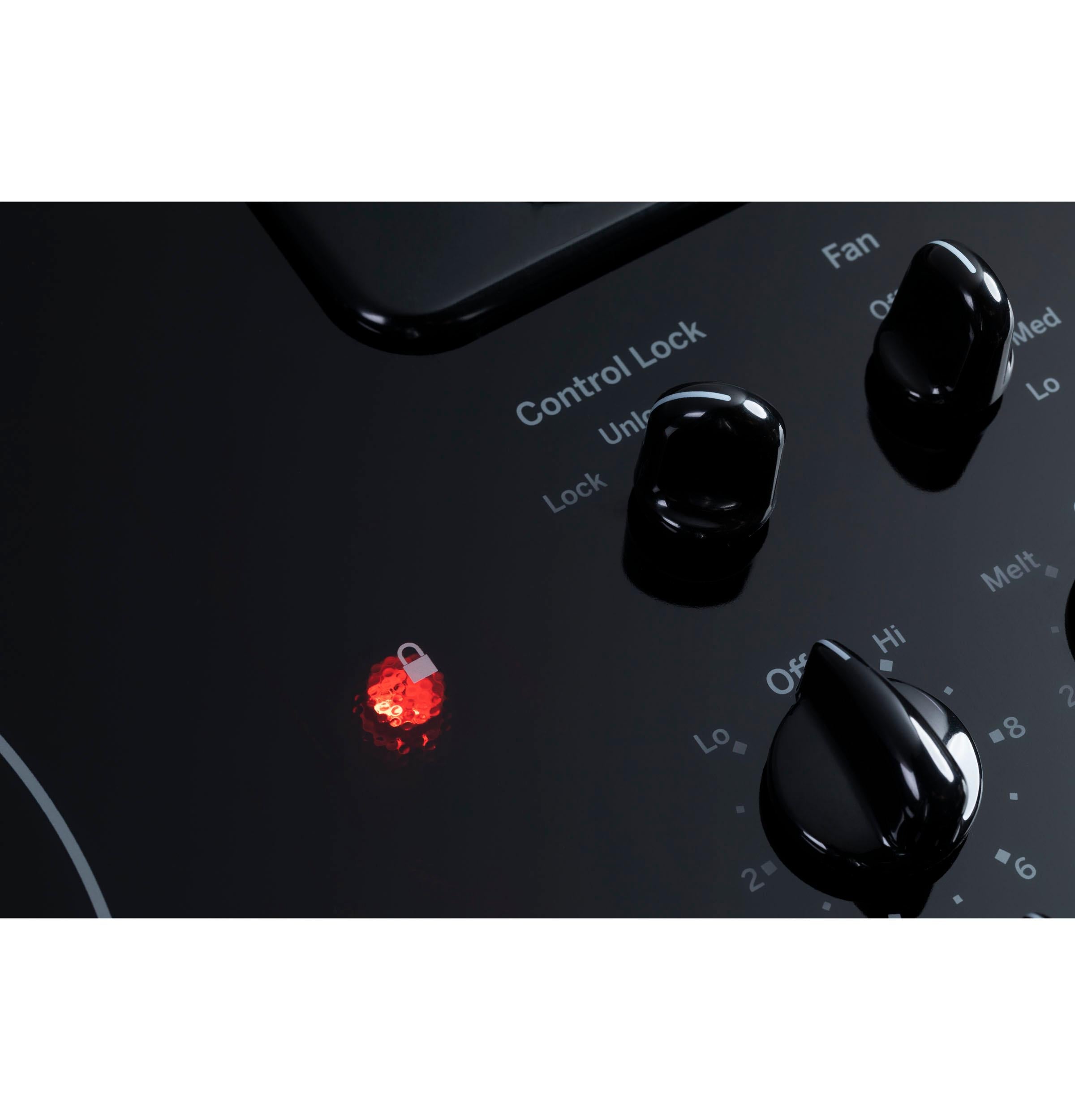

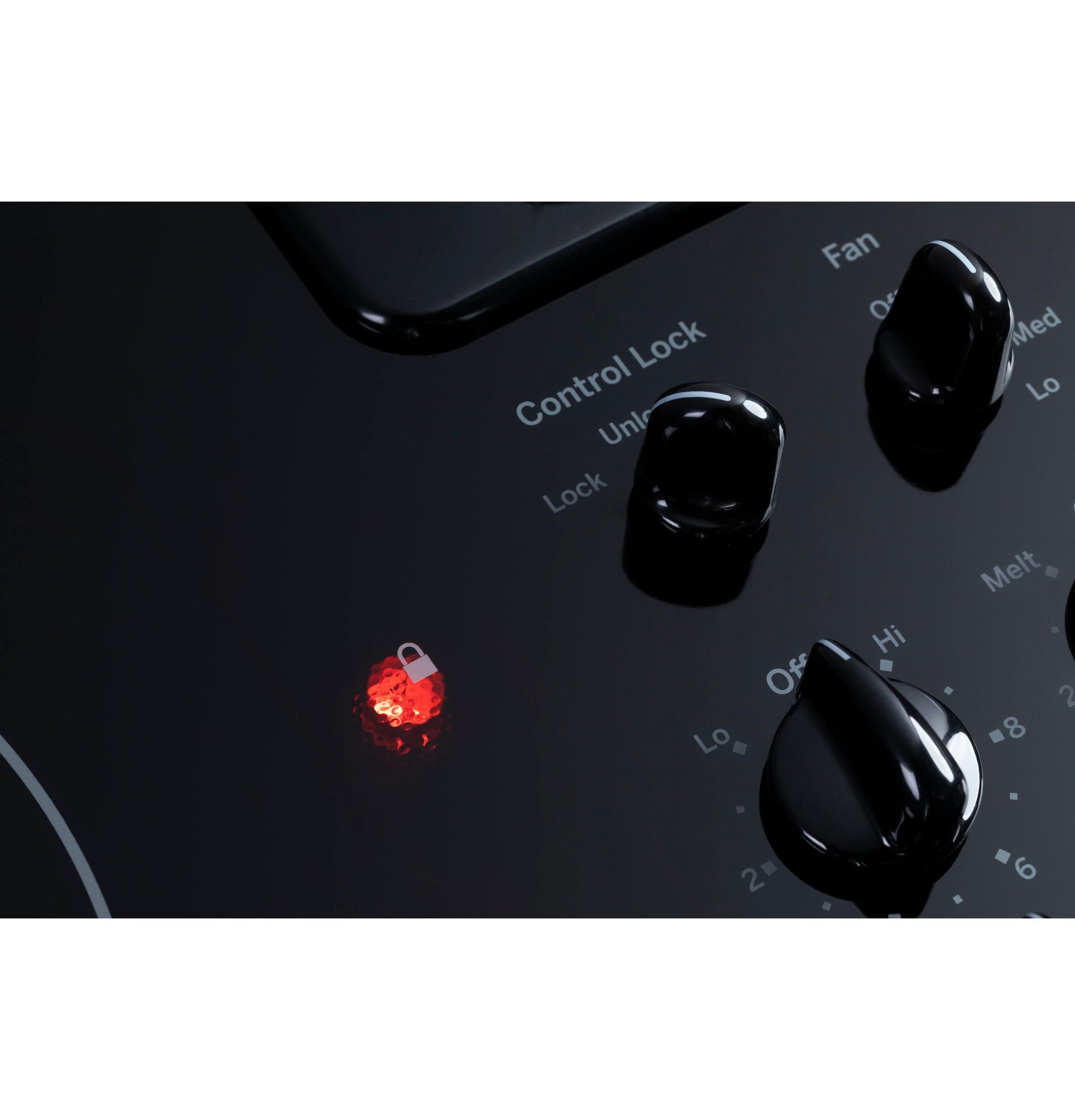

Control lock capability
Protects against unintended activation

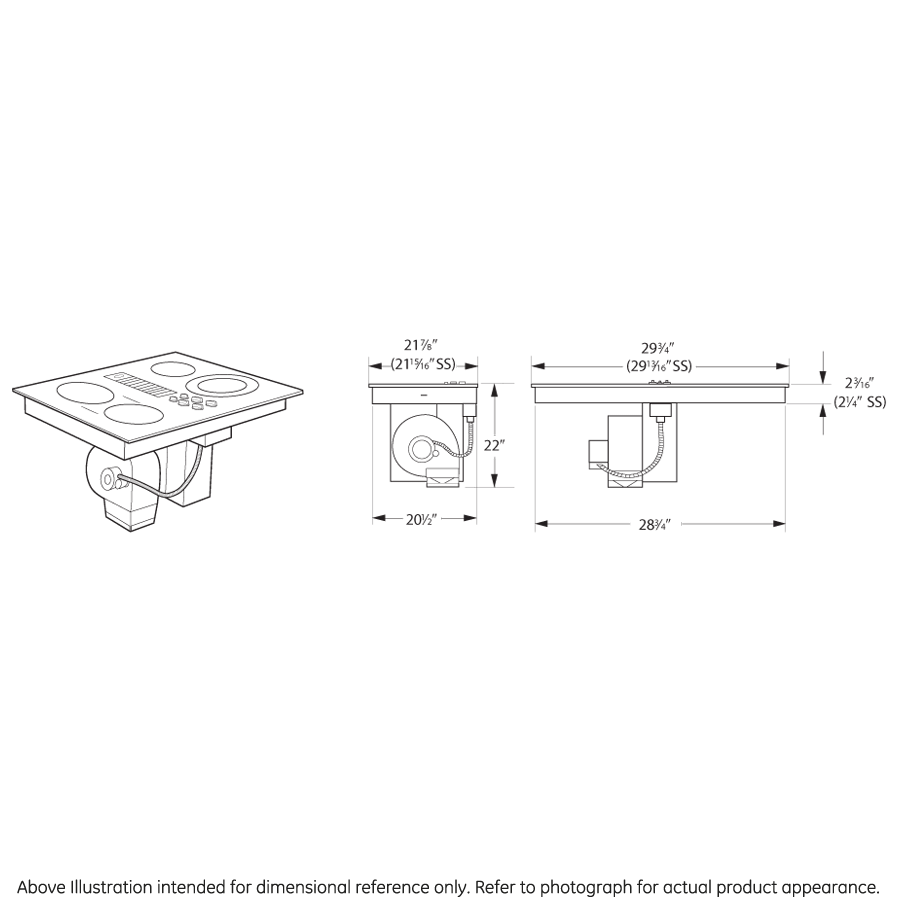

Dimensions & Capacity Width: 29 3/4"
Height: 21 7/8"
Depth: 2 1/2"
- Power Burner
- Downdraft Venting
- Glass Surface
APPEARANCE | |
Color Appearance | Black |
Frameless | Yes |
WARRANTY | |
Parts Warranty | Limited 1-year entire appliance |
Warranty Notes | See written warranty for full details |
Labor Warranty | Limited 1-year entire appliance |
POWER / RATINGS | |
KW Rating at 208V | 6.9 |
Amp Rating at 240V | 40 |
KW Rating at 240V | 9.1 |
Amp Rating at 208V | 40 |
ACCESSORIES | |
Optional Accessories | Alternate Installation Kit (WB01X24570) |
Cooktop Cleaning | WX10X10020 |
WEIGHTS & DIMENSIONS | |
Cooktop Size | 30 |
Overall Height | 21.875 |
Cabinet Width | 30 |
Approximate Shipping Weight | 60 |
Cutout Dimensions (Width x Depth) (In.) | 28-7/8 x 20-5/8 |
Overall Width | 29.75 |
Net Weight | 45 |
Overall Depth | 2.5 |
FEATURES | |
Bridge Element | 800W (4400W Total) |
Cooktop Burner Type | Ribbon |
Fuel Type | Electric |
Element - Left Front | 7' 1800W |
Indicator Lights | 4 Hot Surface Surface Element 'ON' |
Element - Right Front | 9'/6' 3000W Power Boil |
Control Location | Front Center |
Cooktop Type | Radiant Smoothtop |
Cooktop Surface | Patterned Black on Black Glass Ceramic |
Cooktop Control Features | Control Lock Capability |
Element - Left Rear | 7' 1800W |
Control Type | Infinite Heat Rotary |
Downdraft Vent Fan Speeds | 3 |
CFM/ Sones Rating | 400/ 7.0 (High Speed) |
Element - Right Rear | 6' 1500W |
