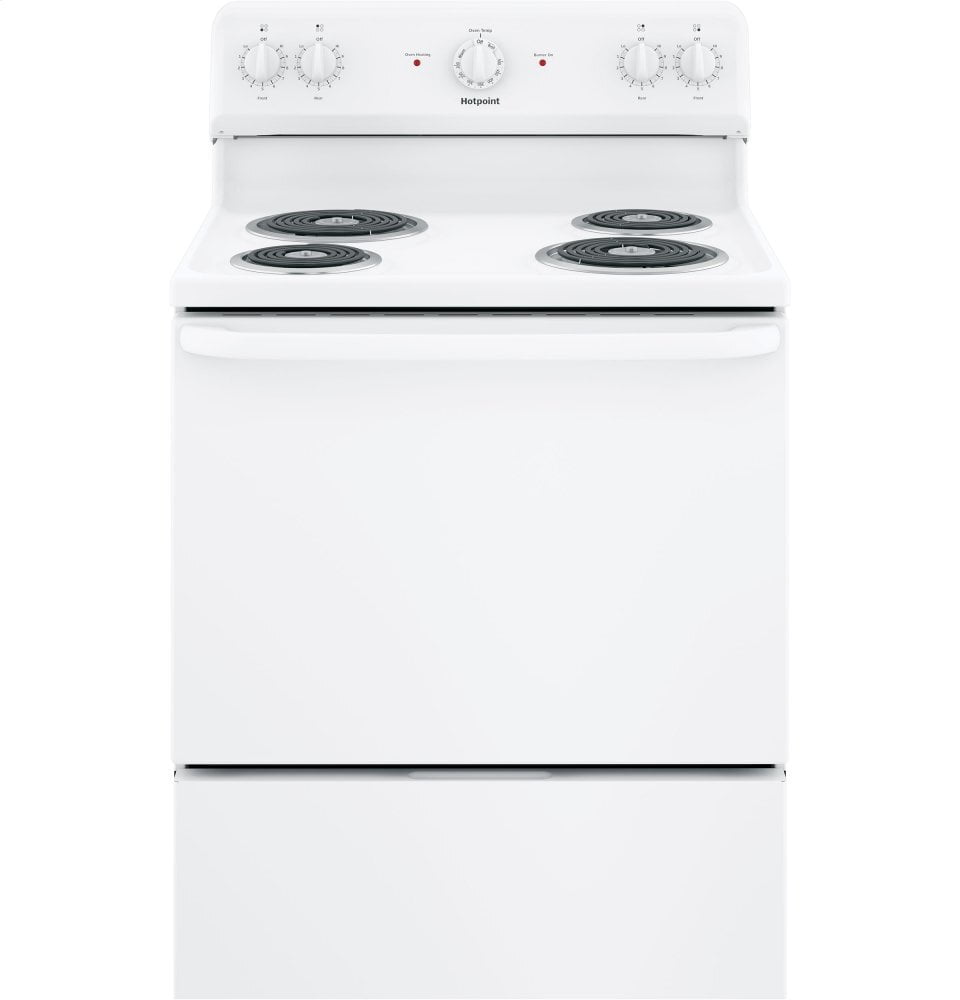

Hotpoint RBS160DMWW Hotpoint® 30" Free-Standing Electric Range
Rebates &
Promotions
Standard clean oven
Smooth surface makes cleaning by hand easier

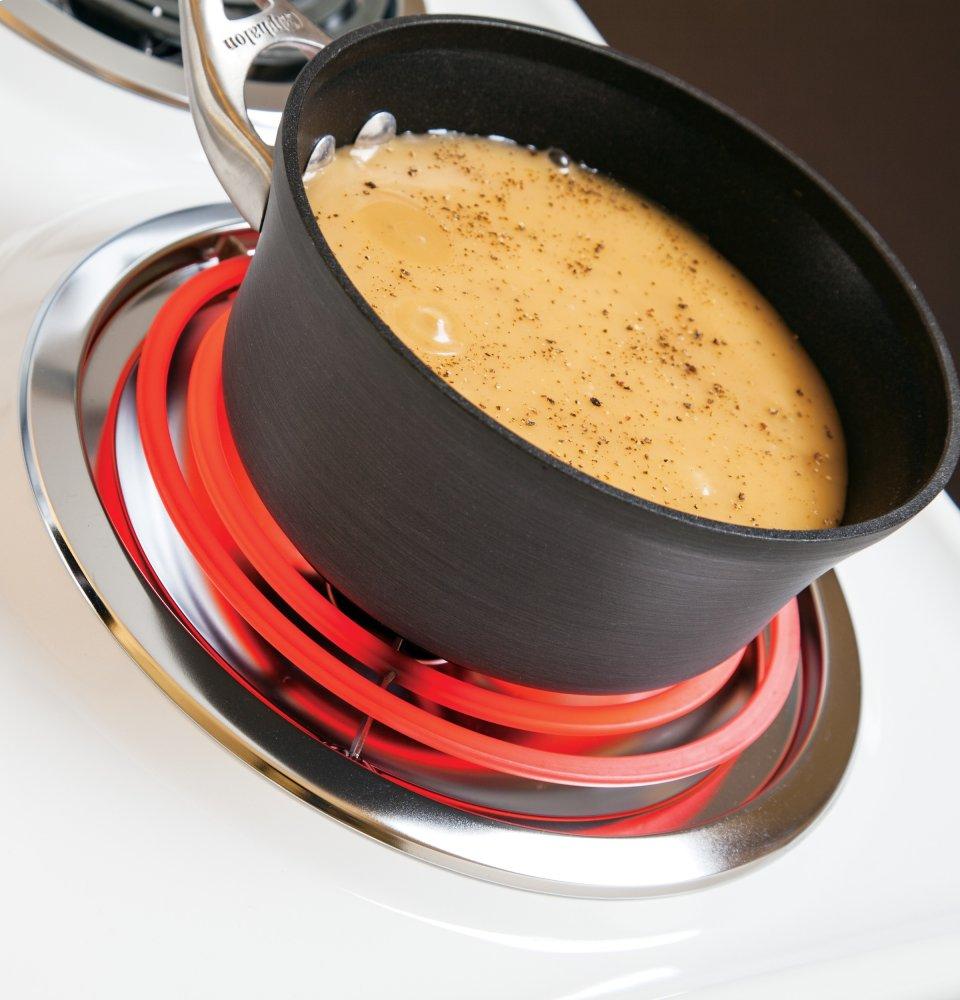

Sensi-temp technology
Enjoy the same cooking power as a traditional coil with an added safety feature that meets the new UL858 Household Electric Ranges Standard for Safety

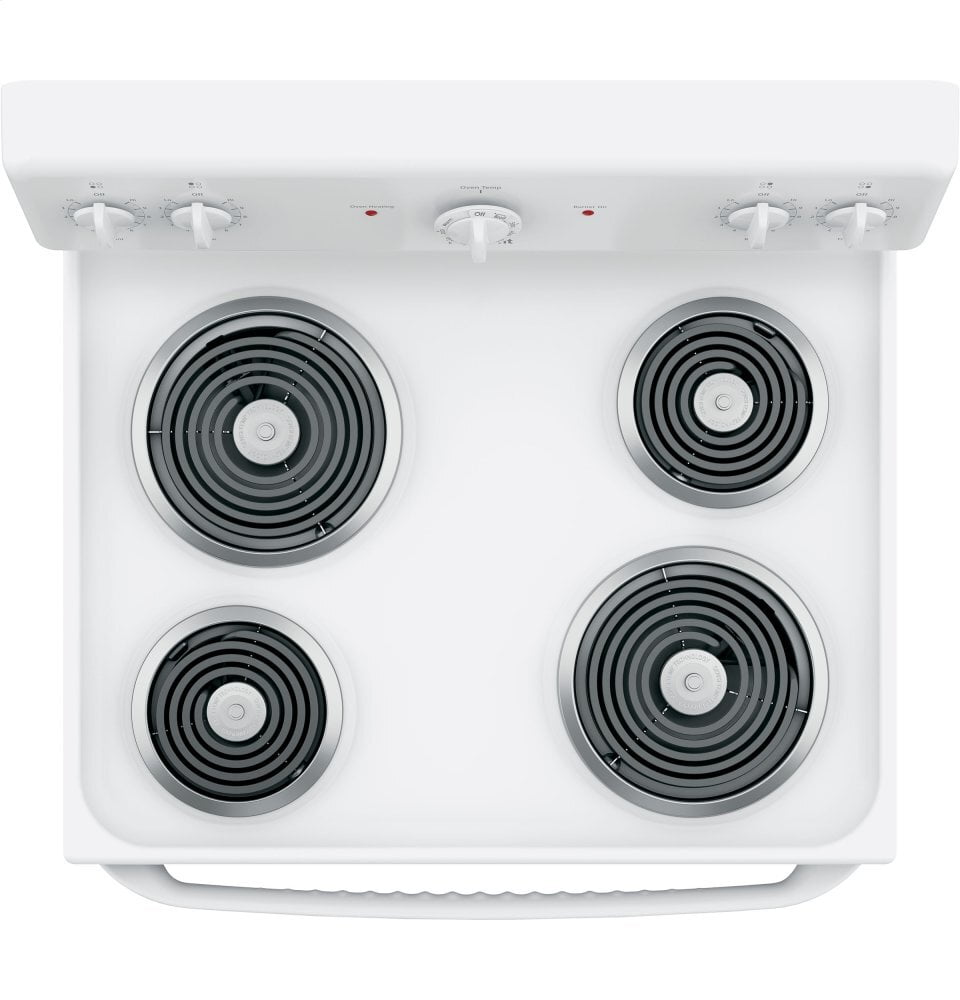

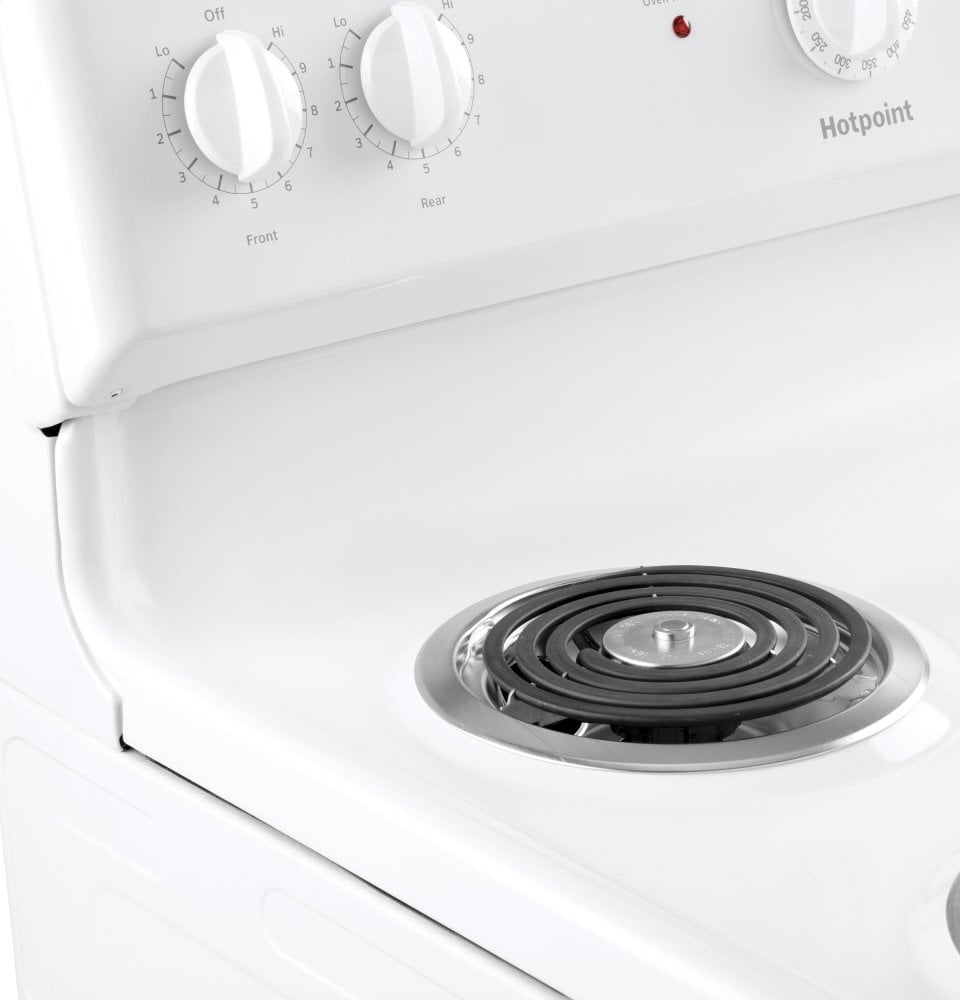

Porcelain upswept cooktop
Raised edges contain spills, while the surface is easy to wipe clean
Chrome drop bowls
Contain spills and remove for easy cleaning

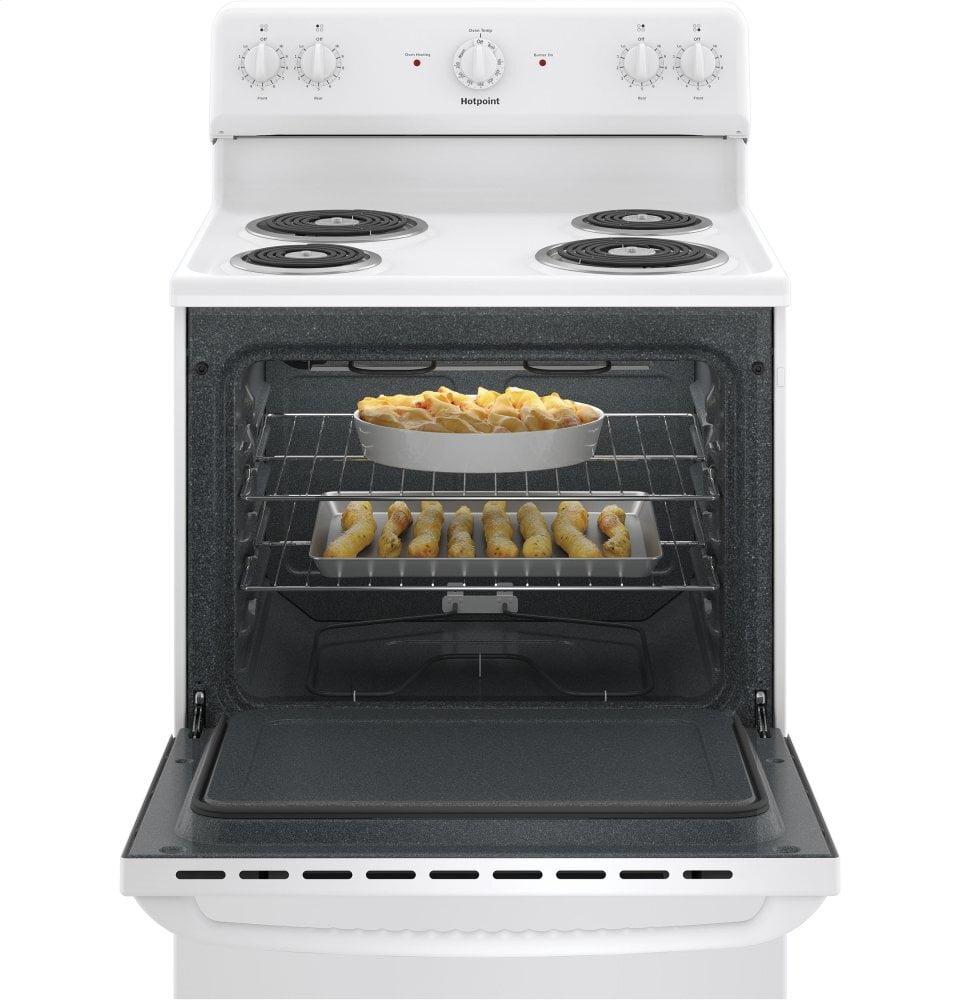

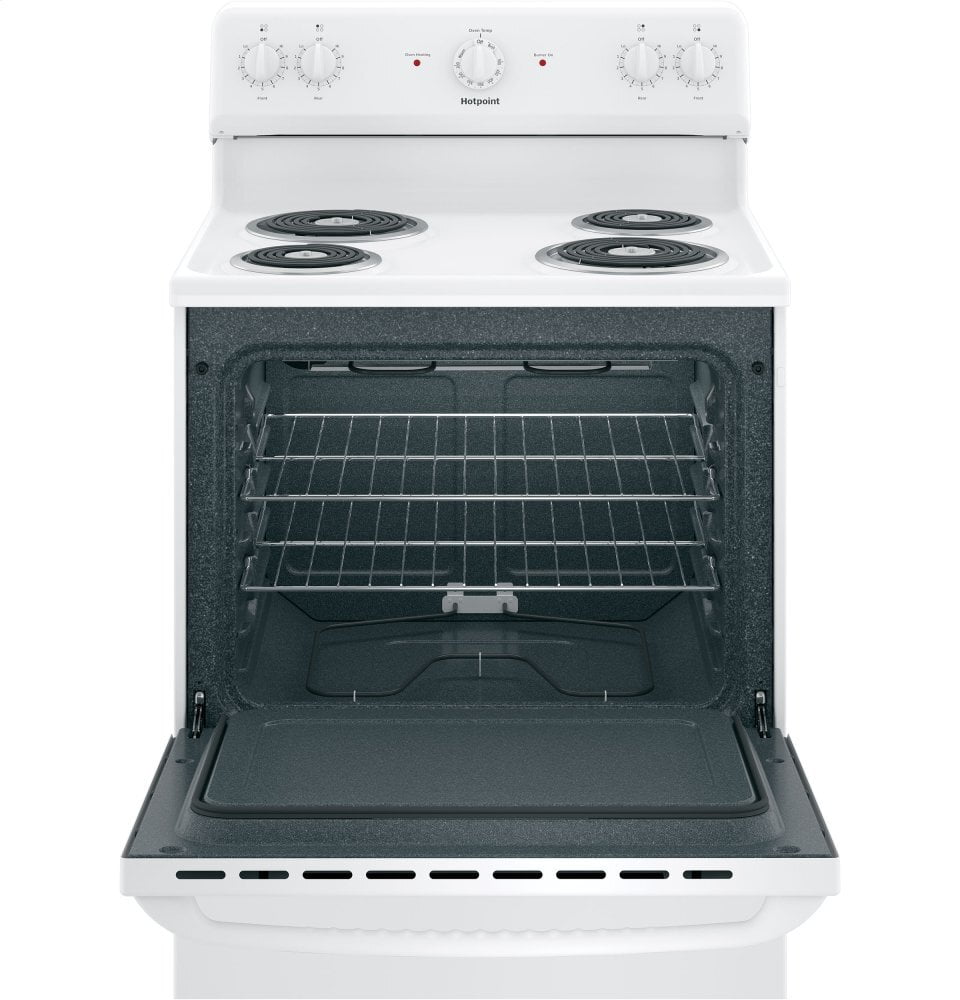

Two oven racks
Feature a durable construction to help accommodate any size or type of cookware

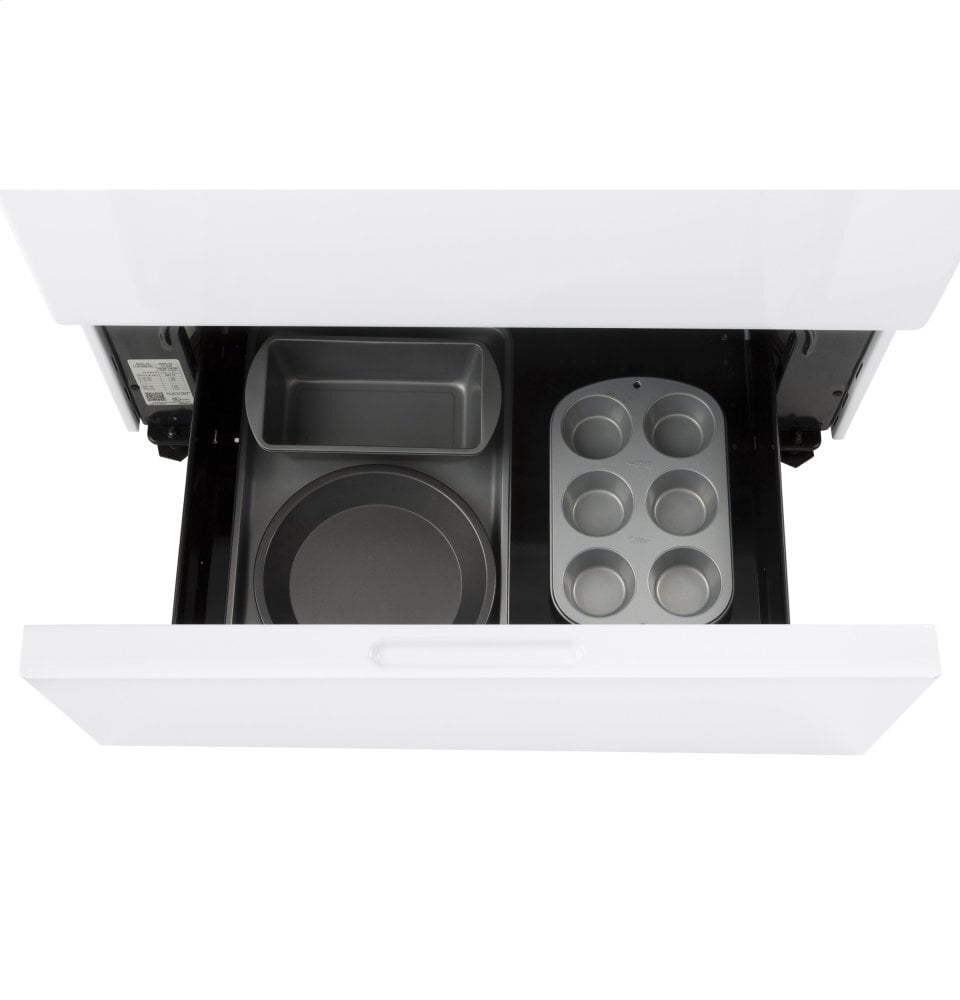

Removable full-width storage drawer
Store cookware or kitchen accessories
5.0 cu. ft. oven capacity
Cook more dishes at once

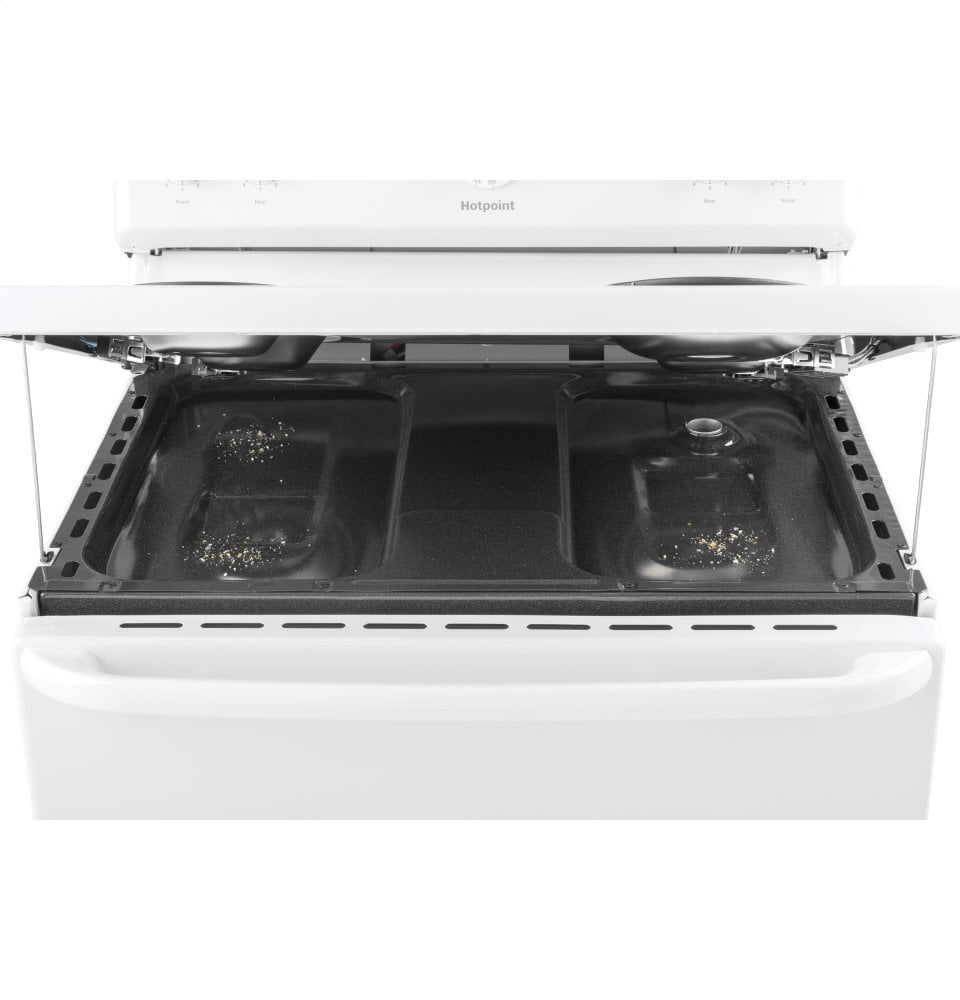

Lift-up cooktop
Quickly clean up spills and remove crumbs from the subtop
- Standard clean oven
- Sensi-temp technology
- Porcelain upswept cooktop
- Chrome drop bowls
- Two oven racks
- Removable full-width storage drawer
- 5.0 cu. ft. oven capacity
- Broiler pan with grid
- Visor handle

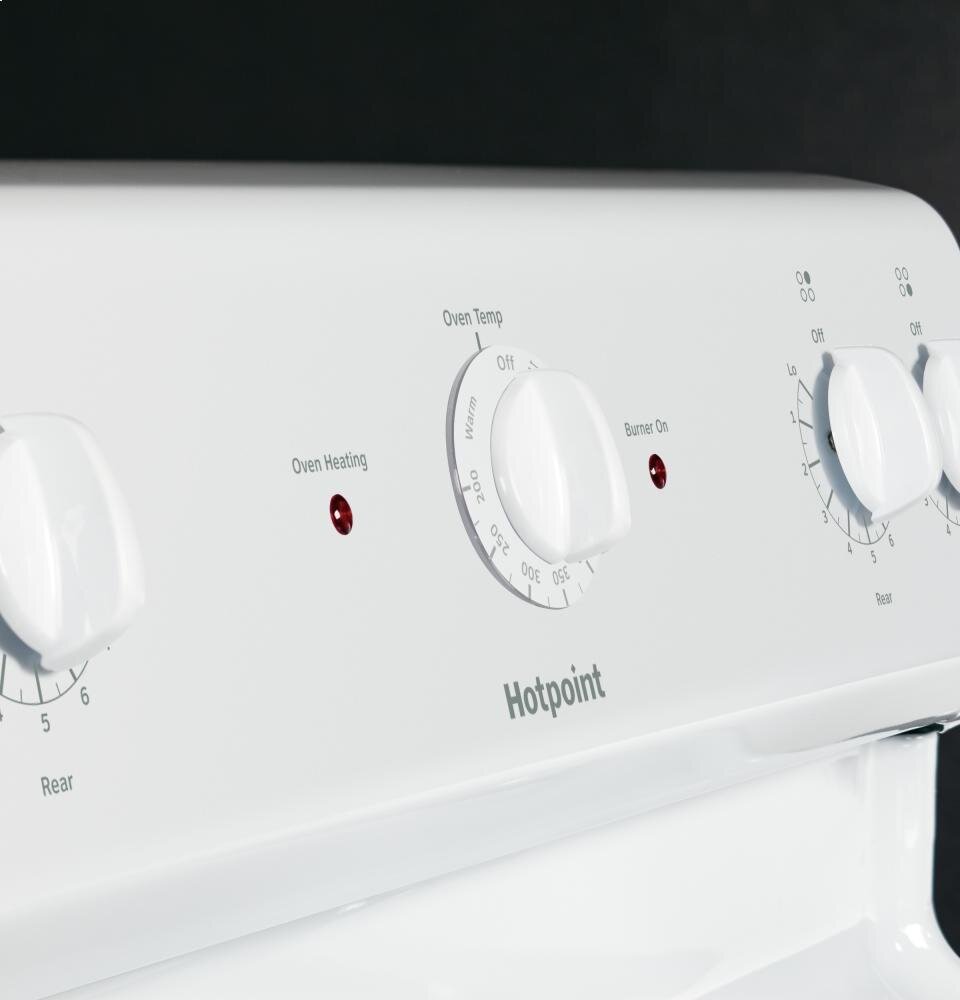

- Cooktop "On" Indicator Light
- Lift-up cooktop
CAPACITY | |
Total Capacity (cubic feet) | 5.0 |
APPEARANCE | |
Control Knobs | Color-Matched |
Handle | Color-Matched |
Color Appearance | White |
POWER / RATINGS | |
KW Rating at 208V | 8.0 |
Bake Wattage | 2585W |
KW Rating at 240V | 10.1 |
Broiler Wattage | 3410W |
Amp Rating at 208V | 40 |
Amp Rating at 240V | 40 |
WARRANTY | |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
WEIGHTS & DIMENSIONS | |
Net Weight | 135.0 |
Height to Cooking Surface (in.) | 36 - 36 1/2 |
Overall Depth | 28.75 |
Depth with Door Open | 46.75 |
Oven Interior Dimensions (W x H x D) (in.) | 23-3/4 x 19 x 18-1/2 |
Overall Width | 30.0 |
Overall Height | 46.75 |
Approximate Shipping Weight | 155.0 |
Cabinet Width | 30.0 |
FEATURES | |
Oven Cleaning Type | Standard Clean |
Cooktop Burner Type | Coil |
Infinite Heat Controls | Yes |
Element - Left Front | 6' 1250W Temp Limiting Coil |
Oven Rack Features | 2 Oven Racks 6 Rack Positions |
Oven Features | 4-Pass Bake Element 4-Pass Broil Element |
Removable One-Piece Drip Bowls | Chrome |
Fuel Type | Electric |
Cooking Technology | Traditional |
Cooktop Surface | One-Piece Upswept Porcelain-Enamel |
Configuration | Range with Storage Drawer |
Lift-Up Cooktop With Support Rods | Yes |
Element - Right Front | 8' 2400W Temp Limiting Coil |
Oven Control Features | Oven 'ON' Light |
Cooktop Type | Coil |

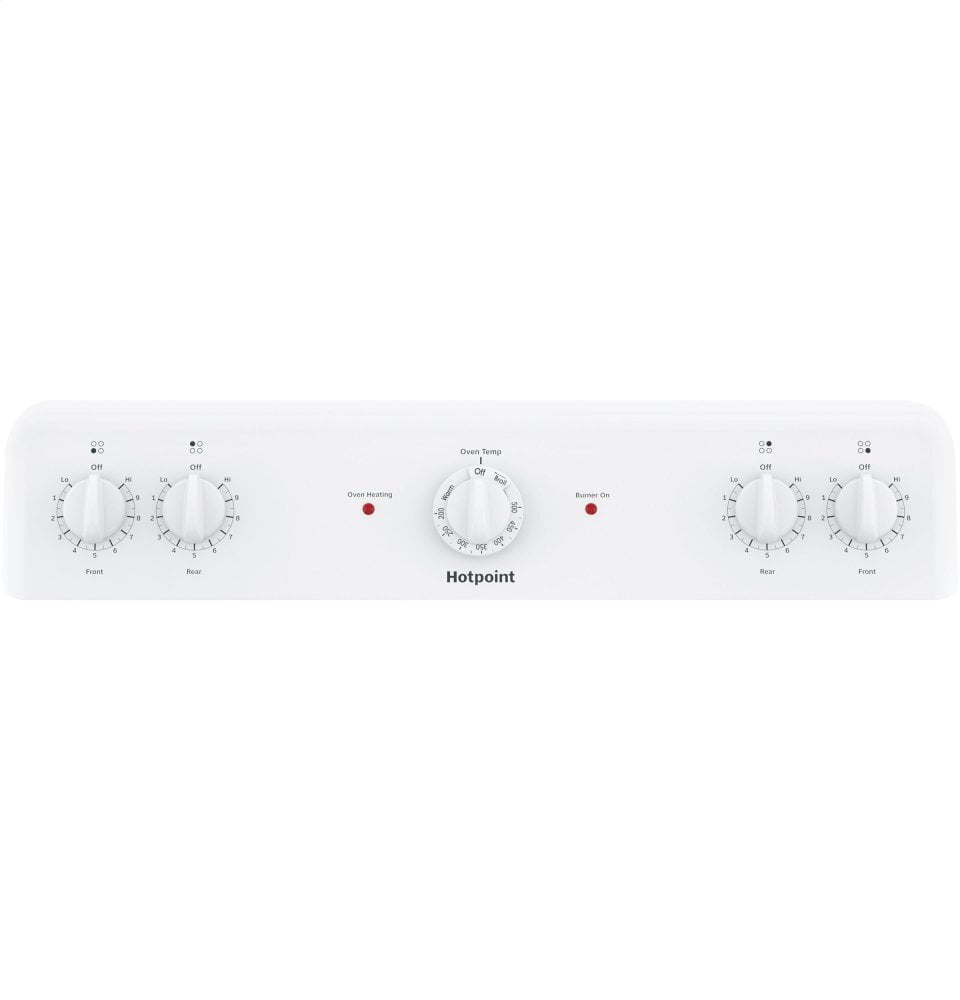

Control Location | Backsplash |
Element - Right Rear | 6' 1250W Temp Limiting Coil |
Storage Drawer Features | Removable Full-Width |
Heating Element 'ON' Indicator Light | Yes |
Element - Left Rear | 6' 1250W Temp Limiting Coil |
