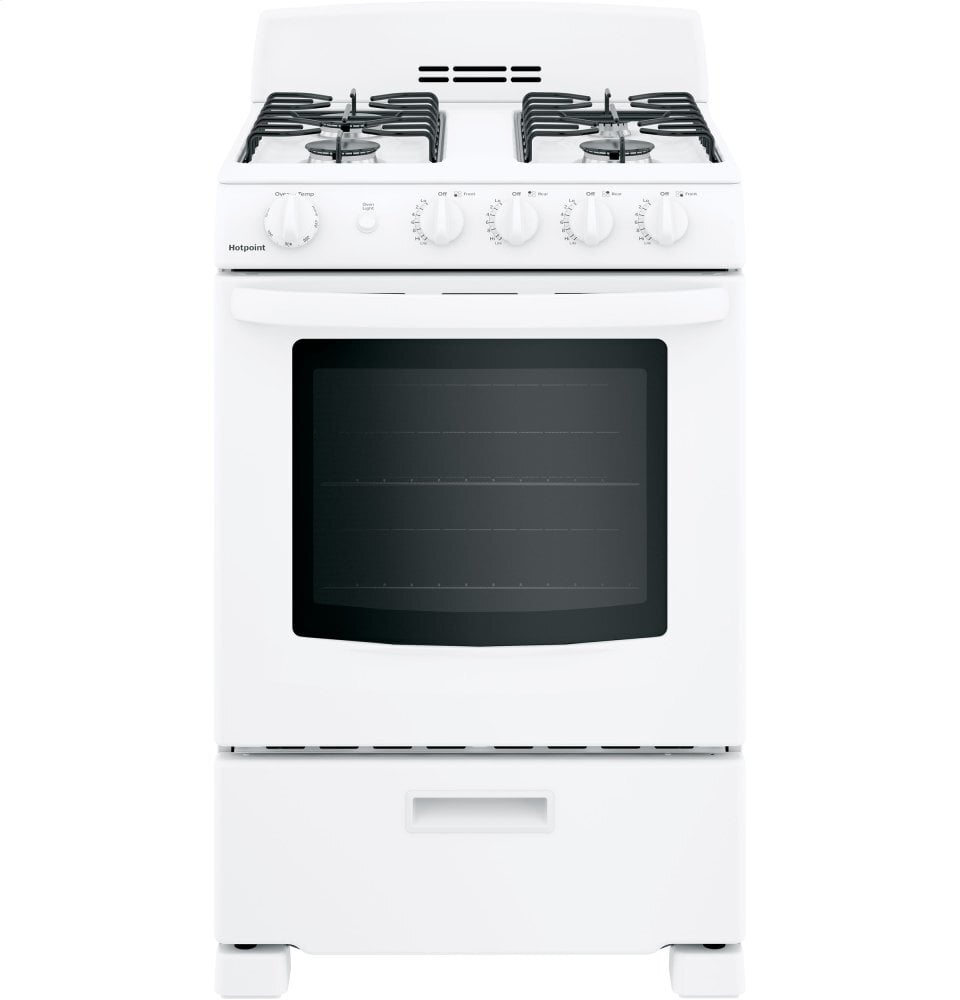

Hotpoint RGAS300DMWW Hotpoint® 24" Front-Control Free-Standing Gas Range With Large Window

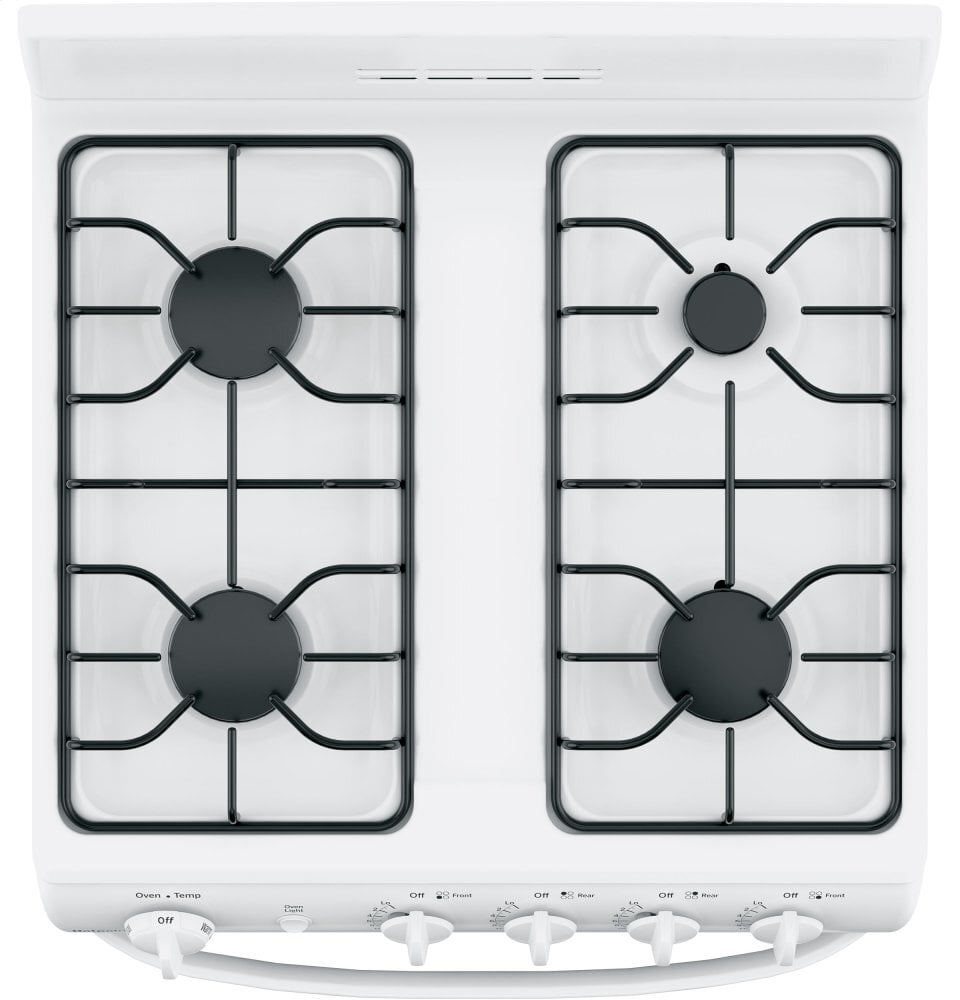

Sealed cooktop burners

Contains spills and make cleaning quick and easy

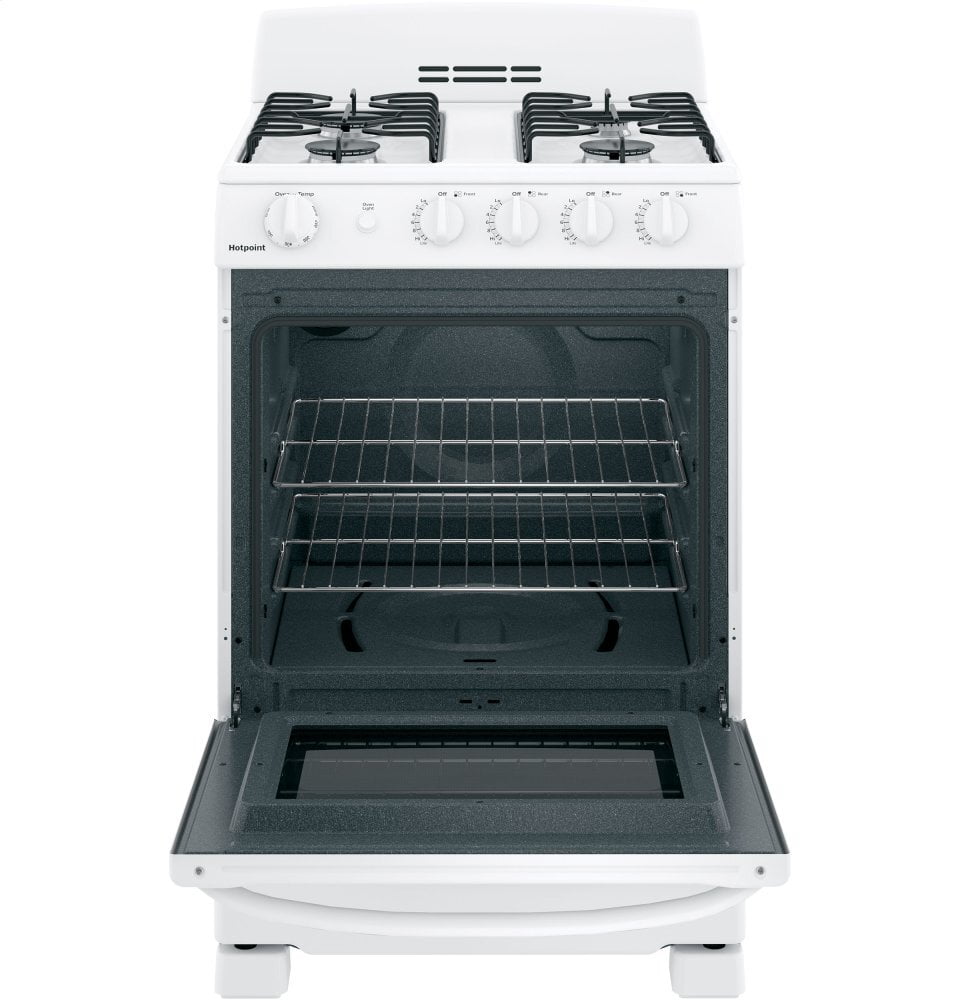

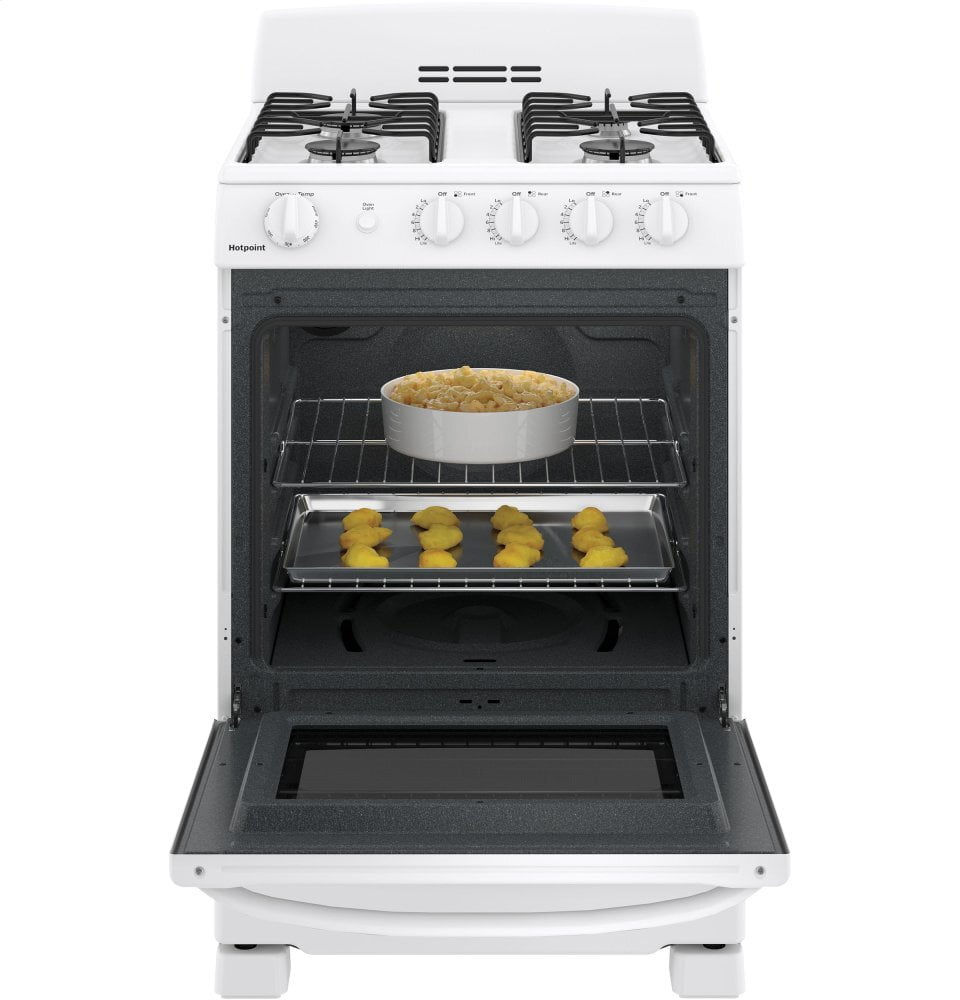

Two oven racks and multiple rack positions

Easily accommodate large cookware with two sturdy racks that can be placed in several positions
Standard clean oven

Smooth surface and rounded corners make clean-up quick and easy
Broiler drawer with grid

Achieve perfectly browned results

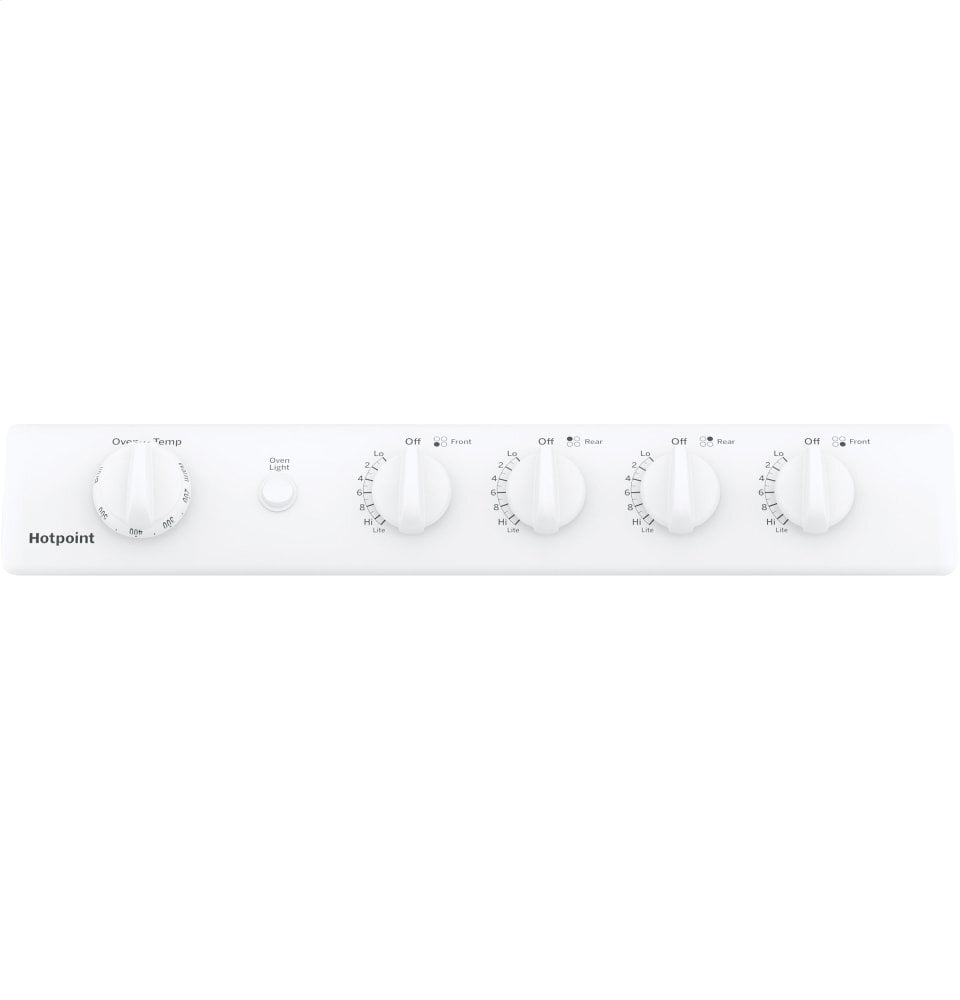

- Front controls
- Electronic pilotless ignition
- Porcelain oven door
- Sealed cooktop burners
- Two oven racks and multiple rack positions
- One-piece durable handle
- Large window
- Standard clean oven
- Broiler drawer with grid
CAPACITY | |
Total Capacity (cubic feet) | 2.9 |
APPEARANCE | |
Control Knobs | White |
Handle | Color-Matched |
Oven Door Features | Oven Window |
Color Appearance | White |
Door Swing | Pull-Down |
POWER / RATINGS | |
Top Burner BTU Rating - LP (000's BTU's) | (1) 12.0; (2) 9.5; (1) 5.0 |
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 13.0 |
Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 12.0; (2) 9.5; (1) 5.0 |
Volts/Hertz/Amps | 120V; 60Hz; 5A |
Bake/Broiler BTU Rating - LP (000's BTU's) | 13.0 |
WARRANTY | |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
WEIGHTS & DIMENSIONS | |
Net Weight | 89.0 |
Height to Cooking Surface (in.) | 36 3/4 |
Depth Without Handle | 24.625 |
Overall Depth | 26.625 |
Depth with Door Open | 44.375 |
Oven Interior Dimensions (W x H x D) (in.) | 19 x 15-3/8 x 17-1/8 |
Overall Width | 23.75 |
Overall Height | 41.875 |
Approximate Shipping Weight | 102.0 |
FEATURES | |
Burner - Right Front | 12,000 BTU |
Burner - Left Rear | 9,500 BTU |
Oven Cleaning Type | Standard Clean |
Cooktop Burner Type | Sealed |
Burner - Right Rear | 5,000 BTU |
Valves (Degree of Turn) | 140 |
Oven Interior | 1 Incandescent Light Blue Gray |
Oven Rack Features | 2 Flat Nickel Racks 4 Rack Positions |
Fuel Type | Natural Gas (factory set) |
Cooking Technology | Traditional |
Cooktop Surface | Porcelain-Enamel |
Configuration | Range with Broiler Drawer |
Leveling System | 4 Leveling Legs |
Burner - Left Front | 9,500 BTU |
Cooktop Burner Grate Material | Porcelainized Wire |
Oven Cooking Modes | Bake Broil |
Ignition System | Electronic |
Broiler Drawer | Yes |
Interior Oven Light | Yes |
Cooktop Type | Standard Grates |
Control Location | Front |
