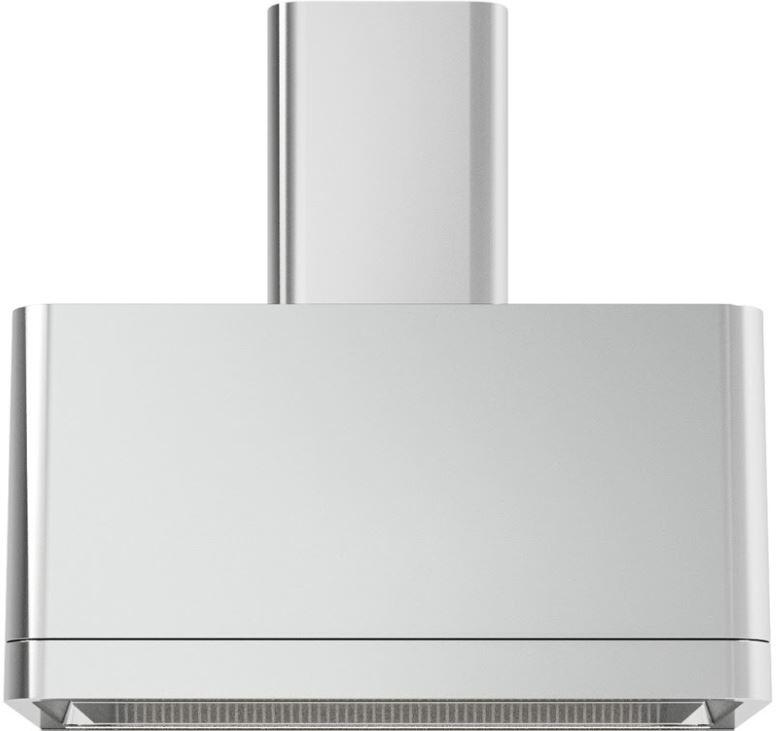

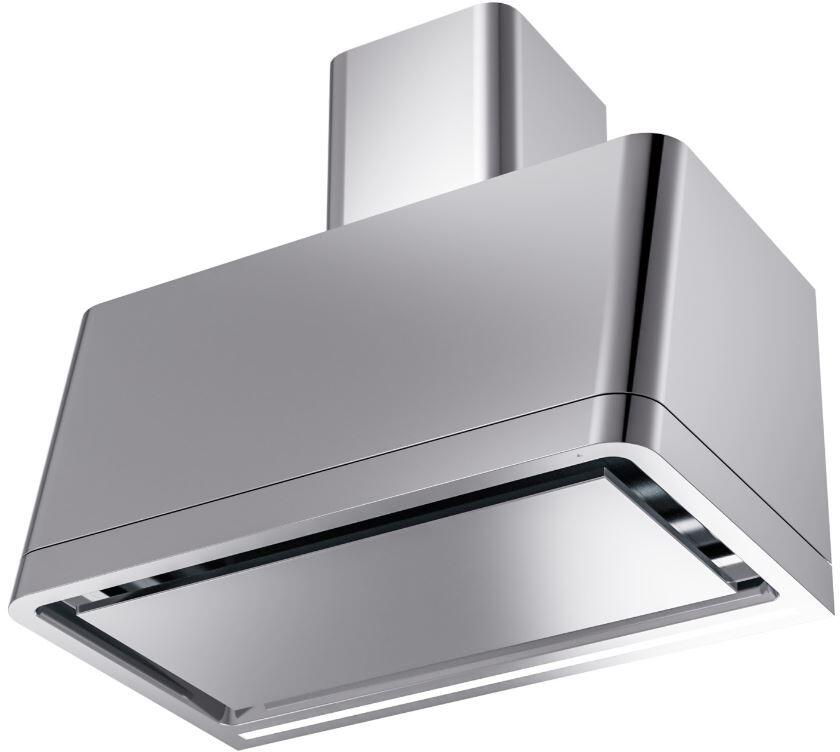

Ilve UAPM90SS Panoramagic 36 Inch Stainless Steel Wall Mount Range Hood
30" Panoramagic Hood By Ilve Comes As A Perfect Pair To Their Panoramagic Ranges, With 600 Cfm To Remove Smoke, Heat And Odor When You Are Cooking. It Comes Featured With Delayed Shutdown Provides A Additional Convenience As The Hood Continues To Keep Your Kitchen Fresh After You Leave, Anodised Aluminium Filters And Is Made From High Quality Aisi 304 Stainless Steel.
- Panoramagic
- ILVE: Live, Cook, Love
- Live
- Cook
- Love
- Reliability: a value that lasts over time.
- Front LED bar
- Painted steel body, AISI 304 stainless steel (only inox version)
- Anodised aluminium filters
- Automatic filter cleaning warning light
- Perimetral ex traction with maximum air flow 600 cfm / 850 cfm on mod UAPM120
- Maximum power 450 W
- Four-speed backlit touch controls
- Flue outlet hole dimension 5" 7/8 - 7" 7/8 on mod UAPM120
- 3 speeds + intensive
- Automatic delayed shutdown
Appearance | |
Type | Hood |
Glass Canopy | No |
Style | Canopy Pro Style |
Color | Stainless Steel |
Details | |
Duct Type | Round |
Venting Type | Ducted |
Blower Type | Internal |
Vent Location | Top |
CFM | 600 CFM |
Light Bulb Type | LED |
Number of Fan Speeds | 3 or More |
Delay Turn Off | Yes |
Fan | Yes |
Light | Yes |
Electrical Specifications | |
Volts | 120 Volts |
Amps | 15 Amps |
Frequency | 60 Hz. |
Dimensions | |
Exterior Width | 36' |
Duct Diameter | 5.875' |
Height | 48.875' |
Depth | 22' |
Width | 35.875' |
Features | |
Luxury | Yes |
Anodized Aluminum Grease Filters | Yes |
Strip LED Lighting | Yes |
AISI 304 Stainless Steel Body | Yes |
Delay Shut Off | Yes |
Perimeter Venting | Yes |
