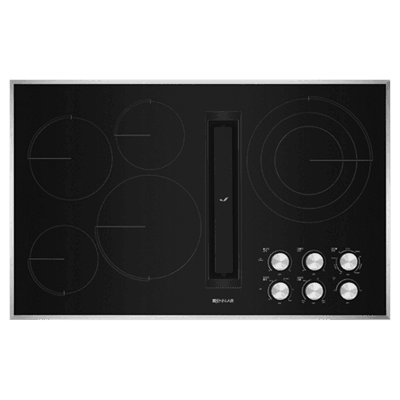

Jennair JED3536GS Euro-Style 36" Jx3 Electric Downdraft Cooktop
Rebates &
Promotions
JennAir Curate Rebate - Receive up to 15% off in instant savings with purchase of 2 or more qualifying JennAir Appliances. Download Valid: 07/01/2024-12/31/2024
This Jenn-AirĀ® Luxury Electric Radiant Downdraft Cooktop Offers A Sleek Cooking Surface With Five Radiant Elements, Which Offer Responsive Performance. It Also Features The Impressive Jx3 Downdraft Ventilation System, Which Quickly And Efficiently Clears The Air Without A Hood.
- JX3 Downdraft Ventilation System with 3 Speeds - Developed and refined by JennAir(R), this downdraft ventilation system uses proximity ventilation that helps capture smoke, steam and odors at the cooking surface, whisking them down and out for a fresh, clean kitchen. It has been designed to provide optimal cooking performance, relying on a vertically mounted, 297 CFM Motor Class 1 blower system. 1 Performance varies based on installation. Resources available at aham.org.
- Perimetric Extraction - Provides exceptional ventiliation performance built into an attractive design by capturing cooking vapors through a thin slot and speeding the air, all while maintaining quiet operation.
- 12"/9"/6" Triple-Choice Element - This three-tiered element reaches a high of 3,000 watts at its highest setting and can reach a low of 1,050 watts allowing you to experience the ultimate versatility in power levels and heating efficiency, accommodating various-sized cookware.
- Color-Coordinating Die-Cast Metal Knobs - Robust, die-cast metal knobs offer precise control and color-coordinate with either the Euro-Style Stainless or Black design of these cooktops.
- DuraFinish(R) Glass Protection - DuraFinish(R) Glass Protection helps keep your ceramic glass cooktop's surface looking like new by resisting scratching.
- Convertible to Duct-Free Ventilation - Keep the view from your kitchen open and free from ductwork with this optional kit that allows conversion to duct-free ventilation.
Specs | |
Dimensions | |
Depth (in) | 22-1/16 |
Height (in) | 3.65625 |
Width (in) | 36-5/16 |
Configuration and Overview | |
Size (in) | 36 |
Cooktop Type | Downdraft |
Fuel Type | Electric Radiant |
LP Convertible | No |
Installs Over Built-In Oven | No |
Power Boost | No |
Controls | |
Knob Color | Stainless Steel |
Infinite Heat Controls | Yes |
Knob Type | Metal |
Location of Controls | Right Front |
Cooktop Details | |
Automatic Pan Detection | No |
Downdraft Vent | Yes |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Cooktop Element Style | Radiant |
Cooktop Surface Color | Black |
Number of Cooking Element-Burners | 5 |
Center Front Element-Burner Size | 10'' |
Center Rear Element-Burner Size | 6'' |
Left Front Element-Burner Size | 6'' |
Left Rear Element-Burner Size | 8'' |
Left Rear Element-Burner Type | Single |
Right Rear Element-Burner Size | 12''/9''/6'' |
Appearance | |
Digital Display | No |
Ventilation System | |
Number of Speeds | 3 |
Electrical | |
Power Cord Included | No |
Features | |
Power Outage Compatible | No |
Design Type | |
Design Expression | Stainless Steel |
Details | |
Cooktop Surface Material | Ceramic Glass |
Energy | |
Annual Energy Usage [kWh] | 258.0 |
