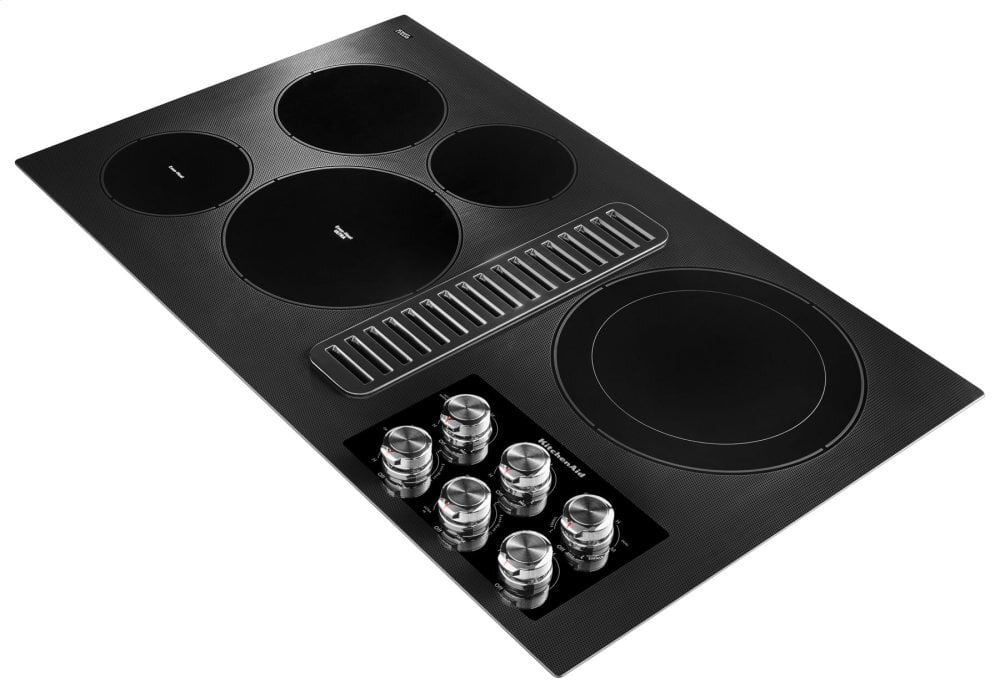

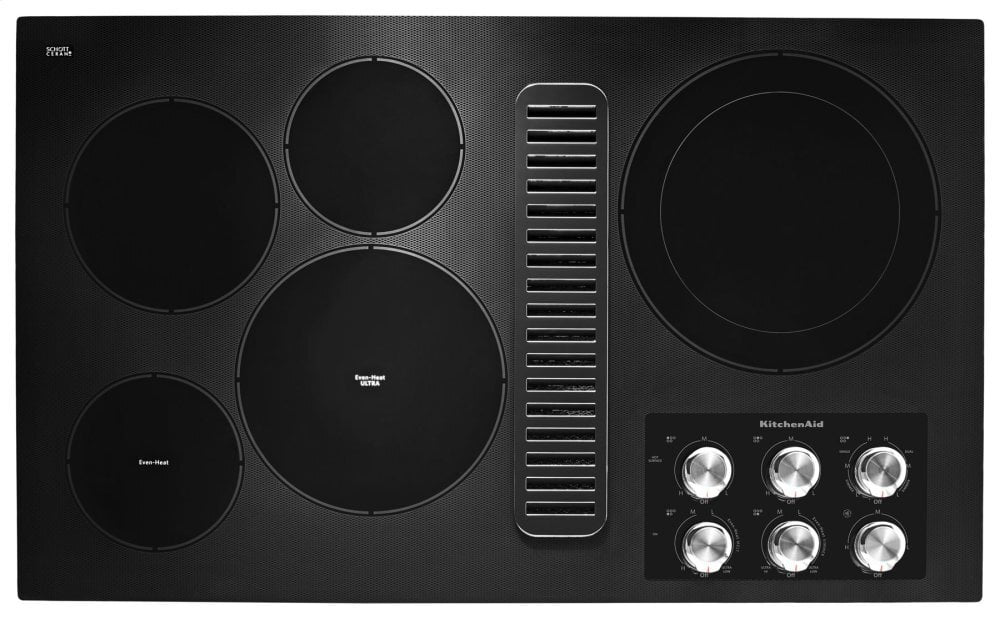

Kitchenaid KCED606GBL 36" Electric Downdraft Cooktop With 5 Elements - Black
Rebates &
Promotions
Receive up to a $3000 rebate with purchase of qualifying KitchenAid Brand Appliances. - Receive up to a $3000 rebate with purchase of qualifying KitchenAid Brand Appliances. Download Valid: 07/01/2025-12/31/2025
KitchenAid Buy More Save More Delivery and Installation Allowance - Enjoy exclusive rebate savings with purchase of qualifying KitchenAid appliances. Download Valid: 11/01/2025-12/10/2025

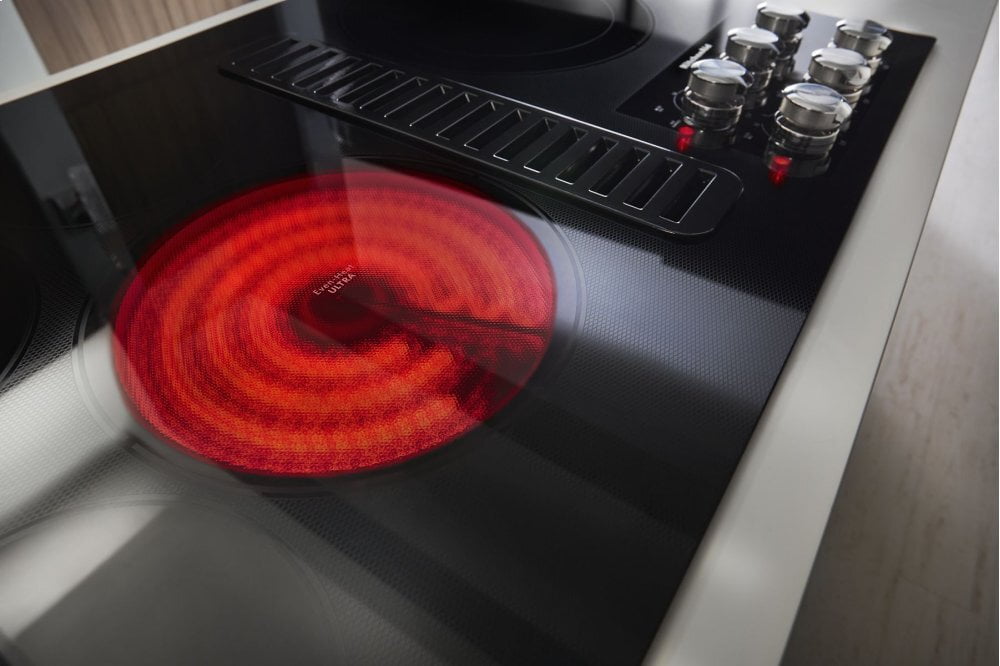

10'' Even-Heat Ultra Element with Simmer Setting

Provides more versatility for high and low temperature cooking techniques. Even-Heat Technology maintains a constant supply of power and delivers a range of simmer settings.

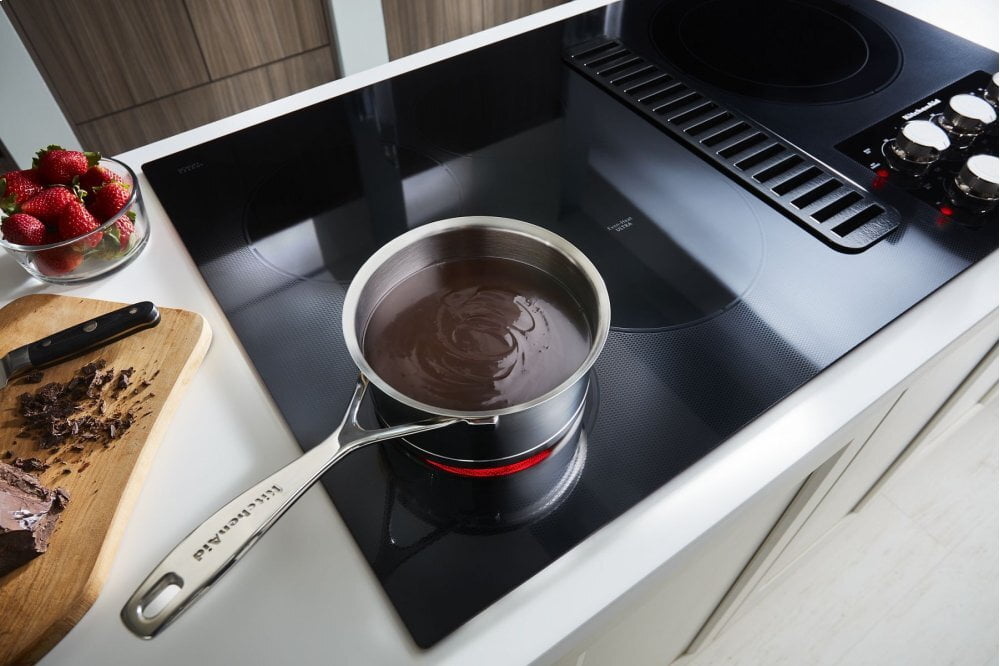

6'' Even-Heat Element with Melt Setting

Combines the benefits of Even-Heat Technology with a dedicated setting that reaches the low temperatures needed to melt chocolate or butter without scorching.
3-Speed Fan Control

Can be precisely matched to cooking needs, effectively removing steam, grease, and odors from the air.
12''/9'' Double-Ring Element

Lets you use different cookware sizes at one location. When using large, 12-inch cookware the entire element surface is used. For smaller cookware, you'll use only the 9-inch inner element.
Convertible to Duct-Free Ventilation

Allows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.
Hot-Surface Indicator

Provides a clear indication that lets you know if any cooking surface is on or still hot.
Pure Color Ceramic-Glass Surface

Comes in saturated colors with stainless steel control knobs for a sophisticated, easy-to-clean appearance.
8'' Round Element

Efficiently heats a commonly used pan size and can reach a power output of up to 1800 watts for every day use.
- Downdraft Ventilation - Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.
- 300 CFM Exhaust Rating - Handles the venting requirements of high temperature cooking techniques like pan searing and stir-frying.
- CookShield Finish for Glass Surface - Protects the cooktop surface from scratches, helping keep it looking pristine even with frequent use.
- Power-On Indicator Light - Lets you know at a glance when an element is on.
- Stainless Steel Knobs - Enhance the look of the cooktop surface with sturdy construction that adds to their premium feel.
- 6'' Round Element - Can reach a power output of up to 1200 watts to handle your daily cooking needs.
| Specifications | |
| Dimensions | |
| Cutout Depth | 21-1/8 in |
| Cutout Width | 34-9/16 in |
| Depth | 22-1/16 in |
| Height | 3-5/8 in |
| Maximum Height | 18-3/4 in |
| Width | 36-5/16 in |
| Configuration and Overview | |
| ADA Compliant | No |
| Cooktop Type | Downdraft |
| Fuel Type | Electric |
| Installs Over Built-In Oven | No |
| LP Convertible | No |
| Power Boost | No |
| Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov . |
| Size | 36 in |
| UL | UL |
| Controls | |
| Infinite Heat Controls | Yes |
| Knob Color | Color Coordinated |
| Knob Type | Metal |
| Location of Controls | Right Side |
| Cooktop Details | |
| Automatic Pan Detection | No |
| Center Front Element-Burner Power | 3200W |
| Center Front Element-Burner Size | 10'' |
| Center Front Element-Burner Type | Even-Heat Ultra |
| Center Rear Element-Burner Power | 1200W |
| Center Rear Element-Burner Size | 6'' |
| Cooktop Element Style | Radiant |
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Ceramic Glass |
| Downdraft Vent | Yes |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
| Left Front Element-Burner Power | 1300W |
| Left Front Element-Burner Size | 6'' |
| Left Front Element-Burner Type | Even-Heat |
| Left Rear Element-Burner Power | 1800W |
| Left Rear Element-Burner Size | 8'' |
| Left Rear Element-Burner Type | Single |
| Number of Cooking Element-Burners | 5 |
| Power Outage Compatible | No |
| Right Rear Element-Burner Size | 12''/9'' |
| Right Rear Element-Burner Type | Dual |
| Appearance | |
| Digital Display | No |
| Ventilation System | |
| Number of Speeds | 3 |
| Electrical | |
| Hz | 60 |
| Power Cord Included | No |
| Features | |
| Power Outage Compatible | No |
| Energy | |
| Annual Energy Usage [kWh] | 258.0 |
