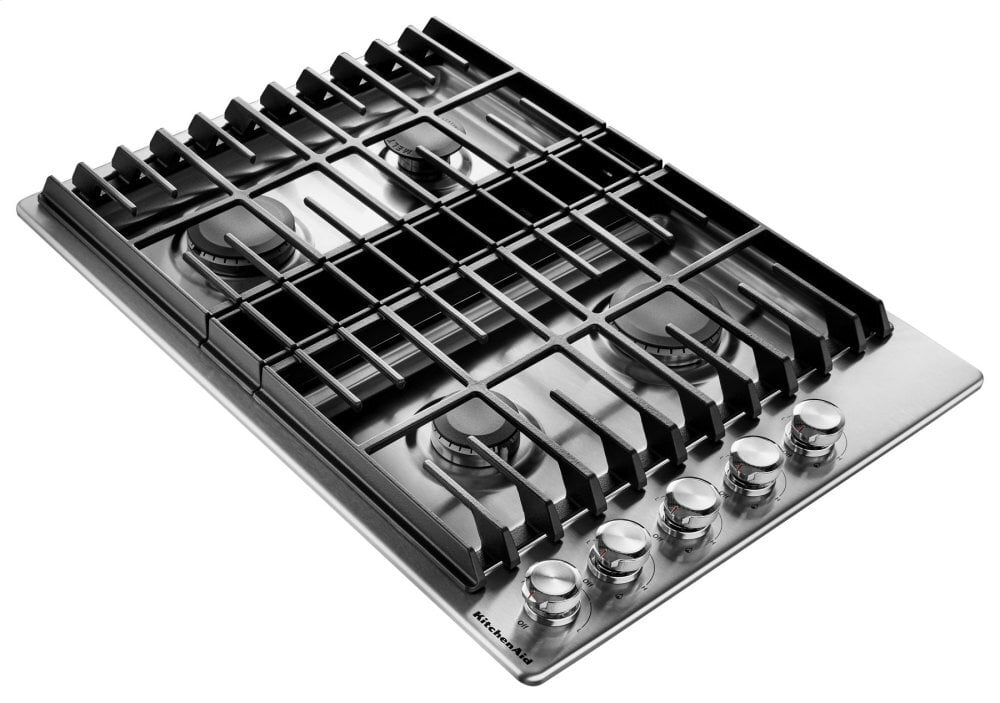

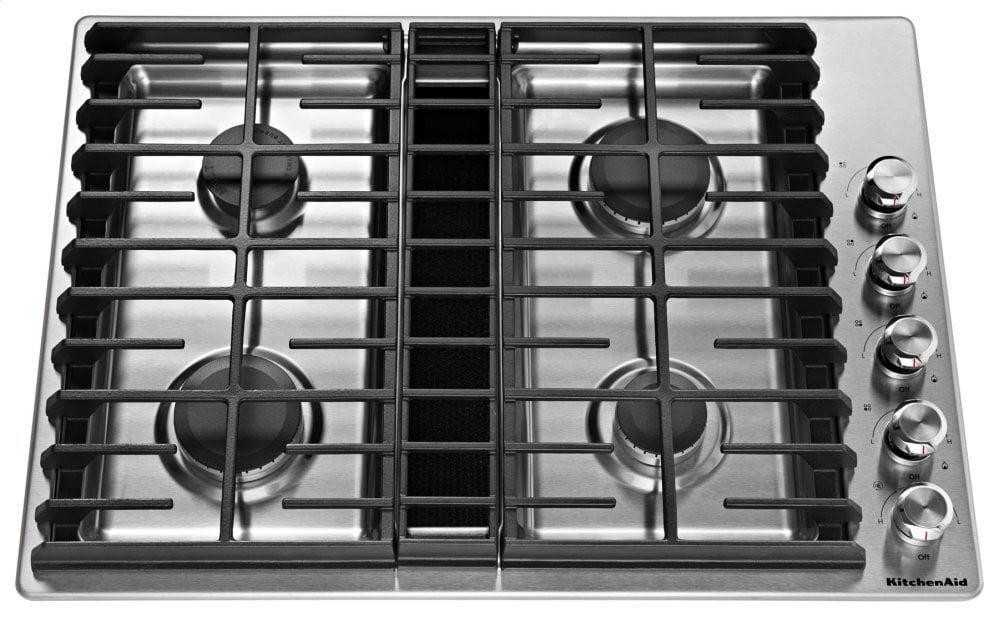

Kitchenaid KCGD500GSS 30" 4 Burner Gas Downdraft Cooktop - Stainless Steel
Rebates &
Promotions
17K BTU Professional Burner
Provides the ability to use high-temperature cooking methods such as searing, stir-frying, and wok cooking as well as low temperatures suitable for simmering.
3-Speed Fan Control
Can be precisely matched to cooking needs, effectively removing steam, grease, and odors from the air.
Convertible to Duct-Free Ventilation
Allows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.
Electronic Ignition and Automatic Re-Ignition
Lights burners with an electric spark instead of a pilot light. For more reliable performance, burners are relit if the flame is blown out.
Full-Width Cast-Iron Grates
Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.
The KCGD500GSS Kitchenaid gas cooktop with downdraft can sizzle up dinner while it keeps the air clear. Its 17K BTU Professional Burner provides the power you need for high-temperature endeavors like searing steaks and boiling water. Alternatively, turned to its lowest setting, the Professional Burner on this 30" gas downdraft cooktop will simmer your favorite sauces smoothly. Offering the versatility to prepare multiple dishes at once, the KCGD500GSS includes a second Professional Burner which outputs an impressive 15K BTU. Weather you're whipping up a stirfry, boiling water for pasta, or both, this Kitchenaid gas cooktop with downdraft has the power you need to get going fast. And for more delicate heating tasks, a 5K BTU Even-Heat™ burner offers a gentle flame, perfect for softening butter or melting chocolate. Lastly, the 10K BTU burner in the front right corner of this 30" gas downdraft cooktop offers excellent all around performance.
- 17K BTU Professional Burner: Provides the ability to use high-temperature cooking methods such as searing, stir-frying, and wok cooking as well as low temperatures suitable for simmering.
- 3-Speed Fan Control: Can be precisely matched to cooking needs, effectively removing steam, grease, and odors from the air.
- Convertible to Duct-Free Ventilation: Allows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.
- Electronic Ignition and Automatic Re-Ignition: Lights burners with an electric spark instead of a pilot light. For more reliable performance, burners are relit if the flame is blown out.
- Full-Width Cast-Iron Grates: Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.
- Downdraft Ventilation: Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.
- 5K BTU Even-Heat™ Simmer Burner: A diffuser plate allows more control of the flame at the lowest setting, for more precise simmering and melting.
- 300 CFM Exhaust Rating: Handles the venting requirements of high temperature cooking techniques like pan searing and stir-frying.
- 15K BTU Professional Burner: Reaches the high temperatures required to quickly get liquids to a boil and for high-temperature cooking techniques including getting a great sear on meat.
- Melt Cap: Melt chocolate or butter, simmer delicate sauces, or poach eggs on a low-power burner, thanks to a wider burner cap that shields and diffuses the flame to produce a gentler, low-power heat.
- Stainless Steel Knobs: Enhance the look of the cooktop surface with sturdy construction that adds to their premium feel.
- LP Conversion Kit: Allows you to convert the cooktop so it can be used with LP gas.
Specifications | |
Configuration and Overview | |
ADA Compliant | No |
Cooktop Type | Downdraft |
Fuel Type | Gas |
Installs Over Built-In Oven | No |
LP Convertible | Yes |
Power Boost | No |
Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov . |
Size | 30 in |
UL | UL |
Controls | |
Infinite Heat Controls | Yes |
Knob Color | Stainless Steel |
Knob Type | Metal |
Location of Controls | Right Side |
Cooktop Details | |
Automatic Pan Detection | No |
Cooktop Element Style | Sealed Burner |
Cooktop Surface Color | Color Coordinated |
Cooktop Surface Material | Stainless Steel |
Downdraft Vent | Yes |
Grate Details | Matte Finish, Continuous, Cast Iron Grates |
Heating Element On Indicator Light | No |
Hot Surface Indicator Light | No |
Ignition Type | Flame-Sensing Re-ignition |
Left Front Element-Burner Power | 17,000 BTU |
Left Front Element-Burner Type | Burner |
Left Rear Element-Burner Power | 5000 BTU |
Left Rear Element-Burner Type | Even Heat |
Number of Cooking Element-Burners | 4 |
Number of Grates | 3 |
Power Outage Compatible | Yes |
Right Front Element-Burner Power | 10,000 BTU |
Right Front Element-Burner Type | Burner |
Right Rear Element-Burner Type | Burner |
Appearance | |
Digital Display | No |
Ventilation System | |
Number of Speeds | 3 |
Electrical | |
Hz | 60 |
Power Cord Included | Yes |
Dimensions | |
Cutout Depth | 19-15/16 in |
Cutout Width | 28-5/8 in |
Depth | 21-1/2 in |
Height | 18-7/16 in |
Width | 30.0 in |
Features | |
Power Outage Compatible | Yes |
