Kitchenaid KCGS556ESS 36" 5-Burner Gas Cooktop - Stainless Steel
Rebates &
Promotions
KitchenAid Craft Your Dream Kitchen Rebate - Receive up to a $3000 rebate with purchase of qualifying KitchenAid Brand Appliances. Download Valid: 07/01/2024-12/31/2024

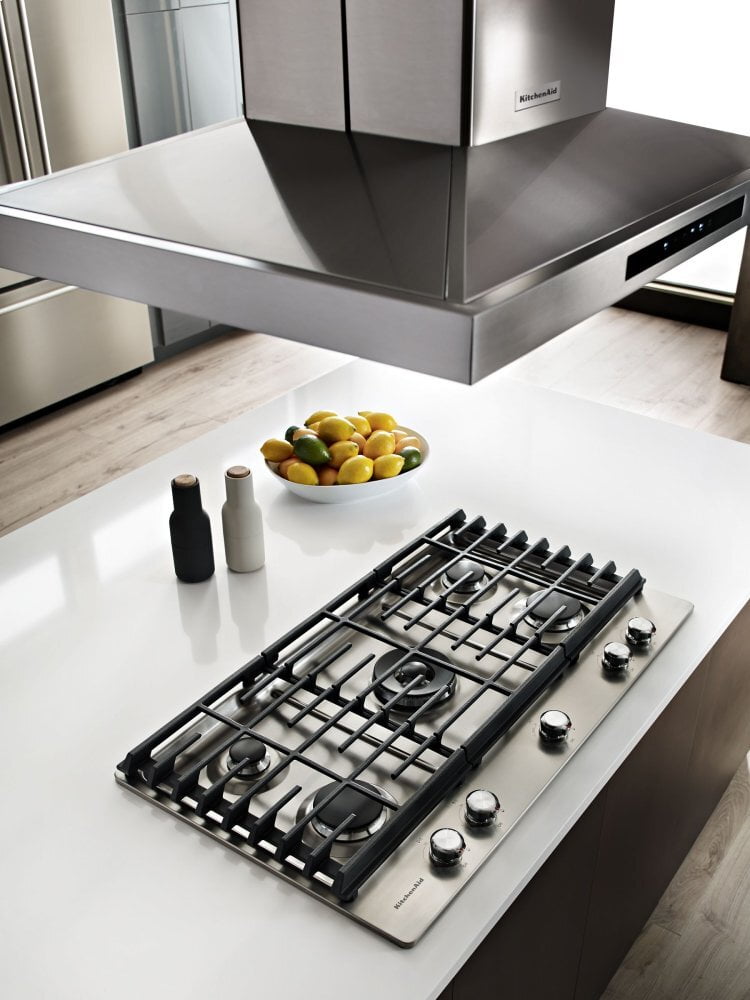

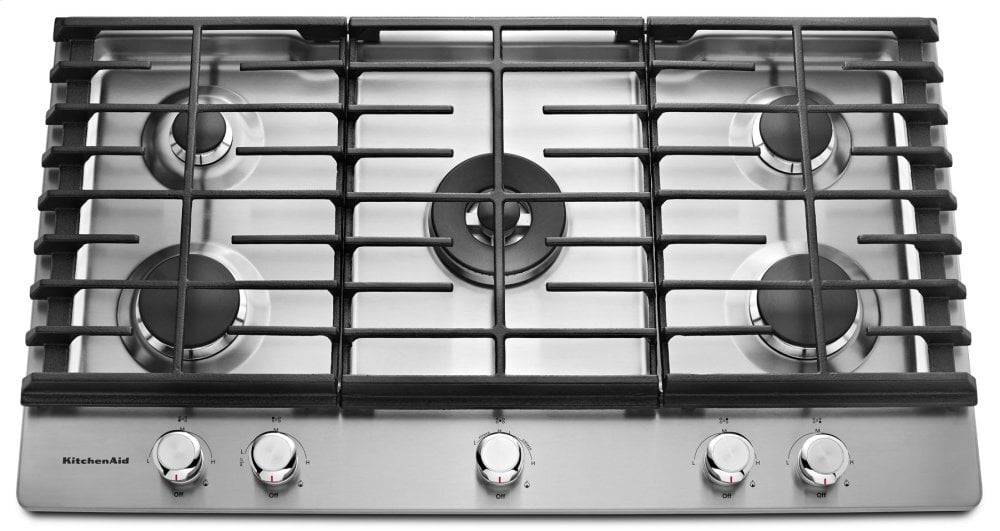

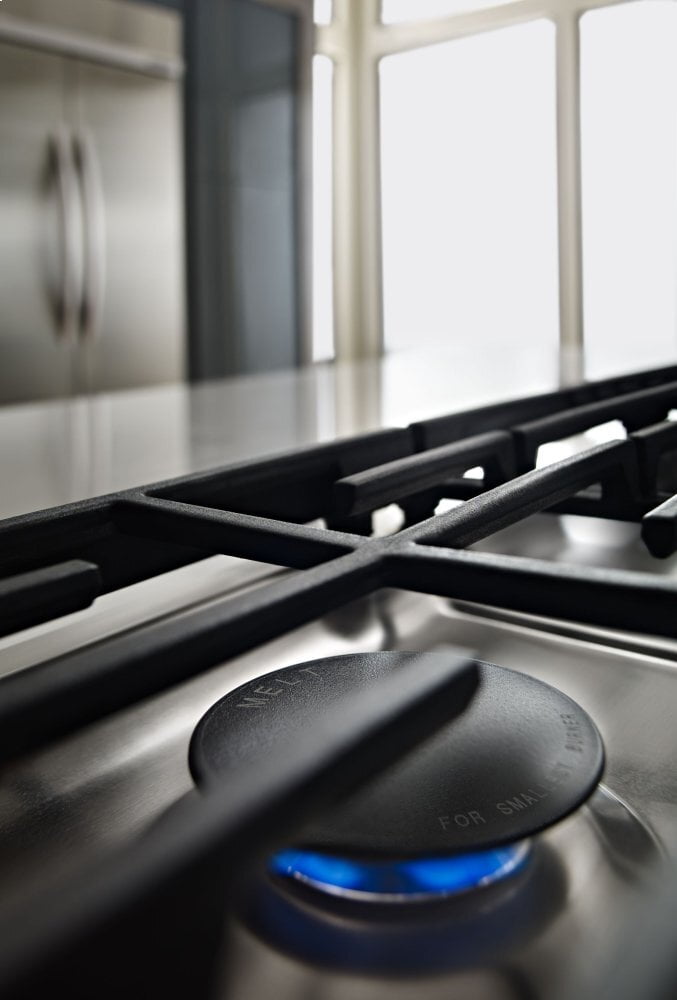

If you love to experiment and push culinary limits, you'll appreciate the power and versatility of this 36-inch cooktop. Five individual burners include a powerful 20,000 BTU Dual Ring Burner that is among the most powerful in the industry. The eye-catching design includes Multi-Finish Knobs and the scratch-resistant CookShield Finish help protect the surface against stains that may occur with high-temperature cooking.
- Multi-Finish Knobs
- LP Conversion Kit (not included) - Allows you to convert the cooktop so it can be used with LP gas (sold separately).
Specifications | |
Dimensions | |
Cutout Depth | 19-13/16 in |
Cutout Depth Max | 20.0 in |
Cutout Depth Min | 19-1/2 in |
Cutout Height | 5-1/4 in |
Cutout Width | 35-3/16 in |
Cutout Width Max | 35-5/8 in |
Cutout Width Min | 34-7/8 in |
Depth | 21.0 in |
Height | 3-11/16 in |
Maximum Height | 4-5/16 in |
Width | 36.0 in |
Configuration and Overview | |
ADA Compliant | ADA Height and Side Reach Compliant |
Cooktop Type | Standard |
Fuel Type | Gas |
Installs Over Built-In Oven | Yes |
LP Convertible | Yes - Kit Included |
Power Boost | No |
Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov . |
Size | 36 in |
UL | UL |
Controls | |
Infinite Heat Controls | Yes |
Knob Color | Stainless Steel |
Knob Type | Metal |
Location of Controls | Front |
Cooktop Details | |
Automatic Pan Detection | No |
Center Rear Element-Burner Power | 20,000 BTU |
Cooktop Element Style | Sealed Burner |
Cooktop Surface Color | Color Coordinated |
Cooktop Surface Material | Stainless Steel |
Downdraft Vent | No |
Grate Details | Dishwasher Safe, Matte Finish, Continuous, Cast Iron Grates |
Heating Element On Indicator Light | No |
Hot Surface Indicator Light | No |
Ignition Type | Direct Spark Ignition |
Left Front Element-Burner Power | 10,000 BTU |
Left Front Element-Burner Type | Burner |
Left Rear Element-Burner Power | 6000 BTU |
Left Rear Element-Burner Type | Simmer |
Number of Cooking Element-Burners | 5 |
Number of Grates | 3 |
Power Outage Compatible | Yes |
Right Front Element-Burner Power | 10,000 BTU |
Right Front Element-Burner Type | Burner |
Right Rear Element-Burner Type | Burner |
Appearance | |
Digital Display | No |
Electrical | |
Hz | 60 |
Power Cord Included | Yes |
Features | |
Power Outage Compatible | Yes |
GDS | |
GPC Code | 10001951 |
IsInvoiceUnit | true |
IsOrderableUnit | true |
Product Type | EA |
UDEX | 1100400623 |
isBaseUnit | true |
isConsumerUnit | true |
