Kitchenaid KDTM504EPA 44 Dba Dishwasher With Panel-Ready Design - Panel Ready Pa

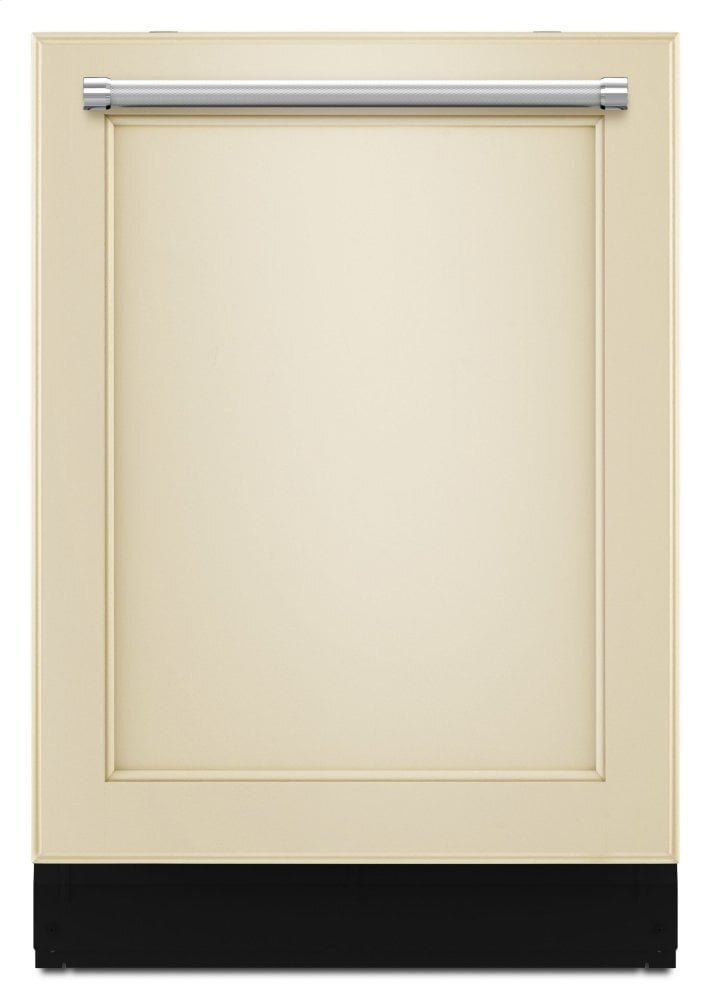

Panel-Ready Design
allows you to match your dishwasher to your kitchen cabinets for a high-end look, seamless look. A custom front panel and handle (not included) can be affixed to the dishwasher.

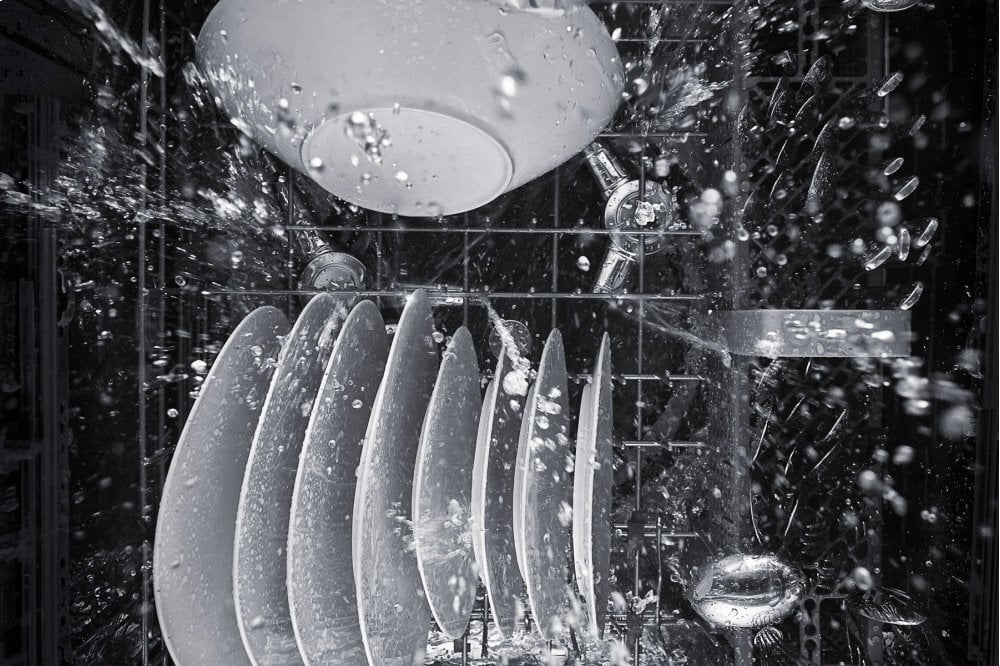

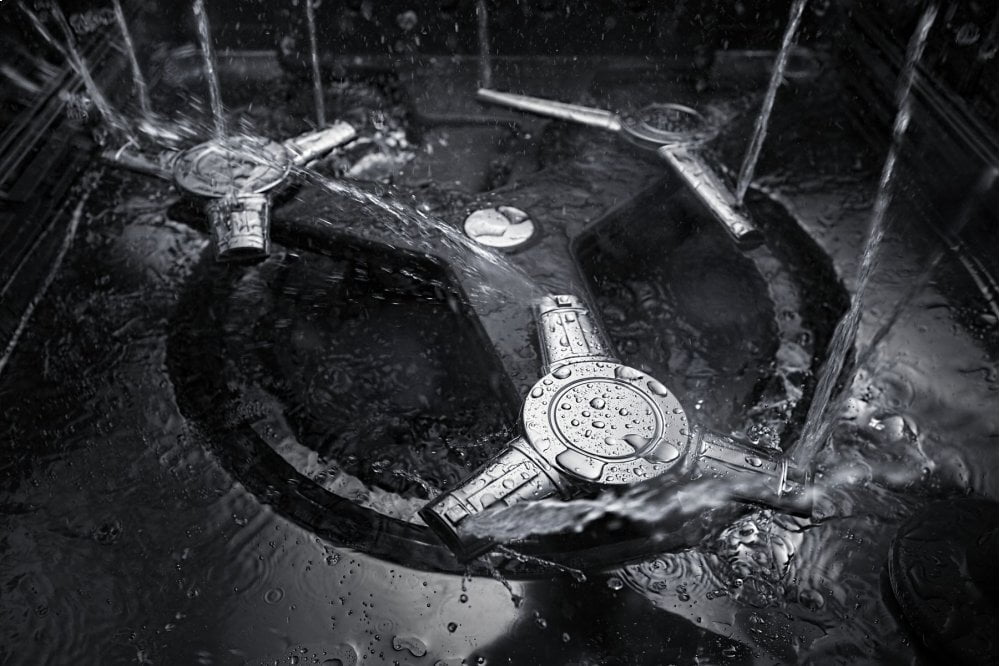

Dynamic Wash Arm
features nine wash arms in one for 3 times better coverage. This unique design directly sprays water everywhere in the dishwasher, including hard to reach places. This means dishes get a powerful clean no matter where they are placed in the rack.
Clean Water Wash System
Continuously removes food particles from the wash water. The result of this advanced technology is clean wash water for excellent performance. Plus, the filter requires no routine maintenance.
ProScrub(R) Option
Helps eliminate soaking or pre-scrubbing with 40 targeted spray jets that help remove stubborn messes like seared or baked-on foods.
Third Level Rack
makes it easy to clean hard-to-place items such as spatulas, serving utensils and measuring cups, freeing up space in the lower two racks.
Advanced ProDry System
Uses a recessed heating element and a fan to draw moisture out of the wash tub giving you better drying results.
- ProScrub Upper (was Trio) - Provides 39% more coverage with targeted wash action. In addition to the 40 spray jets at the back of the dishwasher, you get two concentrated spray zones in the upper rack to clean deeper or oddly shaped items
- ProWash Cycle - Determines the ideal cycle for washing dishes based on soil level and then makes real-time adjustments to achieve the best cleaning performance
- SatinGlide(R) Max Rails (Upper and Lower Racks) - Creates a smooth, premium feeling when pulling out the upper and lower racks, particularly with heavy loads.
- 2 Rows Fold-Down Tines in Upper Rack - adjustable tines can be shifted into one of three positions to accommodate deep or wide dishes.
- Fold-Down Tines in the Lower Rack - can be adjusted in one of three positions so water can clean inside deep or wide dishes.

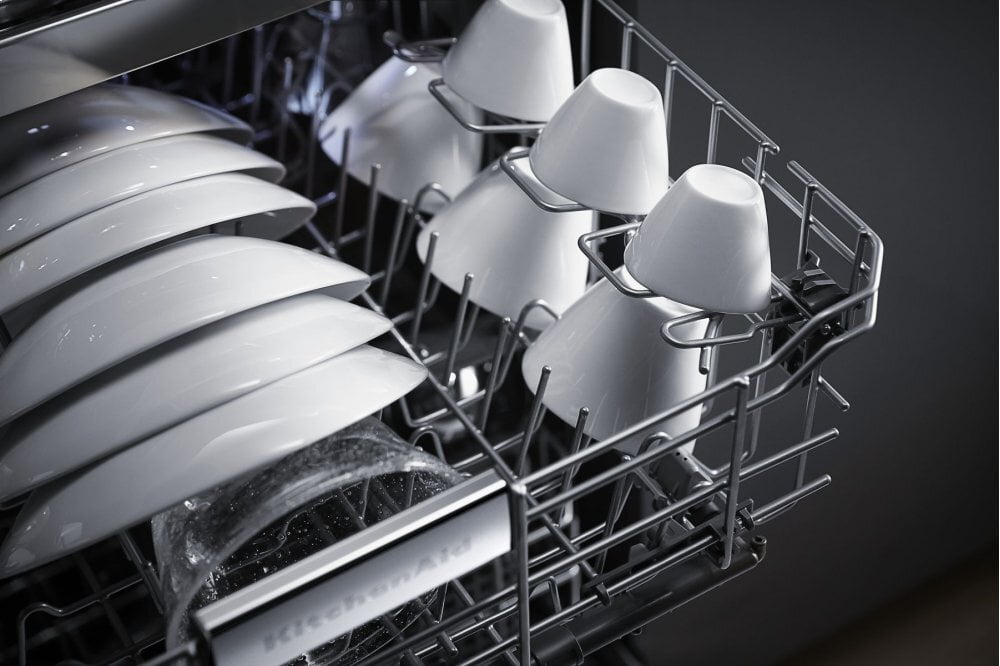

- 2 Fold-Down Cup Shelves with Integrated Stemware Holders - Provides extra room in the upper rack to hold additional cups, wine glasses, or long items such as utensils and spatulas.
| Specifications | |
| Dimensions | |
| Depth | 24-3/4 in |
| Depth Closed Excluding Handles | 24-3/4 in |
| Depth Closed Including Handles | 27-1/2 in |
| Depth With Door Open 90 Degree | 49-1/2 in |
| Height | 34-1/2 in |
| Maximum Height | 34-1/2 in |
| Minimum Height | 33-1/2 in |
| Number of Place Settings | 16 |
| Width | 23-7/8 in |
| Configuration and Overview | |
| ADA Compliant | No |
| CEE Tier | Tier I |
| CUL | Yes |
| Decibel Level dBA | 44 |
| Dishwasher Type | Built-In |
| Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov . |
| UL | UL |
| Controls | |
| Control Location | Multi-Color |
| Location of Controls | Hidden |
| Sensor | Yes |
| Appearance | |
| Window | No |
| Details | |
| Dispenser | Detergent and Rinse Aid |
| Interior Light | LED |
| Number of Racks | 3 |
| Number of Wash Levels | 5.0 |
| Number of Washarms | 3 |
| Rack Material | Nylon |
| Tub Material | Stainless Steel |
| Tub Style | Built-in Tall Tub 24'' |
| Cycles and Options | |
| Number of Wash Cycles | 6 |
| Upper Rack | |
| Adjustable | 2 Position |
| Cushion-Tip Tines | Yes |
| Extras | 2-Plastic Cup Shelves, 8-Stemware Holders, 4-Light Item Clips |
| Fold-Down Tines | 2 Fold Down |
| Style | Straight |
| Utility Basket | Yes |
| Lower Rack | |
| Cushion-Tip Tines | Yes |
| Extras | No |
| Fold-Down Tines | 1 Fold Down |
| Glides | Ball Bearings |
| Style | Straight |
| Utility Basket | Yes |
| Third Level Rack | |
| Adjustable | No |
| Glides | Single Channel Rails |
| Removable | Yes |
| Certifications | |
| Energy Star® Qualified | ENERGY STAR® Certified |
| NSF® Certified | Yes |
| Compatibility | |
| Connectivity | No |
| Works With | No |
| Options | |
| Dishwasher Option Selections | 4 Hour Delay, ProDry , ProScrub®, Sani Rinse®, Control Lock, Top Rack Wash, Hi Temp Wash |
| Features | |
| Sound Package | Yes |
