Kitchenaid KFDD500ESS 30-Inch 5 Burner Dual Fuel Double Oven Convection Range - Stainless Steel
Rebates &
Promotions
Steam Rack
Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
Professionally-Inspired Design
combines a bold blend of professionally-inspired styling with sleek touches for the home. This double oven range features Satin Textured Handles and the KitchenAid(R) Badge, a symbol of uncompromised quality.
6.7 Cu. Ft. Total Capacity
Provides an extra-large combined cooking capacity for preparing multiple dishes at once and gives you the flexibility of separate temperature zones.
EasyConvect Conversion System
Takes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.
- Even-Heat True Convection - features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.

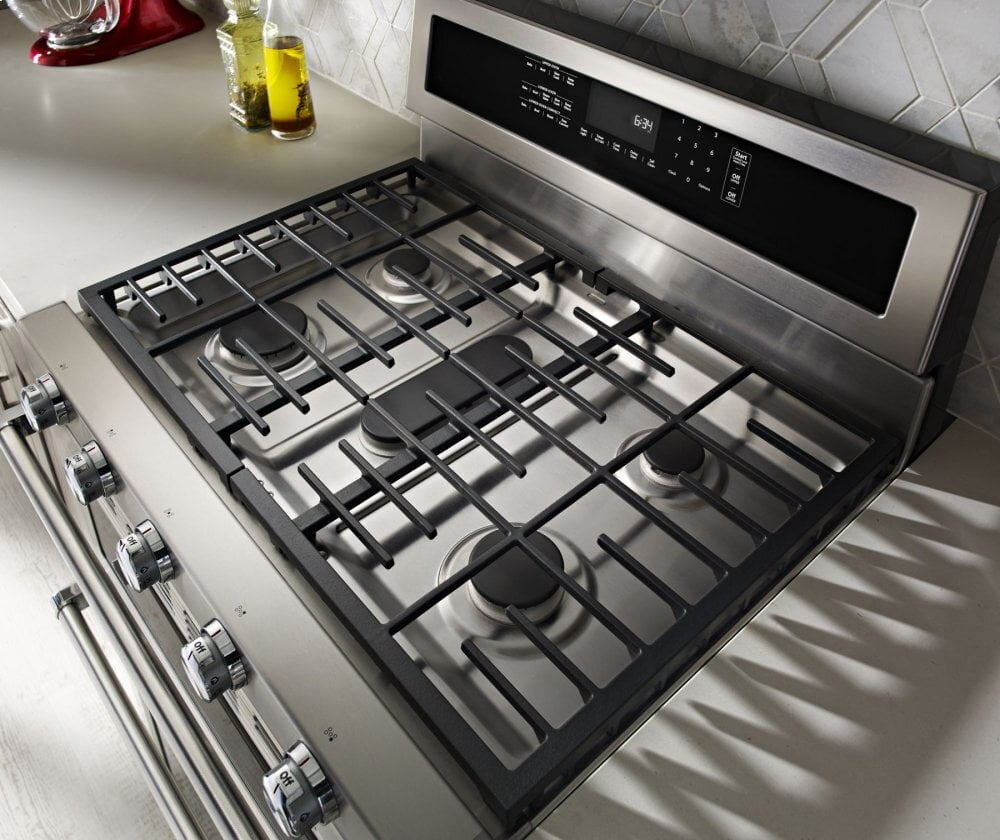

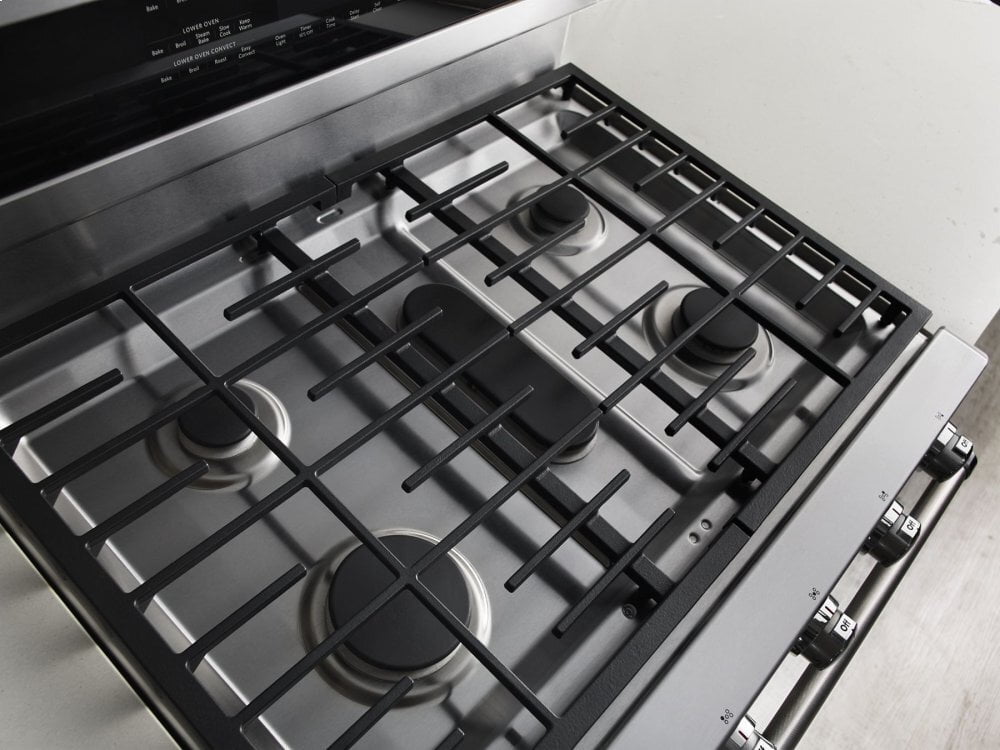

- 5 Burners (17k, 10k, 7.3k, 5k, 5k) - provides the perfect range of cooking power from 5,000 to 17,000 BTU, so you can go from a rolling boil to a delicate simmer.

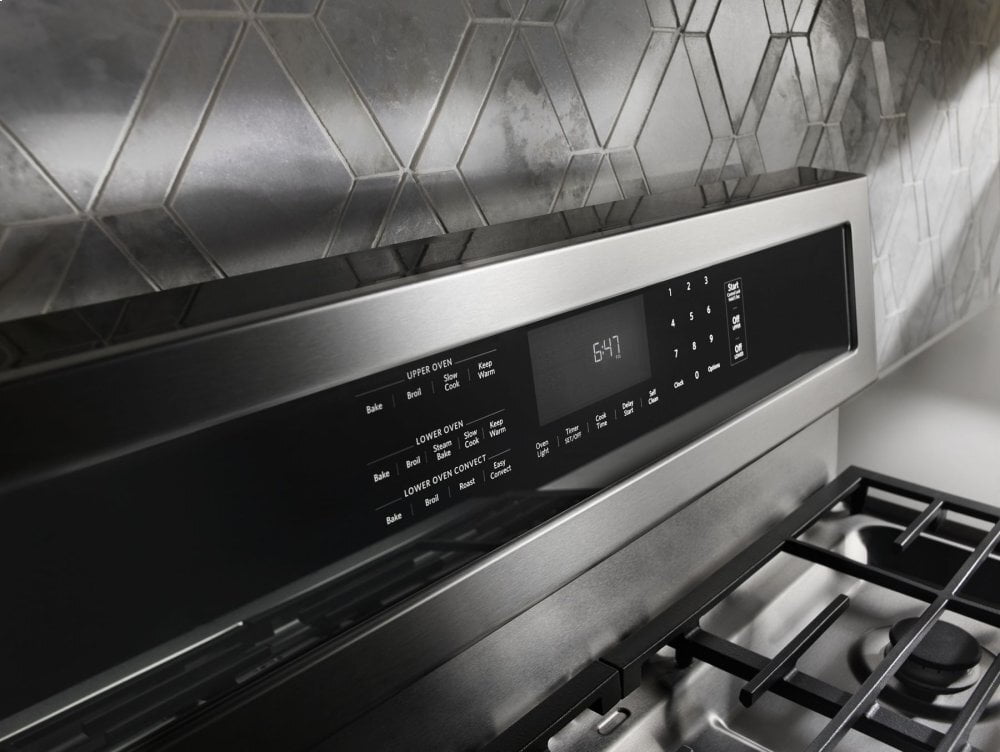

- Glass Touch Controls - Offer an intuitive, easy-to-use touch screen experience.
- SatinGlide(R) Rack - Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
Specifications | |
Dimensions | |
Capacity | 6-7/10 |
Depth Closed Including Handles | 28-1/2 in |
Depth With Door Open 90 Degree | 45.0 in |
Height | 47-3/8 in |
Lower Oven Capacity | 4.2 cu. ft. |
Upper Oven Capacity | 2.5 cu. ft. |
Width | 29-15/16 in |
Configuration and Overview | |
Fuel Type | Dual Fuel |
Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov . |
Range Type | Freestanding Double Oven |
Size | 30 in |
UL | UL |
Appearance | |
Door Type | Metal & Glass |
Handle Color | Stainless Steel |
Handle Material | Metal |
Oven Details | |
Automatic Convection Conversion Temperature Adjust | Yes |
Bake Element Power | 2000W Both |
Broiler Location | Top of Oven |
Convection Element Type | Single-Fan |
Convection Functions | Bake, Broil, Roast |
Drawer Type | None |
Hidden Bake Element | Yes |
Interior Color | Blue |
Lower Oven Interior Depth | 18-3/4 in |
Lower Oven Interior Height | 16.0 in |
Lower Oven Interior Width | 25.0 in |
Number of Oven Lights | 1 |
Number of Oven Racks | 1 Upper-2 Lower |
Number of Rack Guides | 2 Upper-5 Lower |
Oven Control Location | Backguard |
Oven Control Type | Electronic Touch |
Oven Cooking System | Thermal Upper-Convection Lower |
Oven Light Type | Incandescent |
Oven Rack Type | 1 Gliding Roll-Out, 2 Heavy Duty |
Power On Indicator Light | Yes |
Upper Oven Interior Depth | 19-1/4 in |
Upper Oven Interior Height | 8-1/2 in |
Upper Oven Interior Width | 25.0 in |
Cooktop Details | |
Center Rear Element-Burner Power | 7350 BTU |
Cooktop Control Knob Type | Metal |
Cooktop Control Location | Front |
Cooktop Control Type | Knobs |
Cooktop Element Style | Gas Burner |
Cooktop Surface Color | Stainless |
Cooktop Surface Material | Stainless Steel |
Grate Details | Dishwasher Safe, Matte Finish, Continuous, Cast Iron Grates |
Heating Element On Indicator Light | No |
Hot Surface Indicator Light | No |
Left Front Element-Burner Power | 17,000 BTU |
Left Front Element-Burner Type | Burner |
Left Rear Element-Burner Power | 5000 BTU |
Left Rear Element-Burner Type | Burner |
Number of Cooking Element-Burners | 5 |
Number of Grates | 2 |
Power Outage Compatible | No |
Right Front Element-Burner Power | 10,000 BTU |
Right Front Element-Burner Type | Burner |
Right Rear Element-Burner Type | Burner |
Details | |
Bake Element Power | 2000W Both |
Broiler Element Power | 3600W Both |
Convection Element Type | Single-Fan |
Number of Rack Guides | 2 Upper-5 Lower |
Oven Cleaning Type | AquaLift® Self Clean |
Electrical | |
Power Cord Included | Yes |
Controls | |
Electronic Display Type | Stainless Steel |
Exterior | |
Oven Window Size | Large |
Features | |
Power Outage Compatible | No |
GDS | |
GPC Code | 10003690 |
IsInvoiceUnit | true |
IsOrderableUnit | true |
Product Type | EA |
UDEX | 1100400623 |
isBaseUnit | true |
isConsumerUnit | true |
