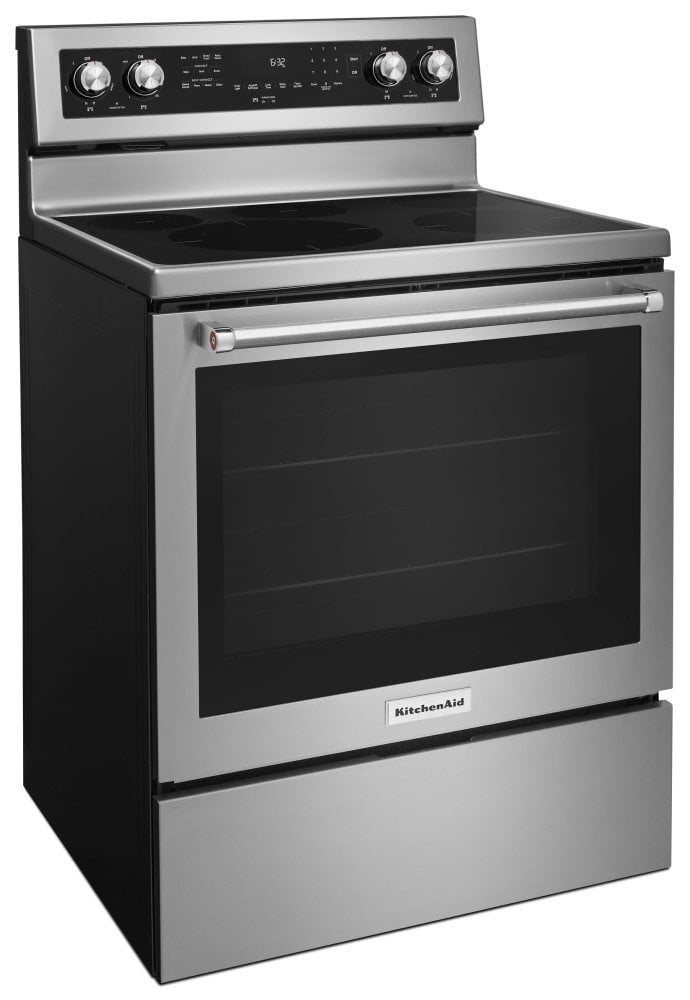

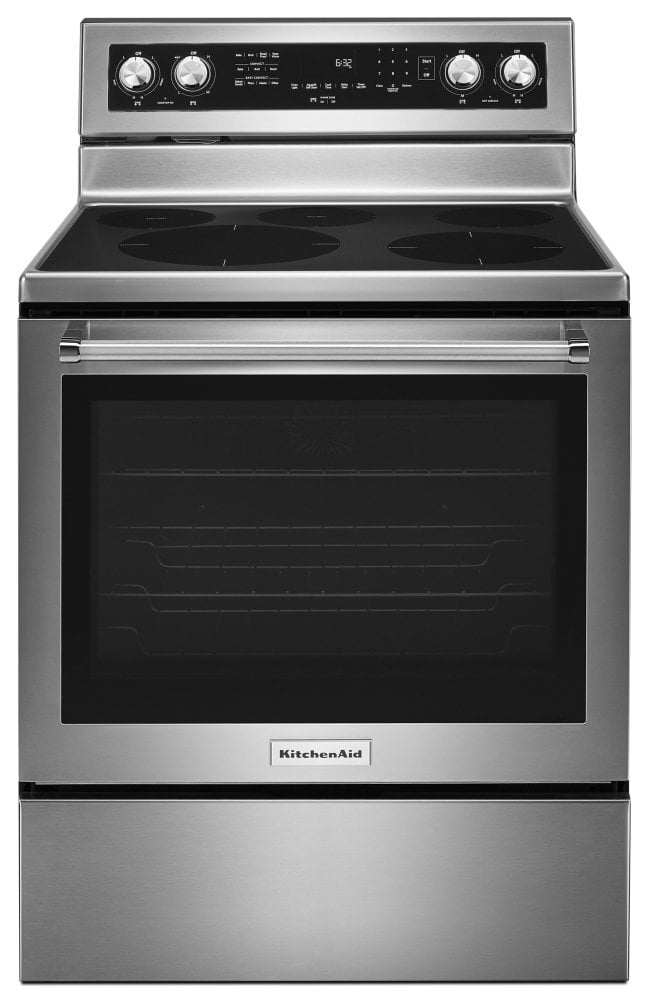

Kitchenaid KFEG500ESS 30-Inch 5-Element Electric Convection Range - Stainless Steel
Rebates &
Promotions
KitchenAid Craft Your Dream Kitchen Rebate - Receive up to a $3000 rebate with purchase of qualifying KitchenAid Brand Appliances. Download Valid: 07/01/2024-12/31/2024

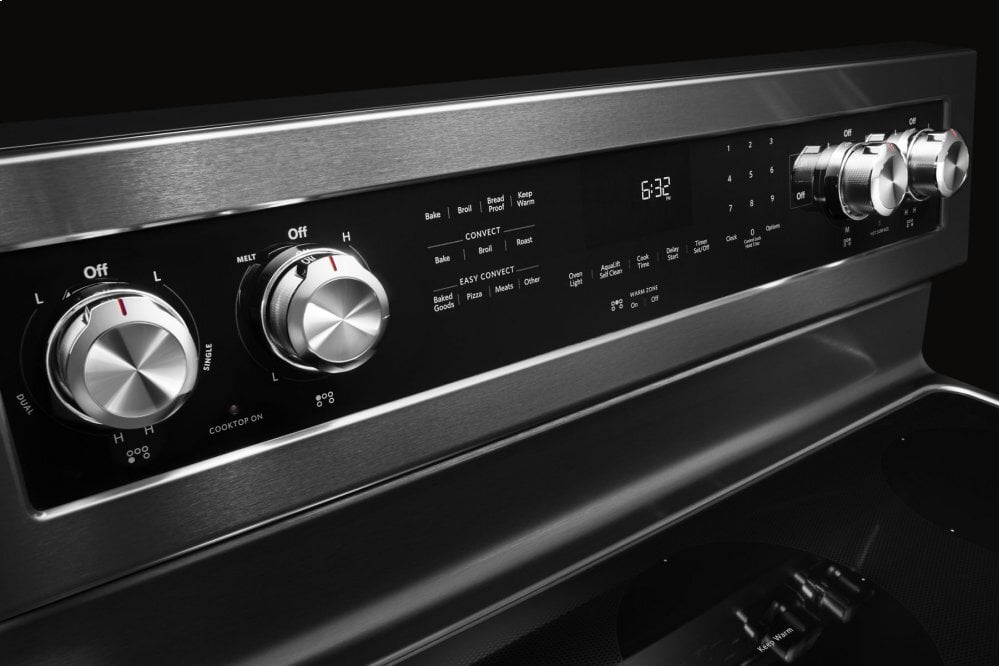

EasyConvect Conversion System
Takes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.
This Beautiful Electric Freestanding Range Produces Flawless Cooking Results With Even-Heat True Convection. The Unique Bow-Tie Design And Convection Fan Ensure The Inside Of The Entire Oven Is Heated To, And Stays At, The Perfect Temperature. The Oven Is 6.4 Cu Ft., Providing An Extra-Large Capacity That Lets You Easily Prepare Multiple Dishes At Once. The Cooktop Features Five Heating Surfaces, Including A Dedicated Warming Zone, Allowing You To Do More On Your Range.

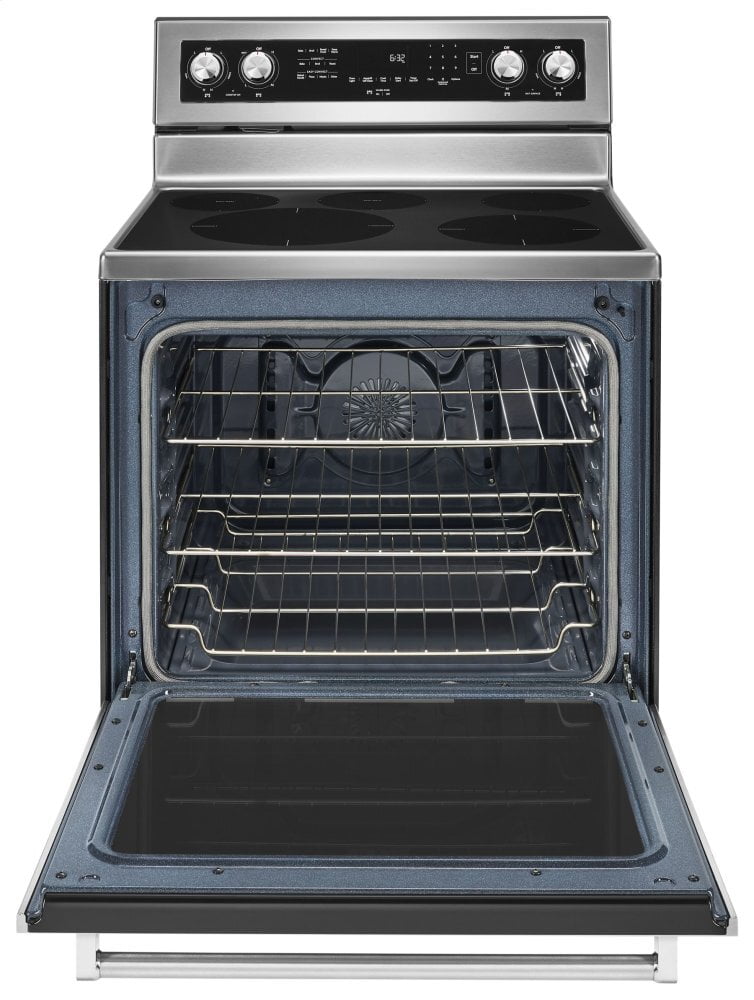

- Even-Heat True Convection - features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.
- 6.4 Cu Ft. Oven Capacity - provides an extra-large cooking capacity that easily handles multiple dishes at once.

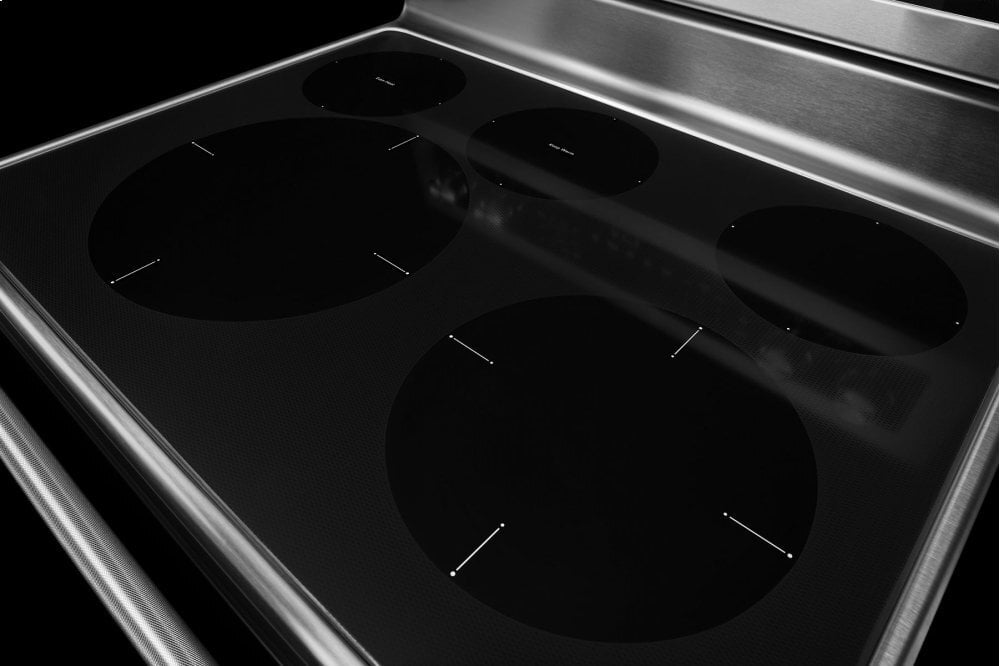

- 5 Cooking Elements Including a Warm Zone - provides five independent cooking surfaces that allow you to do more on your range. It features two dual elements 12/9", 9/6", two 6 inch cooking zones, plus a dedicated warming zone.
- Storage Drawer - adds additional storage space that's perfect for pots, pans and baking sheets.
- Hidden Bake Element - covers up the baking element, making it easy to wipe away spills
- 2 Dual Elements (12/9" and 9/6") - provide multiple cooking surfaces that allow you to do more on your range. It features two cooking elements, each with dual zones. The first element has cooking zones of 9 and 12 inches and the second has 6 and 9 inch zones.
Specifications | |
Dimensions | |
Capacity | 6-2/5 |
Depth Closed Excluding Handles | 25-5/16 in |
Depth Closed Including Handles | 27-3/4 in |
Depth With Door Open 90 Degree | 47-7/8 in |
Height | 47-1/8 in |
Width | 29-7/8 in |
Configuration and Overview | |
Fuel Type | Electric |
LP Convertible | No |
Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov . |
Range Type | Freestanding |
Size | 30 in |
UL | UL |
Appearance | |
Door Type | Metal & Glass |
Handle Color | Stainless Steel |
Handle Material | Metal |
Handle Type | Towel Bar |
Oven Details | |
Automatic Convection Conversion Temperature Adjust | Yes |
Bake Element Power | 3600W |
Broiler Location | Top of Oven |
Convection Element Type | Single-Fan |
Convection Functions | Bake, Broil, Roast |
Drawer Type | Storage Drawer |
Hidden Bake Element | Yes |
Interior Color | Grey |
Number of Oven Lights | 1 |
Number of Oven Racks | 3 |
Number of Rack Guides | 7 |
Oven Control Location | Backguard |
Oven Control Type | Electronic Touch |
Oven Cooking System | Convection |
Oven Light Type | Incandescent |
Oven Rack Type | 1 Max Capacity, 2 Standard |
Power On Indicator Light | Yes |
Cooktop Details | |
Center Rear Element-Burner Power | 100W |
Center Rear Element-Burner Size | 6'' |
Cooktop Control Location | Backguard |
Cooktop Control Type | Knobs |
Cooktop Element Style | Radiant |
Cooktop Surface Color | Black |
Cooktop Surface Material | Ceramic Glass |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Left Front Element-Burner Power | 3000W/1900W |
Left Front Element-Burner Size | 12''/9'' |
Left Front Element-Burner Type | Dual |
Left Rear Element-Burner Power | 1300W |
Left Rear Element-Burner Size | 6'' |
Left Rear Element-Burner Type | Hyper |
Number of Cooking Element-Burners | 5 |
Power Outage Compatible | No |
Right Front Element-Burner Power | 3000W/1400W |
Right Front Element-Burner Size | 9''/6'' |
Right Front Element-Burner Type | Dual |
Right Rear Element-Burner Size | 6'' |
Right Rear Element-Burner Type | Single |
Details | |
Bake Element Power | 3600W |
Broiler Element Power | 3600W |
Convection Element Type | Single-Fan |
Number of Rack Guides | 7 |
Oven Cleaning Type | AquaLift® Self Clean |
Electrical | |
Hz | 60 |
Power Cord Included | No |
Controls | |
Electronic Display Type | Black |
Knob Color | Stainless Steel |
Knob Type | Metal |
Features | |
Natural Gas Convertible | No |
Power Outage Compatible | No |
Exterior | |
Oven Window Size | Large |
