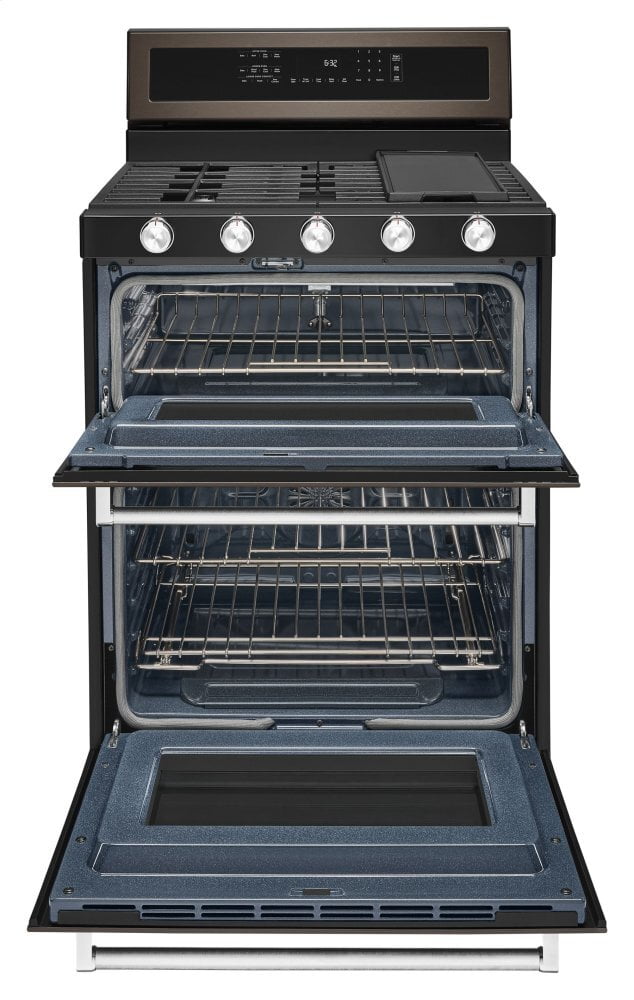

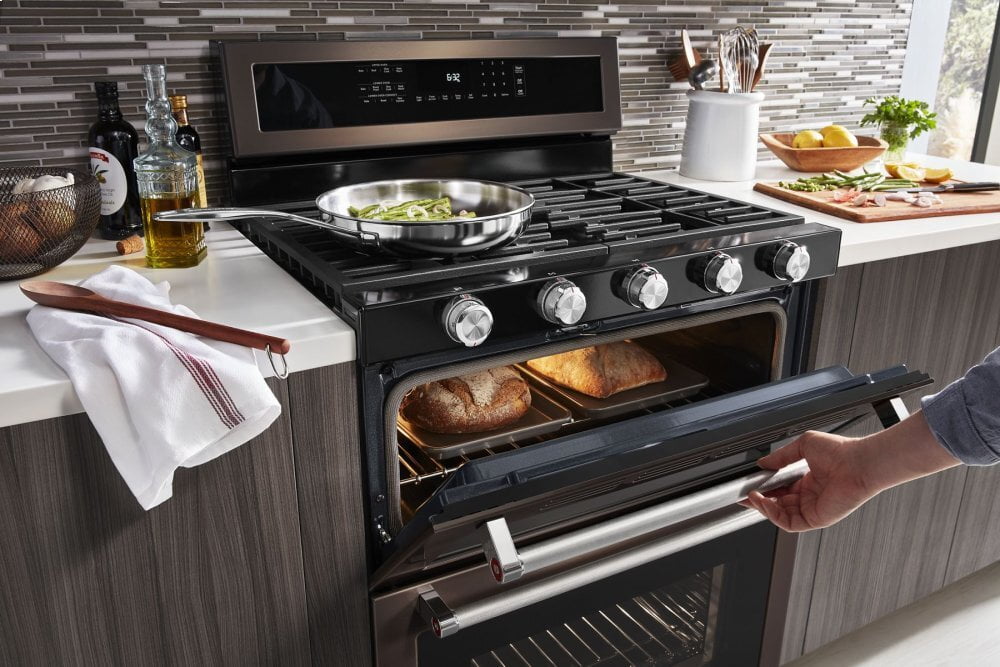

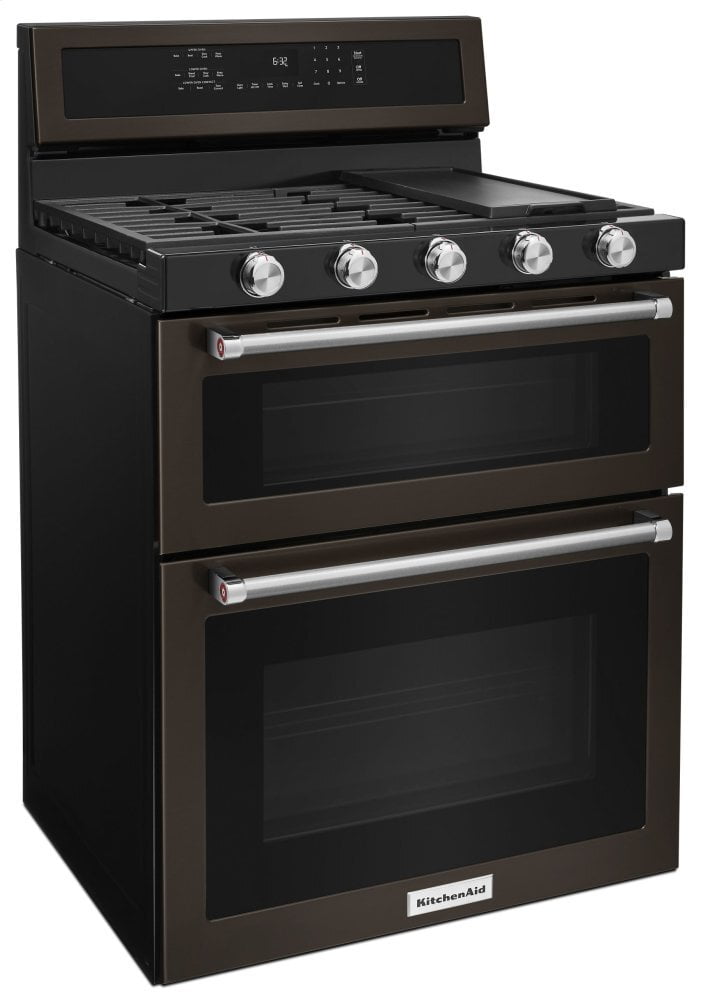

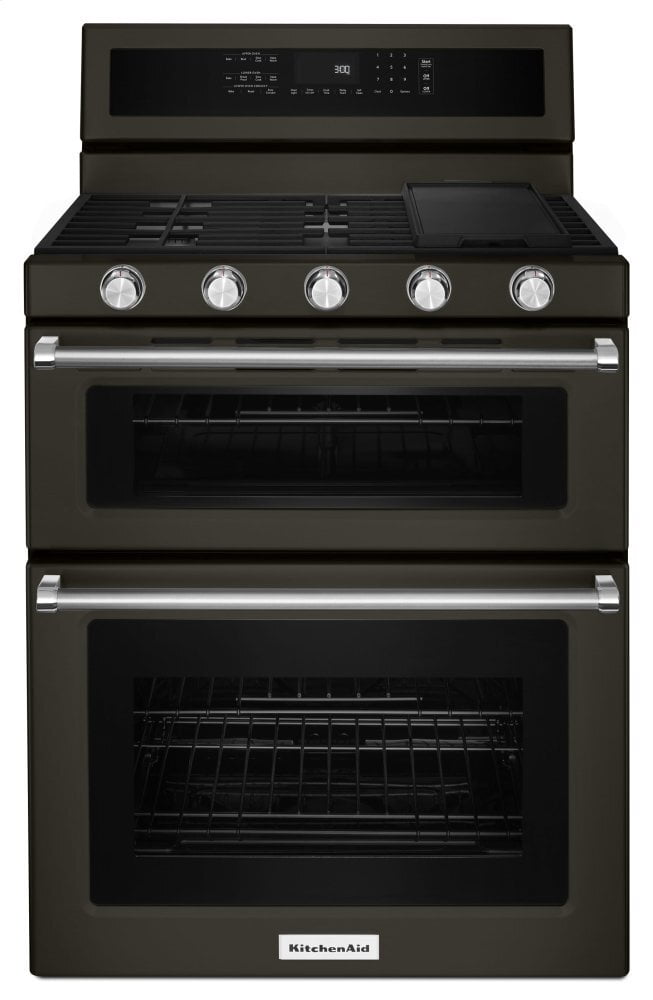

Kitchenaid KFGD500EBS 30-Inch 5 Burner Gas Double Oven Convection Range - Black Stainless Steel With Printshield™ Finish
Rebates &
Promotions
KitchenAid Craft Your Dream Kitchen Rebate - Receive up to a $3000 rebate with purchase of qualifying KitchenAid Brand Appliances. Download Valid: 07/01/2024-12/31/2024

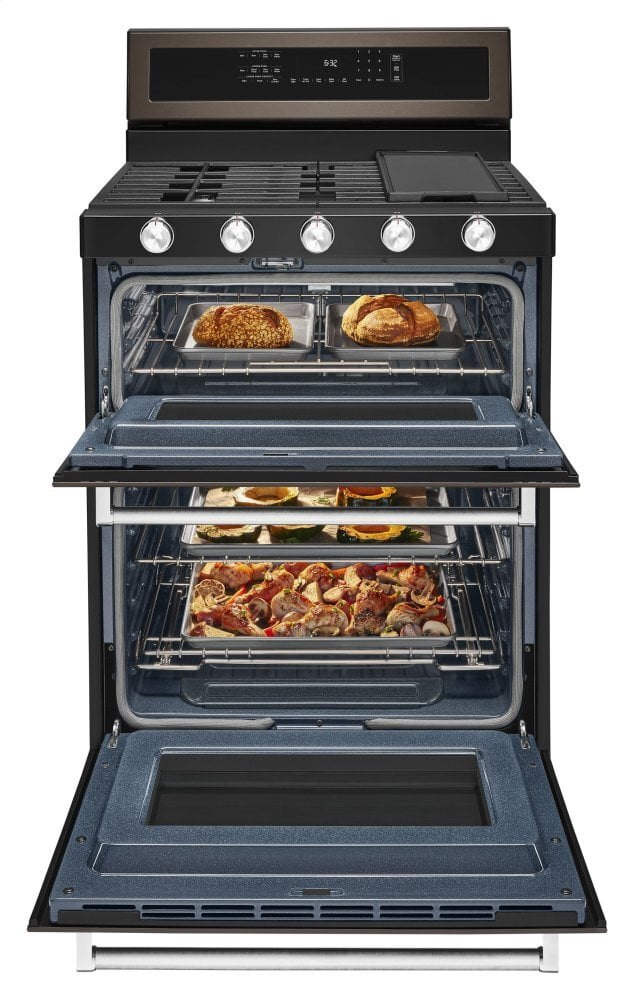

6.0 Cu. Ft. Total Capacity
Combined upper and lower oven capacities provide more room to cook multiple dishes at the same time.
Professionally-Inspired Design
combines a bold blend of professionally-inspired styling with sleek touches for the home. This double oven range features Satin Textured Handles and the KitchenAid(R) Badge, a symbol of uncompromised quality.
EasyConvect Conversion System
Takes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.
This Beautiful Gas Double Oven Range Produces Flawless Cooking Results With Even-Heat True Convection. The Unique Bow-Tie Design And Convection Fan Ensure The Inside Of The Entire Oven Is Heated To, And Stays At, The Perfect Temperature. The Oven Is A Combined 6.0 Cu Ft., Providing A Large Capacity That'S Perfect For Preparing Multiple Dishes At Once. The Cooktop Has 5 Burners Ranging From 5,000 To 17,000 Btu, Letting You Go From A Rolling Boil To A Delicate Simmer.
- Even-Heat True Convection - features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.

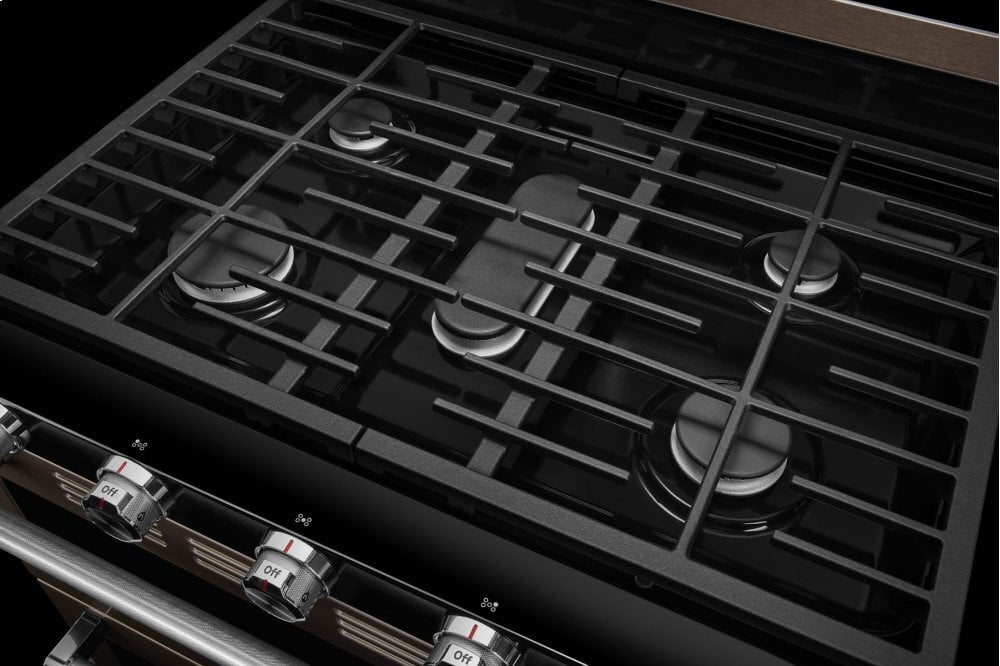

- 5 Burners (17k, 10k, 7.3k, 5k, 5k) - provides the perfect range of cooking power from 5,000 to 17,000 BTU, so you can go from a rolling boil to a delicate simmer.

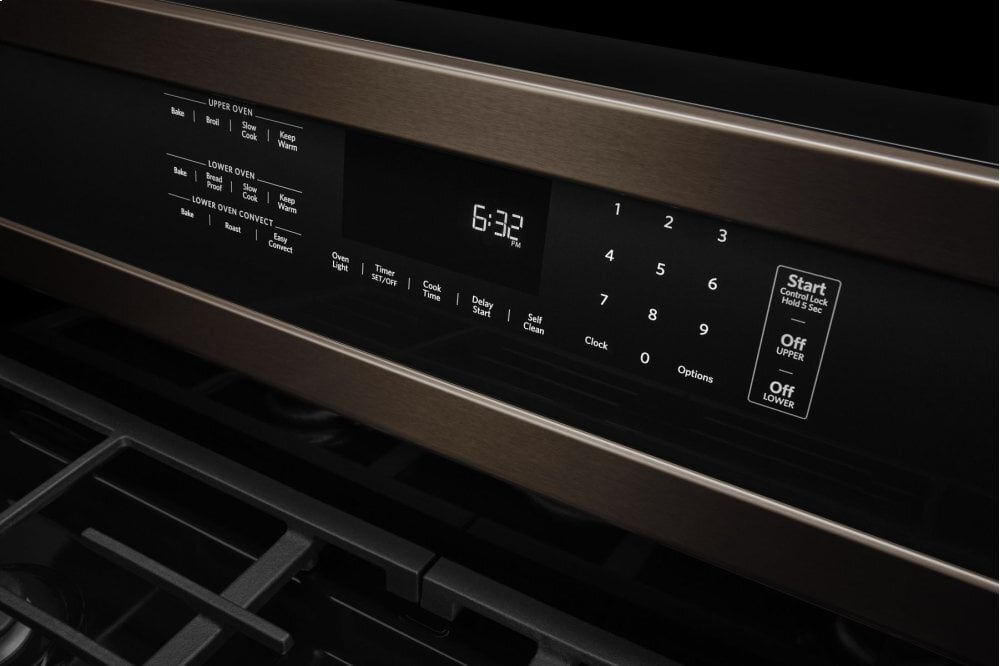

- Glass Touch Controls - Offer an intuitive, easy-to-use touch screen experience.
- SatinGlide(R) Rack - Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
- Hidden Bake - Covers up the baking element, making it easier to wipe away spills.
Specifications | |
Dimensions | |
Capacity | 6.00 |
Depth Closed Including Handles | 28-1/2 in |
Depth With Door Open 90 Degree | 45-1/2 in |
Height | 47-3/8 in |
Lower Oven Capacity | 3.9 cu. ft. |
Upper Oven Capacity | 2.1 cu. ft. |
Width | 29-15/16 in |
Configuration and Overview | |
Fuel Type | Gas |
Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov . |
Range Type | Freestanding Double Oven |
Size | 30 in |
UL | UL |
Appearance | |
Door Type | Glass Window |
Handle Color | Stainless Steel |
Handle Material | Metal |
Oven Details | |
Automatic Convection Conversion Temperature Adjust | Yes |
Bake Element Power | 10000 BTU Upper-16000 BTU Lower |
Broiler Location | Top of Oven |
Convection Element Type | Single-Fan |
Convection Functions | Bake, Roast |
Drawer Type | None |
Hidden Bake Element | Yes |
Interior Color | Grey |
Lower Oven Interior Depth | 18-3/4 in |
Lower Oven Interior Height | 14-22/25 in |
Lower Oven Interior Width | 25.0 in |
Number of Oven Lights | 1 |
Number of Oven Racks | 1 Upper-2 Lower |
Number of Rack Guides | 2 Upper-5 Lower |
Oven Control Location | Backguard |
Oven Control Type | Electronic Touch |
Oven Cooking System | Thermal Upper-Convection Lower |
Oven Light Type | Incandescent |
Oven Rack Type | 1 Gliding Roll-Out, 2 Heavy Duty |
Power On Indicator Light | Yes |
Upper Oven Interior Depth | 19-1/4 in |
Upper Oven Interior Height | 7-3/8 in |
Upper Oven Interior Width | 25.0 in |
Cooktop Details | |
Center Rear Element-Burner Power | 7350 BTU |
Cooktop Control Knob Type | Metal |
Cooktop Control Location | Front |
Cooktop Control Type | Knobs |
Cooktop Element Style | Sealed Burner |
Cooktop Surface Color | Black |
Cooktop Surface Material | Porcelain Coated Steel |
Grate Details | Dishwasher Safe, Matte Finish, Continuous, Cast Iron Grates |
Heating Element On Indicator Light | No |
Hot Surface Indicator Light | No |
Left Front Element-Burner Power | 17,000 BTU |
Left Front Element-Burner Type | Burner |
Left Rear Element-Burner Power | 5000 BTU |
Left Rear Element-Burner Type | Burner |
Number of Cooking Element-Burners | 5 |
Number of Grates | 2 |
Power Outage Compatible | No |
Right Front Element-Burner Power | 10,000 BTU |
Right Front Element-Burner Type | Burner |
Right Rear Element-Burner Type | Burner |
Details | |
Bake Element Power | 10000 BTU Upper-16000 BTU Lower |
Broiler Element Power | 10000 BTU-Upper |
Convection Element Type | Single-Fan |
Number of Rack Guides | 2 Upper-5 Lower |
Oven Cleaning Type | Self-Cleaning |
Electrical | |
Hz | 60 |
Power Cord Included | No |
Controls | |
Electronic Display Type | Stainless Steel |
Features | |
Power Outage Compatible | No |
Exterior | |
Oven Window Size | Large |
