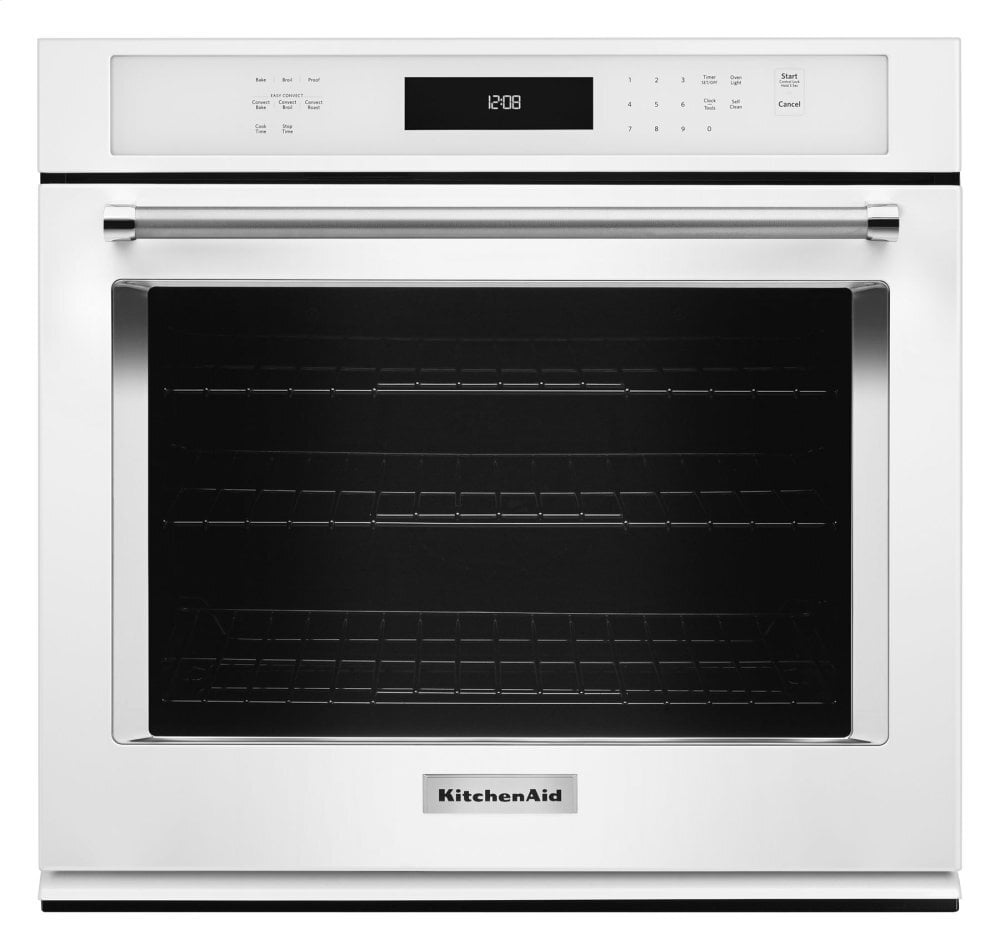

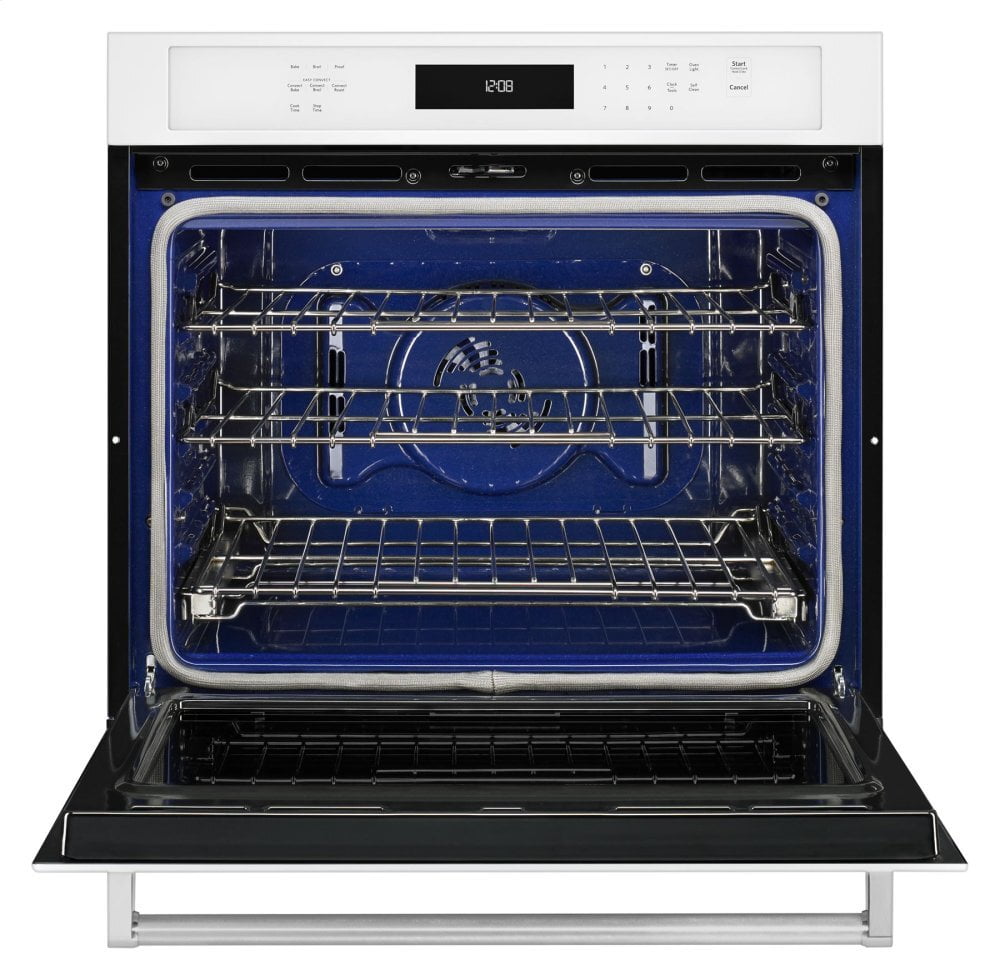

Kitchenaid KOSE507EWH 27" Single Wall Oven With Even-Heat™ True Convection - White
Rebates &
Promotions
Even-Heat True Convection Oven
provides consistent heating and even cooking on all racks with a unique bow-tie shaped design and convection fan that helps ensure the most even baking.
Temperature Probe
Allows accurate measurement of internal temperature of meats, poultry, and casseroles without having to open the oven door.
Professionally-Inspired Design
Combines a bold blend of professionally-inspired styling with sleek touches for the home. This beautiful built-in wall oven features Satin Textured Handles, Precision Touch Controls, a stunning Chrome Inlaid Frame, the KitchenAid(R) Badge and Brand Medallion.
FIT System Guarantee
Allows for customization of wall oven installation to match the height of existing cabinets through flexible design elements.
Even-Heat Preheat
Helps remove cold spots to help ensure even baking because the entire oven, including the walls and racks, are heated to the correct temperature.
- EasyConvect Conversion System - Takes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.
- 4.3 Cu. Ft. Capacity - The spacious capacity simultaneously accommodates multiple dishes.
- SatinGlide Roll-Out Extension Rack - Allows easy loading and features an easy-grip handle, giving you the confidence when cooking with large or heavy dishes.
- Glass-Touch Display with Control Lock Function - Gives an intuitive glass touch screen experience that's easy to wipe clean.
- Self Cleaning Cycle - Uses high temperature to power through soils in the oven cavity, requiring only a quick wipe down at the end of the cycle.
Specifications | |
Dimensions | |
Capacity | 4-3/10 |
Cutout Depth | 24.0 in |
Cutout Height | 28.0 in |
Cutout Width | 25-1/2 in |
Depth | 27-1/8 in |
Depth With Door Open 90 Degree | 46-3/4 in |
Height | 28-3/4 in |
Oven Capacity | 4.3 cu. ft. |
Width | 27.0 in |
Configuration and Overview | |
ADA Compliant | ADA Height and Side and Front Reach Compliant |
CUL | Yes |
Fuel Type | Electric |
Installable Under Cooktop | Yes |
LP Convertible | No |
Oven Type | Single |
Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov . |
Size | 27 in |
UL | UL |
Oven Details | |
Automatic Shut-Off | Yes |
Bake Element Power | 2800W |
Broiler Location | Top of Oven |
Convection Element Type | True |
Convection Functions | Bake, Broil, Roast |
Door Broil Position | Closed |
Door Lock | Yes |
Door Removable | Yes |
Hidden Bake Element | Yes |
Interior Coating | Porcelain |
Interior Color | Blue |
Language Conversion | English/French |
Light Control | Oven Light Touch Pad |
Light Type | Halogen |
Number of Bake Elements | 1 |
Number of Broil Elements | 1 |
Number of Oven Lights | 2 |
Number of Oven Racks | 3 |
Number of Rack Guides | 6 |
Oven Cooking System | Convection |
Oven Interior Depth | 19.0 in |
Oven Interior Height | 18.0 in |
Oven Interior Width | 22.0 in |
Oven Rack 1 Type | Standard |
Oven Rack 2 Type | Standard |
Oven Rack 3 Type | Gliding Roll-Out |
Power On Indicator Light | Yes |
Self-Cleaning Oven Racks | No |
Temperature Conversion | Yes |
Appearance | |
Door Type | Metal & Glass |
Flush Installation Approved | Yes |
Handle Color | Stainless Steel |
Handle Material | Metal |
Details | |
Bake Element Power | 2800W |
Broiler Element Power | 4000W |
Convection Element Type | True |
Number of Rack Guides | 6 |
Oven Cleaning Type | Adjustable Self Cleaning |
Electrical | |
Hz | 60 |
Power Cord Included | No |
Controls | |
Electronic Display Type | White |
Exterior | |
Oven Window Size | Extra Large |
GDS | |
GPC Code | 10001950 |
IsInvoiceUnit | true |
IsOrderableUnit | true |
Product Type | EA |
UDEX | 1100400623 |
isBaseUnit | true |
isConsumerUnit | true |
