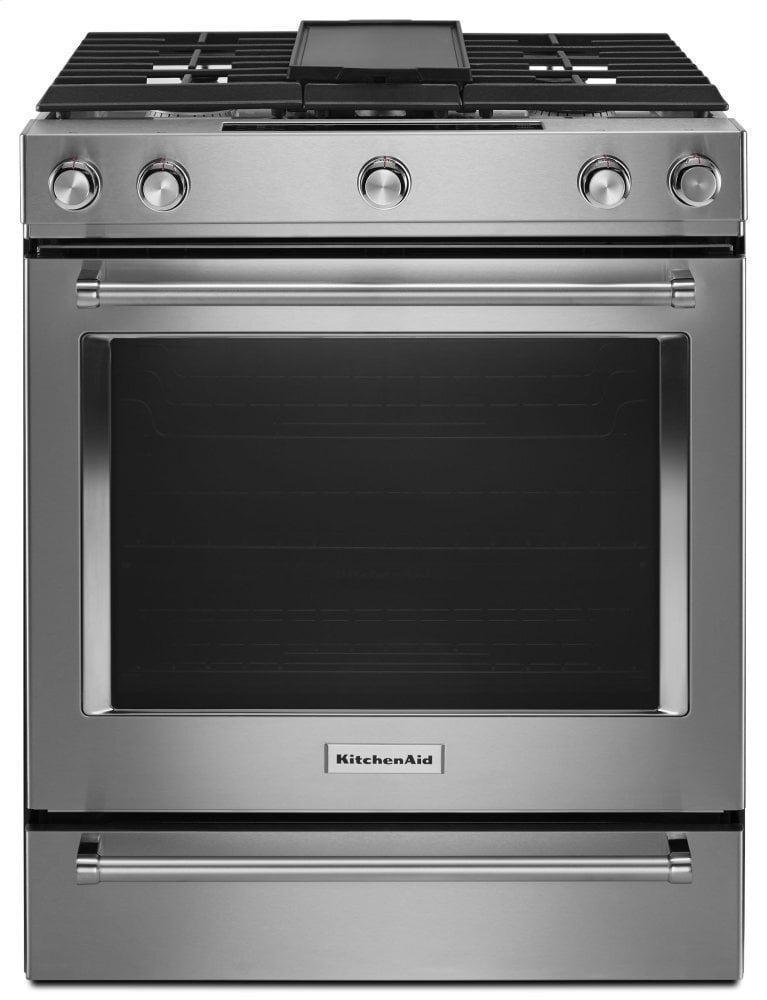

Kitchenaid KSDB900ESS 30-Inch 5-Burner Dual Fuel Convection Slide-In Range With Baking Drawer - Stainless Steel
Rebates &
Promotions
Baking Drawer
Adds more cooking options to the oven. The separate compartment allows you to keep warm, slow cook or bake at a different temperature and keep dishes warm.

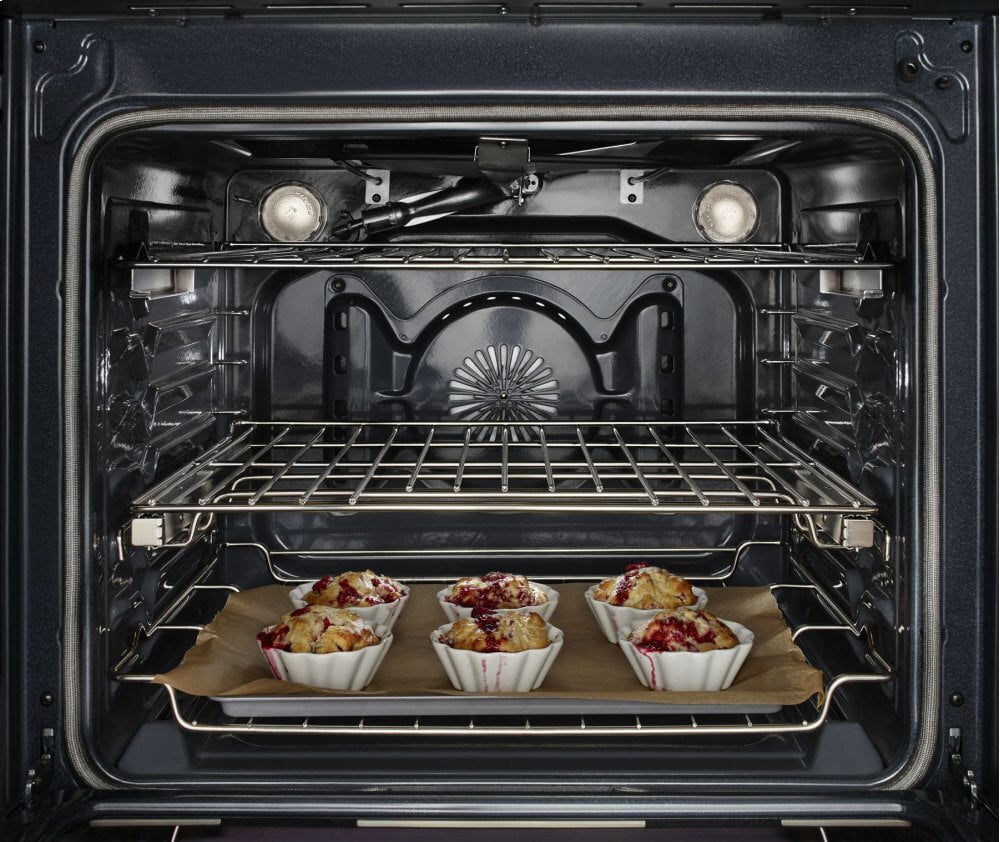

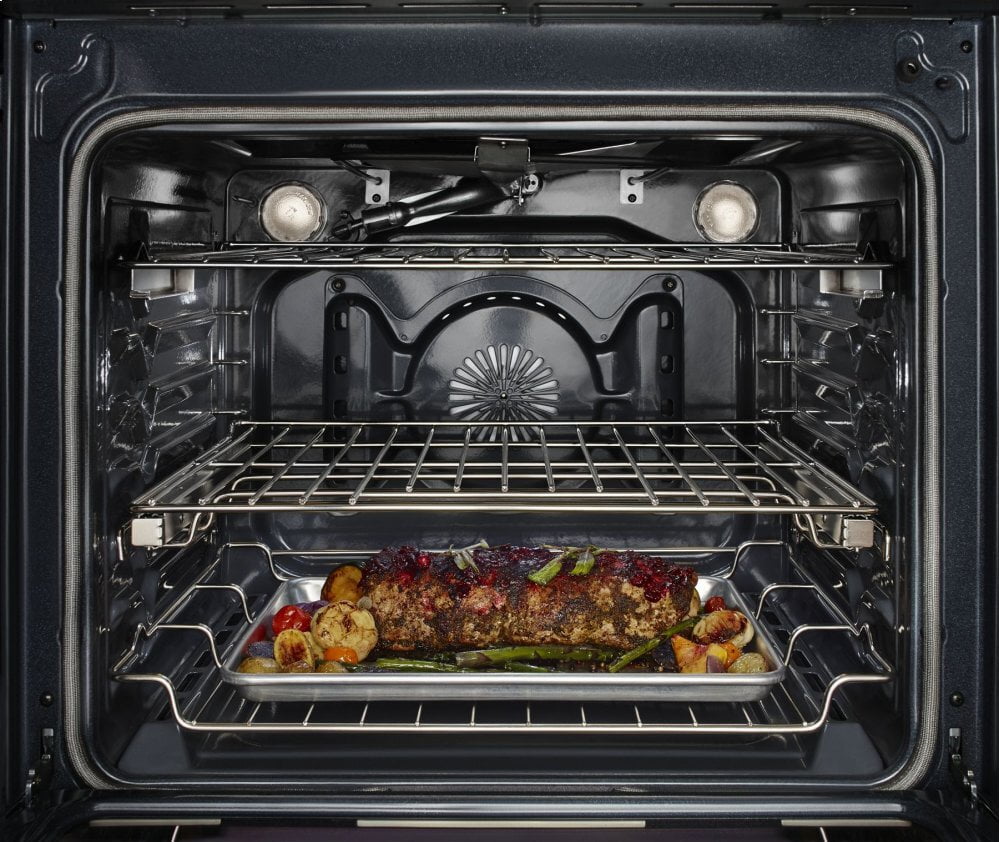

Even-Heat True Convection
Produces flawless results. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature.
Steam Rack
Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
EasyConvect Conversion
Takes the guesswork out of convection cooking by converting conventional settings for recipes to convection settings for you.
FIT Guarantee
Is our promise to flawlessly fit slide-in ranges designed for an existing cutout of 30" width, countertop depth of 24"-25", cabinet depth of 23"-24" and countertop height of 36".
- 7.1 cu ft Total Capacity - This electric slide-in range provide an extra-large cooking capacity in the oven for multiple dishes at once and gives you the flexibility of a separate temperature zone in the baking drawer.

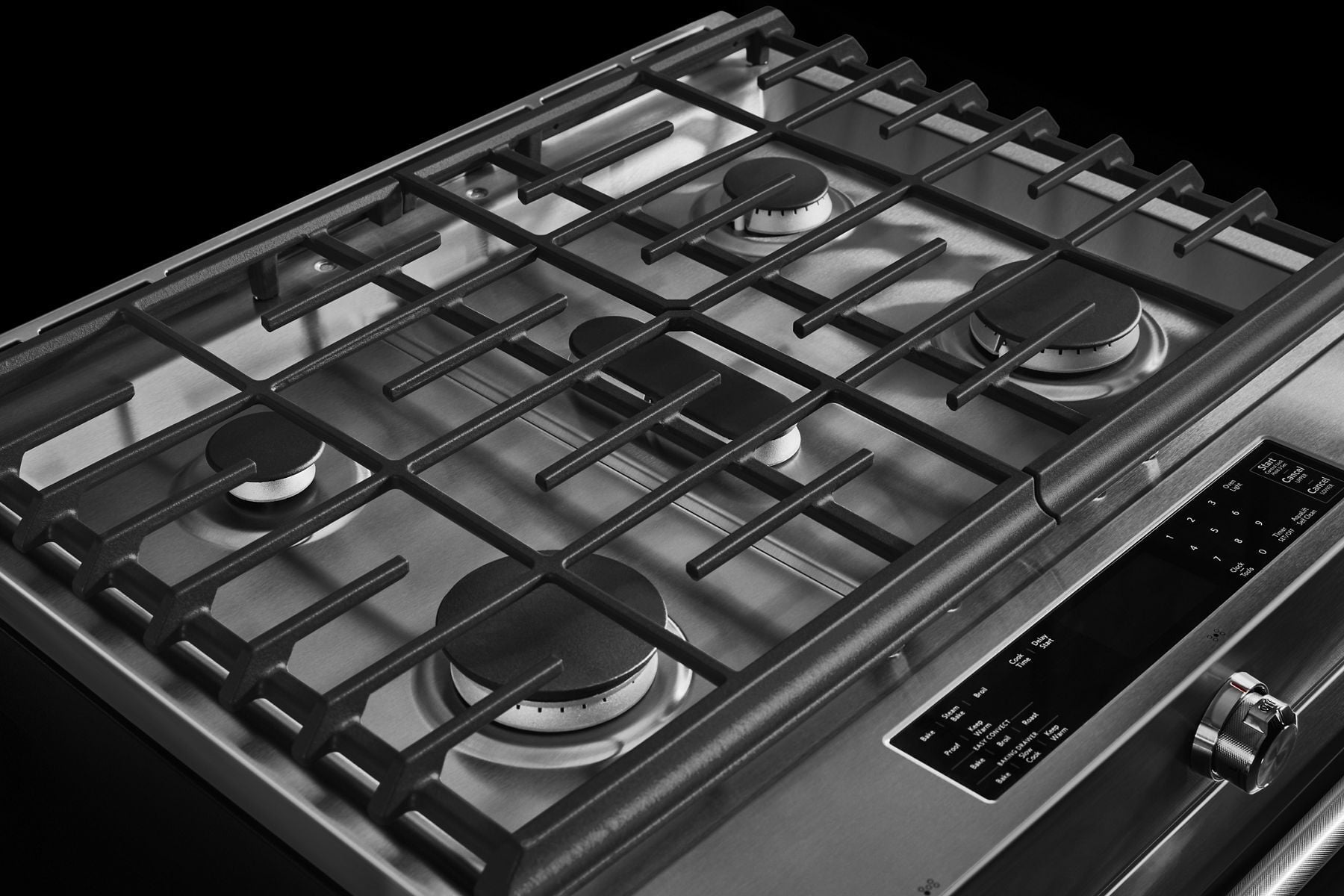

- 5 burners (5k, 8k, 9.2k, 15k and 19k) - Provides the perfect range of cooking power from 5,000 to19,000 BTU, so you can go from a rolling boil to a delicate simmer.

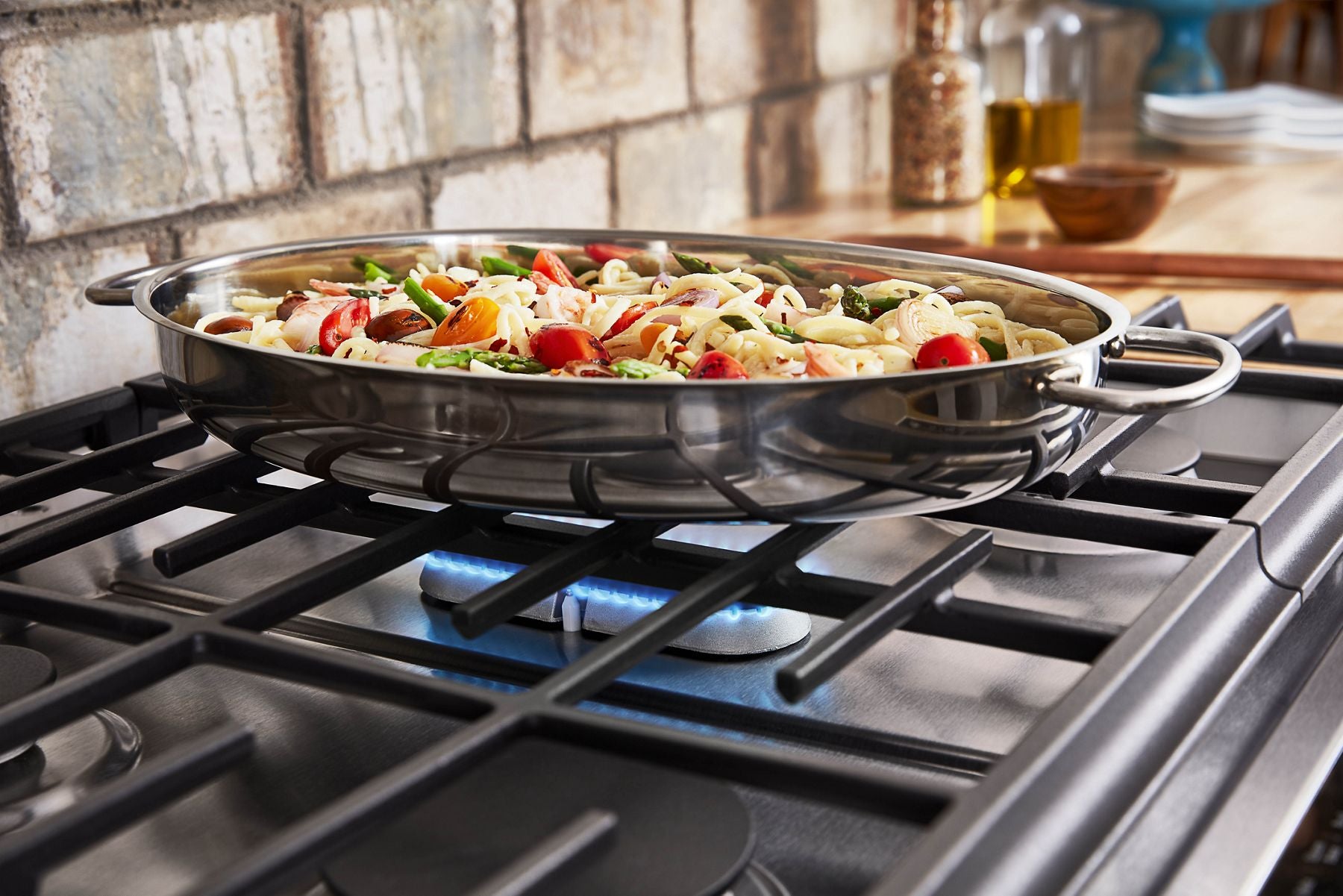

- 8K Center Oval Burner - Fits large griddles and other longer cookware on this 8,000 BTU fifth burner so they heat evenly on the range top.
- Aqualift(R) - Cleans your oven in less than an hour without odors and at a temperature below 200(degree)F. This innovative system combines low heat with water to release baked-on spills.
- Glass Touch Controls - Offer an intuitive, easy-to-use touch screen experience.
- Side Trim Accessory Kit - This optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.
Specifications | |
Dimensions | |
Capacity | 7-1/10 |
Depth Closed Excluding Handles | 26-3/8 in |
Depth Closed Including Handles | 28-7/8 in |
Depth With Door Open 90 Degree | 48-3/4 in |
Height | 36.0 in |
Width | 29-7/8 in |
Configuration and Overview | |
ADA Compliant | ADA Height and Operation Compliant |
Fuel Type | Dual Fuel |
LP Convertible | Yes |
Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov . |
Range Type | Slide-in |
Size | 30 in |
UL | UL |
Appearance | |
Door Type | Metal & Glass |
Handle Color | Stainless Steel |
Handle Material | Metal |

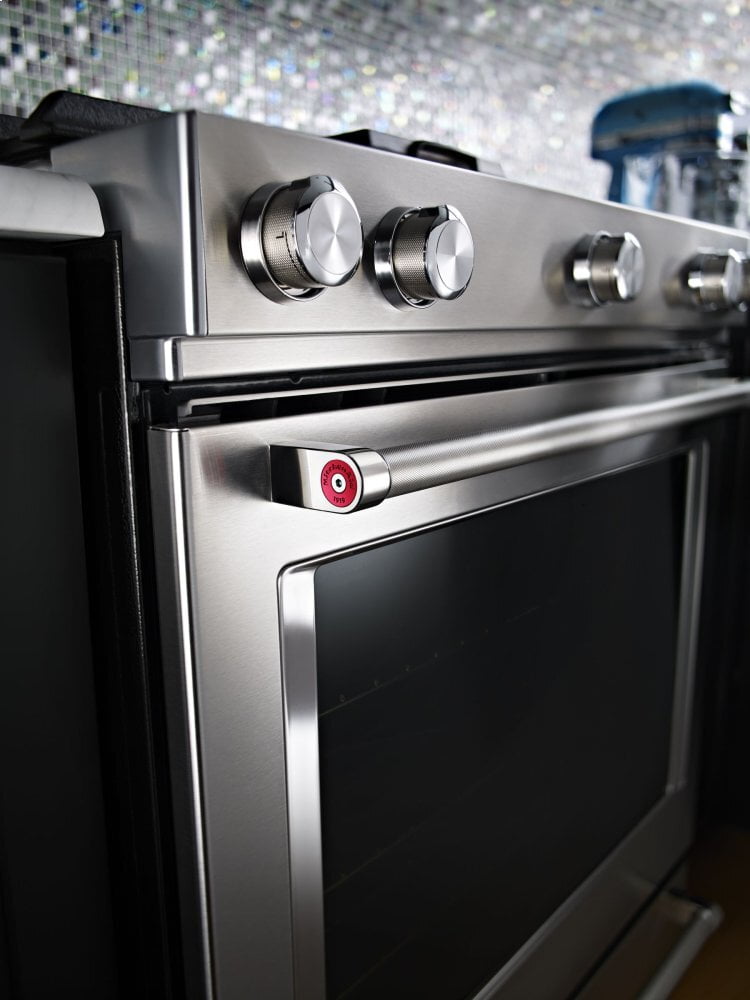

Handle Type | Towel Bar |
Oven Details | |
Automatic Convection Conversion Temperature Adjust | Yes |
Bake Element Power | 3600W |
Broiler Location | Top of Oven |
Convection Element Type | Single-Fan |
Convection Functions | Bake, Broil, Roast |
Drawer Type | Baking Drawer |
Hidden Bake Element | Yes |
Interior Color | Grey |
Number of Oven Lights | 2 |
Number of Oven Racks | 3 |
Number of Rack Guides | 7 |
Oven Control Type | Electronic Touch |
Oven Cooking System | Convection |
Oven Interior Depth | 20-1/8 in |
Oven Interior Height | 22-1/8 in |
Oven Interior Width | 24-1/8 in |
Oven Light Type | Incandescent |

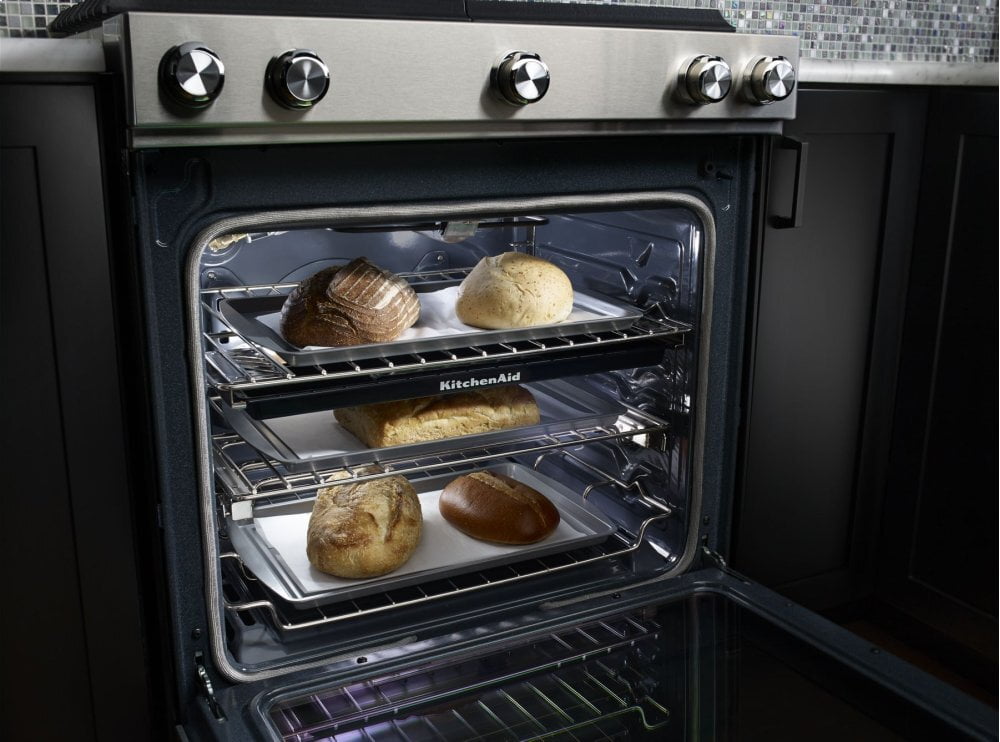

Oven Rack Type | 1 Max Capacity, 1 Gliding Roll-Out, 1 Steam Rack |
Power On Indicator Light | Yes |
Cooktop Details | |
Auto Re-ignition | No |
Center Rear Element-Burner Power | 8000 BTU |
Cooktop Element Style | Gas Burner |
Cooktop Surface Color | Color Coordinated |
Cooktop Surface Material | Stainless Steel |
Grate Details | Dishwasher Safe, Matte Finish, Continuous, Cast Iron Grates |
Heating Element On Indicator Light | No |
Hot Surface Indicator Light | No |
Ignition Type | Electronic |
Left Front Element-Burner Power | 19,000 BTU |
Left Front Element-Burner Type | Sealed Burner |
Left Rear Element-Burner Power | 5000 BTU |
Left Rear Element-Burner Type | Sealed Burner |
Number of Cooking Element-Burners | 5 |
Number of Grates | 2 |
Power Outage Compatible | No |
Right Front Element-Burner Power | 15,000 BTU |
Right Front Element-Burner Type | Sealed Burner |
Right Rear Element-Burner Type | Sealed Burner |
Details | |
Bake Element Power | 3600W |
Broiler Element Power | 4000W |
Convection Element Type | Single-Fan |
Number of Rack Guides | 7 |
Oven Cleaning Type | AquaLift® Self Clean |
Electrical | |
Power Cord Included | No |
Controls | |

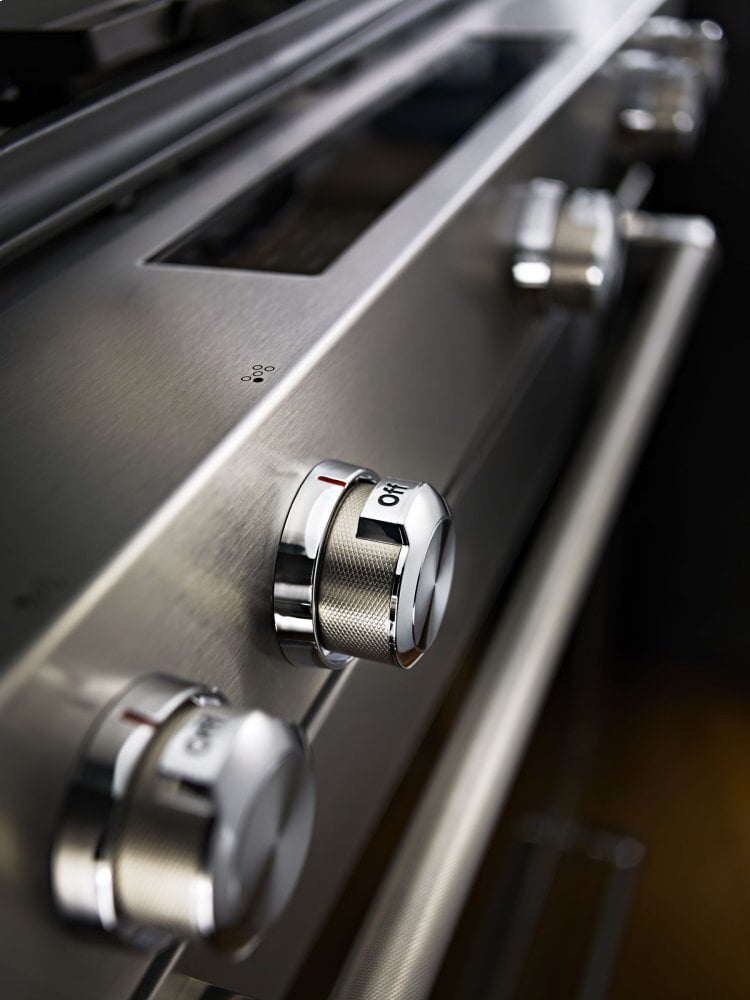

Knob Color | Stainless Steel |
Knob Type | Metal |
Features | |
Power Outage Compatible | No |
Exterior | |
Oven Window Size | Large |
GDS | |
GPC Code | 10003690 |
IsInvoiceUnit | true |
IsOrderableUnit | true |
Product Type | EA |
UDEX | 1100400623 |
isBaseUnit | true |
isConsumerUnit | true |
