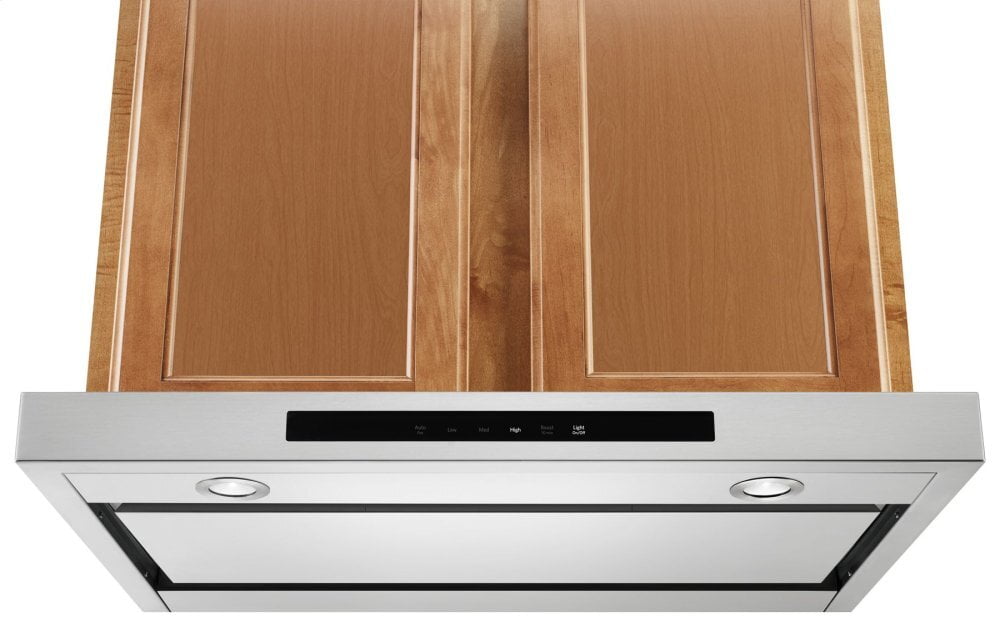

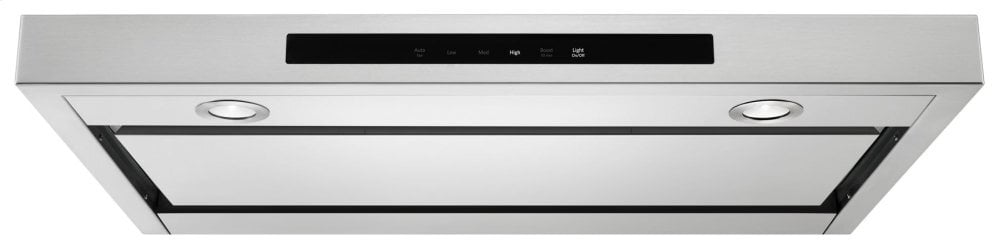

Kitchenaid KVUB400GSS 30" Low Profile Under-Cabinet Ventilation Hood - Stainless Steel
For Cooks Who Have More To Make But Less Undercounter Space, This Perimeter Ventilation Hood Clears The Air Edge-To-Edge With A Powerful 400 Cfm Class Motor, Yet With A Low Profile That Leaves Room For Culinary Exploration. Whisper Quiet® System Maintains A Hushed 0.1 Sones (43 Dba) At Low Speed. Heat-Sensor-Enabled Auto Speed Setting Helps Busy Cooks Keep Their Cool.
- Low Profile Design - Affords more space between the bottom of the hood and the cooking surface. The visible portion of the hood extends just 2-3/8" below the cabinetry above it, enabling ventilation even in limited spaces and offering more room for creativity.
- 400 CFM Motor Class - Delivers powerful ventilation performance to clear the air even for high-temperature cooking techniques like stir-frying in a wok.
- Perimeter Ventilation - Pulls air from the edges of the hood and speeds up air movement at the center, enabling it to handle up to 65K BTU total heat output from the cooking surface. The underside cover suppresses fan noise and elegantly conceals the filters to give your cooking area an uncluttered, premium look.
- Whisper Quiet(R) System @ 0.1 sones (43 dBA) on low speed - Suppresses fan noise with its efficient airflow and covered underside so you can stay focused on your cooking without distraction. The fan operates on low speed at a hushed 0.1 sones (43 dBA), and even at top speed it emits a subdued 5.2 sones (65 dBA).
- Auto Speed Setting - Detects via a heat sensor when your cooktop is in use, then automatically adjusts the fan. The feature keeps your kitchen ventilation up to speed with even your most adventurous cooking techniques, so you can pan-sear scallops without a second thought.
- Automatic Turn On - Senses when cooking has begun and switches on the ventilation hood before heat and odors can build up, giving you one less distraction so you can keep your focus on your food.
Specifications | |
Dimensions | |
Depth | 19-11/16 in |
Maximum Height | 16-1/2 in |
Minimum Height | 2-1/2 in |
Width | 29-15/16 in |
Configuration and Overview | |
Hood Type | Under Cabinet |
Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov . |
Size | 30 in |
UL | UL |
Details | |
Night Light | Yes |
Night Light Type | LED |
Number of Night Light Settings | 1 |
Number of Task Light Settings | 2 |
Task Light Type | LED |
Task Lighting | Yes |
Ventilation System | |
Auto Function | Auto On |
Blower Type | Centrifugal |
Duct Direction | Vertical |
Duct Outlet Size | 6 |
Duct Type | Round |
Exhaust Vent Location | Top |
Filters | Grease Filters |
Number of Speeds | 4 |
Certifications | |
Energy Star® Qualified | No |
Electrical | |
Hz | 60 |
Controls | |
Location of Controls | Front |
Features | |
Auto On | Yes |
