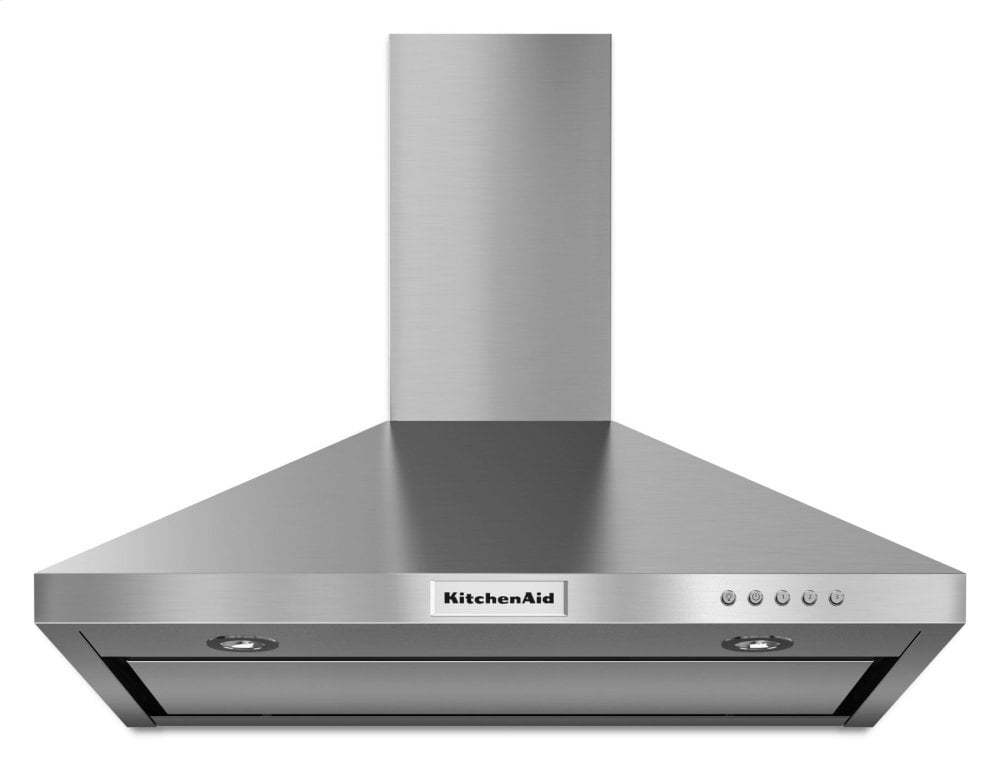

Kitchenaid KVWB400DSS 30'' Wall-Mount, 3-Speed Canopy Hood - Stainless Steel
Perimeter Ventilation
Increases ventilation system efficiency by pulling air from the edges of the hood and speeding up the movement of air at the center, allowing it to efficiently handle up to a 65K BTU total output.

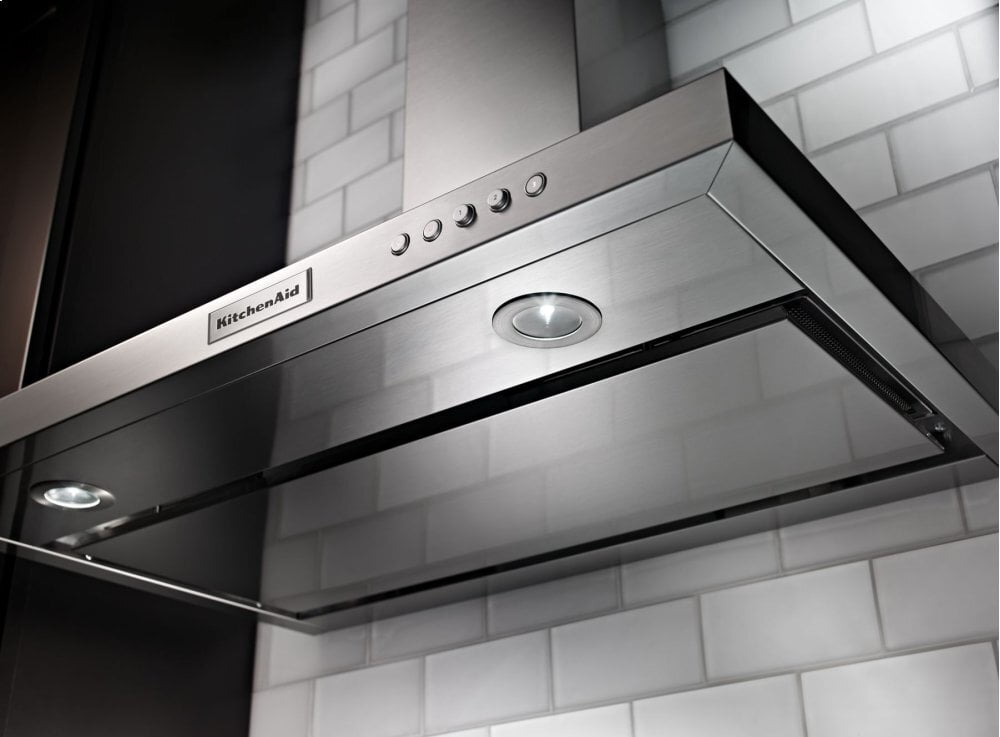

LED Task Lights
Provide extra lighting over the cooking surface to help in the cooking process.
3-Speed Fan Control
Push-button controls make it easy to select and adjust fan speed depending on your ventilation requirements.
Perimeter Ventilation Pulls Air From The Edges Of The Hood. This Allows The 400 Cfm Motor To Provide Effective Ventilation Over Cooking Surfaces With Burners That Can Reach A Maximum Output Of 65K Btus.
- 400 CFM/65K BTU Threshold - Allows installation over any KitchenAid regular 36- or 30-inch range or cooktop, and some commercial-style cooking surfaces with outputs up to 65K BTU.
- Whisper Quiet(R) System @ 39 dBA (0.4 sones) at Low Speed - Ensures that the ventilation system operates at a quiet level so it can be used while entertaining. At maximum speed, sound level is 63 dBA (4.6 sones).
- Dishwasher Safe Premium Mesh Filter - Help keep the kitchen environment fresh and also provide proper filtration of grease and odors to help reduce contact with ceilings and countertops.
- Easy In-line Conversion - Converts from a traditional set-up to an in-line blower installation for an even more quiet operation. Metal box purchase required.
Specifications | |
Dimensions | |
Depth | 20.0 in |
Height | 28-7/8 in |
Width | 30.0 in |
Configuration and Overview | |
Hood Type | Wall Mount |
Size | 30 in |
UL | UL |
Details | |
Night Light | Yes |
Night Light Type | N/A |
Number of Night Light Settings | 0 |
Number of Task Light Settings | 1 |
Task Light Type | LED |
Task Lighting | Yes |
Ventilation System | |
Blower Type | Centrifugal |
Duct Direction | Vertical |
Duct Outlet Size | 6 |
Duct Type | Round |
Filters | Grease Filters |
Number of Speeds | 3 |
Sound Max Speed Sones | 4-3/5 |
Sound Max Speed Sound Max Speed dBA | 63-7/10 |
Sound Min Speed Sones | 0-1/25 |
Sound Min Speed dBA | 39.0 |
Certifications | |
Kosher Consumer Friendly | Yes |
GDS | |
GPC Code | 10005322 |
IsInvoiceUnit | true |
IsOrderableUnit | true |
Product Type | EA |
UDEX | 1100642102 |
isBaseUnit | true |
isConsumerUnit | true |
