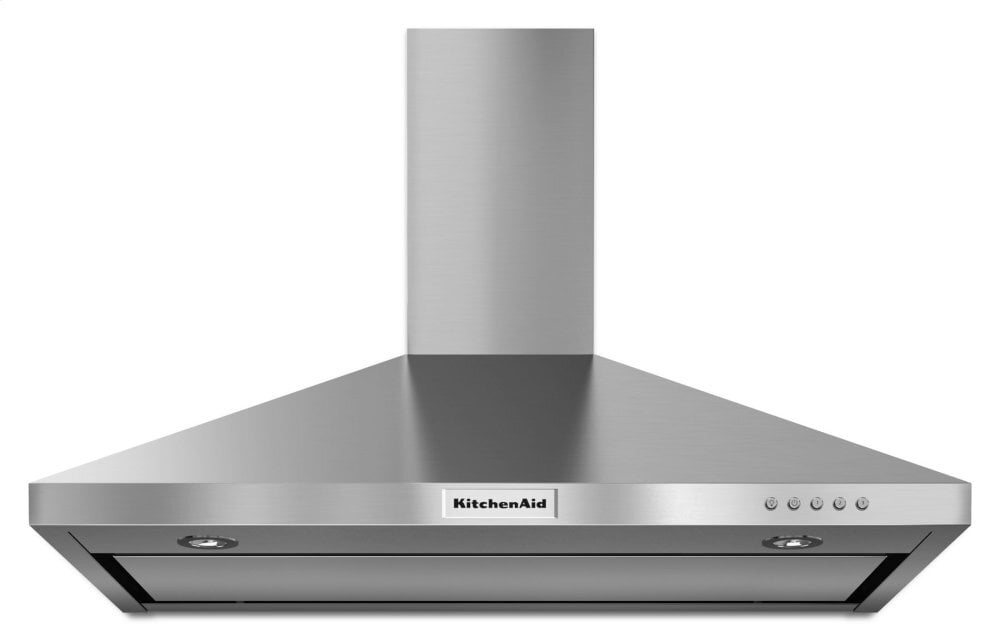

Kitchenaid KVWB406DSS 36'' Wall-Mount, 3-Speed Canopy Hood - Stainless Steel
Perimeter Ventilation
Increases ventilation system efficiency by pulling air from the edges of the hood and speeding up the movement of air at the center, allowing it to efficiently handle up to a 65K BTU total output.

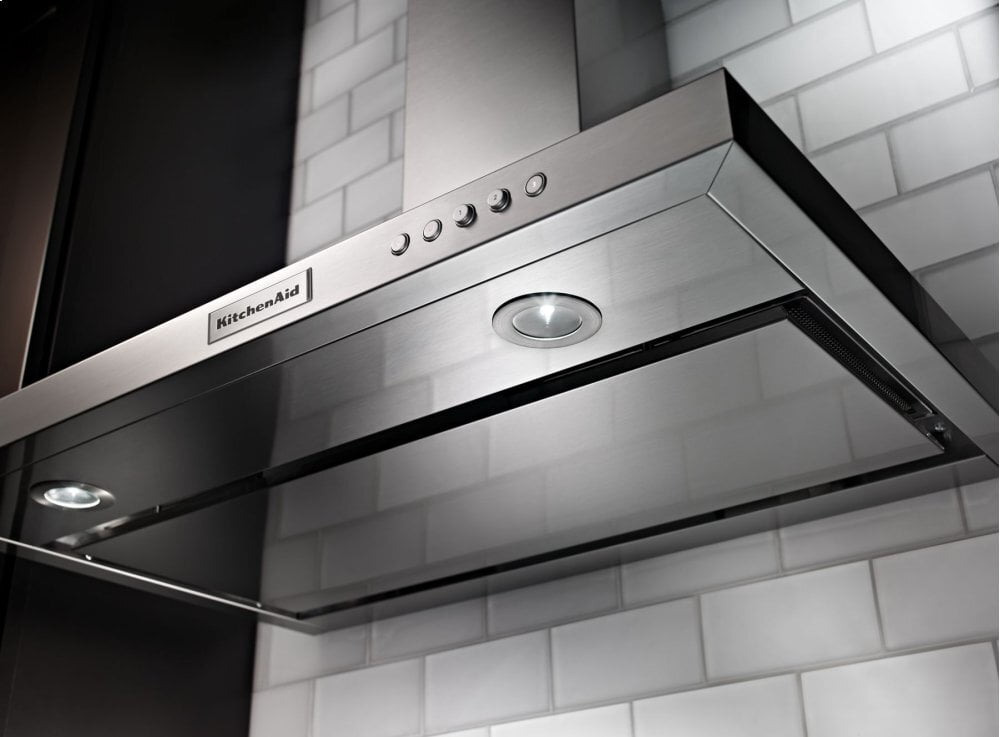

LED Task Lights
Provide extra lighting over the cooking surface to help in the cooking process.
A Premium Feature Of This 36-Inch Canopy Hood Is A Perimeter Ventilation System. This Promotes Efficiency By Pulling Air From The Edges Of The Hood And Allows It To Handle Up To A 65K Total Output With A 400 Cfm Motor. The Perimeter Design Also Allows The Hood To Operate Quietly, Even At Higher Speeds.
- 400 CFM/65K BTU Threshold - Allows installation over any KitchenAid regular 36- or 30-inch range or cooktop, and some commercial-style cooking surfaces with outputs up to 65K BTU.
- Whisper Quiet(R) System @ 39 dBA (0.4 sones) at Low Speed - Ensures that the ventilation system operates at a quiet level so it can be used while entertaining. At maximum speed, sound level is 63 dBA (4.6 sones).
- Dishwasher Safe Grease Filters - Filter reduces steam, grease, and odor to help avoid contact with ceilings and countertops. The design increases filtration by obstructing the path of vented air to help capture more steam, grease, and odors as they are drawn through the vent.
- Easy In-line Conversion - Converts from a traditional set-up to an in-line blower installation for an even more quiet operation. Metal box purchase required.
Specifications | |
Dimensions | |
Depth | 20.0 in |
Height | 28-7/8 in |
Width | 36.0 in |
Configuration and Overview | |
Hood Type | Wall Mount |
Size | 36 in |
UL | UL |
Details | |
Night Light | Yes |
Night Light Type | N/A |
Number of Night Light Settings | 0 |
Number of Task Light Settings | 1 |
Task Light Type | LED |
Task Lighting | Yes |
Ventilation System | |
Blower Type | Centrifugal |
Duct Direction | Vertical |
Duct Outlet Size | 6 |
Duct Type | Round |
Filters | Grease Filters |
Number of Speeds | 3 |
Sound Max Speed Sones | 4-3/5 |
Sound Max Speed Sound Max Speed dBA | 63-7/10 |
Sound Min Speed Sones | 0-1/25 |
Sound Min Speed dBA | 39.0 |
Certifications | |
Kosher Consumer Friendly | Yes |
GDS | |
GPC Code | 10005322 |
IsInvoiceUnit | true |
IsOrderableUnit | true |
Product Type | EA |
UDEX | 1100642102 |
isBaseUnit | true |
isConsumerUnit | true |
