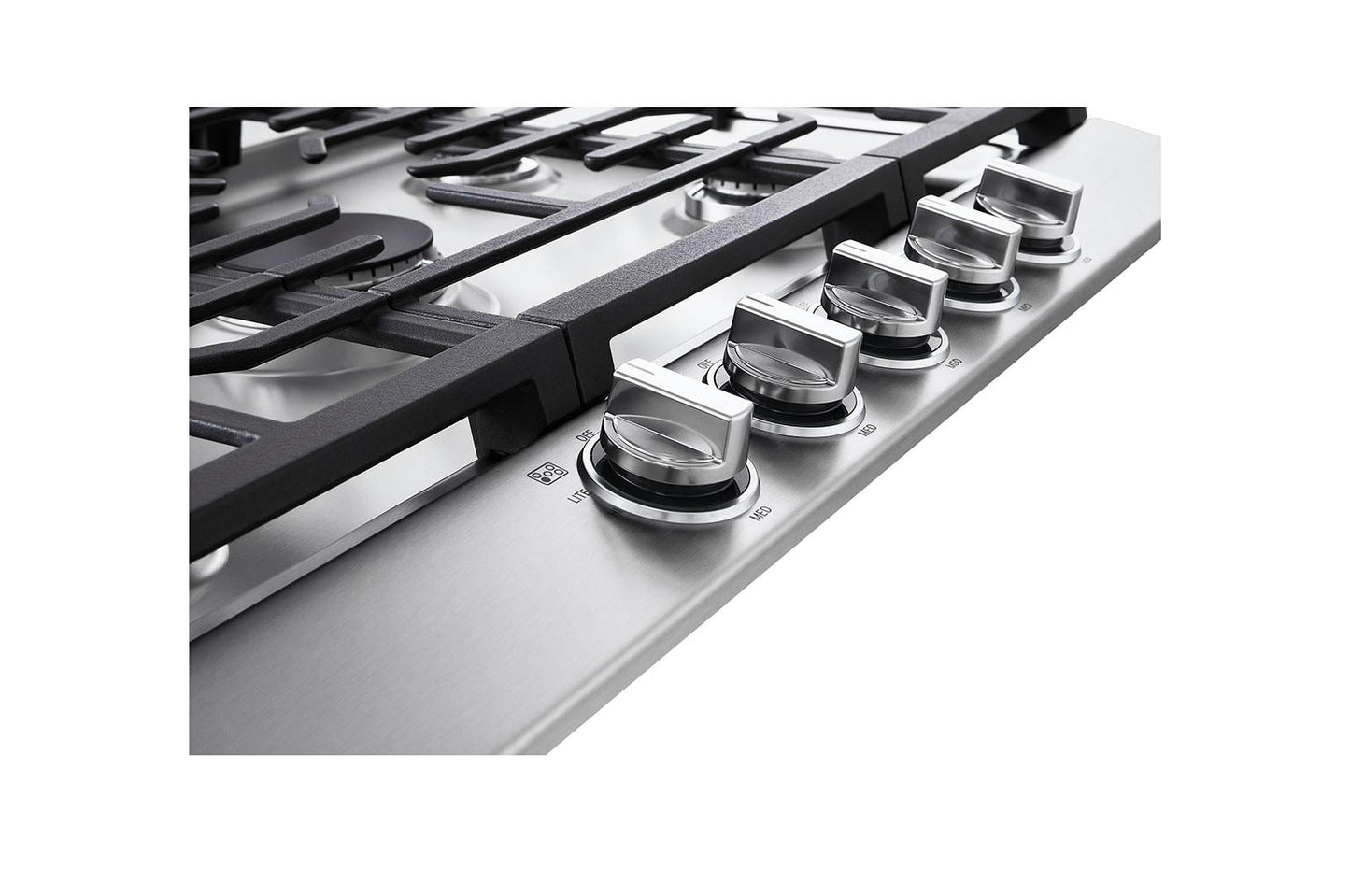

Lg CBGJ3023S 30" Gas Cooktop With Ultraheat™ 20K Btu Burner
Rebates &
Promotions
Continuous Cast-Iron Grates
Not only do our heavy-duty, continuous cast-iron grates look great, but they also help provide even heating and a stable surface for your cookware.
5 Sealed Gas Burners
Five cooktop burners of varying sizes and power levels provide all the power and precision you need.
EasyClean(R) Stainless Steel Cooktop
Easily wipe away spills and splatters thanks to the specially-coated stainless-steel surface.
Auto Reignition
Auto reignition is a safety feature that automatically reignites the burners if the flame accidently goes out, preventing gas leakage and ensuring uninterrupted cooking.
With the 20K BTU Ultraheatâ„¢ Burner, instantly go from sizzle to true simmer. In addition, the five sealed burners and continuous cast-iron grates simplify meal preparation while providing an even and steady cooking surface for your cookware.
Dimensions & Capacity Width: 30"
Height: 3.75"
Depth: 21"
- UltraHeat™ 20K BTU Burner
- Cast-Iron Grates
- EasyClean® Stainless Steel (model CBGJ3023S only)
- Auto Reignition
SUMMARY | |
Series | LG |
Type | 30' Gas Cooktop |
COOKTOP | |
Cooktop Burner Type | Sealed Gas Burner |
No. of Burners | 5 |
Burner/BTU - Left Rear | 10000/7500 |
Burner/BTU - Right Rear | 5000/4000 |
Burner/BTU - Left Front | 10000/7500 |
Burner/BTU - Right Front | 12000/10000 |
Burner/BTU - Center | 20000/12500 (warming zone) |
Burner Simmer / BTU - Left Rear | 1270 |
Burner Simmer / BTU - Right Rear | 670 |
Burner Simmer / BTU - Left Front | 1270 |
Burner Simmer / BTU - Right Front | 1270 |
Burner Simmer / BTU - Center | 1270 |
CONTROLS | |
Cooktop Control Type | Knob |
Control Location | Front Center |
DIMENSIONS/CLEARANCES/WEIGHT | |
Product (WxHxD) | 30' x 3 3/4' x 21 11/16' |
Cut-Out (WxHxD) | 28 1/2' x 3 3/4' x 19 5/8' |
Shipping Dimensions (W x H x D) | 34 21/64' x 10 5/32' x 25 25/32' |
Weight (Product) | 45 lbs |
Shipping Weight (lbs) | 53 |
POWER/RATINGS | |
kW at 120V | 120V 60Hz / 0.12A |
Requirements | 120 V / 60Hz AC |
THINQ® SMART FEATURES | |
ThinQ® | No |
Wi-Fi Connectivity | No |
ACCESSORIES | |
Griddle Plate | No |
Conversion Kit | Yes |
WARRANTY/UPC | |
Parts & Labor | 1 Year |
UPC | 048231345231 |
APPEARANCE | |
All Available Colors | Stainless Steel / Black Stainless Steel |
Cooktop Finish | EasyClean® |
Owner's Manual English 3,643K 04/21/2023
Owner's Manual Spanish 3,635K 04/21/2023
