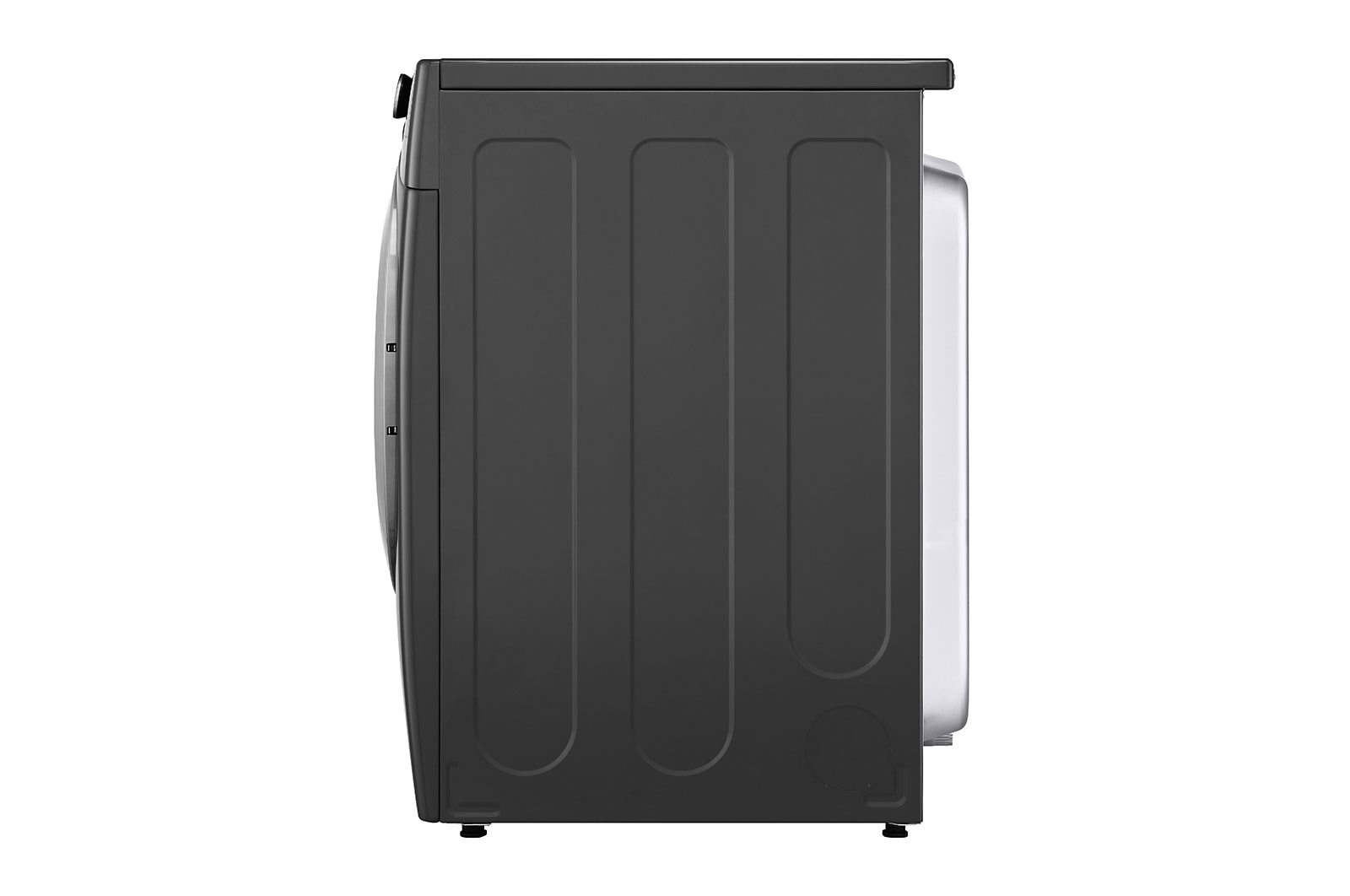

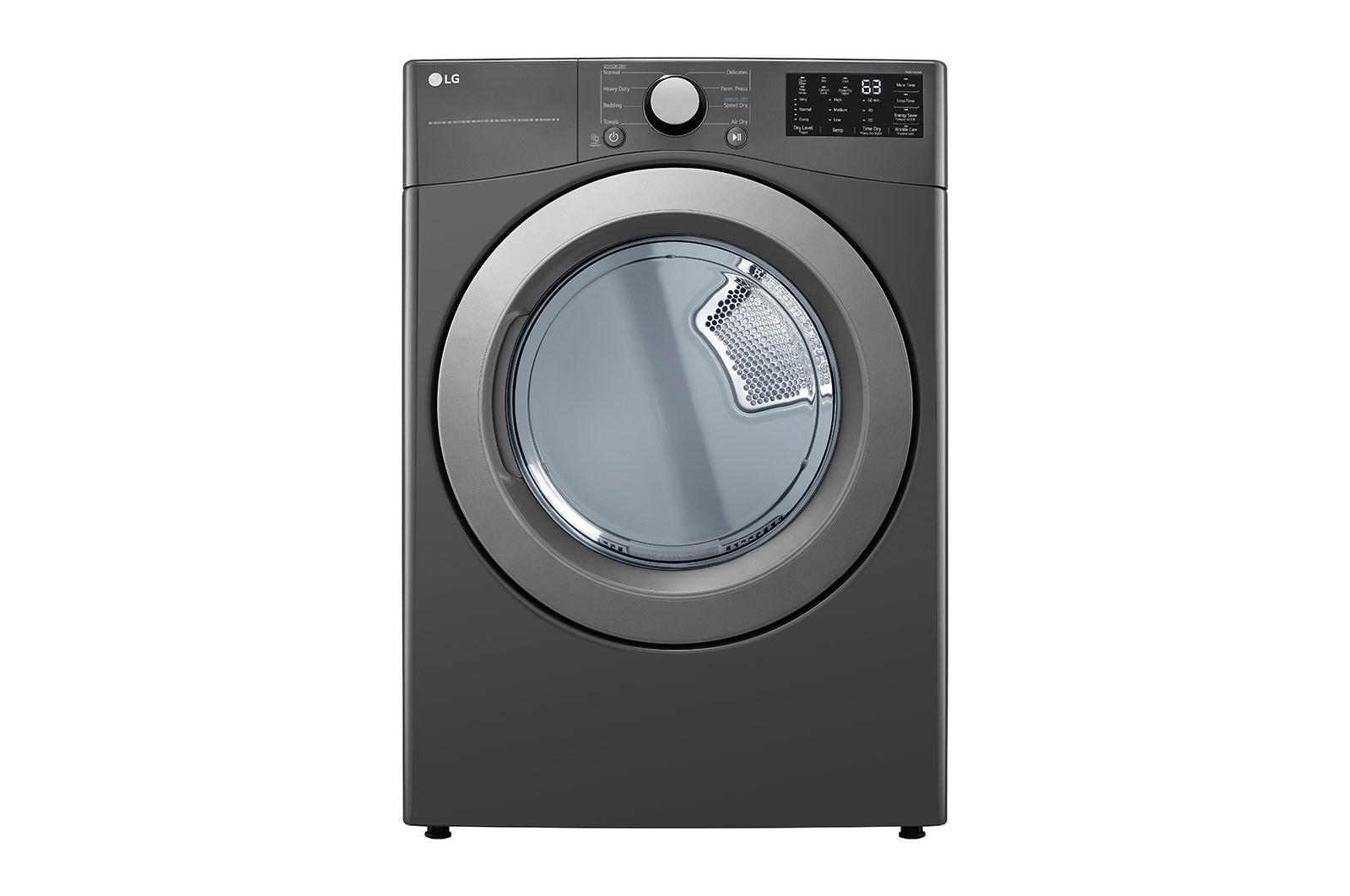

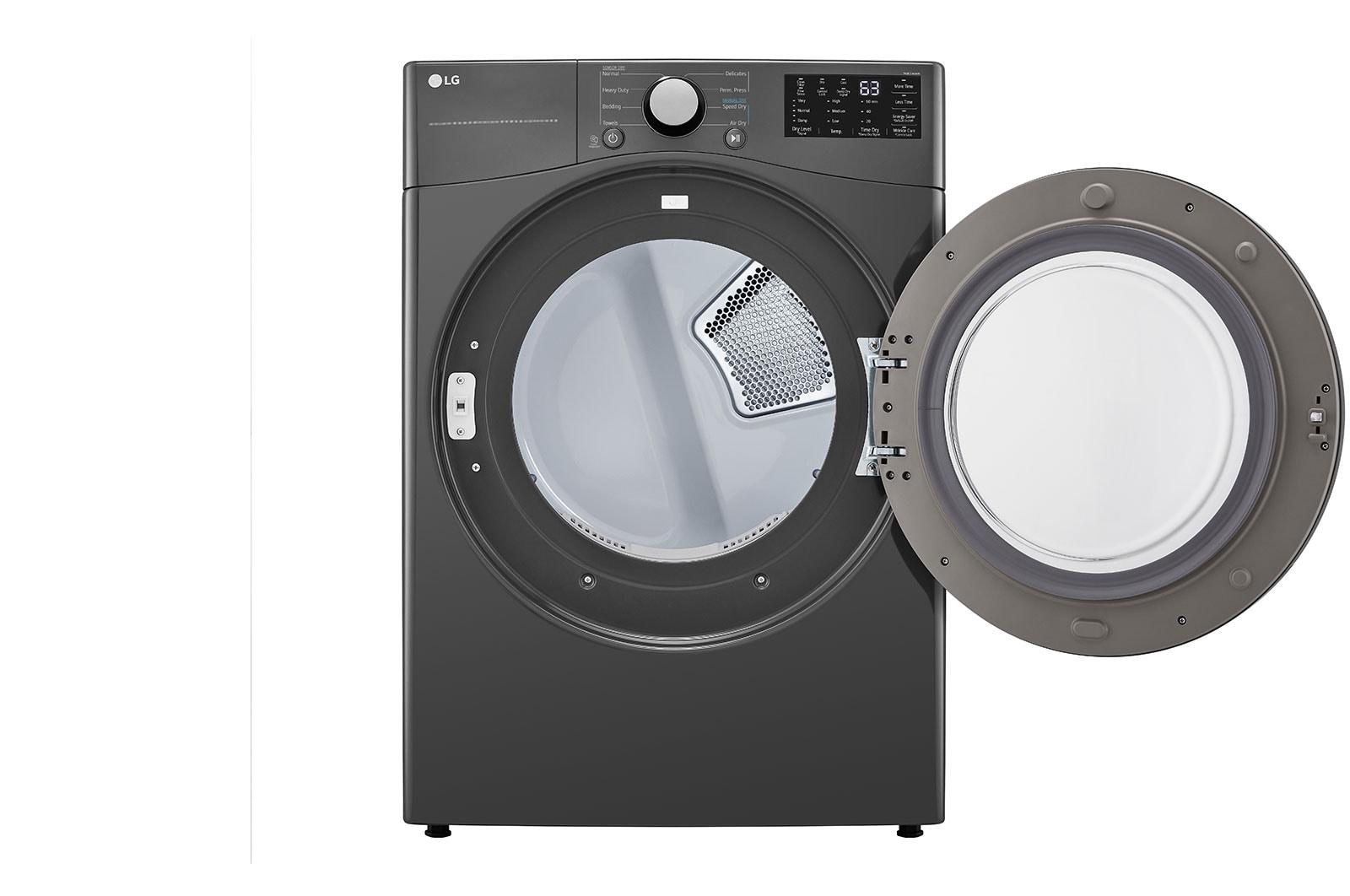

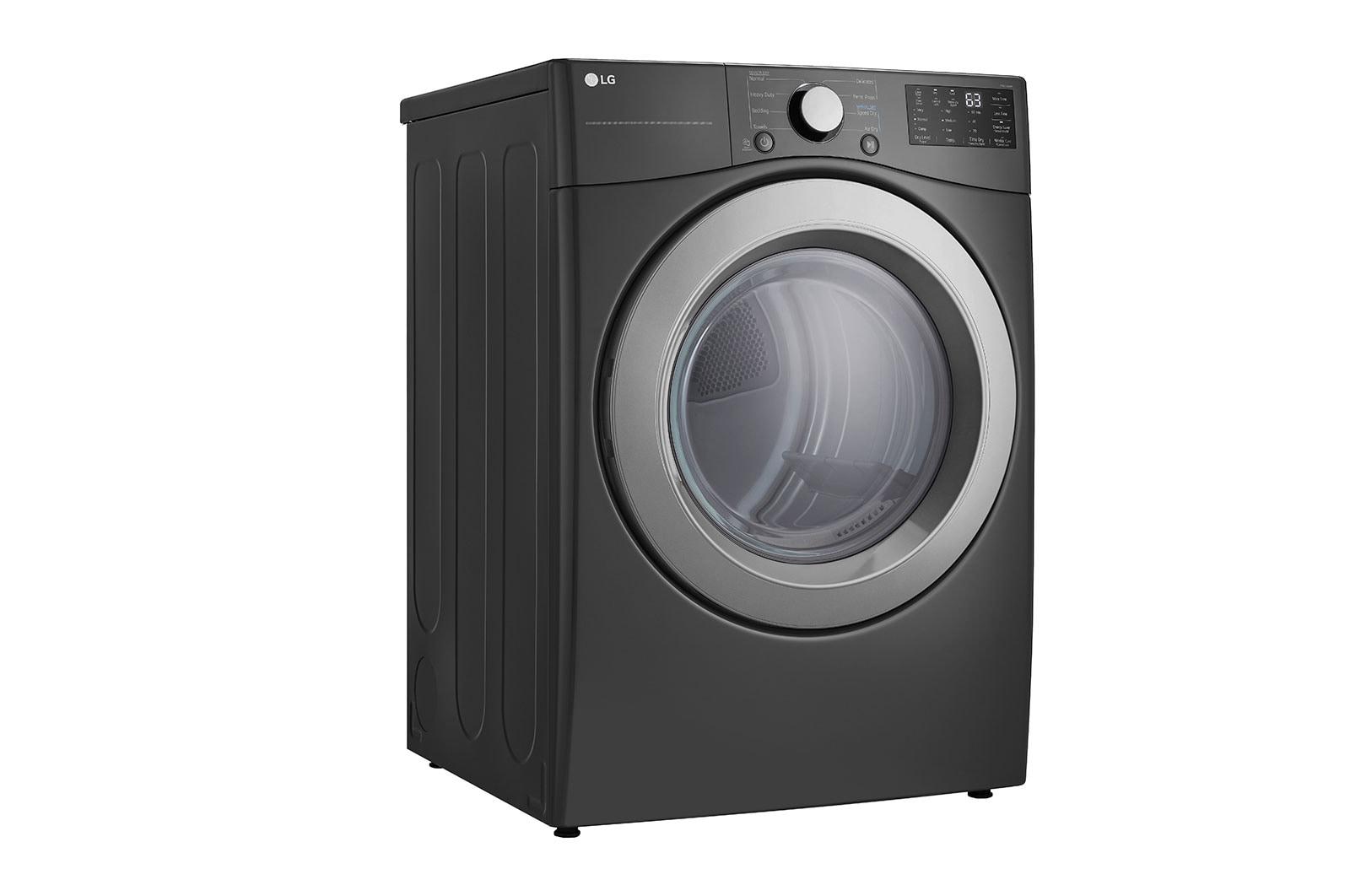

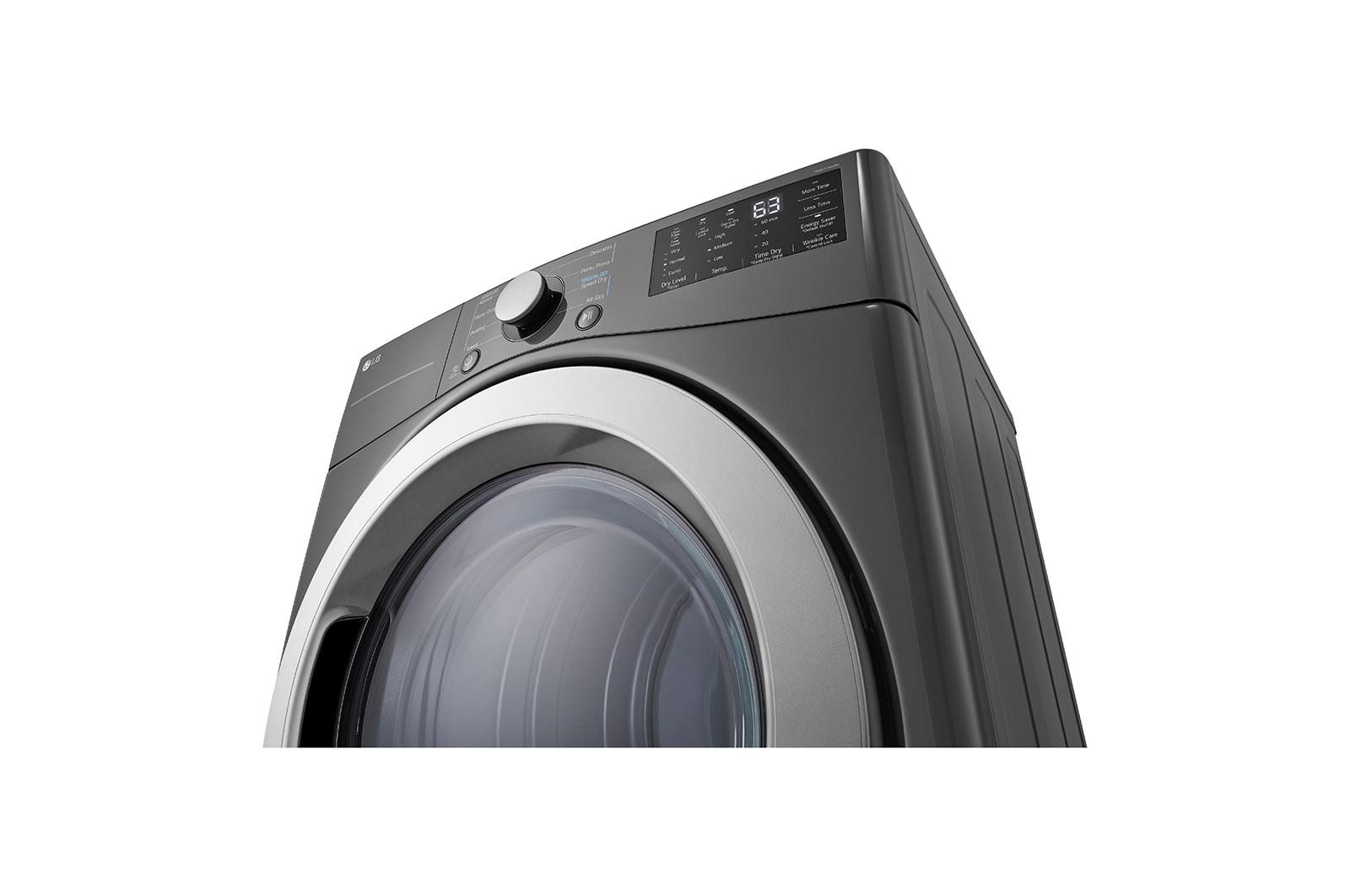

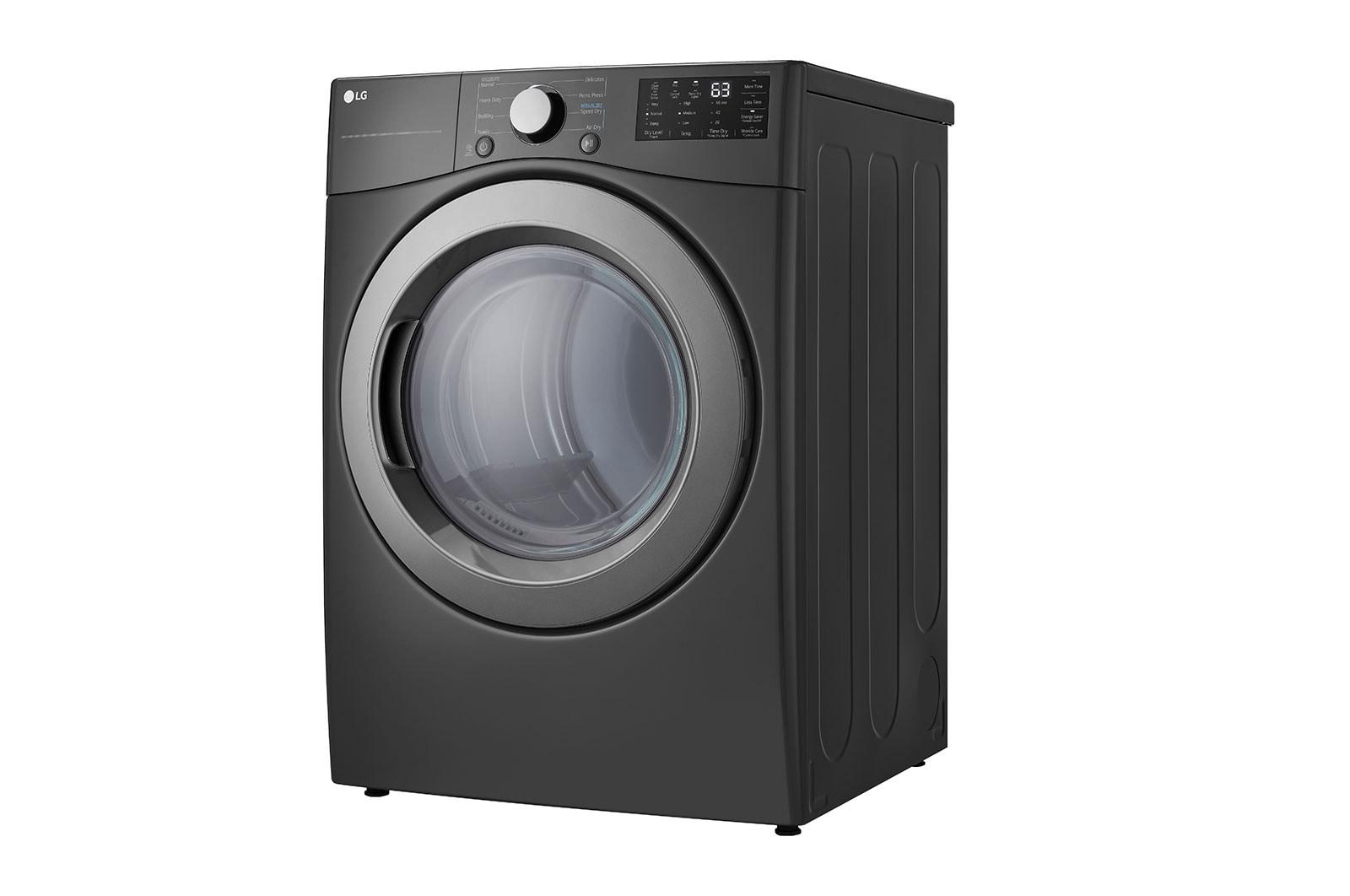

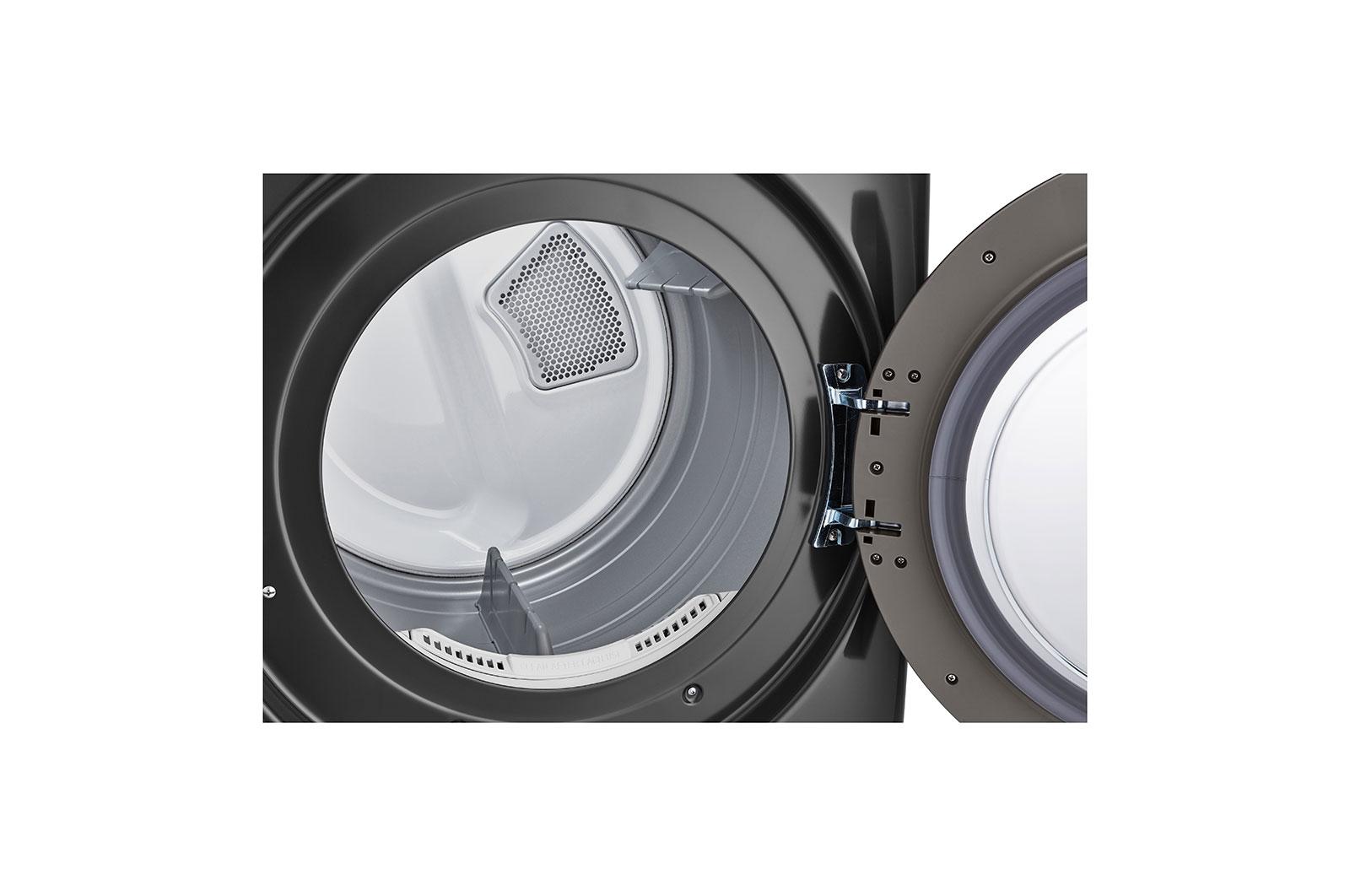

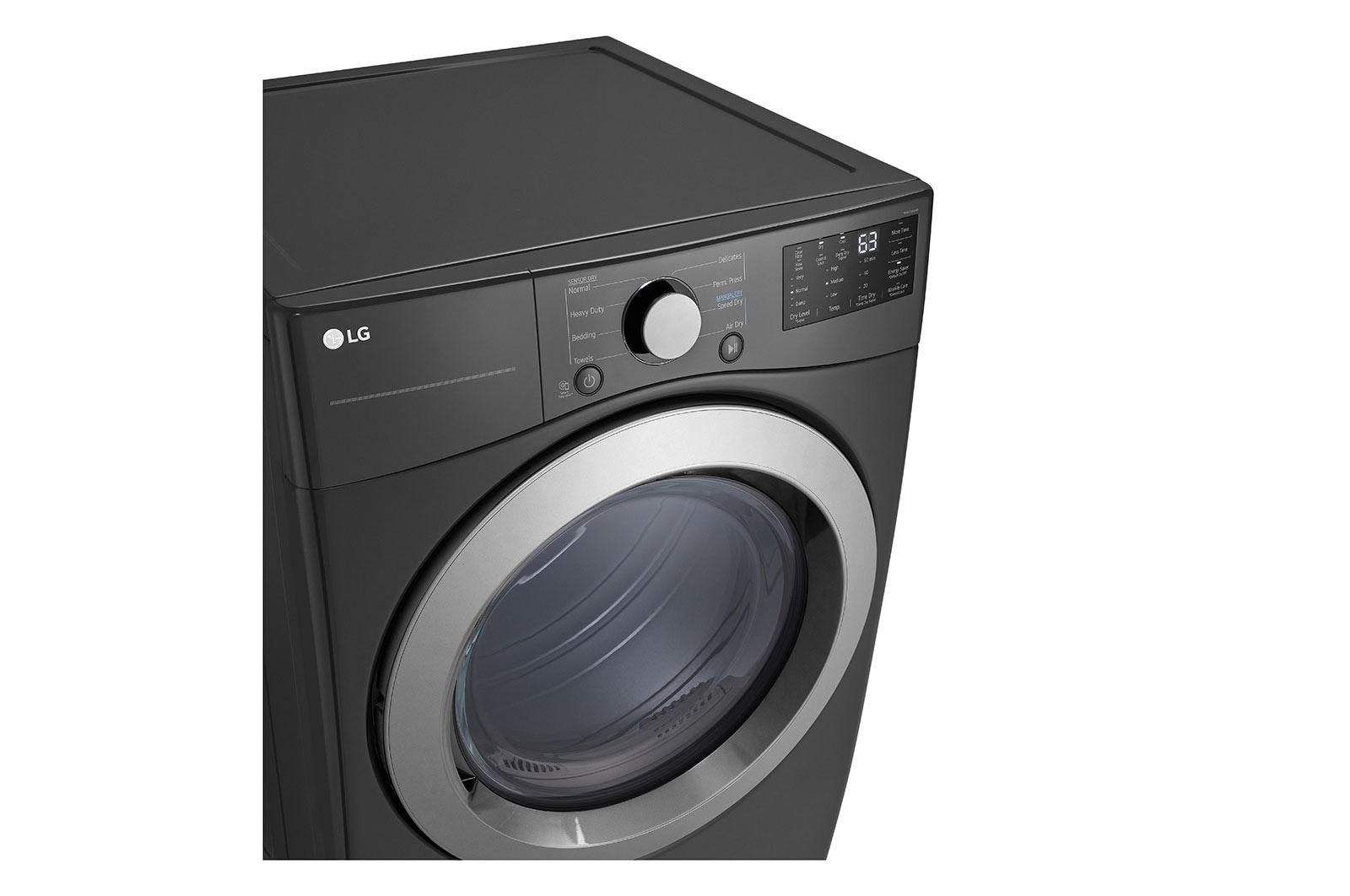

Lg DLE3470M 7.4 Cu. Ft. Ultra Large Capacity Electric Dryer
Lg DLE3470M 7.4 Cu. Ft. Ultra Large Capacity Electric Dryer
x
Installation and Removal
x
When Will I Get My Order?
x
EXTENDED PROTECTION
3 year plan
$120.995 year plan
$228.99Couldn't load pickup availability
x
Installation and Removal
x
When Will I Get My Order?
x
Lg DLE3470M 7.4 Cu. Ft. Ultra Large Capacity Electric Dryer
WHO SAYS DRYERS CAN'T BE E-EFFICIENT?
High efficiency sensor drying and low-heat settings save energy and money by using about 20% less energy than conventional models without sacrificing performance.
ELIMINATE THE GUESSWORK WITH SENSOR DRY
With Sensor Dry, the dryer can detect moisture and automatically adjust drying time for loads of all sizes-saving energy with less wear and tear on clothes.
KEEP YOUR DRYER CLEAN, EFFICIENT & SAFE
With the FlowSense® Duct Clogging & Clean Filter Indicators, you'll know when it's time to clean the ducts and lint filter to ensure great drying and lower utility bills.
Measure First, Order Right.
Nothing is more frustrating than an appliance that doesn't fit. We'll help you find the right one for your space. WATCH THE FULL MOVIE WITH AUDIO DESCRIPTIONS WATCH THE FULL MOVIE
FLEXIBILITY TO FIT ALMOST ANY SPACE
This dryer is worth showing off, but when space dictates otherwise it's good to know it'll easily fit in almost any closet with plenty of room to close the closet door.
GET IT ALL DONE IN LESS TIME
Free up your day-fit more clothes in every load with Ultra Large Capacity (7.4 cu. ft.). Running fewer loads saves energy and money on your utility bill.
SMOOTH, QUIET PERFORMANCE
Designed for quiet operation, run the dryer without interrupting naptime or your favorite show.
Dimensions & Capacity Width: 27"
Height: 43.12"
Depth: 31.37"
- 7.4 cu. ft. Ultra Large Capacity
- Sensor Dry
- FlowSense® Duct Clogging & Lint Filter Indicators
- ENERGY STAR® Certified
- Closet Depth
- Aluminized Alloy Steel Drum
| SUMMARY | |
| Series | LG |
| Type | Front Load Dryer |
| Vent Type | Vented |
| Matching Washer | WM3470CM |
| SteamDryer™: | No |
| On-Door Electronic Control Panel with LED Display | No |
| Hard Buttons | Yes |
| Dial-A-Cycle® | Yes |
| Touch Buttons | Yes |
| Full Touch Electronic Control Panel with LED Display | No |
| DRYER PROGRAMS | |
| No. of Programs | 8 |
| Programs (Sensor Dry) | Normal, Heavy Duty, Bedding, Towels, Perm. Press, Delicates, Speed Dry (Manual Dry), Air Dry (Manual Dry) |
| Temperature Settings | High, Medium, Low |
| Drying Levels | Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry |
| Dry mode | No |
| Manual Dry Times | 60 min., 40 min., 20 min., More Time/Less Time |
| FABRIC CARE FEATURES | |
| AI Sensor Dry™ | No |
| Sensor Dry | Yes |
| Precise Temperature Control with Variable Heater | Yes |
| Precise Temperature Control with Variable Compressor | No |
| Steam | No |
| CONVENIENCE FEATURES | |
| 3 Minute Installation Check | Yes |
| End of Cycle Signal | Yes |
| Drum Light | No |
| Reversible Door | Yes |
| FlowSense® Duct Clogging Indicator | Yes |
| Wrinkle Care Option | Yes |
| Venting Option | 4 Way Venting |
| 4 Adjustable Legs | Yes |
| Remaining Time Display/Status Indicator(s) | Yes |
| THINQ® TECHNOLOGY | |
| SmartDiagnosis™ (v3.0) | Yes |
| WiFi | No |
| NFC Tag On Technology | No |
| Energy Monitoring | No |
| ENERGY | |
| CEF | 3.94 |
| MATERIALS AND FINISHES | |
| Aluminized Alloy Steel Drum | Yes |
| NeveRust® Stainless Steel Drum | No |
| Cabinet | Painted Steel |
| Door | Round silver trim |
| All Available Colors | Middle Black (M), White (W) |
| POWER SOURCE | |
| Ratings | CSA Listed |
| Electrical Requirements | 120/240V, 60Hz, 26A (120/208V, 60Hz, 23A) |
| Type | Electric |
| BTU Rating | N/A |
| OPTIONS/ACCESSORIES | |
| LP Conversion Kit | 383EEL3002D |
| Side Venting Kit | 3911EZ9131X (replaces 383EEL9001B) |
| Pedestal | WDP6M |
| DIMENSIONS | |
| Product (WxHxD) | 27' x 39' x 30 1/8' |
| Depth with Door Open | 51 3/8' |
| Carton (WxHxD) | 28 7/8' x 43 1/8' x 31 3/8' |
| Weight (Product) | 117.3 |
| Weight (Carton) | 122.4 |
| WARRANTY & UPC | |
| Parts & Labor | 1 Year |
| Drum | 3 Years |
| UPC | 195174048627 |
Owner's Manual English 5,536K 12/15/2022
Owner's Manual Spanish 5,629K 12/15/2022
