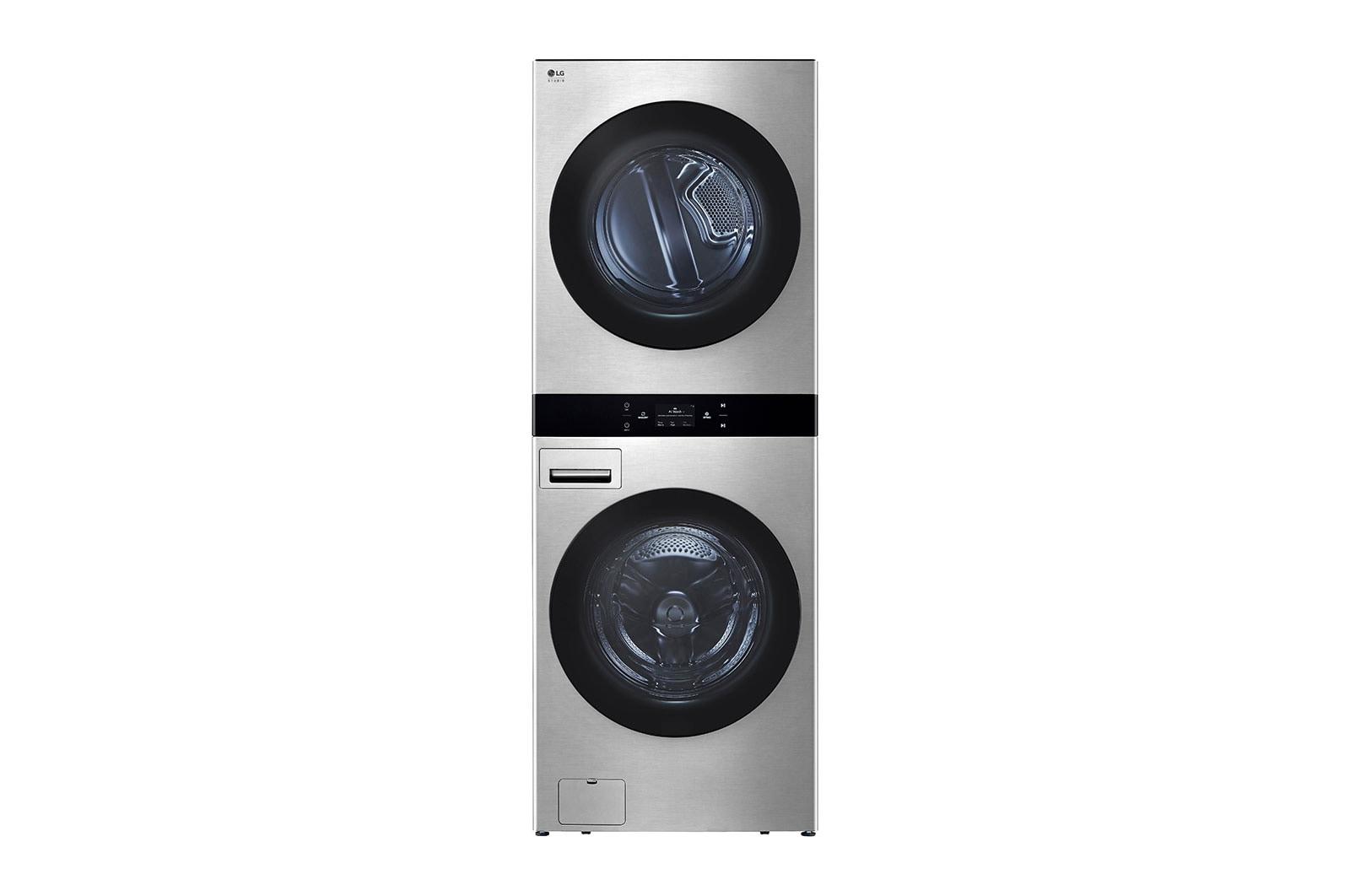

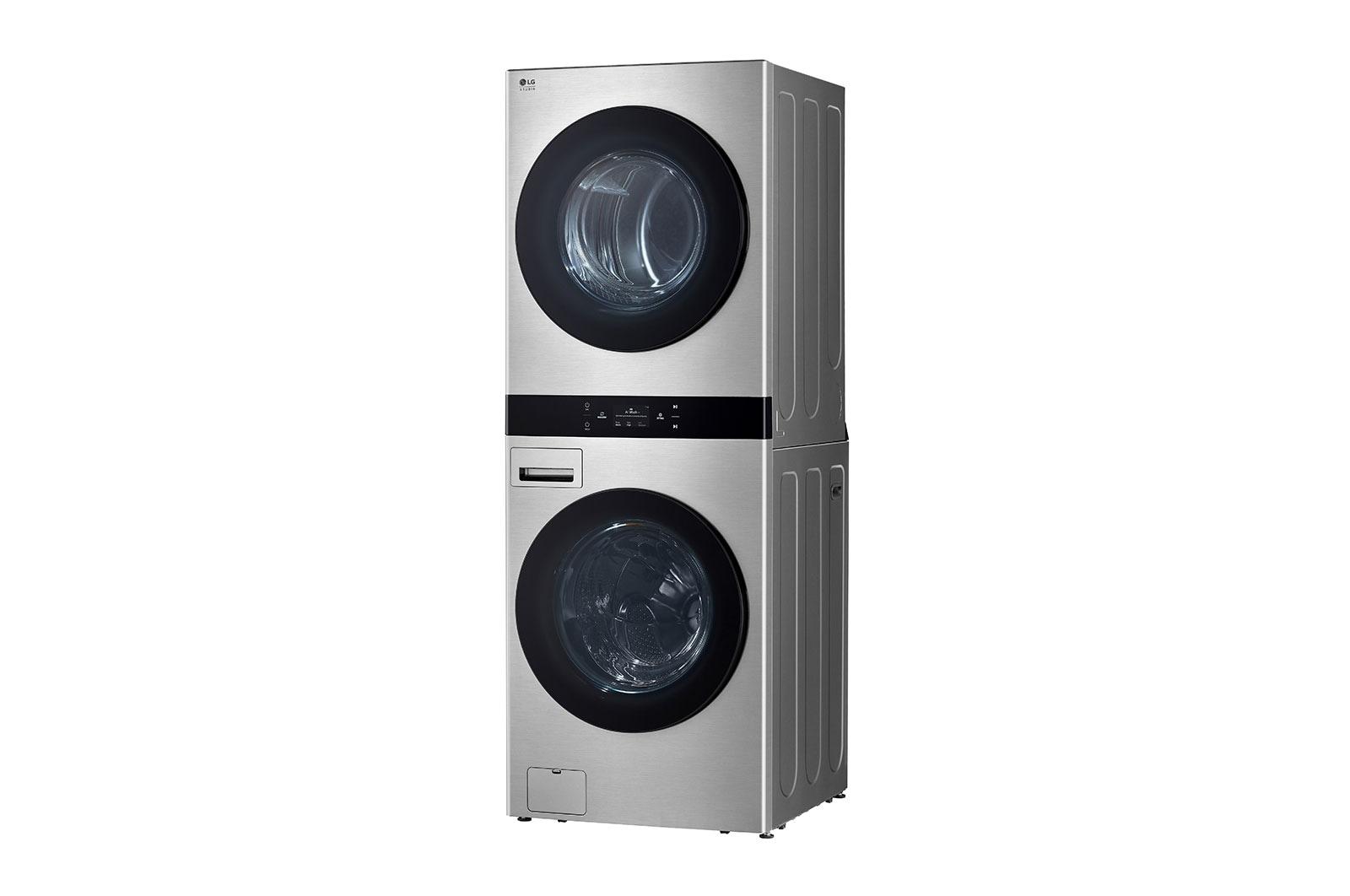

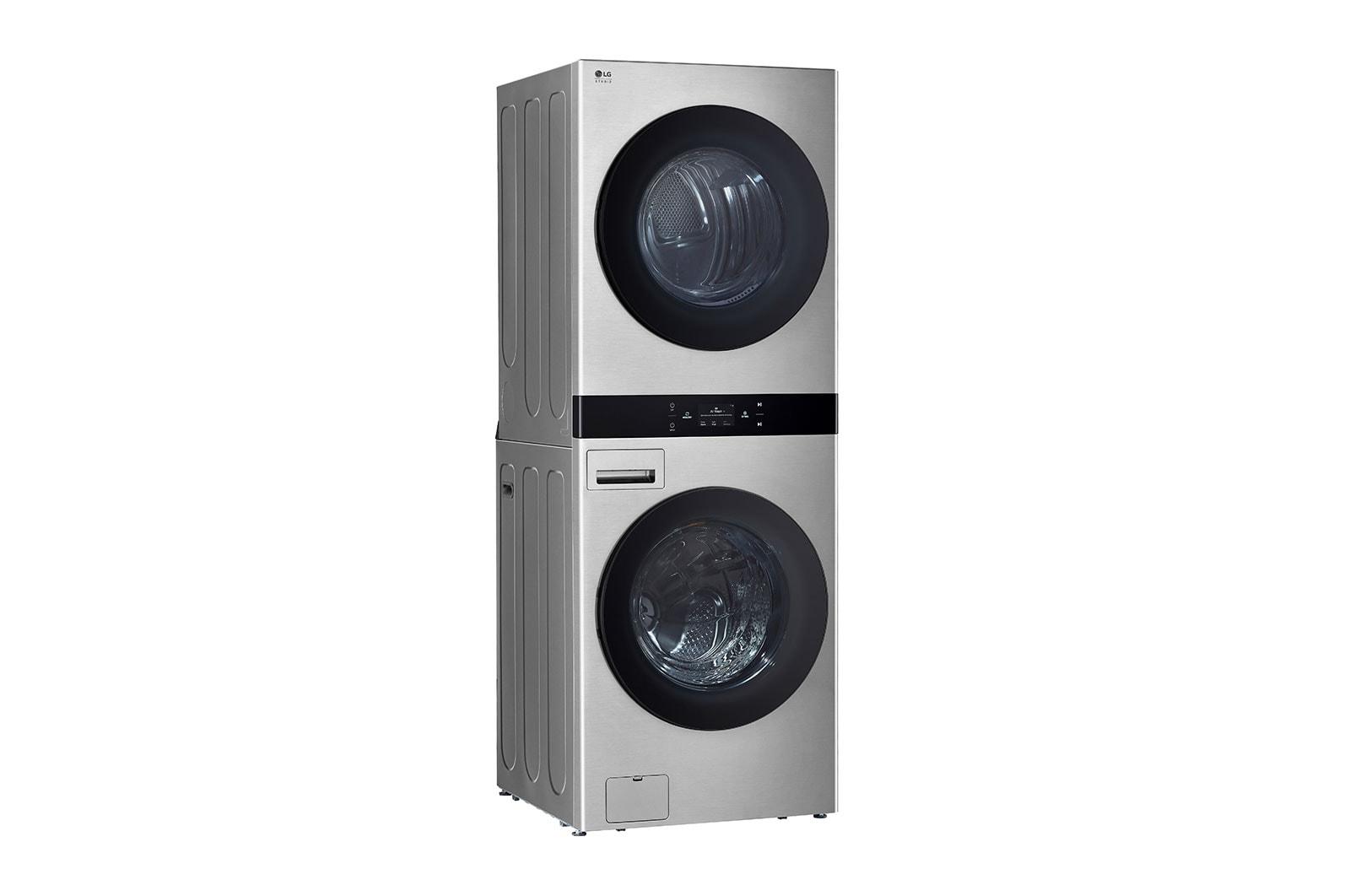

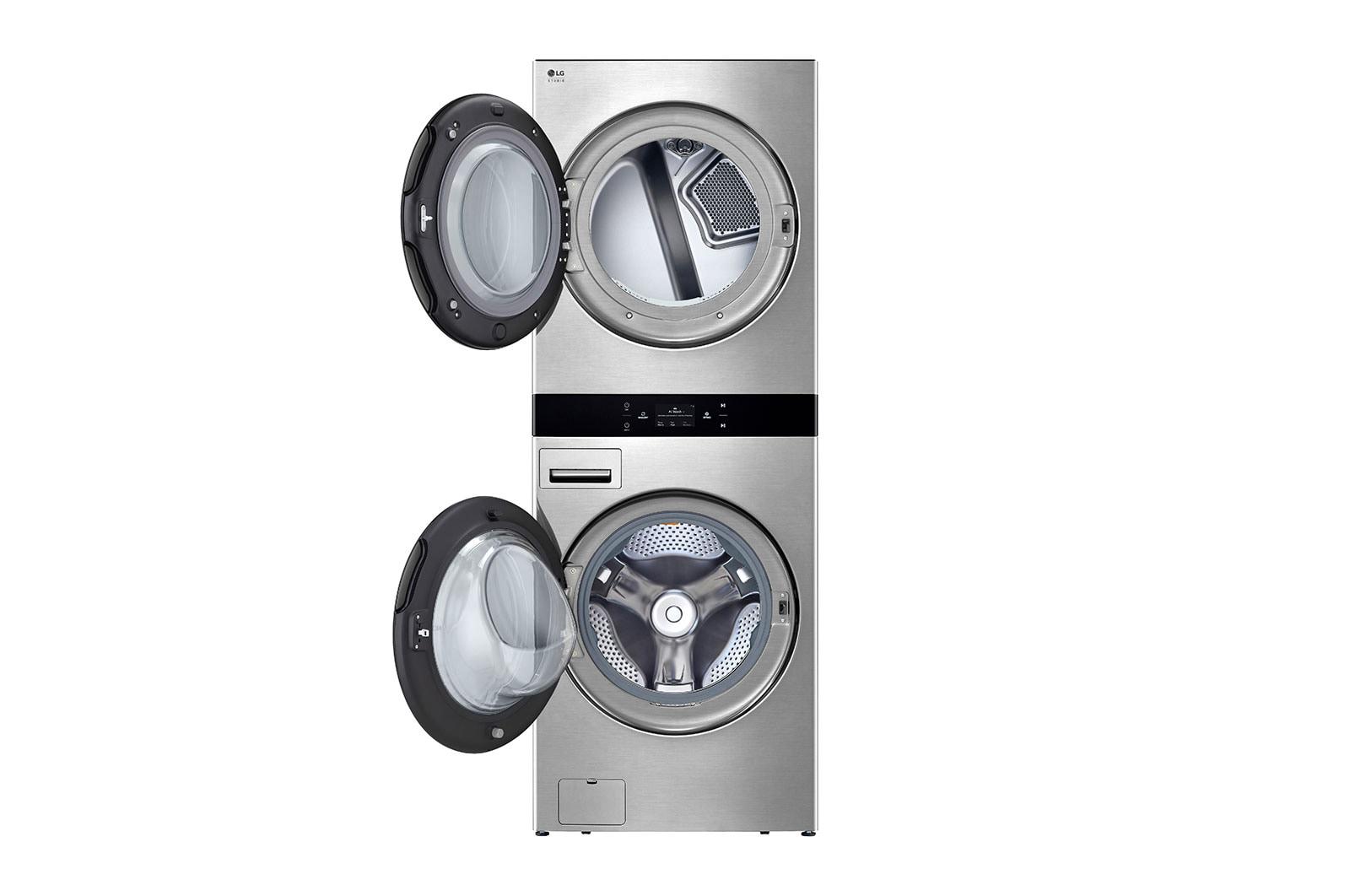

Lg SWWE50N3 Lg Studio Washtower™ Smart Front Load 5.0 Cu. Ft. Washer And 7.4 Cu. Ft. Electric Dryer With Center Control™
Rebates &
Promotions
TurboWash(TM)
Power through larger loads in less time, thanks to five jets with variable sprays that deliver a complete clean in under 30 minutes with a 10 lb. load.
AI DD® 2.0 Built-In Intelligence
Built-in intelligence takes out the guesswork-AI technology selects optimal wash & dry motions and settings. Washer can auto-select a compatible drying cycle
Vertical Laundry Solution
Single Unit LG STUDIO WashTower(TM) with Center Control(TM) 5.0 cu. ft. Front Load Washer and 7.4 cu. ft. Front Load Dryer with Built-In Intelligence
Assesses smart appliances in real-time.
Discover ThinQ Care in the ThinQ(R) app and get proactive usage, maintenance and diagnostic alerts on your phone to help keep your LG smart appliances running smoothly. 3
Go Big to Save Time and Get More Done
Mega & Ultra Large Capacity (5.0 cu. ft. in the washer and 7.4 cu. ft. in the dryer) means you have even more room to do laundry in fewer loads.
Helpful Information in a Brilliant Design

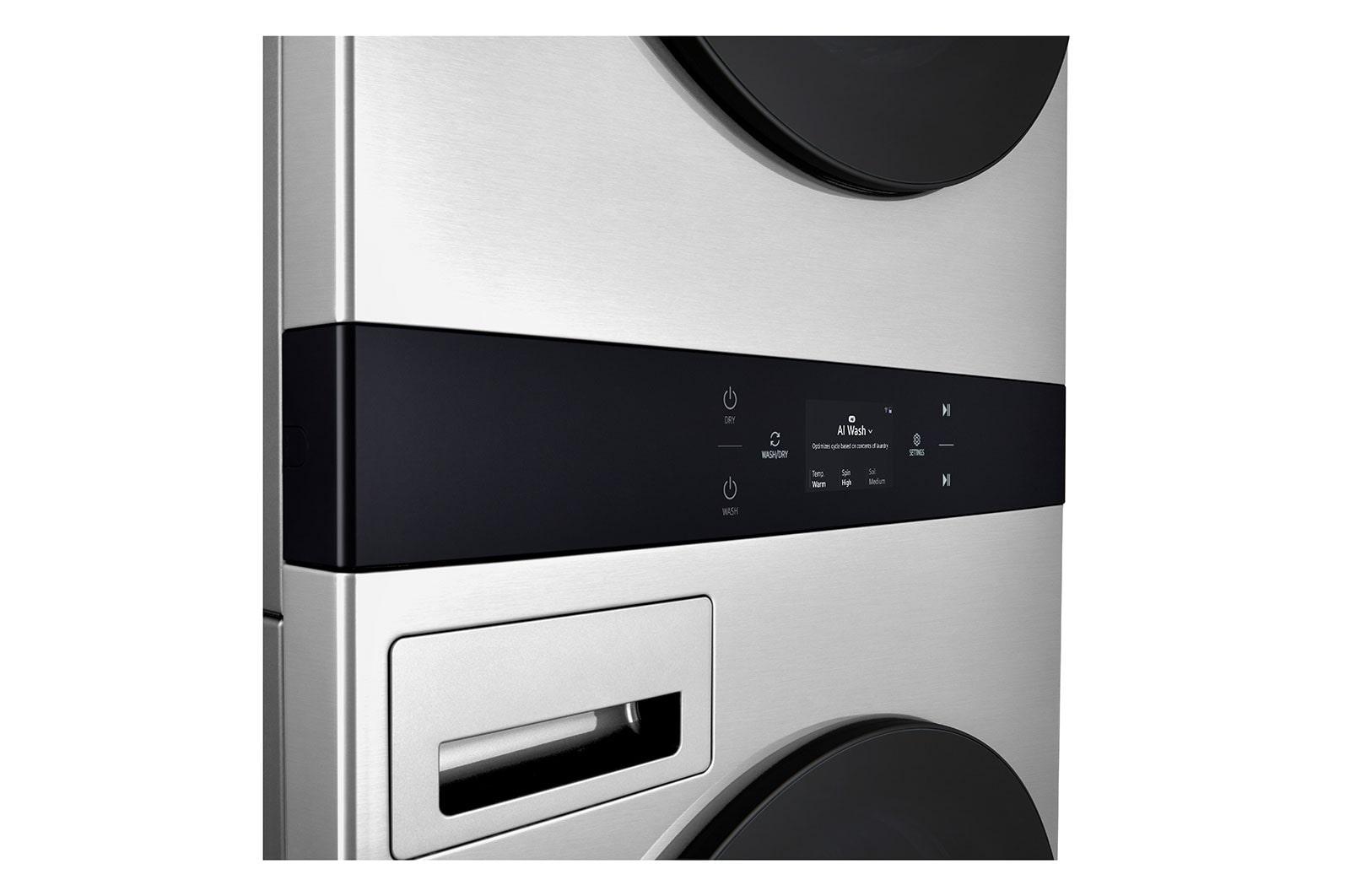

Our Sleekest Center Control® Yet -LCD panel shows descriptions of each setting, helpful prompts, status updates and remaining time.
Ultra Large Capacity 5.0 cu.ft. Washer
LG STUDIO's large 5.0 cu. ft. mega & ultra large capacity fits more clothes in every load and helps you power through laundry day in less time.
TurboSteam(TM)
Do more than dry with TurboSteam(TM) technology in your dryer to refresh clothes, toys, pillows and more in between washes.

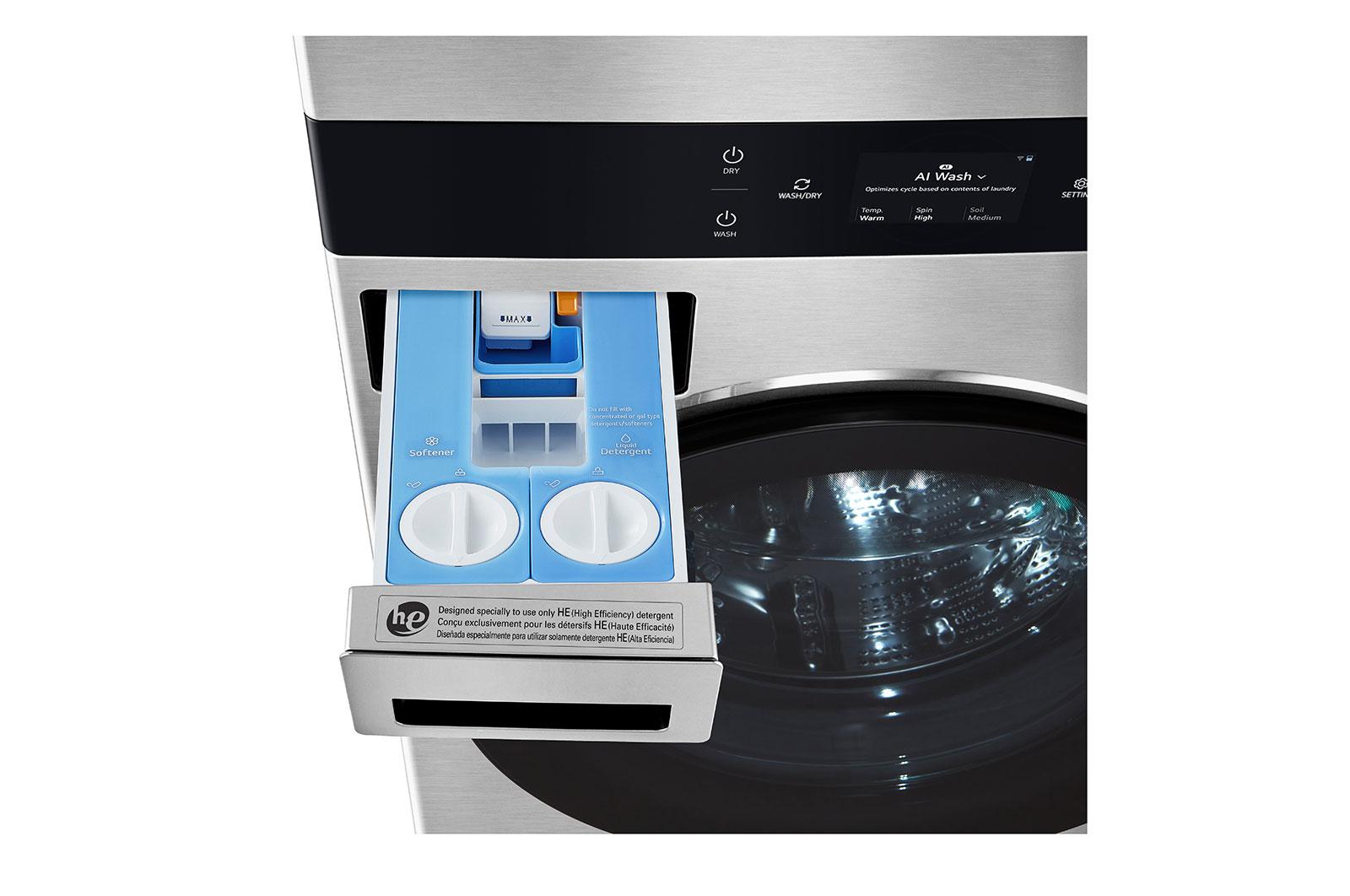

ezDispense® Automatic Dispenser
Automatically dispenses the right amount of detergent and fabric softener, skipping refills for up to 18 to 31 loads. 2
Able to perform just as well as any washer and dryer pair, the Wash Tower comes as a single unit saving you the hassle of dealing with two separate components.
TurboWash™360° uses five powerful jets with variable sprays to give even larger loads a complete clean in under 30 minutes.
Dimensions & Capacity Width: 27 Inch
Depth: 32 5/8 Inch
Height: 74 3/8 Inch
Washer Capacity: 5 Cu. Ft.
Dryer Capacity: 7.4 Cu. Ft.
- 5.0 cu. ft. Washer and 7.4 cu. ft. Dryer Single Unit Wash Tower TM
- AI Sensor Dry and TurboSteam®
- Allergiene® Cycle
- AI DD® 2.0 Advanced Washing with Soil Sensor and TurboWash® 360
- Touch Electronic Center Control® Panel with LCD Display
- ezDispense® Automatic Dispenser
SUMMARY | |
Type | F/Loader, F/Loader Dryer |
Color | Noble Steel |
CAPACITY | |
Capacity | Washer 5.0 cu. ft. / Dryer 7.4 cu. ft. |
ENERGY | |
ENERGY STAR® Qualified | Yes |
CEE Tier | Advanced Tier |
IMEF | 3.1 |
IWF | 2.9 |
CEF | 3.94 |
WASH PROGRAMS | |
No. of Programs | 12 (+14) |
Wash Programs | Normal Wash, AI Wash, Bedding, Delicates, Towels, Quick Wash, Heavy Duty, Allergiene™, Perm. Press, Tub Clean, Bright Whites™, Sanitary |
No. of Options | 18 |
Options | TurboWash™, Steam, Extra Rinse, Pre-wash, Drum Light, Control Lock, Signal, Wi-Fi / Remote Start, ezDispense™, Cold Wash™, Fresh Care, Delay Start, Cycle List Edit, ezDispense™ Nozzle Clean, Smart Diagnosis, Cycle Optimization, Brightness, Factory Reset |
DRYER PROGRAMS | |
No. of Programs | 12 (+13) |
Programs | Normal Dry, AI Dry, Bedding, Delicates, Towels, Quick Dry, Timed Dry, Power Dry, Perm. Press, SteamFresh™, Heavy Duty ,Air Dry |
No. of Options | 14 |
Options | TurboSteam, Energy Saver, Low Static, Wrinkle Care, Damp Dry Signal, Drum Light, Cycle List Edit, Signal, Smart Diagnosis, Control Lock, Cycle Optimization, Wi-Fi / Remote Start, Brightness, Factory Reset |
FABRIC CARE FEATURES | |
AI DD™ | Yes |
TurboWash® 360 Technology | Yes |
Steam Technology | Yes |
Allergiene™ Cycle | Yes (Cloud Cycle) |
Sanitary Cycle | Yes |
AI Sensor Dry™ | Yes |
Sensor Dry | Yes |
Precise Temperature Control with Variable Heater | Yes |
TrueSteam® Technology | Yes (TurboSteam™) |
CONVENIENCE FEATURES | |
Vibration sensing(Cabinet Vibration sensor) | Yes |
TrueBalance® Anti-Vibration System | Yes |
4 Tray Dispenser | Prewash, Main Wash (with liquid detergent cup), Bleach, Fabric Softener |
End of Cycle Signal | Yes |
LoadSense | Yes |
Control Lock | Yes |
Auto Suds Removal | Yes |
Leveling Legs | 4 Adjustable Legs |
Drum Light | Yes |
Remaining Time Display/Status Indicator(s) | Yes |
3 Minute Installation Check | Yes |
FlowSense® Duct Clogging Indicator | Yes |
Wrinkle Care Option | Yes |
Venting Option | 3 Way Venting |
MOTOR & AGITATOR | |
Motor Type | Inverter Direct Drive Motor |
Axis | Horizontal |
MATERIALS AND FINISHES | |

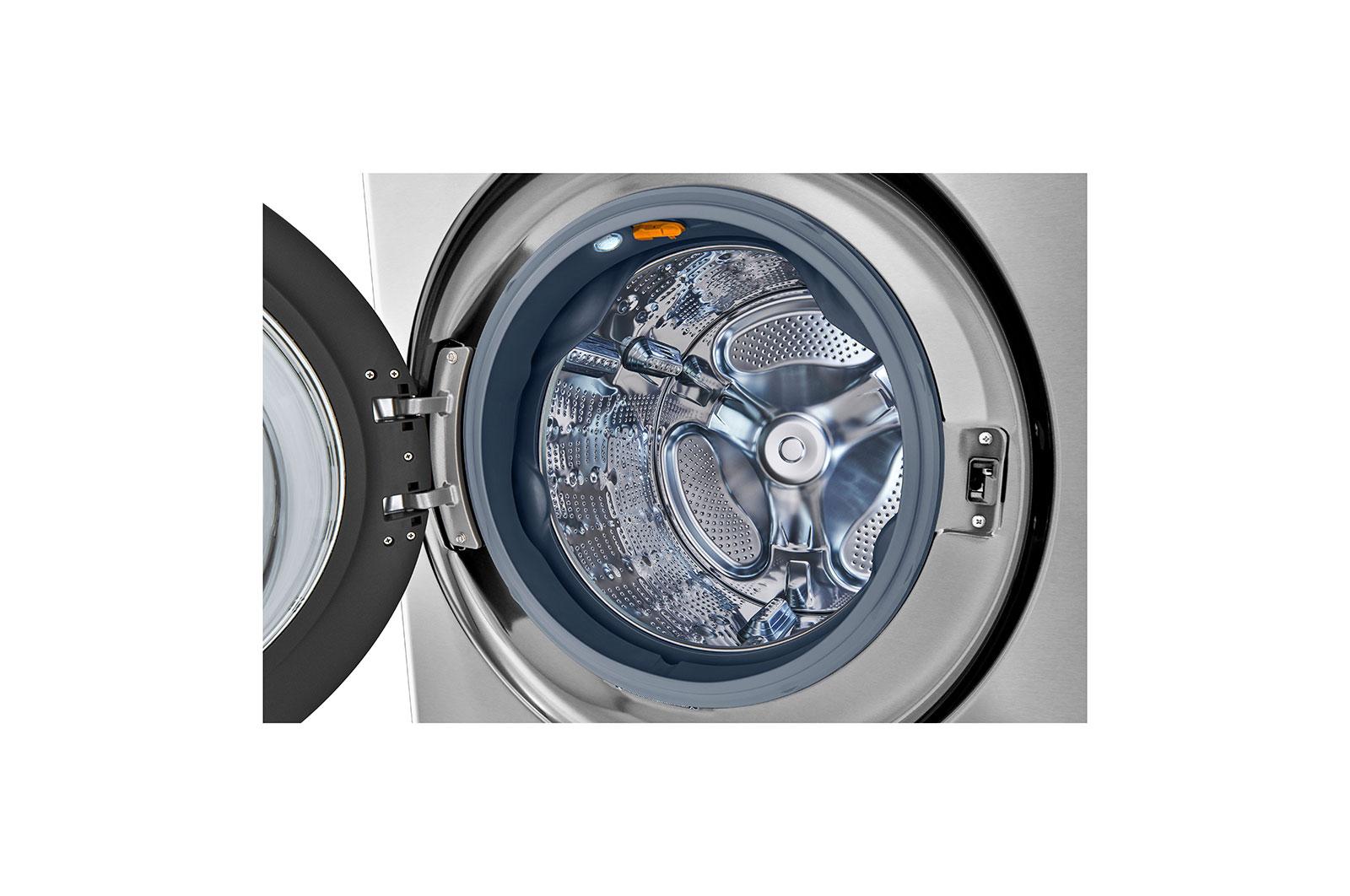

NeveRust® Stainless Steel Drum | Yes |
Control Panel | Plastic |
Top Plate | Steel |
Cabinet | Painted Steel |
Door / Rim | Large Circle Chrome Rim |
Door Cover | Tinted Round Tempered Glass |
All Available Colors | Noble Steel |
CERTIFICATION | |
AAFA | Yes |
POWER SOURCE | |
Ratings | CSA Listed |
Electrical Requirements | Washer - 120V, 10 Amps / Dryer - 240V, 30 Amps |
Type | Electric |
OPTIONS/ACCESSORIES | |
LP Conversion Kit | 383EEL3002D |
Side Venting Kit | 3911EZ9131X |
DIMENSIONS | |
Product (WxHxD) | 27' x 74 3/8' x 32 5/8' |
Depth with Door Open | 58' D with door open |
Carton (WxHxD) | 30 1/16' x 79 11/32' x 33 23/32' |
Weight (Product/Carton) | 333 lbs. / 368 lbs |
WARRANTY & UPC | |
Parts & Labor | 2 Year |
Drum | 3 Years |
Direct Drive Motor | 10 Years |
UPC | 195174054413 |
