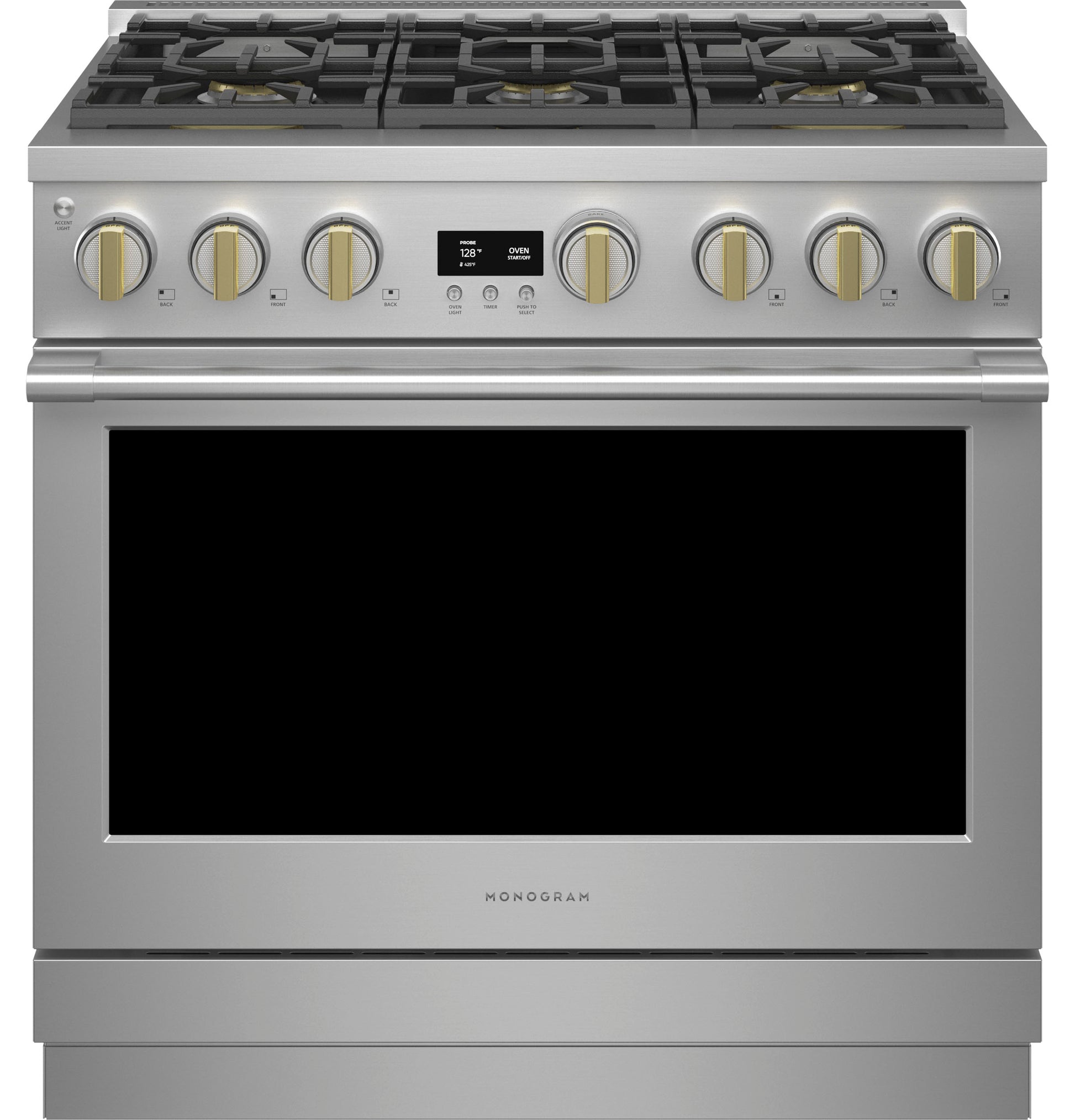

Monogram ZDP366NTSS Monogram 36" Dual-Fuel Professional Range With 6 Burners (Natural Gas)
Rebates &
Promotions

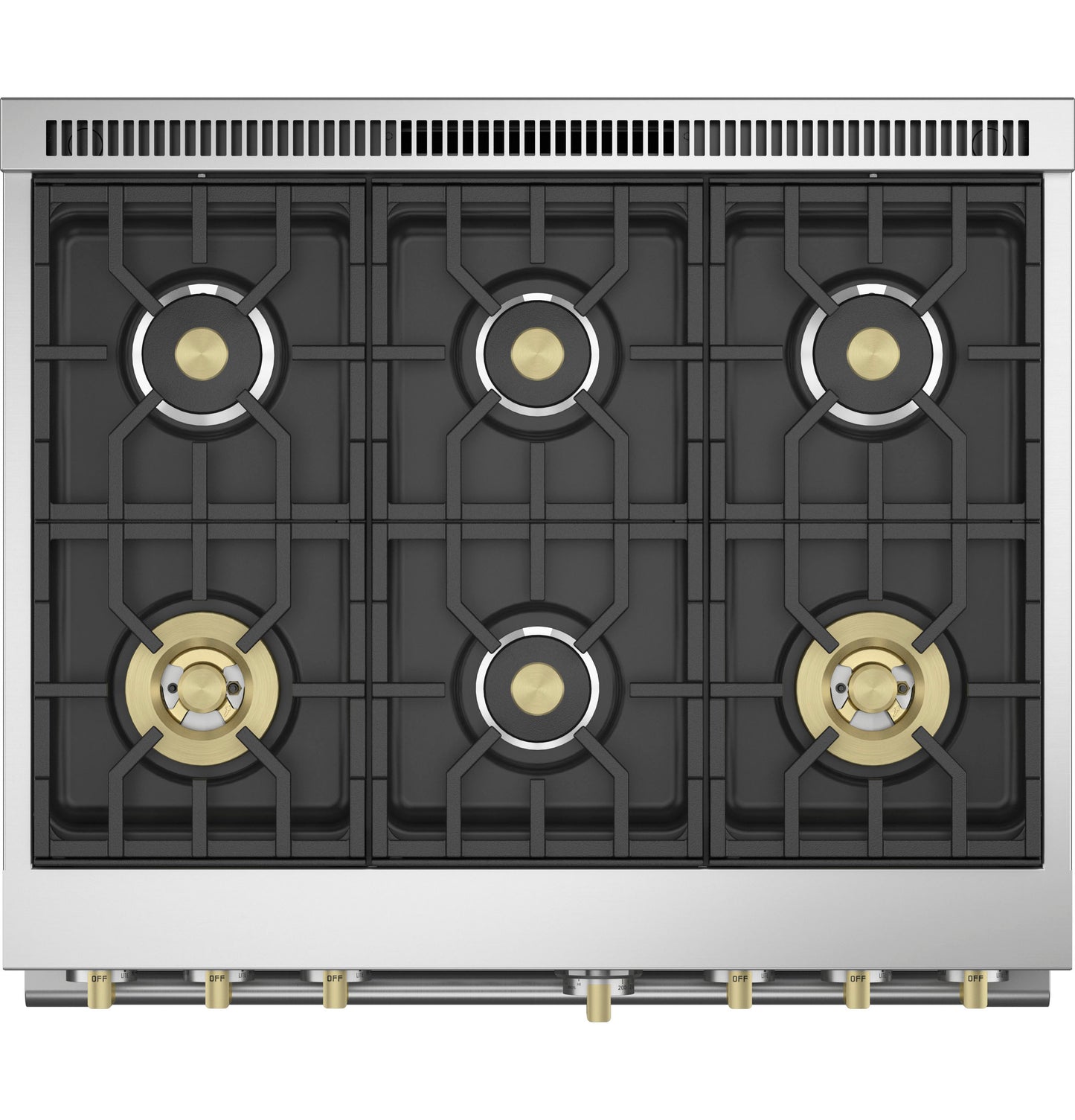

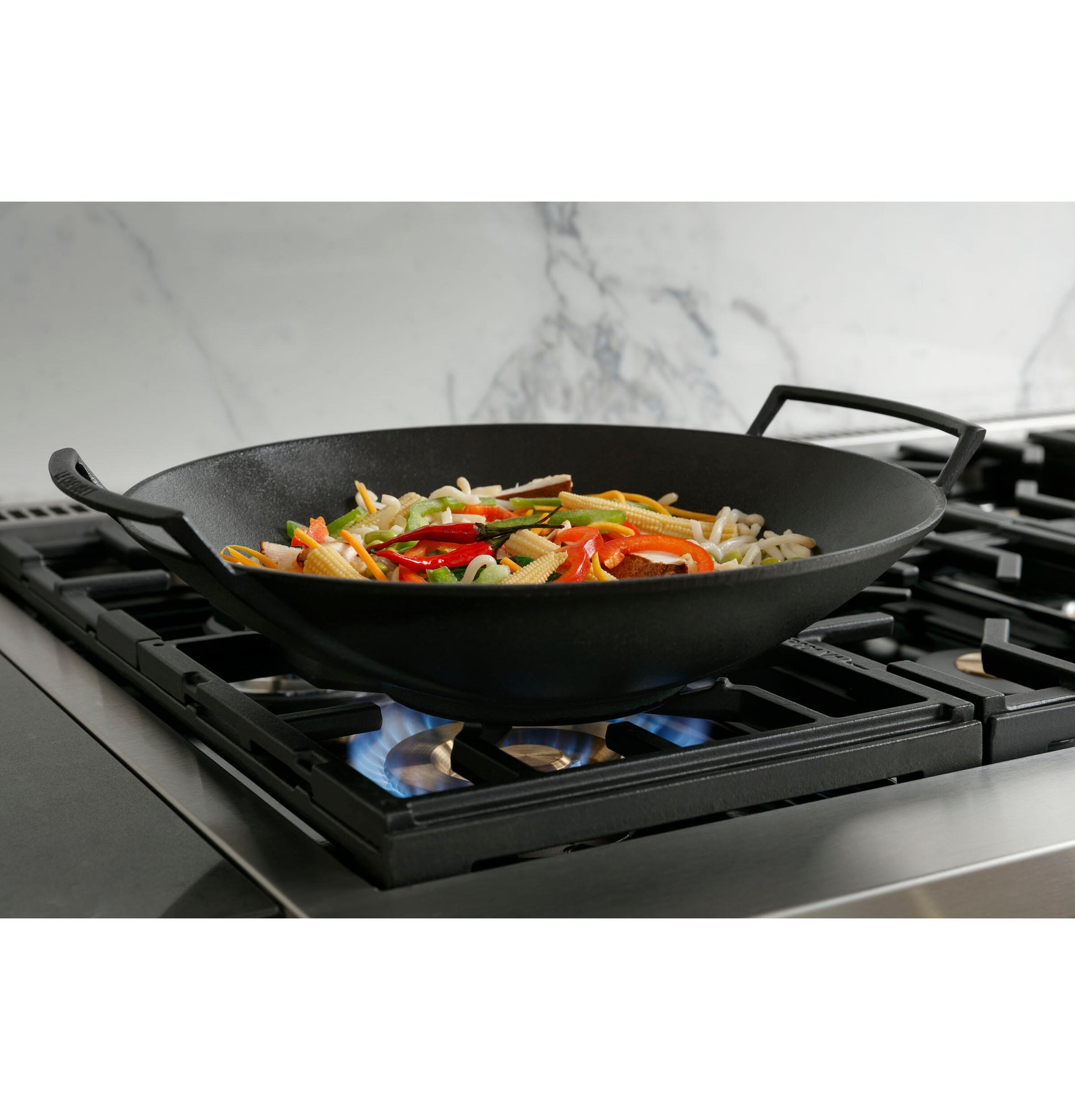

3-Piece Grates with Reversible Wok Feature
Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks
Dynamic Oven LCD
Functional and stylish, the LCD shows which oven mode is currently in use and other helpful information, like oven temperature, timer and probe temp
Chef Connect
Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on
Industry Exclusive - Custom Color LED Accent Lighting
For an elevated level of luxury, use the SmartHQ™ app to customize the accent lighting color and brightness to perfectly match kitchen decor or dining ambiance
- Versatile Gas Burner Configuration
- 3-Piece Grates with Reversible Wok Feature
- WiFi Monitoring and Remote Control with the SmartHQ™ app
- Dynamic Oven LCD
- Chef Connect
- Industry Exclusive - Custom Color LED Accent Lighting

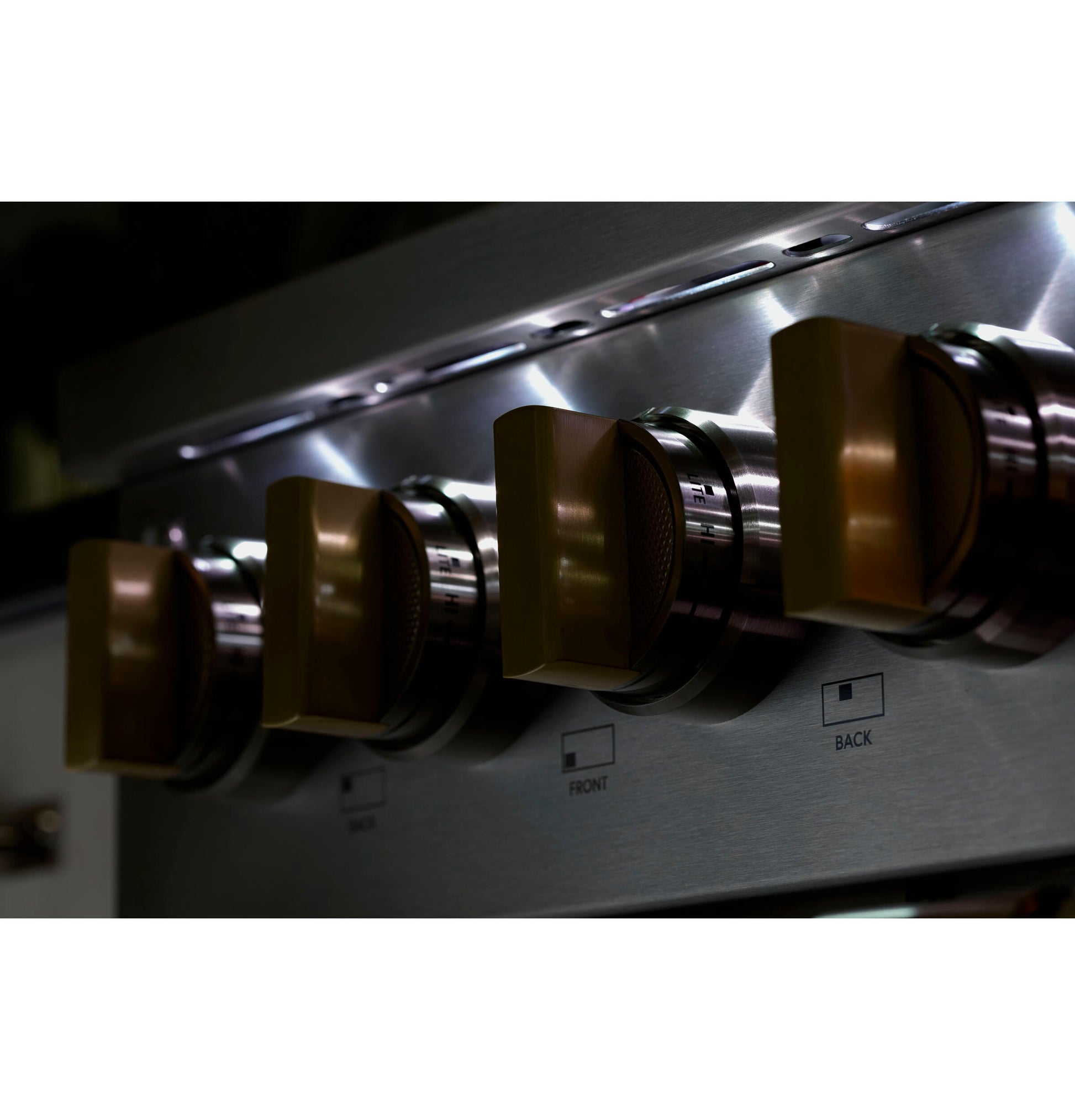

- Ring-Lit Knobs

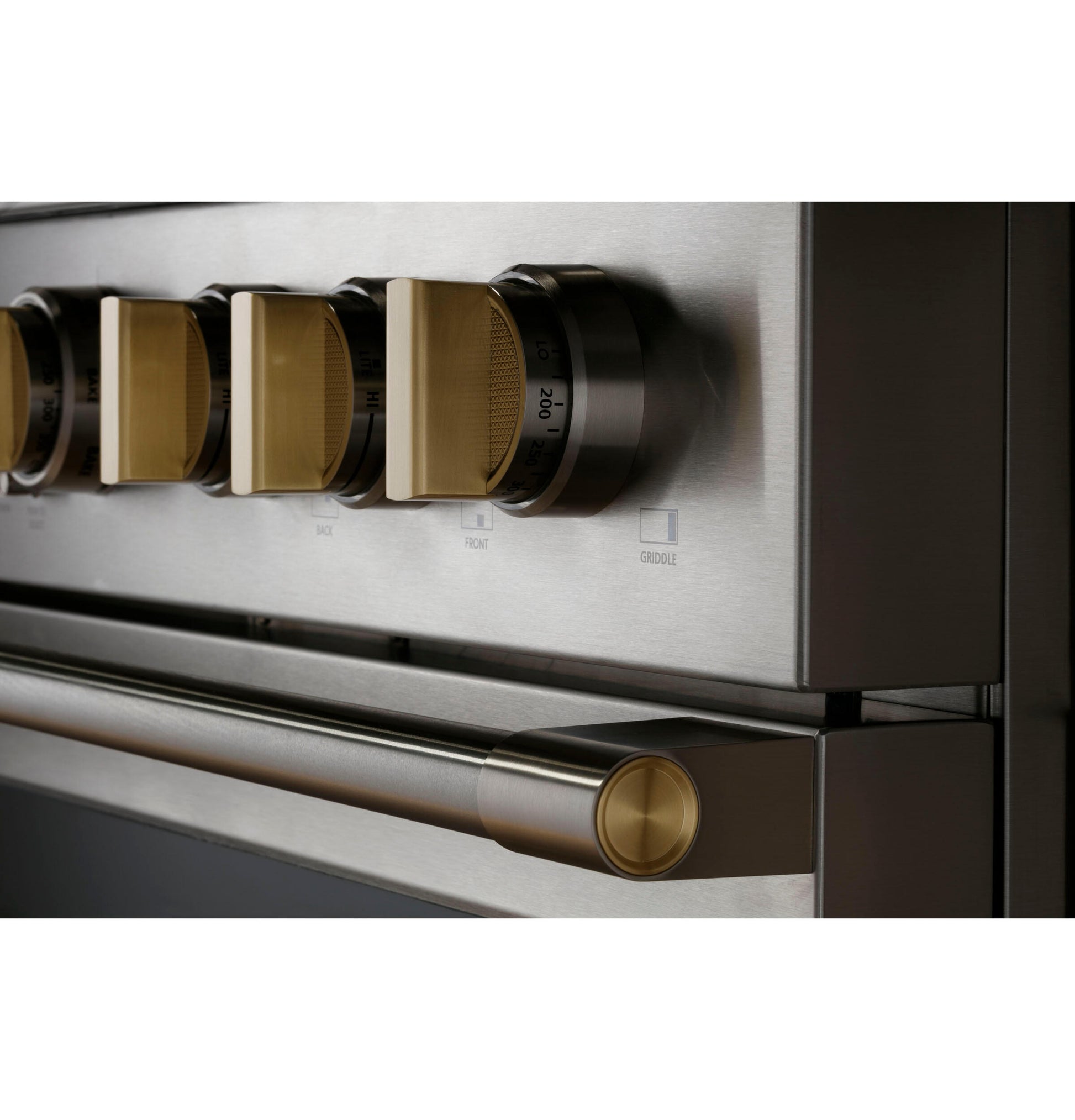

- Solid Brass Blades on Precision Machined Knobs
- Seamless Stainless Top Frame
- Soft-Close Hinges

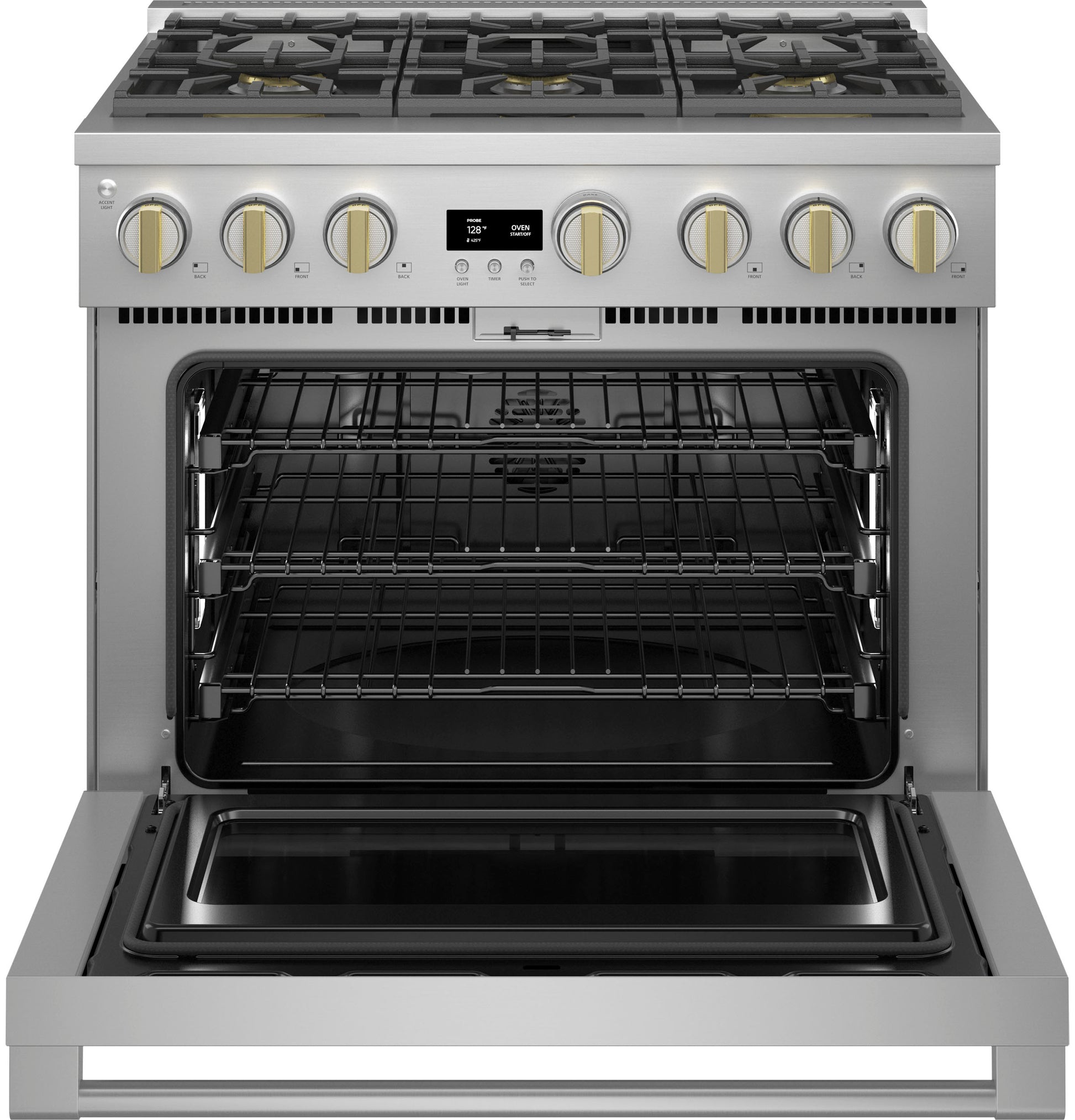

- 3 Full-Extension, Smooth-Glide, Self-Clean Oven Racks
- Precision Oven Modes with SmartHQ™ app
CAPACITY | |
Total Capacity (cubic feet) | 5.75 |
APPEARANCE | |
Control Knobs | Diecast Metallic (Included) Stainless Steel with Brass Accents |
Design Style | Statement Collection |
Toe kick | Included |
Oven Door Features | Soft Close Door |
Color Appearance | Stainless Steel |
POWER / RATINGS | |
Bake Wattage | 2700W |
Top Burner BTU Rating - LP (000's BTU's) | (2) 21.0; (2) 15.0; (2) 10.0 |
Convection Wattage | 2500W |
Broiler Wattage | 4000W |
Electrical Requirements | 240VAC; 30A |
Top Burner BTU Rating - Nat. Gas (000's BTU's) | (2) 23.0; (2) 18.0; (2) 15.0 |
WARRANTY | |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 2-year entire appliance Limited 5-year gas surface burners Limited lifetime of oven racks |
Labor Warranty | Limited 2-year entire appliance |
ACCESSORIES | |
30/36' Monogram Knob Kit | ZXPR36KKTSS (SS, qty. 9) |
Optional Backguard | 12' stainless steel backsplash (UX12B36PSS) 30'-36' adjustable stainless steel backsplash with warming shelf (UXADBS36PSS) |
High Altitude Kit | Natural Gas: WB28X39726; LP: WB28X39727 |
Optional Grill Accessory (Cast Iron) | UXGRILL |
Multi Ring Burner Caps (Brass) | Included |
LP Conversion Kit | Included |
Factory-installed island backguard | yes |
Multi Ringe Burner Caps (Black) | Included |
Reversible Griddle/Grill Accessory | UXPRRGG |
WEIGHTS & DIMENSIONS | |
Net Weight | 417.0 |
Height to Cooking Surface (in.) | 35 1/4 to 36 3/4 |
Overall Depth | 28.25 |
Height w/Legs Extended - Maximum Height | 36.75 |
Height With Legs Retracted | 35.25 |
Overall Width | 35.875 |
Overall Height | 35.25 |
Approximate Shipping Weight | 462.0 |
Cabinet Width | 36.0 |
FEATURES | |
Oven Cleaning Type | Self-Clean Steam Clean |
Cooktop Burner Type | 2 Sealed, Dual Flame Stacked (Removable Brass Accents) 4 Sealed, Dual Flame Stacked |
Cooktop Burner Grate Features | Continuous Grates Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates |
Cooking System | Reverse Air Convection True European Convection |
Oven Rack Features | 3 Self-Clean Oven Racks 5 Rack Positions Full-Extension |
Oven Features | 8-Pass Bake Element 8-Pass Broil Element Hidden Bake |
Fuel Type | Dual Fuel (with natural gas) |
Cleaning Time | 3-5 Hours |
WiFi Connect | Built-In |
Cooking Technology | Convection |
Cooktop Surface | Porcelain-Enamel |
Indicator Lights | Burner 'On' |
Connected Capabilities | Amazon Alexa Bluetooth Drop IFTTT Innit Sonos The Google Assistant |
Configuration | 6 Burners |
Lighting | Customizable LED Bullnose and Knob Accent Lighting |
Self-Clean Oven Door Lock | Automatic |
Control Type | Digital Temperature LCD Display with Timer Display |
Oven Cooking Modes | Convection Bake Multi-Rack Convection Broil Hi/Lo Convection Roast No-Preheat Air Frying Precision Cooking Modes Proof Scan-to-Cook Warming |
Convection Roasting Rack | Yes |
Ignition System | Electronic w/Auto Reignition |
Oven Control Features | 12-Hour Shut-Off Capability Audible Preheat Signal Auto Recipe Conversion Automatic Oven Meat Probe Certified Sabbath Mode Chef Connect Cook Time C° or F° Programmable Delay Clean Option Probe Mode Proof Mode Remote Enabled Self & Steam Clean Modes Timer WiFi Connect |
Interior Oven Light | 6 Halogen Lamps (Caterer Oven) |
Cooktop Type | Continuous Grates |
Broiler Pan and Grid | Yes |
Extra Low Simmer | All Burners - Adjustable |
