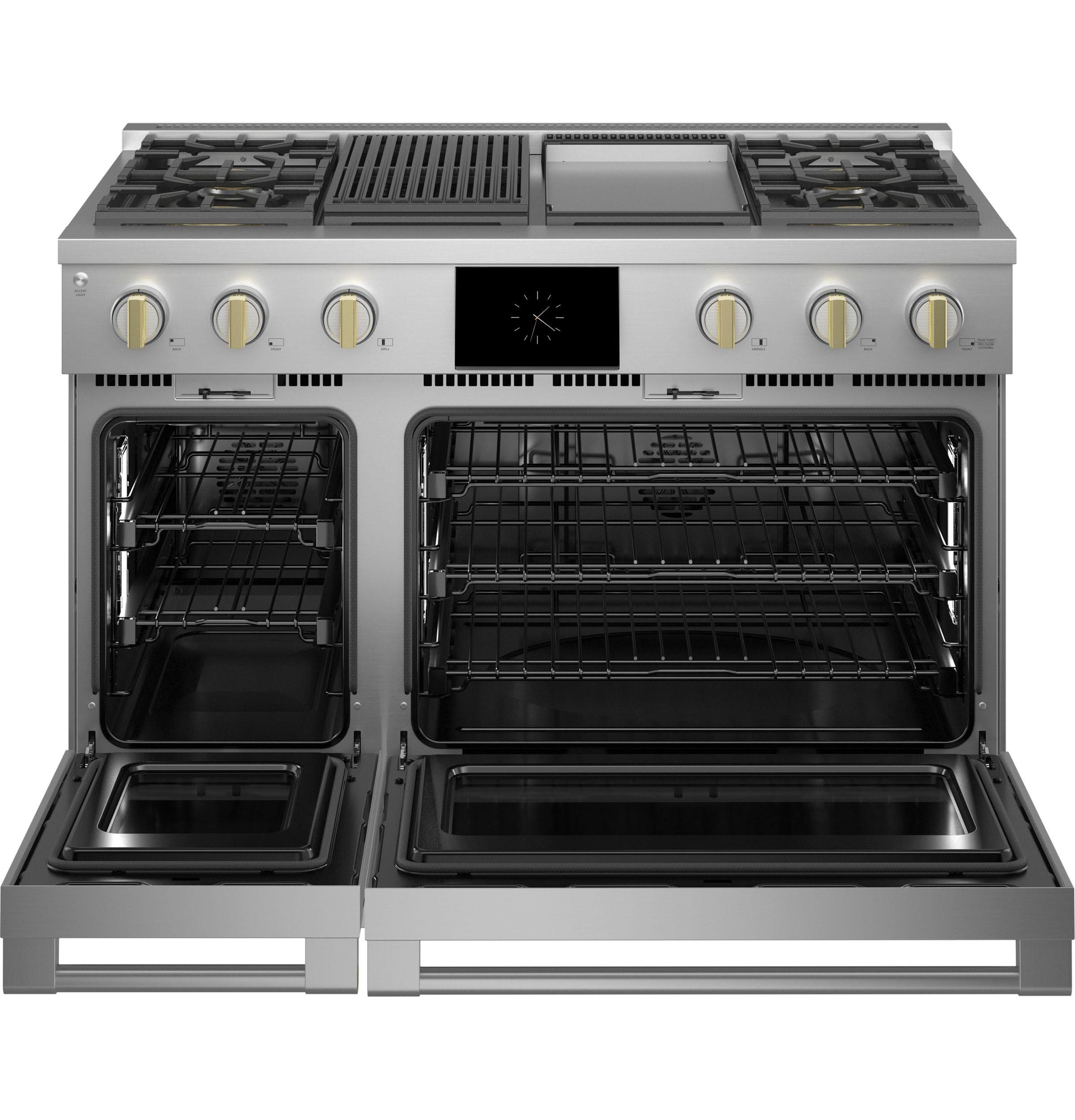

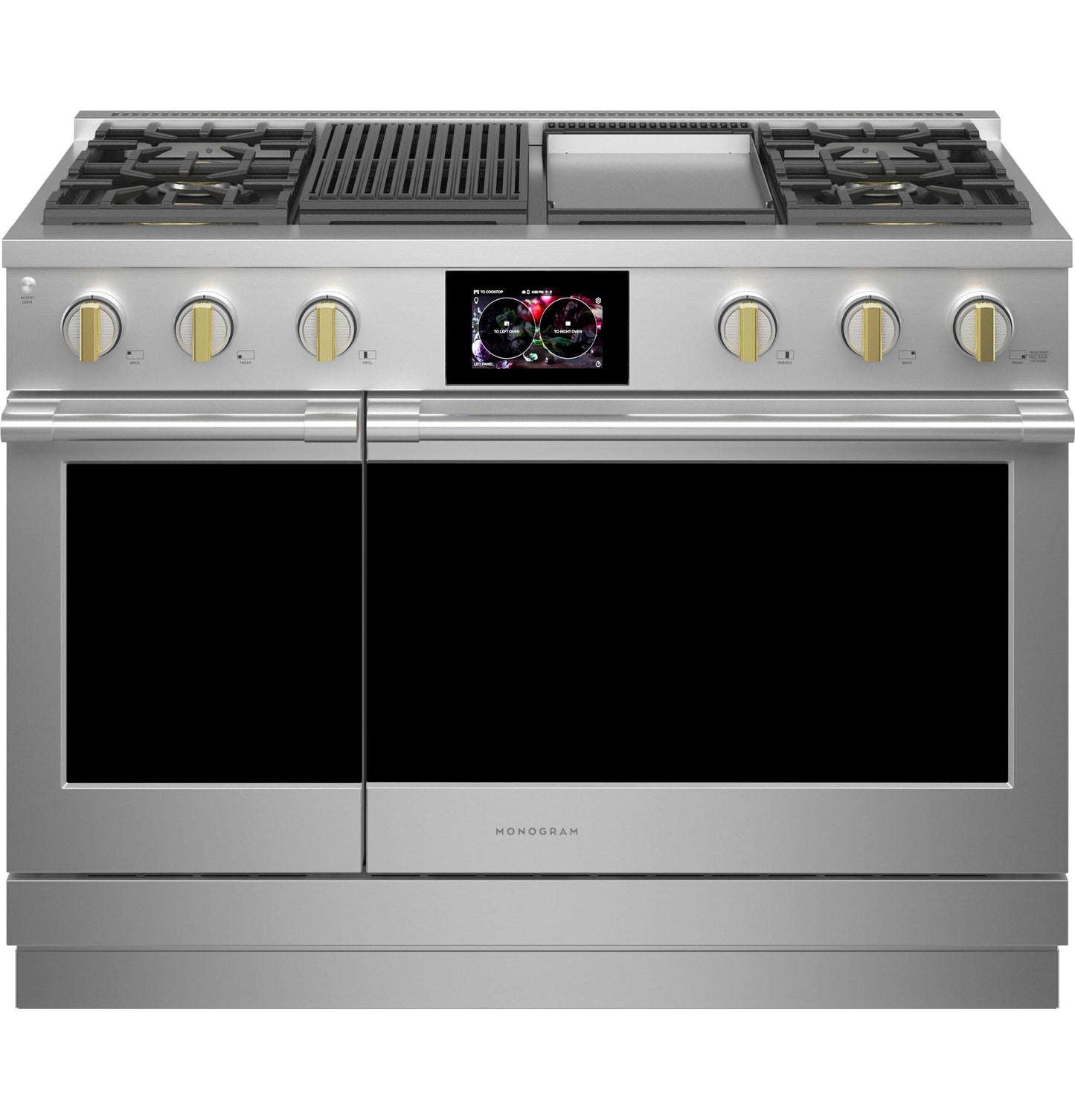

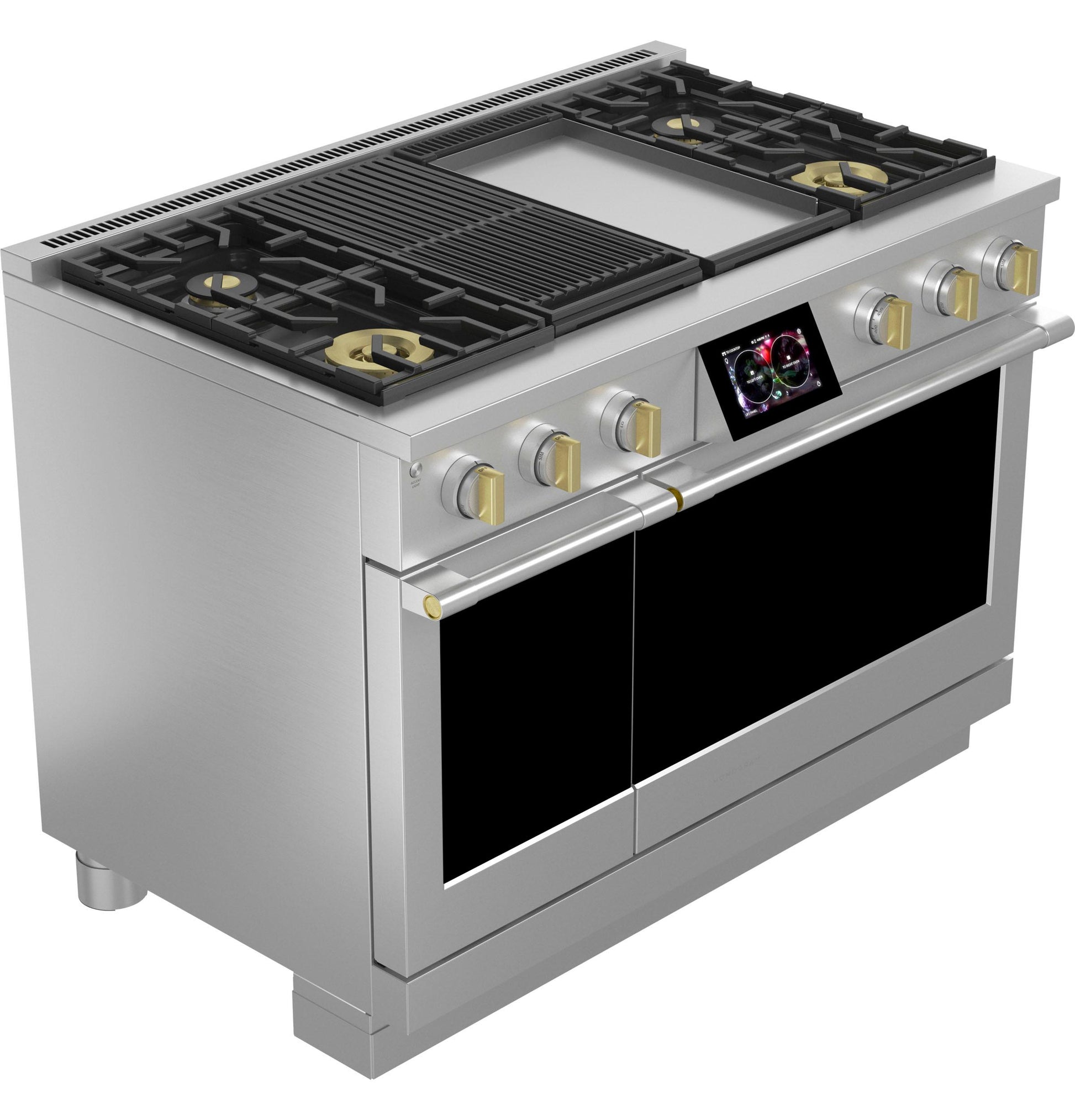

Monogram ZDP484NGTSS Monogram 48" Dual-Fuel Professional Range With 4 Burners, Grill, And Griddle
Monogram ZDP484NGTSS Monogram 48" Dual-Fuel Professional Range With 4 Burners, Grill, And Griddle
Colors:
Stainless Steelx
Installation and Removal
x
When Will I Get My Order?
x
THIS ITEM QUALIFIES FOR FREE DELIVERY!
EXTENDED PROTECTION
Couldn't load pickup availability
x
Installation and Removal
x
When Will I Get My Order?
x

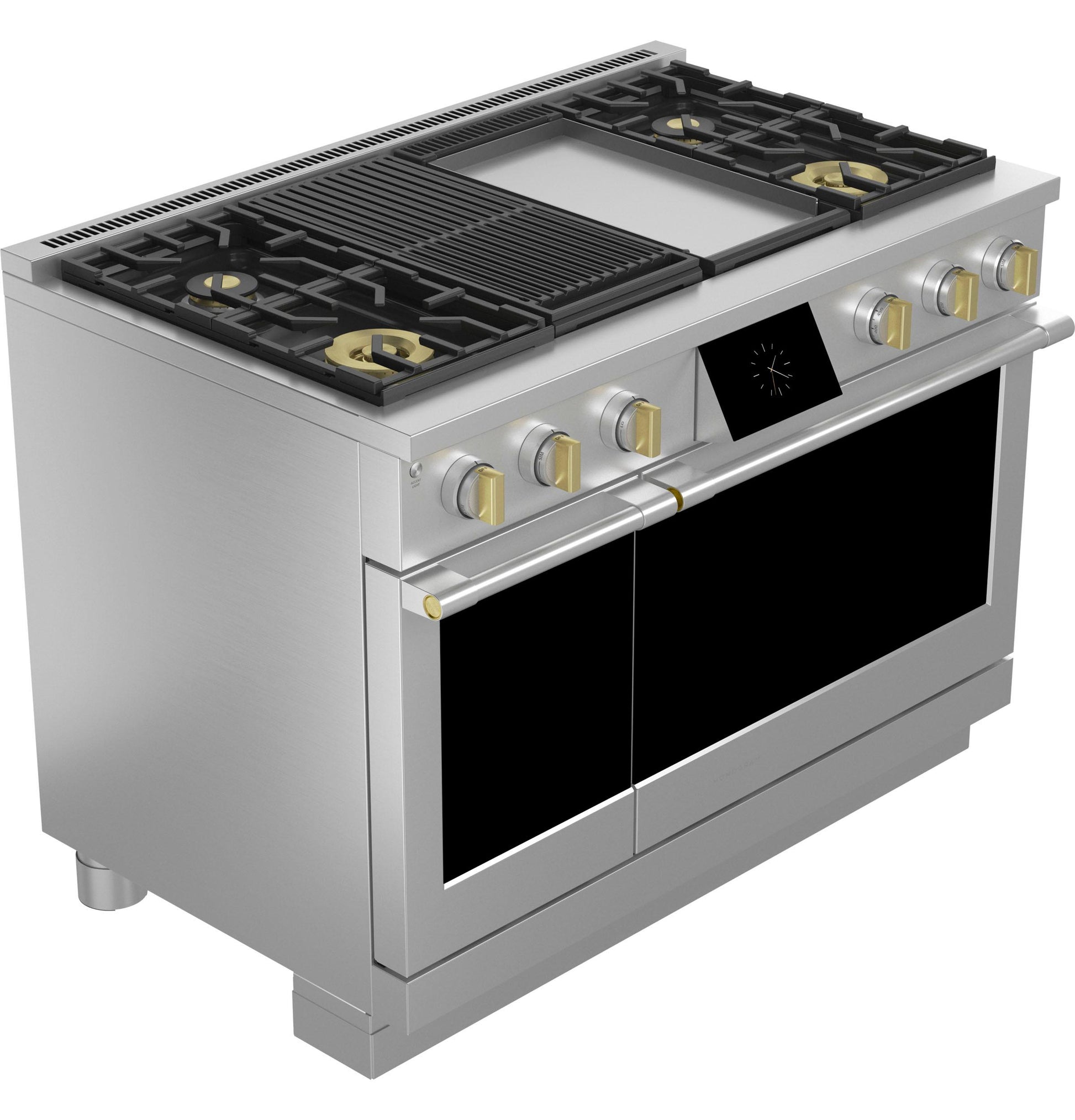

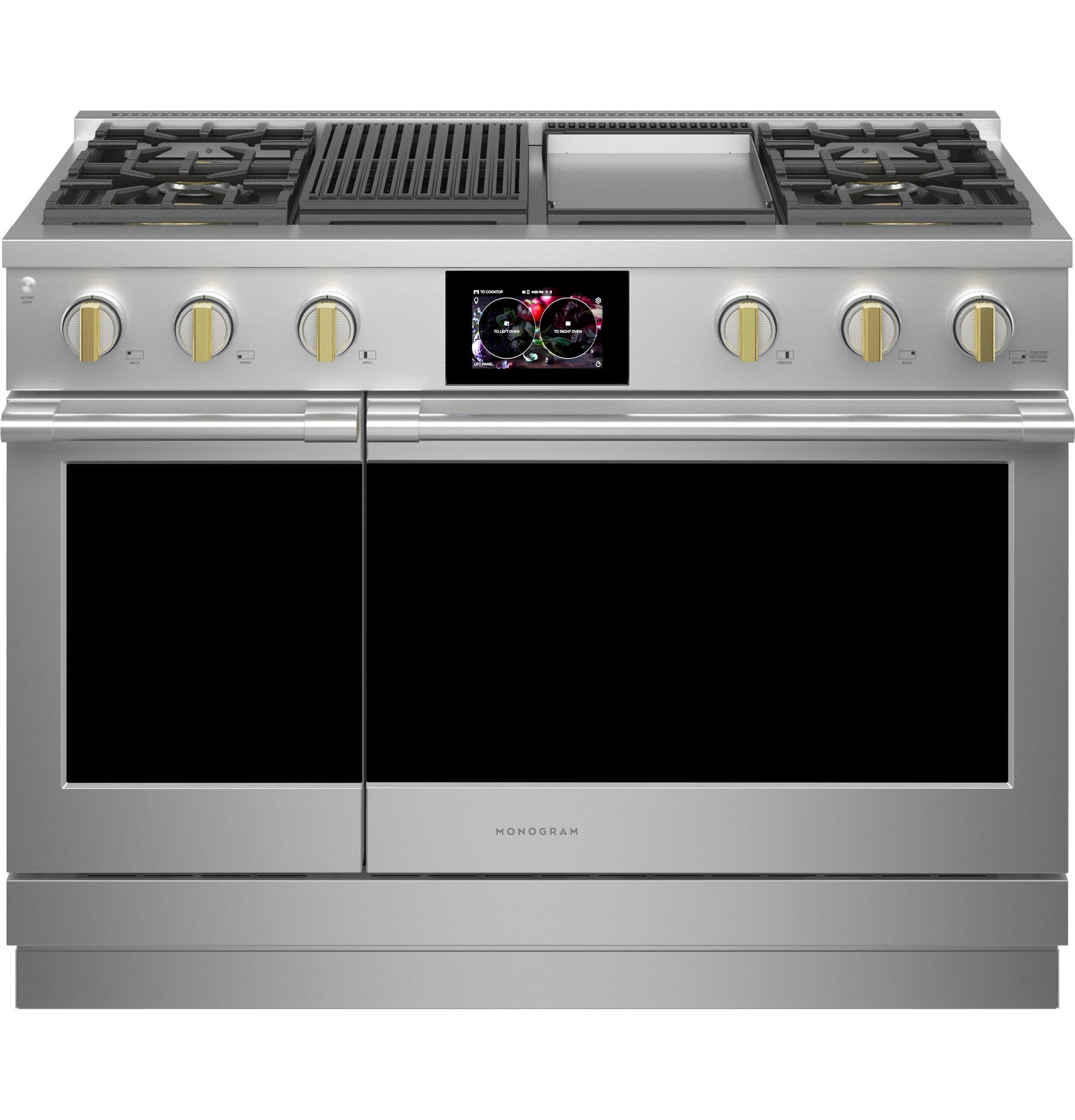

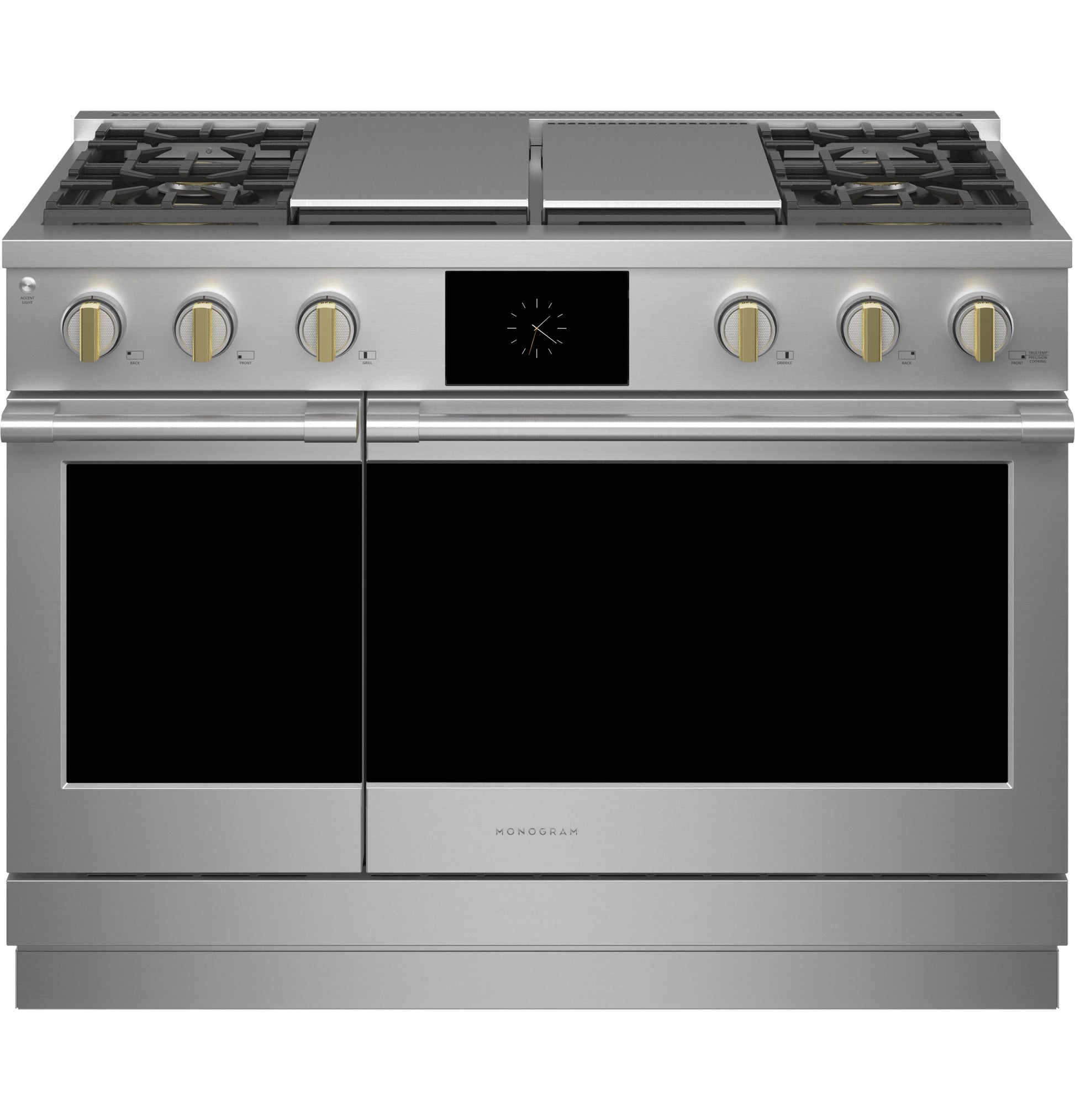

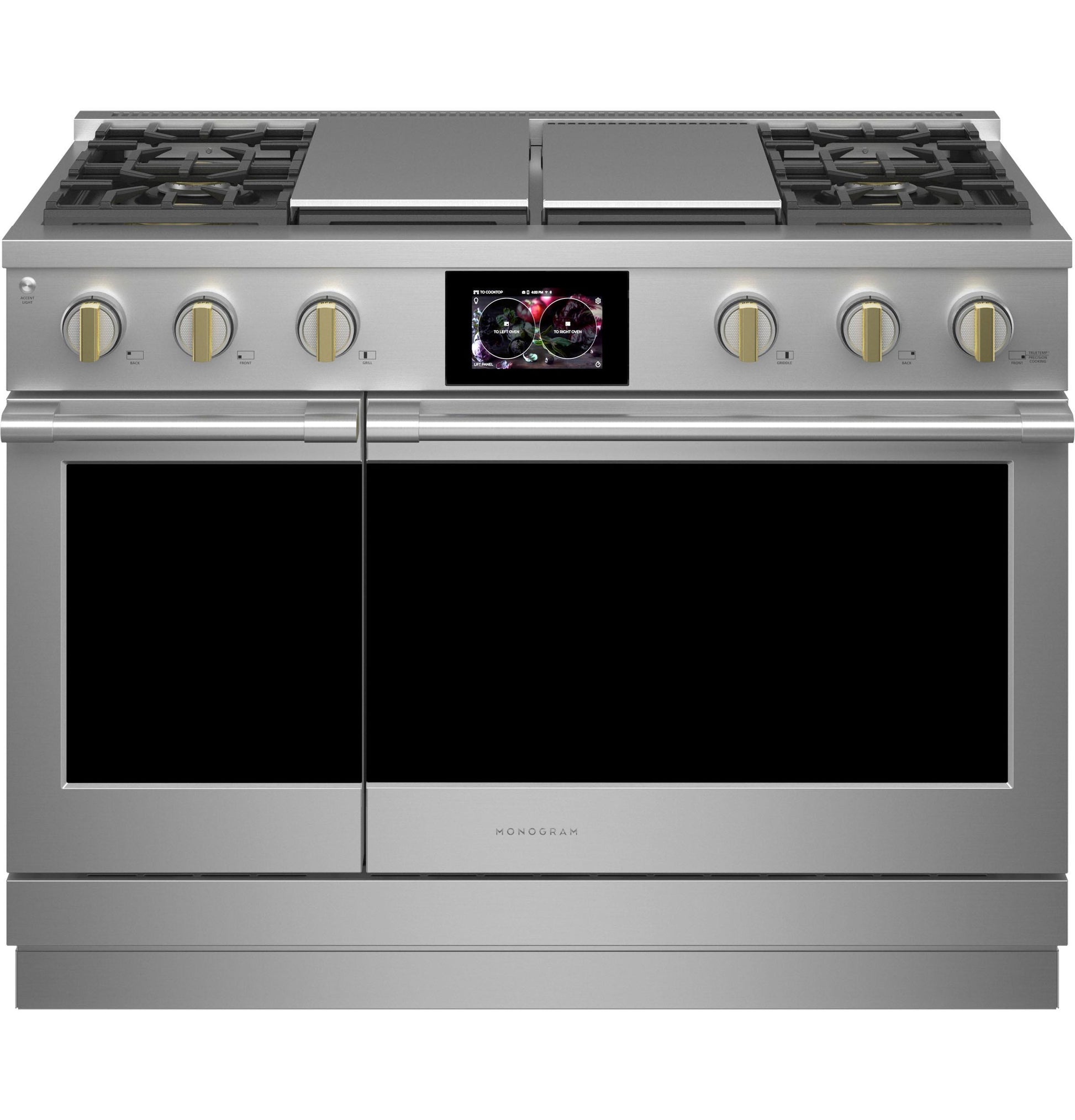

Monogram ZDP484NGTSS Monogram 48" Dual-Fuel Professional Range With 4 Burners, Grill, And Griddle
Rebates &
Promotions
Built-In WiFi, Powered by SmartHQ™ app
Perfectly in sync with your busy lifestyle, connect, control, and manage your oven from anywhere with your smartphone or tablet
Better When Connected
Downloadable upgrades ensure your oven is always enhanced with the latest features, like Air Fry and Precision Cooking Modes

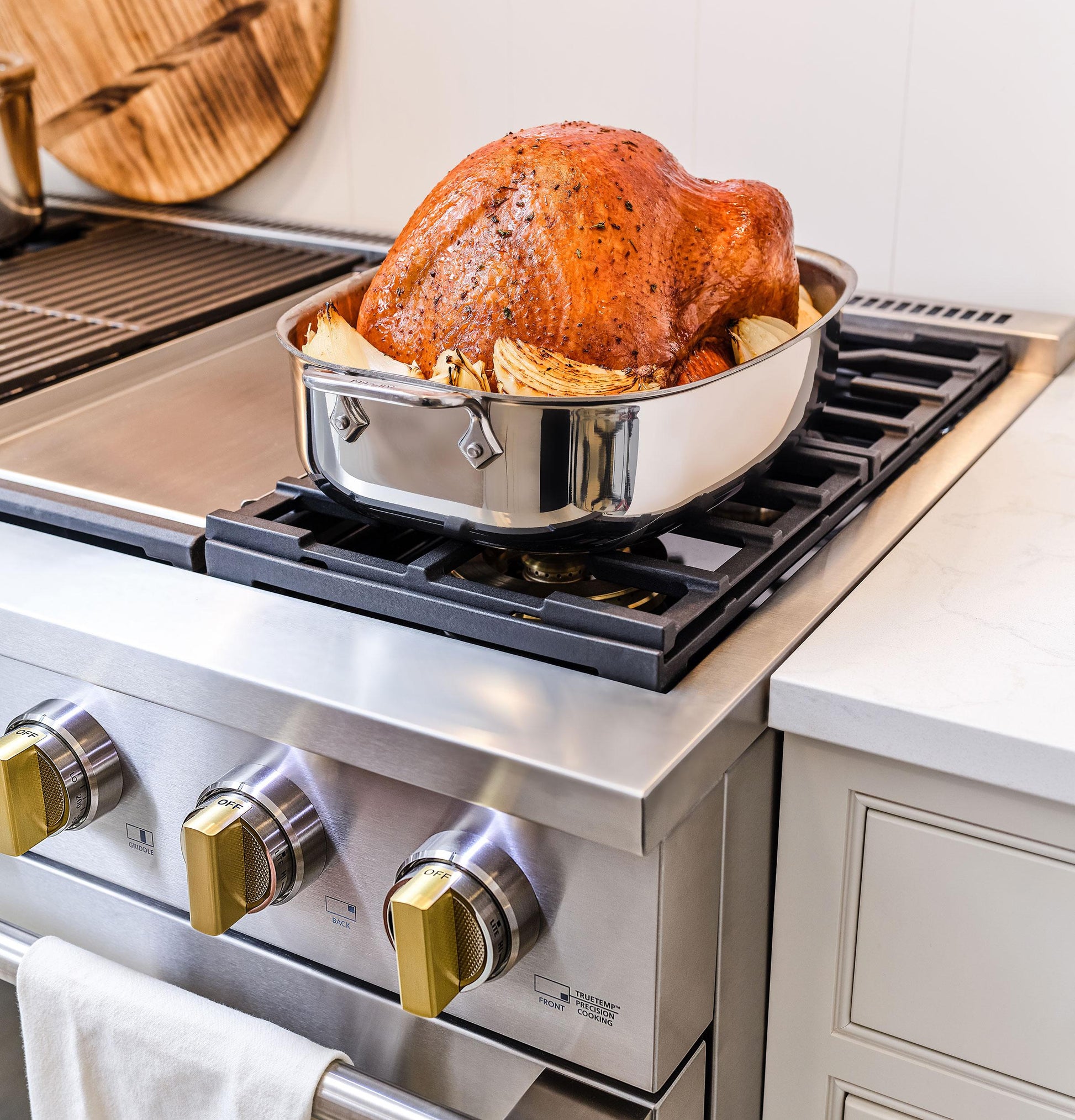

Industry Exclusive-TrueTemp™ Burner
This powerful 21,000 BTU gas burner offers a precision temperature-management system that works with Hestan Cue™ cookware for a consistently delicious cooking experience.Hestan Cue cookware comes free if you register and connect your appliance through the SmartHQ app

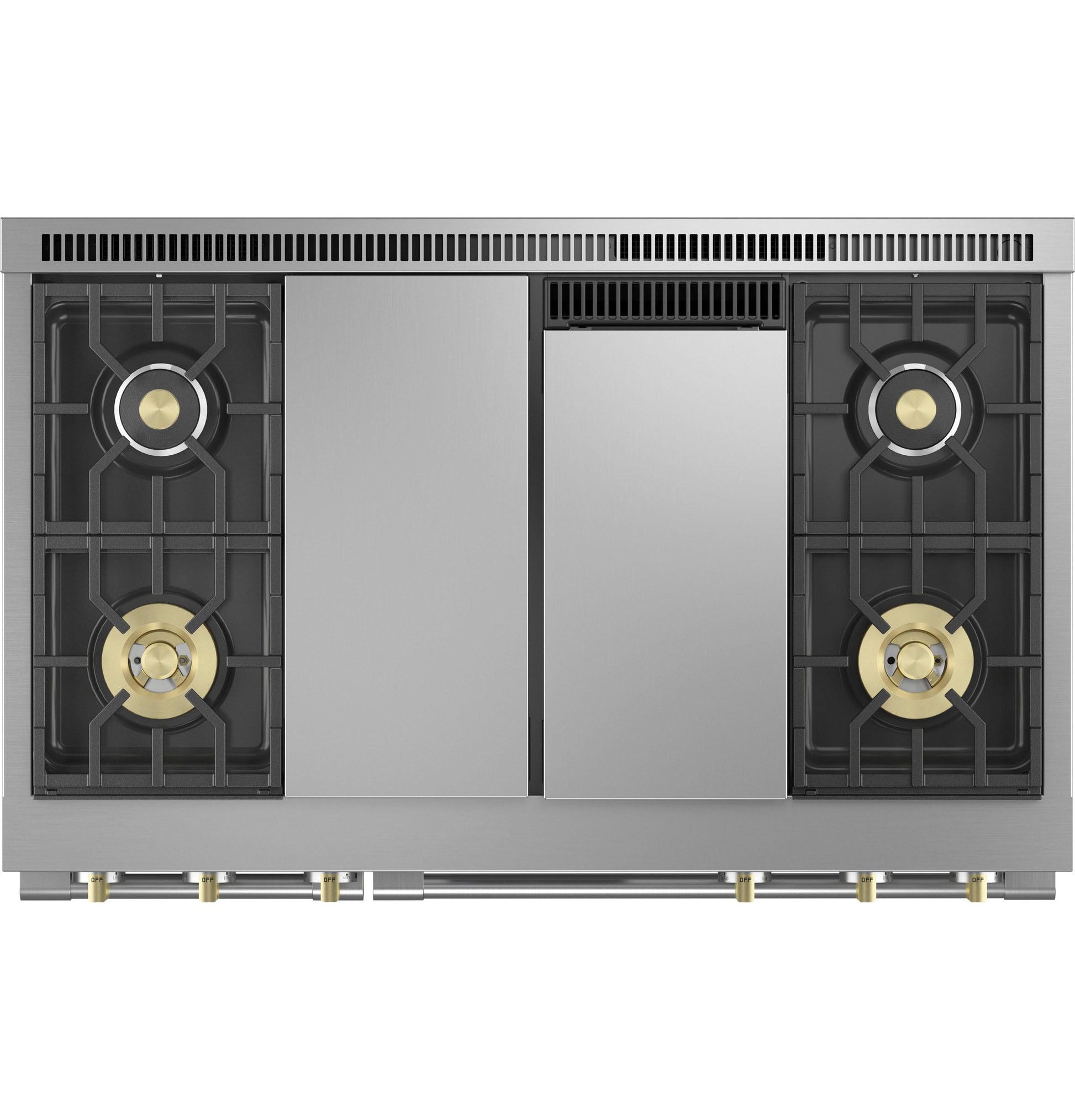

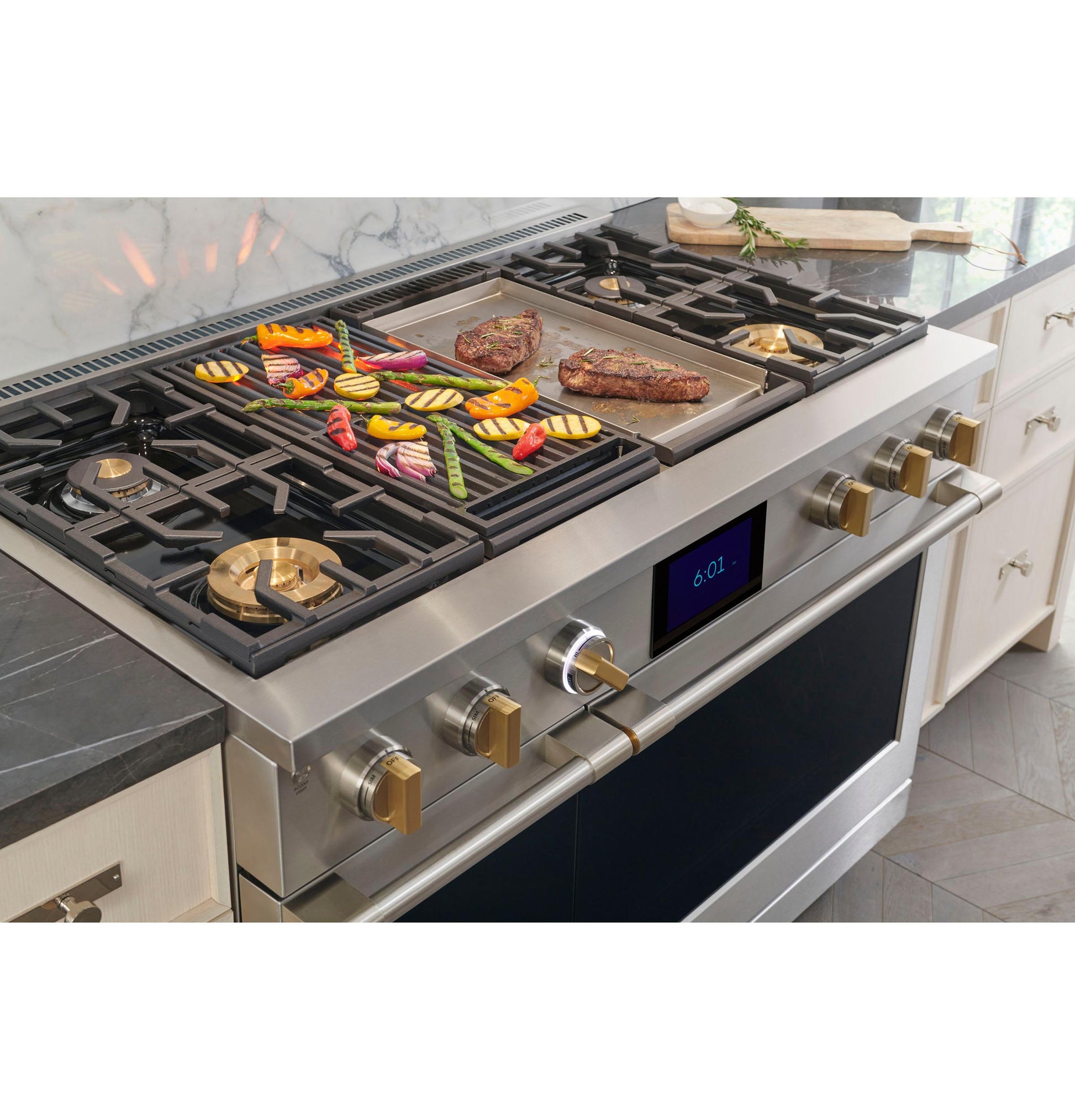

Versatile Gas Burner Configuration
Delivering exceptional cooking flexibility, the 21,000 and 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame

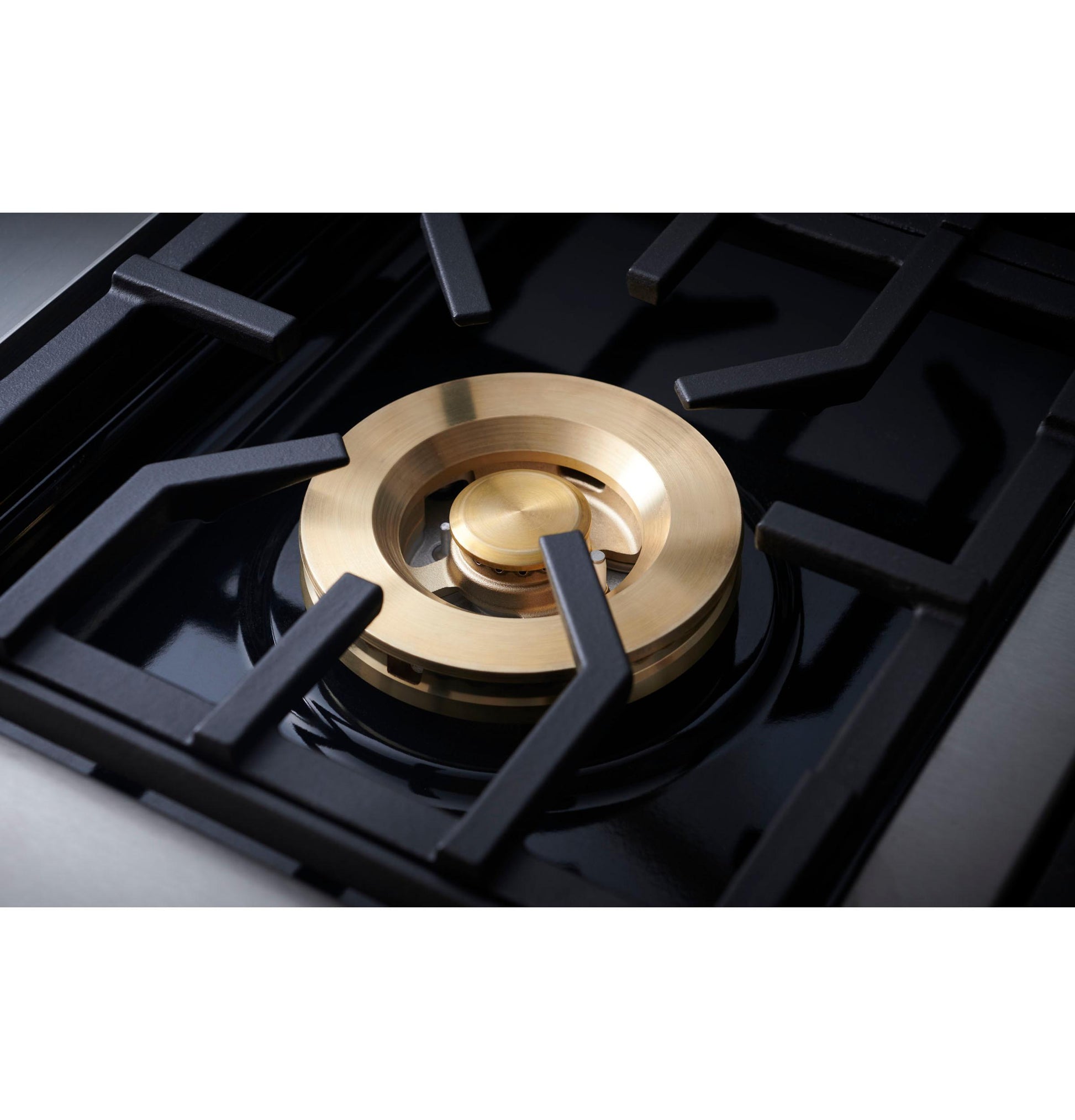

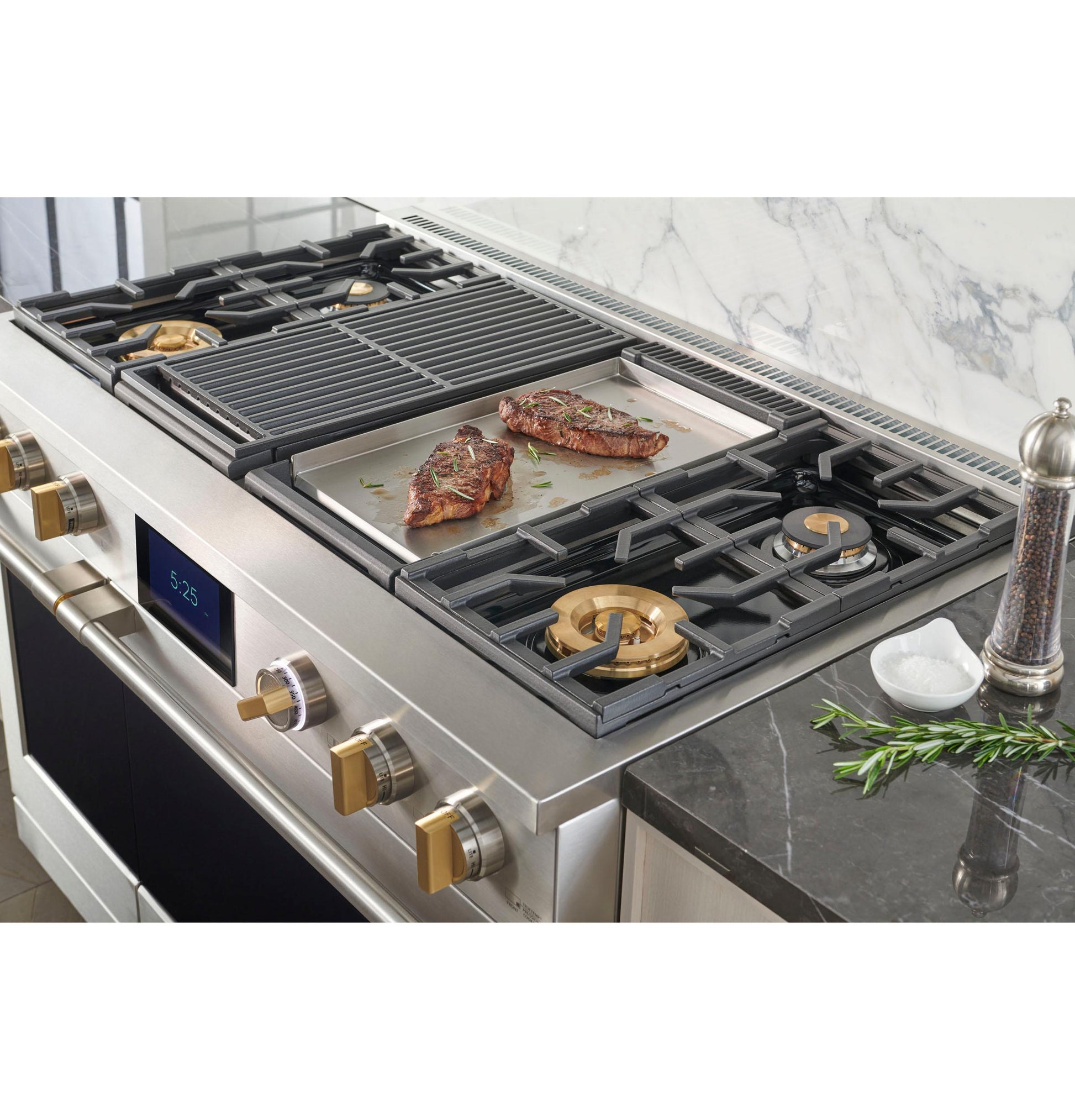

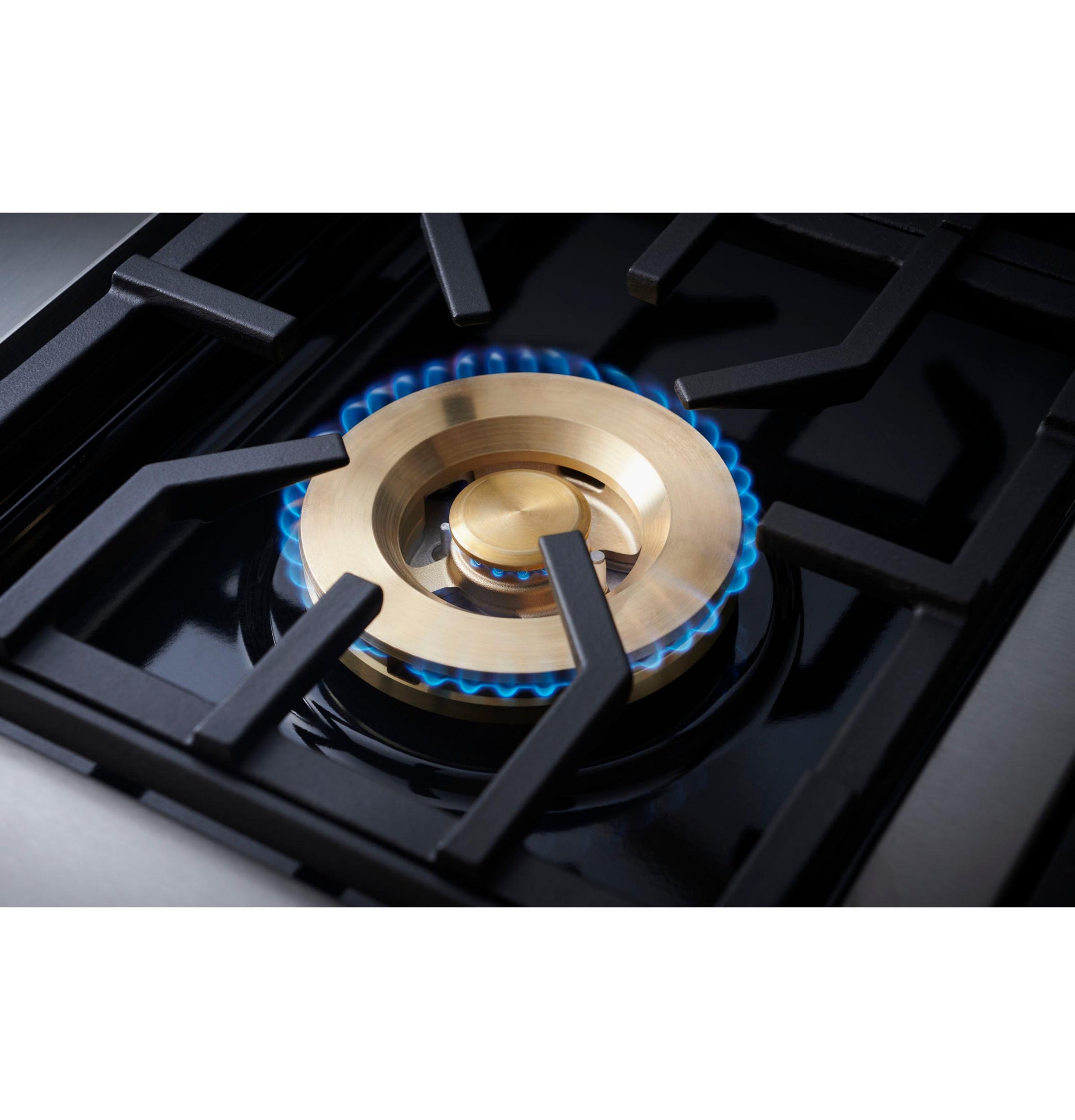

Solid Brass Burners
Monogram burners are constructed of 100% brass, embracing the natural thermal properties of this premium quality material. As they are exposed to heat, a natural patina will build up to protect the burners from corrosion and ensure that your brass burners will withstand even the highest temperatures

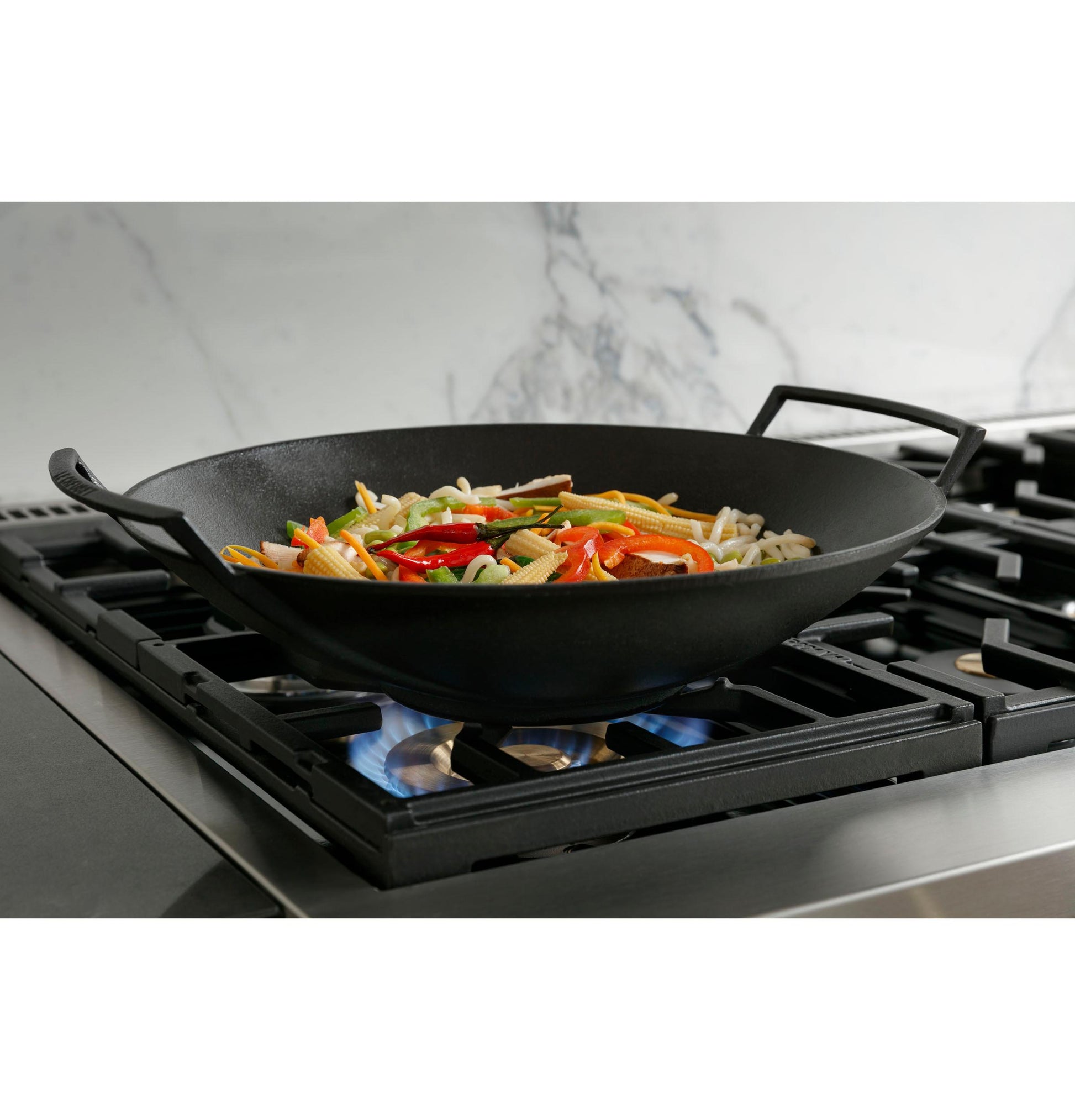

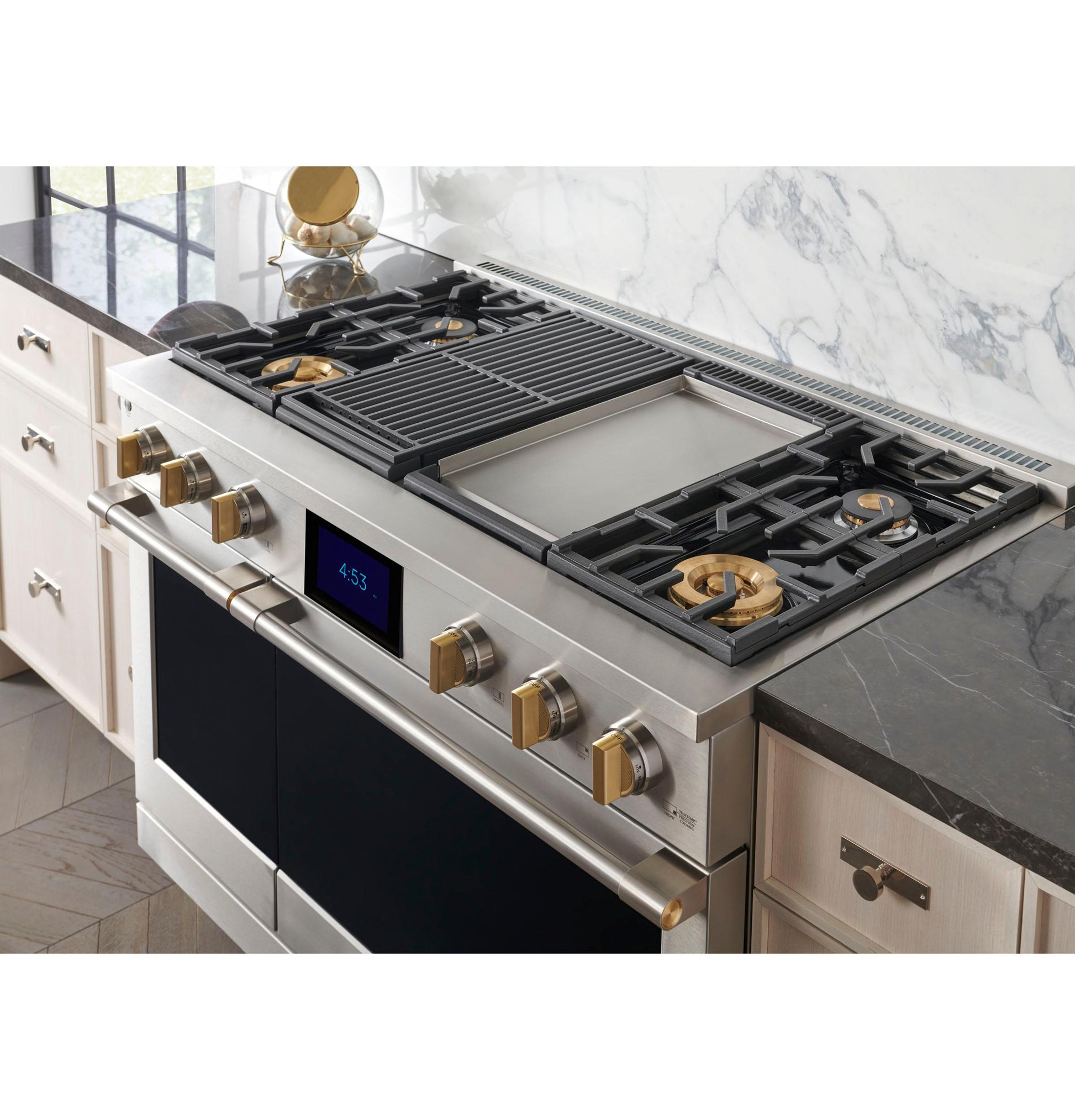

3-Piece Grates with Reversible Wok Feature
Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks
Hot Air Fry
A must-have for health-conscious cooks, the Hot Air Fry mode crisps food to crunchy perfection, without using oils or butter

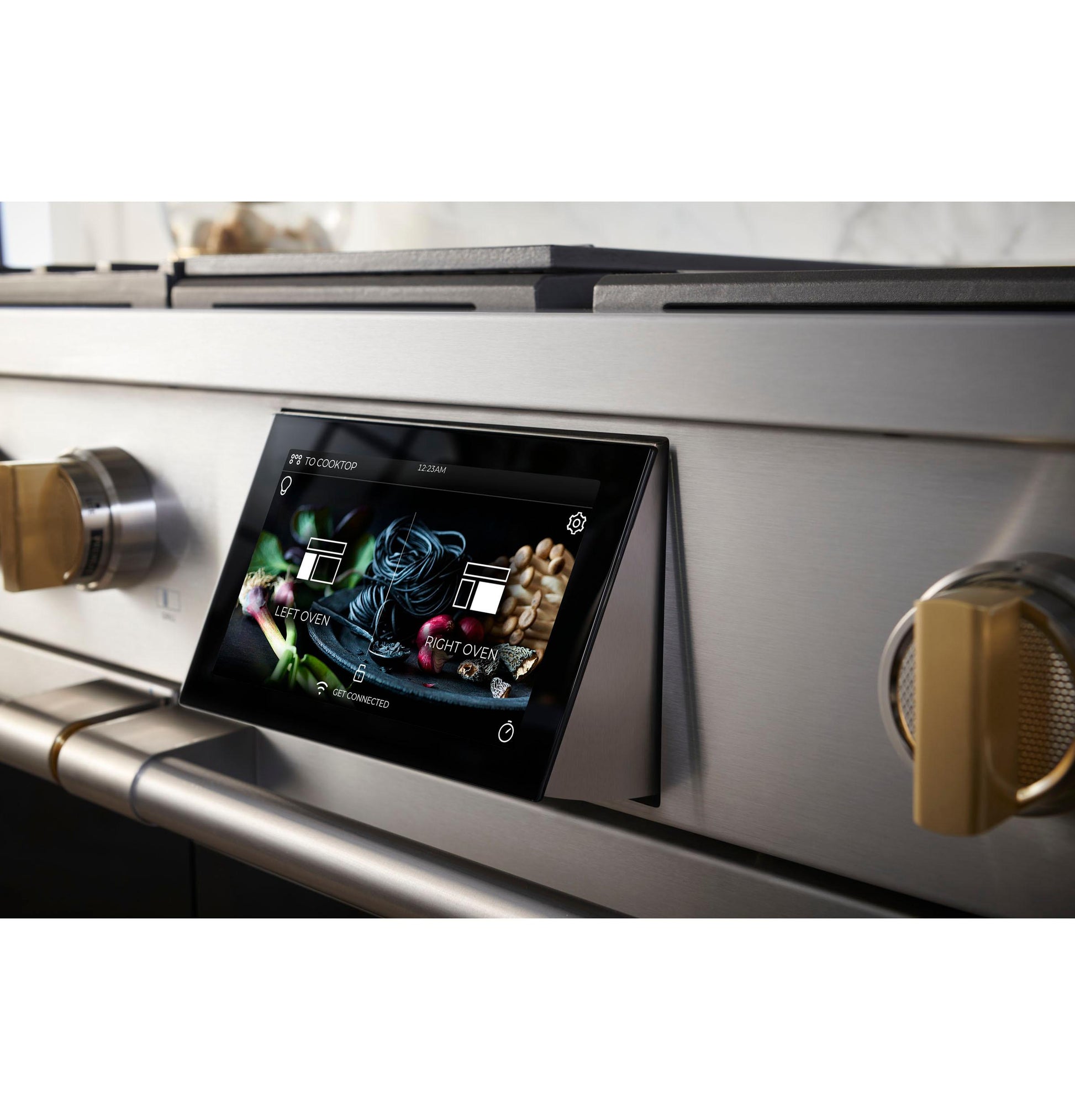

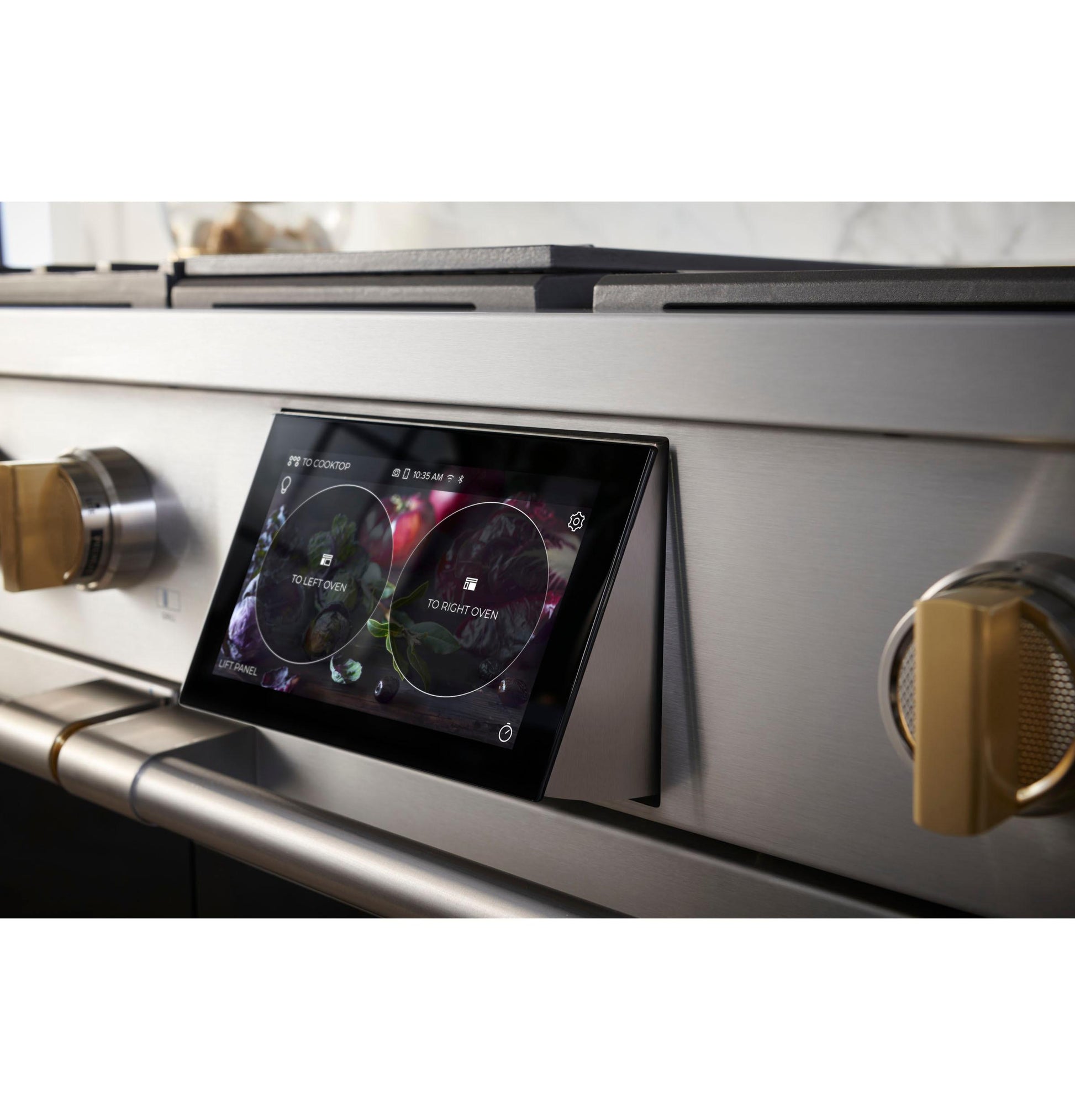

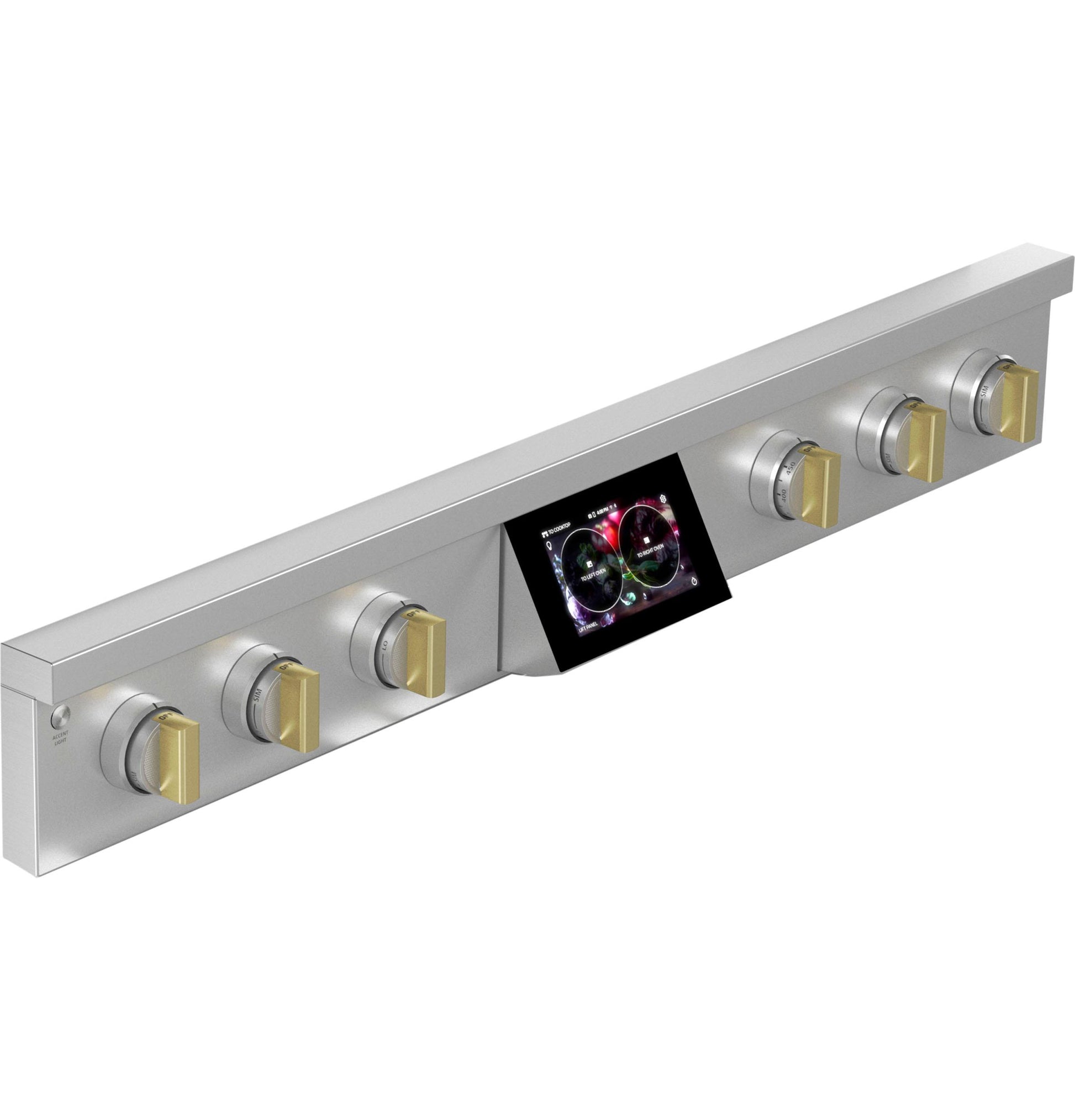

Articulating 7" Touch LCD Control
With just a touch, this intelligently designed LCD swings out toward the user for a more ergonomic experience and then moves back flush with the control panel when not in use
WiFi Monitoring and Remote Control with the SmartHQ™ app
Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more
Chef Connect
Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on

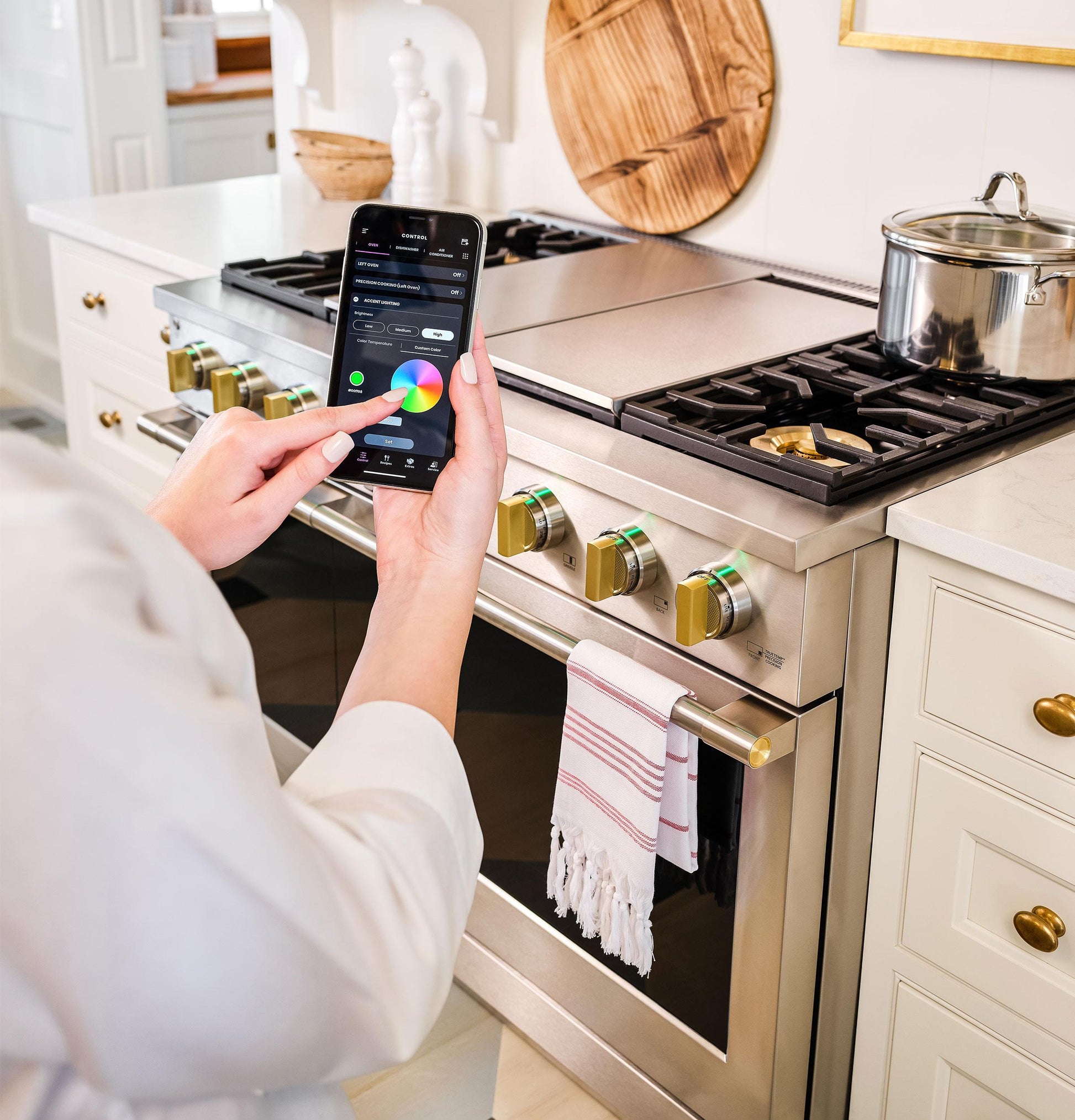

Industry Exclusive-Custom Color LED Accent Lighting
For an elevated level of luxury, use the SmartHQ™ app to customize the accent lighting color and brightness to perfectly match kitchen décor or dining ambiance

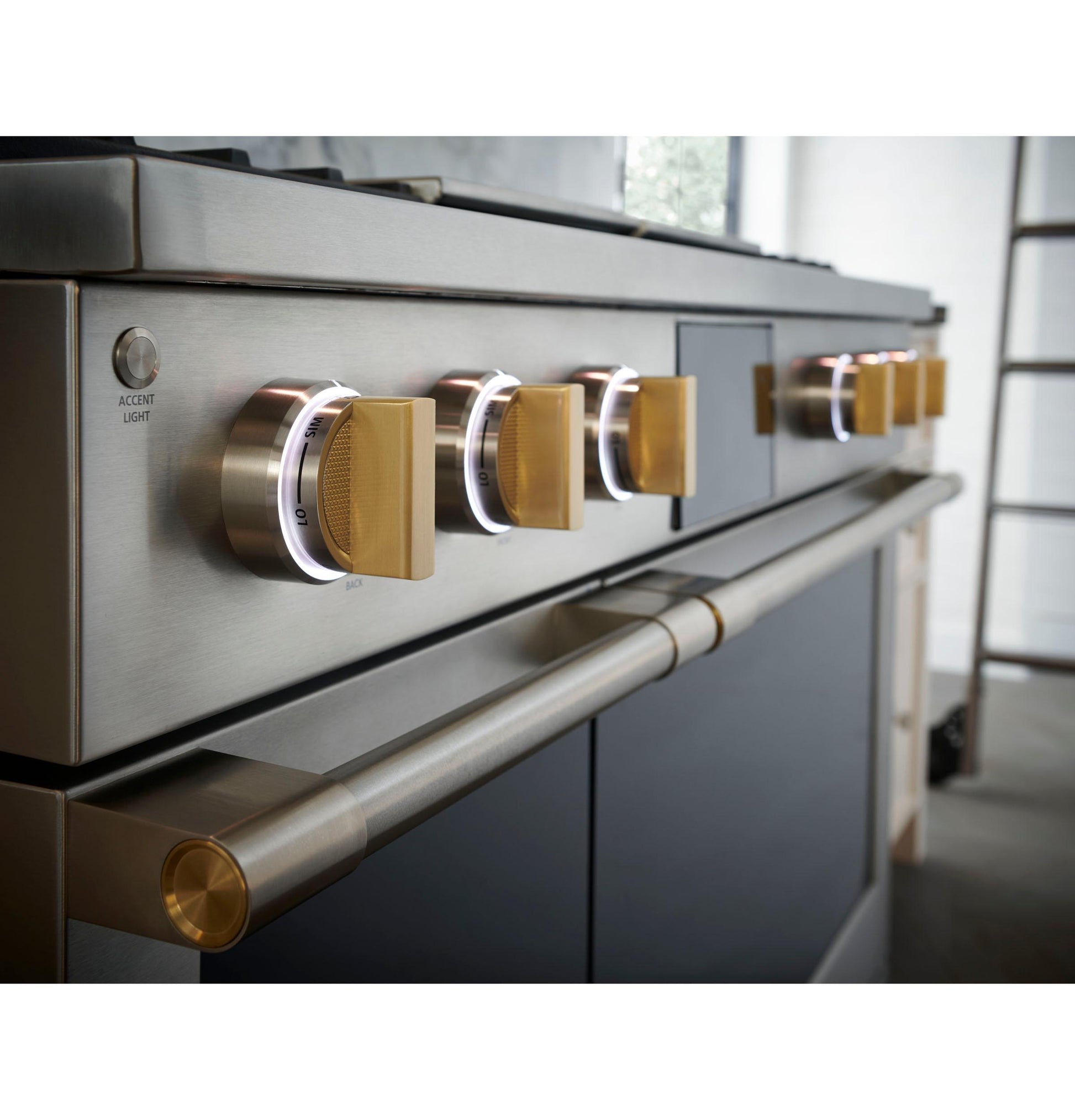

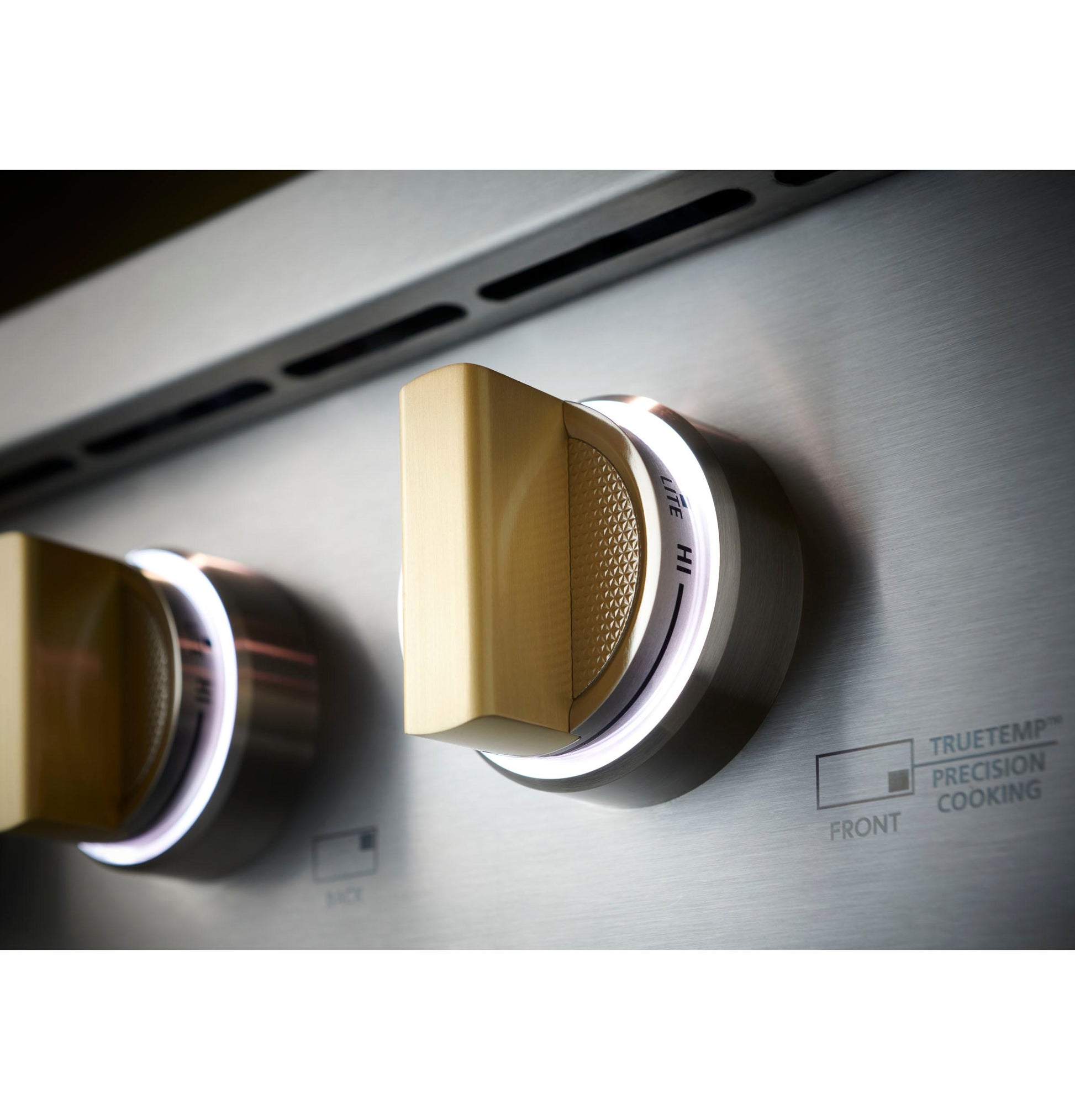

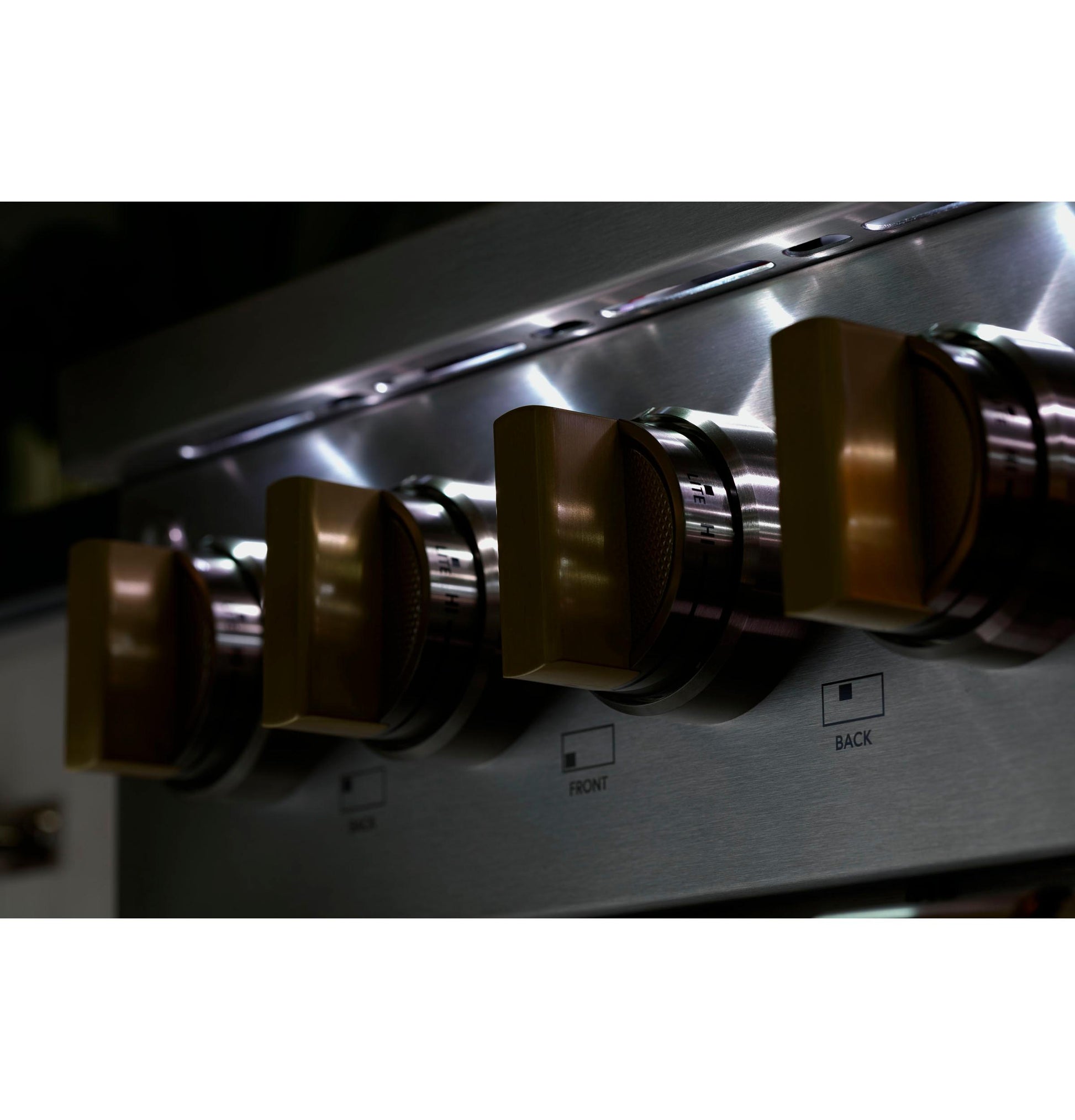

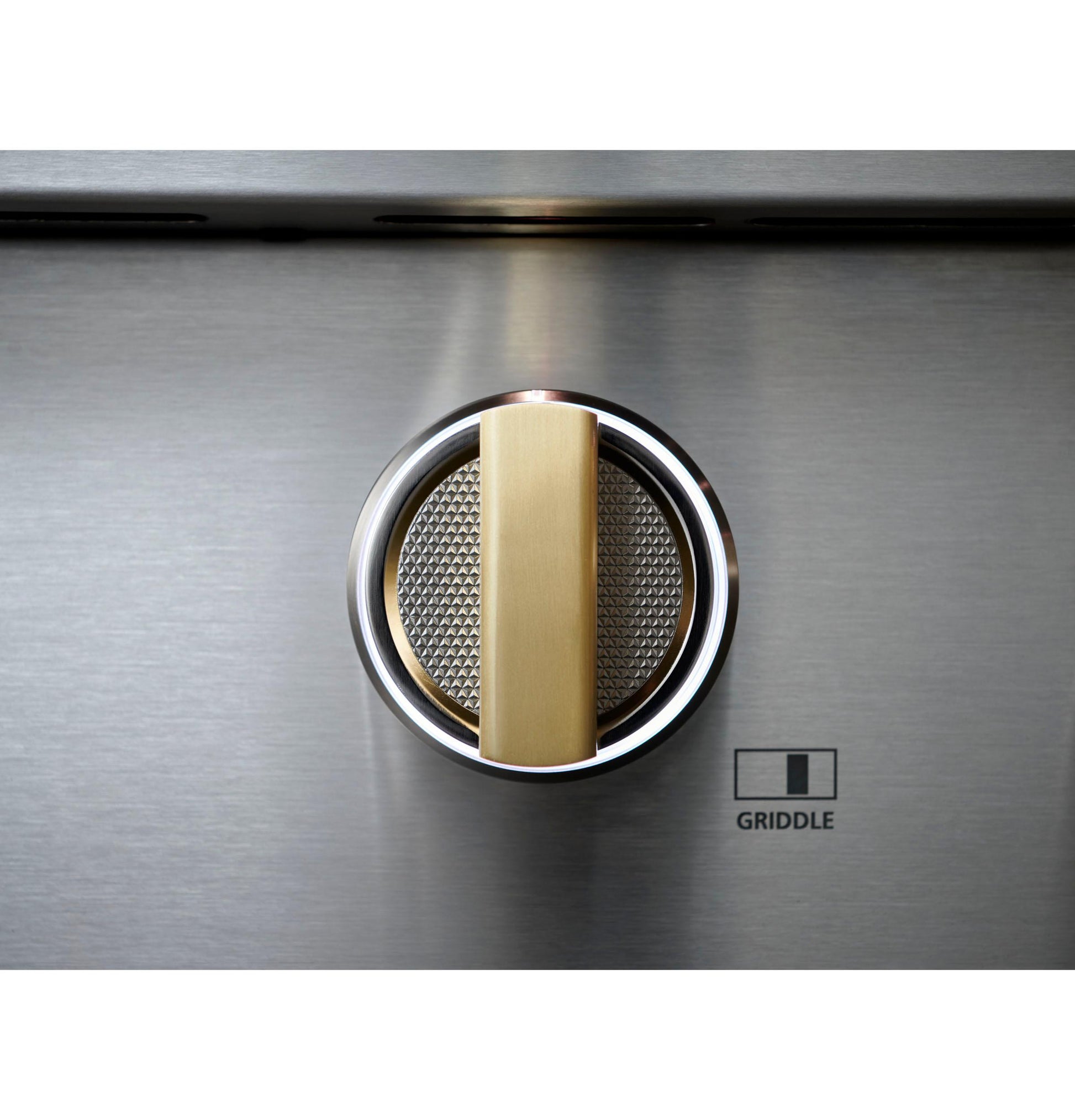

Ring-Lit Knobs
Delivering a modern approach to customization, the SmartHQ™ app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven

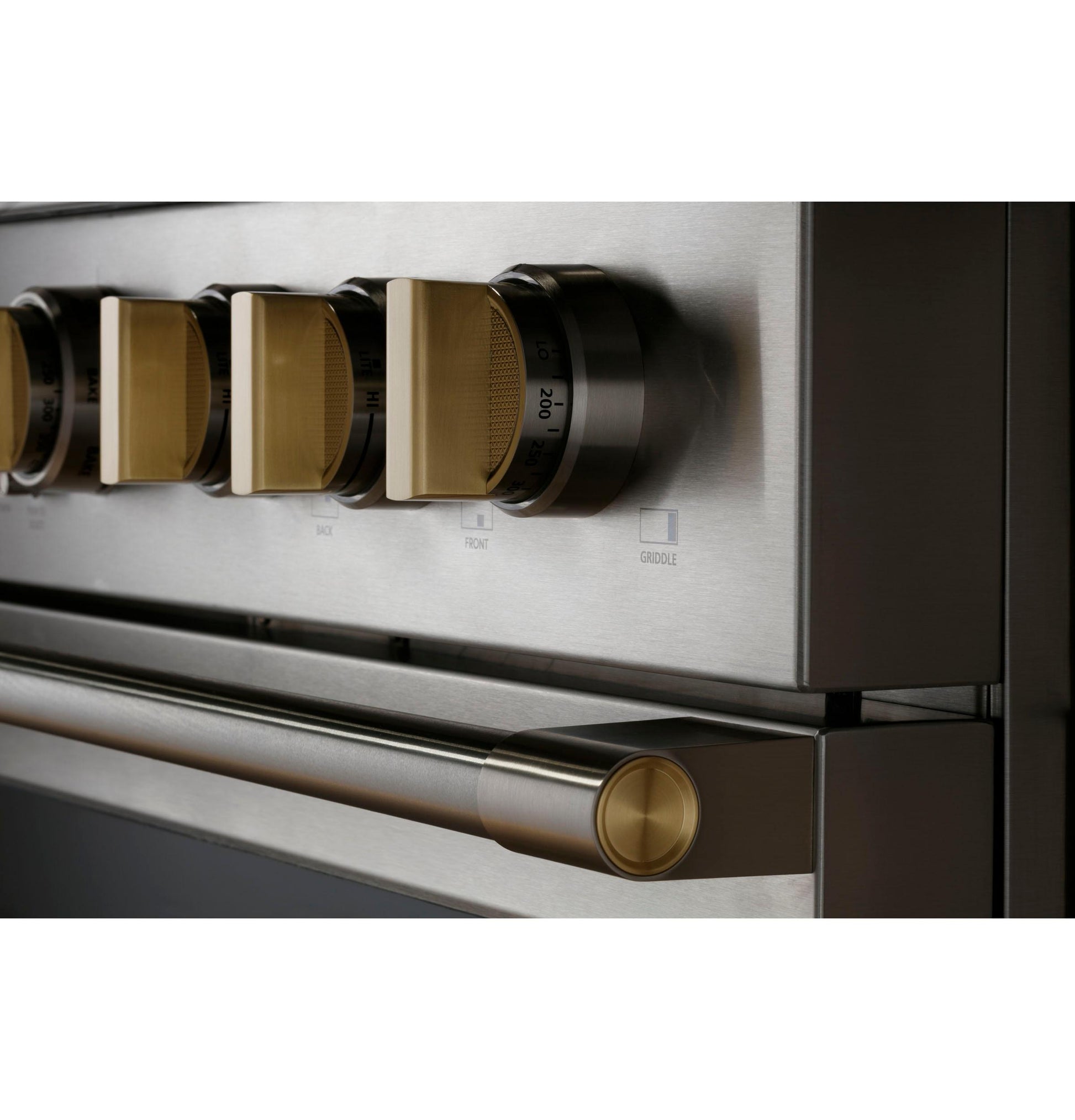

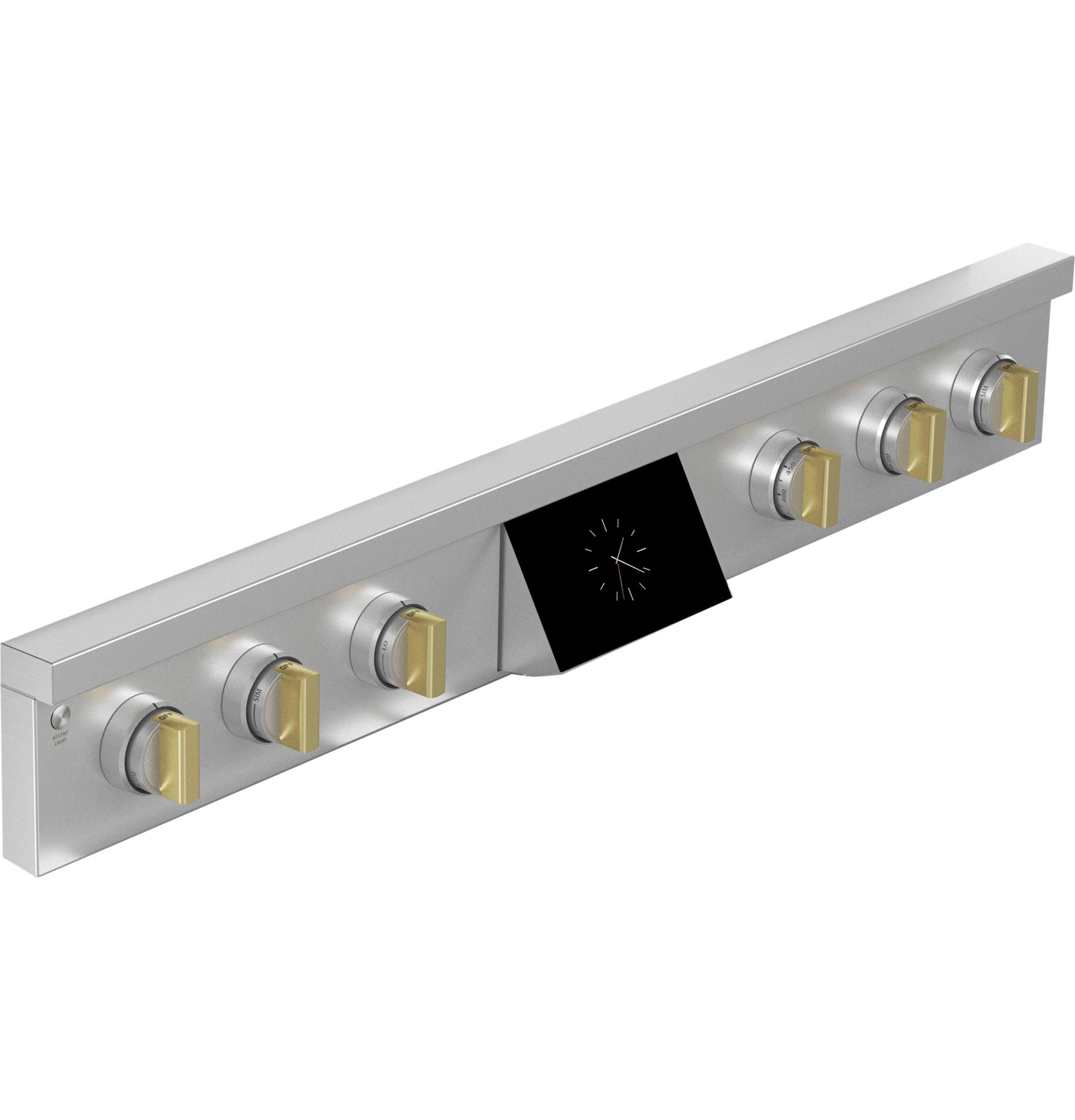

Solid Brass Blades on Precision Machined Knobs
With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents
- Built-In WiFi, Powered by SmartHQ™ app
- Better When Connected
- Industry Exclusive-TrueTemp™ Burner
- Versatile Gas Burner Configuration
- Solid Brass Burners
- 3-Piece Grates with Reversible Wok Feature
- Hot Air Fry
- Articulating 7" Touch LCD Control
- WiFi Monitoring and Remote Control with the SmartHQ™ app
- Chef Connect
- Industry Exclusive-Custom Color LED Accent Lighting
- Ring-Lit Knobs
- Solid Brass Blades on Precision Machined Knobs
- Seamless Stainless Top Frame

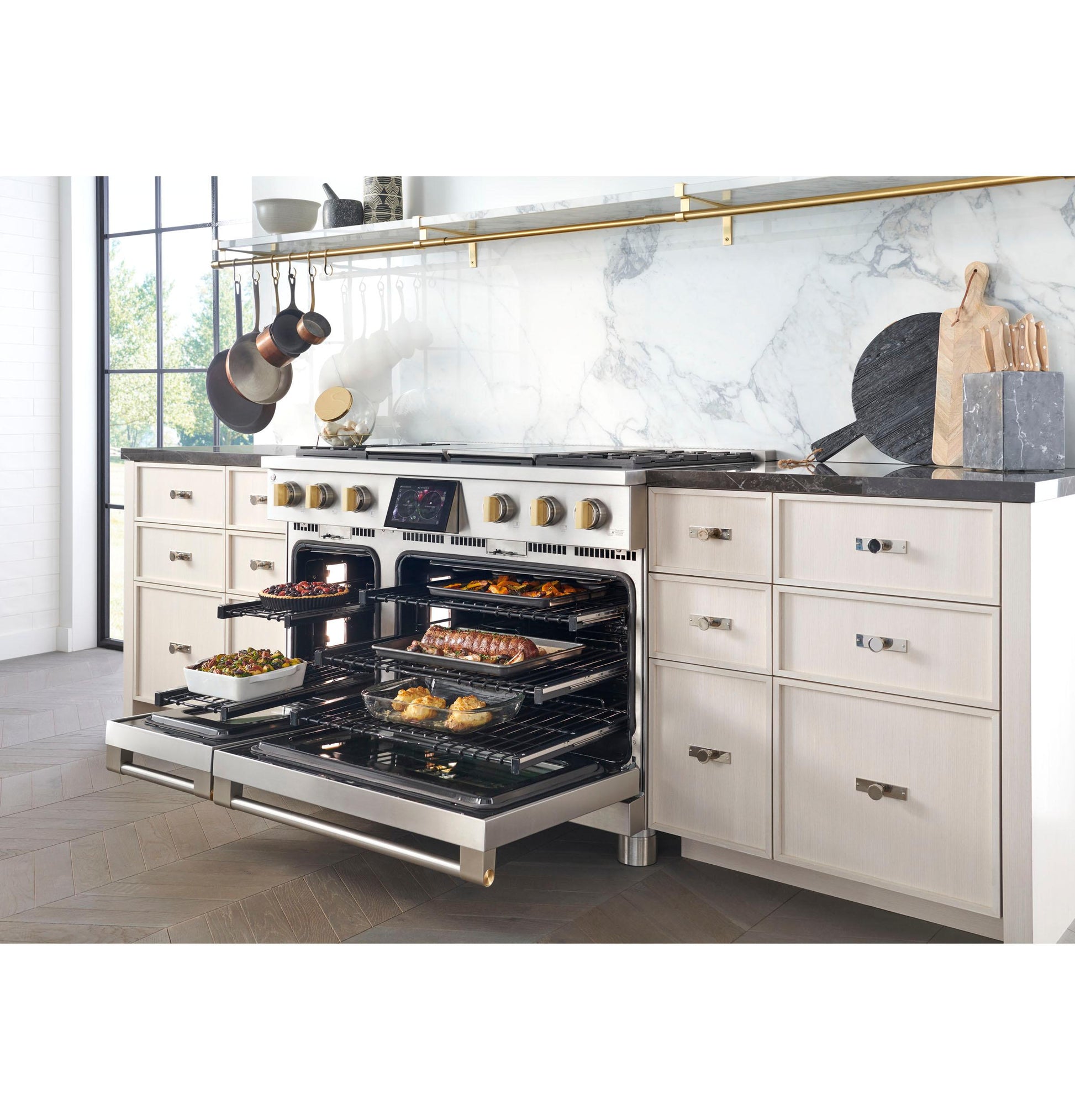

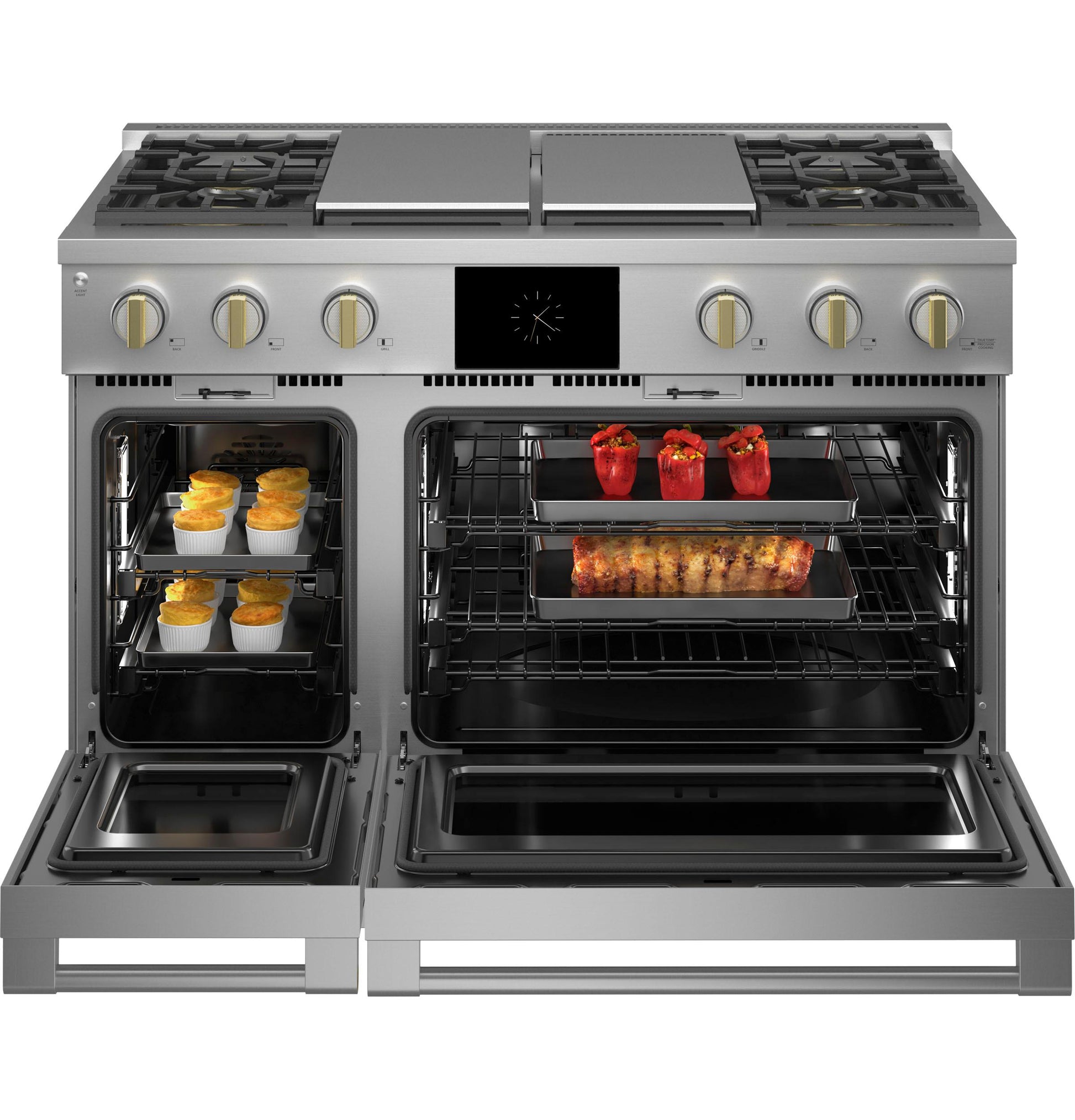

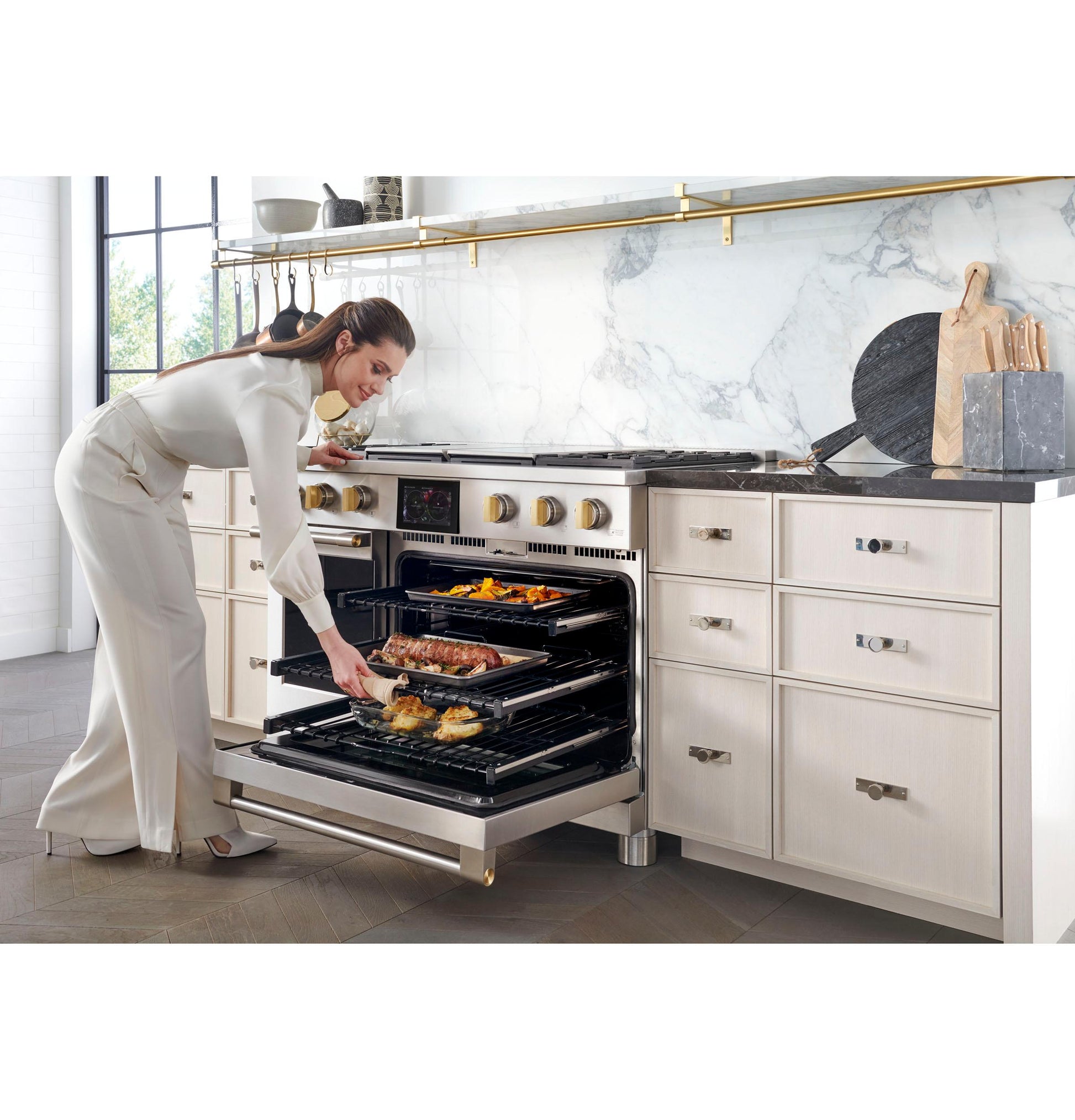

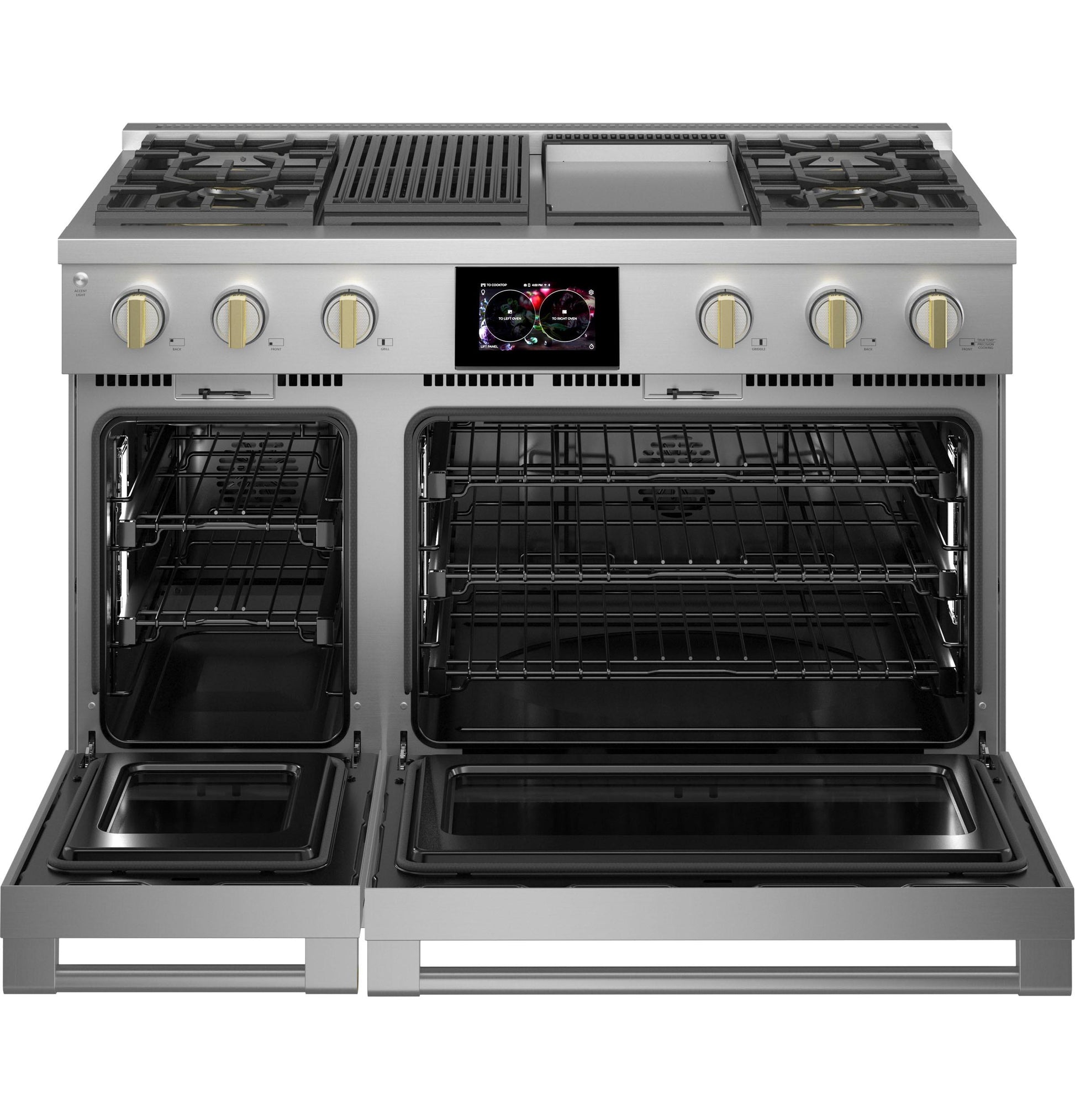

- 5 Full-Extension, Smooth-Glide, Self-Clean Oven Racks
| CAPACITY | |
| Total Capacity (cubic feet) | 8.25 cu ft |
| Capacity (Cu. Ft.) | 5.75 Caterer Oven / 2.5 Everyday Oven |
| APPEARANCE | |
| Toe kick | Included |
| Oven Door Features | Soft Close Door |
| Design Style | Statement Collection |
| Control Knobs | Diecast Metallic (Included) Stainless Steel with Brass Accents |
| Color Appearance | Stainless Steel |
| POWER / RATINGS | |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 23.0; (1) 21.0; (2) 15.0 |
| Electrical Requirements | 240VAC; 50A |
| Top Burner BTU Rating - LP (000's BTU's) | (2) 21.0; (2) 12.0 |
| Grill BTU Rating (000's/BTU) - LP Gas | 14.0 |
| Convection Wattage | 2500W (Main Oven); 1500W (Companion Oven) |
| Bake/Broil Wattage - Main Oven | 2700/4000W |
| Griddle BTU Rating (000's/BTU) - LP Gas | 16.0 |
| Griddle BTU Rating (000's/BTU) - Natural Gas | 18.0 |
| Bake/Broil Wattage - Companion Oven | 1600/2750W |
| Grill BTU Rating (000's/BTU) - Natural Gas | 14.0 |
| WARRANTY | |
| Parts Warranty | Limited 2-year entire appliance Limited 5-year gas surface burners Limited lifetime of oven racks |
| Labor Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
| ACCESSORIES | |
| 48' Monogram Knob Kit | ZXPR48KKTSS (SS, qty. 11) |
| Optional Backguard | 12' stainless steel backsplash (UX12BS48PSS) 30'-36' adjustable stainless steel backsplash with warming shelf (UXADJB48PSS) |
| High Altitude Kit | Natural Gas: WB28X39726; LP: WB28X39727 |
| Reversible Griddle/Grill Accessory | UXPRRGG |
| Multi Ring Burner Caps (Brass) | Included |
| LP Conversion Kit | Included |
| Multi Ring Burner Caps (Black) | Included |

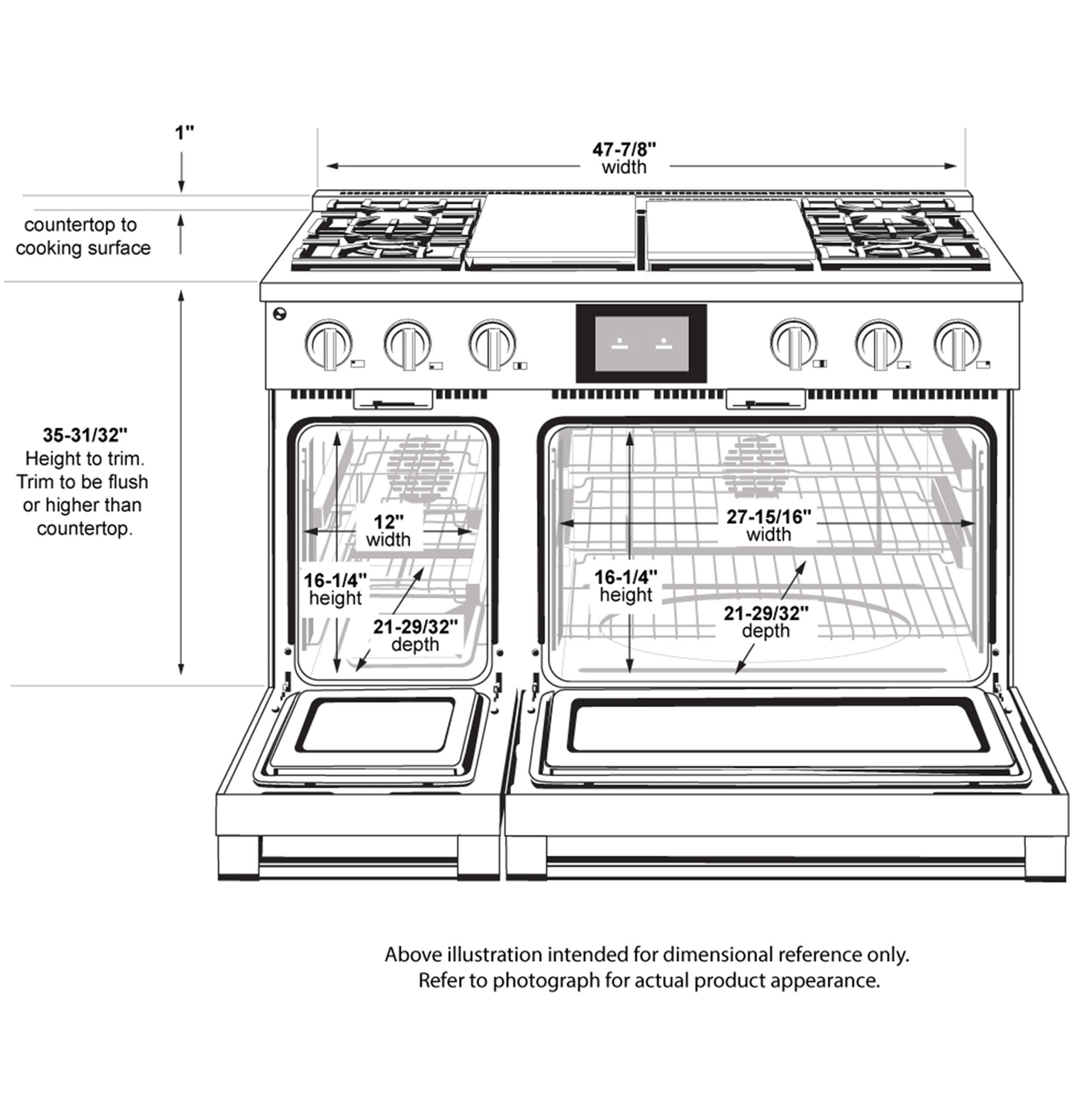

| WEIGHTS & DIMENSIONS | |
| Net Weight | 576 lb |
| Height to Cooking Surface (in.) | 35 1/4 to 36 3/4 |
| Cabinet Width | 48 in |
| Approximate Shipping Weight | 672 lb |
| Overall Width | 47.875 in |
| Overall Height | 35.25 in |
| Overall Depth | 28.5 in |
| Height w/Legs Extended - Maximum Height | 36.75 in |
| Height With Legs Retracted | 35.25 in |
| FEATURES | |
| Cooking System | Reverse Air Convection True European Convection |
| Cleaning Time | 3-5 Hours (Both Ovens) |
| Ignition System | Electronic w/Auto Reignition |
| Oven Control Features | 12-Hour Shut-Off Capability Audible Preheat Signal Auto Recipe Conversion Automatic Oven Meat Probe (Both Ovens) Certified Sabbath Mode Chef Connect Cook Time C° or F° Programmable Delay Clean Option (Both Ovens) Probe Mode Proof Mode (Both Ovens) Remote Enabled Self & Steam Clean Modes Timer WiFi Connect |
| Oven Rack Features | 3 Self-Clean Oven Racks (Caterer Oven), 2 Self-Clean Oven Racks (Everyday Oven) 4 Rack Positions (Everyday Oven) 5 Rack Positions (Caterer Oven) Full-Extension |
| Convection Roasting Rack | Yes |
| Broiler Pan and Grid | 2 |
| Oven Cleaning Type | Self-Clean (Both Ovens) Steam Clean (Both Ovens) |
| Griddle | 18,000-BTU Stainless Steel and Aluminum Clad Thermostatically Controlled |
| Connected Capabilities | Amazon Alexa Bluetooth Fresco Hestan Cue IFTTT Innit Sonos The Google Assistant |
| 140 Deg. Simmer Burner | All Burners - Adjustable |

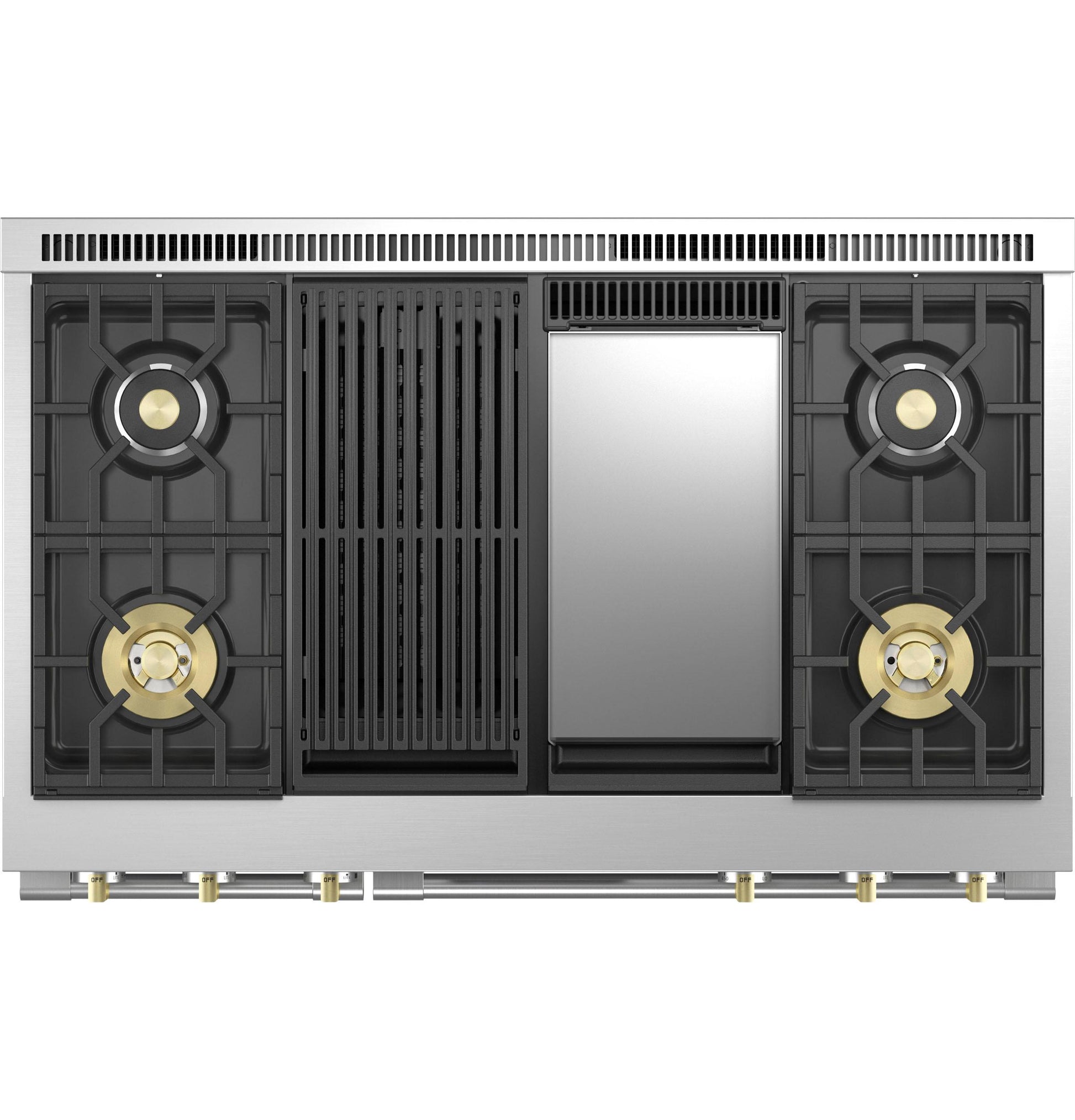

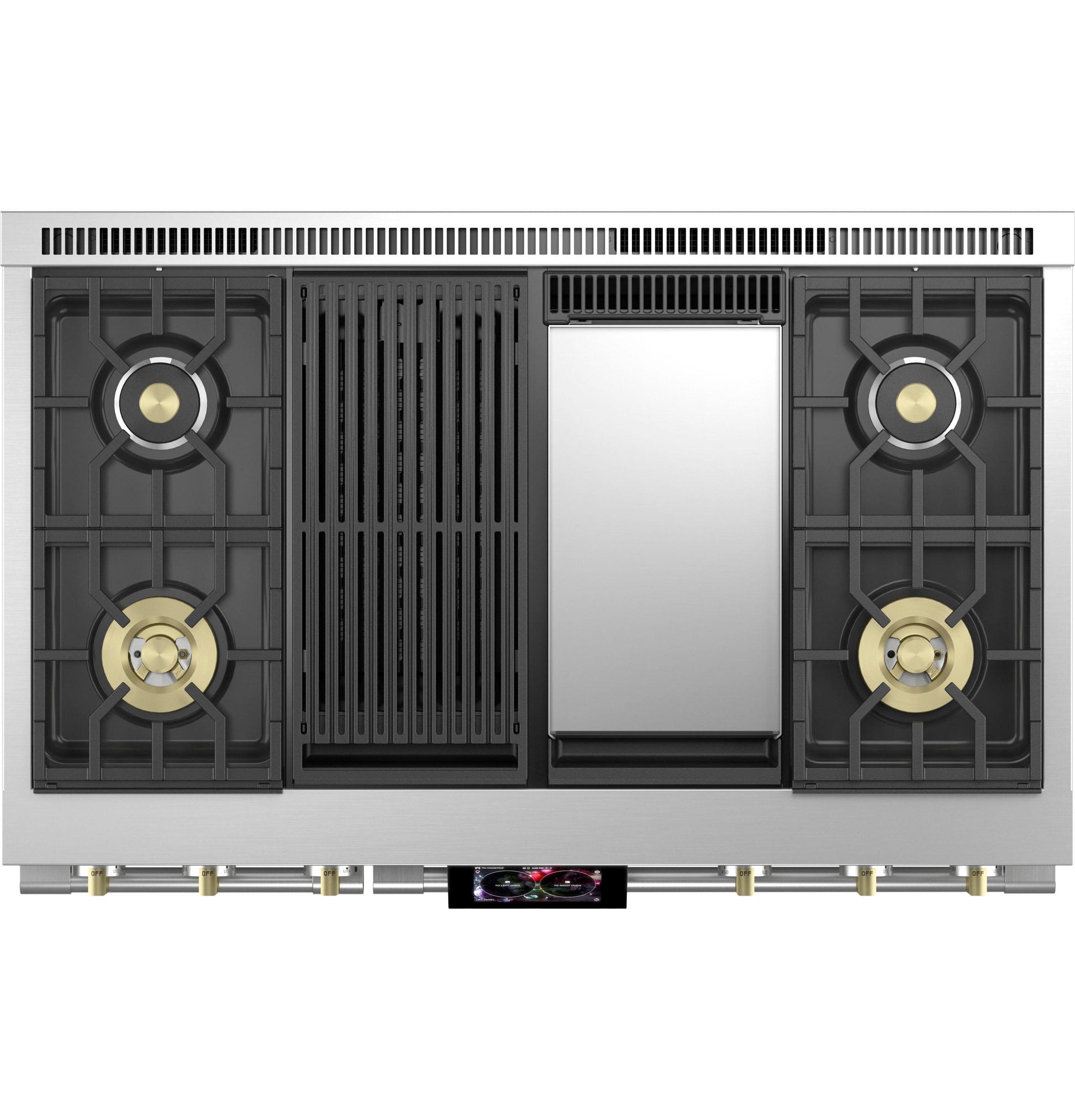

| Cooktop Type | 4 Burners Griddle Grill |
| Fuel Type | Dual Fuel (with natural gas) |
| Indicator Lights | Burner 'On' |
| Short Description | 48' Pro Range - Dual Fuel with 4 Burners, Grill and Griddle |
| Interior Oven Light | 3 Halogen Lamps (Everyday Oven) 6 Halogen Lamps (Caterer Oven) |
| WiFi Connect | Built-In |
| Extra Low Simmer | All Burners - Adjustable |
| Cooktop Burner Grate Features | Continuous Grates Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates |
| Control Type | 7' Full-Color Touch LCD Screen Digital Temperature Display with Timer Display (Both Ovens) |
| Lighting | Customizable LED Bullnose and Knob Accent Lighting |
| Adjustable Ceramic IR Grill | Yes |
| Cooking Technology | Convection |
| Oven Features | 4-Pass Bake Element (Everyday Oven) 4-Pass Broil Element (Everyday Oven) 8-Pass Bake Element 8-Pass Broil Element Hidden Bake |
| Oven Cooking Modes | Convection Bake Multi-Rack (Both Ovens) Convection Broil Hi/Lo (Both Ovens) Convection Roast (Both Ovens) No-Preheat Air Frying (Both Ovens) Precision Cooking Modes Proof (Both Ovens) Scan-to-Cook Warming (Both Ovens) |
| Cooktop Burner Type | 2 Sealed, Dual Flame Stacked 2 Sealed, Dual Flame Stacked (Removable Brass Accents) Front Right TrueTemp™ Burner |
| Grill | 14,000-BTU Cast-Iron Reversible Grill Grate |
| Removable Grease Trough | (2) Beneath Grill and Griddle |
| Cooktop Surface | Porcelain-Enamel |

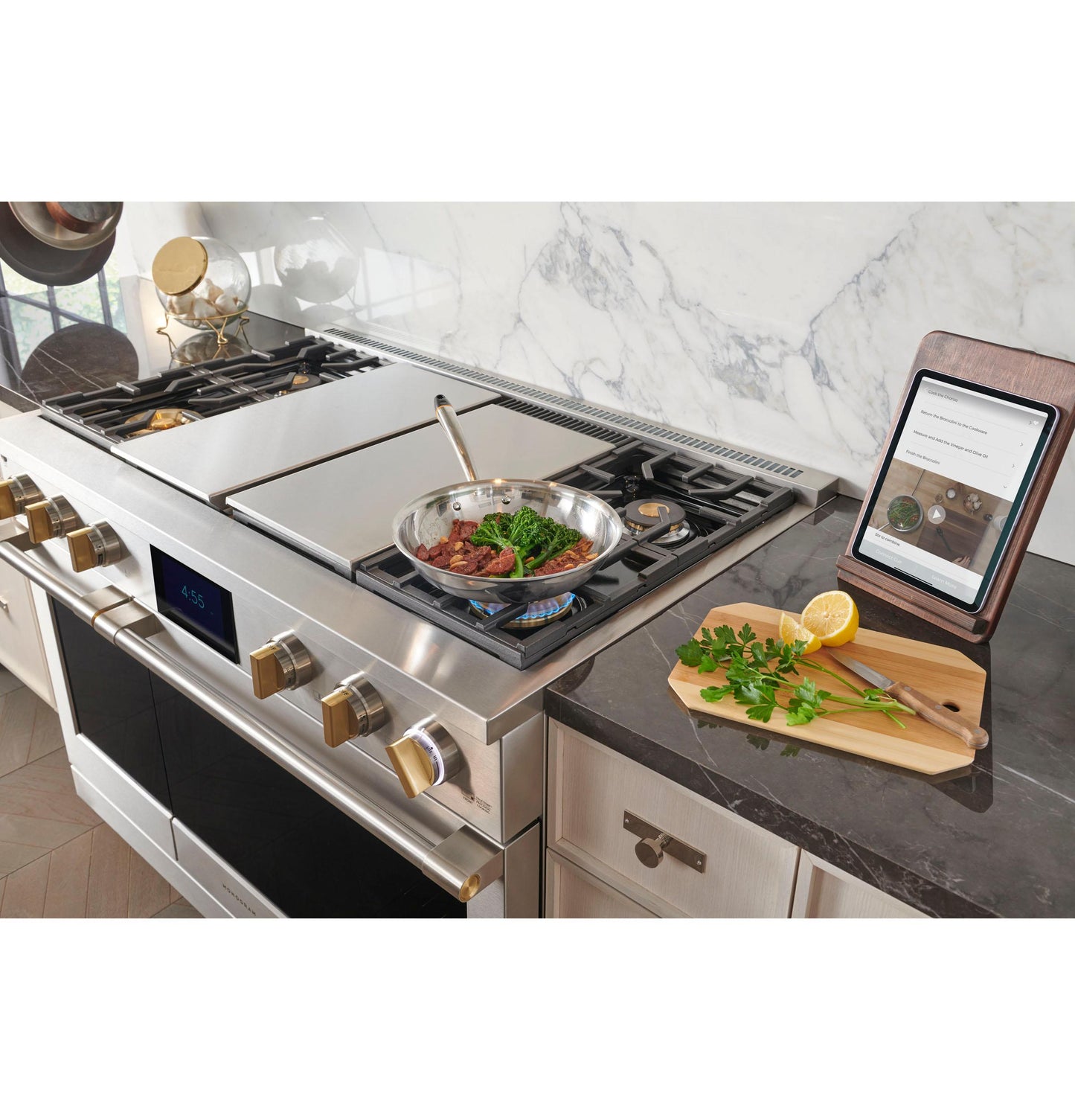

| Stainless Steel Grill / Griddle Covers | 2 |
| Oven Rack Positions (Single or Upper/Lower) | 5 / 4 |
| Self-Clean Oven Door Lock | Automatic |
