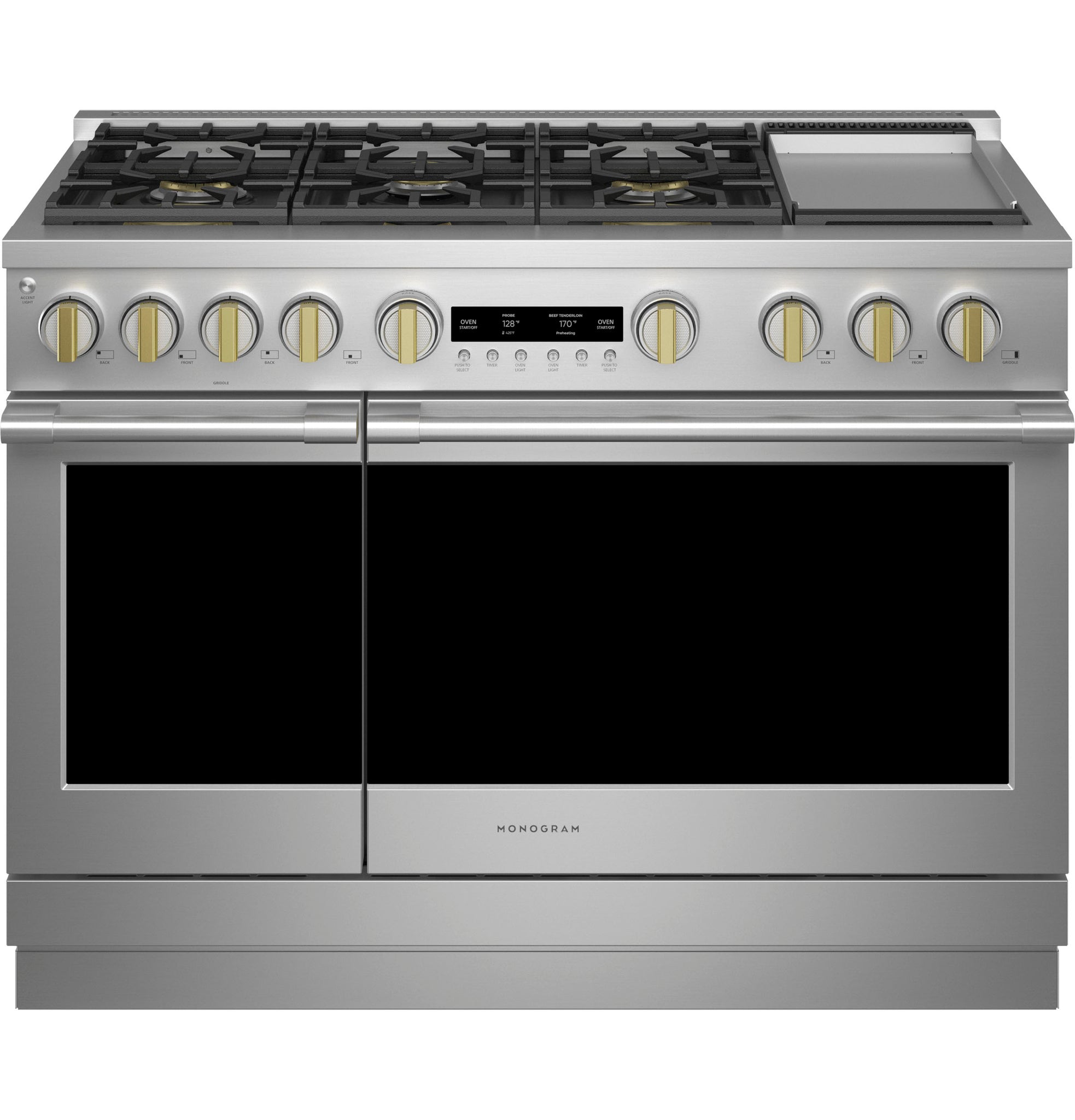

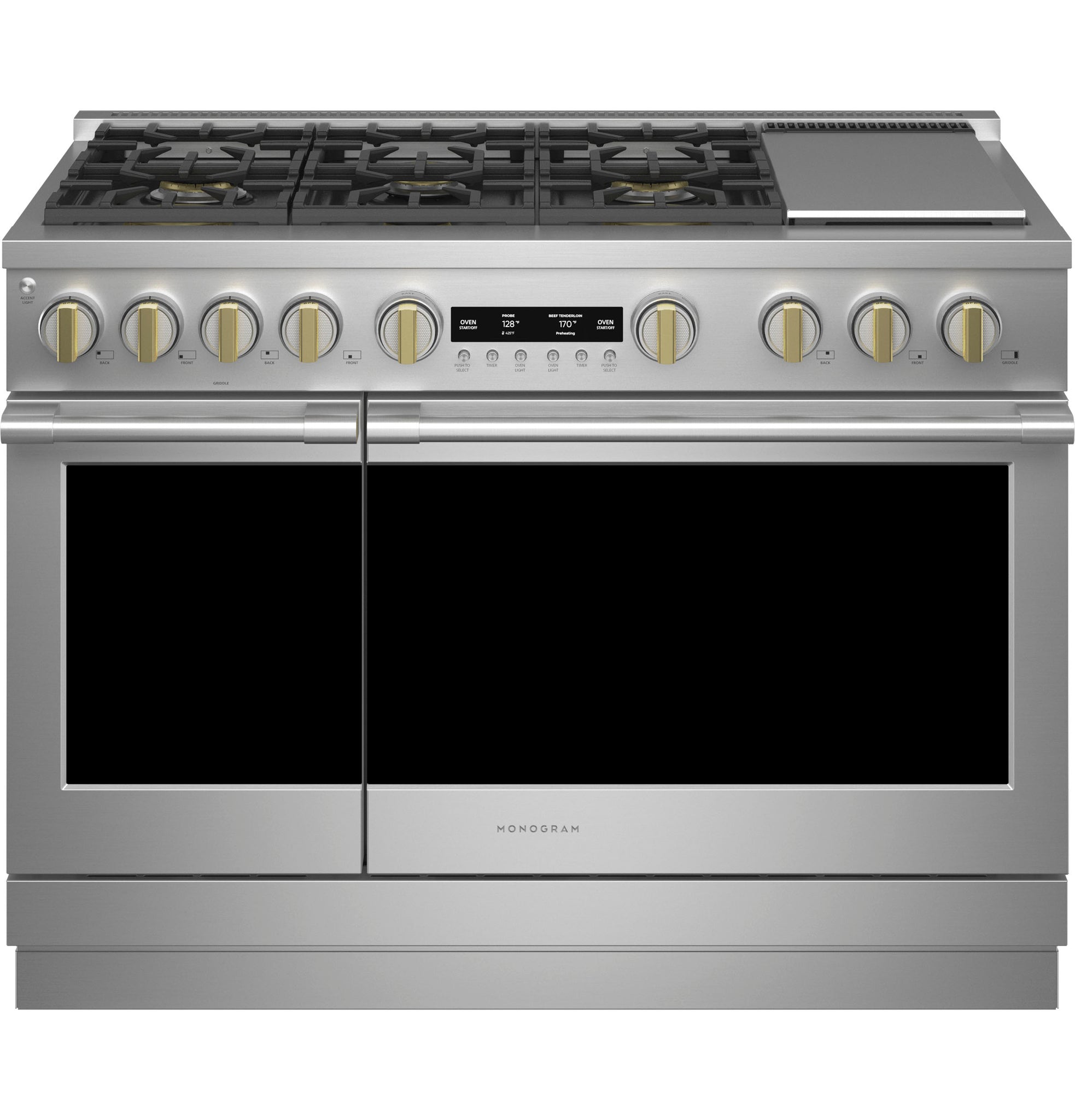

Monogram ZDP486NDTSS Monogram 48" Dual-Fuel Professional Range With 6 Burners And Griddle (Natural Gas)
Monogram ZDP486NDTSS Monogram 48" Dual-Fuel Professional Range With 6 Burners And Griddle (Natural Gas)
SKU: ZDP486NDTSS
UPC: 084691851288
Colors:
Stainless Steelx
Installation and Removal
x
When Will I Get My Order?
x
THIS ITEM QUALIFIES FOR FREE DELIVERY!
List Price: $15,400.00
Our Price: $14,000.00
You save:
$1,400.00 (9%)
EXTENDED PROTECTION
3 year plan
$305.995 year plan
$599.99Couldn't load pickup availability
x
Installation and Removal
x
When Will I Get My Order?
x
Monogram ZDP486NDTSS Monogram 48" Dual-Fuel Professional Range With 6 Burners And Griddle (Natural Gas)
Rebates &
Promotions
Monogram One For You One For Free Rebate - Receive a generous rebate or up to 3 Free Monogram Appliances with purchase of qualifying Monogram Range or Appliance Package. Download Valid: 07/01/2024-12/31/2024

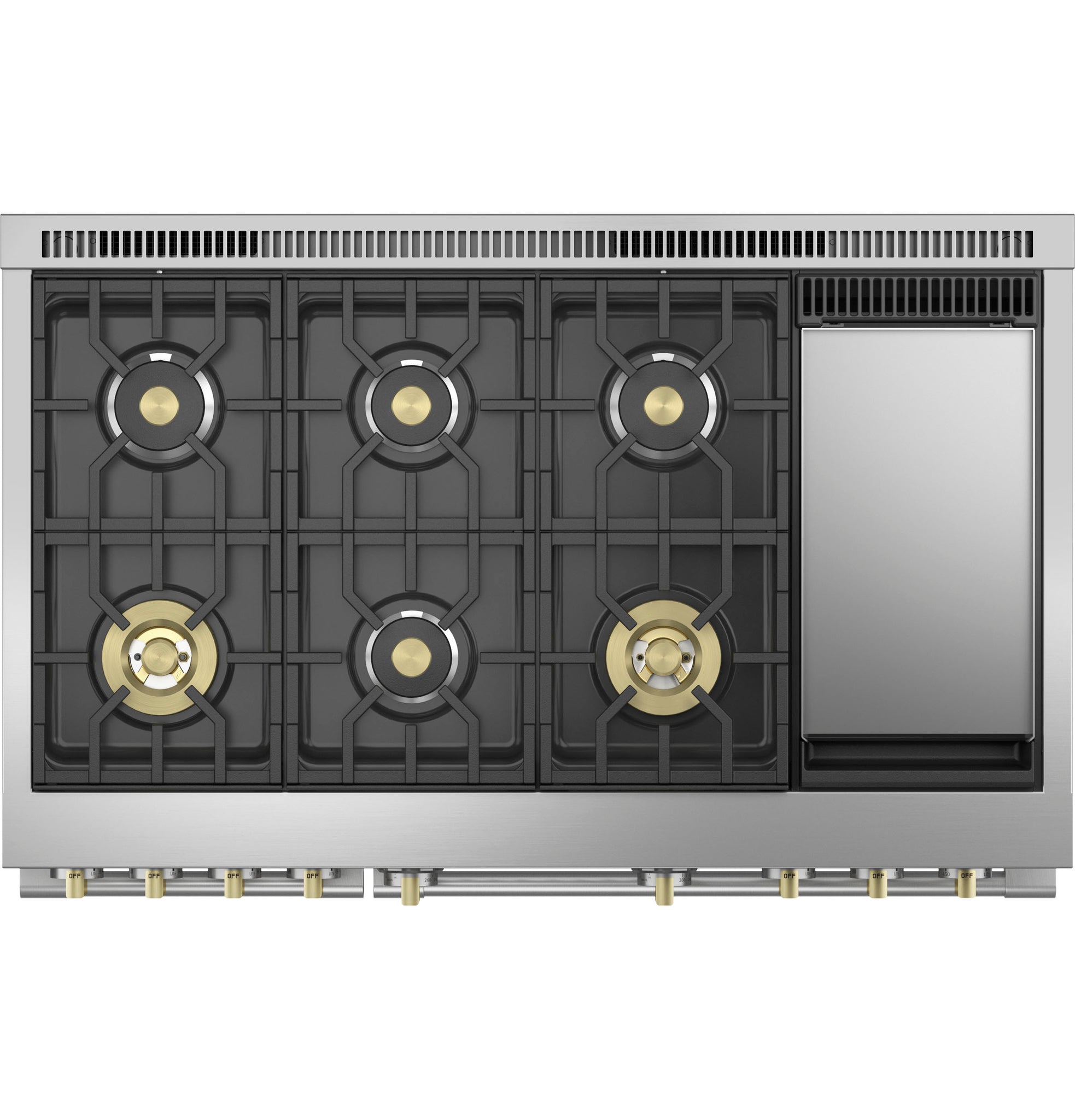

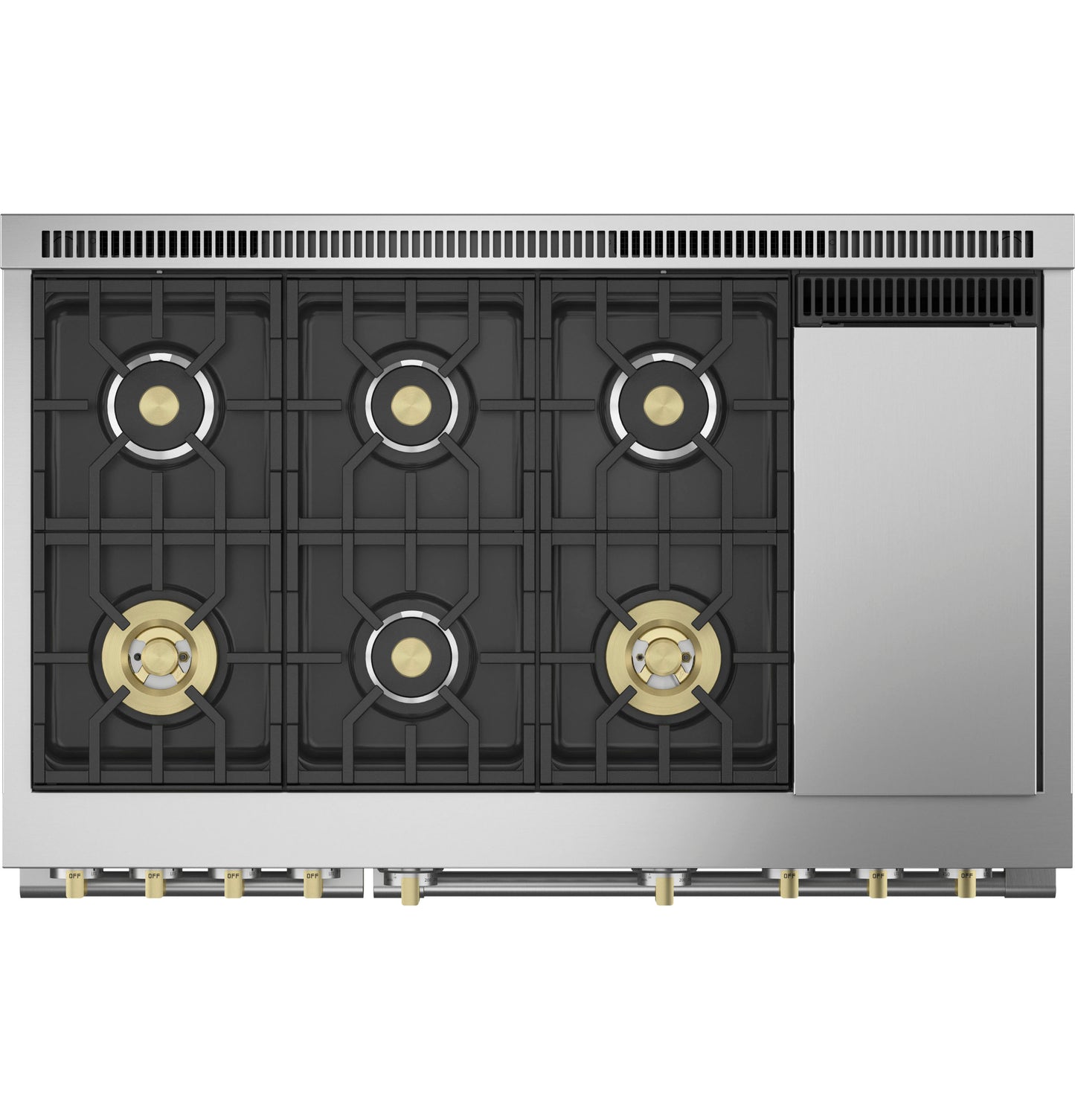

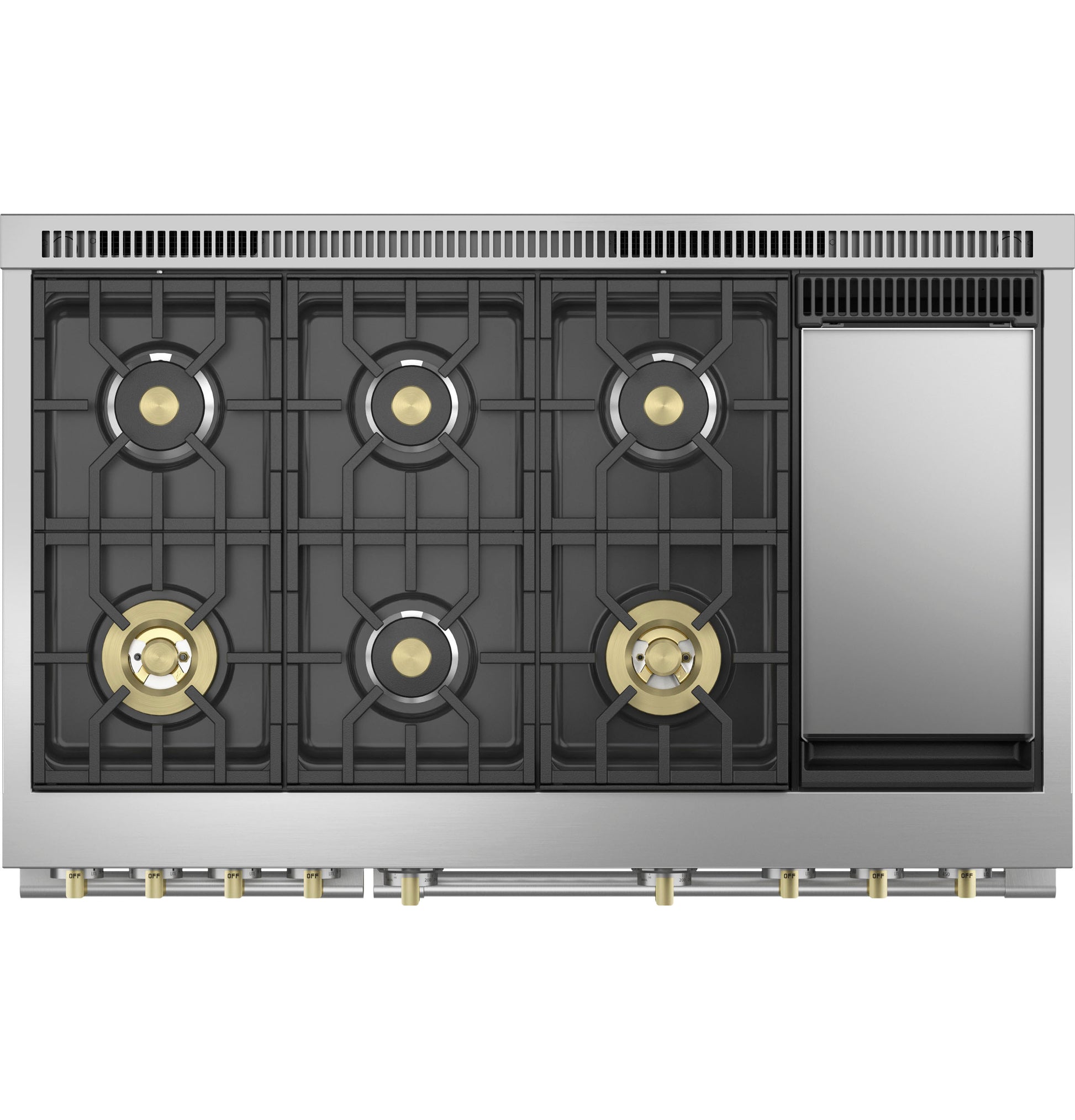

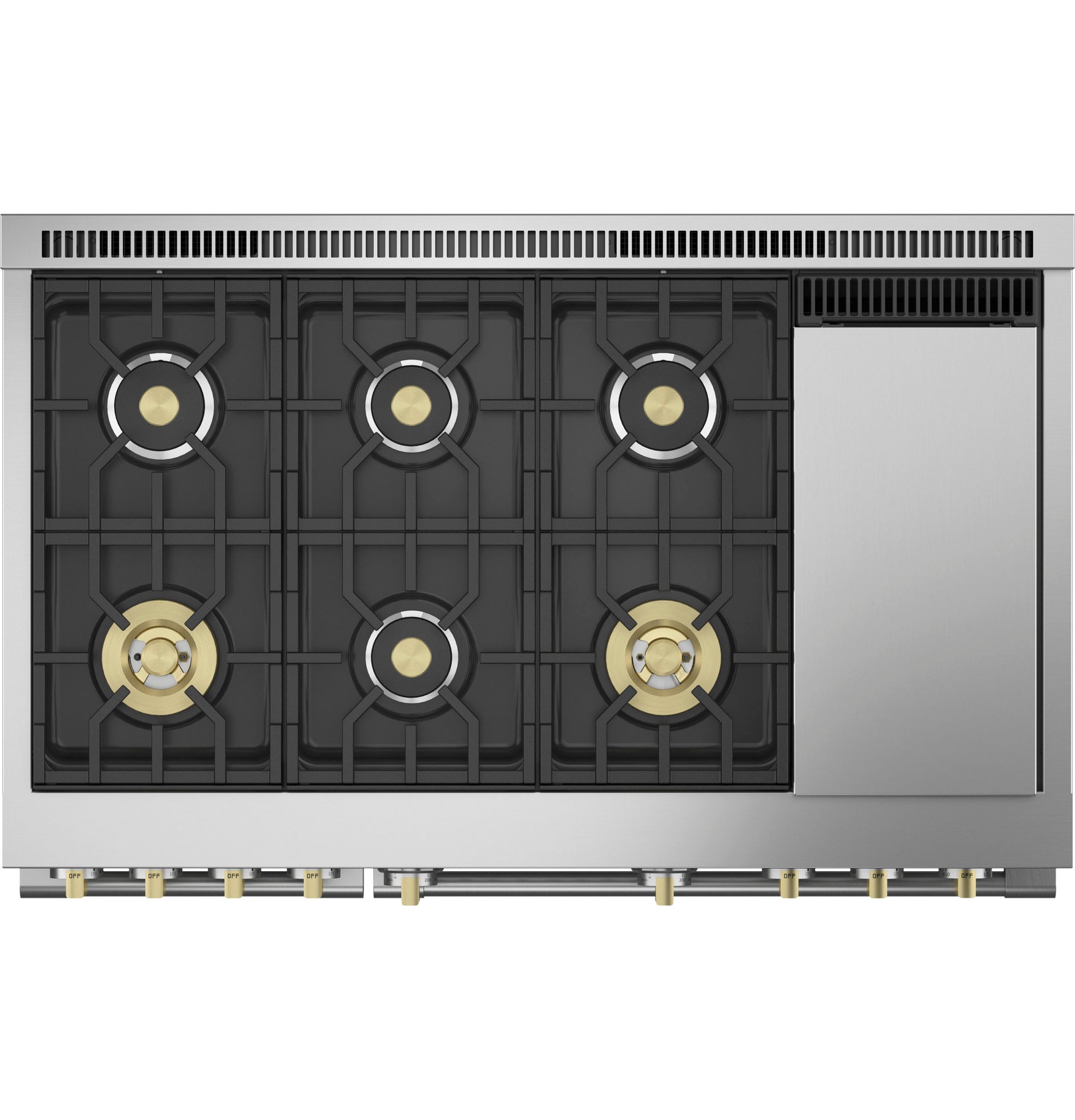

Versatile Gas Burner Configuration
Delivering exceptional cooking flexibility, the two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame

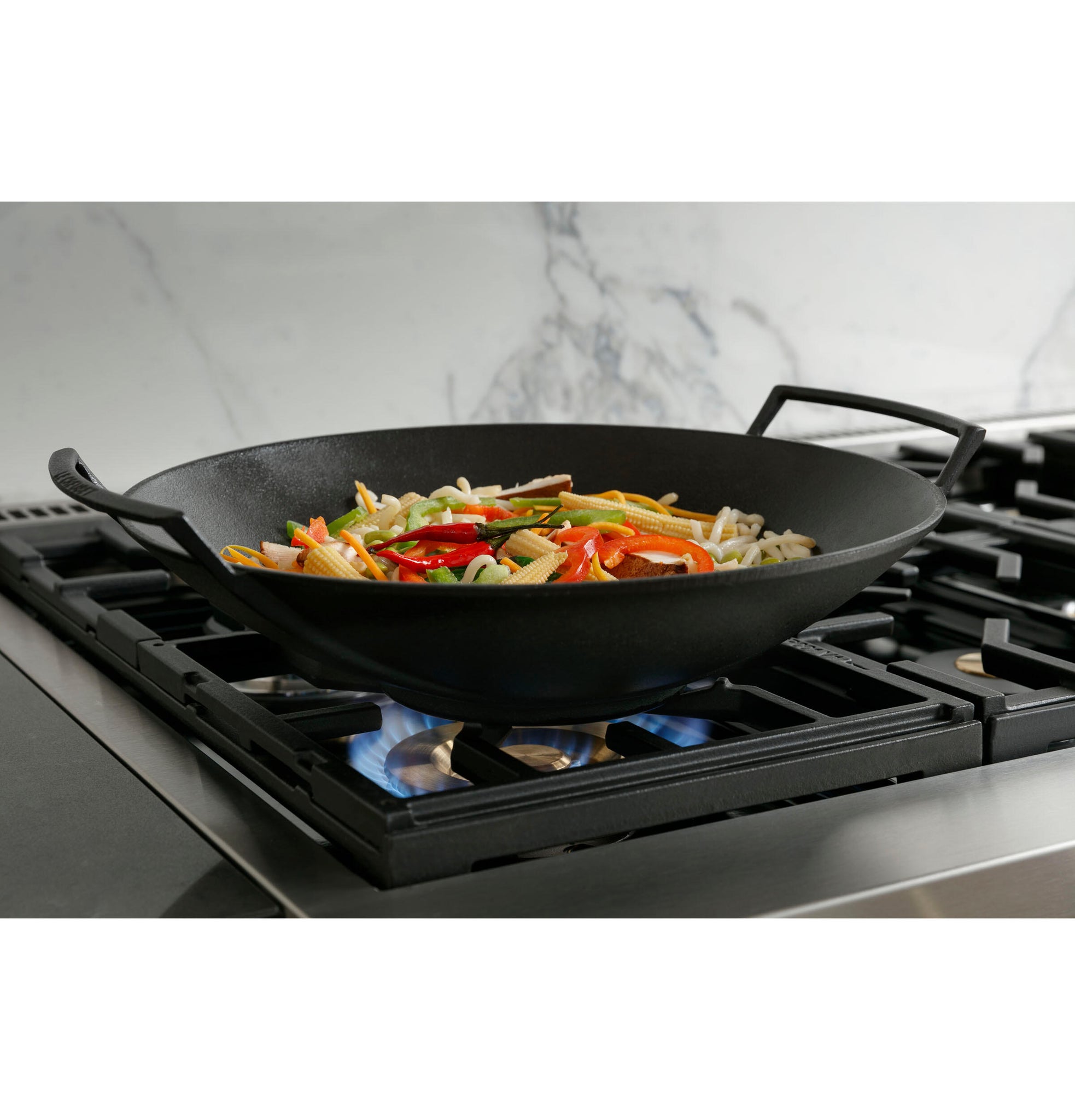

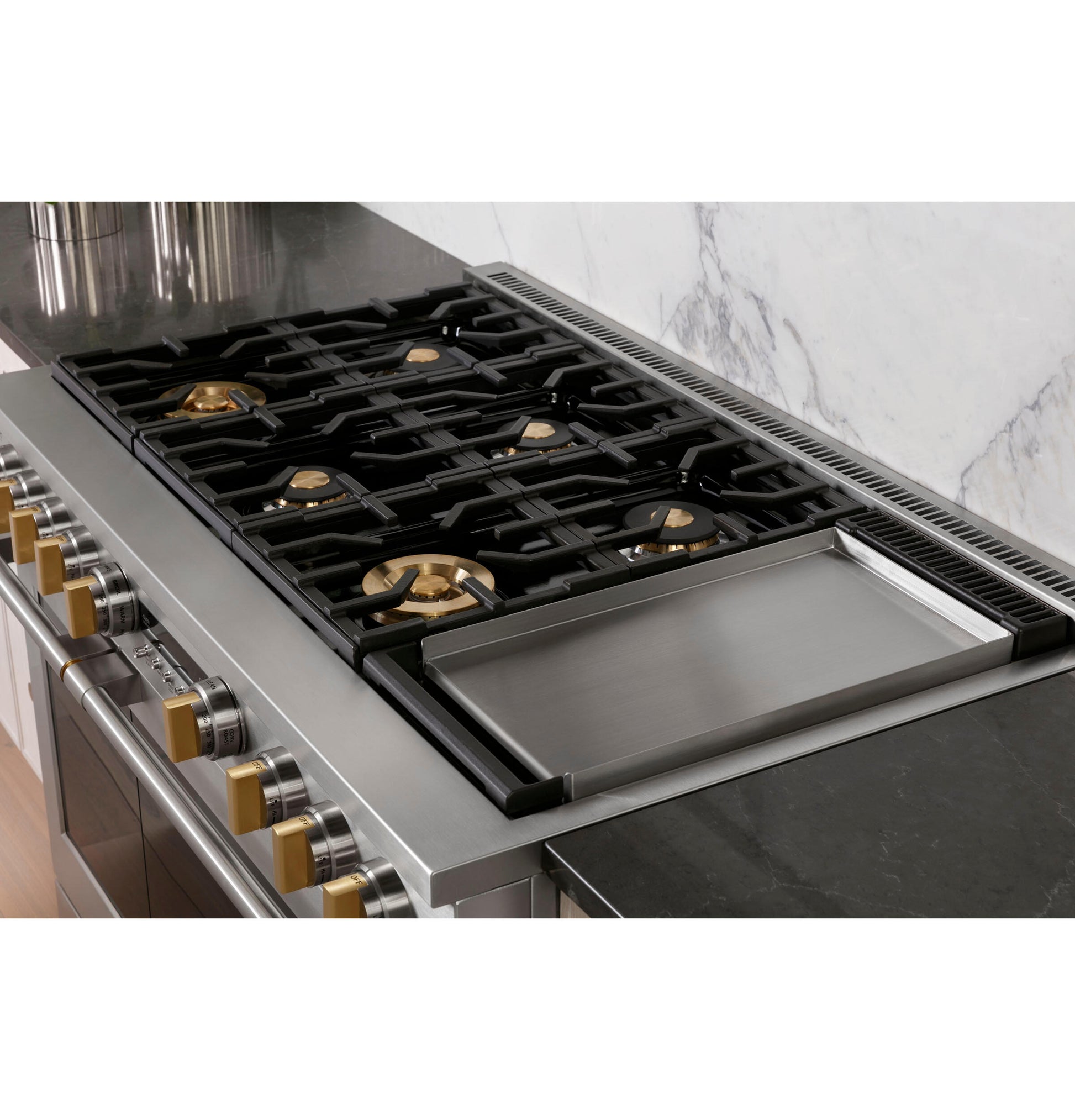

3-Piece Grates with Reversible Wok Feature
Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks
WiFi Monitoring and Remote Control with the SmartHQ™ app
Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more

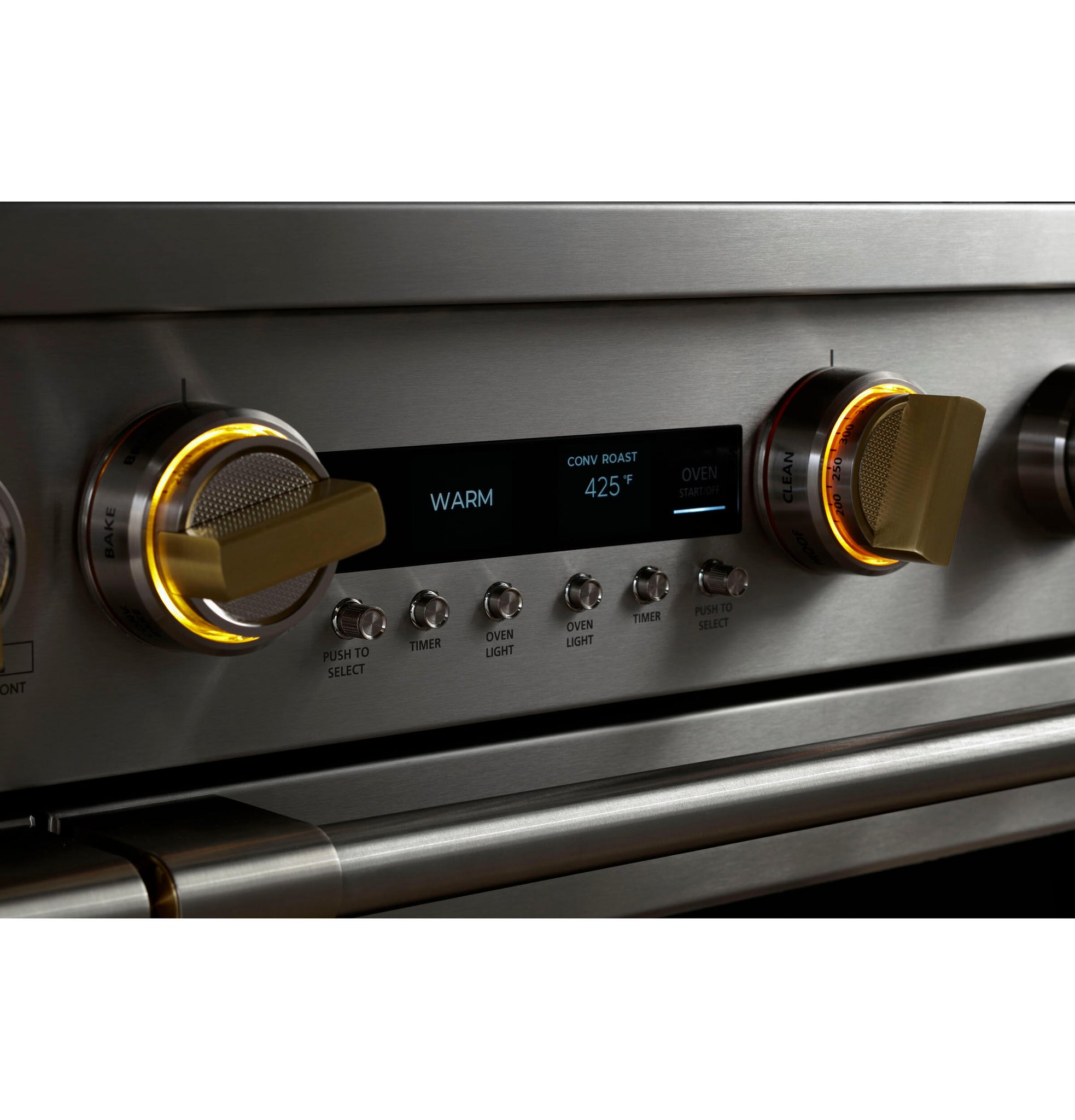

Dynamic Oven LCD
Functional and stylish, the LCD shows which oven mode is currently in use and other helpful information, like oven temperature, timer and probe temp
Chef Connect
Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on
Industry Exclusive - Custom Color LED Accent Lighting
For an elevated level of luxury, use the SmartHQ™ app to customize the accent lighting color and brightness to perfectly match kitchen decor or dining ambiance
Versatile Gas Burner ConfigurationDelivering Exceptional Cooking Flexibility, The Two 23,000-Btu Multi-Ring Brass Burners And Dual-Stack Burners Offer A Range Of Heat Settings, From Gentle Simmer To Intense Flame 3-Piece Grates With Reversible Wok FeatureReversible Grates Are Easy To Clean And Complement Different Culinary Techniques, With A Flat Side For Traditional Cooking And Contoured Side That Perfectly Holds Round-Bottom Woks Wifi Monitoring And Remote Control With The Smarthq™ AppPerfect For A Busy Lifestyle, Built-In Wifi Capabilities Allow For The Remote Activation Of Cooking Functions, Like Preheating The Oven, Setting Timers, Activating Chef Connect And More Dynamic Oven LcdFunctional And Stylish, The Lcd Shows Which Oven Mode Is Currently In Use And Other Helpful Information, Like Oven Temperature, Timer And Probe Temp Chef ConnectStay Completely Connected With Chef Connect, The Smart And Convenient Feature That Can Effortlessly Synchronize A Range Of Kitchen Items Such As Surface Lights And Even The Vent When The Burners Are On Industry Exclusive - Custom Color Led Accent LightingFor An Elevated Level Of Luxury, Use The Smarthq™ App To Customize The Accent Lighting Color And Brightness To Perfectly Match Kitchen Decor Or Dining Ambiance Ring-Lit KnobsDelivering A Modern Approach To Customization, The Smarthq™ App Allows For The Range Knobs To Be Set In Any Color You Choose, Indicating When A Burner Is On And Showing The Status Of The Oven Solid Brass Blades On Precision Machined KnobsWith An Unmatched Attention To Detail, All Knobs On The New Monogram Pro Ranges And Range Tops Come With Solid Brass Accents Seamless Stainless Top FrameMeticulously Crafted From One Piece Of Stainless Steel That Covers The Cooktop And Control Panel, This Seamless And Stylish Surface Is Easy To Clean And Beautiful To Look At Soft-Close HingesSpecially Designed, Soft-Close Hinges Ensure That The Oven Door Always Closes Smoothly And Quietly For A New Level Of Kitchen Refinement 5 Oven Racks (Full-Extension)Self-Clean Oven Racks Glide Smoothly In And Out On Stainless Steel Ball Bearings For Easy Access And Are Designed To Remain In The Oven During The Self-Clean Cycle Precision Oven Modes With Smarthq™ AppSimplify The Cooking Process With Precision Oven Modes That Automatically Track Progress And Make Time And Temperature Adjustments
- Versatile Gas Burner Configuration
- 3-Piece Grates with Reversible Wok Feature
- WiFi Monitoring and Remote Control with the SmartHQ™ app
- Dynamic Oven LCD
- Chef Connect
- Industry Exclusive - Custom Color LED Accent Lighting

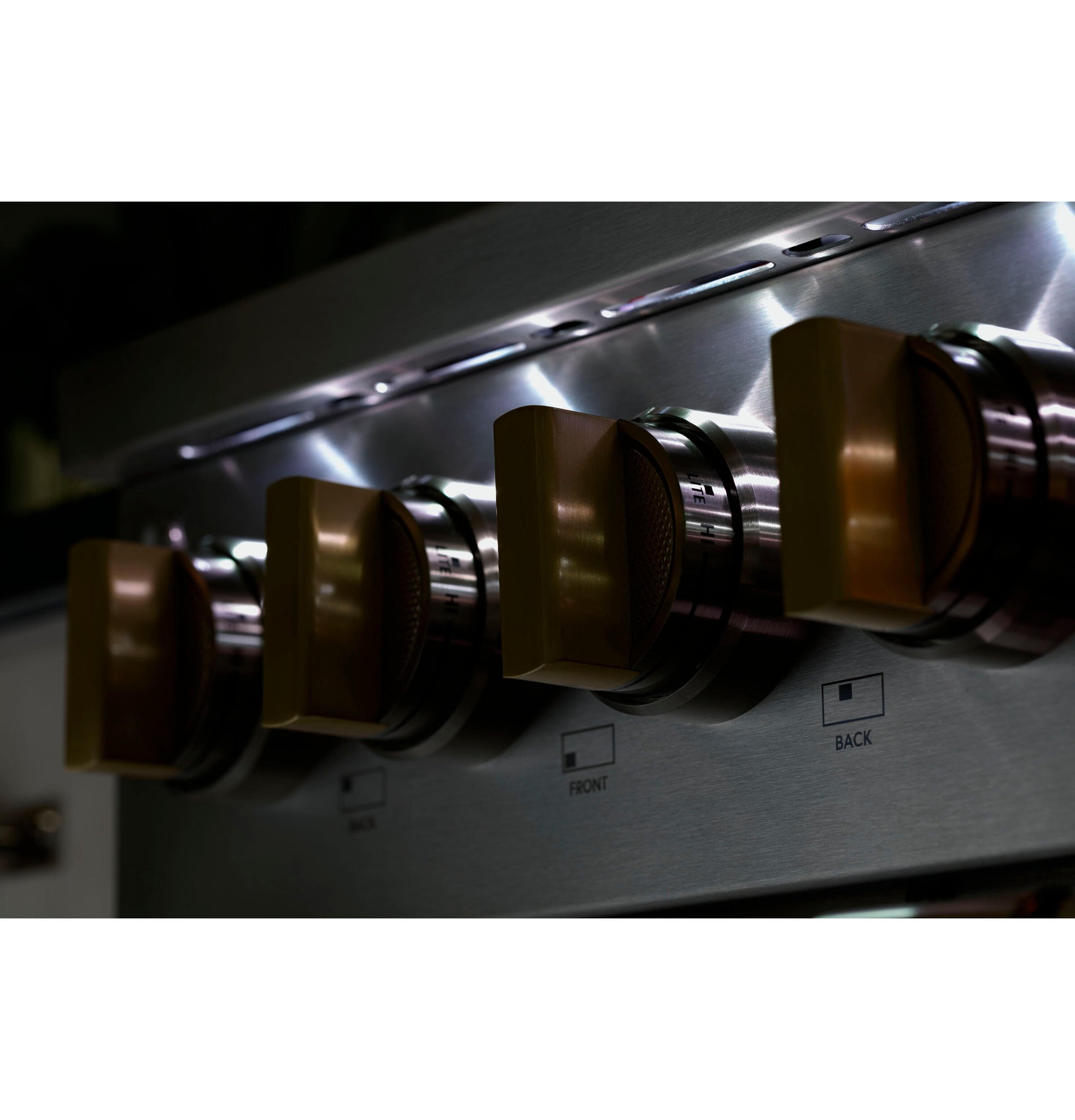

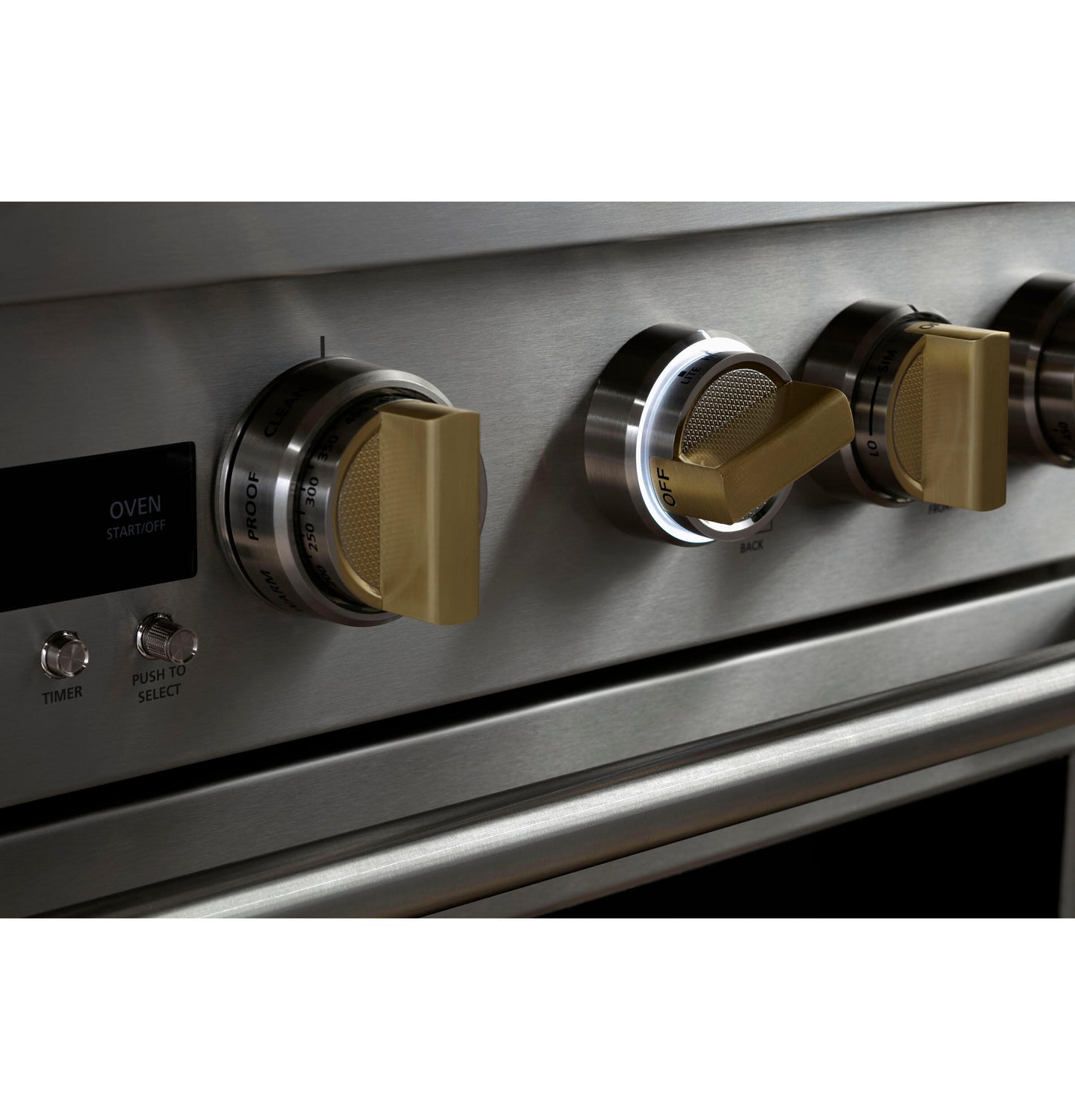

- Ring-Lit Knobs

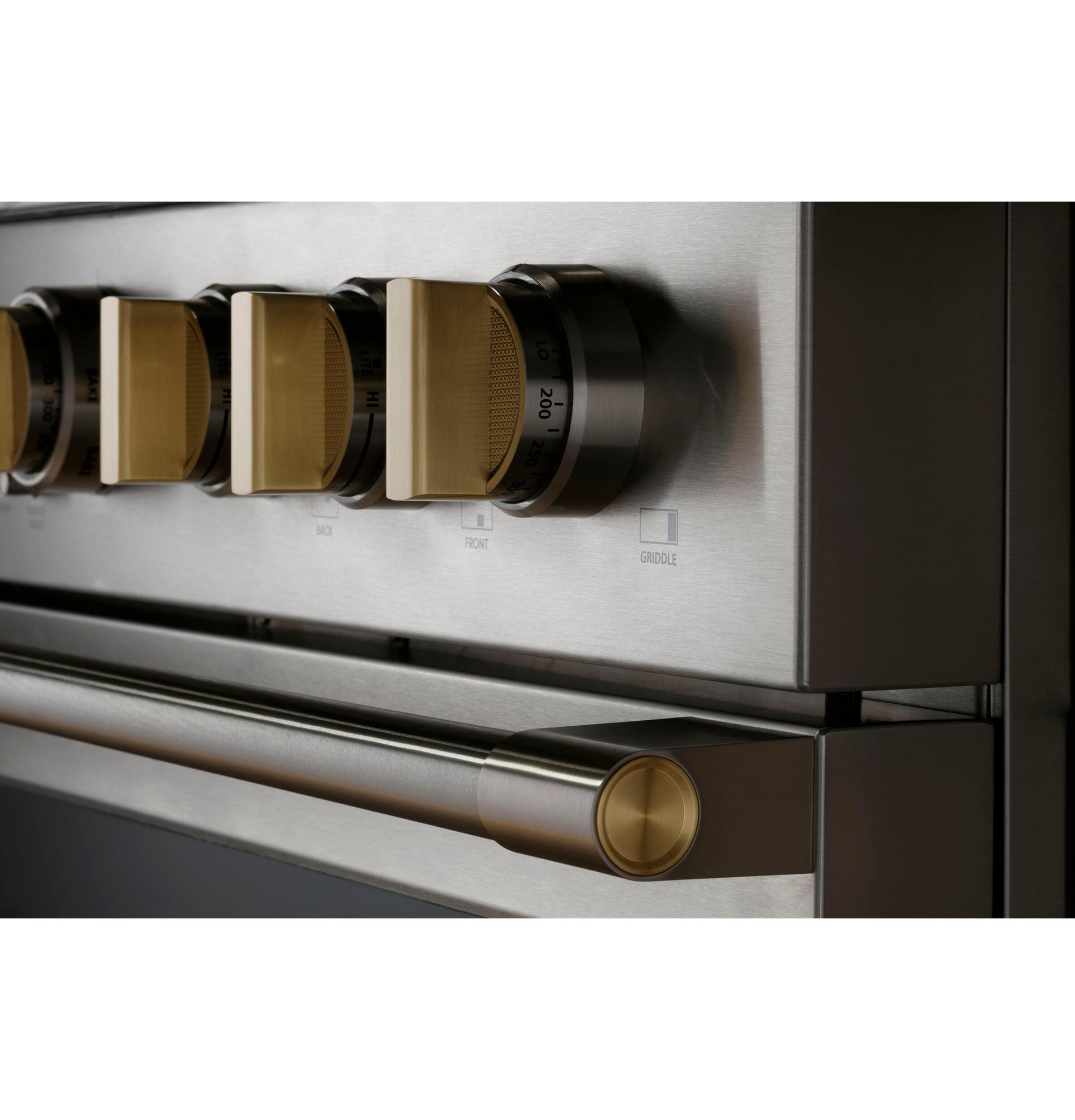

- Solid Brass Blades on Precision Machined Knobs
- Seamless Stainless Top Frame
- Soft-Close Hinges

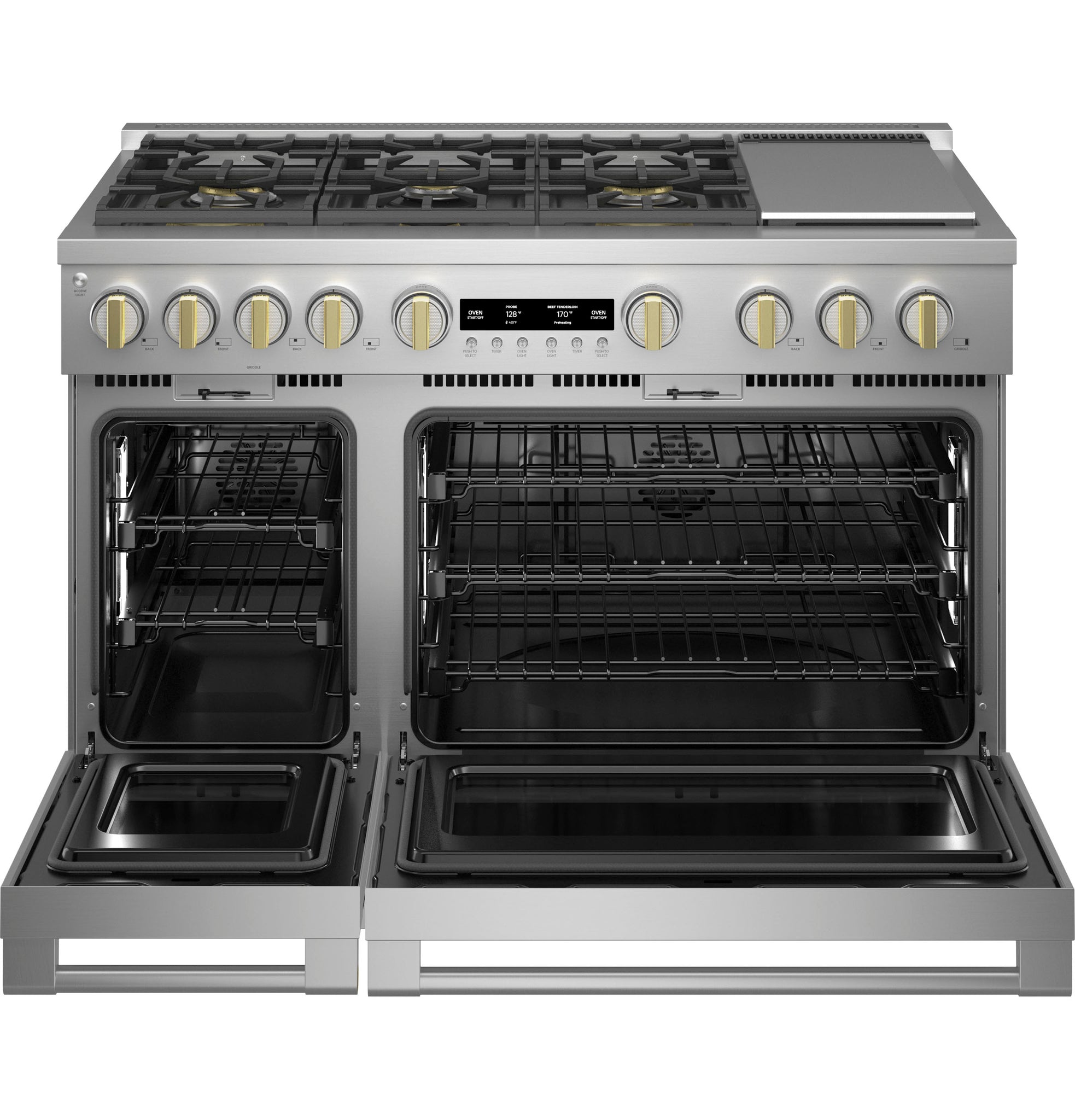

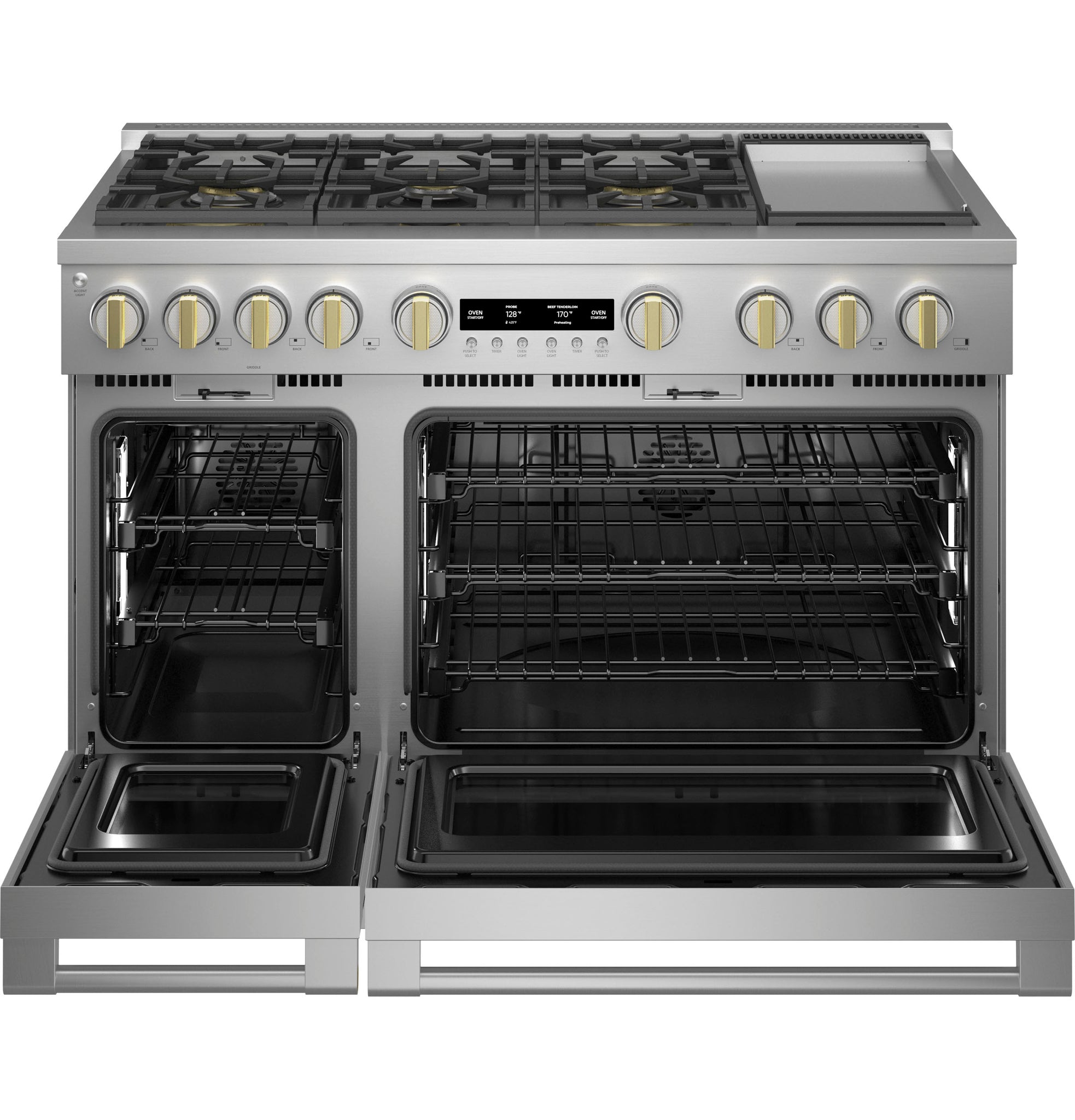

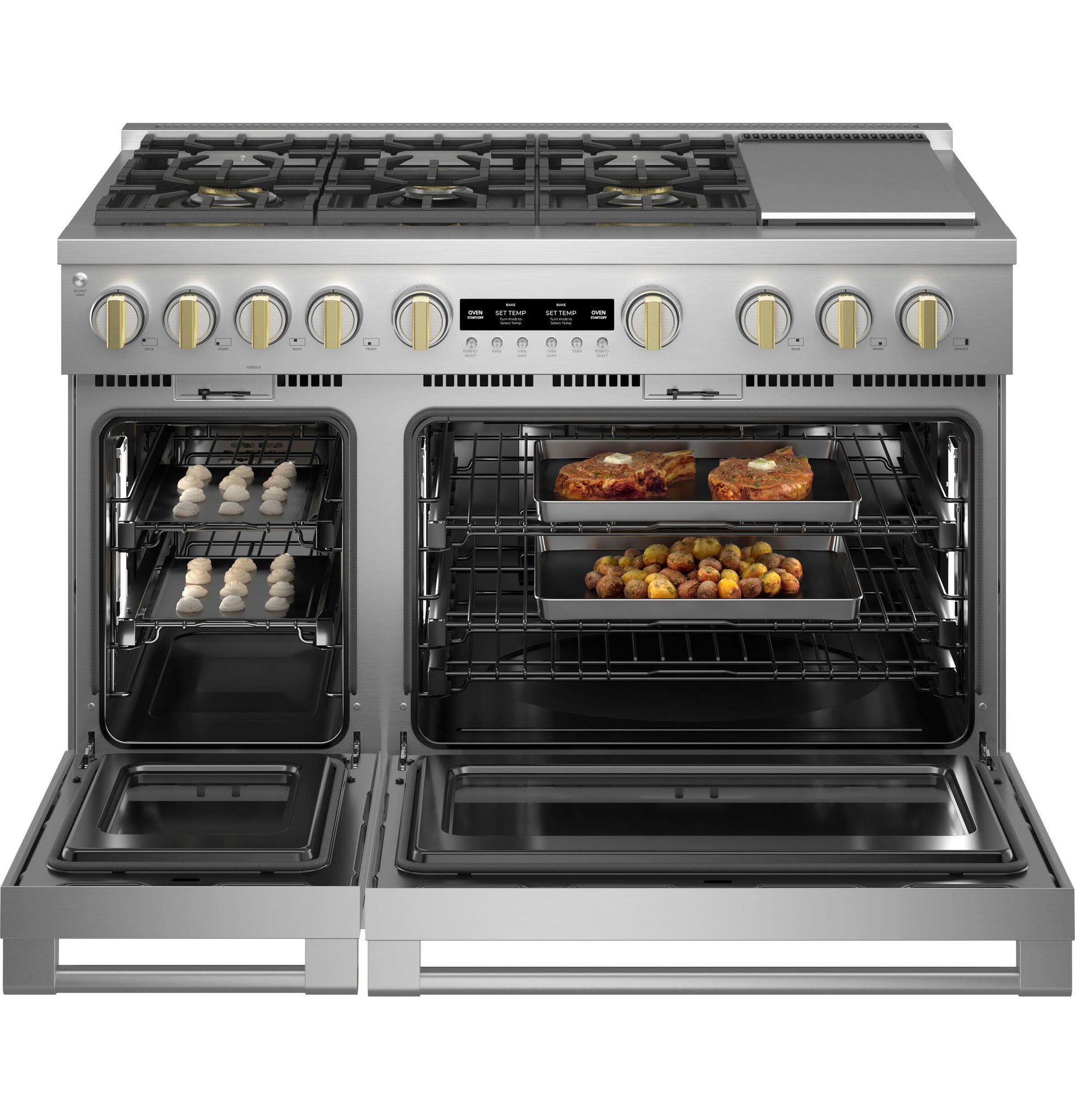

- 5 Oven Racks (Full-Extension)
- Precision Oven Modes with SmartHQ™ app
| CAPACITY | |
| Total Capacity (cubic feet) | 8.25 |
| Capacity (Cu. Ft.) | 5.75 Caterer Oven / 2.5 Everyday Oven |
| APPEARANCE | |
| Control Knobs | Diecast Metallic (Included) Stainless Steel with Brass Accents |
| Design Style | Statement Collection |
| Toe kick | Included |
| Oven Door Features | Soft Close Door |
| Color Appearance | Stainless Steel |
| POWER / RATINGS | |
| Bake/Broil Wattage - Companion Oven | 1600/2750W |
| Top Burner BTU Rating - LP (000's BTU's) | (2) 21.0; (2) 15.0; (2) 10.0 |
| Convection Wattage | 2500W (Main Oven); 1500W (Companion Oven) |
| Griddle BTU Rating (000's/BTU) - Natural Gas | 18.0 |
| Griddle BTU Rating (000's/BTU) - LP Gas | 16.0 |
| Bake/Broil Wattage - Main Oven | 2700/4000W |
| Electrical Requirements | 240VAC; 50A |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (2) 23.0; (2) 18.0; (2) 15.0 |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 2-year entire appliance Limited 5-year gas surface burners Limited lifetime of oven racks |
| Labor Warranty | Limited 2-year entire appliance |
| ACCESSORIES | |
| Optional Backguard | 30'-36' adjustable stainless steel backsplash with warming shelf (UXADBS48PSS) |
| High Altitude Kit | Natural Gas: WB28X39726; LP: WB28X39727 |
| Optional Grill Accessory (Cast Iron) | UXGRILL |
| Multi Ring Burner Caps (Brass) | Included |
| 48' Monogram Knob Kit | ZXPR48KKTSS (SS, qty. 11) |
| LP Conversion Kit | Included |
| Factory-installed island backguard | yes |
| Multi Ringe Burner Caps (Black) | Included |
| Reversible Griddle/Grill Accessory | UXPRRGG |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 417.0 |
| Height to Cooking Surface (in.) | 35 1/4 to 36 3/4 |
| Overall Depth | 28.25 |
| Height w/Legs Extended - Maximum Height | 36.75 |
| Height With Legs Retracted | 35.25 |
| Overall Width | 47.875 |
| Overall Height | 35.25 |
| Approximate Shipping Weight | 462.0 |
| Cabinet Width | 48.0 |
| FEATURES | |
| Oven Cleaning Type | Self-Clean (Both Ovens) Steam Clean (Both Ovens) |
| Cooktop Burner Type | 2 Sealed, Dual Flame Stacked (Removable Brass Accents) 4 Sealed, Dual Flame Stacked |
| Cooktop Burner Grate Features | Continuous Grates Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates |
| Cooking System | Reverse Air Convection True European Convection |
| Oven Rack Features | 3 Self-Clean Oven Racks (Caterer Oven), 2 Self-Clean Oven Racks (Everyday Oven) 4 Rack Positions (Everyday Oven) 5 Rack Positions (Caterer Oven) Full-Extension |
| Oven Features | 4-Pass Bake Element (Everyday Oven) 4-Pass Broil Element (Everyday Oven) 8-Pass Bake Element 8-Pass Broil Element Hidden Bake |
| Fuel Type | Dual Fuel (with natural gas) |
| Cleaning Time | 3-5 Hours (Both Ovens) |
| WiFi Connect | Built-In |
| Cooking Technology | Convection |
| Cooktop Surface | Porcelain-Enamel |
| Indicator Lights | Burner 'On' |
| Connected Capabilities | Bluetooth Innit |
| Configuration | 6 Burners; Griddle |
| Lighting | LED Bullnose Task Lighting |
| Removable Grease Trough | (1) Beneath Griddle |
| Self-Clean Oven Door Lock | Automatic |
| Control Type | Digital Temperature LCD Display (Both Ovens) with Timer Display |
| Oven Cooking Modes | Convection Bake Multi-Rack (Both Ovens) Convection Broil Hi/Lo (Both Ovens) Convection Crisp Convection Roast (Both Ovens) No-Preheat Air Frying (Both Ovens) Precision Cooking Modes Proof (Both Ovens) Scan-to-Cook Warming (Both Ovens) |
| Convection Roasting Rack | Yes |
| Ignition System | Electronic w/Auto Reignition |
| Griddle | 18,000-BTU Stainless Steel and Aluminum Clad Thermostatically Controlled |
| Oven Control Features | 12-Hour Shut-Off Capability Audible Preheat Signal Auto Recipe Conversion Automatic Oven Meat Probe (Both Ovens) Certified Sabbath Mode Chef Connect Cook Time C° or F° Programmable Delay Clean Option (Both Ovens) Probe Mode Proof Mode (Both Ovens) Remote Enabled Self & Steam Clean Modes Timer WiFi Connect |
| Stainless Steel Grill / Griddle Covers | 1 |
| Interior Oven Light | 3 Halogen Lamps (Everyday Oven) 6 Halogen Lamps (Caterer Oven) |
| Cooktop Type | Continuous Grates |
| Broiler Pan and Grid | 2 |
| Extra Low Simmer | All Burners - Adjustable |
