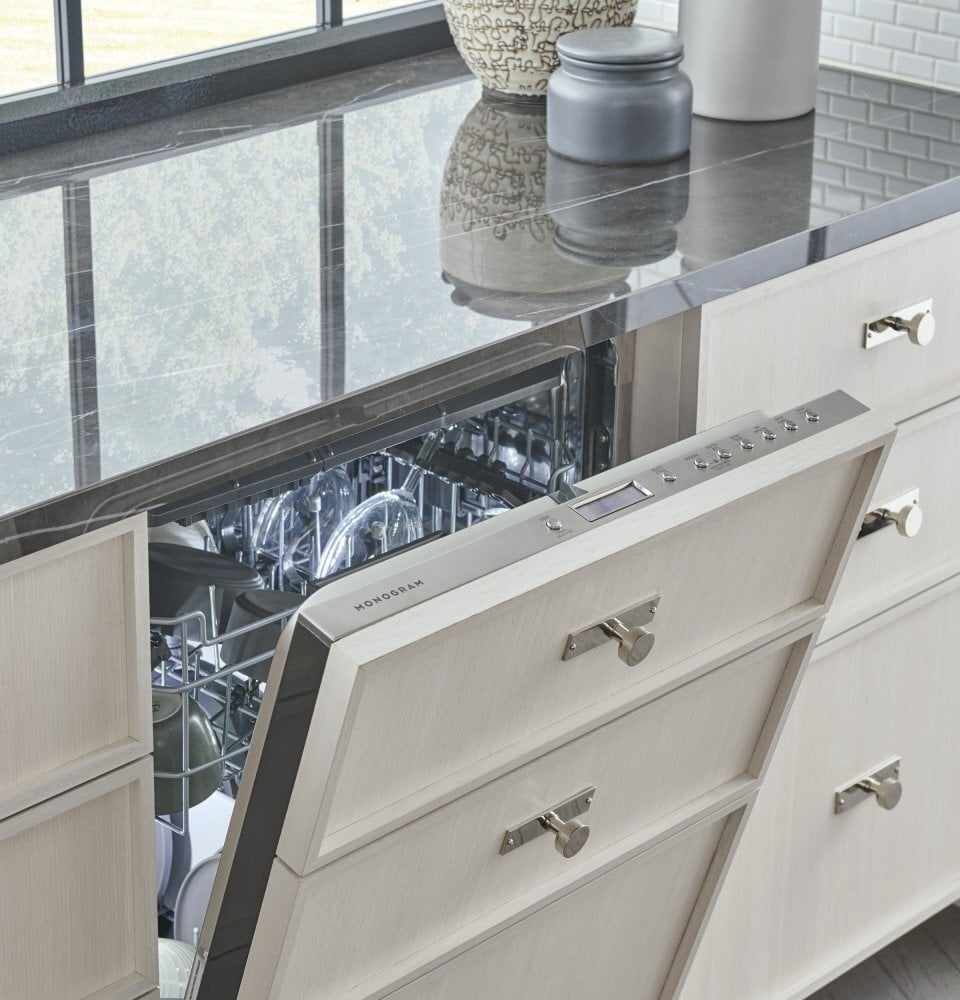

Monogram ZDT985SINII Monogram Smart Fully Integrated Dishwasher
Rebates &
Promotions

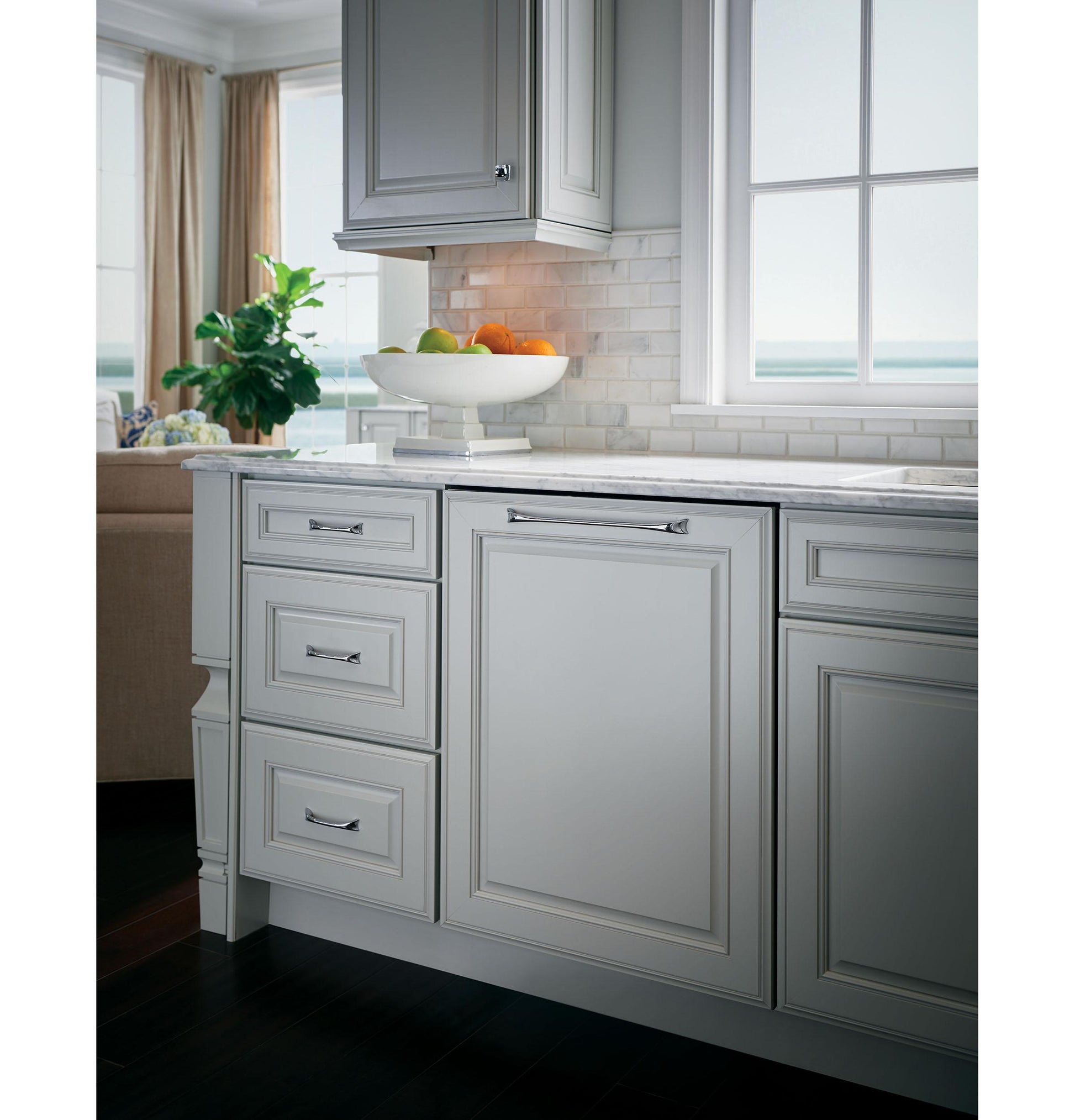

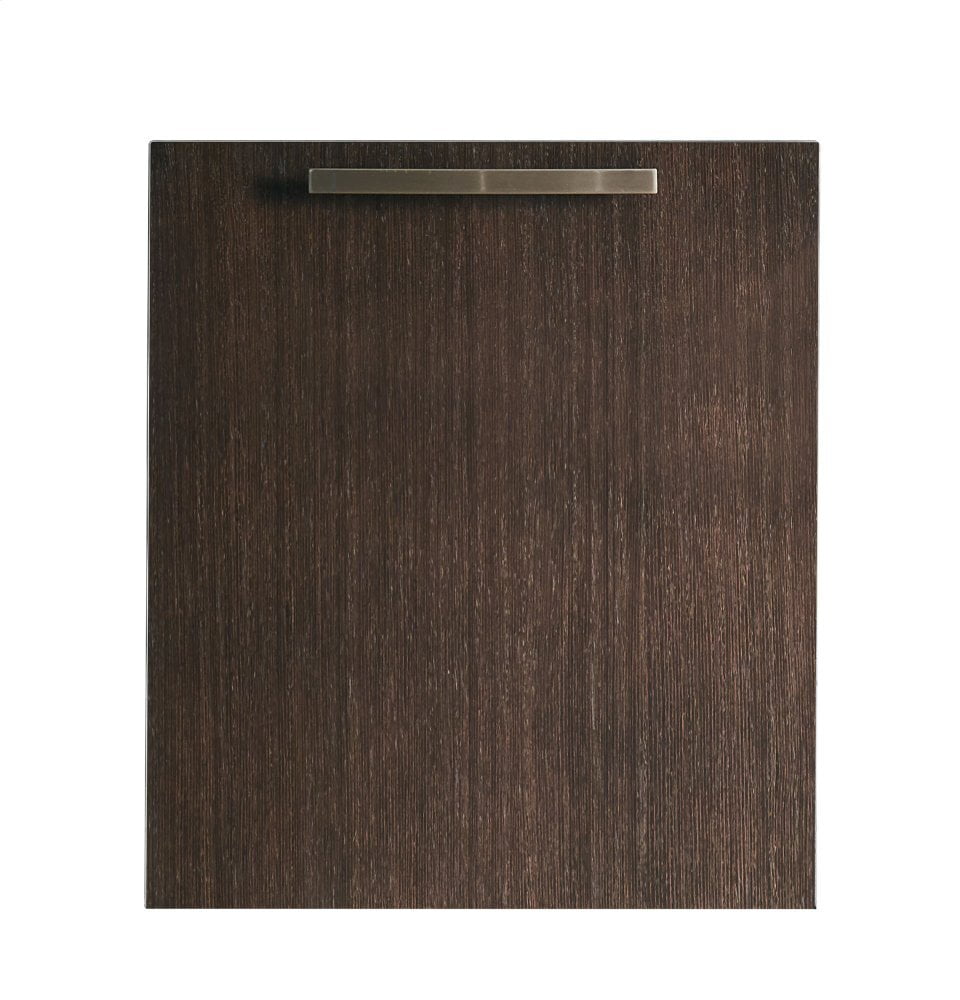

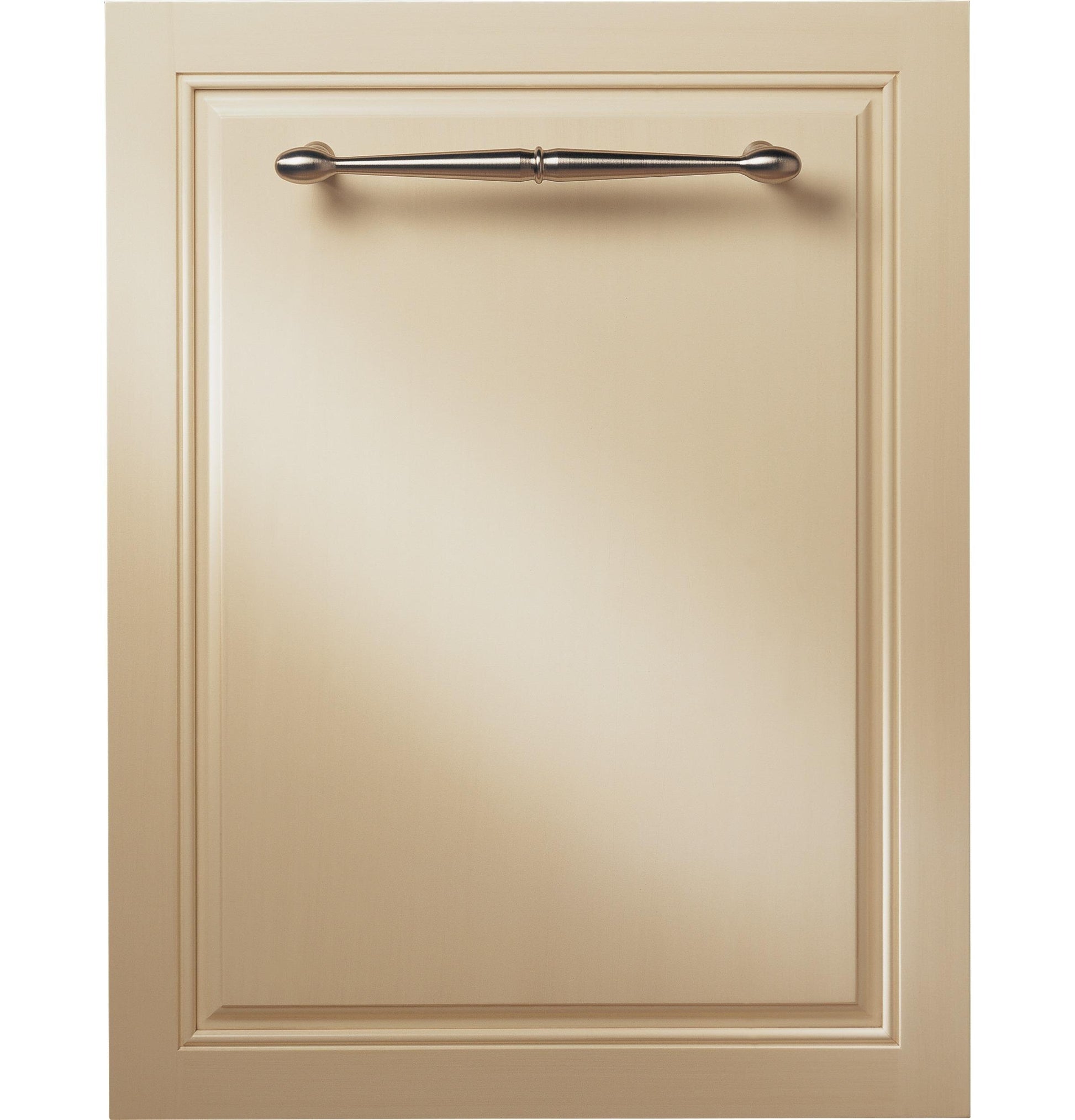

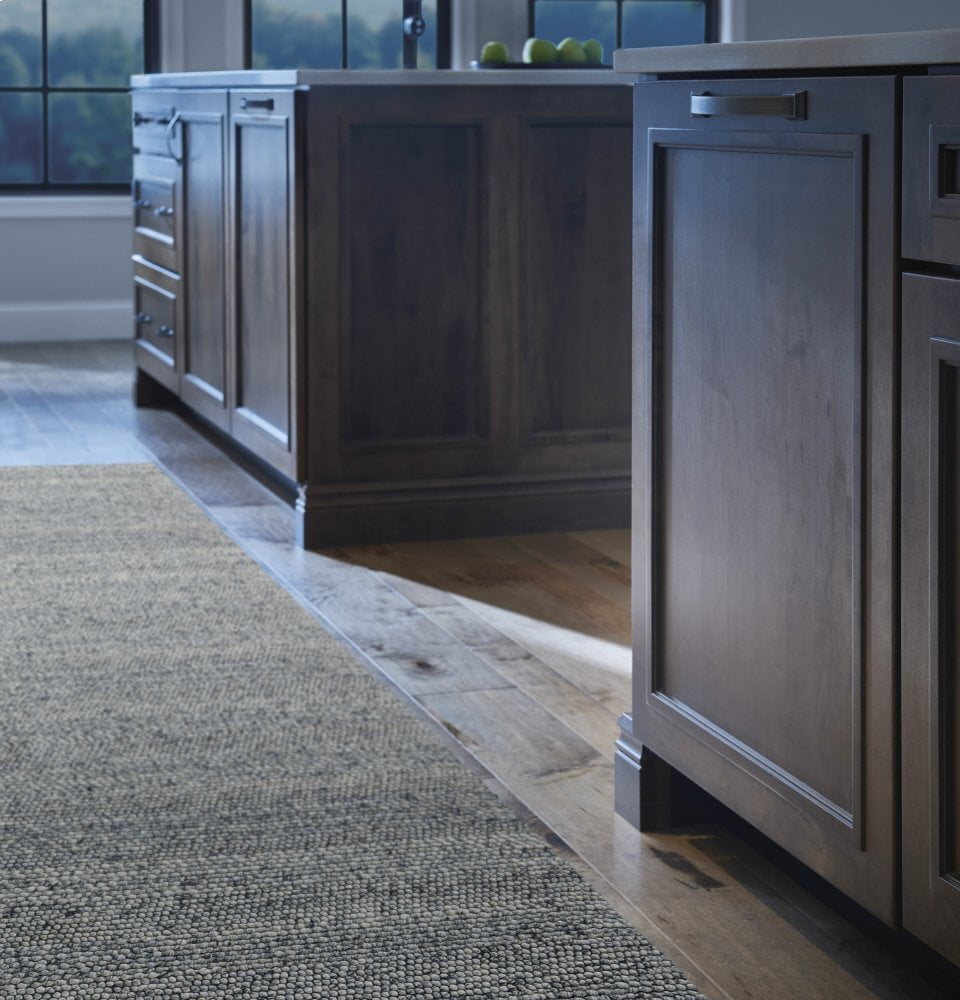

Custom panel model
Create your own kitchen masterpiece. Add a cabinet-compatible panel and custom handle for a luxurious look and freel that reflects your style

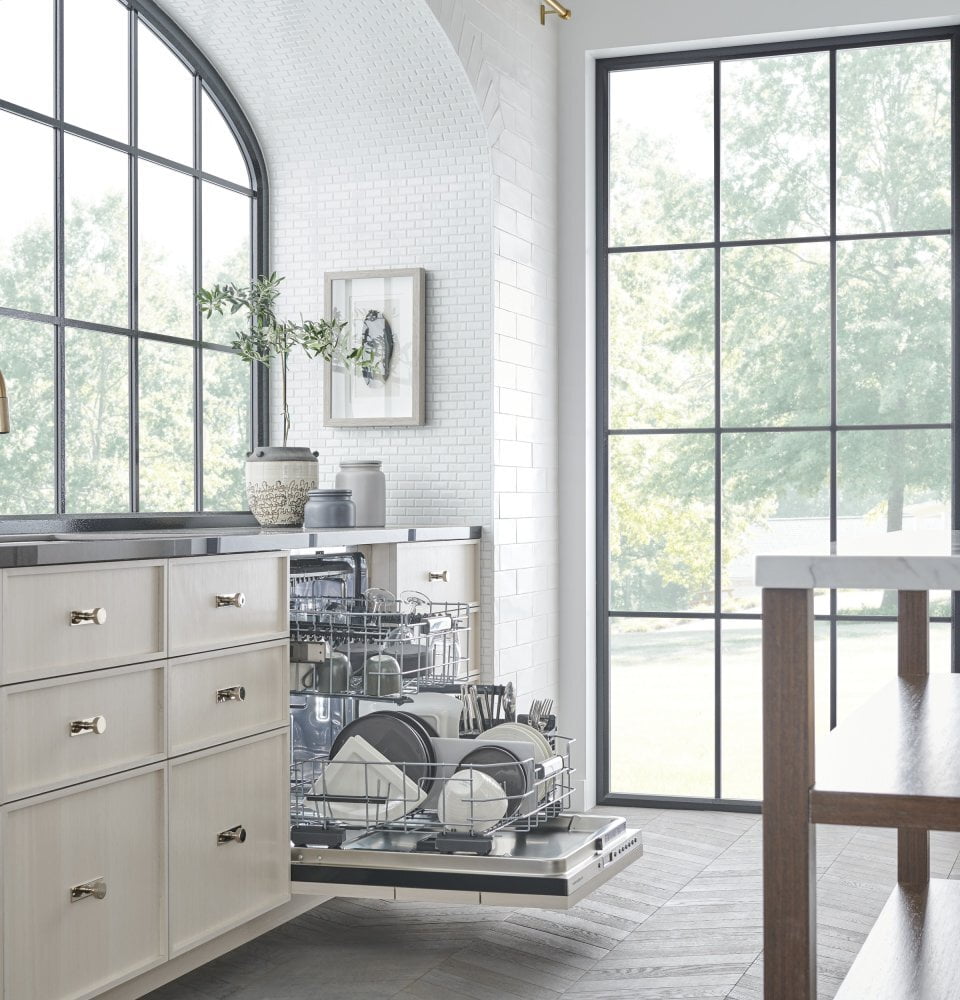

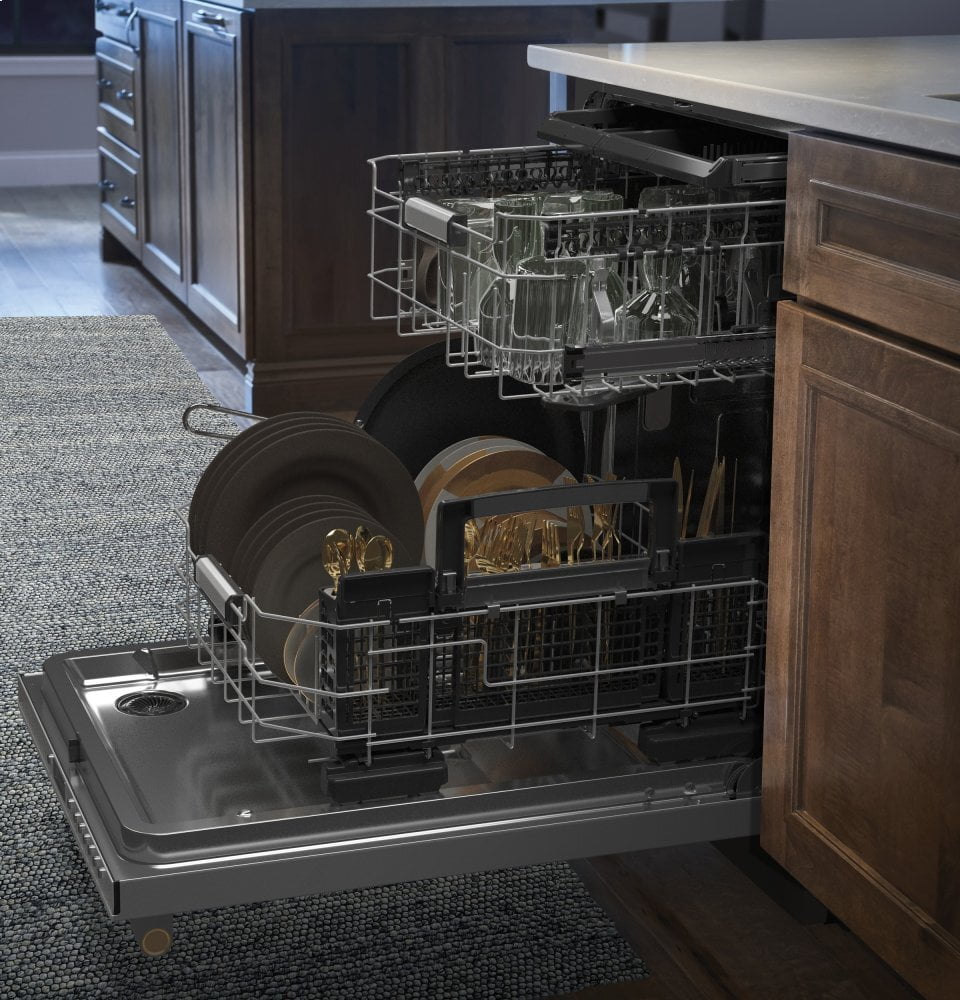

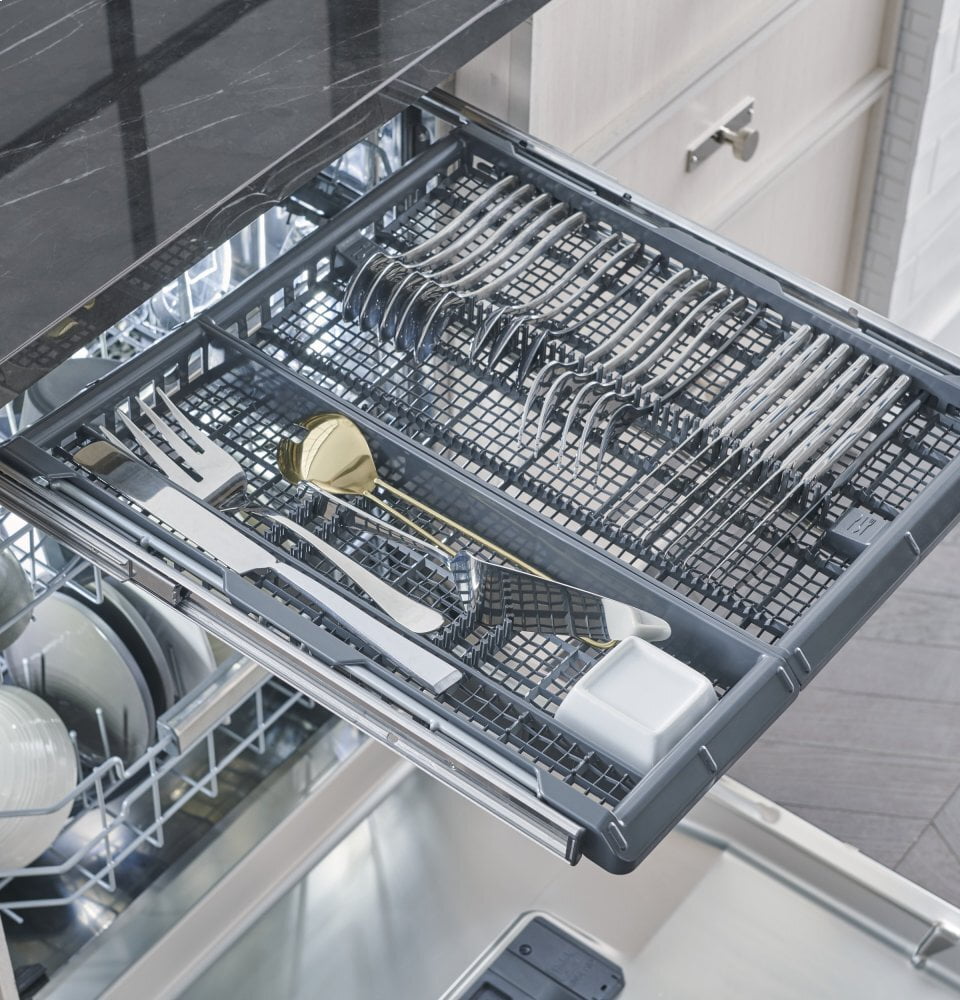

Full-extension, adjustable third rack with premium slides
Convenient and adjustable, this expansive third rack easily accommodates an entire flatware collection, plus carving knives, soup ladles and other cooking/serving tools for the ultimate clean
Steam + Sanitization
Eliminate the need to pre-wash dishes at the end of every meal, thanks to a Steam + Sani feature that easily loosens lingering traces of food with an added bonus of complete sanitization
39 dBA quiet operation
Is made possible by advancing sound-absorbing materials and a smooth-running motor
LED lighting
Illuminates the entire interior, leaving no question as to whether or not dishes have been cleaned
- Custom panel model
- Advanced wash system
- Full-extension, adjustable third rack with premium slides
- Steam + Sanitization
- 39 dBA quiet operation
- Hard food disposer
- Max Dry system
- Bottle jets
- LED lighting
- Deep clean silverware jets
- Cabinet depth installation
FILTER | |
App Filter - Cabinet Width | Dish Traditional 24 in. |
App Filter - WiFi Connect | Built-In |
APPEARANCE | |
Handle | Custom Handle Required |
Installation | True Flush |
Panel Capability | Integrated |
Door Appearance | Fully integrated door for custom panels |
Door Style | Long Door with Top Controls |
Design Style | Custom Panel |
Door Panel Color | 3/4' Custom Panel Required |
Color Appearance | Custom Panel and Handle Required |
WARRANTY | |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 2-year entire appliance Limited 5-year racks/electronic control board Limited lifetime of product tub/door liner |
Labor Warranty | Limited 2-year entire appliance Limited lifetime of product tub/door liner |
POWER / RATINGS | |
Calrod Heater Watts | 1200 |
Volts/Hertz/Amps | 120 V; 60 Hz; 10.2 A |
ECONOMICAL / QUIET | |
Quiet Features | 39 dBA based on results from base model ZDT985SSNSS Quiet Water Valve Sealed Toe Kick Tub Collar Trim |
Quiet Package | 39 dBA |
Outer Wrap | Bitumen Full-wrap Blanket |
Motor Type | Variable Speed |
Door Insulation | Insulation Mastic |
WEIGHTS & DIMENSIONS | |
Net Weight | 126.0 |
Overall Depth | 24.0 |
Height w/Legs Extended - Maximum Height | 34.625 |
Overall Width | 23.75 |
Overall Height | 34.0 |
Approximate Shipping Weight | 139.0 |
Cabinet Width | 24.0 |
Height w/ Legs Retracted - Minimum Height | 33.375 |
FEATURES | |
Wash System Features | 90+ Spray Jet Wash System Automatic Temperature Control Bottle Wash Jets Dedicated Silverware Jets Deep Clean Silverware Jets Hard Food Disposer with removable filter Hidden Heater Middle Wash Arm Reversing Blade Lower Wash Arm Variable Speed Dual Pumps and Motors |
Style | Built-In Top Control |
Upper Rack | 1 Rack handle 1/2 fixed tines, 1/2 fold down tines 2 Stem Safe Shelves Ball-Tip Tines Premium Height Adjustable |
Rack Features | 2 Fold-Down Tines - Lower 2 Utility Shelves with 2 Stem Safe - Upper 3 Piece Silverware Basket with Soft Touch Handle Adjustable Upper Rack Ball-Tipped Tines |
Dishwasher Control Features | Audible End-of-Cycle Signal Hi-Resolution Gray Scale LCD Control Display Last Cycle Memory |
WiFi Connect | Built-In |
Showroom Power Mode | Yes |
Cutlery Tray | Full 3rd rack (above upper rack) on full extension slides |
Connected Capabilities | Amazon Alexa Amazon Dash Replenishment IFTTT Sonos The Google Assistant |
Sabbath/Door Wakeup Mode | Yes |
Dishwasher Drying Features | 2 Fans/Extra Heater Fan Dry On/Off plus Max Dry |
Interior Lighting | LED |
Leveling System | Front Adjustable Leveling Legs |
Control Type | Electronic Tactile Buttons Top Controls |
Number of Place Settings | Up to 16 |
Tub Type | Tall Tub |
Rack Color | Silver |
Exterior Style | Custom Panel |
Number of Cycles | 7 |
Wash System | 900 Series |
Racking System | Full 3rd rack |
Dishwasher Cycles | 30 Min Wash Auto Wash Delicate Eco Wash Intense Normal Rinse |
Number of Options | 11 |
Dishwasher Options | Bottle Wash Child Lock Delay Start 1-12 Hr. Heated Dry Pre Soak Sani (Certified to NSF Standard 184) Start/Reset Wash TempBoost Wash Zone Lower Only Wash Zone Upper Only |
Tub and Door Liner | Stainless Steel |
Latch | Pull with Handle |
Wash Arms | 3 Pressurized Wash Arms 90+ Spray Jet Wash System Bottle Wash Jets Jets - Variable Pressure Lower - Reversing Blade Middle - Blade Silverware Wash Jets |
Lower Rack | 1 Rack handle Ball-Tip Tines Multi-Position Fold Down Tines |
Floor Protection | Floor Protect with Alert |
Water Filtration System | 100% Filtration with Hard Food Disposer and Removable Filter |
Sensor | Clean Sensor |
Dispenser | Electronic Low Rinse Aid Sensor Rinse Aid with Indicator and Adjustment |
Custom Panel Ready | Integrated Panels |
