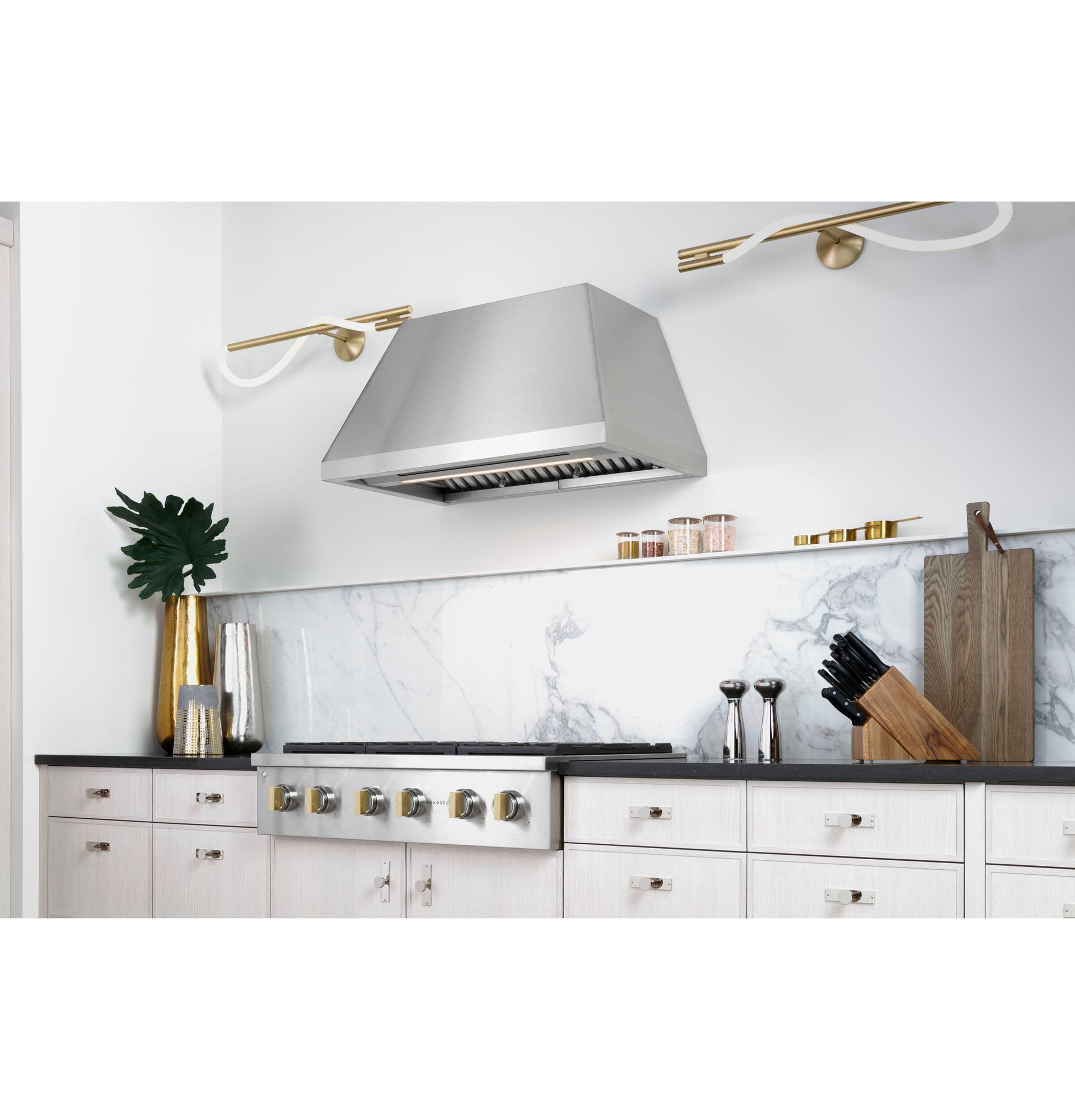

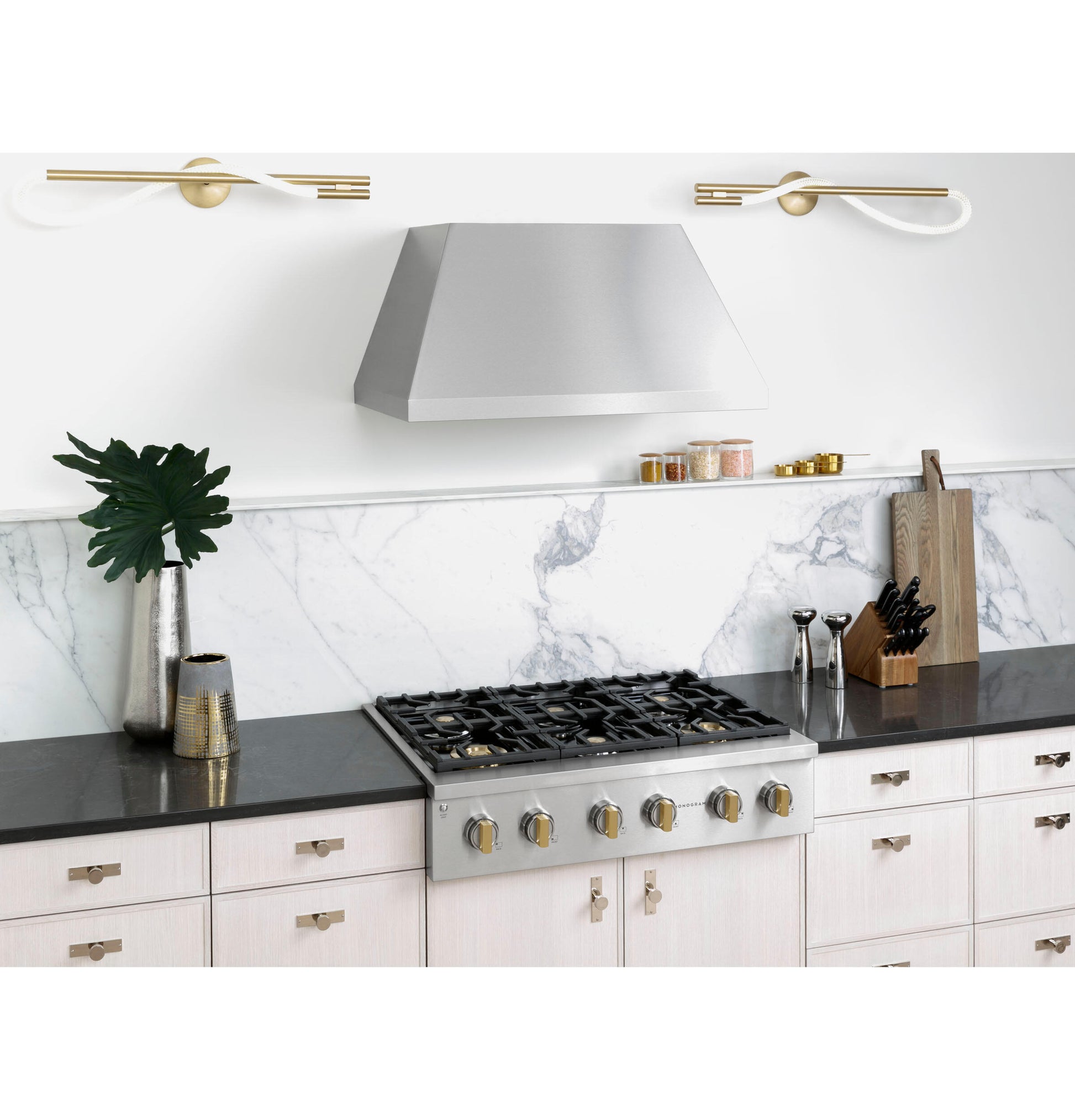

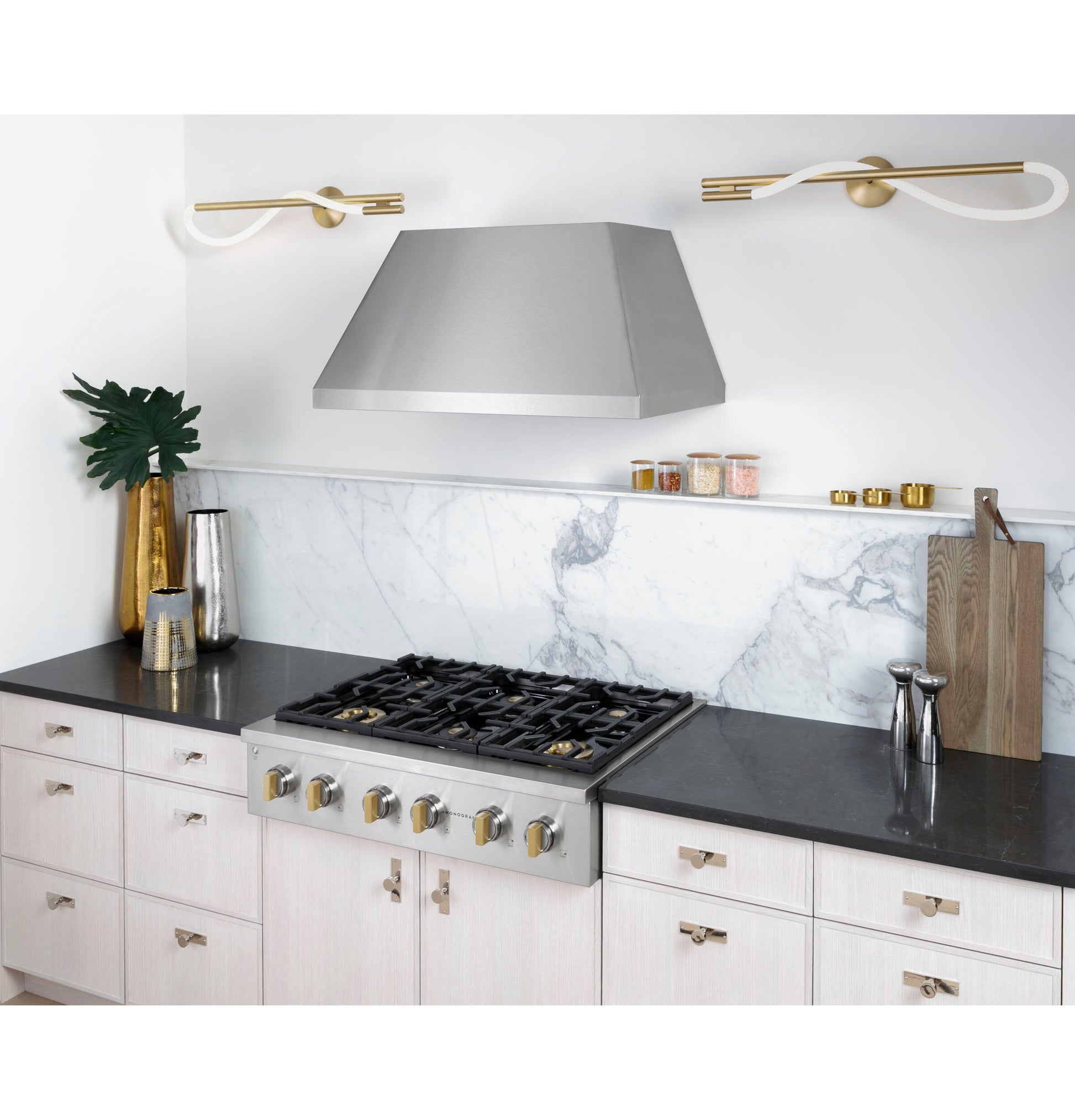

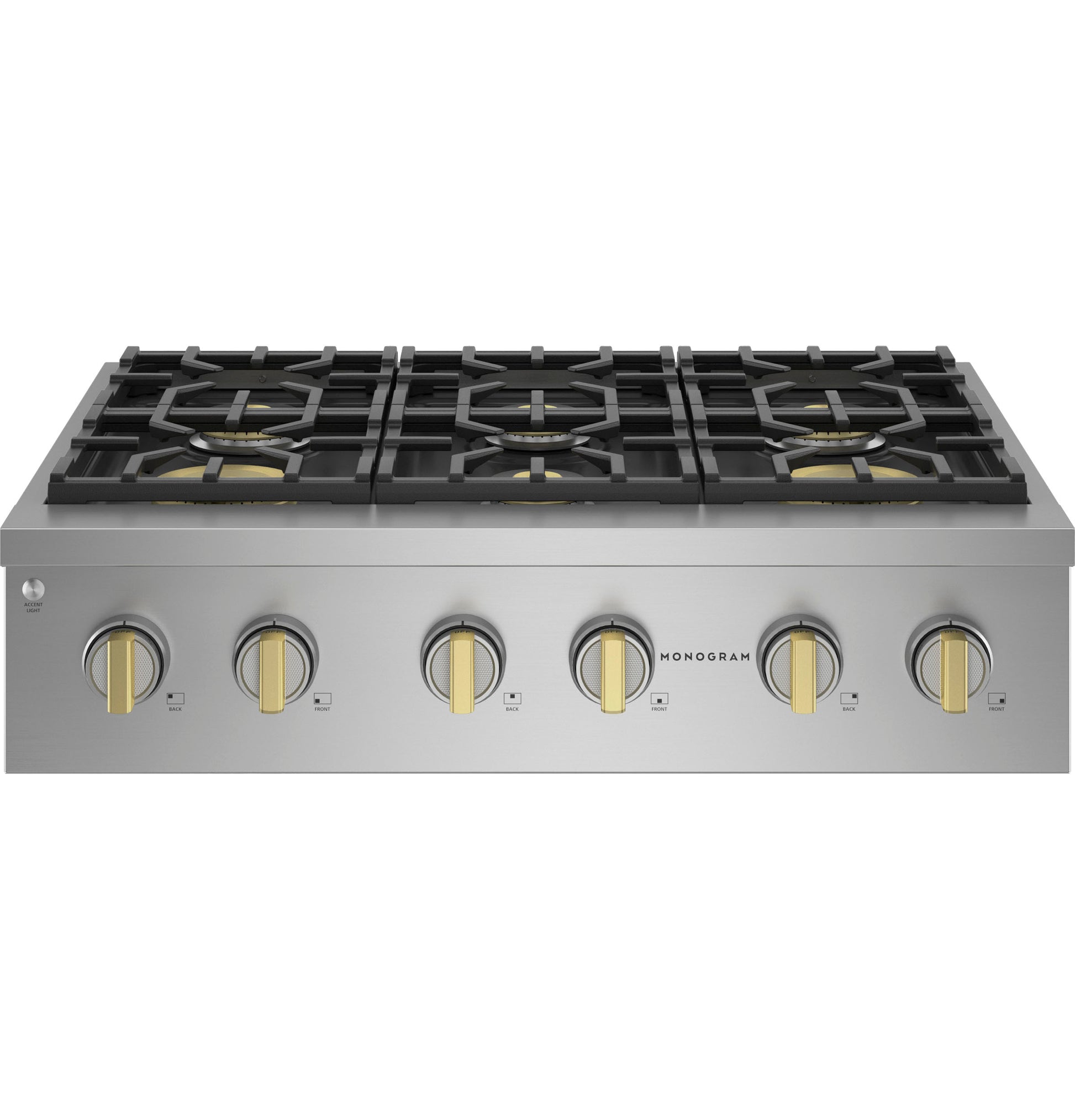

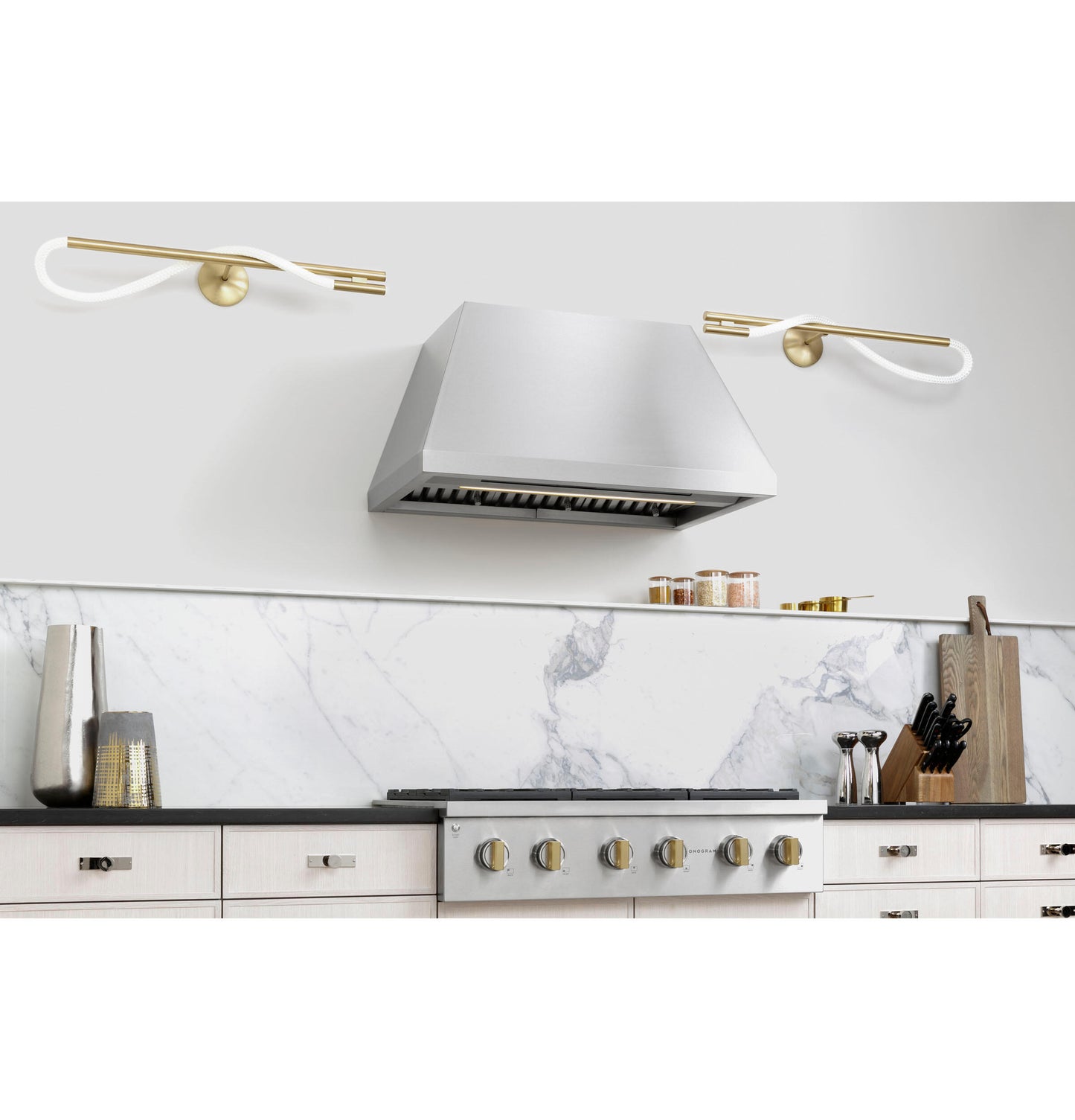

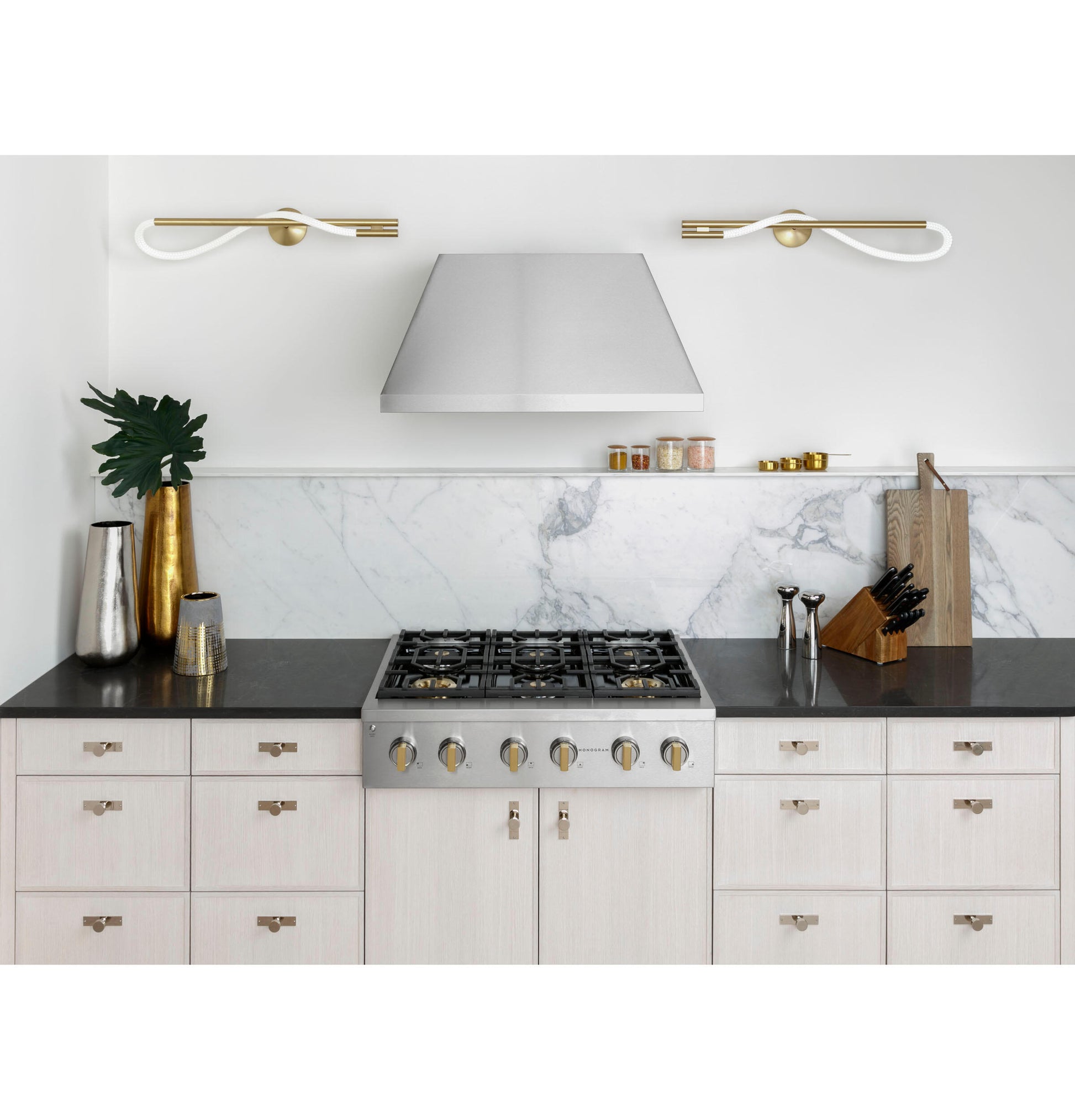

Monogram ZGU366NTSS Monogram 36" Professional Gas Rangetop With 6 Burners (Natural Gas)
Rebates &
Promotions
Versatile Gas Burner Configuration
Delivering exceptional cooking flexibility, the two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame

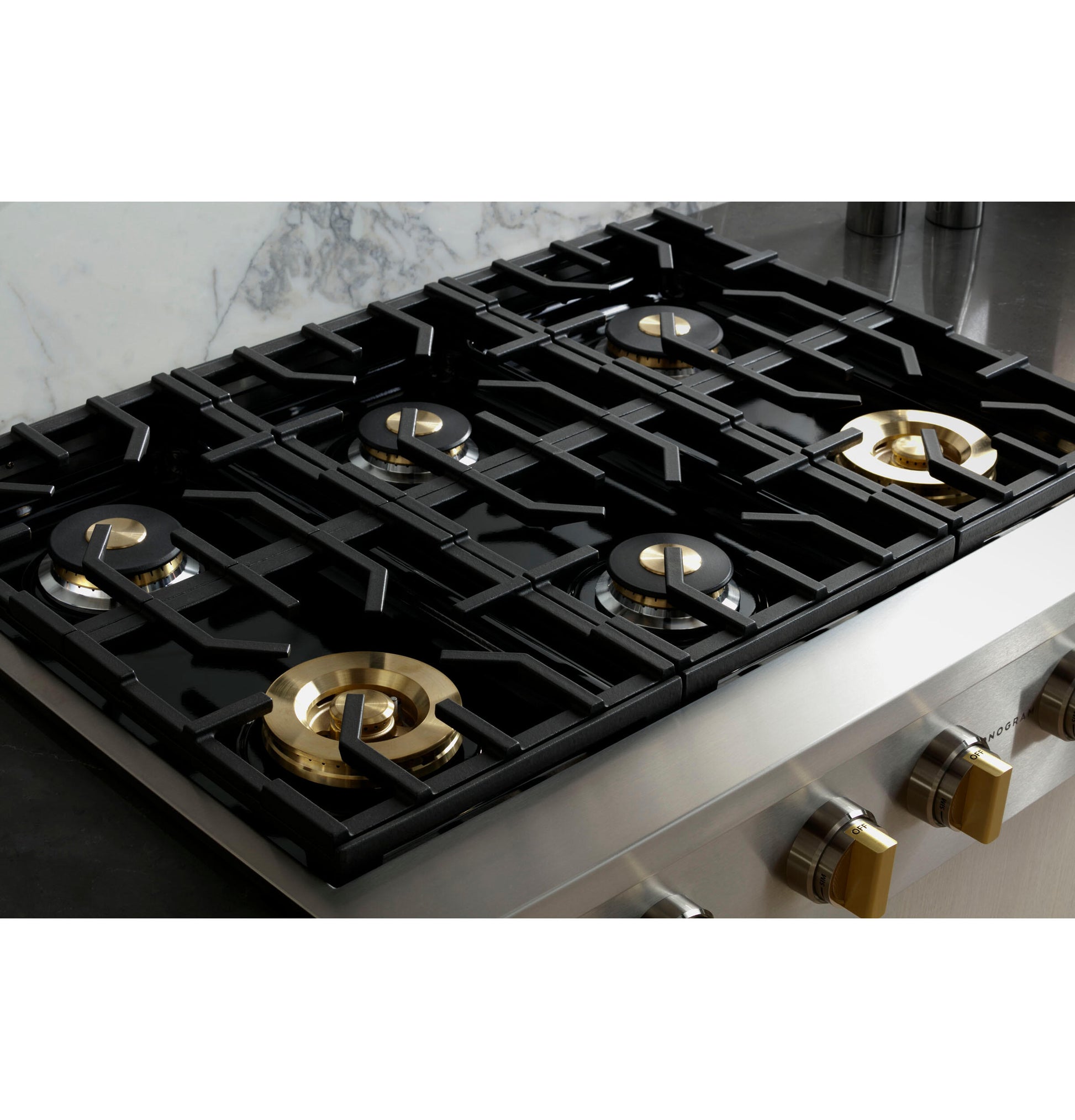

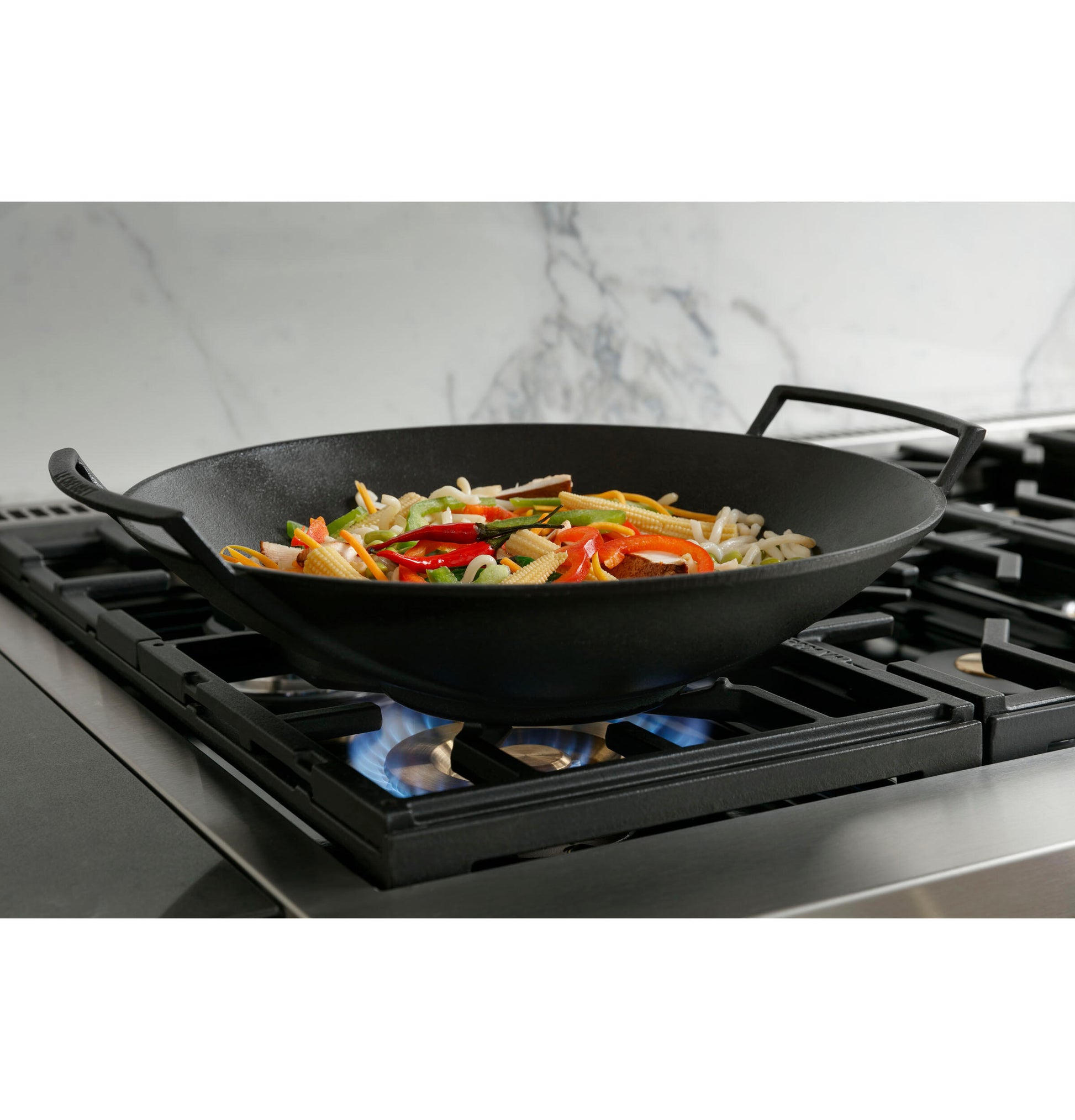

3-Piece Grates with Reversible Wok Feature
Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks

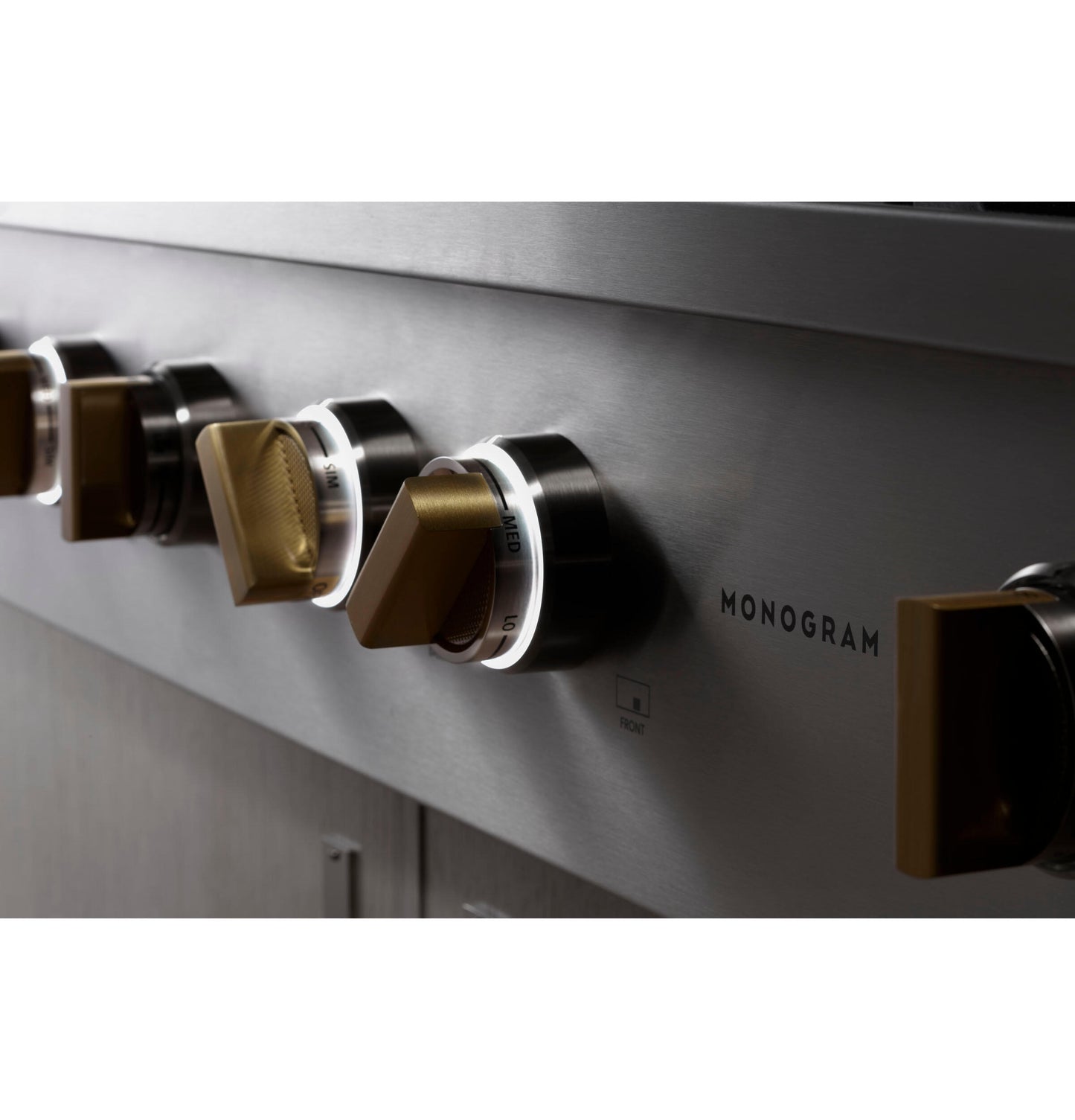

Ring-Lit Knobs
Delivering a modern approach to accent lighting, the rings illuminate to indicate when a burner is in use
Solid Brass Blades on Precision Machined Knobs
With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents
Seamless Stainless Top Frame
Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at
The Monogram Statement Collection rangetop is meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at. With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents. Delivering a modern approach to customization, the SmartHQ™ app (connection module required) allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven. The rangetop is designed to adapt to different cooking styles; its grates are reversible to provide you not just a flat surface, but also a uniquely contoured surface on the other side to accommodate round-bottom woks.

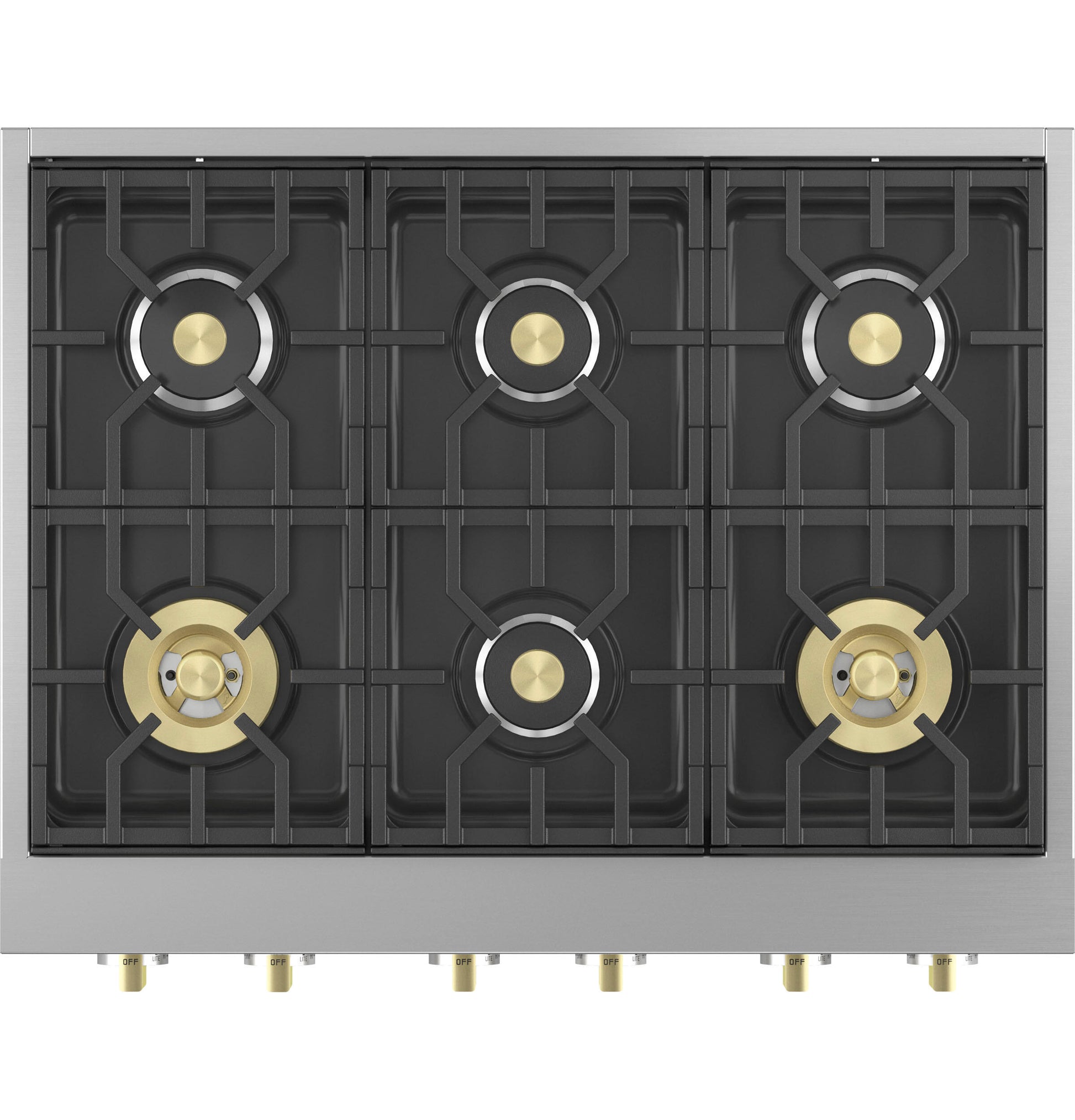

- 6 Sealed Burners: Two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame.
- Continuous Grates: Provide a flat, sturdy surface allowing easy movement of pans between burners.
- Custom Color LED Accent Lighting: LED accent lighting can be customized to any color to set your personalized mood to your cooking space.
- 3-Piece Grates with Reversible Wok Feature: Designed to adapt to different cooking styles, the reversible grates are flat on one side and uniquely contoured on the other to perfectly fit round-bottom woks.
- WiFi Compatible: Turn your cooktop into a smart appliance with a connection module (sold separately).
- LP conversion kit included
- Solid Brass Blades on Precision Machine Knobs
- Seamless Stainless Top Frame
- ADA Compliant
APPEARANCE | |
Control Knobs | Diecast Metallic (Included) Stainless Steel with Brass Accents |
Installation | Side-by-Side |
Design Style | Statement Collection |
Color Appearance | Stainless Steel |
POWER / RATINGS | |
Top Burner BTU Rating - LP (000's BTU's) | (2) 21.0; (2) 15.0; (2) 10.0 |
Top Burner BTU Rating - Nat. Gas (000's BTU's) | (2) 23.0; (2) 18.0; (2) 15.0 |
Volts/Hertz/Amps | 120v; 60Hz; 15A |
WARRANTY | |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 2-year entire appliance Limited 5-year gas surface burners |
Labor Warranty | Limited 2-year entire appliance |
ACCESSORIES | |
30/36' Monogram Knob Kit | ZXPR36KKTSS (SS, qty. 9) |
Optional Backguard | 12' stainless steel backsplash (UX12B36PSS) 30'-36' adjustable stainless steel backsplash with warming shelf (UXADBS48PSS) |
High Altitude Kit | WB28K10553 |
Optional Grill Accessory (Cast Iron) | UXPRRGG |
Conversion Kit | Included - Nat. Gas to LP |
Factory-installed island backguard | yes |
WEIGHTS & DIMENSIONS | |
Net Weight | 135.0 |
Overall Depth | 27.5 |
Overall Width | 35.875 |
Overall Height | 8.5 |
Approximate Shipping Weight | 163.0 |
Cabinet Width | 36.0 |
FEATURES | |
Burner Indicator Light | Yes |
Cooktop Burner Type | 2 Sealed, Dual Ring 4 Sealed, Dual Flame Stacked (Removable Brass Accents) |
Cooktop Burner Grate Features | Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates |
Automatic Re-Ignition | Yes |
Fuel Type | Natural Gas (factory set) |
Configuration | 6 Burners |
Lighting | LED Bullnose Task Lighting |
Ignition System | Electronic |
Control Location | Upfront |
Extra Low Simmer | All Burners - Adjustable |
