Monogram ZIP364NBVII Monogram 36" Integrated French-Door Refrigerator - Coming Soon
Rebates &
Promotions
Monogram One For You One For Free Rebate - Receive a generous rebate or up to 3 Free Monogram Appliances with purchase of qualifying Monogram Range or Appliance Package. Download Valid: 07/01/2024-12/31/2024

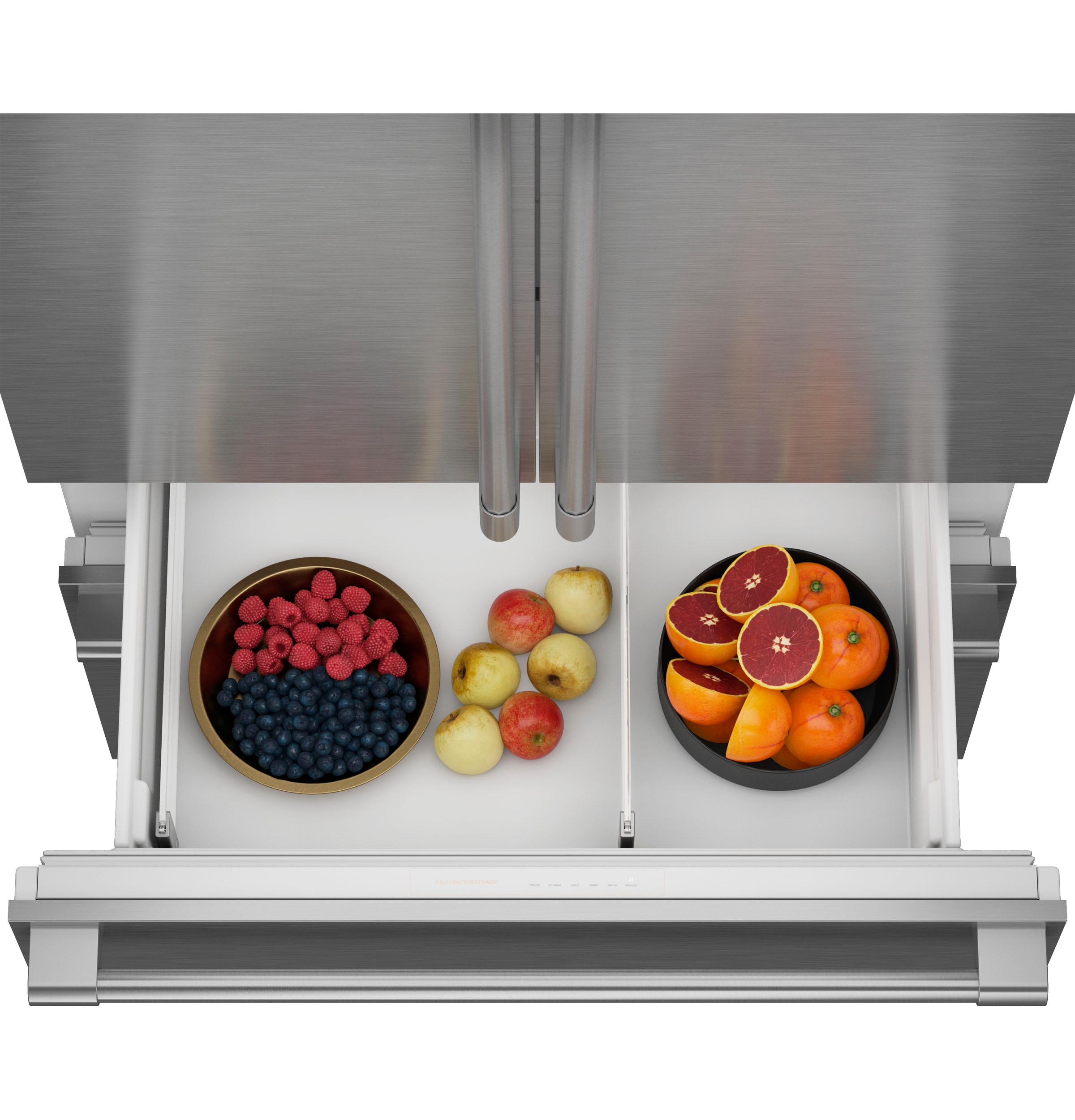

6-Temperature Setting Convertible Drawer
The convertible middle drawer with 6 temperature settings allows you to choose temperatures best suited for storing cold drinks, meat, snacks, ice cream, produce or frozen items

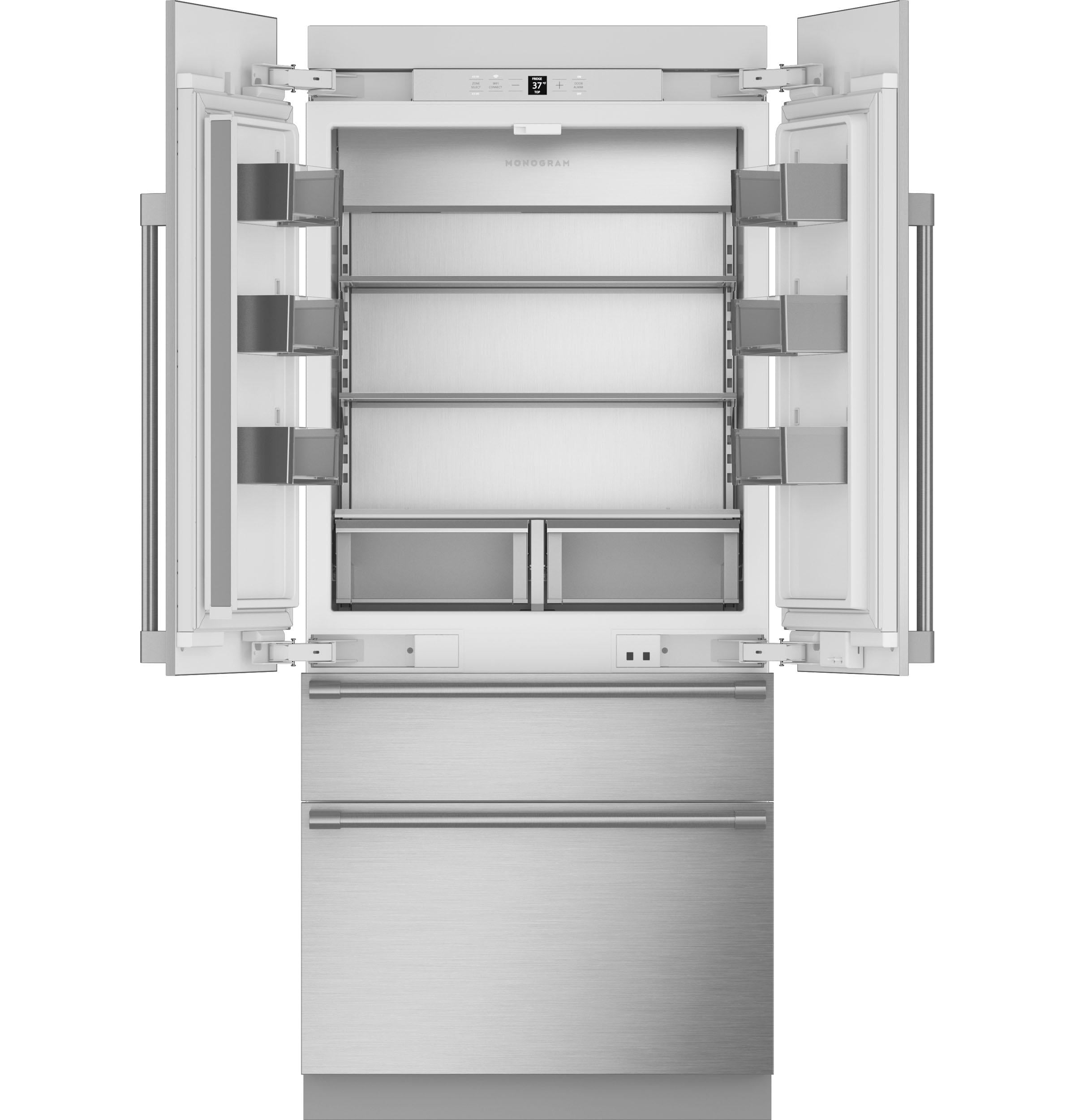

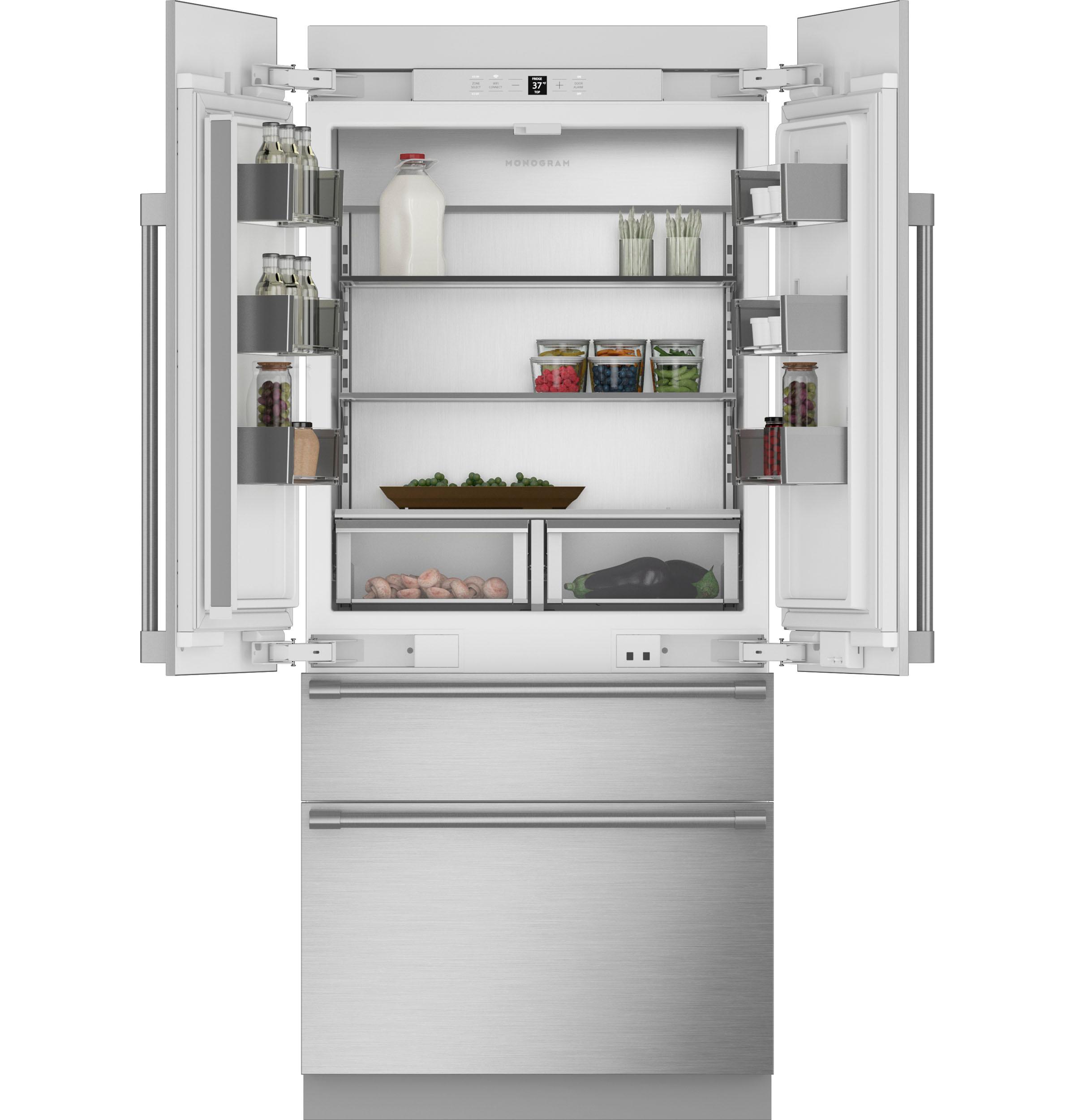

Refrigerator with Ramp-Up LED Interior Shelves
Exceptional illumination throughout the refrigerator compartment accentuates the sophisticated interior and allows easy viewing of contents
36 Inch Panel Ready Built-In 4-Door French Door Smart Refrigerator with 20.1 cu. ft. Total Capacity

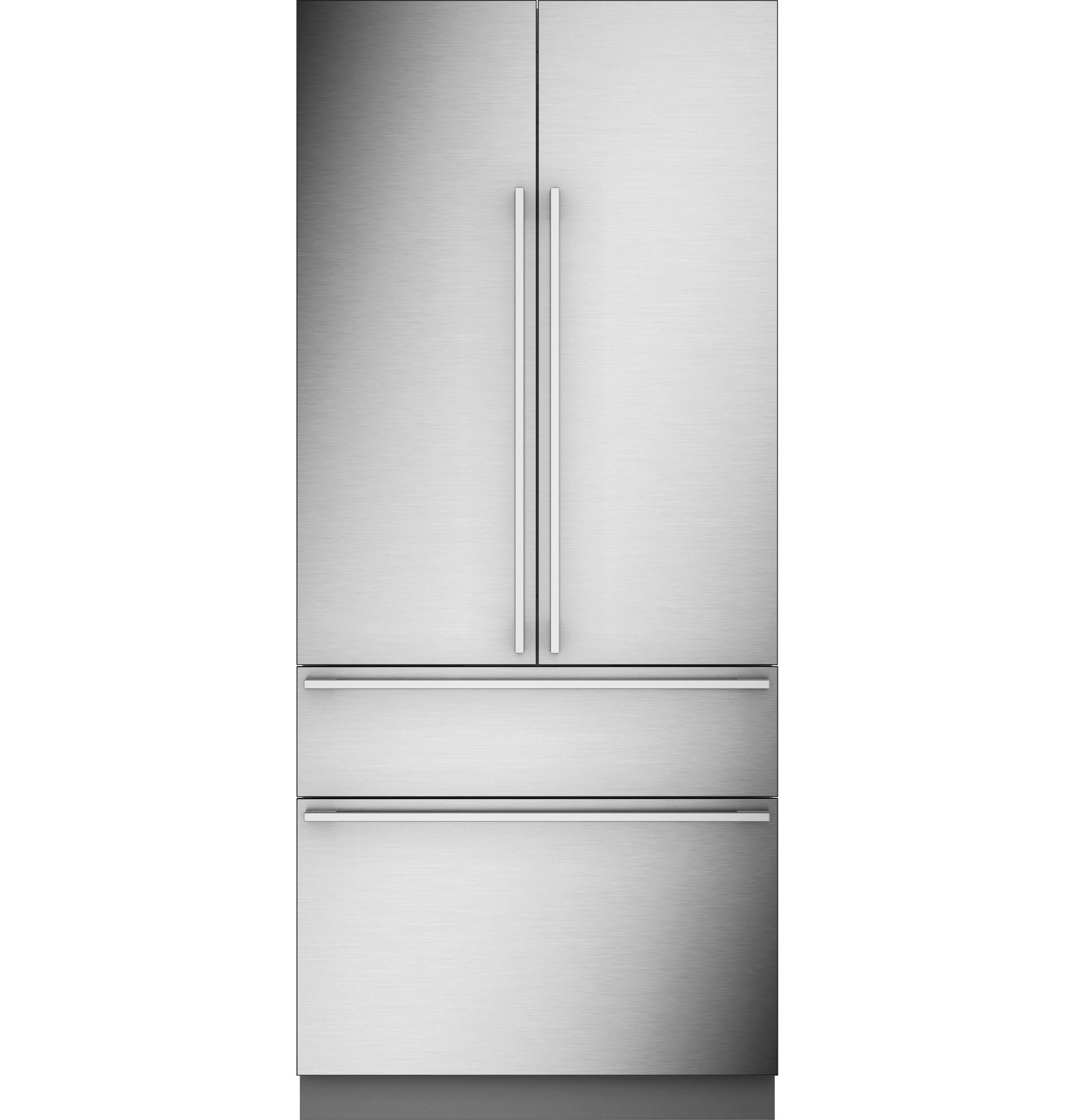

Monogram 36" Integrated French-Door Refrigerator
This 36 Inch Premium French Door Refrigerator offers an integrated design that allows the refrigerator to be installed flush with adjacent cabinetry and allows personalization with cabinet-compatible panels and custom handles.

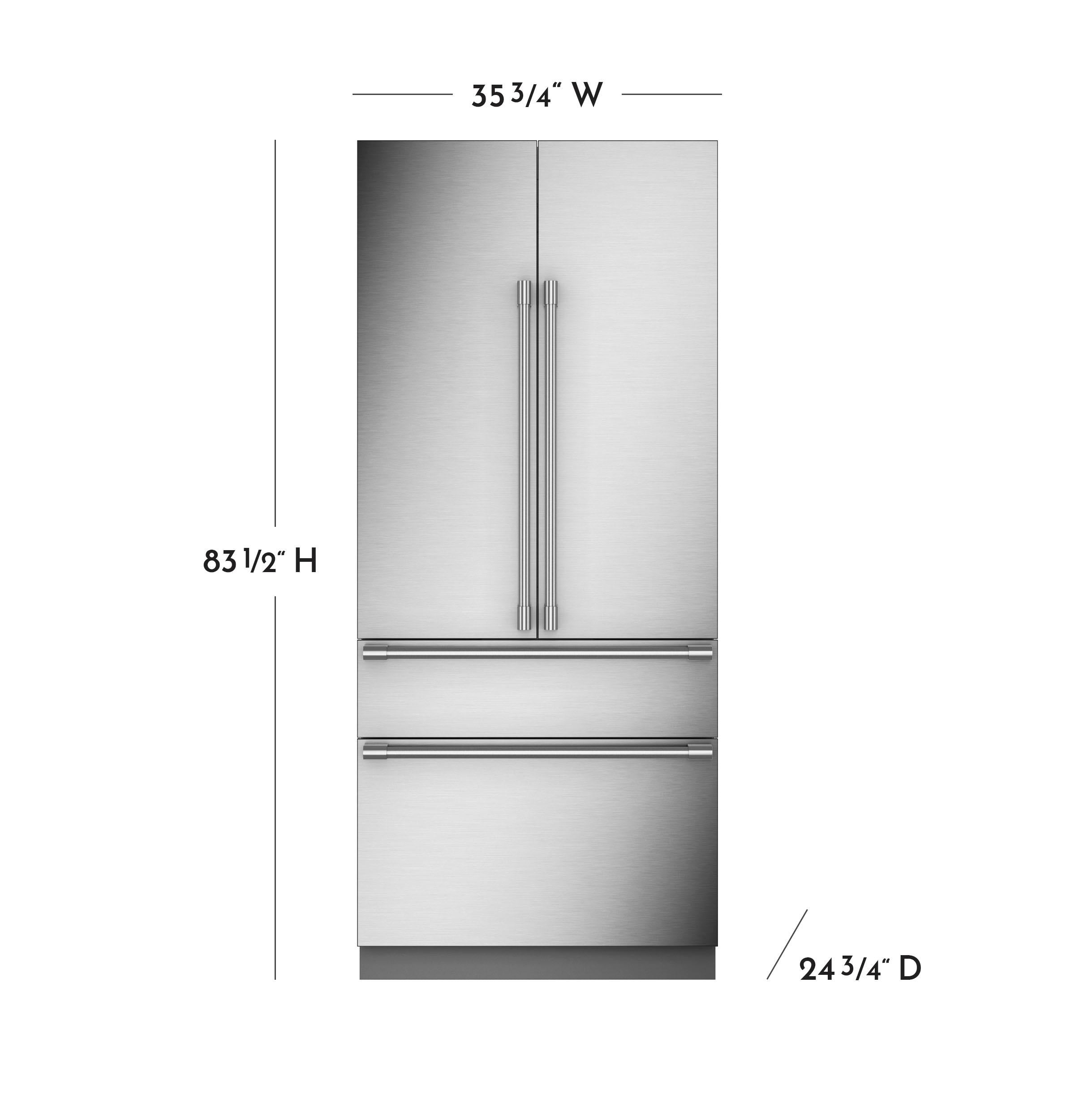

Dimensions & Capacity Width: 35.75"
Height: 83.5"
Depth: 24.75"
Capacity: 20.1 cu. ft.
This 36 Inch Premium French Door Refrigerator offers an integrated design that allows the refrigerator to be installed flush with adjacent cabinetry and allows personalization with cabinet-compatible panels and custom handles.
Dimensions & Capacity Width: 35.75"
Height: 83.5"
Depth: 24.75"
Capacity: 20.1 cu. ft.
- Sabbath Mode
- WiFi
- Remote Control
- Remote Monitoring
- Remote Diagnostics
- Adjustable Door Bins
- Spill Safe Shelves
CAPACITY | |
Convertible Drawer Capacity | 2.9 |
Fresh Food Capacity | 13.7 |
Total Capacity (cubic feet) | 20.1 |
Freezer Capacity | 3.5 |
APPEARANCE | |
Panel Capability | SS Door Panel Kit ZK4SN360VSS |
Adjustable Rollers | 2 |
Door Style | Solid Door |

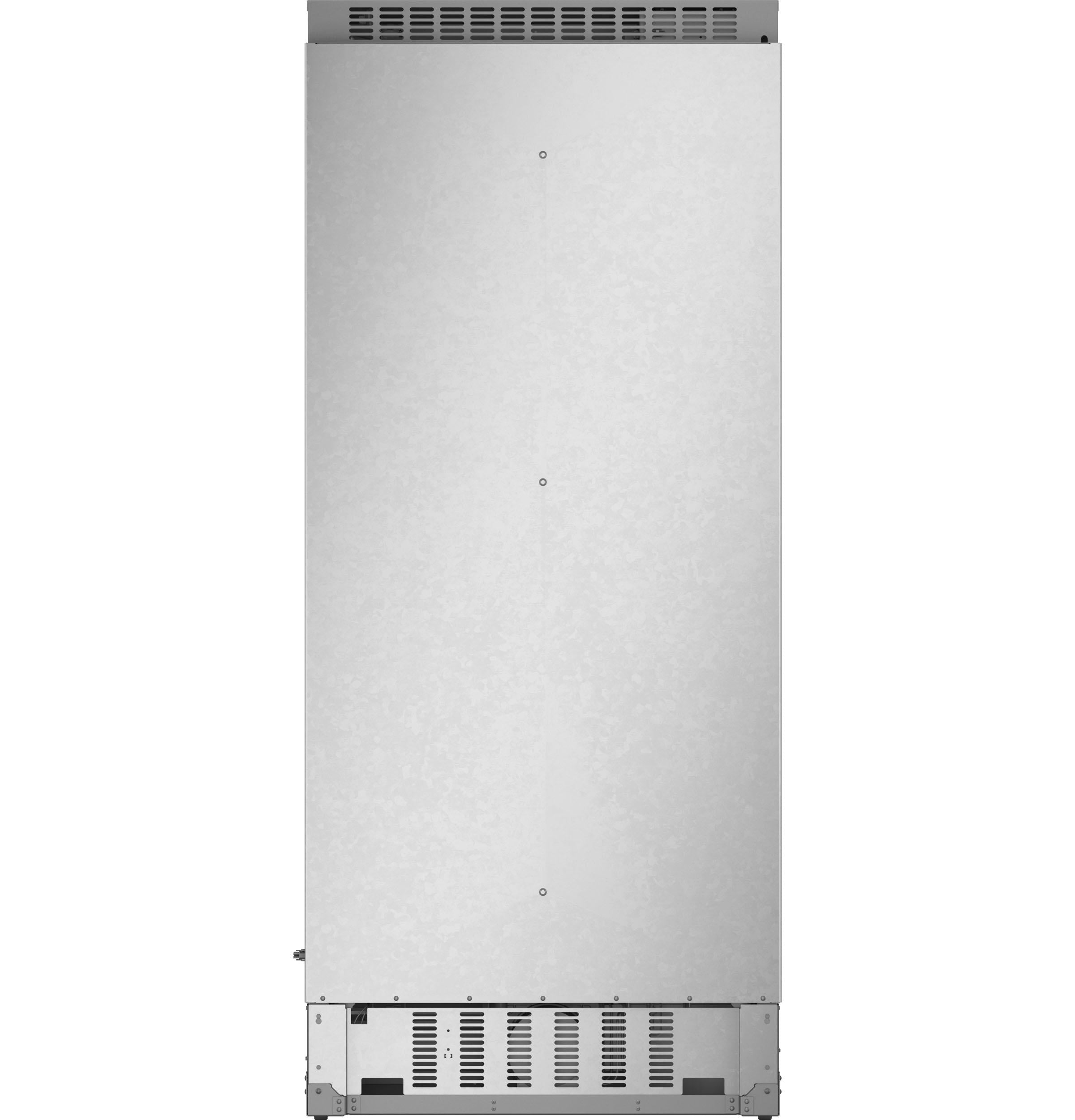

Coil-Free Back | Yes |
Door Swing | Hinges on Left & Right |
Handle Purchased Separately | Requires Statement Handle Kit (ZKSB4H4PVSS) or Minimalist Handle Kit (ZKSB4H4CVSS) |
Color Appearance | Custom Panel and Handle Required |
Door Stops | 90 Degree and 115 Degree |
Design Style | Custom Panel & Handles |
Installation | Fully Integrated Installation |
Hidden Door Hinge(s) | Yes |
WARRANTY | |
Labor Warranty | Limited 2-year entire appliance Limited 5-year sealed refrigerating system |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 12-year sealed refrigerating system parts Limited 2-year entire appliance |
POWER / RATINGS | |
Volts/Hertz/Amps | 115V; 60Hz; 20A |
ECONOMICAL / QUIET | |
Quiet Package | 36 dBA |
ACCESSORIES | |
Side by Side Install Toe-Kick Kit | 54' ZKK54P 60' ZKK60P 66' ZKK66R 72' ZKK72R |
Handle Stud Kit | ZKPN |
Trim Kit | 36' Trim Kit for 24' deep cabinets ZKR36V 72' Trim Kit for 24' deep cabinets ZKR72V |
SxS Install Heater/Unification Kit | ZKUN |
WEIGHTS & DIMENSIONS | |
Overall Width | 35.75 |
Approximate Shipping Weight | 621 |
Overall Depth | 24.75 |
Net Weight | 586 |
Overall Height | 83.5 |
FEATURES | |
Temperature Management Features | Dual Evaporator Independent Temperature Controls |
Fresh Food Features | Display Temp Setpoint Door Alarm Filter-Change Indicator Interior Lighting - Ramp Up LED 4 Sabbath Mode Status |

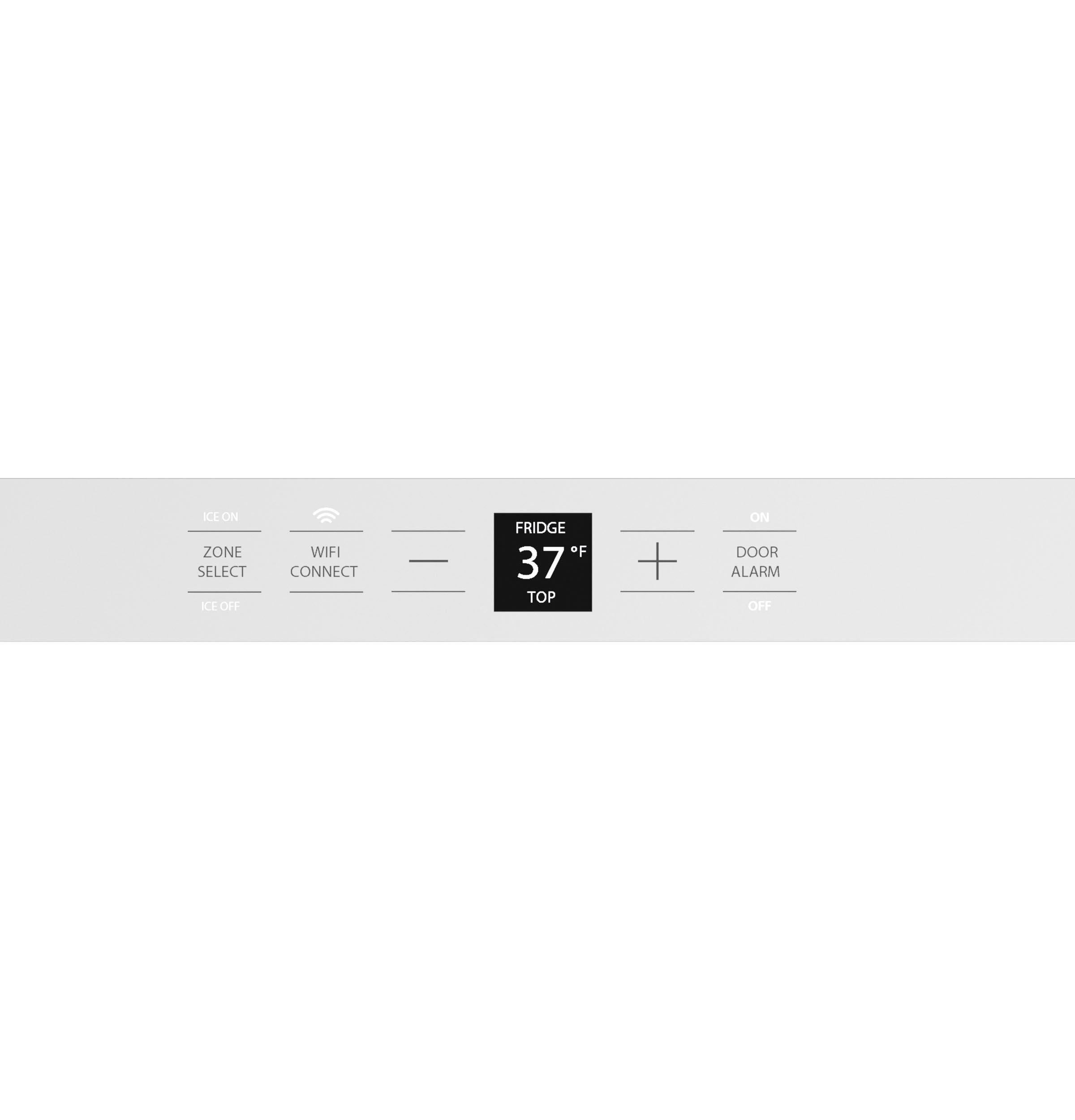

Control Type | Integrated Upfront Capacitance Touch Controls |
Exterior Style | Built-In |
Configuration | French Door & Double Drawer |
Door Alarm | Yes |
Refrigerant Type | R600a |
Custom Panel Ready | Integrated Panels |
Icemaker | Factory-Installed |
WiFi Connect | Built-In |
Fresh Food Cabinet Shelves | 2 Total - Glass with Trim |
Interior Lighting | LED |
Filter Change Indicator | Display water filter status @ 90% usage |
Sabbath Mode | Enhanced Shabbos Mode (when used with Shabbos Keeper, visit www.zmantechnologies.com for details) Yes |
Bottom Drawer | One Adjustable Divider Plastic Interior Yes, Freezer w/IM |
Dispenser | Non-Dispenser |
Defrost Type | Automatic Defrost |
Fresh Food Cabinet Drawers | 2 Half-Width Adjustable Humidity Drawers Full-Extension Soft-Close Slides |

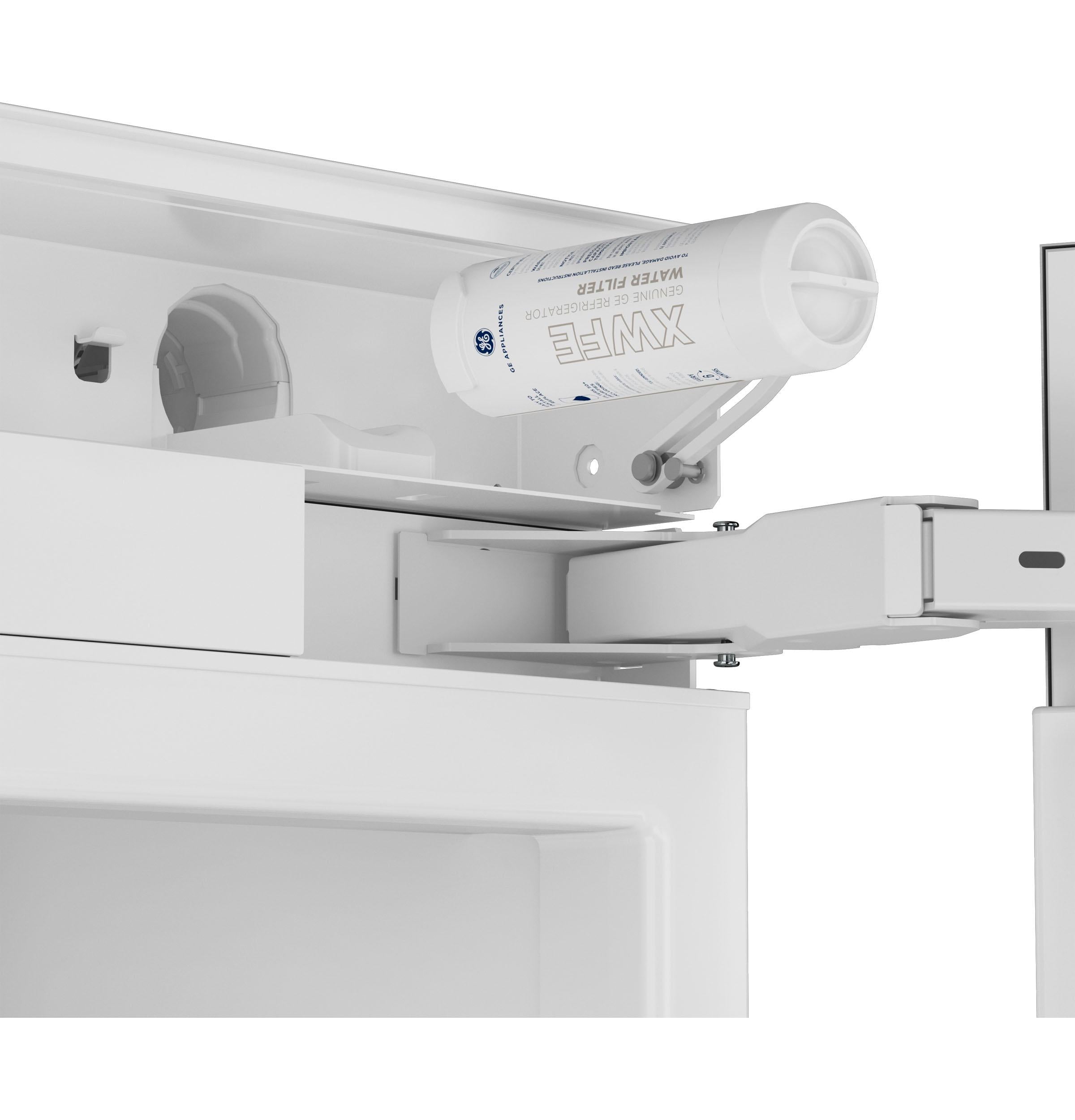

Water Filtration | GE Water Filtration (XWFE Filter) |
Fresh Food Door Features | 6 Adjustable Full-Width |
Leveling System | 4 Point (2 adjustable back rollers, 2 adjustable front legs) |
Fresh Food Door Bins | 6 with glass and metal design |
Product Type | Bottom Freezer Refrigerator Built-In Refrigerator French-Door Refrigerator |
Middle Drawer | 6 Settings (Hard Freeze [sync w/freezer |

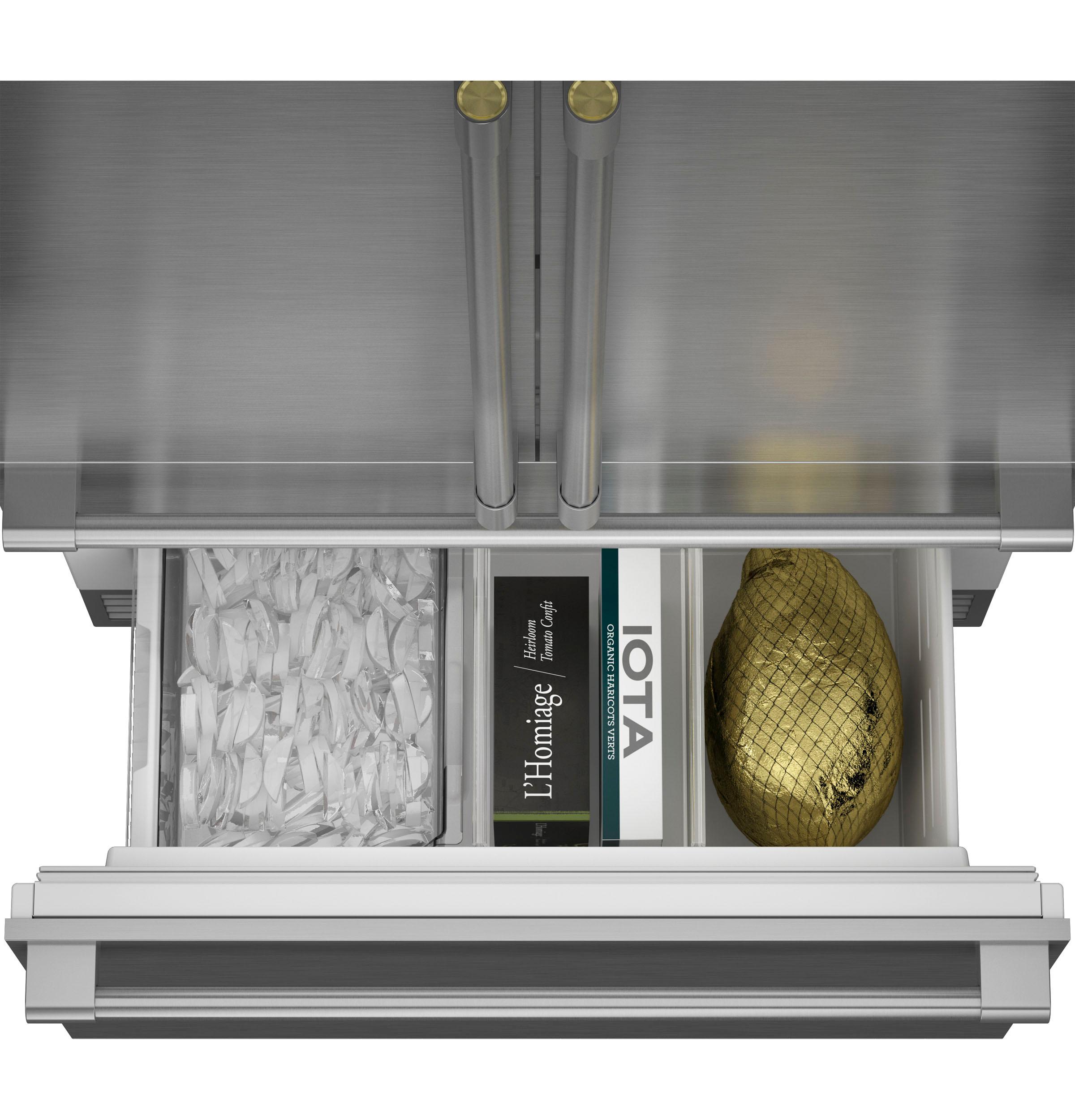

Freezer Features | Freezer Drawer with Full Extension Slides Soft-Close |
