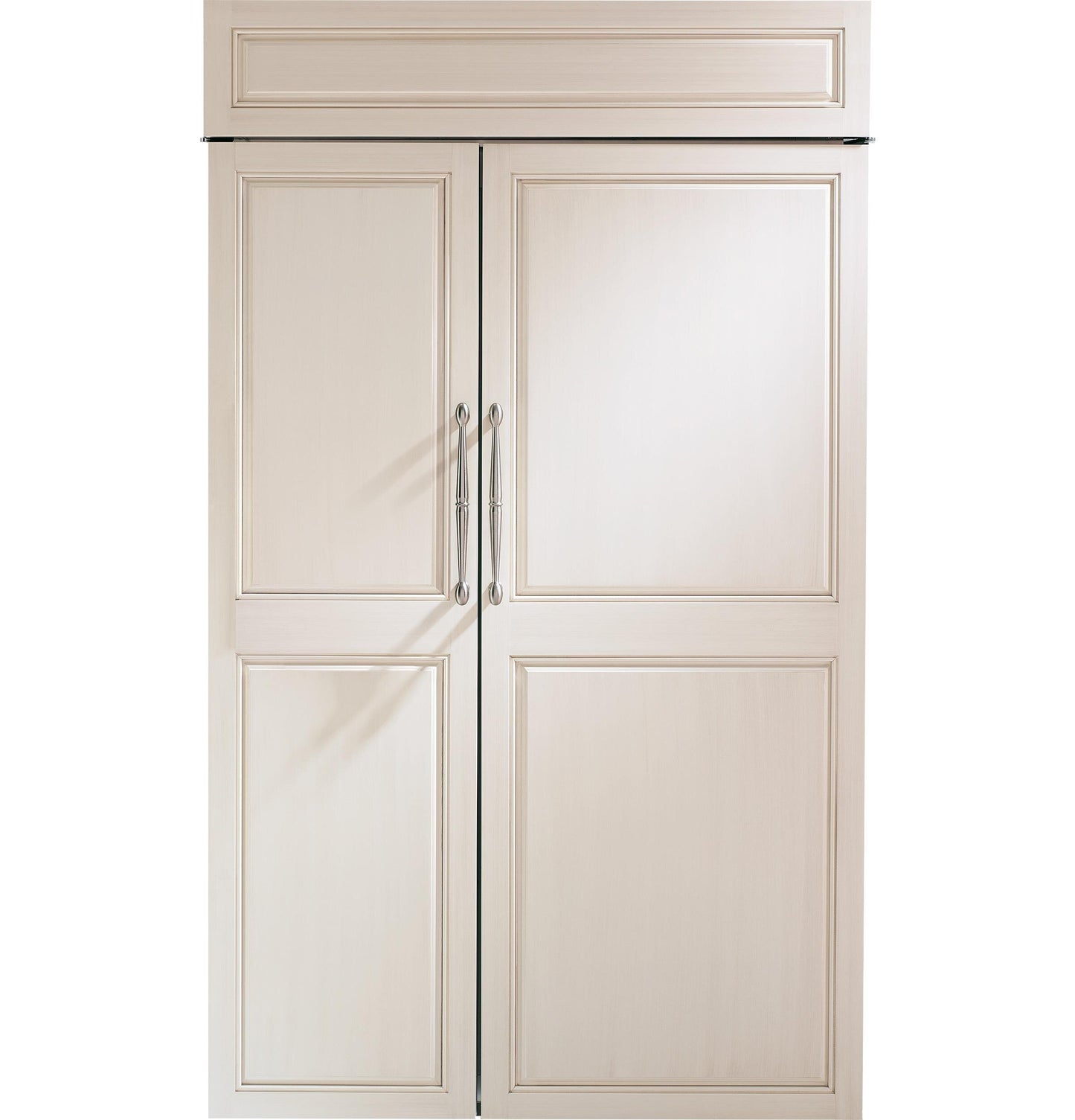

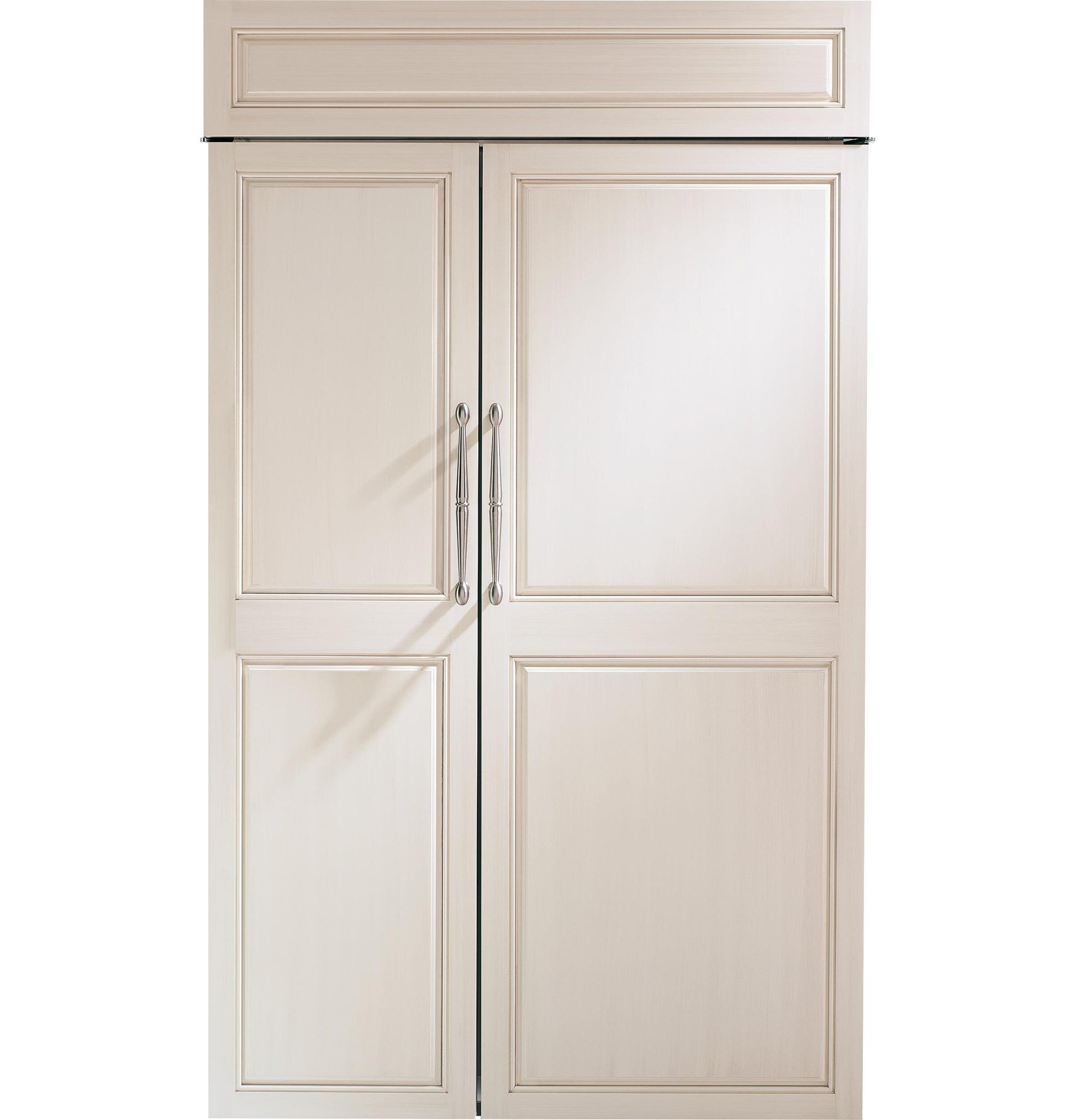

Monogram ZIS480NNII Monogram 48" Smart Built-In Side-By-Side Refrigerator
Rebates &
Promotions
Flush inset installation
Allows the refrigerator to be installed flush with adjacent cabinetry
Advanced temperature management system with multi-shelf air tower
Provides even distribution of air throughout the refrigerator
Climate-control drawer
Allows you to express-chill beverages, express-thaw meats and select specific temperatures for perishable foods
WiFi powered by SmartHQ(TM)
Enjoy the convenience and freedom of wirelessly controlling functions from your smartphone
LED lighting
Light columns in the freezer and fresh food compartments extend the full length of the interior and LED lighting located inside the vegetable and climate-control drawers illuminate contents without compromising space
Deli drawer on full-extension slides
Keeps meats, cheeses and other everyday foods within easy reach
- Flush inset installation
- Advanced temperature management system with multi-shelf air tower
- Climate-control drawer
- WiFi powered by SmartHQ(TM)
- LED lighting
- GE(R) water filter
- Deli drawer on full-extension slides
- Sealed vegetable drawer
- Adjustable glass shelves
- Gallon-size door bin
- Adjustable door bins
- Dairy bin with center divider
- Filter-change indicator light
- Sabbath mode
CAPACITY | |
Total Capacity (cubic feet) | 29.5 |
Fresh Food Capacity | 17.18 |
Freezer Capacity | 12.34 |
FILTER | |
App Filter - WiFi Connect | Built-In |
APPEARANCE | |
Master Light Control Switch | Yes |
Handle | Custom Handle Compatible Order ZKLN for Full-Length Visor Handle Kit |
Door Panels Required | Yes |
Easy Access Hinged Grille | Yes |
Panel Capability | Flush Inset (with ZKFN kit) Standard Install with 3/4' Overlay or 1/4' Framed |
Hidden Door Hinge(s) | Yes |
Design Style | Custom Panel |
Color Appearance | Custom Panels Required |
Adjustable Rollers | 4 |
Door Stops | 90, 115 and 130 Degree |
WARRANTY | |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 12-year sealed refrigerating system parts Limited 2-year entire appliance Limited lifetime full extension slides |
Labor Warranty | Limited 2-year entire appliance Limited 5-year sealed refrigerating system |
POWER / RATINGS | |
Volts/Hertz/Amps | 115V; 60Hz; 20A |
ECONOMICAL / QUIET | |
Quiet Features | Stainless Sealed Adjustable Toe Kick |
WEIGHTS & DIMENSIONS | |
Net Weight | 738.0 |
Overall Depth | 25.375 |
Overall Width | 48.0 |
Overall Height | 84.0 |
Approximate Shipping Weight | 775.0 |
FEATURES | |
Filter Location | Behind the top access panel |
Clear Lexan Bins, Drawers and Pans | Yes |
Icemaker | Factory-Installed |
Fresh Food Features | Dairy Compartment - Sealed |
WiFi Connect | Built-In |
Connected Capabilities | Amazon Alexa IFTTT Sonos The Google Assistant |
Deli Drawer | Adjustable Sealed w/ Full Extension Slides |
Interior Lighting | LED Light Towers, Top LED and Pan LED Lighting |
Leveling System | 4 Point |
Fresh Food Door Features | Adjustable Door Alarm Gallon Storage |
Temperature Management Features | Independent Temperature Controls Multi-Shelf Air Management Tower |
Defrost Type | Auto |
Fresh Food Cabinet Shelves | 3 Slide-Out 5 Total Spill-Resistant |
Control Type | Upfront Electronic Digital Temperature Display |
Fresh Food Door Bins | 1 with Gallon Storage 4 Adjustable |
Exterior Style | Built-In |
Water Filtration | GE Water Filtration 6 Month Water Filter Indicator Light XWF |
Climate Control Drawer | Express Chill, Express Thaw, Select Temp |
Product Type | Built-In Refrigerator Side-by-Side Refrigerator |
Freezer Door Bins | 5 Total |
Produce Drawer | High-Humidity Sealed w/ Full Extension Slides |
Dispenser | Non-Dispenser |
Freezer Cabinet Shelves | 4 Adjustable 4 Total Wire |
Fresh Food Cabinet Shelf Features | Adjustable |
Custom Panel Ready | 1/4-Inch Framed Panels 3/4-Inch Overlay Panels Flush Inset Panels |
Freezer Baskets | 2 Wire (Full-Extension) |
ZISS480NN ZISS420DN ZISP420DN ZISB480DN ZISS360 ZIS480NN ZIS420NN ZISB420DN ZISS420NN ZISS480DN ZISP480DN ZISB360DN
