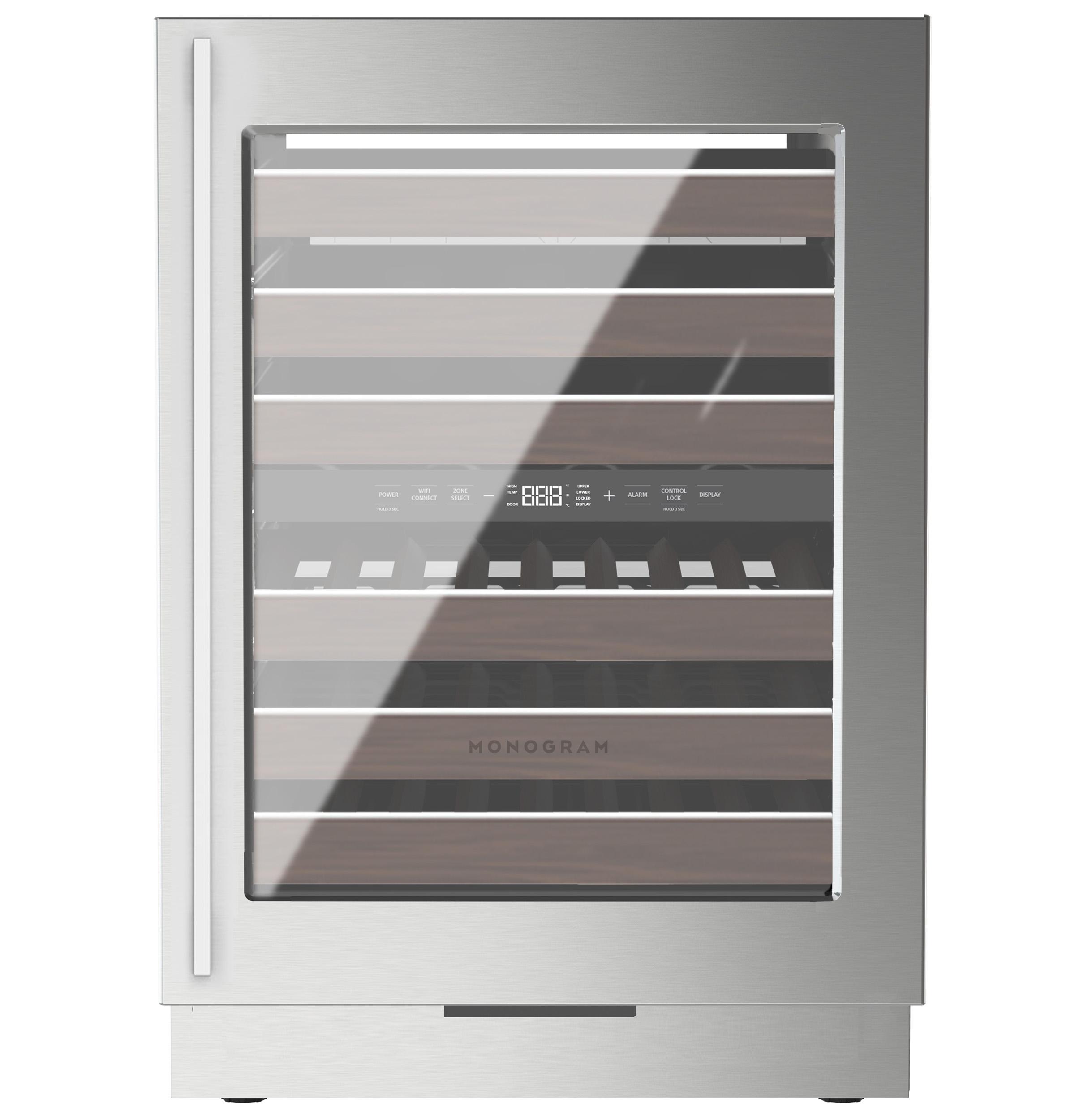

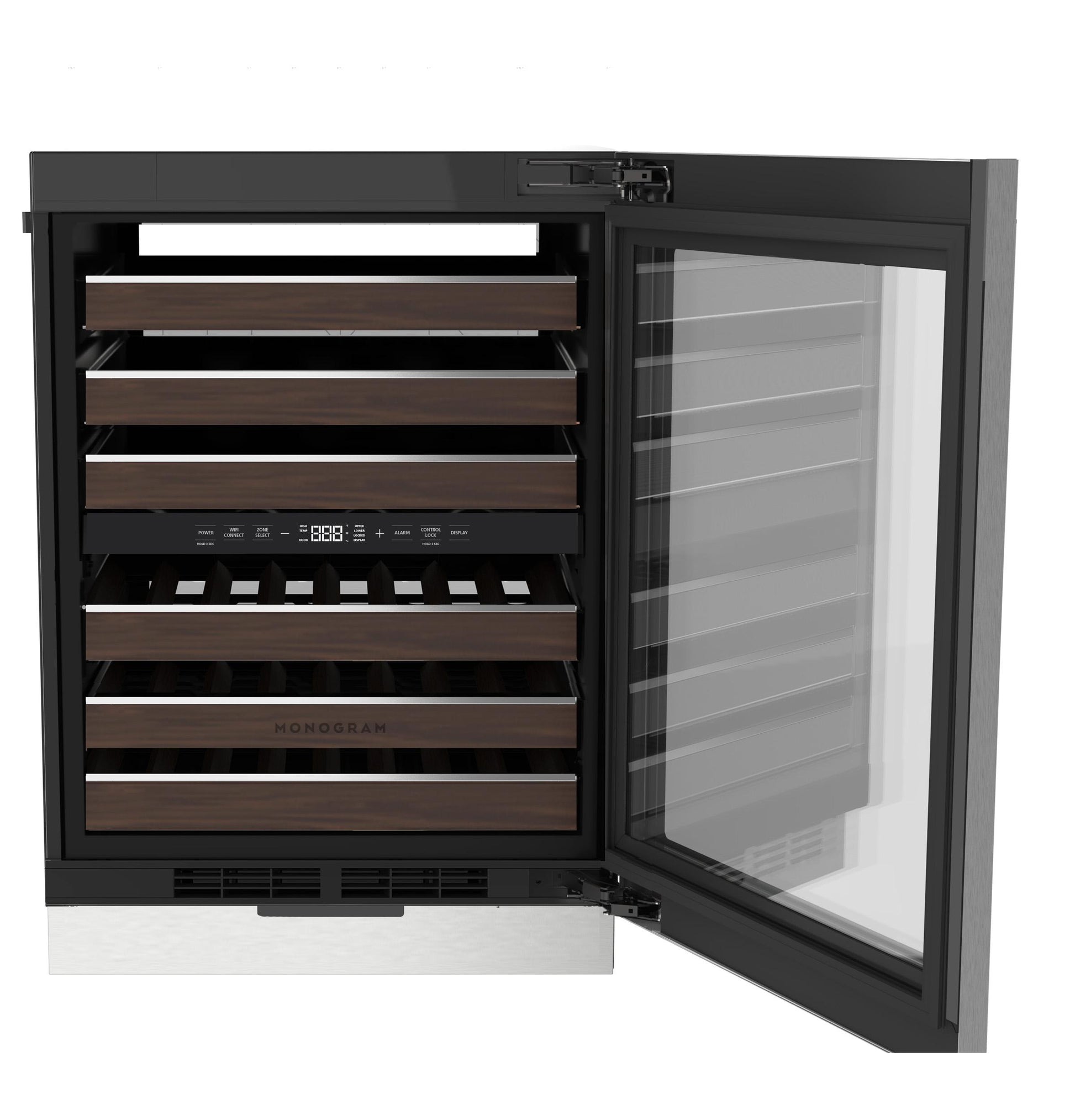

Monogram ZIWD24PWII Monogram 24" Panel-Ready Wine Reserve
Rebates &
Promotions
Statement & Minimalist Collection Handles

Elevate the design of your wine refrigerator with one of Monogram's handles. HANDLES SOLD SEPARTELY

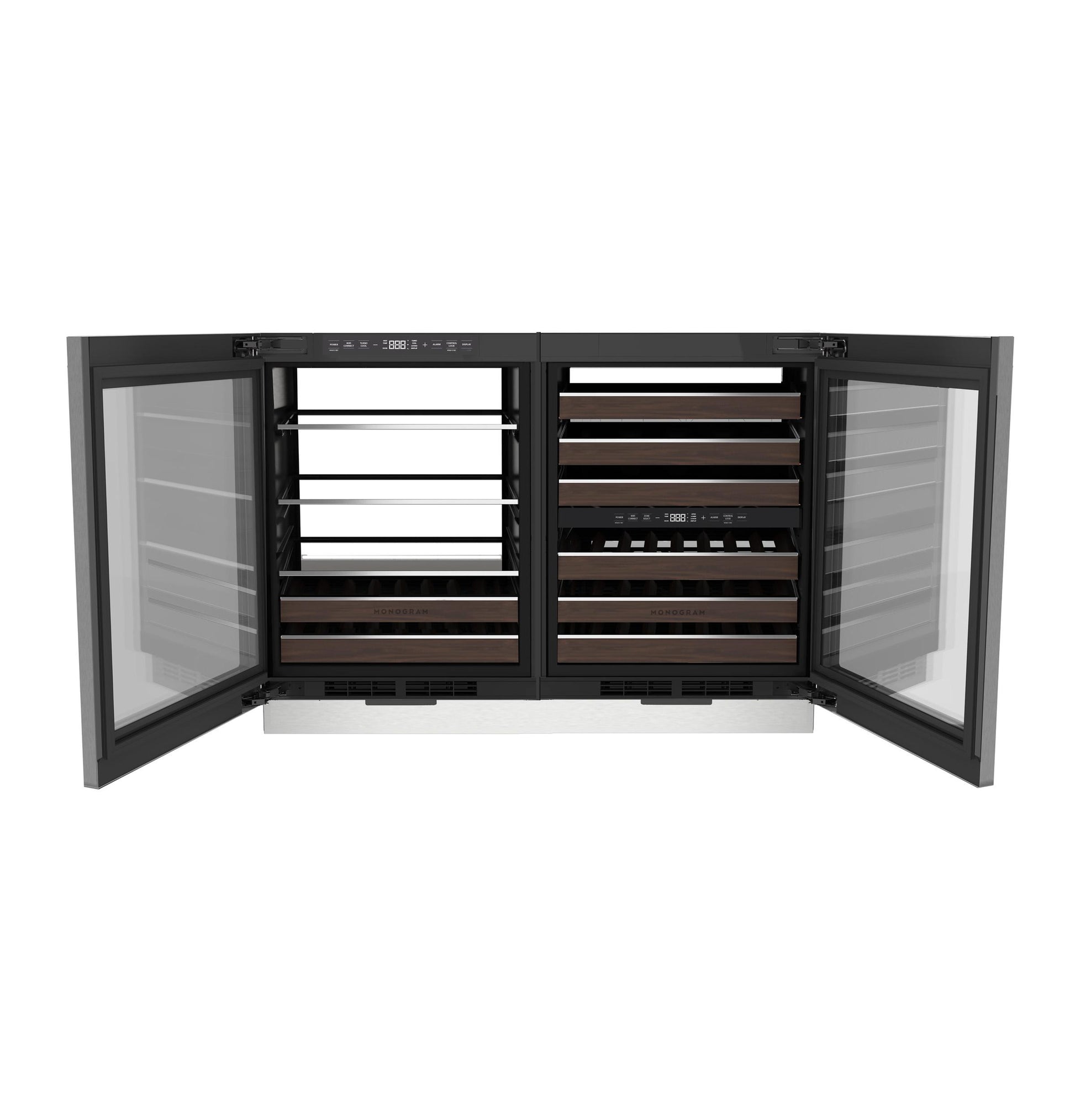

Expanded Entertainment Areas

Install your wine reserve side by side to other Monogram undercounter refrigeration and ice maker models
- 42 Bottle Capacity
- Dual Zone Cooling
- Flush Installation
- Statement & Minimalist Collection Handles
- Illuminated Interior
- Delicate Storage
- Panel Ready Refrigeration
- Expanded Entertainment Areas
- 3 Full Extension Wine Racks
- UV Protected Glass
- Backlit Electronic Control
- Proximity Lighting
CAPACITY | |
Unit Capacity | 42 Wine Bottles |
Total Capacity (cubic feet) | 0 cu ft |
APPEARANCE | |
Toe kick | Stainless |
Color Appearance | Custom Panel and Handle Required |
Case Color | Gray |
Installation | Built-In or Free-Standing Side by Side Install Capable with ZIBC24PWII (Additional kit required: ZKAW) |
Design Style | Custom Panel |
Door Swing | Reversible Hinges |
Door Style | Glass Door |
Door Stops | 90 and 115 Degree |
Handle | Customer Supplied - Optional Statement and Minimalist handle kits available |
WARRANTY | |
Warranty Notes | See written warranty for full details |
Labor Warranty | Limited 2-year entire appliance Limited 5-year sealed refrigerating system |
Parts Warranty | Limited 12-year sealed system Limited 2-year entire appliance Limited 5-year sealed refrigerating system |
POWER / RATINGS | |
Electrical Requirements | 120v; 60Hz; 2 A |
ECONOMICAL / QUIET | |
Quiet Package | 40 dBA |
ACCESSORIES | |
Optional Accessories | Handle Stud Kit - ZKPN Minimalist Handle Kit - ZXGP1H1CPSS Side by Side Install Toe-Kick Kit - ZKN48W Stainless Steel Panel Kit with stainless toe-kick - ZK1GC240WSS Statement Handle Kit - ZXGP1H1PWSS Undercounter Unification Kit - ZKAW |
WEIGHTS & DIMENSIONS | |
Back Air Clearances | 0 in |
Top Air Clearances | 0 in |
Height to Top of Hinge | 34.25 in |
Side Air Clearances | 0 in |
Overall Height | 35.1 in |
Overall Width | 23.74 in |
Case Depth Without Door | 21.65 in |
Approximate Shipping Weight | 154 lb |
Overall Depth | 23.85 in |
Net Weight | 154 lb |
FEATURES | |
Removable Slide-Out Shelves | Yes |
Short Description | 24' Custom Panel Wine Reserve |
WiFi Connect | Built-In |
Proximity Lighting Control | Yes - On/Off Option, Multi key or in APP |
Temperature Range | 41 degrees to 61 degree F |
Custom Panel Ready | 3/4-Inch Overlay Panels Flush Inset Panels |
Product Type | Wine Reserve |
Full Extension Slides | Yes |
Defrost Type | Cycle Defrost |
Interior Lighting | LED - Door Closed: On/Off Option; Door Open: Always On |
Adjustable Temperature Control | Yes |
Number of Cooling Zones | 2 |
Sabbath Mode | Yes |
Control Type | Digital Temperature Display Upfront Electronic Temperature Controls |
Wine Racks | 6 Full Extension Soft Close, Wood Slats |
Refrigerant Type | R600a |
Control Features | Child Lock Door Alarm Dual Temp Zone - Independent Upper & Lower Zones Hi-Temp Alarm Power On/Off |
OU Certified | No |
Collection | Minimalist Statement |
Connected Capabilities | Amazon Alexa Google Home |
Leveling System | 2 rear roller adjustable from front; 2 front legs |
