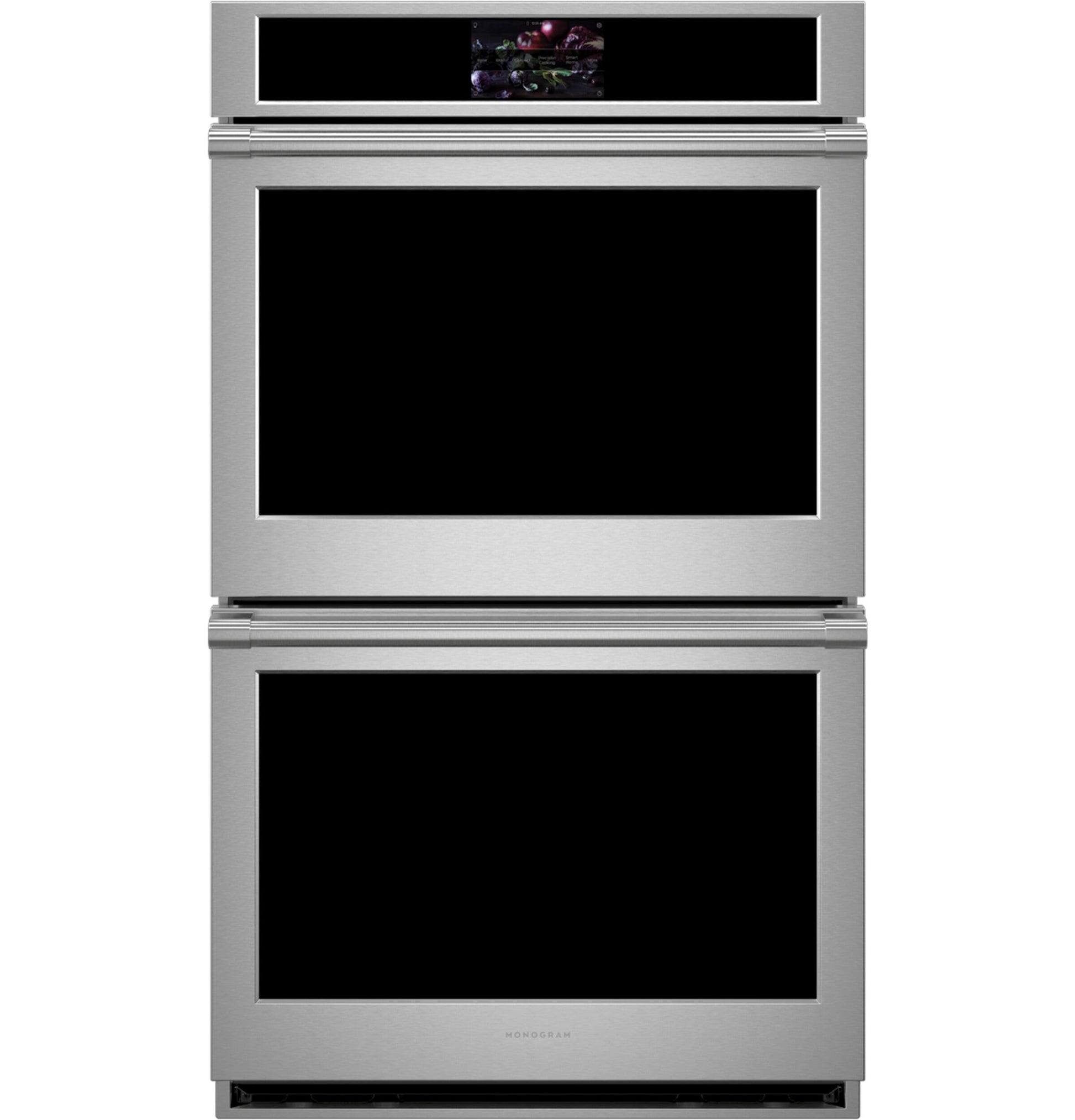

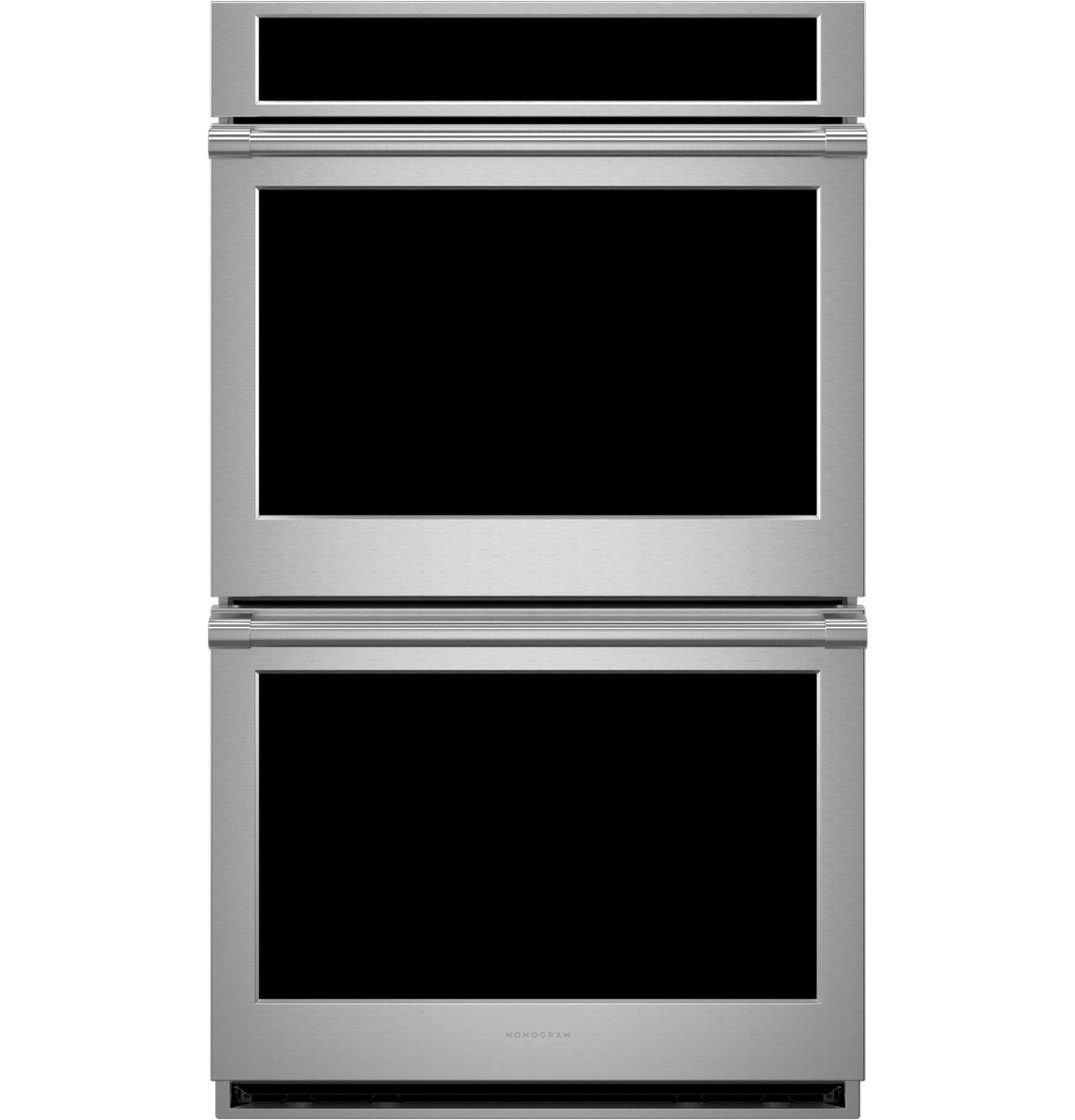

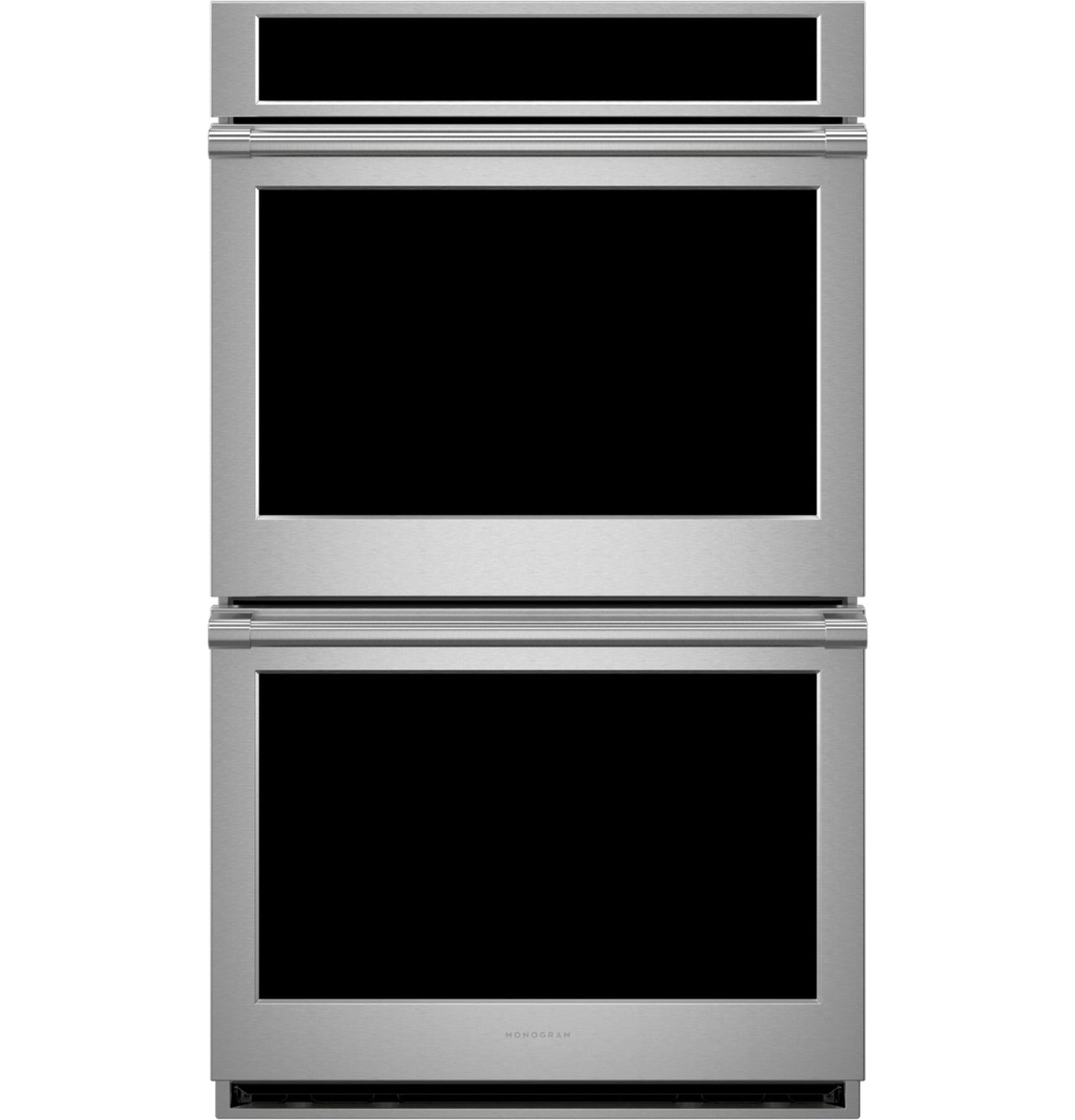

Monogram ZTDX1DPSNSS Monogram 30" Smart Electric Convection Double Wall Oven Statement Collection
Rebates &
Promotions
The Monogram Statement Collection
Edge-to-edge handles, polished stainless steel, and hand-finished edges convey a sense of solidity and beauty

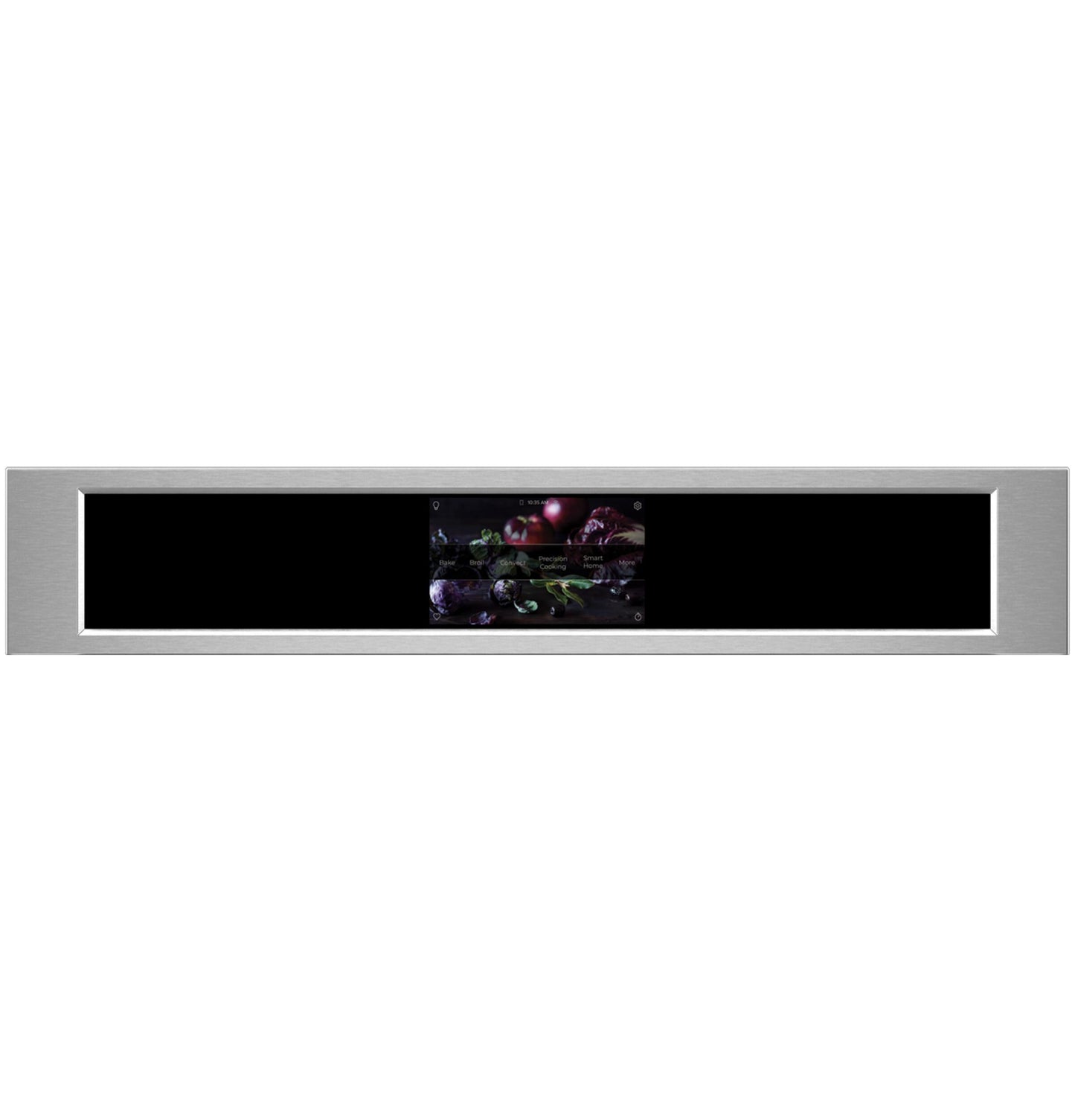

LCD controls
Allow you to adjust oven settings with little effort
WiFi powered by SmartHQ™
Perfectly in sync with a busy lifestyle, Alexa or Google Home can be used to control an array of oven functions from both inside and outside the home
Precision cooking modes
Master new recipes and perfectly execute favorite dishes using this ultra-smart system that automatically tracks cooking progress, modifies temperatures and adjusts cook times
Scan to cook
Innovative and time saving, scan-to-cook technology ensures that packaged foods are always prepared correctly. A simple scan of the barcode with a smartphone delivers consistently, delicious results
Twin Convection with Direct Air
Achieve beautifully cooked and delicious meals every time with this expertly designed, third heating element and fan combination
Soft-Close Door
An expertly engineered hinge ensures that the oven door closes quietly and smoothly, every time

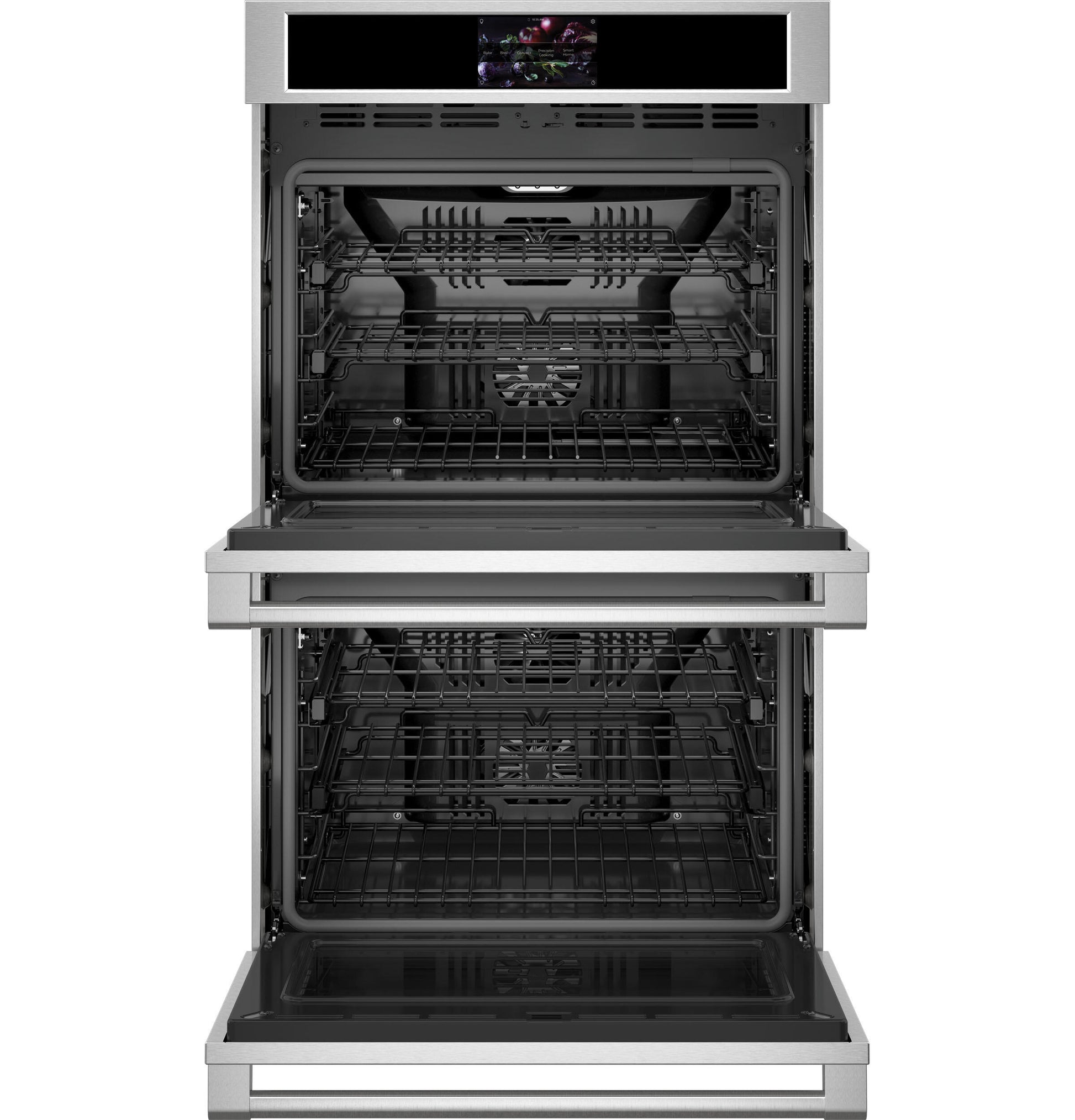

Exclusive self-clean, (4 full-extension, 2 regular) oven racks
Glide in and out smoothly on stainless steel ball bearings, and are designed to be left in the oven during the self-clean cycle
Ten-pass bake element
Covers more surface area for more even baking results
Ten-pass dual broil element
Evenly browns dishes of all types and sizes
Self-clean with Steam Clean option
Gives you flexible options for thorough oven cleaning
- The Monogram Statement Collection
- LCD controls
- WiFi powered by SmartHQ™
- Voice Control
- Precision cooking modes
- No-Preheat Air Fry
- Scan to cook
- Twin Convection with Direct Air
- Soft-Close Door
- 10.0 cubic foot oven capacity (5.0 each oven)
- Exclusive self-clean, (4 full-extension, 2 regular) oven racks
- Ten-pass bake element
- Ten-pass dual broil element
- Self-clean with Steam Clean option
CAPACITY | |
Total Capacity (cubic feet) | 10.0 |
Capacity (Cu. Ft.) | 5.0 Upper / 5.0 Lower |
FILTER | |
App Filter - Cabinet Width | Cooking 30 in. (Standard) |
App Filter - WiFi Connect | Built-In |
APPEARANCE | |
Handle | Stainless Steel Statement Collection |
Installation | Flush Appearance Over Warming Drawer Side-by-Side |
Design Style | Statement Collection |
Oven Door Features | Drop-Down Oven Window Soft-Close Hinges |
Frameless Oven Door(s) | Stainless Steel |
Color Appearance | Stainless Steel |
POWER / RATINGS | |
KW Rating at 208V | 6.8 |
Bake Wattage | 2850W |
KW Rating at 240V | 9 |
Convection Wattage | 1300W |
Broiler Wattage | 4300W; Dual Element |
Amp Rating at 208V | 40 |
Amp Rating at 240V | 40 |
WARRANTY | |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 2-year entire appliance |
Labor Warranty | Limited 2-year entire appliance |
ACCESSORIES | |
Optional Accessories | ZX30VT2 Flush Vent Trim Accessory (Included) |
WEIGHTS & DIMENSIONS | |
Net Weight | 364.0 |
Oven Interior Dimensions (lower) | 25 x 17-3/8 x 20 1/4 |
Cutout Dimensions (w x h x d) (in.) | 28-5/8 x 50-1/4 x 23-1/2 |
Overall Depth | 27.3125 |
Oven Interior Dimensions (upper) | 25 x 17-3/8 x 20 1/4 |
Overall Width | 29.75 |
Overall Height | 51.1875 |
Approximate Shipping Weight | 390.0 |
Cabinet Width | 30.0 |
FEATURES | |
Oven Cleaning Type | Self-Clean with Steam Clean Option |
Cooking System | Twin Fan, True European Convection with Direct Air (Both Ovens) Variable Speed, Reverse Air Convection (Both Ovens) |
Oven Interior | 2 LED Light Columns (Both Ovens) Black Gloss Finish True Hidden Bake Element (Both Ovens) |
Oven Rack Features | 1 Self-Clean Heavy-Duty Rack (Both Ovens) 2 Self-Clean Heavy-Duty, Full Extension Oven Racks (Both Ovens) 6 Ladder-Rack Positions (Both Ovens) |
Oven Features | 10-Pass Bake Element 10-Pass Dual Broil Element Closed Door Broiling |
Fuel Type | Electric |
Cleaning Time | Variable with Delay Clean Option |
WiFi Connect | Built-In |
Cooking Technology | Convection |
Connected Capabilities | Amazon Alexa Drop IFTTT Innit Sonos The Google Assistant |
Configuration | Double Oven |
Self-Clean Oven Door Lock | Automatic |
Control Type | 7' Full-Color Touch LCD Screen |
Oven Cooking Modes | Convection Bake Multi-Rack Convection Broil Hi/Lo Convection Roast Dehydrate Keep Warm No-Preheat Air Frying Precision Cooking Modes Proof Thermal Bake Thermal Broil Hi/Lo |
Oven Control Features | 12-Hour Shut-Off Capability Audible Preheat Signal Auto Recipe Conversion Certified Sabbath Mode Control Lock Capability Cook Time C° or F° Programmable Delay Time Electronic Clock & Kitchen Timer Mis-Wire Detection Proof Mode Remote Enabled Scan-to-cook Temperature Probe Warm Mode |
