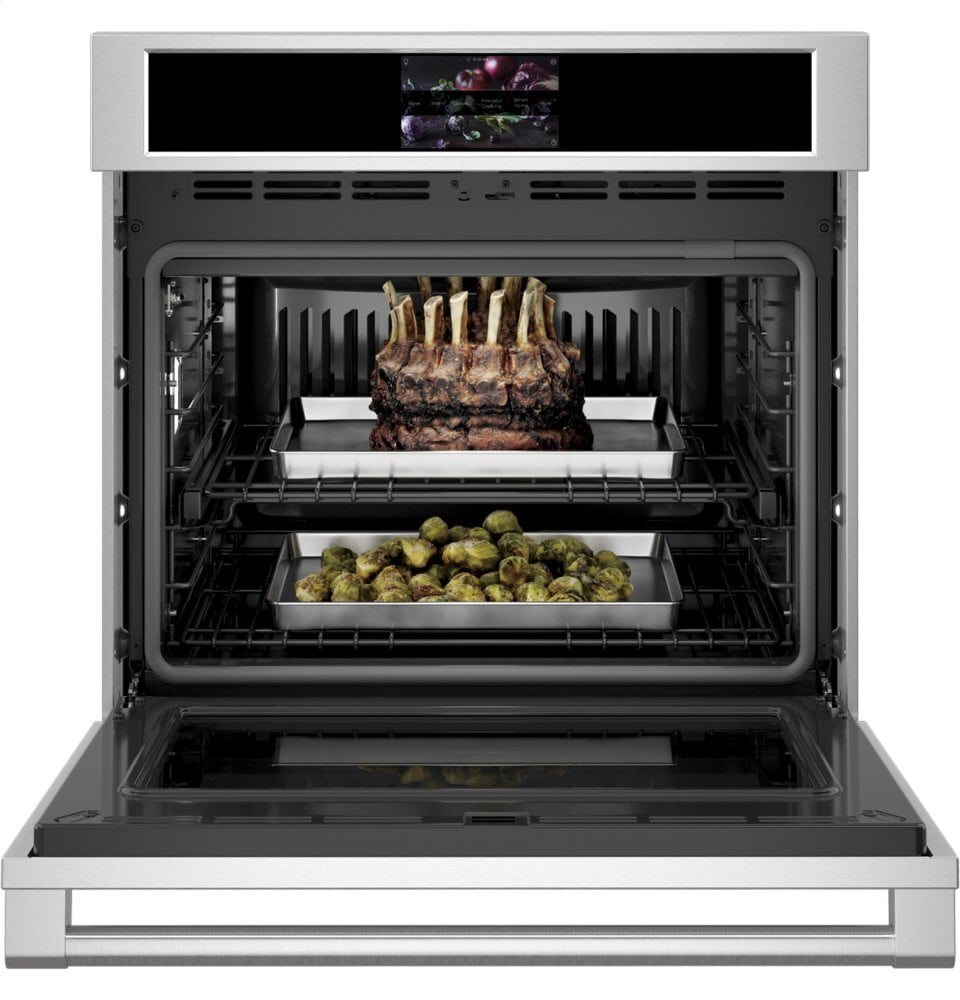

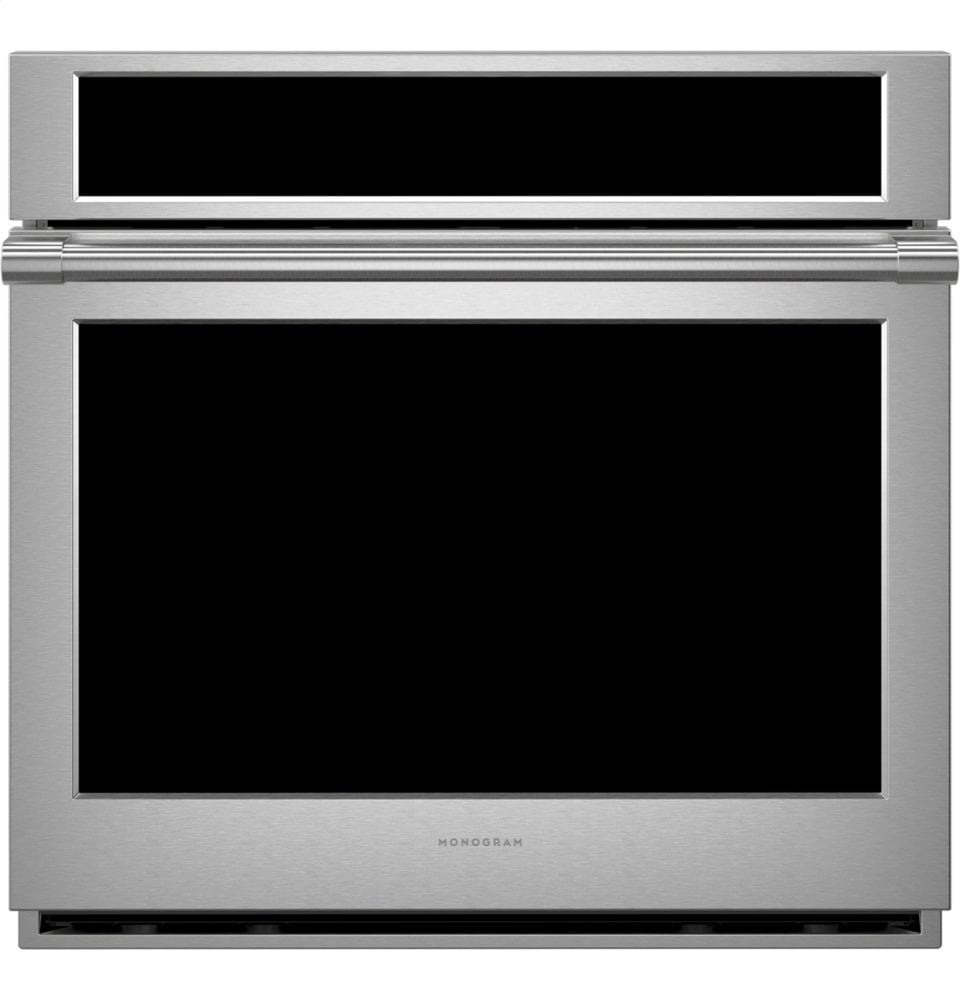

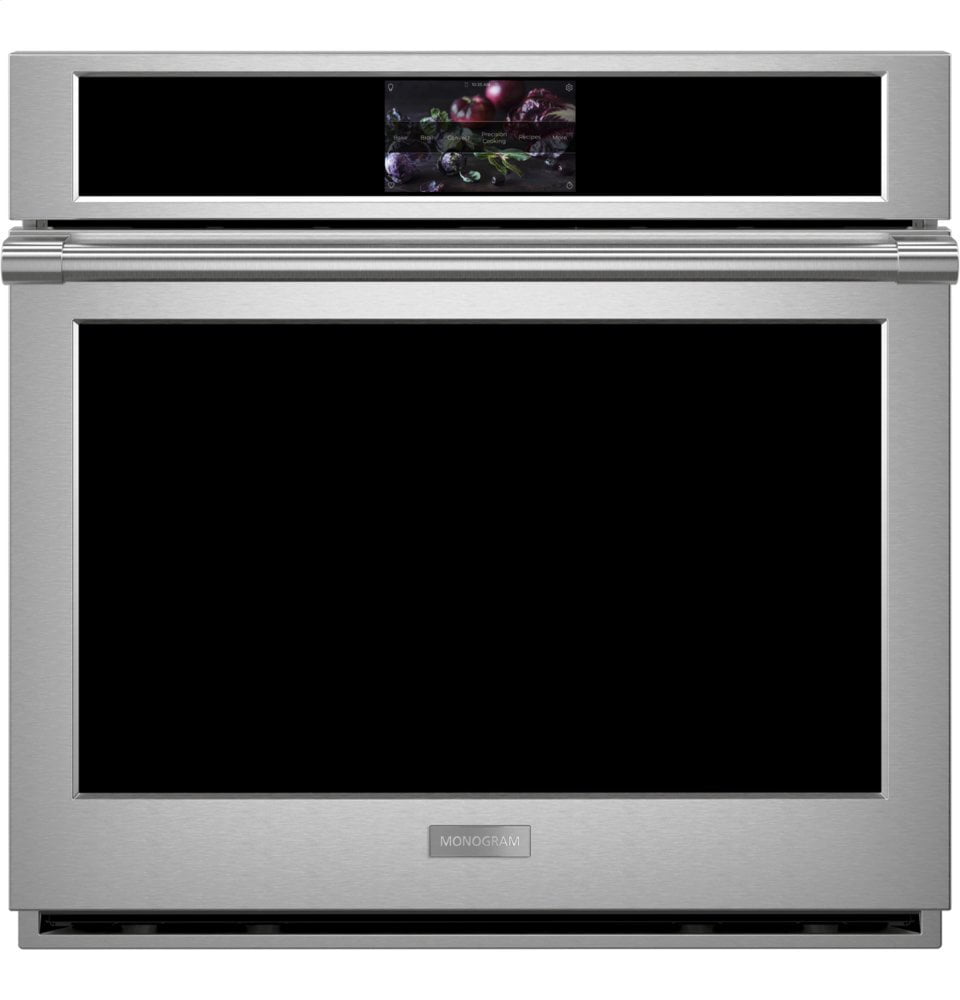

Monogram ZTS90DPSNSS Monogram 30" Smart Electric Convection Single Wall Oven Statement Collection
Monogram ZTS90DPSNSS Monogram 30" Smart Electric Convection Single Wall Oven Statement Collection
Colors:
Stainless Steelx
Installation and Removal
x
When Will I Get My Order?
x
THIS ITEM QUALIFIES FOR FREE DELIVERY!
EXTENDED PROTECTION
5 year plan
$414.993 year plan
$236.99Couldn't load pickup availability
x
Installation and Removal
x
When Will I Get My Order?
x
Monogram ZTS90DPSNSS Monogram 30" Smart Electric Convection Single Wall Oven Statement Collection
Rebates &
Promotions

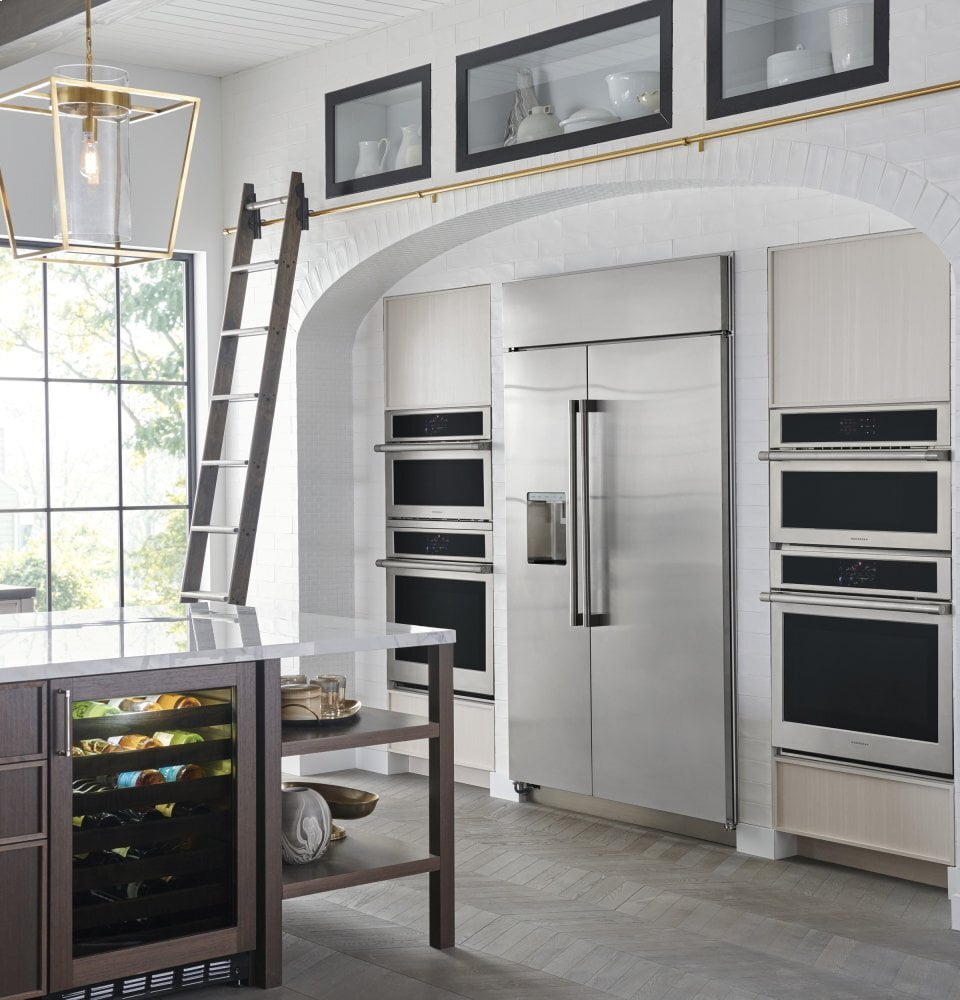

The Monogram Statement Collection

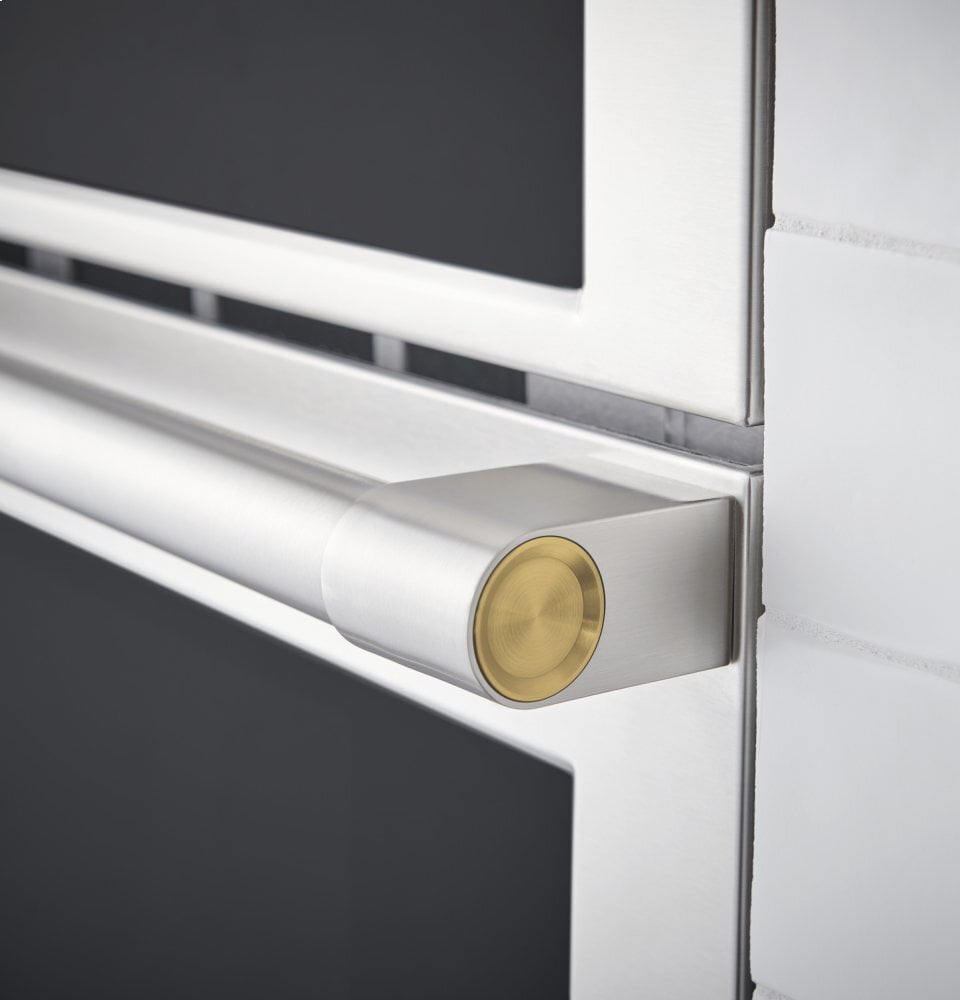

Edge-to-edge handles, polished stainless steel, and hand-finished edges convey a sense of solidity and beauty

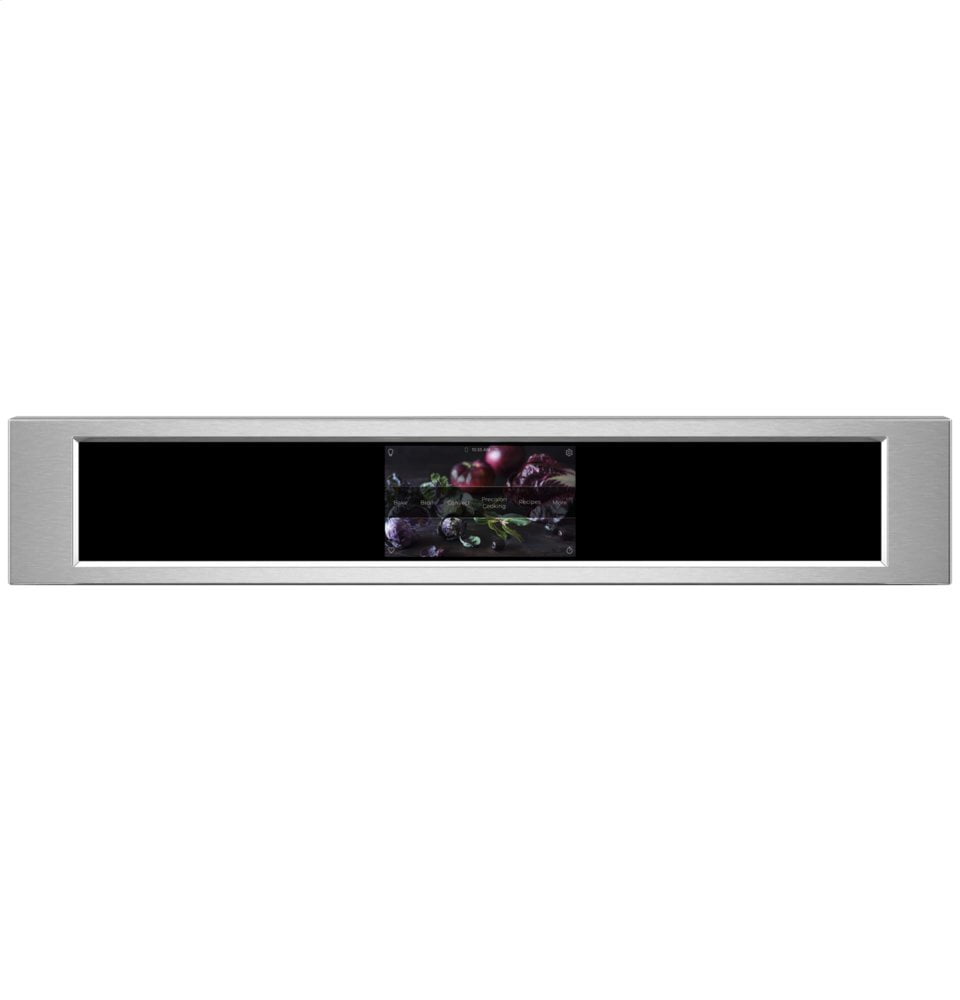

LCD controls
Adjust oven settings with little effort with a Brilliant 7" LCD display that allows you to customize backgrounds and receive weather updates

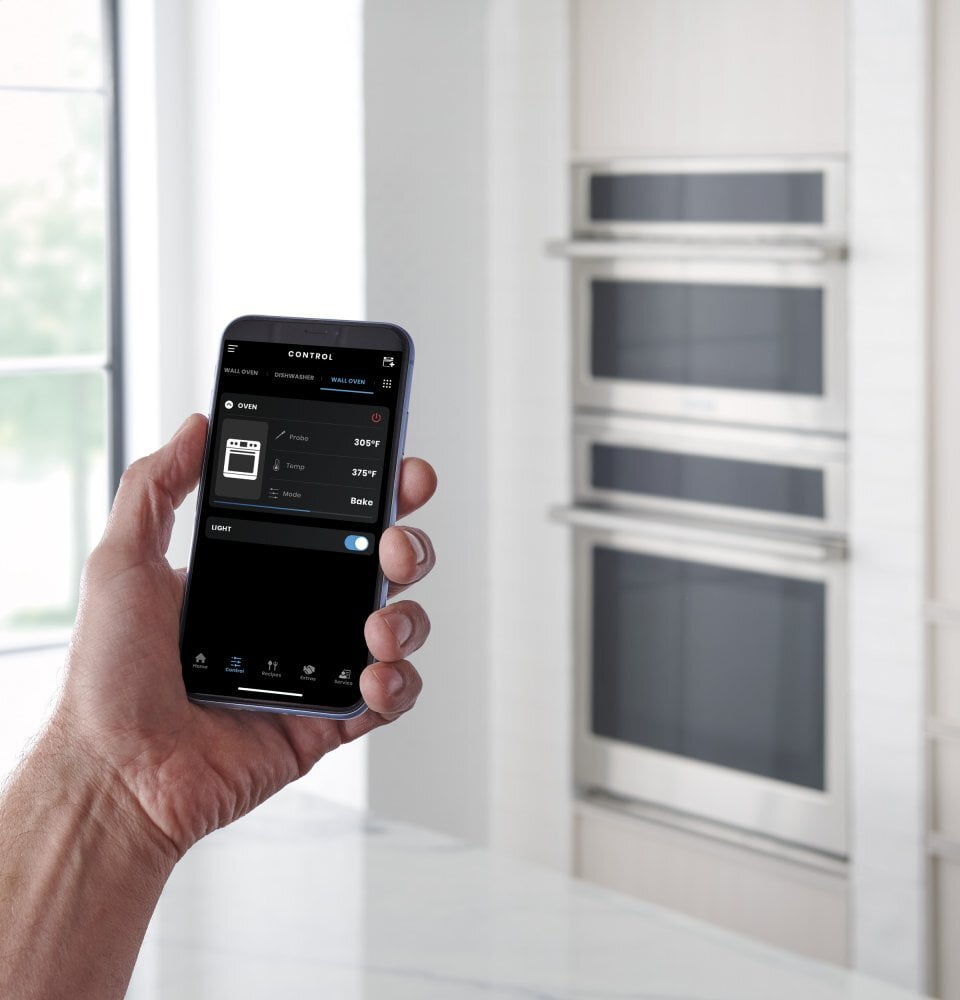

WiFi powered by SmartHQ™
Perfectly in sync with a busy lifestyle, Alexa or Google Home can be used to control an array of oven functions from both inside and outside the home
Precision cooking modes
Master new recipes and perfectly execute favorite dishes using this ultra-smart system that automatically tracks cooking progress, modifies temperatures and adjusts cook times

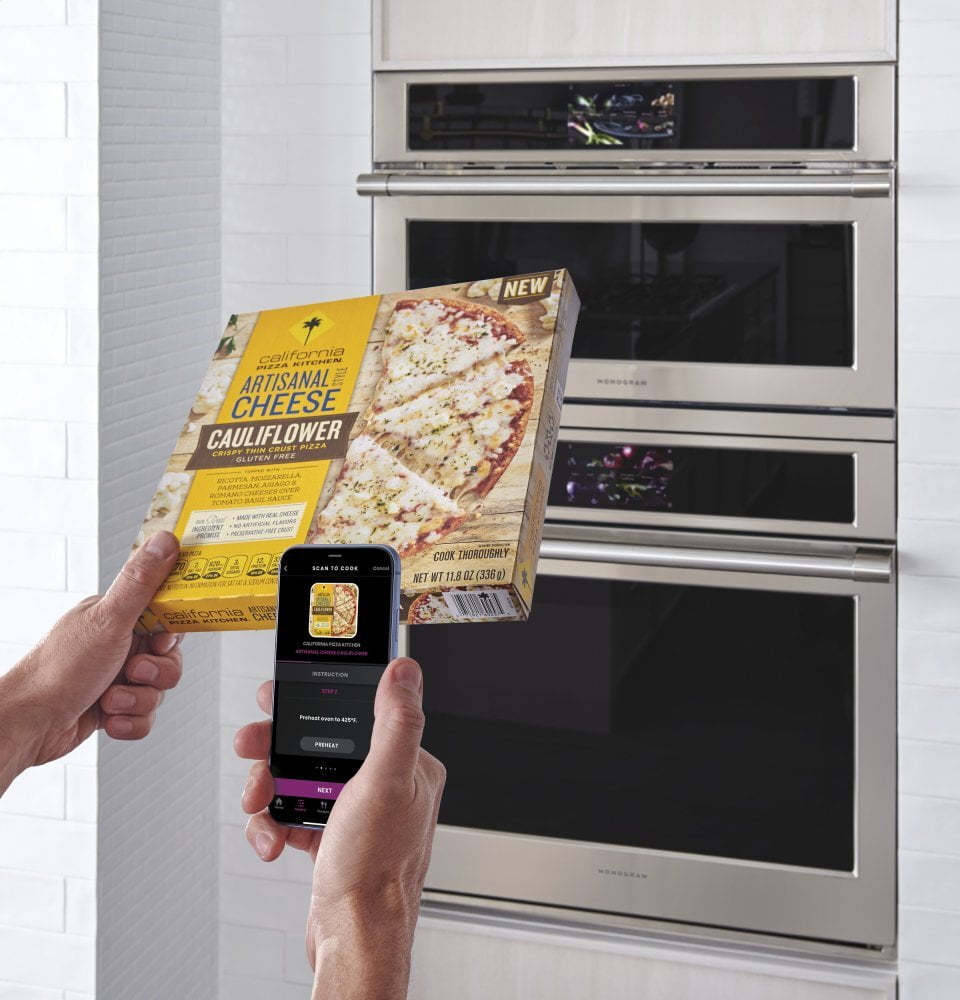

Scan to cook
Innovative and time saving, scan-to-cook technology ensures that packaged foods are always prepared correctly. A simple scan of the barcode with a smartphone delivers consistently, delicious results

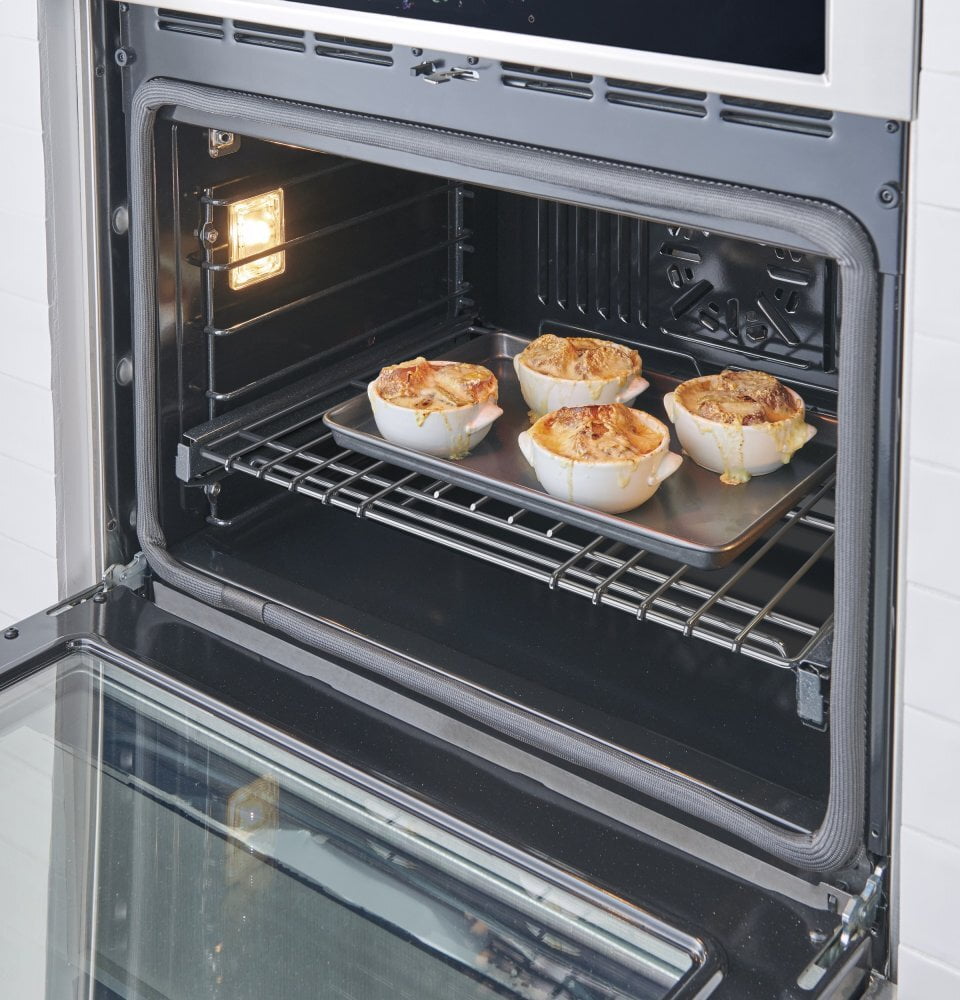

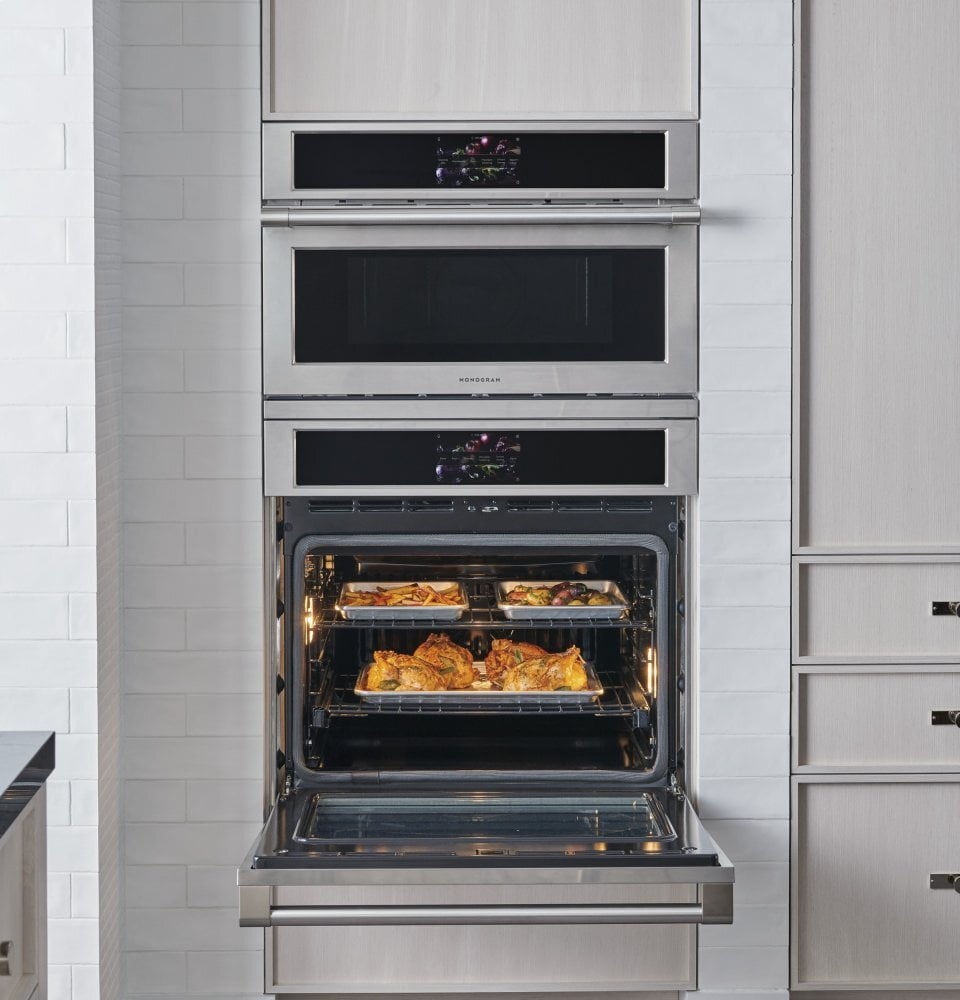

5.0 cubic foot capacity
Easily accommodates even the largest meals
Soft-Close Door
An expertly engineered hinge ensures that the oven door closes quietly and smoothly, every time
It features a ten-pass bake element to cover more surface area.
The Self-Clean with Steam Clean feature gives you flexible options for thorough oven cleaning.
Wi-Fi Connect allows you to control oven functions from anywhere inside or even outside your home using your smartphone or other web-enabled mobile devices. Dimensions Height: 28 11/16”
Width: 29 3/4”
Depth: 27 5/16”
- LCD controls
- WiFi powered by SmartHQ™
- Precision cooking modes
- Hot Air Fry
- Scan to cook
- True European Convection with Direct Air
- 5.0 cubic foot capacity

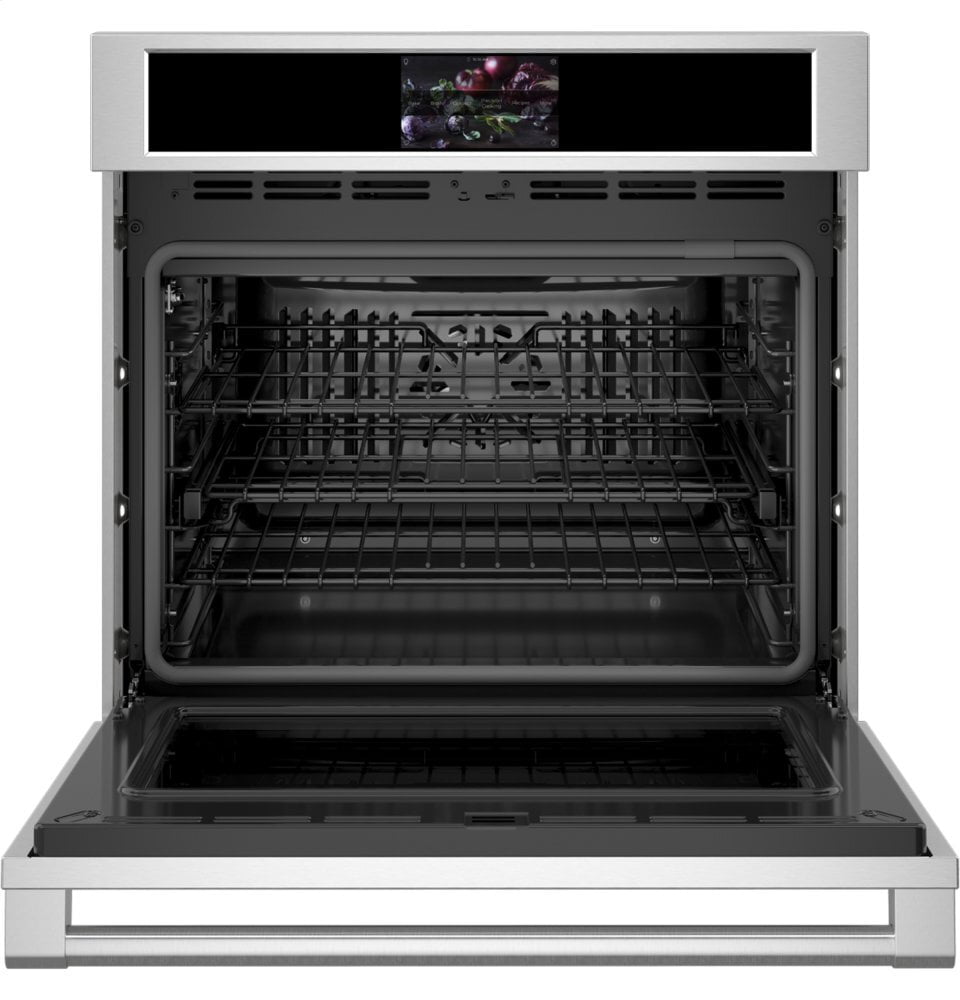

- Exclusive self-clean, (1 full-extension, 2 regular) oven racks
- Soft-Close Door
- Ten-pass bake element
- Ten-pass dual broil element
- Self-clean with Steam Clean option
| CAPACITY | |
| Total Capacity (cubic feet) | 5.0 |
| FILTER | |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - WiFi Connect | Built-In |
| APPEARANCE | |
| Handle | Stainless Steel Statement Collection |
| Installation | Flush Appearance Over Warming Drawer Side-by-Side Under Built-In Advantium Under Built-In Microwave Under Cooktop Under Hearth Oven Undercounter |
| Design Style | Statement Collection |
| Oven Door Features | Drop-Down Oven Window Soft-Close Hinges |
| Frameless Oven Door(s) | Stainless Steel |
| Color Appearance | Stainless Steel |
| POWER / RATINGS | |
| KW Rating at 208V | 3.4 |
| Bake Wattage | 2850W |
| KW Rating at 240V | 4.5 |
| Convection Wattage | 2400W |
| Broiler Wattage | 4300W |
| Amp Rating at 208V | 20 |
| Amp Rating at 240V | 20 |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 2-year entire appliance |
| Labor Warranty | Limited 2-year entire appliance |
| ACCESSORIES | |
| Optional Accessories | ZX30VT1 Flush Vent Trim Accessory |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 166.0 |
| Cutout Dimensions (w x h x d) (in.) | 28-5/8 x 27-5/16 x 23-1/2 |
| Overall Depth | 27.3125 |
| Oven Interior Dimensions (W x H x D) (in.) | 25 x 17-3/8 x 20 1/4 |
| Overall Width | 29.75 |
| Overall Height | 28.6875 |
| Approximate Shipping Weight | 184.0 |
| Cabinet Width | 30.0 |
| FEATURES | |
| Oven Cleaning Type | Self-Clean with Steam Clean Option |
| Cooking System | True European Convection with Direct Air Variable Speed, Reverse Air Convection |
| Oven Interior | 2 Halogen Interior Oven Lights Black Gloss Finish Hidden Bake |
| Oven Rack Features | 1 Self-Clean Heavy-Duty, Full Extension Oven Rack 2 Self-Clean Heavy-Duty Oven Racks 6 Ladder-Rack Positions |
| Oven Features | 10-Pass Bake Element 10-Pass Dual Broil Element Closed Door Broiling |
| Fuel Type | Electric |
| Cleaning Time | Variable with Delay Clean Option |
| WiFi Connect | Built-In |
| Cooking Technology | Convection |
| Connected Capabilities | Amazon Alexa Drop IFTTT Innit Sonos The Google Assistant |
| Configuration | Single Oven |
| Self-Clean Oven Door Lock | Automatic |
| Control Type | 7' Full-Color Touch LCD Screen |
| Oven Cooking Modes | Convection Bake Convection Bake Multi-Rack Convection Broil Hi/Lo Convection Roast Dehydrate Hot-Air Frying Keep Warm Precision Cooking Modes Proof Thermal Bake Thermal Broil Hi/Lo |
| Oven Control Features | 12-Hour Shut-Off Capability Audible Preheat Signal Auto Recipe Conversion Certified Sabbath Mode Control Lock Capability Cook Time C° or F° Programmable Delay Time Electronic Clock & Kitchen Timer Mis-Wire Detection Proof Mode Remote Enabled Scan-to-cook Temperature Probe Warm Mode |
Statement Collection
LCD Controls
SmartHQ™
Precision cooking modes
Quick Specs
ZTD90DPSN ZTD90DSSN ZTDX1DPSN ZTDX1DSSN ZTS90DPSN ZTS90DSSN ZTSX1DPSN ZTSX1DSSN
Installation Instructions
