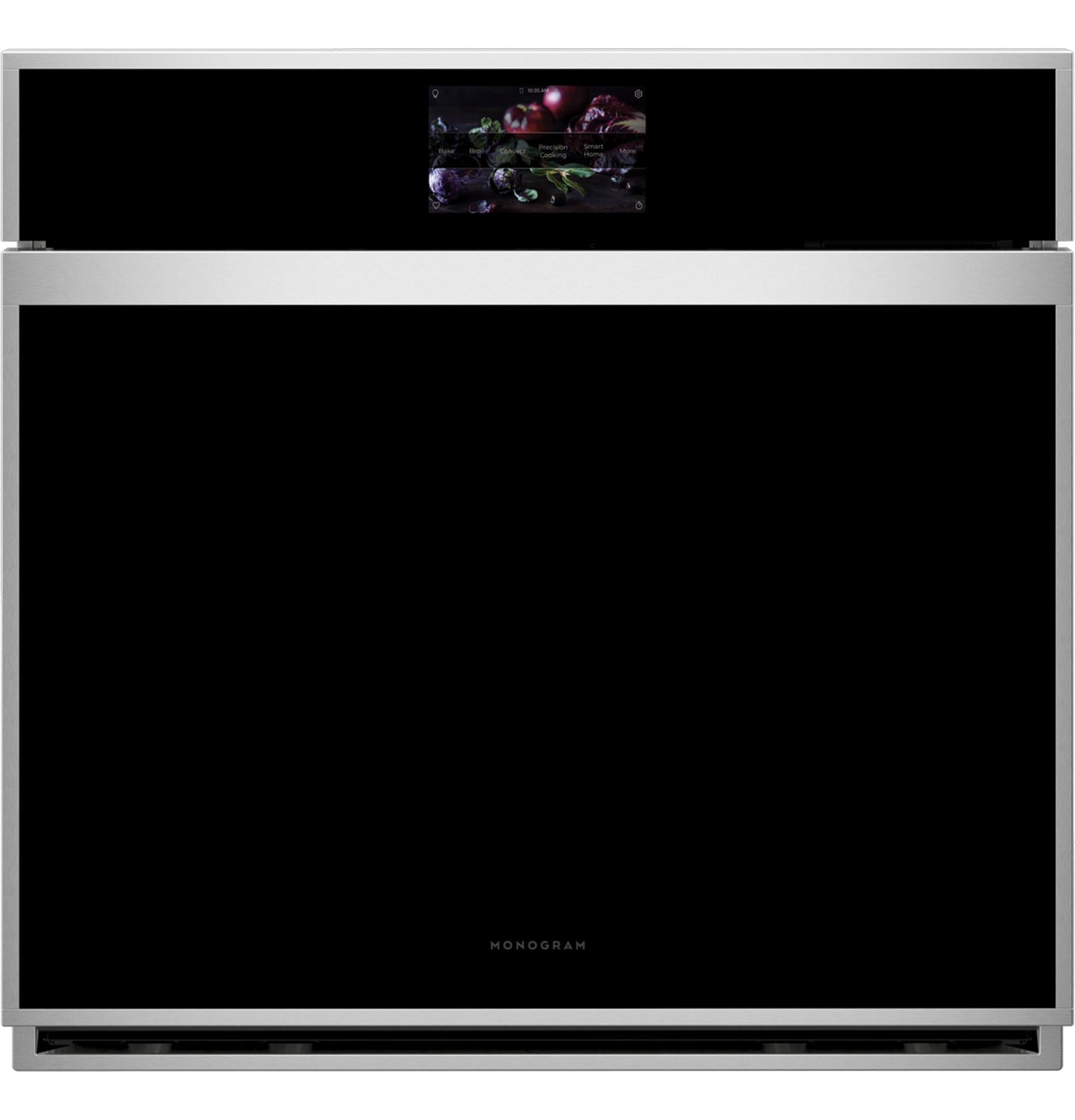

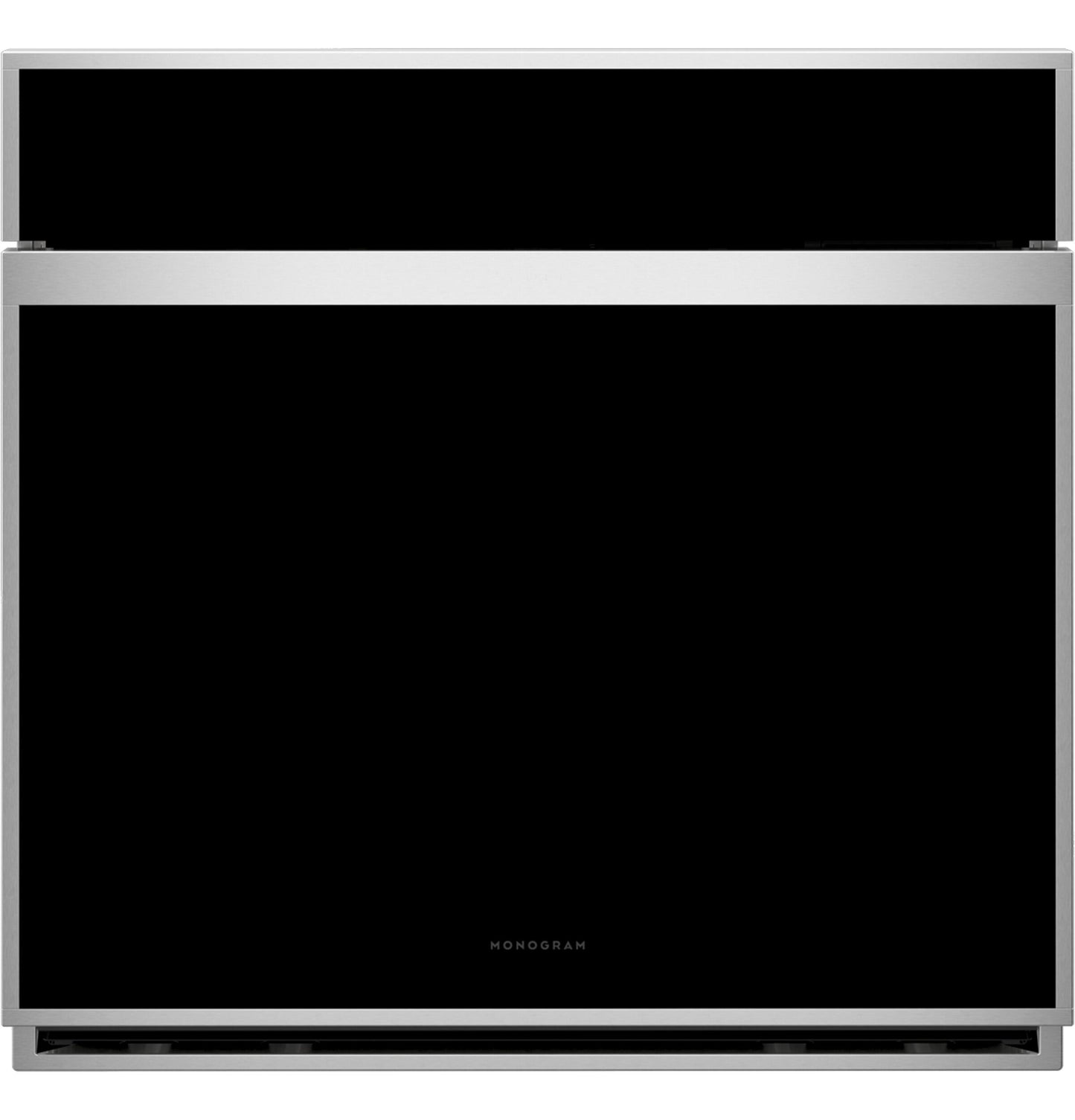

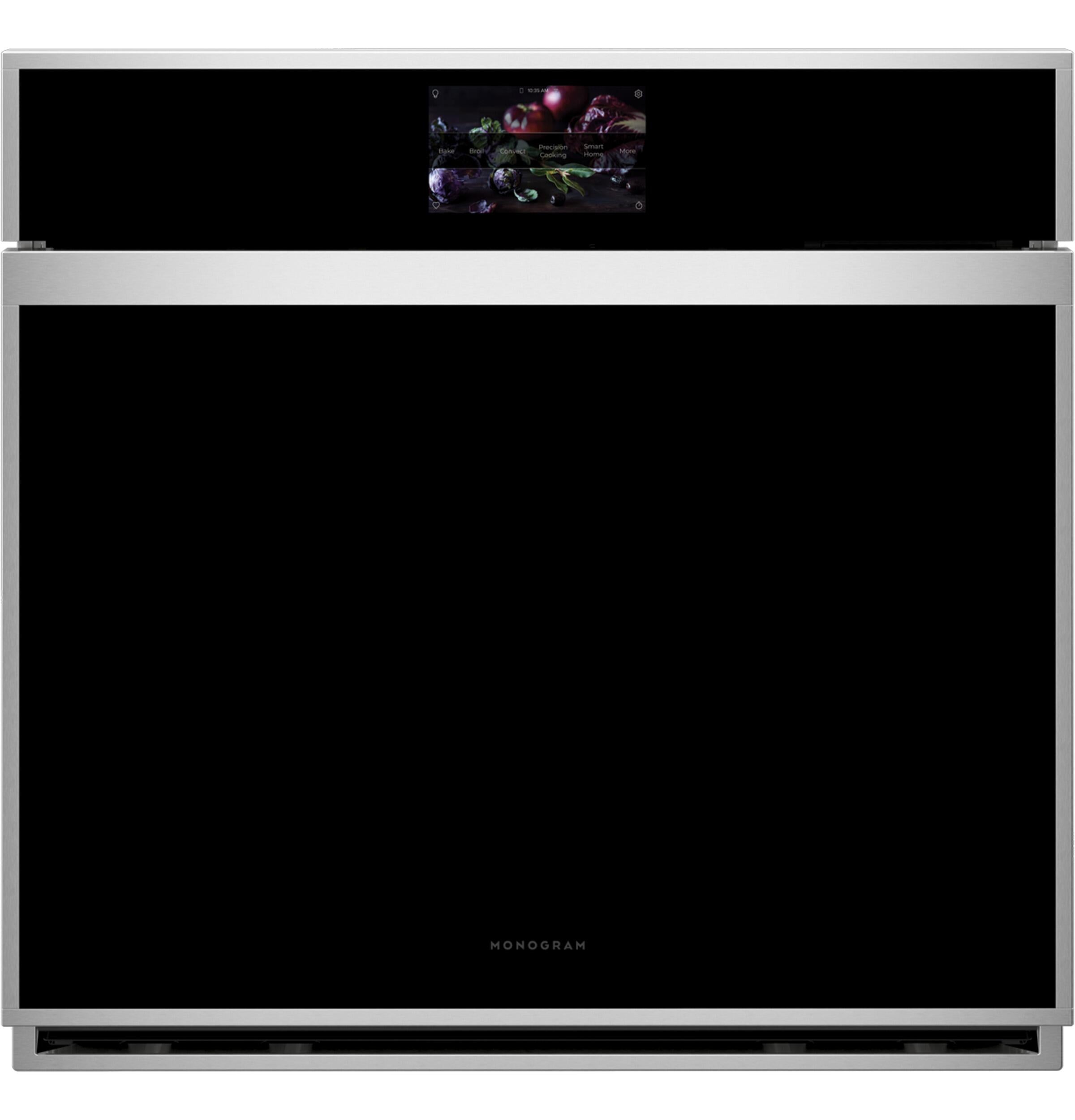

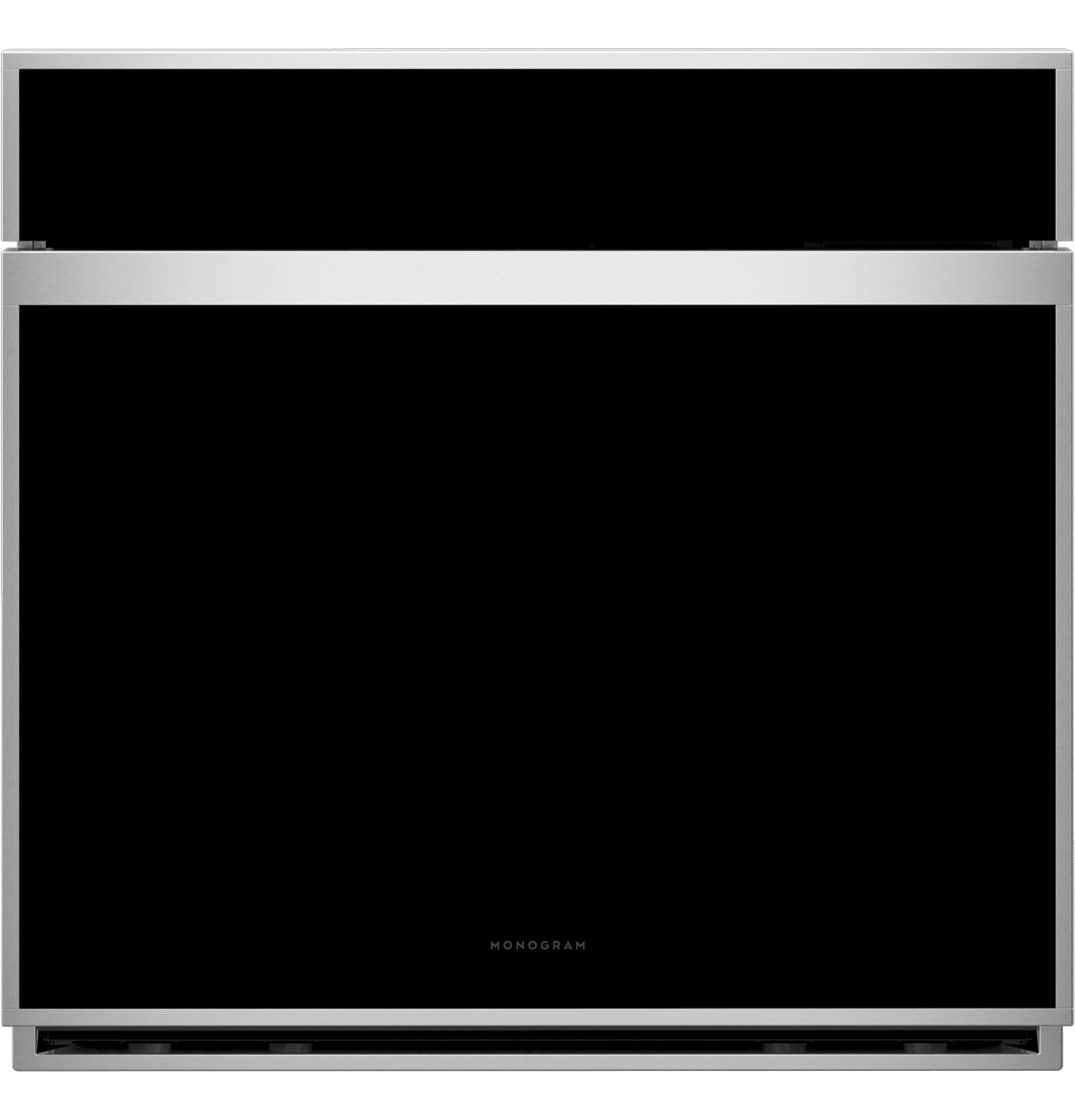

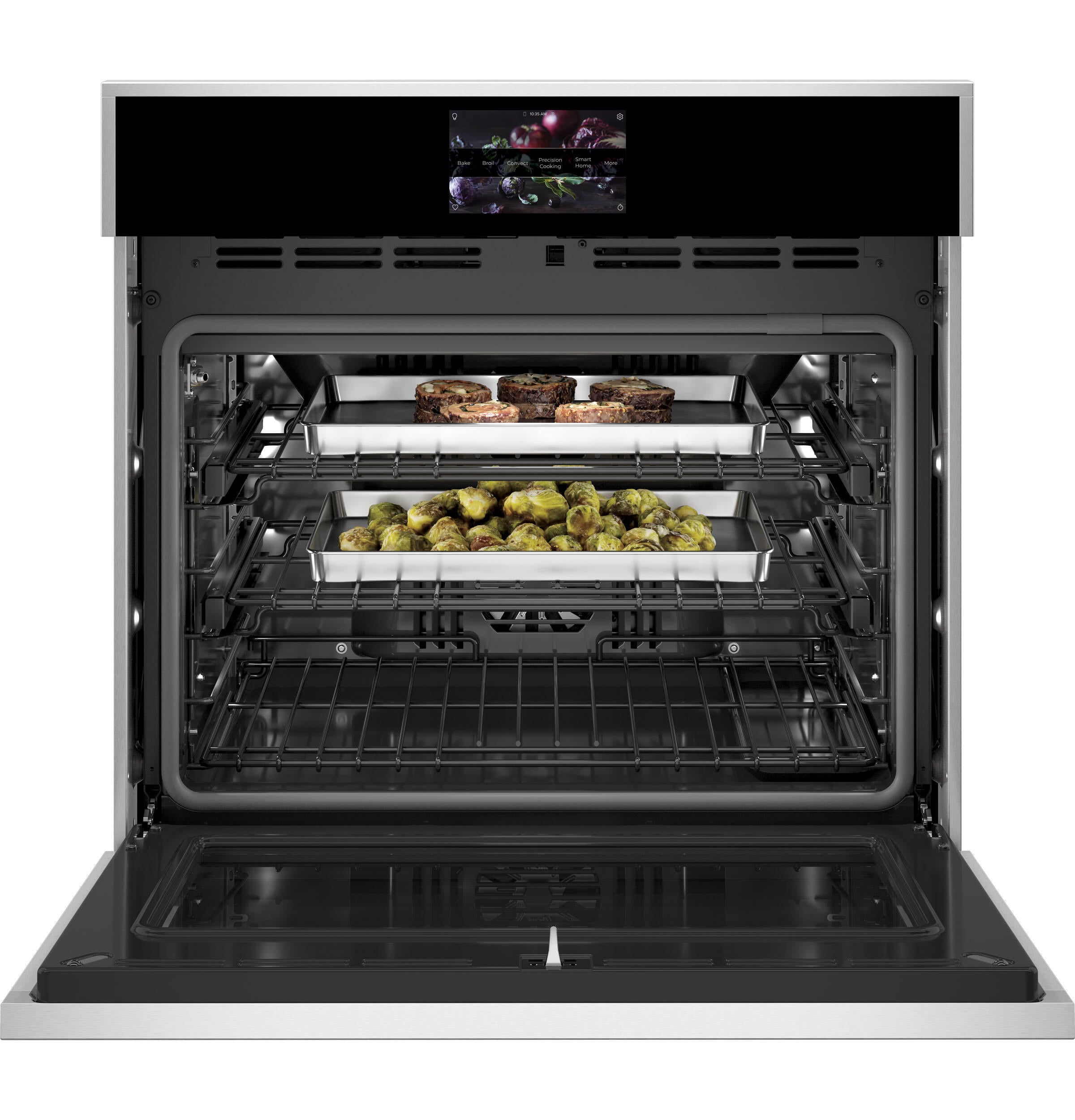

Monogram ZTSX1DSSNSS Monogram 30" Smart Electric Convection Single Wall Oven Minimalist Collection
Rebates &
Promotions

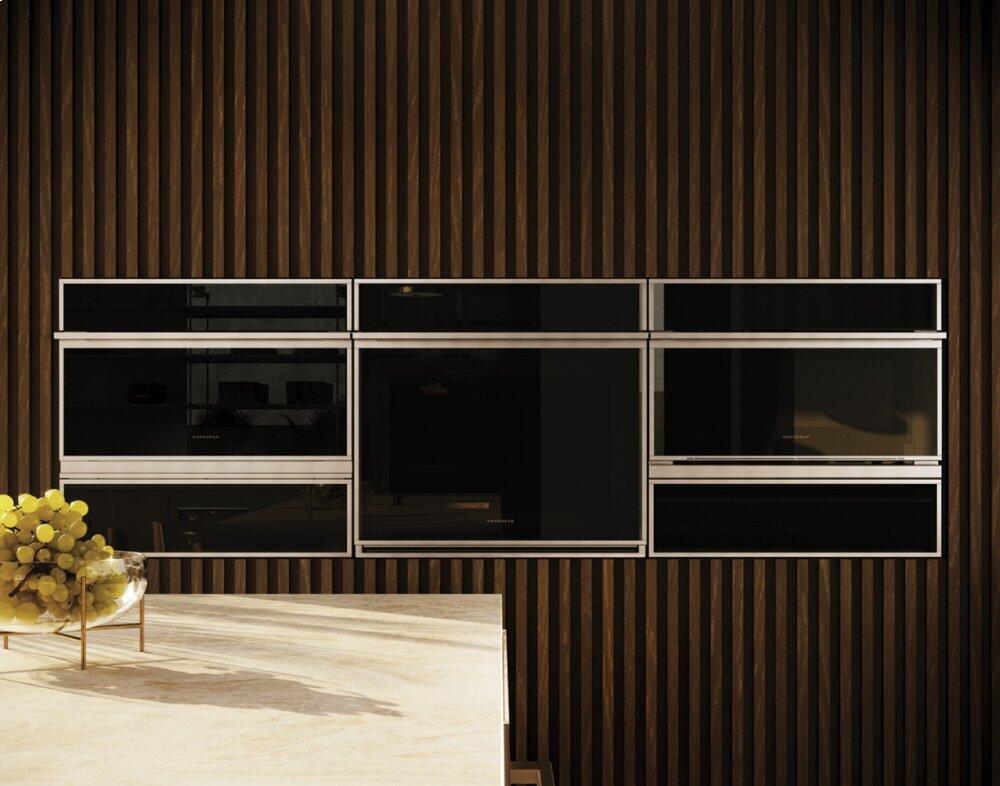

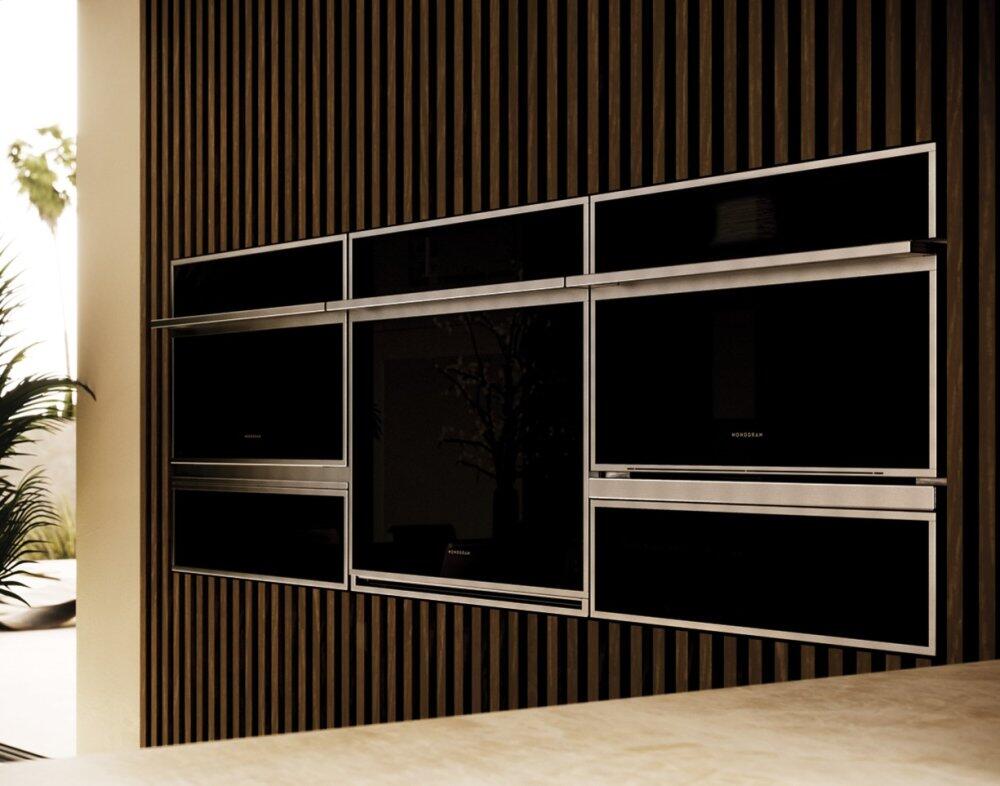

The Monogram Minimalist Collection
Streamlined design and precisely machined metals create a contemporary yet functional aesthetic

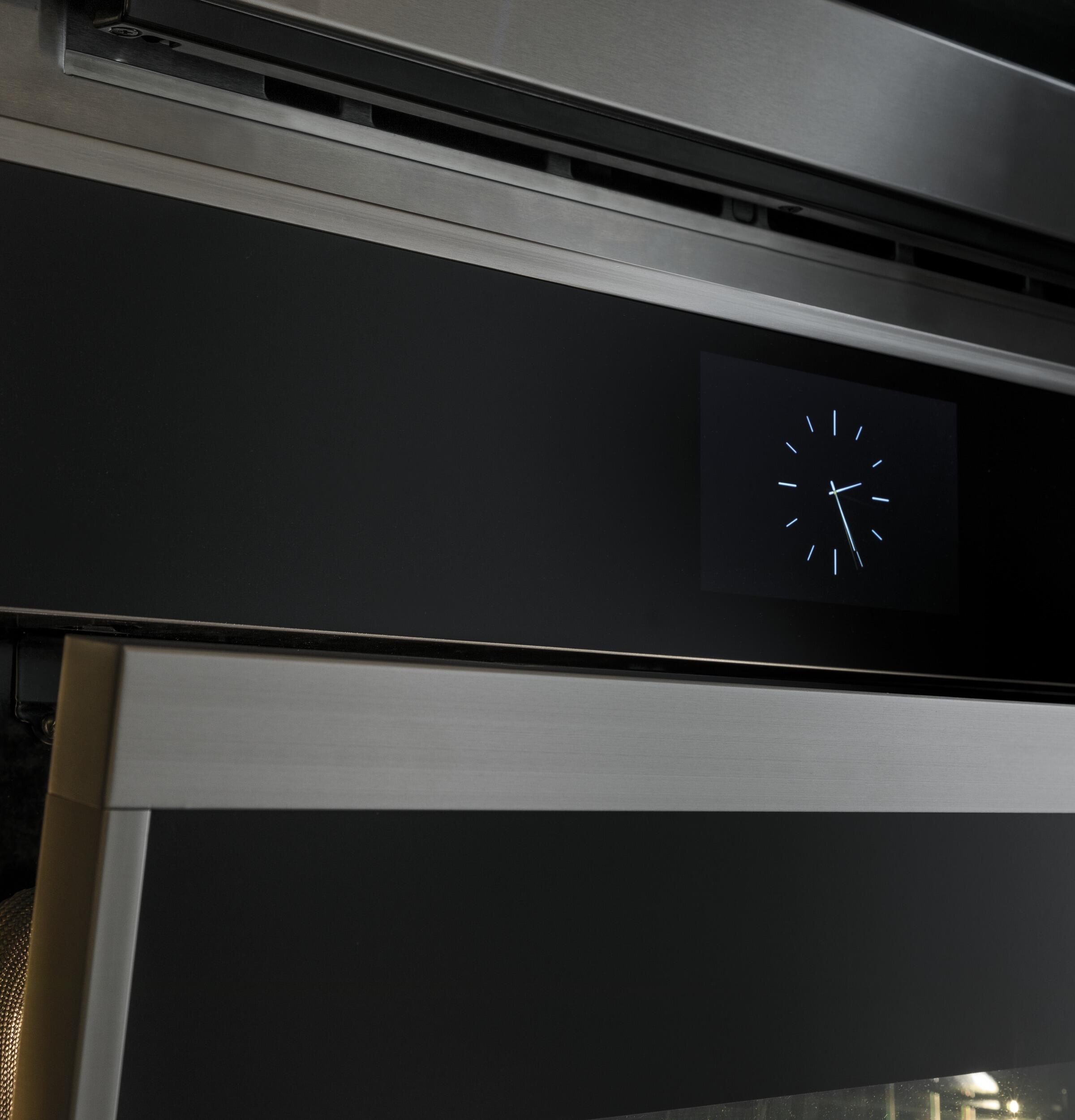

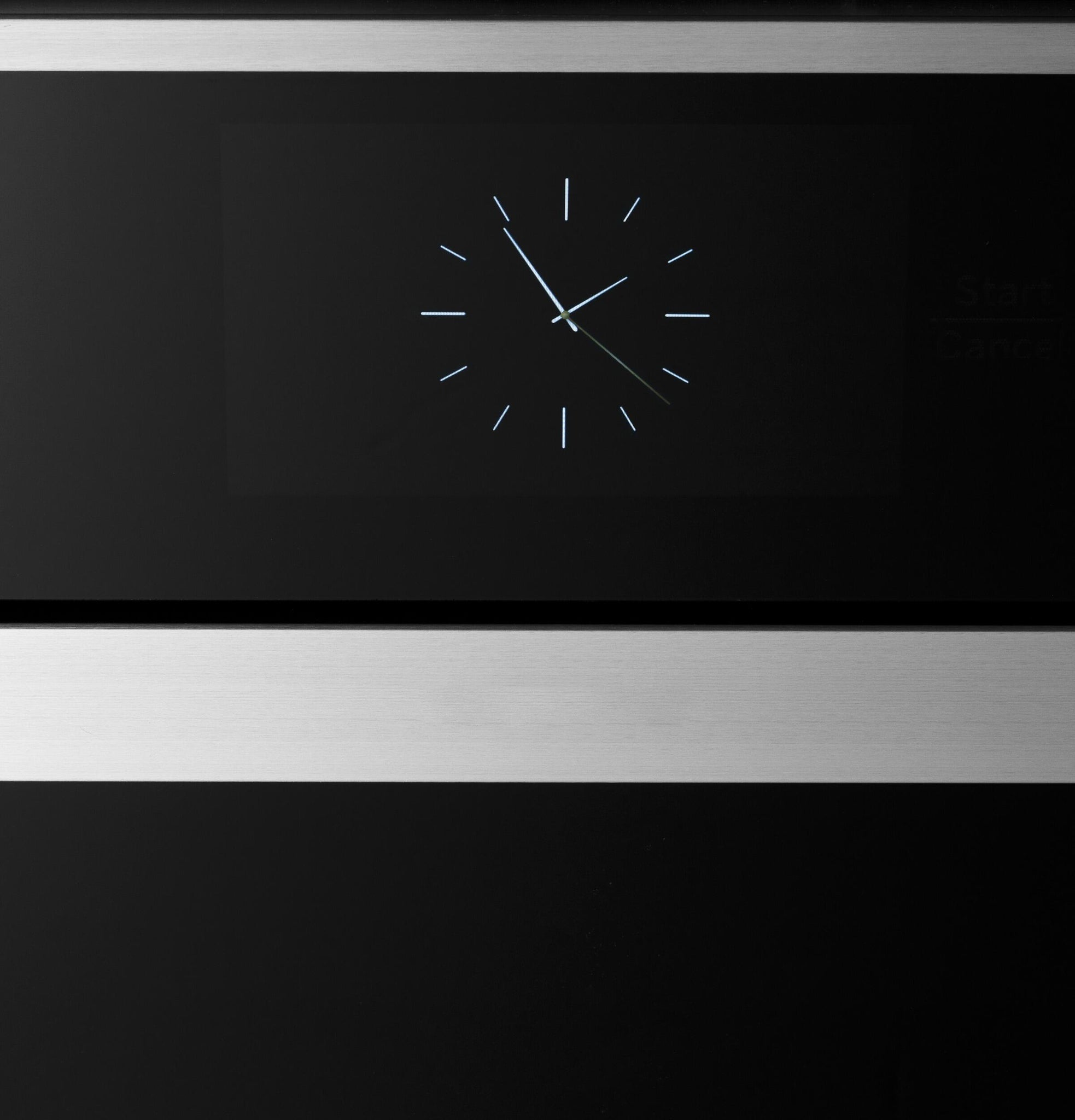

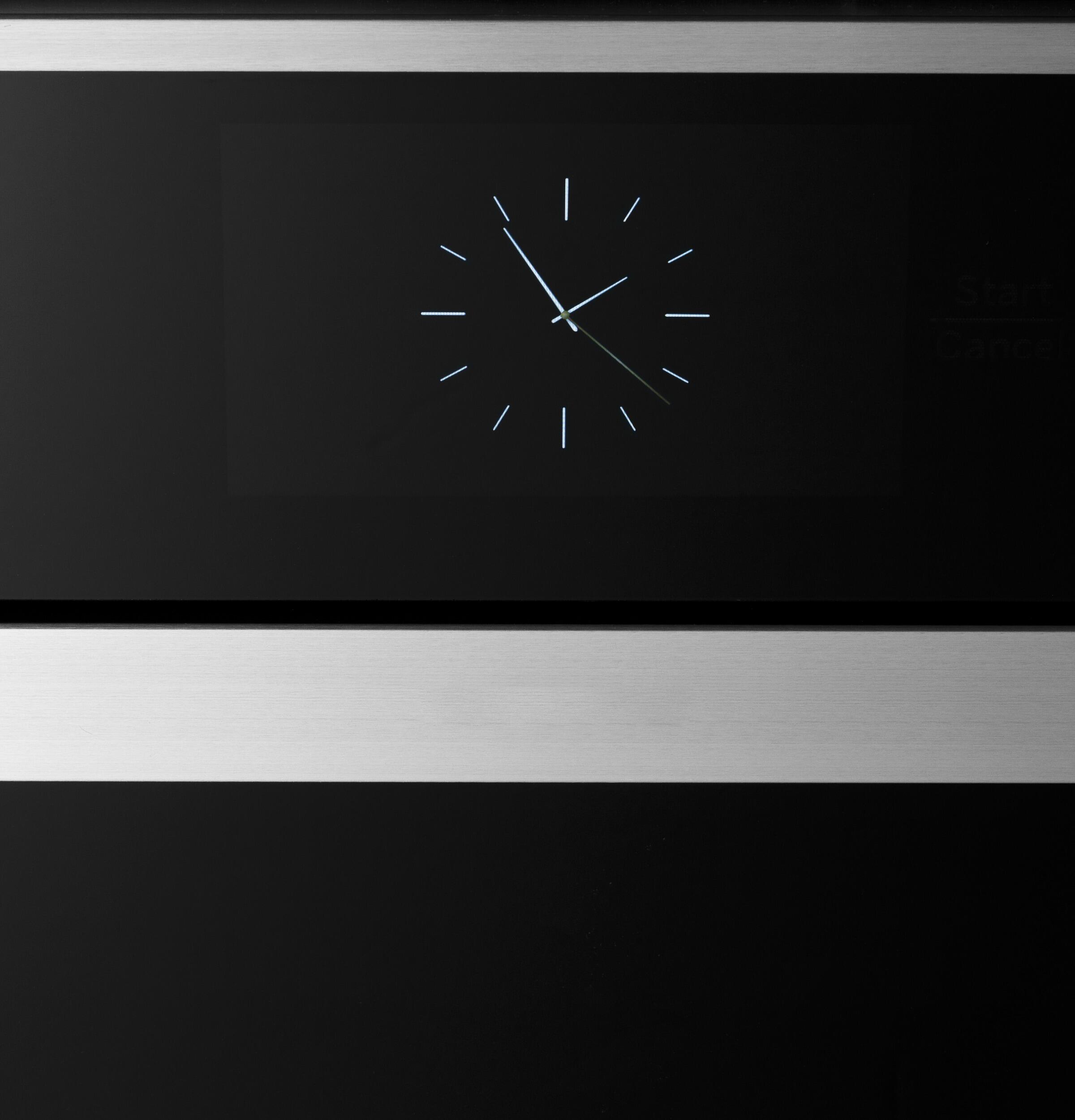

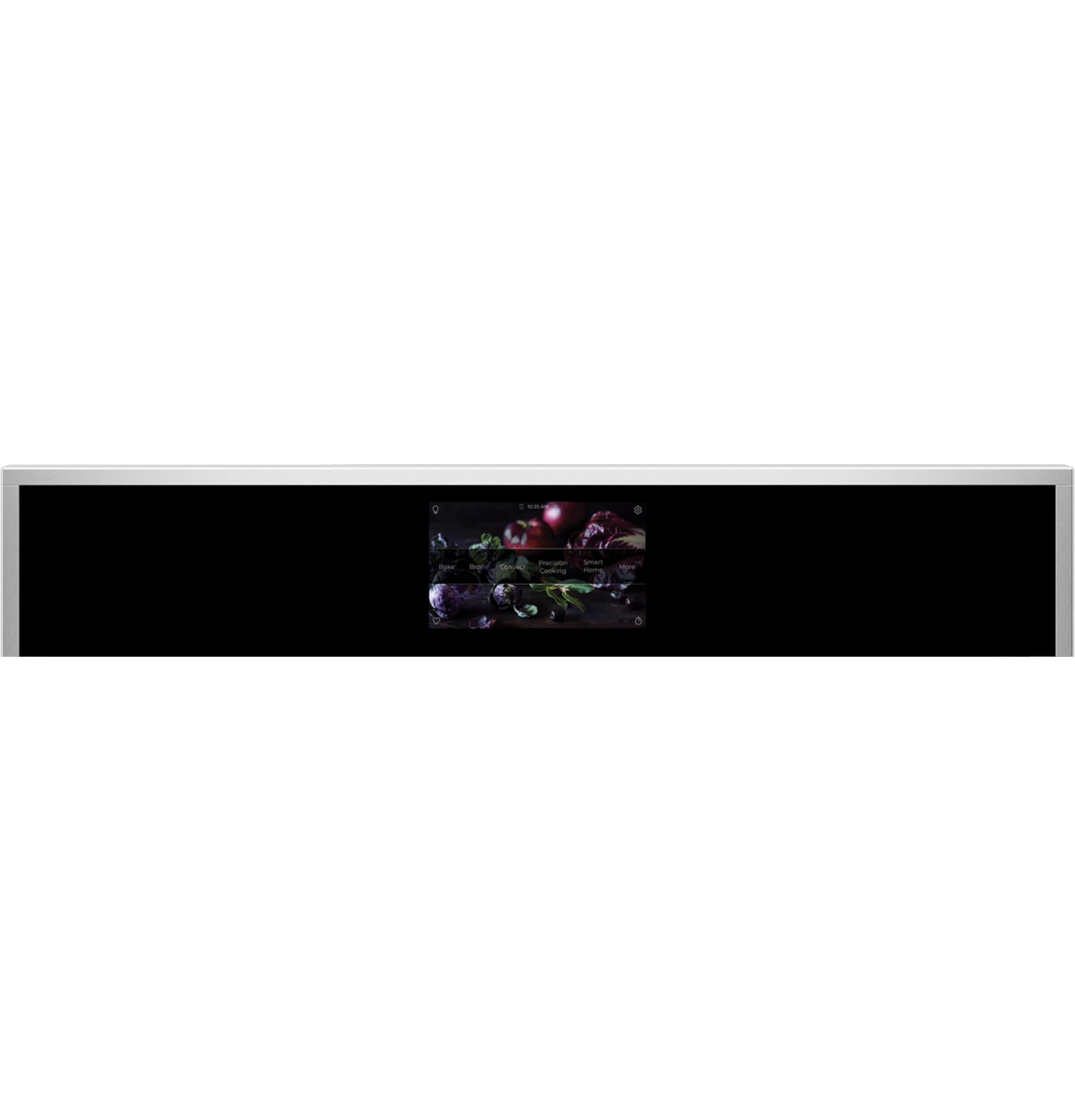

LCD controls
Allow you to adjust oven settings with little effort
WiFi powered by SmartHQ™
Perfectly in sync with a busy lifestyle, Alexa or Google Home can be used to control an array of oven functions from both inside and outside the home
Precision cooking modes
Master new recipes and perfectly execute favorite dishes using this ultra-smart system that automatically tracks cooking progress, modifies temperatures and adjusts cook times
Scan to cook
Innovative and time saving, scan-to-cook technology ensures that packaged foods are always prepared correctly. A simple scan of the barcode with a smartphone delivers consistently, delicious results

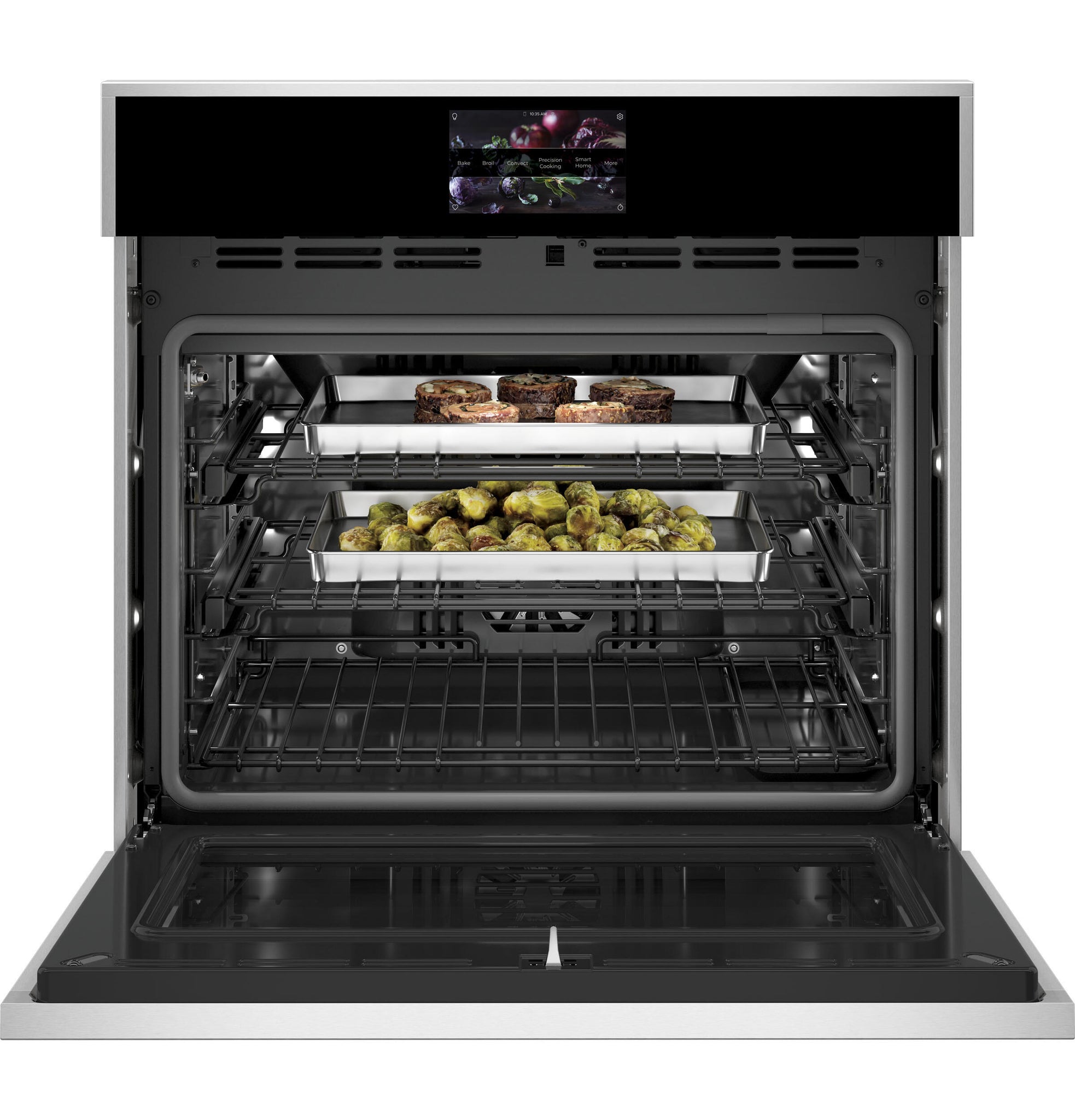

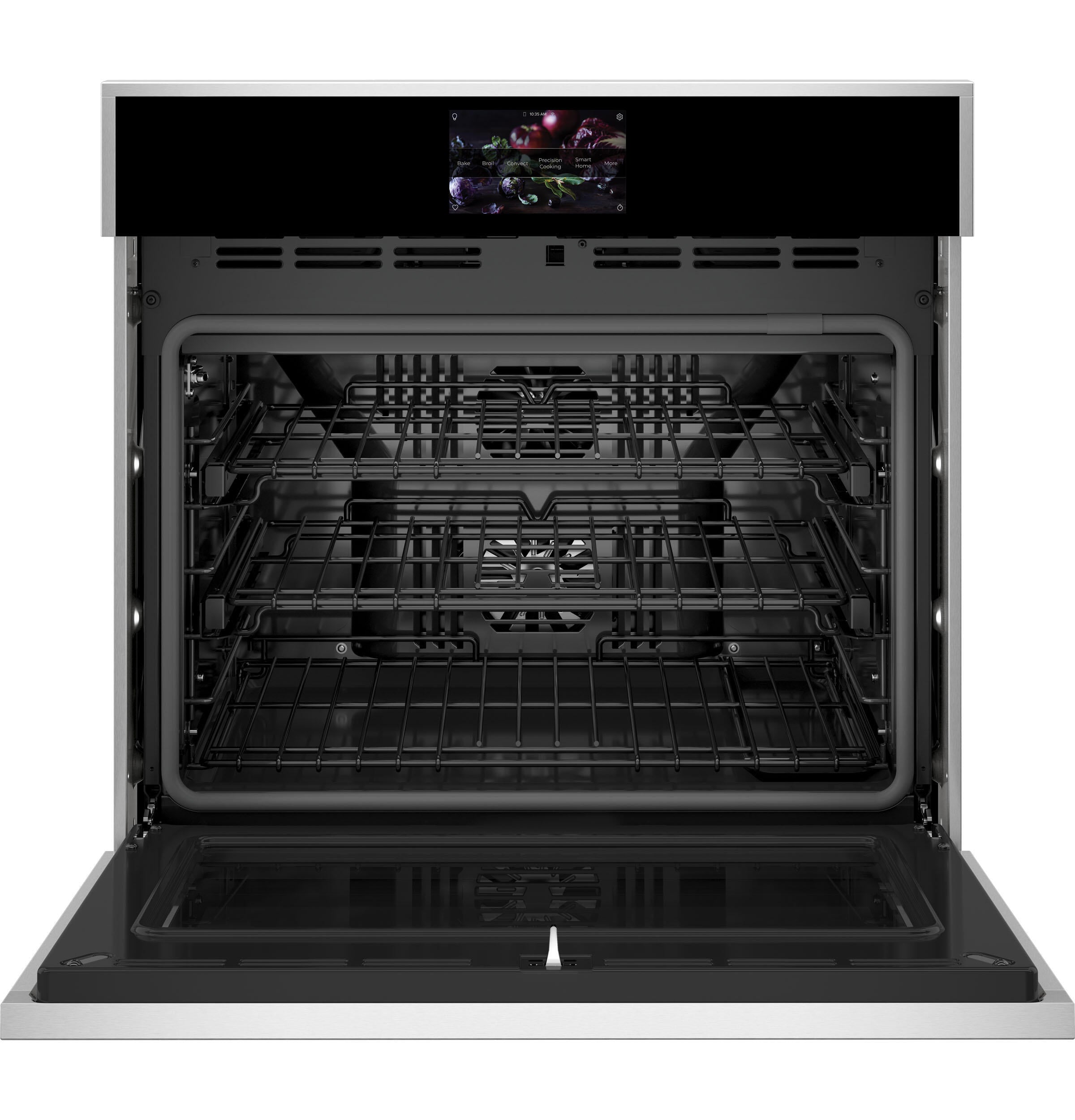

Exclusive self-clean, (2 full-extension, 1 regular) oven racks
Glide in and out smoothly on stainless steel ball bearings, and are designed to be left in the oven during the self-clean cycle
Ten-pass bake element
Covers more surface area for more even baking results
Ten-pass dual broil element
Evenly browns dishes of all types and sizes
Self-clean with Steam Clean option
Gives you flexible options for thorough oven cleaning
- The Monogram Minimalist Collection
- LCD controls
- WiFi powered by SmartHQ™
- Voice Control
- Precision cooking modes
- No-Preheat Air Fry
- Scan to cook
- Twin Convection with Direct Air
- 5.0 cubic foot capacity
- Exclusive self-clean, (2 full-extension, 1 regular) oven racks
- Ten-pass bake element
- Ten-pass dual broil element
- Self-clean with Steam Clean option
- Push-to-open door
CAPACITY | |
Total Capacity (cubic feet) | 5.0 |
FILTER | |
App Filter - Cabinet Width | Cooking 30 in. (Standard) |
App Filter - WiFi Connect | Built-In |
APPEARANCE | |
Installation | Flush Appearance Over Warming Drawer Side-by-Side Under Built-In Advantium Under Built-In Microwave Under Hearth Oven Undercounter |
Design Style | Minimalist Collection |
Frameless Oven Door(s) | Stainless Steel Finish/Appearance |
Color Appearance | Stainless Steel |
POWER / RATINGS | |
KW Rating at 208V | 3.4 |
Bake Wattage | 2850W |
KW Rating at 240V | 4.5 |
Convection Wattage | 2400W |
Broiler Wattage | 4300W |
Amp Rating at 208V | 20 |
Amp Rating at 240V | 20 |
WARRANTY | |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 2-year entire appliance |
Labor Warranty | Limited 2-year entire appliance |
ACCESSORIES | |
Optional Accessories | ZX30VT1 Flush Vent Trim Accessory (Included) |
WEIGHTS & DIMENSIONS | |
Net Weight | 166.0 |
Cutout Dimensions (w x h x d) (in.) | 28-5/8 x 27-5/16 x 23-1/2 |
Overall Depth | 24.6875 |
Oven Interior Dimensions (W x H x D) (in.) | 25 x 17-3/8 x 20 1/4 |
Overall Width | 29.75 |
Overall Height | 28.6875 |
Approximate Shipping Weight | 184.0 |
Cabinet Width | 30.0 |
FEATURES | |
Oven Cleaning Type | Self-Clean with Steam Clean Option |
Cooking System | Twin-Fan, True European Convection with Direct Air Variable Speed, Reverse Air Convection |
Oven Interior | 2 LED Light Columns Black Gloss Finish True Hidden Bake Element |
Oven Rack Features | 1 Self-Clean Heavy-Duty Rack 2 Self-Clean Heavy-Duty, Full Extension Oven Racks 6 Ladder-Rack Positions |
Oven Features | 10-Pass Bake Element 10-Pass Dual Broil Element Closed Door Broiling |
Fuel Type | Electric |
Cleaning Time | Variable with Delay Clean Option |
WiFi Connect | Built-In |
Cooking Technology | Convection |
Connected Capabilities | Amazon Alexa Drop IFTTT Innit Sonos The Google Assistant |
Configuration | Single Oven |
Self-Clean Oven Door Lock | Automatic |
Control Type | 7' Full-Color Touch LCD Screen |
Oven Cooking Modes | Convection Bake Multi-Rack Convection Broil Hi/Lo Convection Roast Dehydrate Keep Warm No-Preheat Air Frying Precision Cooking Modes Proof Thermal Bake Thermal Broil Hi/Lo |
Oven Control Features | 12-Hour Shut-Off Capability Audible Preheat Signal Auto Recipe Conversion Certified Sabbath Mode Control Lock Capability Cook Time C° or F° Programmable Delay Time Electronic Clock & Kitchen Timer Mis-Wire Detection Proof Mode Remote Enabled Scan-to-cook Temperature Probe Warm Mode |
