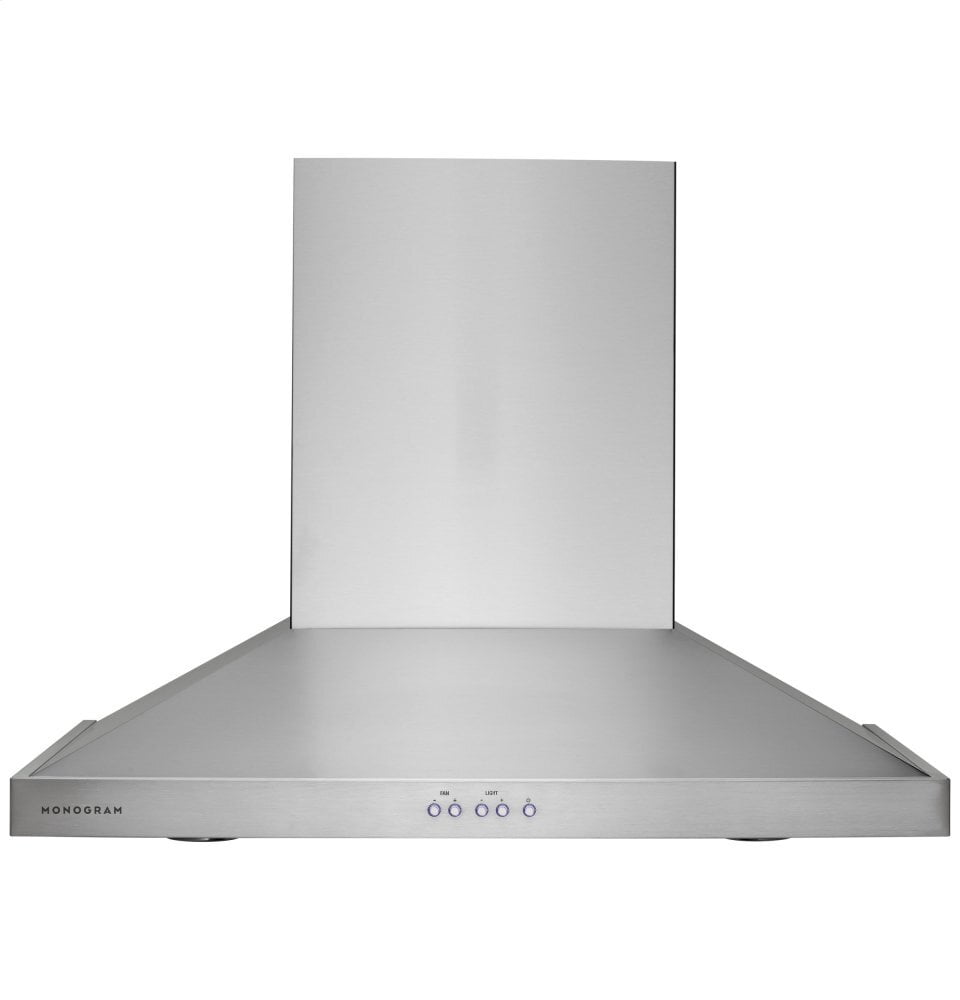

Monogram ZV830SMSS Monogram 30" Wall-Mounted Vent Hood
Powerful ventilation
Offers three speeds plus a 420 CFM boost to capture cooking fumes produced by 30" cooktops
Perimeter filter system
Draws fumes and vapors around a stainless steel center panel, which completely and stylishly conceals filters

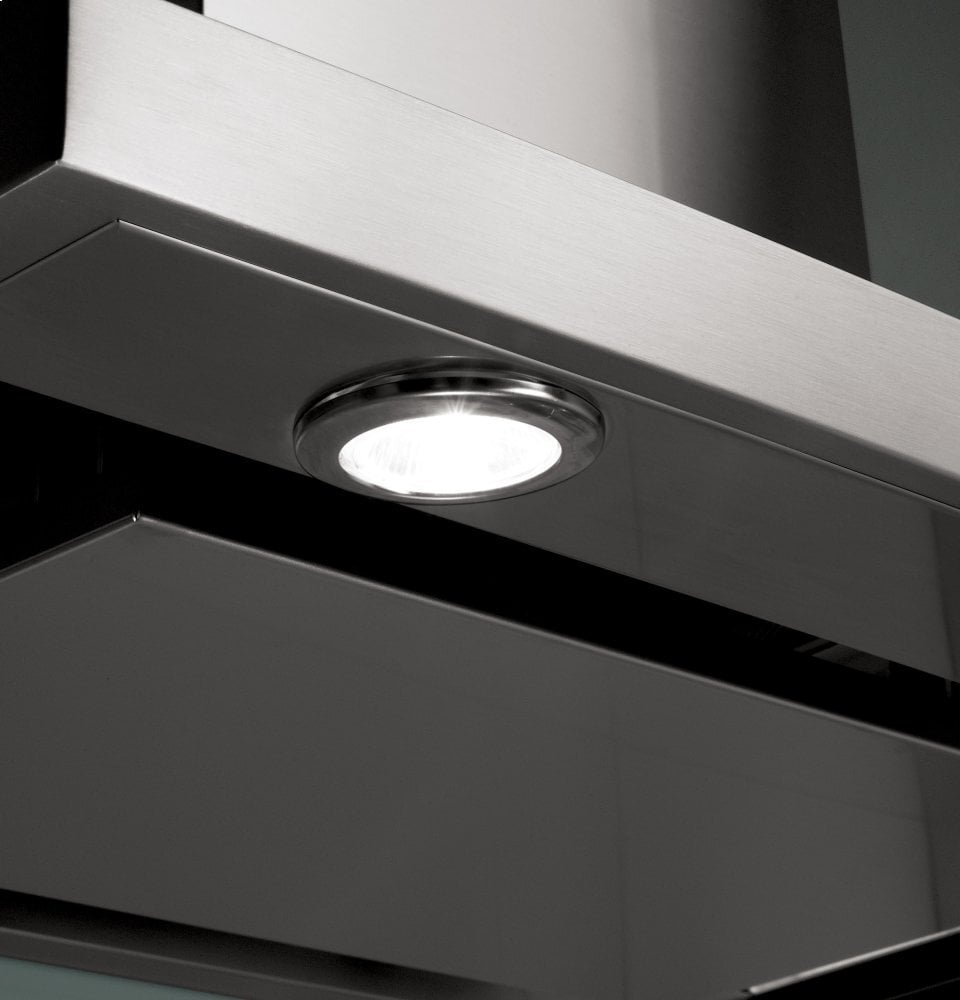

Halogen lighting
Provides four levels of clean, brilliant illumination to suit the cooking task or occasion
Stainless Steel DesignCreates A Striking Architectural Impression With Bold Angles And Smoothly Finished Edges Powerful VentilationOffers Three Speeds Plus A 420 Cfm Boost To Capture Cooking Fumes Produced By 30" Cooktops Perimeter Filter SystemDraws Fumes And Vapors Around A Stainless Steel Center Panel, Which Completely And Stylishly Conceals Filters Halogen LightingProvides Four Levels Of Clean, Brilliant Illumination To Suit The Cooking Task Or Occasion Recirculating-Ready DesignIncludes Reversible Duct Covers For Non-Vented Installations, Eliminating The Need For An Optional Kit
- Stainless steel design
- Powerful ventilation
- Perimeter filter system
- Halogen lighting
- Recirculating-ready design
| APPEARANCE | |
| Exterior Design | Chimney - Wall-Mount |
| Design Style | Chimney |
| Color Appearance | Stainless Steel |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 2-year entire appliance |
| Labor Warranty | Limited 2-year entire appliance |
| POWER / RATINGS | |
| Amp Rating at 120V | 12.0 |
| ACCESSORIES | |
| 8'-10' Ceiling Duct Cover | Included |
| Optional 12' Ceiling Extension | ZX83012 |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 60.0 |
| Overall Depth | 18.875 |
| Overall Width | 29.875 |
| Overall Height | 5.875 |
| Approximate Shipping Weight | 75.0 |
| Cabinet Width | 30.0 |
| FEATURES | |
| Welded / Finished Seams | Yes |
| Removable Filter | Yes |
| Vertical Exhaust Blower Rating (CFM) | 420 |
| Recirculating Capable | Yes |
| Dual Blowers | Yes |
| Lighting Levels | 4 |
| Blower Levels | 4 |
| Variable Speed Fan | Yes |
| Exhaust Options | 8' Round Duct |
| Cooktop Lighting | 2 Halogen |
| Control Type | Electronic Pushbutton |
| Damper in Transition | Yes |
